Product Type	V-Rail Extension Kit
Brand	Extron
Model	SMK VRE 48
Compatible Speakers	Extron SF Series, SoundField XD Series
Span Length	4 ft (1.2 m) tile grid
Material	Metal (steel or aluminum, estimated)
Weight	Approximately 2.5 lb (1.1 kg)
Color	Black (typical)
Included Components	2 extension bars, 4 screws, C-ring assembly
Installation Method	Snap-together interlocks with screws
Primary Function	Extend V-rails to span larger ceiling grids
Safety Compliance	Extron Safety and Regulatory Compliance Guide
Country of Origin	USA (estimated)
Warranty	Refer to Extron warranty policy
Power Requirement	None (passive mechanical accessory)
Operating Temperature	0-40°C (32-104°F), estimated
Storage Temperature	-20-60°C (-4-140°F), estimated
Package Dimensions	Approximately 5 x 5 x 50 in
Tools Required	Screwdriver (screws included)
Mounting Type	Ceiling grid V-rail
Certifications	CE, FCC (estimated)
Manual Languages	English (PDF available)
Part Number	68-3377-50 Rev. B

Frequently Asked Questions - SMK VRE 48 Extron

What is the Extron SMK VRE 48 used for?

The Extron SMK VRE 48 is a V-Rail Extension Kit designed to allow the V-rails that ship with SF Series speakers to span 4' (1.2 m) tile grids.

Is the SMK VRE 48 compatible with SoundField XD speakers?

Yes, the extension bars use the same interlocks as the modular V-rails that ship with SoundField XD speakers, allowing the pieces to snap together.

How do I install the extension bars?

Installation involves fitting the tab on the V-rail end into the slot on the extension end, then opening the extension bar until it locks. Repeat for the other end, then insert the two included screws through each end of the extension bar.

What tools are needed for installation?

Only a screwdriver is needed, as the screws are included with the kit. No special tools required.

How many extension bars are included?

The kit includes two extension bars and the necessary screws to complete the assembly.

What is the weight capacity of the SMK VRE 48?

The weight capacity is not explicitly specified, but it is designed to support the attached speakers securely when installed per the manual.

Can the SMK VRE 48 be used on standard ceiling grids?

Yes, it is specifically designed to span standard 4 ft (1.2 m) tile grids.

Where can I find the full installation instructions?

Refer to the speaker setup guide for complete installation details, and see the Extron Safety and Regulatory Compliance Guide on the Extron website.

Is the SMK VRE 48 easy to disassemble?

Yes, the snap-together interlocks allow for easy disassembly by reversing the installation steps. Remove the screws and unlock the pieces.

Does the kit come with a C-ring assembly?

Yes, the C-ring assembly is included and should be positioned on the two V-rail assemblies so that the C-ring is centered over the hole in the tile.

USER MANUAL SMK VRE 48 Extron

The Extron SMK VRE 48 V-Rail Extension Kit allows the V-rails that ship with the SF Series speakers to span 4' (1.2 m) tile grids. The extension bars use the same interlocks as the modular V-rails that ship with the SoundField ^® XD speakers, allowing the pieces to snap together (see the speaker user manual for further details).

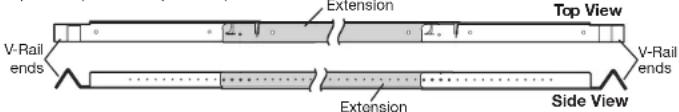

The V-rall extension bar is connected between the two V-rall half sections that come with the speakers (see the steps below).

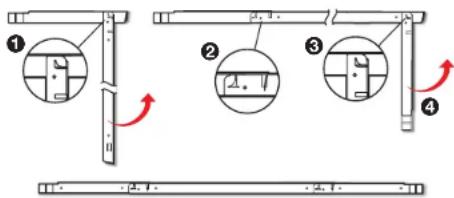

1. Assemble the V-rail to the extension bar by fitting the tab on the V-rail end into the slot on the extension end ①.
2. Open the extension bar until it locks together with the V-rail ②.
3. Assemble the other V-rail end to the extension bar end by fitting the slot on the V-rail end onto the tab on the extension end ③.
4. Rotate the V-rail end until it locks together with the extension bar ④.

Empty white rectangle with a thin black border (no text or symbols)

Empty white rectangle with a thin black border (no text or symbols)

Empty white rectangle with a thin black border (no text or symbols)

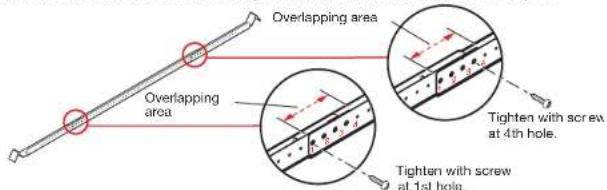

1. Insert the two included screws through each end of the extension bar in step 4.

1. Repeat steps 1 through 5 for the other V-rail extension bar.
2. Position the C-ring assembly on the two V-rail assemblies so that the C-ring is centered over the hole in the tile.
3. Secure the C-ring to the V-rail assemblies using two screws that came with the speakers.
4. Refer to the speaker setup guide for complete installation details.

See the Extron Safety and Regulatory Compliance Guide on the Extron website.

© 2019 Extron Electronics. All rights reserved. www.extron.com

68-3377-50 Rev. B

04 19
