Product Type	Undercounter Wine Cooler
Model	XOU15WGO (XOU15WGOR / XOU15WGOL)
Width	15 inches (approx. 38 cm)
Depth	Approx. 23 inches (58.4 cm) plus overlay panel
Height	Standard undercounter height (approx. 34 inches / 86 cm)
Electrical Requirements	115V, 60Hz, 15A dedicated circuit
Temperature Range	41°F to 64°F (5°C to 18°C)
Capacity (Bordeaux bottles)	34 bottles (750 ml)
Capacity (Burgundy bottles)	18 bottles (750 ml)

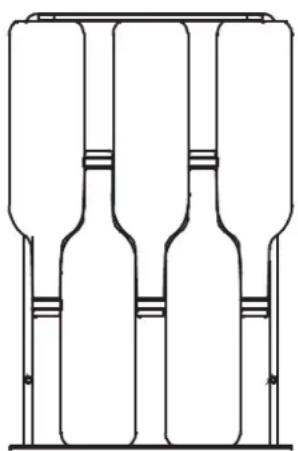

Shelves	6 shelves (5+1+4 arrangement), each holds up to 5 bottles
Control Type	Digital touch panel with LED display
Lighting	Tricolor LED (White, Midnight Blue, Honey Amber)
Eco Mode	Yes, energy-saving mode
Sabbath Mode	Yes, disables responses to user actions
Demo Mode	Yes, for display purposes
Temperature Display	Fahrenheit or Celsius (toggle by holding +/- buttons)
Refrigerant	R600A (flammable)
Air Filter	Charcoal filter (P/N: XOUAIRFILTER), replace every 3-6 months
Cleaning Instructions	Use mild detergent and soft cloth; avoid ammonia, alcohol, abrasives
Warranty	90-day love it or leave it; 2-year parts & labor; 5-year compressor (with registration)

Frequently Asked Questions - XOU15WGO XO

What is the temperature range of the XOU15WGO wine cooler?

The temperature can be set between 41°F and 64°F (5°C to 18°C).

How many wine bottles can this model hold?

It holds up to 34 Bordeaux bottles or 18 Burgundy bottles (750 ml each).

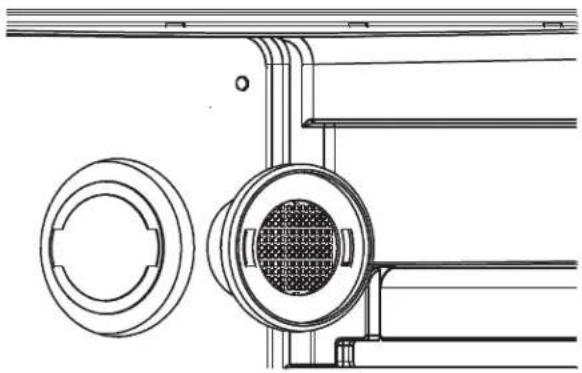

How do I change the charcoal filter?

Rotate the filter 1/4 turn to unlock, pull it straight out, align the tabs of the new filter, insert, and rotate 1/4 turn to lock.

What should I do if the unit has no power?

Check if a fuse has blown or circuit breaker tripped. Ensure the plug is fully inserted. If a power surge occurred, unplug the unit for 5 seconds and plug it back in.

Why is condensation forming inside or outside my wine cooler?

Condensation may occur if the door is not closed properly or if ambient humidity is high. It will clear when humidity drops.

How do I adjust the temperature?

Press the + or - buttons on the control panel. The display will flash; each press changes the setting by 1 degree. After 5 seconds, it shows the current interior temperature.

How do I switch from Fahrenheit to Celsius?

Press and hold both the + and - buttons simultaneously for 5 seconds to toggle between Fahrenheit and Celsius.

What is Sabbath Mode and how do I activate it?

Sabbath Mode disables responses to user actions for religious observance. To activate, press and hold the two designated buttons for 5 seconds until 'Sb' or 'Sb On' appears. Repeat to deactivate.

How do I level the wine cooler?

Rotate the four leveling legs at each corner until all legs are firmly on the floor and the unit is level front-to-back and side-to-side.

What does the alarm beep mean when 'HI' or 'LO' is displayed?

'HI' indicates the internal temperature has exceeded 70°F for over 60 minutes. 'LO' may indicate a sensor malfunction. Unplug and call for service if the issue persists.

USER MANUAL XOU15WGO XO

EVERY THING YOU NEED TO KNOW ABOUT YOUR

XOU15WGO

I worked really hard on this manual - so please read it...

UNDERCOUNTER

When buying any XO appliance you can be confident you have chosen a high quality, innovative and stylish product from a company that cares about you!

If you require service

or have questions,

Help is only a phone call away -

call: 973-403-8900

Talk to one of our undercounter experts.

WHERE THINGS ARE

Before You Get Started

4 - 7

Installer Checklist

Find Your Model

Safety Instructions

Electrical and Grounding Instructions

Installation Instructions

8 - 13

Sizes and Installation Dimensions

Integrated Panel Dimensions

Leveling Your XO

Operating Instructions

14 - 19

Product Overview

Control System Overview

Setting the Temperature

Functions

Wine and Beverage Storage

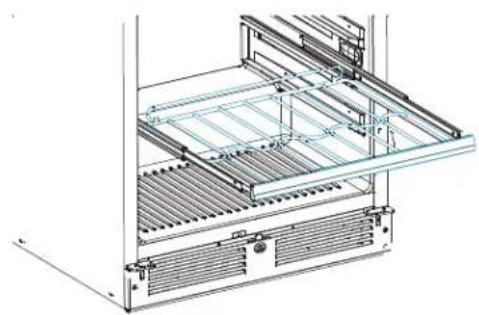

Shelf Instructions

Care and Cleaning

20 - 21

Helpful Hints

Cleaning the Interior / Exterior

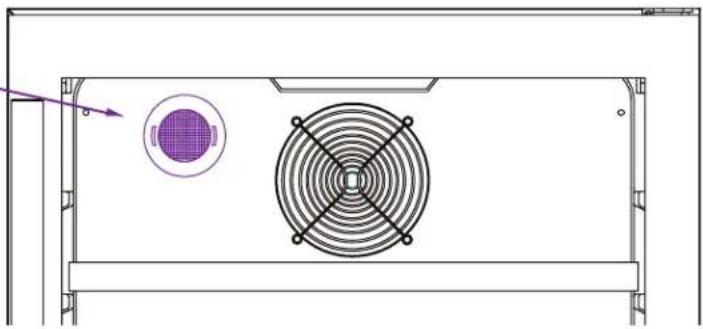

Changing the Carbon Air Purification Filter

FAQ's

22 - 23

Before You Call For Service

Warranty

PLEASE READ AND FOLLOW

ALL SAFETY INSTRUCTIONS

It's for your own good... Honest.

XO

DEAR INSTALLER

THE JOB ISN'T DONE UNTIL

To ensure that the installation process is successfully completed, here are few things to review...

Is the unit plugged in?

Are the controls on? (Panel will illuminate.)

Are the controls operating correctly?

Has the unit been properly leveled - both side to side and front to back - with all 4 leveling feet securely making contact with the floor?

This is an OVERLAY unit - have the panels been securely attached and properly aligned?

○ After installation, does the door open sufficiently to fully extend the shelves?

Is the door sealing properly?

Is the handle secure?

Have you thoroughly inspected all surfaces for any imperfections?

Have you reviewed this manual with the customer and explained the unit's operation and care?

Has the customer received copies of the literature and keys?

Have you properly disposed of all packing materials properly (recycle, please)?

Is the custo mer satisfied?

DANGER

RISK OF CHILD ENTRAPMENT!

An empty refrigerator is a very dangerous attraction to children.

Remove door gaskets, latches, lids, lock and/or doors from unused or discarded appliances, or take other actions to guarantee them harmless.

Always dispose of old appliances in accordance with local laws and regulations.

THESE ARE THE MODELS COVERED IN THIS

BOOK

WINE COOLER

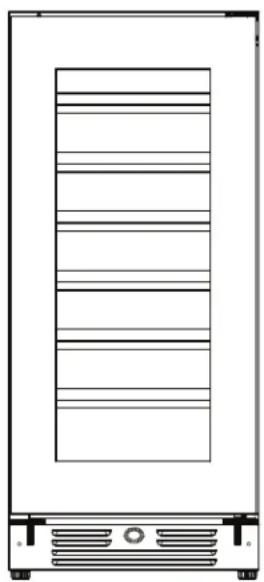

Front view line drawing of a vertical refrigerator with horizontal shelves and ventilation grilles (no text or symbols)

XOU15WGOR

XOU15WGOL

TAKE A MINUTE TO CIRCLE YOUR MODEL ABOVE AND RECORD YOUR SERIAL NUMBER HERE IN CASE YOU NEED IT LATER

YOUR SAFETY MATTERS

Please read through completely before using your XO Unit

To prevent damage to the door gasket, the door must be opened all the way before pulling shelves out.

The appliance must be positioned so that the plug is accessible.

Empty your XO unit before attempting to move the appliance. Moving while loaded may damage or distort the frame.

The compressor will get HOT during operation / touching it may cause injury.

During installation follow all safety tips provided in this manual / appropriate safety equipment such as safety glasses and work gloves should be worn.

Two people should move or lift your XO unit to prevent injury or damage.

Remove all interior and exterior packing materials prior to installation and dispose of properly.

Never cover the bottle racks with foil or other material which will impede internal air circulation.

For maximum efficiency, keep the door tightly shut unless loading or unloading and never overload your XO unit.

Before installing, allow your XO unit to sit upright for 2 hours at the install site. This will allow the cooling system to stabilize after transportation. Failure to follow this step may cause problems.

Never store perishable food products such as meat or cheese in your wine cooler or beverage center.

Location

Your XO unit should be located away from direct sunlight and heat sources (stove, heaters, etc.) which may increase electrical consumption. High or low ambient temperature may cause units to work improperly.

The floor must be strong enough to support your XO unit fully loaded.

Your XO unit must not be installed in areas of where water or excessive moisture are present.

Your XO unit must not be installed near where flammable, corrosive or hazardous materials are present.

Your XO unit's final installation must observe the correct minimum air clearances around and behind the unit to ensure adequate ventilation. In addition, all ventilation openings must be kept clear and free of obstructions, failure to do so will result in damage to the unit.

WARNING

NEVER use external heat sources to accelerate defrosting

NEVER permit unauthorized service or modifications to your XO unit

NEVER tamper with the sealed refrigerant system - this unit uses R600A Refrigerant which is flammable.

It should never be used in the vicinity of any flammable or explosive ignition sources.

ALWAYS FOLLOW THE ELECTRICAL SAFETY INSTRUCTIONS OUTLINED IN THIS MANUAL.

ELECTRICITY - THIS IS SERIOUS

Failure To Follow All Electrical Safety Measures May Result in Serious Injury, Fire Or Death

All electrical work should only be performed by an experienced, licensed electrician.

All XO units MUST be grounded for safe operation and come equipped with a 3 Prong molded cord/plug for that purpose.

NEVER remove or disable the 3rd prong with an adapter.

NEVER use an extension cord to operate your XO unit.

Black electrical plug with a red prohibition symbol crossed out by a black cord (no text or symbols on the plug itself)

Your XO unit is built to operate on 115V 60Hz and should be plugged directly into a dedicated 15 amp 3 prong outlet. If you are uncertain as to the voltage, amperage capacity or if the 3rd prong is properly grounded - consult a licensed electrician.

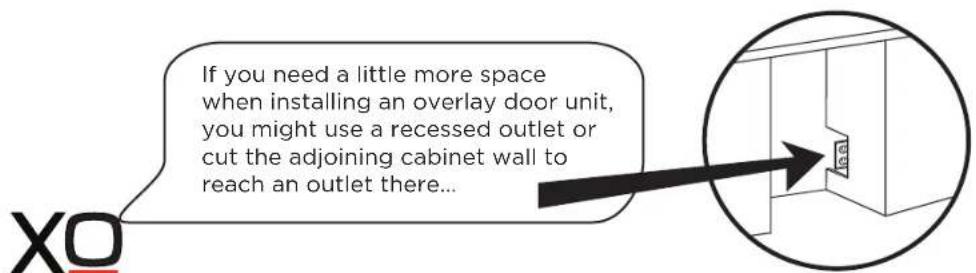

To maximize the depth of the installation recess - your outlet should be mounted flush with the wall.

Your XO unit should not share the circuit with any other electrical devices as this may cause overloading, overheating, blown fuses or tripping circuit breakers. In a worst case this can pose a fire hazard.

NEVER handle your XO unit in wet conditions as this can pose a severe danger of electric shock.

Exercise care when moving your XO unit to avoid damage to the electrical cord. If the electrical cord of your XO unit becomes worn or damaged it must be replaced immediately by a qualified technician.

NEVER unplug your unit by pulling on the cord. Unplug by gripping the plug firmly and pull out straight from the outlet.

INDOOR USE ONLY:

This model is intended for indoor/interior applications only and is not to be used in installations that are open/exposed to natural elements.

This unit is designed to operate between 60^ F and 90^ F. Higher ambient temperatures may reduce the unit's ability to reach low temperatures and/or reduce performance.

For best performance, keep the unit out of direct sunlight and away from heat generating equipment. In climates where high humidity and dew points are present, condensation may appear on outside surfaces, particularly in non air conditioned spaces. This is considered normal. The condensation will evaporate when the humidity drops.

CAUTION

Damages caused by ambient extremes are not covered by the warranty

SERVICE 115V - 60 Hz - 1 phase AMPS 15 Amp Circuit Breaker Requires a Dedicated Outlet All electrical work must be performed by a licensed electrician

State of California Proposition 65 Warning (US only) ⚠ WARNING

This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Serious injury, fire or death... Okay - You've got my attention!

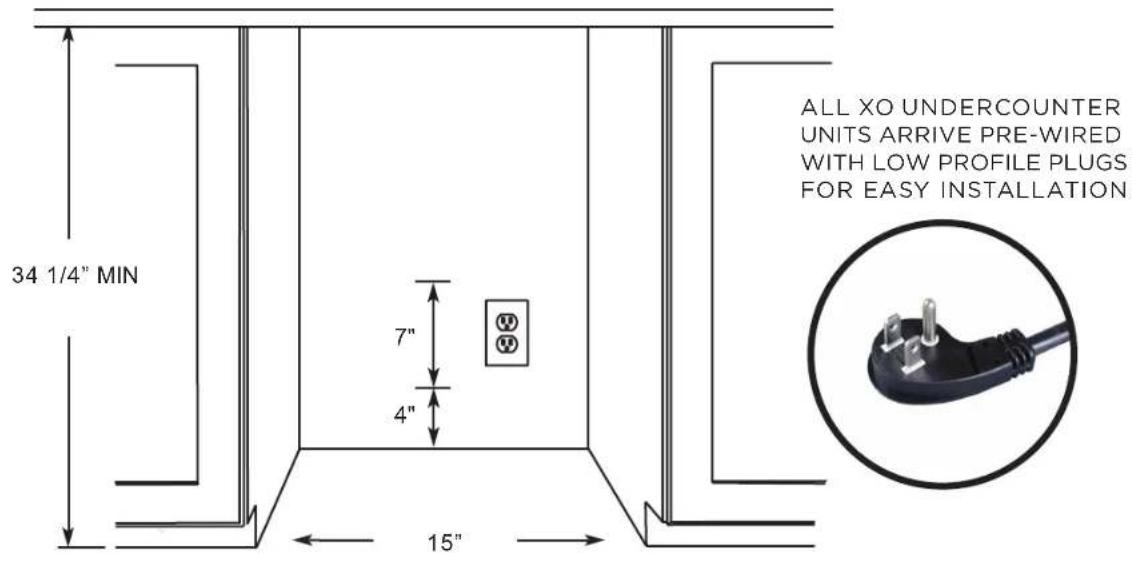

A PERFECT FIT

USE FREE STANDING - OR - INSTALL UNDER COUNTER

WHEN INSTALLING WITH

THE DOOR STOP IS SET AT 110° - BUT CAN BE RESET TO 90° OR 140° IF NEEDED.

IF THE DOOR CAN'T OPEN FULLY - YOU CAN'T PULL THE SHELVES OUT.

A PERFECT FIT

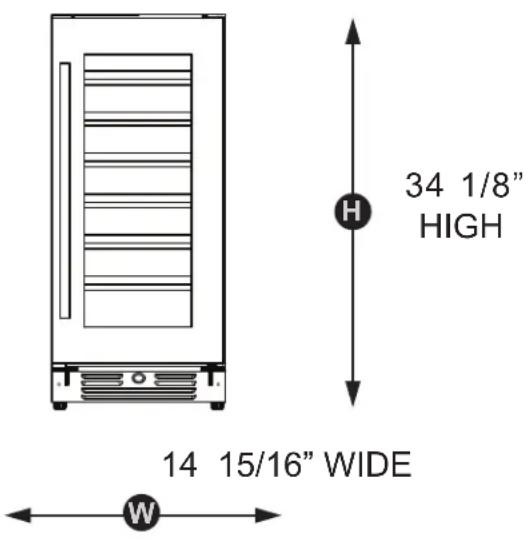

YOUR XO IS THIS BIG ( OR SMALL, AS THE CASE WOULD BE )

HEIGHT & WIDTH

XOU15WGOR & XOU15WGOL 15" WINE COOLER

DEPTH

MODELS WITH OVERLAY DOORS

CUSTOM OVERLAY PANELS MAY ADD UP TO 3/4" IN OVERALL DEPTH YOUR CHOICE OF CABINET HANDLES WILL ALSO ADD DEPTH

LET'S FACE IT

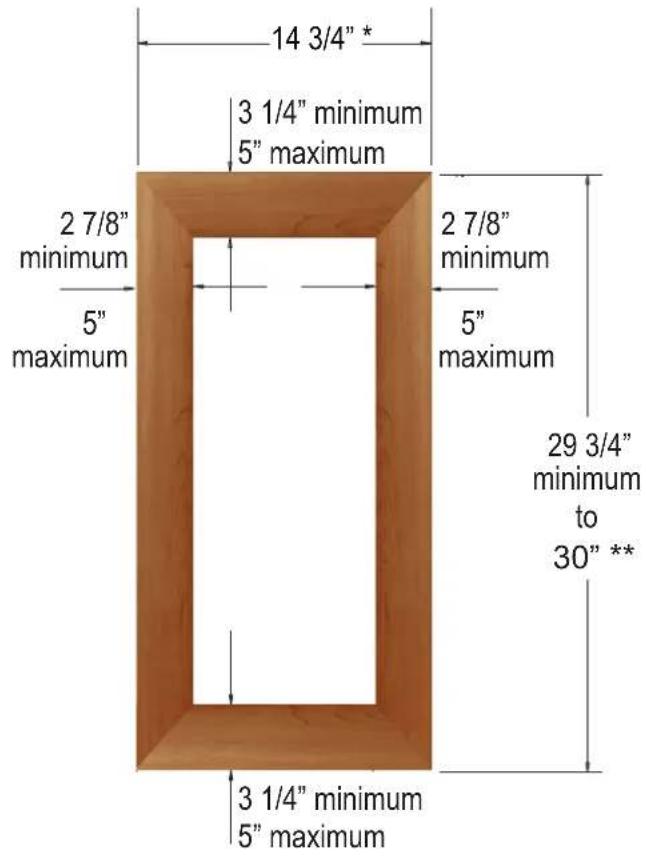

OVERLAY PANEL DIMENSIONS XOU15WGO

* IF FRAME WIDTH EXCEEDS 23 3/4" WHEN MOUNTING TO THE DOOR ALIGN THE FRAME EVEN WITH THE HINGE SIDE, LETTING THE EXCESS OVERHANG THE HANDLE SIDE TO AVOID INTERFERENCE WITH THE ZERO CLEARANCE HINGE.

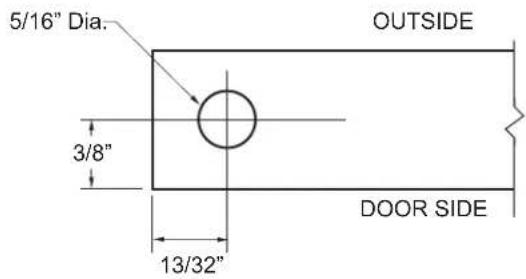

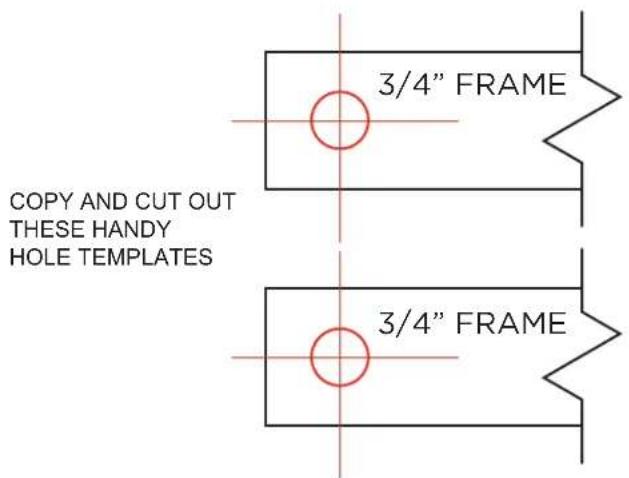

TO ACCOMMODATE THE HINGE PINS ON THE HINGE SIDE OF THE PANEL Drill a hole at least 5/16" in diameter and 1" deep into the top and bottom of the frame in the location shown.

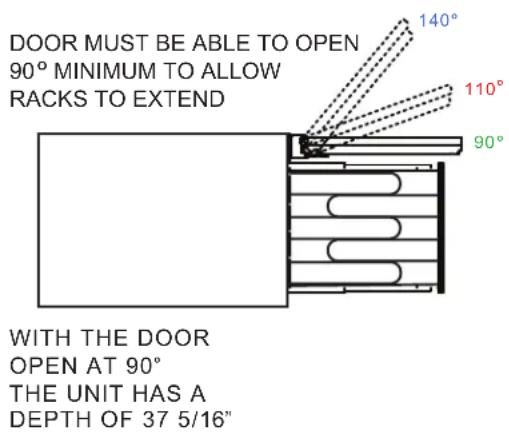

AFTER INSTALLATION UNDERC OUNTER, OVERLAY DOOR MUST BE ABLE TO OPEN 90.

PANEL MAXIMUM WEIGHT: 20 lbs.

* FOR CABINET DOORS LONGER THAN 30" - CONSULT XO.

LET'S FACE IT

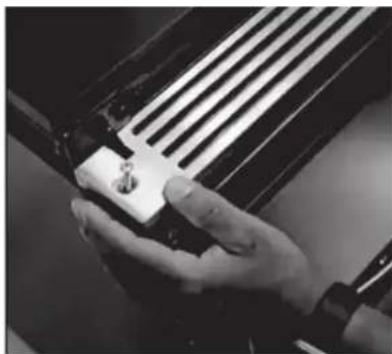

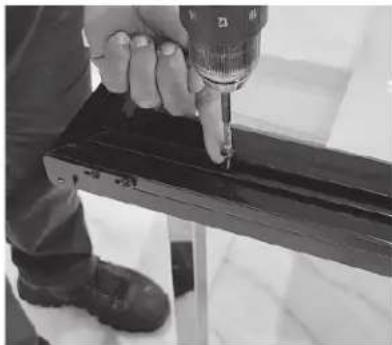

BEFORE BEGINNING - REST THE UNIT ON ITS BACK, WITH THE DOOR FACING UP

1. Remove the two screws that hold the toe kick in place. Remove the toe kick and set aside.

2. Remove the three screws holding the lower hinge in place. Remove the hinge and set aside.

3. Pull the door down away from the upper hinge to remove it and lay it flat face down on a pad to prevent scratches.

4. Starting at one corner, gently pull the rubber door gasket out of the channel. Lay it aside, flat. You will reinstall it shortly. In the channel are 10 screw holes.

5. Attach your door handle to the frame, countersinking the screw heads so the frame lays flat against the door..

6. Align the frame to the door. If the frame is wider than the door, set the frame flush with the hinge side of the door, let the other side overhang the door and clamp securely.

7 Using the (10) ST4-30 self-tapping screws supplied securely fasten the frame to the door. Do not over tighten as screws may strip out. WARNING: Screws are sized for 3/4" panel, DO NOT USE these screws for thinner panels.

Close-up of a hand pressing down on a guitar fretboard (no visible text or symbols)

Close-up of hands adjusting a black mechanical component (no visible text or symbols)

Close-up of a person using a drill bit on a metal bracket (no visible text or symbols)

LET'S FACE IT

1. Remove the clamps and re-install the rubber gasket by pressing it into the slot making sure it is evenly seated.
2. Place the door back in position and slide to up onto the upper hinge pin, then square it up with the cabinet.

OPTIONAL

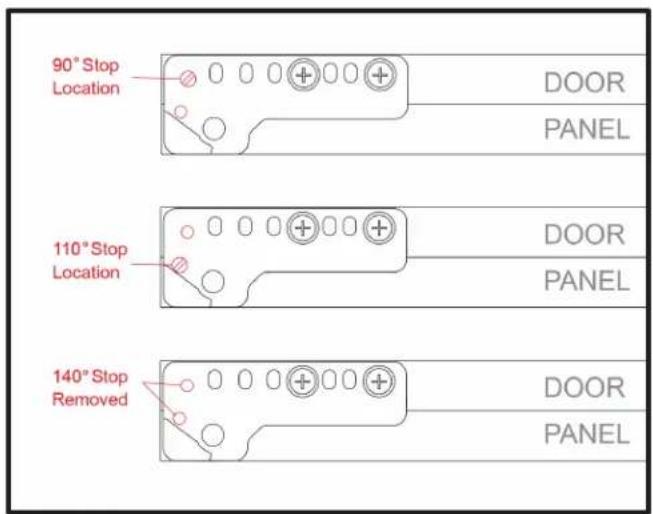

The door hinge stop is set at 110^ . While the door is off, you can change it to either 90^ or 140^ .

Simply change the position of the stop screw in the lower hinge plate as shown.

1. Replace the lower hinge using the three screws removed in Step 2.
2. Replace the toe kick using the two screws removed in Step 1.

If the door requires adjustment, the top and bottom hinge each have adjustment screws.

Loosen the screws, then with the door open, raise the handle side to level and re-tighten the screws.

WATCH THE INSTALLATION VIDEO ON OUR CHANNEL

https://www.youtube.com/channel/UCT-lp-dM9hoPydpxZfrZzRA www.xoappliance.com

Diagram of a server rack with ventilation fans and a highlighted internal component (no text or symbols)

Rotate to raise or lower the LEVELING LEGS located at each of the four corners until all four legs are seated firmly on the floor and the interior floor of the unit is level both front to back and side to side.

Failure to follow this important step may cause problems with proper door operation, excessive condensation, vibration and noise.

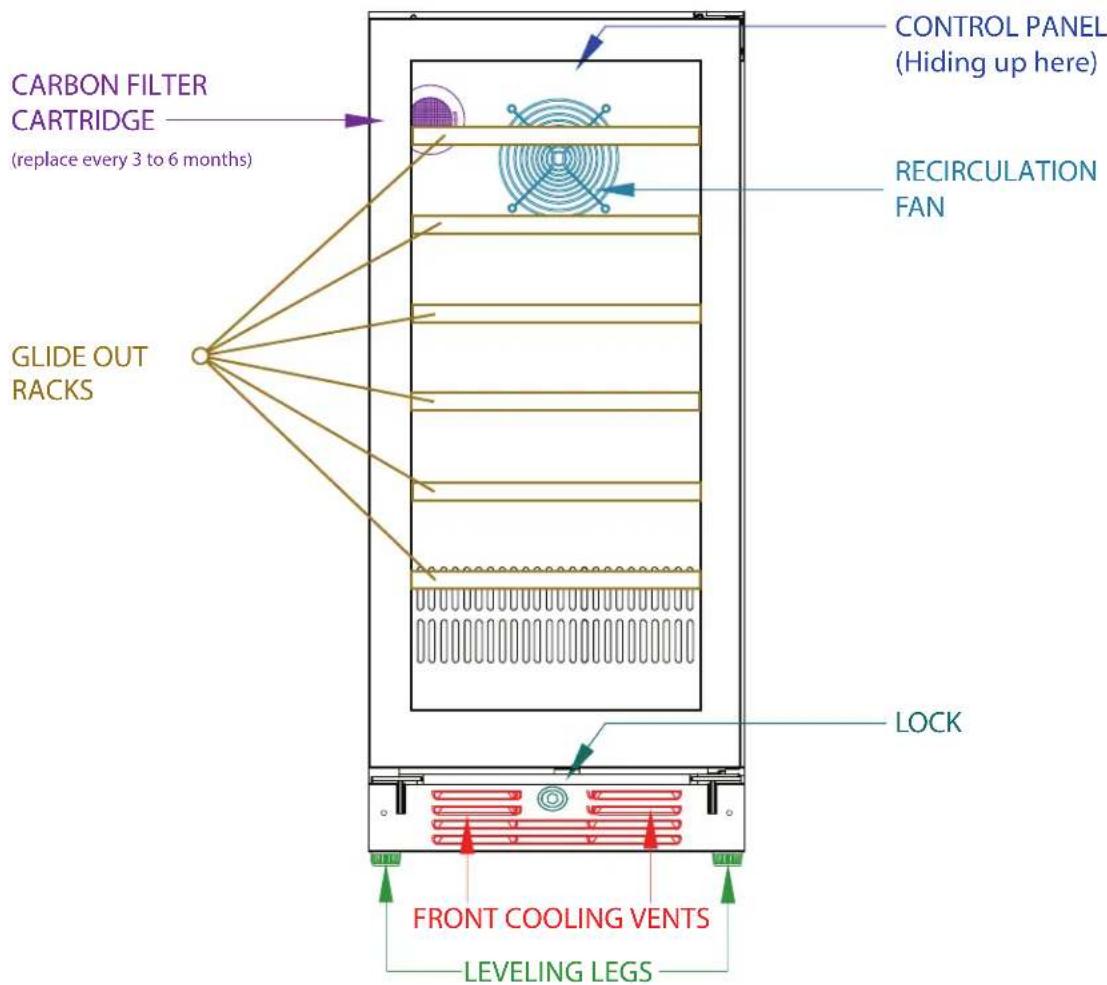

MEET YOUR XO

WINE COOLER XOU24WGO_

WHAT'S THAT NOISE...

You new XO is designed for quiet operation but you may hear some sounds your old unit didn't make. Because they are new you might be concerned, but they are usually normal. Sounds can also be amplified by hard surfaces like flooring or tiles. Here is a description of the types of sounds you might hear and what might be causing them.

You unit is designed to minimize energy use. To do that the high efficiency compressor and fans may run longer than your old unit. You might also hear a pulsating or high pitched sound as the compressor and fans adjust to improve performance. During defrosting cycles you may hear some water running into the drip pan. The refrigerant may sometimes cause a rattling or gurgling sound as it flows through the system and the you might hear clicking sounds as the unit starts and stops.

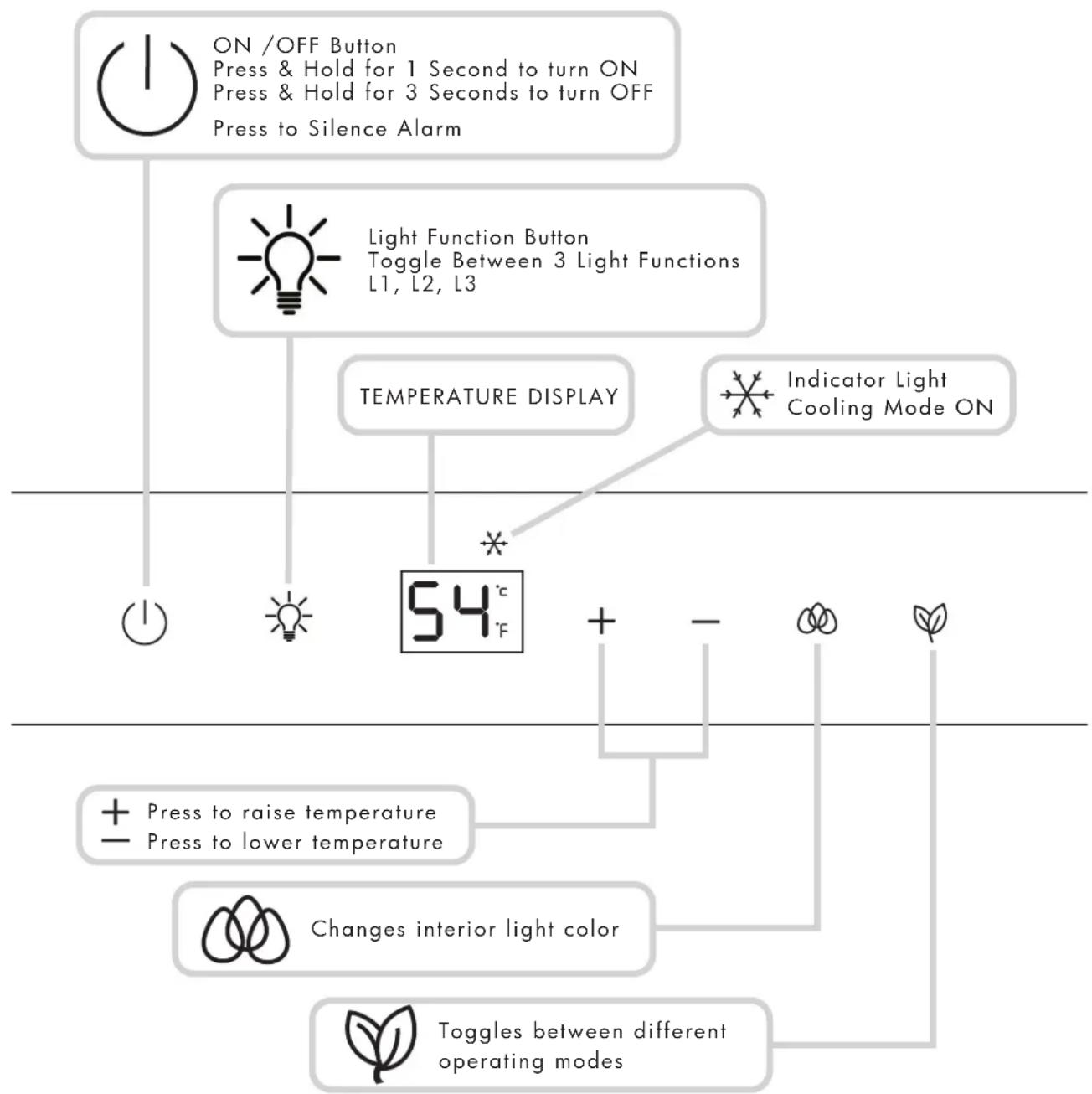

TAKE CONTROL

TEMPERATURE

Your XO Wine Cooler has and easy to use digital touch control panel.

Wine Cooler Temp. Settings Adjustable Range: 41°F to 64°F

Your XO wine cooler remembers your last temperature setting in case of a power failure and automatically adjusts to the previous setting when power is restored.

When the +/- button is pressed, your wine cooler automatically enters set up mode. The LED Display will begin flashing and display the temperature setting.

Each time you press the + button, the temperature setting will increase 1 Degree. Each time you press the - button, the temperature setting will decrease 1 Degree.

Once you have reached the desired temperature setting, the display will continue to flash for 5 seconds, then revert to showing the compartment temperature.

To view the real time temperature, press and hold the +/- button for 5 seconds. The interior temperature will flash in the LED Display for 5 seconds.

If you wish to change the display from Fahrenheit to Celsius (or vice versa) press and hold both "+" and "-" simultaneously for 5 seconds.

LED LIGHTS

L1: When you turn on your wine cellar, the internal light will switch on when the door is opened, and off when the door is closed.
L2: Press 🙏, the internal light will remain on continuously and dim after 3 minutes.
L3: Press twice, the internal light will remain on for 10 minutes and then shut off.

TAKE CONTROL

CONTINUED

TRI-COLOR LIGHTING

When you turn your XO wine cooler on, the interior lights will be white.

Press the 🔒 icon and the lights will change to midnight blue.

Press the 🔒 icon again and the lights will change to honey amber.

ECO MODE

When you turn you XO Unit on, it is set to work in Standard Mode.

Press 📋 and ECO Mode is turned on, ECO Mode is an energy saver function.

Press 📋 again and ECO Mode is turned off, the unit returns to Standard Mode.

SABBATH MODE

Sabbath Mode was designed for use on the Jewish Sabbath and Holidays.

The Sabbath Mode feature makes it possible to use your appliance during the duration of the holiday. The Sabbath Mode overrides typical reactions caused by interactions with the unit. While in Sabbath Mode your appliance will operate, however it will not respond to your actions.

To initiate Sabbath Mode: Press and hold both 🎨 + 🌐 for 5 seconds.

The display will show either "Sb" or "Sb On" depending on the model you have to indicate Sabbath Mode is engaged.

To turn Sabbath Mode off and return to Standard Mode, Press and hold both 📄 + 🌅 for 5 seconds again.

DEMO MODE

Press 📋 for 5 seconds, DEMO mode is turned on.

Press 📋 for 5 seconds again, DEMO mode is turned off and your XO returns to standard mode.

Your controls are simple and intuitive to operate.

I love

saving

Energy!

SINGLE ZONE CONTROL

WINE COOLERS

The temperature setting can be adjusted from 41-64°F.

Your controls are simple and intuitive to operate.

54^ F is usually ideal for wine storage.

HOW MANY

WINE BOTTLES CAN THIS HOLD

Wine bottles come in many shapes and sizes.

The following MAXIMUM capacities are based on two of the most popular types in 750 ml.

MODEL	WIDTH	ZONES	BORDEAUX	BURGUNDY
XOU15WGO	6 Shelves of 515”1+4	5 Shelves of 3+3
			34 TOTAL	18 TOTAL

Shelf capacities

15" Wide Wine Cellar Shelves accommodate up to 5 Bottles Each

Line drawing of three identical bottles arranged in a row, no text or symbols present

Store wine in sealed bottles only

Avoid overloading

Storing little or no product can cause excessive condensation

JUGGLING SPACE

IS EASY WITH XO

STEP 1: Remove the rack

Technical line drawing of a multi-tiered storage unit with internal compartments and mounting base (no text or symbols)

STEP 2: Remove and re-position the rack glides

REAR RACK FRONT RACK

GLIDE SUPPORT GLIDE SUPPORT

E

REAR RACK FRONT RACK

GLIDE SUPPORT GLIDE SUPPORT

STEP 3: Reverse the steps.

Install the right and left RACK GLIDES in their new position by pushing the pins into the slots and click the front of the glide down to secure.

Replace the rack.

ALL RACKS MUST BE PUSHED ALL THE WAY IN BEFORE CLOSING THE DOOR DOOR MUST BE FULLY OPENED BEFORE PULLING RACKS OUT

Easy to change + more shelf positions give you more storage options with XO.

A LITTLE TLC

GOES A LONG WAY

Cleaning the Inside:

Walls, floor, inside window, and shelves - Some water deposits and dust can be removed with a dry paper towel, others may require a damp cloth.

Cleaning the Outside:

Outer case - It is important to keep the area clean where the door seals against the cabinet. Clean this area with a soapy cloth. Rinse with a damp cloth and let dry.

Control Panel and Door - Wipe with a damp cloth and dry thoroughly. Do not use cleaning sprays, large amounts of soap and water, abrasive, or sharp objects on the panel, they can damage it.

CAUTION: Some paper towels may also scratch the control panel and glass on the door.

Door Surface - Use only mild, non-abrasive detergents applied with a clean sponge or soft cloth. Rinse well with damp cloth.

NOTE: Do not use cleaners containing ammonia or alcohol on your XO unit. Ammonia or alcohol can damage the appearance of the appliance.

NOTE: Never use any commercial/abrasive cleaners or sharp objects on any part of the wine cooler.

POWER FAILURE

Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened.

If the power is off for a longer period of time, you need to take the proper steps to protect your contents.

VACATION

Short vacations: Leave the XO unit operating during vacations of less than three (3) weeks.

Long vacations: If the appliance will not be used for an extended period, remove all items and turn off the appliance.

Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly, blocking it open if necessary.

ENERGY SAVING TIP

The unit should be located in the coolest area of the room, away from heat producing appliances, and out of direct sunlight.

MOVING

Remove all items and securely tape down all loose items (shelves) inside your appliance

Turn the adjustable leveling legs all the way into the base to avoid damage

Tape the door shut and transport the XO unit securely in the upright position

Blanket wrap the exterior to help protect against scratches and other damage

A BREATHE OF FRESH AIR

FOR BEST RESULTS CHANGE EVERY 3 TO 6 MONTHS

Your Air Refresh Charcoal Filter Is Located Here

P/N: XOUAIRFILTER

Technical diagram of a device casing with a circular component and a circular fan-like structure, no text or symbols present.

Rotate the filter 1/4 turn to unlock

Diagram of a circular component with internal pattern and two side handles, enclosed by an arrow (no text or symbols)

Pull straight out to remove

Align the tabs and insert the new filter

Technical line drawing of a mechanical assembly with circular components and a central meshed component (no text or symbols)

Rotate filter 1/4 turn to lock in place

Diagram of a circular structure with internal grid pattern and two side handles, enclosed by an arrow (no text or symbols)

FAQ'S

Q. There doesn't appear to be any power to the unit.

A. There are 3 easy to check common causes:

(1) Check to see if a fuse has blown or circuit breaker has tripped & replace or reset.
(2) Check to ensure the plug is fully inserted into the outlet.
(3) A power surge may have caused the unit to shut down to protect itself - Unplug the unit, wait 5 seconds and plug it back in.

Q. The cabinet temperature is too high.

A. Check these 5 things:

(1) Check the temperature setting and adjust as needed.
(2) Make certain the door is completely closed and the door gasket is sealing properly.
(3) Avoid opening the door frequently and/or leaving the door open for extended periods.
(4) Did you load a large quantity of warm bottles at once? It is better to add smaller quantities in several loads.
(5) Make certain nothing is blocking the toe kick vents (including dust behind the vents).

Q. The alarm is beeping and "HI" is displayed on the control panel.

A. See the question and answers above - if the door has been tightly closed and you have not recently added a large quantity of warm bottles, it may be a mechanical issue. Unplug the unit and call for service.

Q. The alarm is beeping and "LO" is displayed on the control panel.

A. This may be a sensor malfunction. Unplug the unit and call for service.

MORE "Q & A"

Q. Why does condensation form on the inside or outside of my XO unit?

A. It may be that the door is either opened repeatedly or not closed completely. It may also be due to an excessive ambient humidity, in which case it will clear when the humidity drops.

Q. There is warm air coming from the bottom of my unit.

A. This is normal. Cooling systems must vent the heat they remove from inside the cabinet.

Q. Why does the evaporator fan run all the time?

A. It continually recirculates air to ensure cabinet temperatures are consistent.

Q. How do I adjust temperature?

A. Refer to Pages 7 & 10.

Q. How do I adjust shelf height?

A. Refer to Page 20.

Q. When does the high temperature alarm sound?

A. If internal temperature exceeds 70^ F for more than 60 minutes.

Q. If the door hinge is next to a wall, how much clearance do I need to open the door?

A. With the panel and hardware in place, the door must be able to open at least 90^ .

WE'VE GOT YOUR BACK

90 DAY LOVE IT or LEAVE IT. For 90 Days all our products are backed by our unique Love it or Leave it Guarantee.

TWO-YEAR PARTS & LABOR LIMITED WARRANTY. XO warrants to the original purchaser of every new XO refrigerated unit, the cabinet and all parts thereof, to be free from defects in material or workmanship under normal and proper use and maintenance as specified by XO and upon proper installation and start-up in accordance with the instruction packet supplied with each XO unit. XO's obligation under this warranty is limited to a period of two (2) years from the date of original purchase.

FIVE-YEAR COMPRESSOR LIMITED WARRANTY. XO warrants its compressor to be free from defects in both material and workmanship under normal and proper use and maintenance service for a period of five (5) years from the date of original purchase. If the compressor fails during that time period due to a defect in material or workmanship, XO will supply a replacement compressor free of charge. The consumer will be responsible for all related transportation and labor costs. Product must be registered with XO to qualify for this warranty.

TERMS APPLICABLE TO EACH WARRANTY. Any part covered under the above warranties that is determined by XO to have been defective within the time frame is limited to the repair or replacement, including labor charges, of defective parts or assemblies. The labor warranty shall include standard straight time labor charges only and reasonable travel time, as determined by XO.

WARRANTY CLAIMS. All claims for labor or parts must be made directly through XO. All claims should include: model number and serial number of cabinet, proof of purchase, and date of installation. In case of warranted compressor, the compressor model tag must be returned to XO along with the above listed information.

WHAT IS NOT COVERED BY THIS WARRANTY. XO's sole obligation under this warranty is limited to either repair or replacement of parts, subject to the additional limitations below. This warranty neither assumes nor authorizes any person to assume obligations other than those expressly covered by this warranty. Open box, factory seconds, scratch and dent, floor models and commercial applications are excluded from these warranties. Consumer shall be responsible for labor and transportation costs where noted above.

NO CONSEQUENTIAL DAMAGES. XO is not responsible for economic loss, profit loss; or special, indirect or consequential damages, including without limitation, losses or damages arising from food or product spoilage claims whether or not on account or refrigeration failure.

WARRANTY IS NOT TRANSFERABLE. This warranty is not assignable and applies only in favor of the original purchaser/user at the original installation location. Any such assignment or transfer shall void the warranties herein made and shall void all warranties, express or implied, including any warranty or merchantability or fitness for a particular purpose.

IMPROPER USAGE. XO assumes no liability for parts or labor coverage for component failure or other damages resulting from improper usage or installation or failure to clean and/or maintain product as set forth in the warranty packet provided with the unit.

ALTERATION OR NEGLECT. XO is not responsible for the repair or replacement of any parts that XO determines have been subjected after the date of manufacture to alteration, neglect, abuse, misuse, accident, damage during transit or installation, fire, flood, or act of God.

IMPROPER ELECTRICAL CONNECTIONS. XO is not responsible for the repair or replacement of failed or damaged components resulting from electrical power failure, high or low voltage, use of extension cords, or improper grounding of the unit.

YOUR RIGHTS UNDER STATE LAW. This warranty gives you specific legal rights and you may have other rights that vary from state to state. Some states do not allow the exclusion or limitation of consequential damages or a limitation on how long an implied warranty lasts, so the above exclusion or limitation may not apply to you.

OUTSIDE U.S. This warranty does not apply to, and XO is not responsible for, any warranty claims made on products sold or used outside the 48 continental United States.

To obtain service:

Call 973-403-8900 | email [e-mail] | or submit a request on our website www.xoappliance.com

100% GUARANTEED

LOVE IT OR LEAVE IT

XOUBCGOMAN050520

XO APPLIANCE

24 EISENHOWER PARKWAY ROSELAND, NJ 07068

P. 973.403.8900 WWW.XOAPPLIANCE.COM
