Product Type	Wireless Microphone System (UHF)
Model	ORBIT 24
Brand	Karma
Receiver Dimensions	21 x 16 x 6 cm
Receiver Weight	528 g
Microphone Dimensions	210 x 50 x 50 mm
Microphone Weight	234 g
Power Supply (Receiver)	DC 12V, 1000mAh (AC adaptor 100-240V)
Microphone Battery	Built-in rechargeable Li-ion 3.7V, 1000mAh
Battery Charging Time	2-3 hours
Battery Autonomy	8-10 hours
RF Output Power	<10mW
Frequency Range	573.50 - 594.90 MHz
Number of Channels	50 UHF
Signal-to-Noise Ratio	80 dB
Frequency Response	20 Hz - 20 kHz
Bluetooth	5.0
Audio Inputs	Coaxial (COA), Optical (OPT), RCA, 6.3mm MIC
Audio Outputs	XLR, 3.5mm, 6.3mm MIC OUT, SUB OUT
Features	Vocal remover, USB MP3 player, Keypad lock, 16 patterns
Material (Receiver)	ABS
Certifications	CE, Directive 2014/53/EU
Warranty	2 years (1 year with invoice)
Cleaning	Use damp cloth only

Frequently Asked Questions - ORBIT 24 Karma

How do I charge the microphones?

Use a standard USB Type-C cable (not included). Connect it to the socket (14) on the microphone. Full charge takes 2-3 hours.

How do I pair my smartphone via Bluetooth?

Press the INPUT key repeatedly until BT mode is selected. Then press the BT button on the receiver. On your smartphone, search for ORBIT 24 in Bluetooth settings and pair.

How do I use the vocal remover function?

Press the button (16) on the microphone. The vocal remover digitally removes the singer's voice from the audio track. Note that quality depends on the track and may affect music quality.

What audio inputs and outputs are available?

Inputs: Coaxial, Optical, RCA, and 6.3mm MIC. Outputs: XLR, 3.5mm, 6.3mm MIC OUT, and SUB OUT.

How do I change the channel on a microphone?

With the microphone on, press button (13) to cycle through 50 channels. The display shows the current channel.

How do I lock the keypad?

Press and hold the LOCK button on the receiver until the padlock icon appears. To unlock, press and hold again.

What is the frequency range of the microphones?

The UHF frequency range is 573.50 - 594.90 MHz.

How do I reset to factory settings?

Press and hold the RESET button on the receiver. This restores all settings to factory defaults.

What is the warranty period?

The warranty covers manufacturing defects for 2 years from the date of purchase (or 1 year if purchased with invoice). Check the website for details.

Can I use the device outdoors?

No, the product is not suitable for outdoor use. Avoid exposure to rain, humidity, and high temperatures above 40°C.

USER MANUAL ORBIT 24 Karma

• OTROS IDOMAS •
• OUTRAS LINGUAS •

Simple icon of a wireless router with two antennas (no text or symbols)

RICEVITORE Receiver

Two black silhouette icons of microphone devices (no text or symbols)

TRASMETTITORI Transmitters

Simple line drawing of two black cables with connectors (no text or symbols)

CAVI E ACCESSORI Cables & Accessories

Simple black-and-white icon of a plug with a bulb, no text or symbols present.

ALIMENTATORE Power adaptor

Icon of an open book with a gear symbol, representing software or data management (no text or symbols present)

MANUALE Instructions

When you open the package check that product is in good condition and that all the parts are present. Immediately notify the seller if any part is damaged or missing.

CE

Hereby, KARMA ITALIANA SRL declares that the UHF wireless microphone ORBIT 24 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.karmaitaliana.it.

Karma Italiana Srl

SPECIFICHE TECNICHE

BASE RICEVENTE

Multi uscita (XLR, 3,5mm, SUB)

Multi ingresso (COA, OPT, RCA, MIC)

TECHNICAL SPECIFICATIONS

RECEIVER BASE

Power supply: DC 12V -1000mAh

Power adapt. input: AC 100-240V

Material: ABS

SN: 80dB

Dimensions: 21 X 16 X 6cm

Weight: 528 gr

MICROPHONES

Battery: Built-in, rechargeable

Li-ion 3.7V 1000mAh

Charging time: 2-3 hours

Autonomy: 8-10 hours

Power: <10mW

Freq. response: 20Hz - 20KHz

Dimensions: 210 x 50 x 50 mm

Weight: 234 gr

HIGHLIGHTS

Vocal remover function

Mp3 player from USB

Bluetooth 5.0

2 UHF wireless microphones - 50 ch

Freq range: 573.50 -594.90 Mhz

Keypad lock

Multiple output (XLR, 3.5mm,SUB)

Multiple input (COA, OPT, RCA, MIC)

The manufacturer, in order to improve its products, reserves the right to modify their characteristics whether technical or aesthetic, at any time and without notice.

GRAZIE PER IL VOSTRO ACQUISTO

A
B
C

The product you have purchased is the result of careful planning by specialized engineers. High quality materials were used for its construction, to ensure its functioning over time.

The product is manufactured in compliance with the strict regulations imposed by the European Union, a guarantee of reliability and safety.

Please read this manual carefully before starting using the device in order to take advantage of its full potential.

Hoping that you will be satisfied of your purchase, we thank you again for your trust in our brand and we invite you to visit our website www.karmaitaliana.it where you will find the whole range of our products, along with useful information and updates.

CAUTIONS AND WARNINGS

• Read and follow strictly the instructions included in this manual.
• Keep this manual for future reference and include it if you give the product to another user.
• Do not open or take apart the device and don't make changes to it.
  • The installation of the product must be carried out exclusively by skilled persons.
  In case of wrong installation or connections, the manufacturer doesn't take any responsibility for damages to people or objects.
• Before making any connection with other devices, check that all the fixtures are turned off and disconnected from the power source.
• The product is not suitable for outdoor use. To avoid the risk of shortcircuits don't expose it to high temperatures (above 40°), rain or humidity.
  • Do not allow flammable liquid, water or metal objects to enter the product.
• Don't touch the product with wet hands.
• Do not place any recipients filled with liquids, such as vases, on top of or directly next to the appliance.
  • Install the product in a stable and ventilated position, far from heat sources and don't obstruct the air vents.
• Use the fixture, its controls and the accessories with due accuracy, avoiding falls, vibrations or impacts.
• In the event of a serious operating problem, stop using the product immediately. Never try to repair it by yourself, but contact the authorized technical service center. Repairs carried out by unskilled persons could lead to serious damages both to the fixture and to people.
  • Do not turn the product on and off at short intervals, it may reduce the life of the device.
• Disconnect the unit from power when it is not used.
• Do not cut, kink, otherwise damage nor modify the power adaptor's cable and periodically check that it is in good condition.
  • Wait for the product to cool before cleaning or maintenance.
  • To clean the product, use only a damp cloth, avoiding solvents or detergents of any kind.
  • If the product is used in the presence of children they must be supervised.

BATTERY SAFETY WARNINGS

The product is powered by rechargeable lithium batteries. Do not remove, open or modify the batteries. To avoid the risk of fire or explosion, do not short-circuit the charging terminal, do not expose the batteries to flames, heat, humidity and avoid shocks.

Do not maintain microphones on charge when not in use. For charging, use a standard USB Type-C cable.

In the event of battery leaking, do not use the device and do not allow the liquid to come into contact with the skin or eyes. In case of contact, wash the affected area with copious water and consult a doctor if necessary. Battery removal or replacement should be performed only by a qualified person.

This symbol alerts you of the presence of important operating and maintenance instructions, in the manual or in the documentation accompanying the product

This symbol indicates a risk of electric shock in case of wrong use or alteration of the product.

The CE mark indicates that this product complies with the applicable European directives and their related standards. Compliance documentation in complete form is available at the company Karma Italiana Srl

Directive 2012/19/UE regarding electric and electronic equipment waste (WEEE).

The symbol of the crossed-out dustbin indicates that the product at the end of its life must be collected separately from other waste. The user must, therefore, confer the fixture complete with all the essential components to an authorized disposal center for collection of electronic and electrical waste, or return it to the dealer when buying new equipment of equivalent type, at a rate of one to one, or one to zero if external dimension is less than 25cm. Appropriate separate collection to send the decommissioned equipment to recycling, treatment and environmentally compatible disposal helps to prevent negative impact on the environment and human health and promotes recycling of the materials making up the product. In Italy illegal dumping of the product by the user entails the application of administrative sanctions pursuant to Legislative Decree n. 49 (14/03/2014).

This device is powered by batteries subject to European Directive 2013/56/EU, which cannot be disposed of with normal domestic waste. Find out about the local regulations regarding the separate collection of batteries: a correct disposal allows to avoid negative consequences for environment and health

WARRANTY CONDITIONS

The product is covered by warranty according to current national and European regulations.

For detailed warranty conditions and RMA requests please refer to our website: www.karmaitaliana.it.

• The warranty covers manufacturing defects and faults occurred in the first 2 years from the date of purchase. In case of purchase with invoice, the warranty is limited to 1 year.
  • Damages caused by negligence or wrong use of the device are not covered by warranty.
  • The warranty is no longer effective if the item is modified or disassembled by not authorized people.
  • This warranty doesn't necessarily envisage the product's replacement.
• External components, batteries, knobs, switches and any removable or subject to wear and tear parts are excluded from warranty.
• Shipment for the return of faulty items is at expense and risk of the owner.
• For all intents and porpuses the warranty is effective only upon exhibition of the invoice or of the purchase receipt.
• If you send the product for repair, it must be shipped with complete original packaging: we therefore recommend to save it.

We also suggest to register your product on our website www.karmaitaliana.it, after signing in to access the reserved area. In this way you will have the possibility to keep track of the warranty validity and to receive updates on our items.

A
B
C

ORBIT 24 is a hybrid device between an audio mixer and a wireless microphone. It is possible to connect different input signals and mix them with the voice coming from the 2 transmitters. Some functions make it unique in its kind.

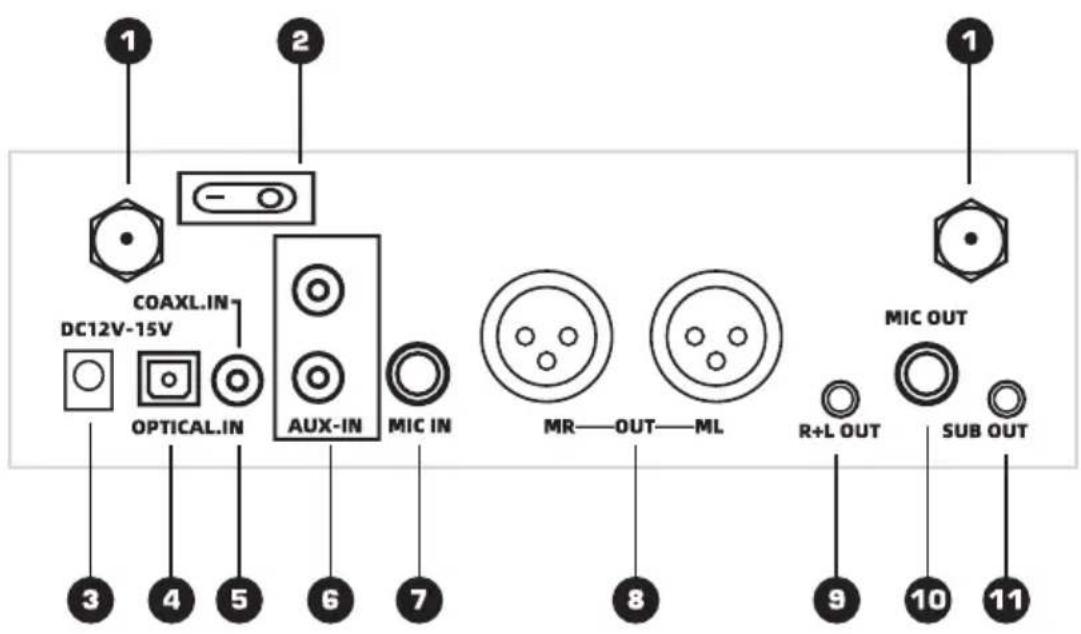

CONNECTIONS

Make sure that (2) the power switch is in the OFF position, then connect the power adaptor to the socket (3) and to the domestic electrical outlet. The receiver base is equipped with several input sockets. If you own a TV or an audio appliance with optical output, connect it to the socket (4) by means of a Toslink cable. It is possible to connect an audio signal also to the coaxial socket (5). A stereo signal can be sent to the RCA connectors of the sockets (6). If necessary you can connect a dynamic microphone to the 6.3mm rear socket (7).

Different kinds of output sockets are also available. The most used are the XLR connectors (8), but the fixture also features sockets for a subwoofer (11), 3.5mm sockets (9) for an amplifier and a microphone output via 6.3mm socket (10).

Install the supplied antenna into the connector (1).

Once the connections are completed turn on the fixture by means of the switch (2).

WIRELESS TRANSMITTERS

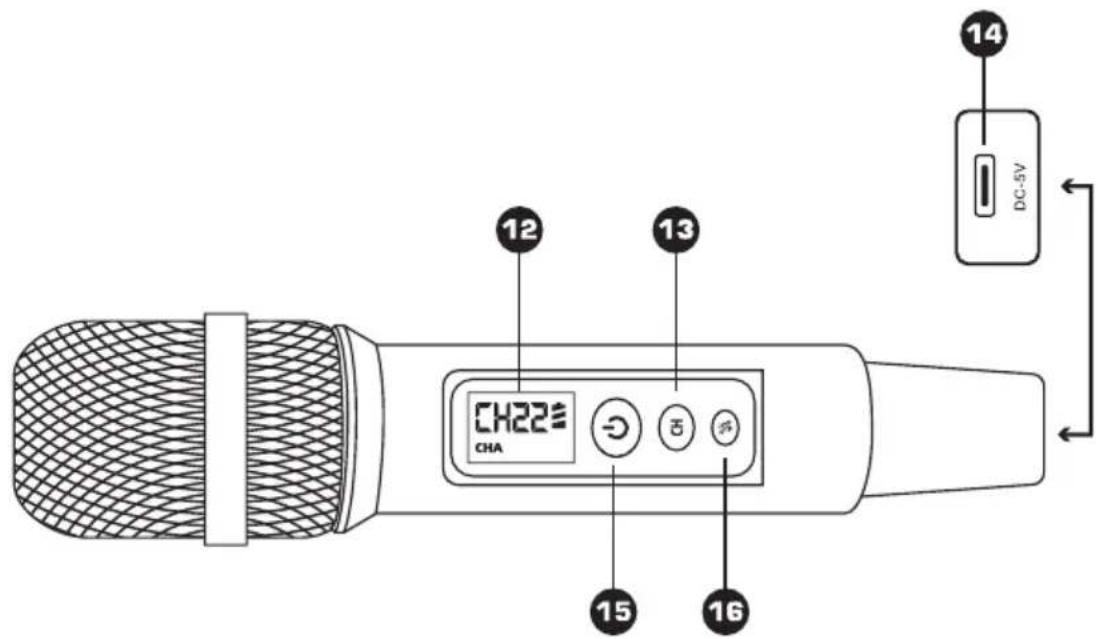

In the packaging there are 2 wireless handheld transmitters operating in UHF band. They include a built-in battery, which can be recharged via the Type-C socket (14). Make sure that the microphones' batteries are fully charged before using them. When not in use the microphones can be placed in the specific housings in the receiver base.

To turn on the microphone press and hold the button (15) for about 3 seconds. The display (12) shows both the operating channel and battery charge level. After about 15 seconds the display will turn off and only the charge level will remain visible.

If you need to change the channel, you can do that by pressing the button (13). There are 50 channels available. By means of the button (16) it is possible to remove digitally the singer's voice from the audio track you are listening to, so as to allow you to sing over the music with your own voice. The vocal removal's quality depends on the track and on the kind of song. The music quality could be affected by the circuit that removes the vocal frequencies.

MP3 PLAYER

By plugging a USB stick into the front port, you can play the tracks it contains. Make sure that stick is in FAT 32 format. The playback will automatically start.

It is also possible to play Mp3 audio by means of the bluetooth interface. Press repeatedly the "INPUT" key to select the bluetooth function. Once connected, all the smartphone's audio will be transmitted to ORBIT 24.

The first time it is necessary to pair the phone with ORBIT. To do this press the "BT" button and proceed with pairing from the smartphone's menu.

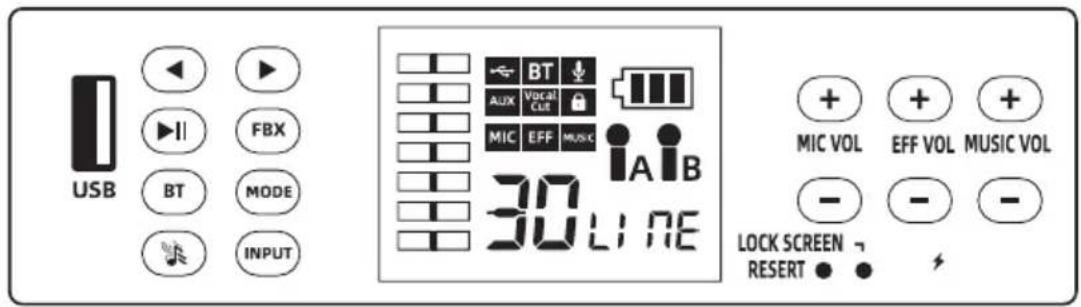

CONTROLS AND DISPLAY

You can find here below the description of the functions on the left of the display (A), of information shown by the display (B) and of the functions of the buttons on the right of the display (C).

A

USB
To play music from USB devices

Previous track

Pause

Next track

Bluetooth restart

Anti-roar level (4 levels)

Vocal remover

16 patterns

Input (BT/AUX/ COA/ DPT)

DISPLAY INFORMATION

USB player

Bluetooth

Microphon

AUX input

Vocal remover

Keypad lock

B

Battery level

A/B microphone connection

Selected input

Microphone volume adjustment

Reverb Volume Adjustment

Music volume adjustment

Volume level indication

LOCK SCREEN

RESET

Restore factory settings

Keypad lock

MIC VOL

EFF VOL

MUSIC VOL

Microphone volume

Reverb effect

Music volume

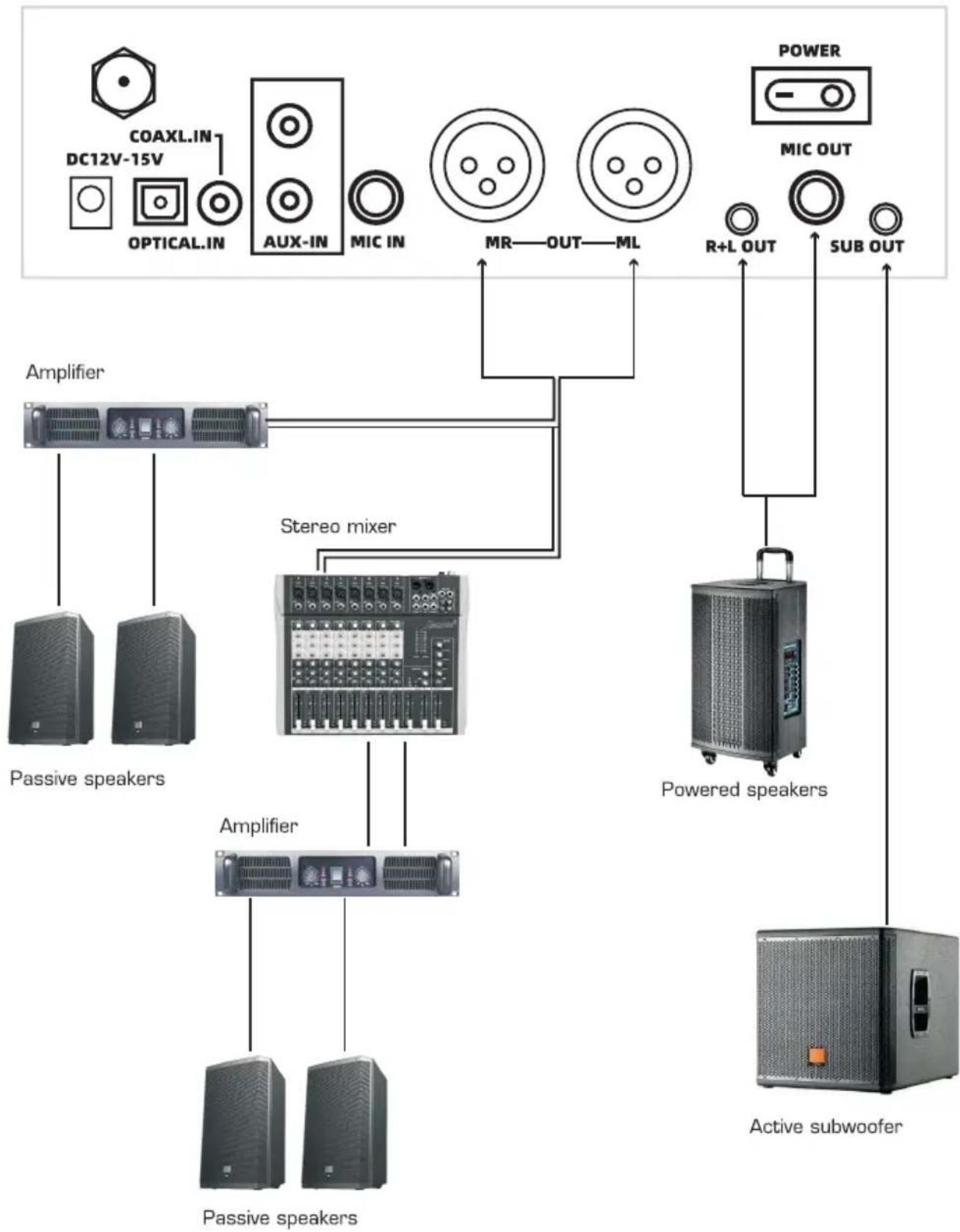

CONNECTION DIAGRAM

KARMA

WARNING: In the countries indicated in the below chart the operating frequencies of this product might be not authorized, be subject to local restrictions of limitations of use, require a general authorization or an individual license for use. Please contact your telecommunications authority for detailed information about authorized frequencies and ERP power levels in your country or your region for wireless microphones.

AT	BE	BG	CH	CY	CZ	DE
DK	EE	EL	ES	FI	FR	HR
HU	IE	IS	IT	LI	LT	LU
LV	MT	NL	NO	PL	PT	RO
SE	SI	SK	TR	UK{NI}
