Product Type	Single-Handle Lavatory Faucet
Brand	Moen
Model	Arris S43001 (Chrome) / S43001BN (Brushed Nickel)
Handle Type	Lever
Mounting Type	Single-hole deck mount
Flow Rate	1.2 gpm (4.5 L/min) at 60 psi
Valve Technology	Duralast™ cartridge with ceramic disc
Overall Height	Approx. 5.5 in (14 cm)
Spout Height	Approx. 3.5 in (8.9 cm)
Spout Reach	Approx. 4.5 in (11.4 cm)
Weight	Approx. 2.5 lb (1.1 kg)
Power Source	None (manual)
Finish Options	Chrome (S43001), Brushed Nickel (S43001BN)
Warranty	Moen Limited Lifetime Warranty
Maintenance	Clean with mild soap and water; avoid abrasive cleaners
Repairability	Spare parts available (cartridge kit, aerator, handle kit, mounting hardware)
Safety	Standard lead-free compliant; meets low-lead requirements
Included Components	Faucet body, handle, mounting hardware, installation tool, waste assembly (with overflow)
Cartridge Replacement	Duralast™ cartridge (Model 160657) for easy maintenance
Tools Required for Installation	Adjustable wrench, screwdriver, basin wrench (recommended)

Frequently Asked Questions - Arris S43001 Moen

How do I install the Moen Arris S43001 faucet?

Installation is straightforward. Thread the mounting hardware onto the shank from under the sink, secure with the provided nuts, and attach the water supply lines. An installation tool (included) helps tighten the nut. For detailed steps, refer to the user manual.

What is the flow rate of this faucet?

The Moen Arris S43001 has a flow rate of 1.2 gallons per minute (gpm) at 60 psi, meeting WaterSense criteria for efficiency.

Can I use this faucet with a tankless water heater?

Yes, as a standard single-handle faucet it is compatible with tankless water heaters. Ensure your water supply lines are sized appropriately.

How do I clean and maintain the faucet?

Use a soft cloth with mild soap and water. Avoid abrasive cleaners, scouring pads, or harsh chemicals to prevent damage to the finish. Wipe dry after cleaning.

What are the available finishes for the Arris S43001?

The Moen Arris S43001 is available in Chrome (model S43001) and Brushed Nickel (model S43001BN).

How do I replace the cartridge?

Turn off water supply, remove the handle and dome, unscrew the cartridge nut, and pull out the old cartridge. Insert the new Duralast™ cartridge (part 160657) and reassemble. The set screw and nut are also included in the kit.

Is the faucet lead-free?

Yes, the Moen Arris S43001 is compliant with lead-free standards as per federal regulations, using materials with less than 0.25% lead content.

What is the warranty on this faucet?

Moen offers a Limited Lifetime Warranty against defects in material and workmanship. Some components like cartridges and aerators may have different coverage; check Moen's warranty policy for details.

Can I use this faucet for a vessel sink?

The Arris S43001 is designed for deck-mounted installation on standard sinks. For vessel sinks, you may need a taller faucet; this model's height approx. 5.5 inches may be insufficient. Consider Moen's vessel-specific models.

Where can I find replacement parts?

Replacement parts such as the Duralast™ cartridge kit (160657), aerator kit (181085), handle kit (165903), and mounting hardware (168809) are available through authorized Moen dealers or online retailers. Use the part numbers from the manual.

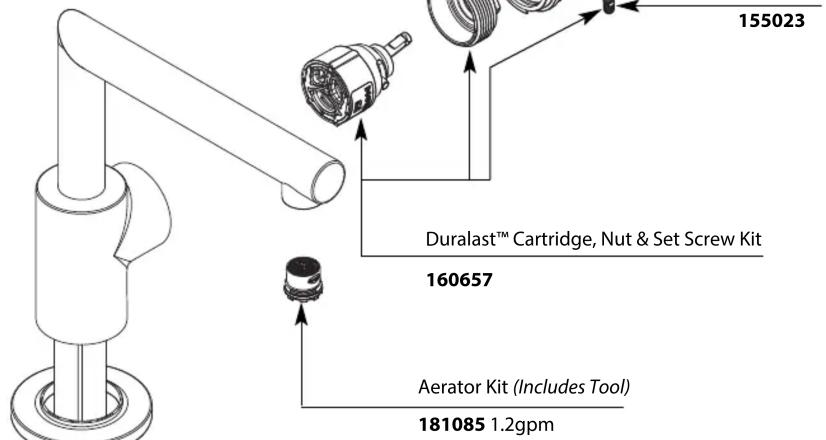

USER MANUAL Arris S43001 Moen

ARRIS™ Single-Handle Lavatory Faucet

MODEL TYPE FINISH

S43001 Lever Chrome

S43001BN Lever Brushed Nickel

Handle Dome

165904 Chrome

165904BN Brushed Nickel

Brass Cartridge Nut

155023

Handle Kit

165903 Chrome

165903BN Brushed Nickel
