F 55 CARRABASSETT - Heating JOTUL - Free user manual and instructions
Find the device manual for free F 55 CARRABASSETT JOTUL in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Wood Burning Stove |
| Brand | Jøtul |
| Model | F 55 Carrabassett |
| Height | 100 cm |
| Width | 50 cm |
| Depth | 50 cm |
| Weight | 150 kg |
| Fuel Type | Wood logs |
| Nominal Heat Output | 15 kW |
| Efficiency | 80% |
| Flue Outlet Diameter | 150 mm |
| Flue Positions | Top or Rear |
| Material | Cast iron and steel |
| Glass Type | Ceramic glass |
| Air Control | Primary and secondary |
| Ash Pan | Removable |
| Cleaning | Regular ash removal and glass cleaning |
| Chimney Sweep | Annual required |
| Safety Distance to Combustibles | Minimum 80 cm sides, 100 cm front |
| Spare Parts Availability | Through authorized dealers |
| Warranty | 5 years |
Frequently Asked Questions - F 55 CARRABASSETT JOTUL
What type of fuel can I use in the Jøtul F 55 Carrabassett?
Only dry seasoned wood logs with a moisture content below 20%. Do not burn coal, trash, or treated wood.

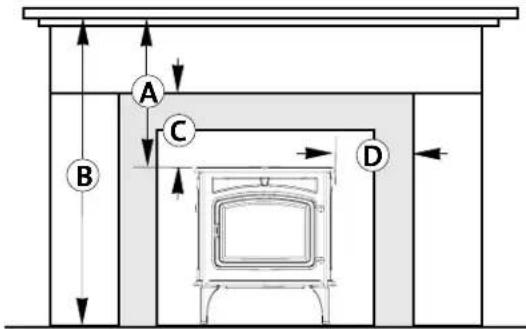

What are the minimum clearance requirements to combustible materials?
Maintain at least 80 cm from side walls and 100 cm from the front. Flue pipe clearances may vary.
How do I clean the glass door?
Use a soft cloth and glass cleaner specifically for stoves. Avoid abrasive materials. Clean when the stove is cold.
How often should I empty the ash pan?
Empty the ash pan when it is full, typically every 2-3 days of normal use. Ensure ashes are completely cool before disposal.
How do I adjust the heat output?
Use the primary air control to regulate burn rate. Open for more heat, close for slower burn. Secondary air helps keep glass clean.
When should I have the chimney cleaned?
Have the chimney inspected and cleaned annually by a professional chimney sweep to prevent creosote buildup.
Can I install the stove myself?
Installation must comply with local codes and should be performed by a certified installer to ensure safety and warranty validity.
Why does the glass get black quickly?
This can happen if the wood is wet, the stove is operated at low temperature, or the air controls are set incorrectly. Use dry wood and maintain a hot fire.
What is the warranty period?
Jøtul offers a 5-year limited warranty on the stove body and components. Register your product online for full coverage.
How can I obtain spare parts?
Contact your authorized Jøtul dealer or visit the Jøtul website. Have your model and serial number ready.
