Product Type	Fiber Optic Cleaver
Brand	JILONG
Model	JBL-23F
Blade Material	Tungsten steel
Blade Hardness	91.50 HRA
Blade Diameter	22 mm
Blade Thickness	4 mm
Cutting Edge Length	3.2 mm
Number of Cutting Points	24
Cleaves per Point	2000
Total Cleave Life	Up to 48000 cleaves
Cleave Angle	≤0.5°
Blade Density	14.75 g/cm³
Transverse Rupture Strength	2200 MPa
Rotatable Cutting Points	Yes, patented design
Application	Fiber optic cleaving (single-mode & multimode)
Maintenance	Clean with isopropyl alcohol and lint-free cloth; avoid touching blade edge
Safety Precautions	Wear protective eyewear; keep out of reach of children; handle blade carefully
Spare Parts Availability	Replacement blades available from manufacturer
Manufacturer Contact	Nanjing Jilong Optical Communication Co., Ltd, [e-mail], www.JILONGOT.com

Frequently Asked Questions - JBL-23F JILONG

What is the maximum number of cleaves the JBL-23F cleaver can perform?

The cleaver can perform up to 48000 cleaves in total, with each cutting point lasting up to 2000 cleaves. The blade has 24 rotatable cutting points.

What type of blade does the JILONG JBL-23F use?

It uses a tungsten steel blade with a diameter of 22 mm, thickness of 4 mm, and cutting edge length of 3.2 mm. The blade hardness is 91.50 HRA.

How do I replace the blade on the JBL-23F?

To replace the blade, rotate the cutting wheel to a new cutting point. When all 24 points are worn, the entire blade assembly should be replaced. Refer to the manual for detailed instructions.

What is the cleave angle specification?

The cleave angle is ≤0.5°, ensuring smooth and precise fiber end faces.

How do I clean the cleaver?

Clean the blade and holder with isopropyl alcohol and a lint-free cloth. Avoid touching the blade edges. Regular cleaning maintains cleave quality.

Is the JBL-23F suitable for single-mode and multimode fibers?

Yes, the cleaver is designed for both single-mode and multimode optical fibers, providing consistent cleave angles within specification.

What is the density and strength of the blade material?

The tungsten steel blade has a density of 14.75 g/cm³ and a transverse rupture strength (TRS) of 2200 MPa.

How can I contact JILONG for support?

You can contact Nanjing Jilong Optical Communication Co., Ltd at [e-mail] or visit www.JILONGOT.com. Address: 12F, Changfeng Technology Building 2, NO.14 Xinghuo Rd, Pukou District Nanjing, Jiangsu, 210032, China.

What safety precautions should I take when using the cleaver?

Always wear protective eyewear to shield from fiber fragments. Keep the blade out of reach of children. Handle the blade carefully to avoid cuts.

Can I sharpen or reuse the cutting points?

No, the cutting points are not meant to be sharpened. Each point is designed for a fixed number of cleaves (2000). Rotate to a new point when performance degrades, and replace the blade when all points are exhausted.

USER MANUAL JBL-23F JILONG

48000 Cleaves

Tungsten steel material

≤0.5°Cleave angle

24 Cutting points

Characteristics

Rotatable 24 cutting points, per point

reaches 2000 cleaves

Cleave angle≤0.5°, smooth cutting surface

Durable, up to 48000 cleaves

Tungsten steel refining and processing,

high hardness

Tungsten steel blade

Patented groove design

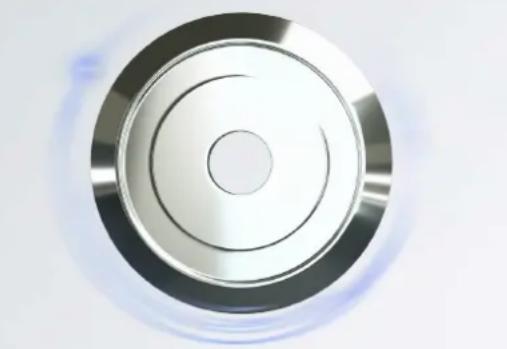

Close-up of a metallic circular disc with concentric rings and a central hole (no text or symbols visible)

Featured material

Sharp blade

Durable

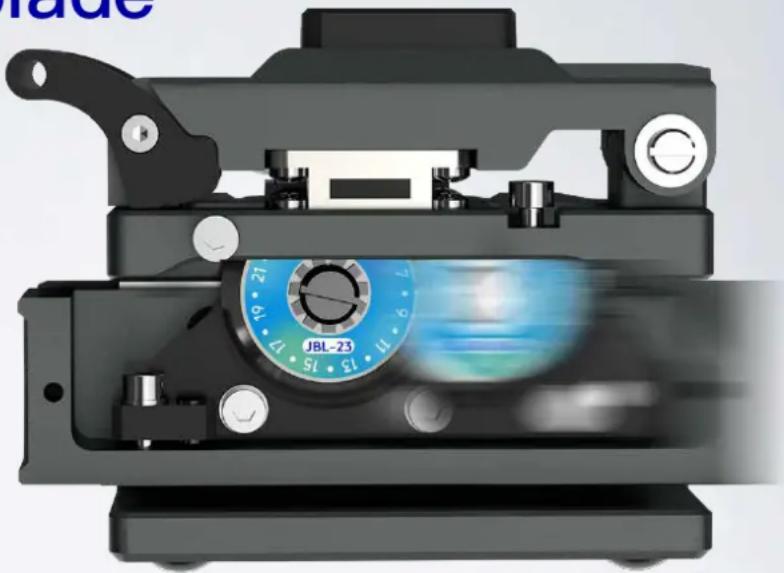

Cross-sectional view of a mechanical device with a central dial labeled JBL-23 and numbered components (no readable text or symbols beyond labels)

Product Specification

Mode	JBL-23
Rotatable cutting point	24
Blade specification	Diameter 22*4*3.2mm
Blade material	Tungsten steel
D (g/cm3)	14.75
Blade hardness	91.50HRA
TRS (MPa)	2200
Cutting life (single point)	2000 ★1

★① Blade life changes by operating environment

Product Display

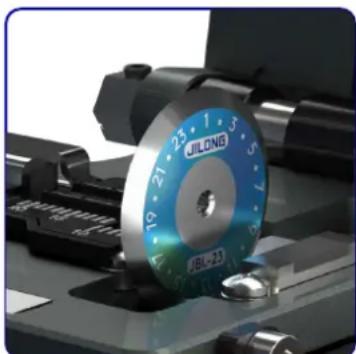

Close-up of a precision optical instrument with a blue circular dial labeled 'JULONE' and 'JBL-23', no readable text or symbols beyond labels.

Contact us

Nanjing Jilong Optical Communication Co., Ltd

Address: 12F, Changfeng Technology Building 2, NO.14

Xinghuo Rd, Pukou District Nanjing, Jiangsu, 210032, China

Tel: [phone]

Mail: [e-mail]

Web: www.JILONGOT.com
