HD-2230T - Hair Dryer Imarflex - Free user manual and instructions

Brand	Imarflex
Model	HD-2230T
Product Type	Hair Dryer
Unit Dimensions	213 x 93 x 281.4 mm
Net Weight	569.9 g
Gross Weight	729.7 g
Voltage	230V AC
Heat Settings	Multiple speed and heat flow settings
Cool Shot Button	Yes, press and hold for cool air flow
Overheat Protection	Automatic shut-off via safety thermostat
Air Concentrator	Included, washable
Air Filter	Washable with soap and water
Filter Cleaning	Regularly clean with soft brush
Cord Type	Standard power cord (non-detachable)
Usage	Household use only, not for business
Child Safety	Supervise children; sensitive skin caution
Wet Area Warning	Do not use near water or while bathing
Cleaning Instructions	Wipe body with damp cloth; avoid abrasives
Safety Certification	Equipped with safety thermostat
Recommended Use	Use low heat with cool button; towel dry first

Frequently Asked Questions - HD-2230T Imarflex

What voltage does the Imarflex HD-2230T hair dryer use?

The Imarflex HD-2230T operates on 230V AC. Always check that your outlet matches this voltage before use.

How do I use the cool shot feature?

To use the cool shot, press and hold the Cool Button Switch while drying. It's recommended to use low heat when activating the cool button to set your style.

Can I use this hair dryer in the bathroom?

No, do not use the hair dryer near tubs, basins, or other vessels containing water. Never use it while bathing to avoid electric shock.

How do I clean the hair dryer?

Unplug and let it cool. Wipe the body and air inlet with a damp cloth. The air concentrator and air filter are washable with soap and water. Clean the air filter and inlet grills regularly with a soft brush.

What does the overheat protection do?

The hair dryer has a safety thermostat that automatically turns off the motor if it gets too hot. If this happens, switch off, let it cool for a few minutes, then resume use.

What are the dimensions and weight?

Dimensions: 213 x 93 x 281.4 mm. Net weight: 569.9 g. Gross weight: 729.7 g.

Is the air concentrator removable?

Yes, the air concentrator is detachable for cleaning and can be washed with soap and water.

Can children use this hair dryer?

Children should be supervised and not play with the appliance. When drying children's hair, use warm airflow as their skin and scalp are sensitive to heat.

How should I store the hair dryer?

Store on a flat surface away from counter edges. Keep curtains, furniture, and flammable materials away from the outlet. Unplug after use and allow to cool before storing.

What should I do if the cord is damaged?

If the cord is damaged, do not use the appliance. It must be replaced with the same type and size by an authorized Imarflex Service Center.

USER MANUAL HD-2230T Imarflex

UNIT DIMENSION : 213*93*281.4mm

GROSS WEIGHT : 729.7g

NET WEIGHT : 569.9g

IMPORTANT SAFEGUARDS:

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
3. Do not use two-way socket with another appliance.

4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size, bring the unit to the nearest Imarflex Authorized Service Center.

5. Do not allow the cord to touch the hot surface of the unit.

6. To protect against electric shock, do not immerse the unit in water.

7. Do not place the unit near gas stove, electric stove or in a heated oven.

8. Put the unit on a flat surfaced; keep it away from the edge of counter to avoid accident.

9. Keep curtains, furniture, flammable materials, etc. away from the convenience outlet where the unit is plugged in.

10. Children should be supervised to ensure that they do not play with the appliance.

11. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

12. Do not use the unit near tubs, basins or other vessels containing water.

13. Do not use the unit while bathing.

14. Do not use this unit other than its intended use.

15. Do not use attachment not recommended by the manufacturer.

16. Never block the air inlet and concentrator of the dryer.

17. Do not insert any object into any openings.

18. Try heat settings on back of hand before using.

19. Use warm airflow for children; remember: a child's skin and scalp are sensitive to heat.

20. For household use only; not intended for any business purposes.

21. Save this instruction for future reference.

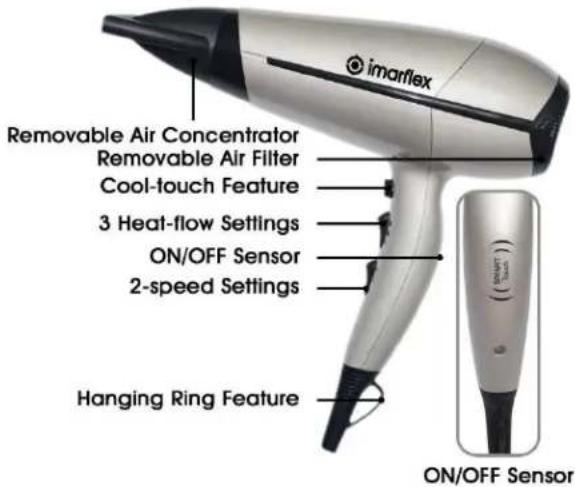

DESCRIPTION OF PARTS:

HOW TO USE:

1. Towel dry hair to remove excess moisture and to shorten drying time.
2. Plug the unit into the convenience outlet.
3. Select the desired speed and heat flow settings.

Two photos showing a hand holding a hairdryer, no text or symbols visible

NOTE: Make sure to hold the hair dryer firmly.

1. Press and hold Cool Button Switch for Cool Air Flow. NOTE: Use low heat when using the Cool Button.
2. Part hair into sections; blow dry section by section.
3. Unplug after use.

This unit is equipped with a safety thermostat to protect from possible overheating. The unit will automatically turn OFF when the motor gets hot, switch the unit OFF and let it cool for few minutes before using again.

GENERAL STYLING TIPS:

1. It is important to maintain a good haircut.
2. Use a good shampoo, rinse thoroughly, and use a conditioner to give a smooth and healthy finish to your hair. Towel dry to remove excess moisture. A mousse or styling product may then be applied to your hair before the drying and styling process.
3. Using the dryer together with the styling brush, direct the hot air through one section of hair at a time. Move the airflow steadily across the section allowing the hot air to pass through the hair. Continue on all sections of the hair, dry and style the hair to desired hairstyle.
4. Do not keep the dryer aimed at the scalp, excessive heat can damage the scalp.

5. For a smooth, sleek style that follows contours of head or neck, brush dry in natural direction of the hair. For fuller styles with volume, brush against the natural direction.

6. Direct the airflow at the hair, not the scalp, in the same way that wind blows through the hair.

CLEANING AND MAINTENANCE:

1. Unplug and wait for the unit to cool down before cleaning.
2. Wipe the Body and Air Inlet of the unit with damp cloth. Do not use abrasive materials to avoid scratches.
3. Air Concentrator and Air Filter are washable with soap and water.
4. Regularly clean air filter and air inlet grills using soft brush.
