Product Type	Powered Subwoofer Enclosure
Brand	Memphis Audio
Model	PRXS112SP
Woofer Size	12 inches
Woofer Type	Ultra Slim
Enclosure Type	Ported
Enclosure Material	Custom Embroidered Carpet
RMS Power (Woofer)	350 Watts
Peak Power (Woofer)	700 Watts
RMS Power (Amplifier)	250 Watts
Peak Power (Amplifier)	500 Watts
Frequency Response	30-260 Hz
Magnet Size	65 oz
Inputs	Hi-level (speaker level) and Low-level (RCA)
Auto Turn-On	Yes (via Hi-level input)
Remote Level Control	Included
Grill	Mesh Woofer Grill for Protection
Recommended Installation Kit	8 Gauge (8GKIT)
Warranty	1 year (extendable to 2 years with authorized installation using Memphis Connection products)
Amplifier	Built-in

Frequently Asked Questions - PRXS112SP Memphis Audio

What is the power rating of the Memphis Audio PRXS112SP subwoofer?

The woofer has an RMS power of 350 watts and a peak power of 700 watts. The built-in amplifier delivers 250 watts RMS and 500 watts peak.

How do I connect the subwoofer to my car stereo?

You can use either the Hi-level (speaker level) inputs or the Low-level (RCA) inputs. For Hi-level input, the unit has an auto turn-on feature. For RCA input, you need to use the manual turn-on feature.

What size wiring does Memphis Audio recommend for installation?

Memphis Audio recommends using an 8-gauge installation kit (8GKIT) for best performance.

Does the PRXS112SP come with a remote control?

Yes, it includes a remote level control that allows you to adjust the bass output from your driver's seat.

What is the warranty on the Memphis Audio PRXS112SP?

The product has a one-year warranty from date of purchase. This is extended to two years if installed by a Memphis authorized dealer using Memphis Connection products.

Can I install the subwoofer myself?

While it is possible, Memphis Audio recommends installation by an authorized dealer to avoid damage and to keep the warranty valid. Improper installation may void the warranty.

What is the frequency response of the PRXS112SP?

The frequency response is 30-260 Hz, which means it reproduces deep bass notes up to mid-bass frequencies.

How does the auto turn-on function work?

When using the Hi-level input, the amplifier automatically turns on when it detects a signal from the speaker wires. For RCA inputs, you must connect a remote turn-on wire.

What is the enclosure type and material?

It is a ported enclosure for maximum performance, covered with custom embroidered carpet for a factory look.

What should I do if I experience issues with the subwoofer?

Contact your local authorized dealer or Memphis Audio customer service at 800-489-2300 or email [e-mail]. Do not attempt repairs yourself as it may void the warranty.

USER MANUAL PRXS112SP Memphis Audio

Abstract geometric logo with a stylized letter 'M' inside a circular frame (no text or symbols)

PRXS112SP

SHEMPEN

READY TO TURN IT UP? READ THIS FIRST!

Memphis Audio built a 50 year legacy in the audio industry engineering the highest quality products to produce the best possible listening experience for our fans and loyal supporters. To fully appreciate our products we Recommend taking the time to read and follow the instructions in this manual. As always, we recommend all installations and service be performed by an authorized Memphis Audio dealer.

For optimal performance, Memphis recommends using only Memphis Connection accessories. Outfitting your system with properly sized Memphis Connection wire and accessories will dramatically boost your listening experience and increase the durability of your Memphis Audio products.

PRXS112SP bass packages were specifically engineered to produce big bass in a limited space in a convenient easy-to-install self-powered ultra-slim enclosure.

Check out our full line of Memphis Audio speakers, amplifiers and subwoofers to create the perfect system for your ride. www.memphiscaraudio.com

SPECIFICATIONS

RMS/PEAK Power - Woofer: 350/700 watts RMS/PEAK Power - Amplifier: 250/500 watts Frequency Response: 30-260Hz Magnet Size: 65 oz

FEATURES

Custom Embroidered Carpeted Enclosure Ported Enclosure Designed For Maximum Performance 12" Ultra Slim Woofer For a Compact Fit Amplifier Included For Easy Installation Mesh Woofer Grill For Added Protection Remote Level Control

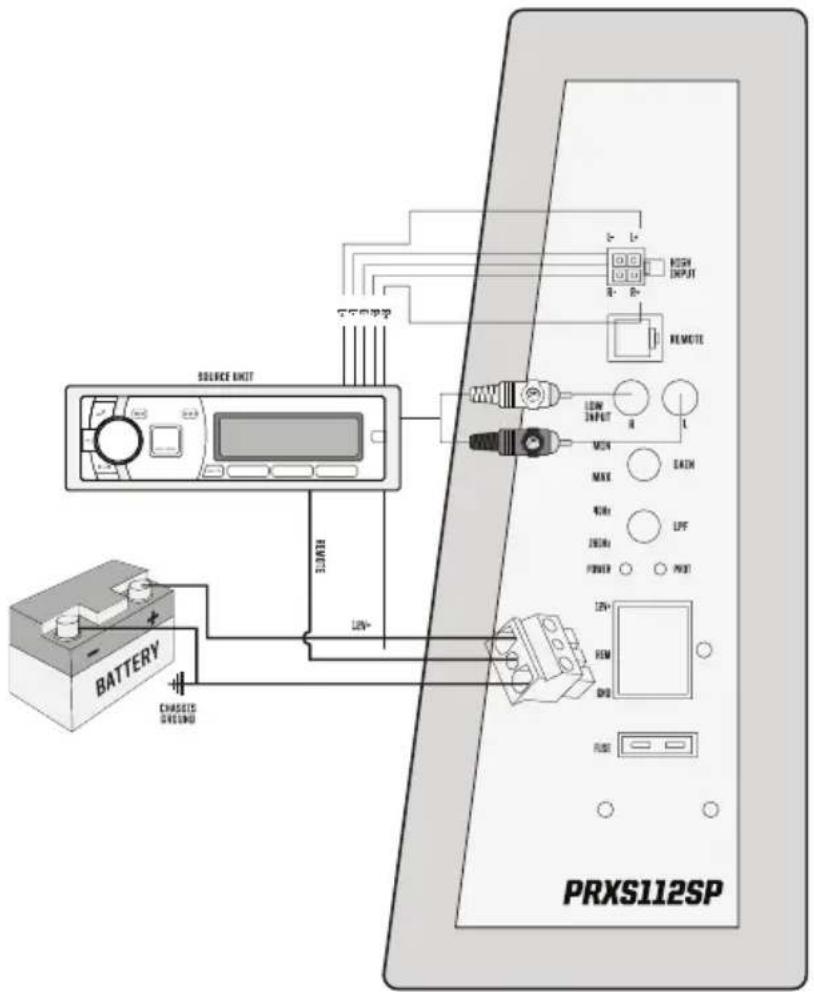

INSTALLATION AND WIRING

This unit is equipped with remote auto turn on function when you use the Hi-level input. Use of the low level (RCA) input will require using the manual turn-on feature.

For the best results, Memphis Audio recommends using an 8GKIT installation kit.

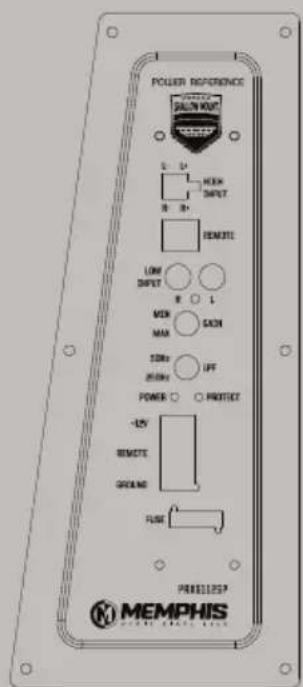

INSTALLATION AND WIRING CONTINUED

SERVICE & RETURNS

Please consult with your local authorized dealer if you experience issues with your unit. You may also contact Memphis Audio customer service at 800-489-2300 or email tech support directly at: [e-mail].

INSTALLATION INFORMATION

Memphis Audio recommends the installation of our products to be performed by an Authorized dealer. Attempting an installation project on your own or through an unauthorized source may result in damage to your products and may potentially void your warranty.

PROLONGED EXPOSURE TO MEMPHIS BASS CAN CAUSE PERMANENT HEARING LOSS AND DAMAGE TO YOUR EARS. USE CAUTION BUT DON'T SAY WE DIDN'T WARN YOU.

WARRANTY

Memphis Audio PRXS112SP Bass Package Warranty

This product has a one year warranty from the date of purchase for defects in material or workmanship. This warranty will be extended to 2 years when installed by a Memphis authorized dealer using Memphis Connection products. The warranty is void if the product has been physically damaged by improper usage or abuse. If repairs are attempted outside of a Memphis Audio facility, the warranty is void.

This warranty is limited to the original retail purchaser and does not cover any expenses incurred in the removal or re-installation of the product. This warranty does NOT apply to product exterior and cosmetics. Memphis Audio disclaims any liability for incidental or consequential damages caused by product defects. Memphis Audio liability will not exceed the purchase price of the product and the warranty period specified.

What is NOT covered under warranty

• Damage due to improper installation
- Damage caused by exposure to moisture, excessive heat, chemical cleaners and/or UV radiation
- Damage through negligence, misuse, accident or abuse. (Repeated returns for the same damage may be abuse)
• Product damaged in accident and/or due to criminal activity
• Service performed by anyone other than Memphis Audio
- Subsequent damage to other components
- Any cost or expense related to the removal or re-installation of product
- Products with tampered, missing, altered or defaced serial numbers/labels
- Freight damage
• The cost of shipping product to Memphis Audio
- Return shipping on non-defective items
• Any product not purchased from an authorized Memphis Audio dealer

Some states do not allow the exclusion or limitation of incidental or consequential damages. The above limitations or exclusions may not apply to you. This warranty gives you specific rights, you may have other rights which vary from state to state.

If warranty service is required, a return authorization number is required to return the product to Memphis Audio. Warranty shipments to Memphis Audio are the responsibility of the purchaser. Pack the product carefully in the original carton if possible Memphis Audio will not be responsible for damages incurred in shipment or due to improper packaging materials used by the purchaser.

If determined to be within warranty your product will be repaired or replaced at the discretion of Memphis Audio.

PR

Abstract geometric logo with a stylized letter M inside a circle (no text or symbols)

MEMPHIS

CONTACT INFO

122 GAYOSO AVE. MEMPHIS, TN USA 38101

TECH SUPPORT:800-903-6879
