| Product Type | Inverter Generator |
| Brand | Hyundai |
| Model | HY2250SEi |
| Rated Power (kVA) | 2.2 |
| Rated Power (kW) | 1.8 |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Engine Type | 4-Stroke OHV |
| Fuel Type | Unleaded Petrol |
| Fuel Tank Capacity | 3.6 L |
| Runtime at 25% Load | Up to 10 hours |
| Noise Level | 58 dB(A) @ 7m |
| Starting System | Recoil |
| Parallel Capability | Yes |
| Dimensions (L x W x H) | 540 x 430 x 440 mm |
| Weight | 21 kg |
| Oil Capacity | 0.6 L |
| Spark Plug | BPR6ES |
| Warranty | 2 years |
Frequently Asked Questions - HY2250SEi HYUNDAI

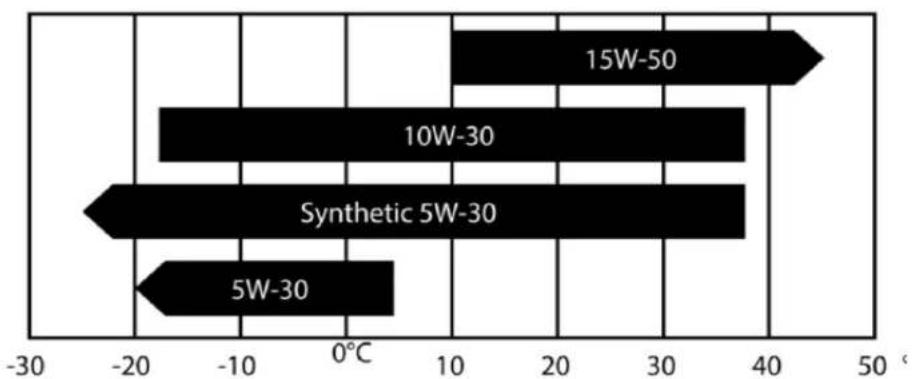

What type of oil should I use?
Use SAE 10W-30 engine oil for general temperatures. Refer to your manual for exact viscosity recommendations.

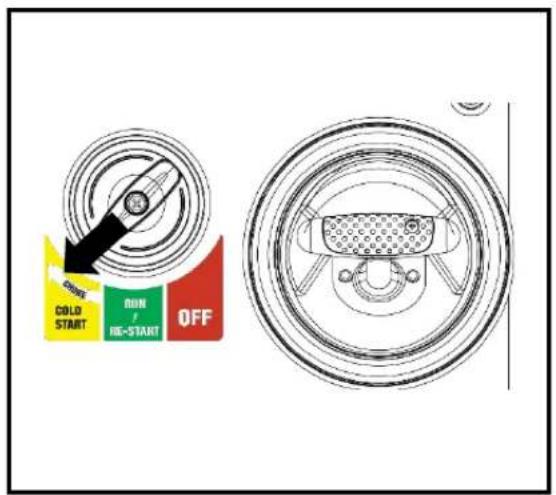

How do I start the generator?

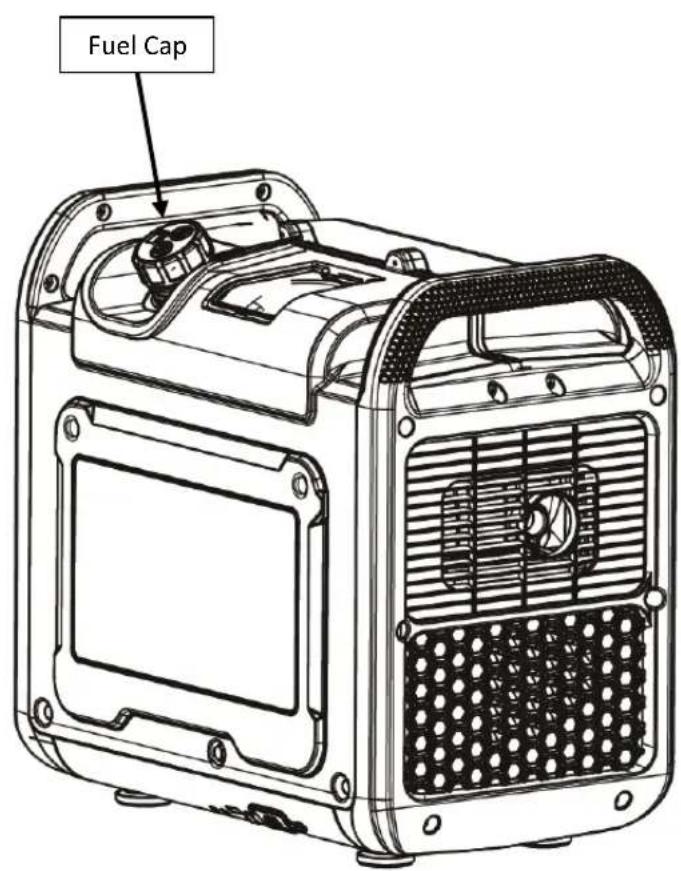

Ensure fuel and oil are filled. Turn the fuel valve to ON, close the choke if cold, pull the recoil starter handle. Once running, open the choke.
Can I connect two generators in parallel?
Yes, the HY2250SEi supports parallel operation using a specific parallel kit (sold separately) to increase power output.
What is the eco mode?
Eco mode automatically adjusts the engine speed to match the load, reducing fuel consumption and noise. Activate it for light loads.

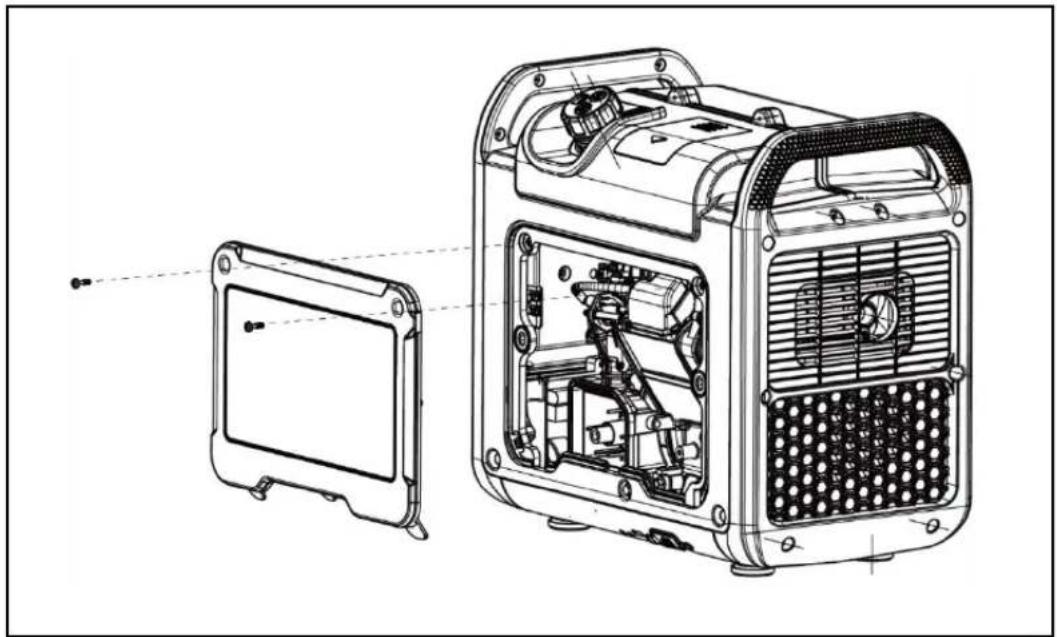

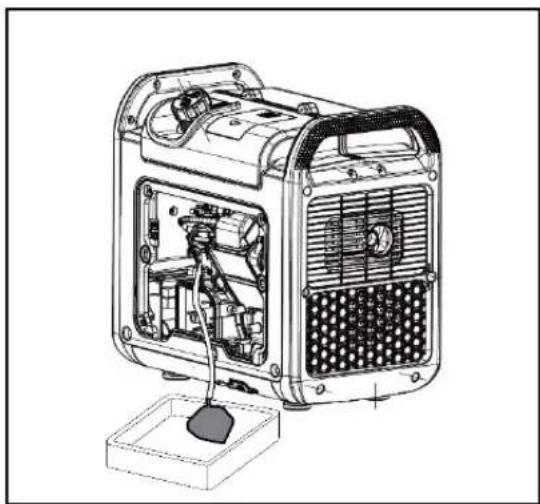

How often should I change the oil?
Change the engine oil after the first 20 hours of operation, then every 100 hours or annually, whichever comes first.
What is the fuel consumption?
At 25% load, fuel consumption is approximately 0.36 L/h. Full load consumption is higher; the tank lasts up to 10 hours at low load.
Is it safe to use in rain?

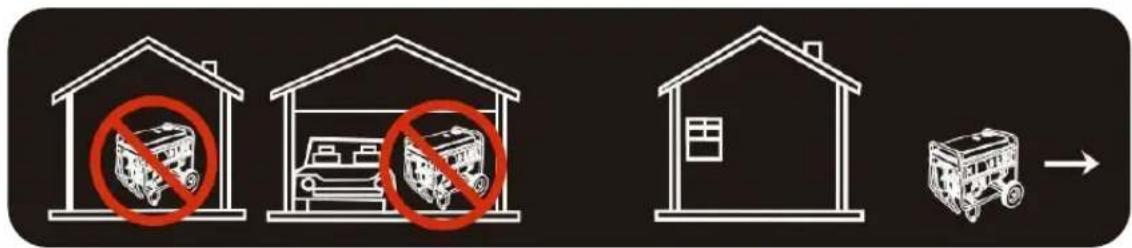

No, never expose the generator to rain or moisture. Use it in a dry, well-ventilated area and protect it from water to avoid electrical shock.

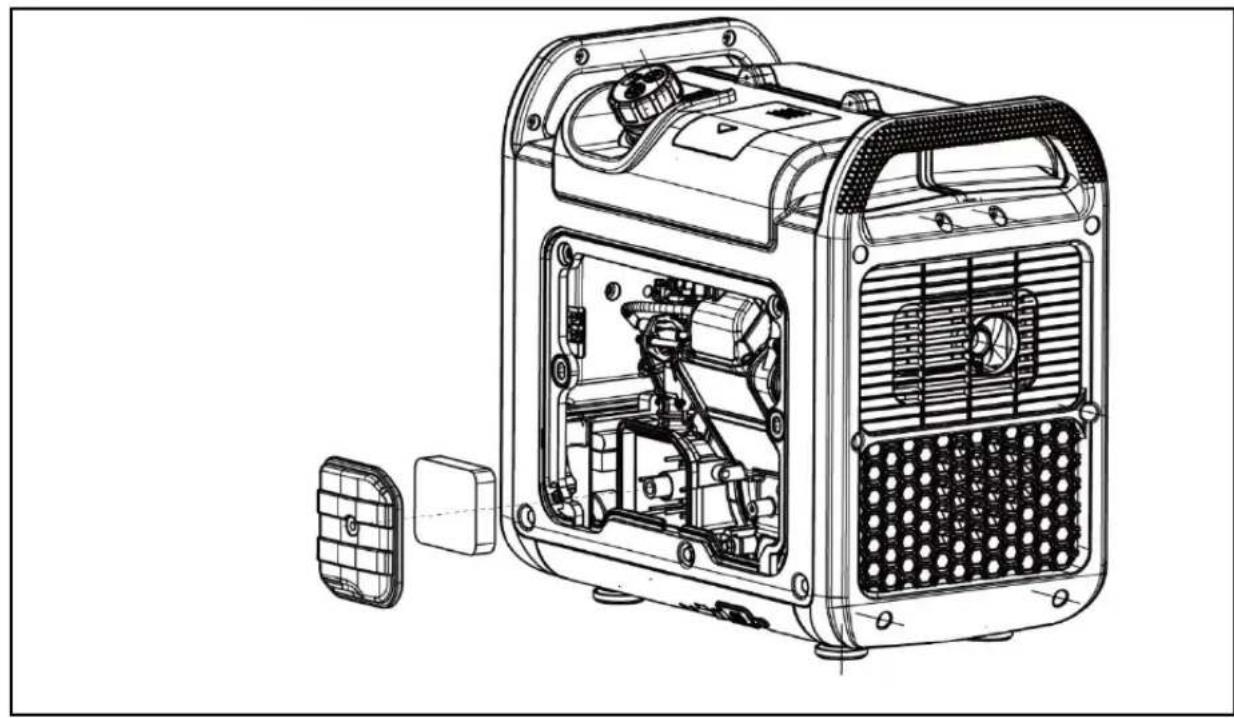

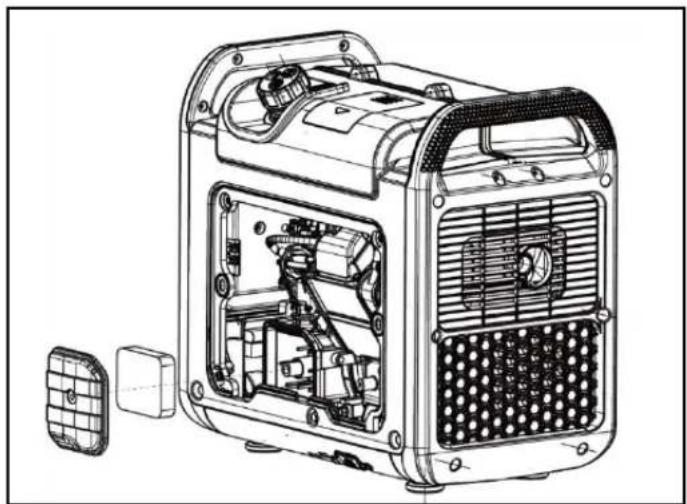

How do I maintain the air filter?
Check the air filter every 50 hours. Clean it with soapy water if dirty, and replace it if damaged or after 300 hours.
What is the purpose of the carbon brush?
The carbon brush conducts electrical current between the rotor and stator. Inspect it periodically and replace it if worn down to 5 mm.
How long can I run the generator continuously?
For optimal longevity, do not run the generator for more than 8 hours continuously without a break. Allow it to cool down occasionally.
