IAEBT300 - Earphones iLive - Free user manual and instructions

Product Type	Bluetooth In-Ear Earphones
Brand	iLive
Model	IAEBT300
Connectivity	Bluetooth 5.0
Battery Life	Up to 8 hours playtime
Charging Case Battery	Additional 16 hours (total 24 hours)
Charging Port	Micro-USB
Charging Time	Approx. 1.5 hours
Driver Size	10 mm
Frequency Response	20 Hz - 20 kHz
Impedance	32 Ohms
Water Resistance	IPX4 (sweat and splash resistant)
Controls	Multifunction touch buttons for play/pause, calls, volume
Microphone	Built-in mic for hands-free calls
Weight (per earbud)	Approx. 5 grams
Weight (charging case)	Approx. 35 grams
Dimensions (earbuds)	1.8 x 1.9 x 2.5 cm each
Dimensions (case)	7.5 x 5.1 x 3.2 cm
Included Accessories	Charging case, Micro-USB cable, silicone ear tips (3 sizes), manual
Compatible Devices	Smartphones, tablets, computers with Bluetooth
Bluetooth Range	10 meters (33 feet)
Cleaning	Wipe with a dry cloth; avoid moisture in ports
Safety	Do not disassemble; avoid extreme temperatures

Frequently Asked Questions - IAEBT300 iLive

How do I pair the IAEBT300 earphones with my phone?

Remove the earphones from the charging case; they enter pairing mode automatically. Enable Bluetooth on your device and select "iLive IAEBT300" from the list. If not pairing, press and hold the touch button on both earbuds for 5 seconds until LED flashes.

How do I reset the earphones?

Place the earphones in the charging case and close the lid. Wait 10 seconds, then remove them. If problems persist, forget the device in Bluetooth settings, then re-pair.

How long do the batteries last and how do I charge them?

Earbuds provide up to 8 hours of playback; the case adds another 16 hours. Charge via included Micro-USB cable. Red LED indicates charging; blue LED when full (approx. 1.5 hours).

Can I use one earbud only?

Yes, both earbuds can be used independently. Remove only the left or right earbud from the case and it will connect as a mono headset.

How do I control music and calls?

Use the touch panel: single tap to play/pause or answer/end call; double tap to skip track; triple tap to go back; long press for volume or voice assistant (depending on setup).

Why is the sound from one earbud only or no sound?

Ensure both earbuds are charged and the device volume is up. Clean the ear tips and charging contacts. If still faulty, reset the earphones as described.

Are the earphones water resistant?

Yes, they have an IPX4 rating, meaning they can withstand splashes of water and sweat. Do not submerge or charge when wet.

How do I clean the earphones?

Use a dry, lint-free cloth to wipe the exterior. Remove ear tips and wash with mild soap and water, let dry thoroughly before reattaching. Avoid getting moisture in the charging ports.

Can I replace the ear tips?

Yes, the earphones come with three sizes of silicone ear tips (S, M, L). Replacement tips can be purchased online if needed.

What should I do if the earphones won't turn on?

First, place them in the charging case and ensure the case has enough battery. Charge the case fully. If still off, try a reset: remove from case, press and hold the touch button for 10 seconds, then replace in case.

USER MANUAL IAEBT300 iLive

Truly Wire-Free Earbuds

User's Guide for Model IAEBT300 v2504-01

Charging the Earbuds

1. Open the cover and place the earbuds in their docking stations. Be sure to press down so the earbuds make contact with the charging tip.
2. Press the Power button on the case to power it ON and the Charger Power Indicator LED will turn blue and begin charging the earbuds.
3. When charging, the LED Indicators on the earbuds will turn red. When charging is complete, the indicators on the earbuds will turn blue then off.

Simple line drawing of a device with an upward arrow and power button (no text or symbols)

Pull the case top up to open.

Line drawing of a small electric guitar with open lid and buttons (no text or symbols)

Charger Power ON/OFF

Diagram of a wireless earbuds with two leads and a power button, showing internal components and directional arrows (no text or symbols)

Earbud Charging Tip
Charger Power Indicator LED
Blue when ON.
Charger Battery Indicator LED
Flashes red when charging. Solid red when charging is complete.

Main Function Button

Press and hold to power ON and OFF

Press once to pause or resume playback.

Quickly press right earbud twice to skip to next track.

Quickly press left earbud twice to skip to previous track.

Pure electrical circuit lines without any symbols

NOTE: Each earbud must be powered ON separately.

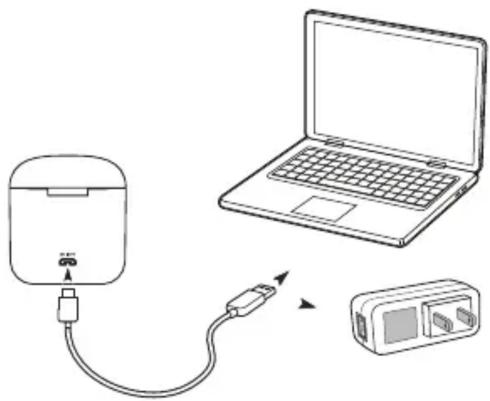

Line drawing showing a device connected to a laptop and a separate device (no text or symbols present)

Charging the Case

Using a Micro-USB to USB cable, connect to the USB port of a powered on computer or USB power adaptor (not included) to charge the case.

Earbud Indicator LED & Microphone

Red when charging.

Blue when fully charged.

Initial Linking Earbuds & Pairing Bluetooth

Earbuds auto power ON when removed from the case. If not, press and hold the Function button, and they will automatically link to each other after a few seconds. A beep will indicate earbuds are connected.

1. With the earbuds linked, you can now connect to your Bluetooth device. The LED indicator on both of the earbuds will flash blue, indicating it is ready to pair to a Bluetooth device.
2. On your Bluetooth device, access Bluetooth Settings and search for nearby devices. Select IAEBT300 when it is discovered. When successfully connected to your Bluetooth device, the LED indicator will slowly flash blue and a voice prompt will announce the connection.
3. Audio played through the connected Bluetooth device will now be heard through both earbuds. Use the controls on the connected device to play audio and adjust volume.

Note: To use a single earbud, take one earbud out of the case, it will auto POWER ON and the LED Indicator will flash blue and red, indicating it is ready to pair a Bluetooth device and start from step 2.

PLEASE NOTE: Due to the nature of truly wireless earbuds, you may experience slight interruptions with your audio in areas with multiple 2.4Ghz bands or in high wireless traffic areas.

Speakerphone

1. To accept a call, press the Function button, or use the controls on the connected phone. To end a call, press the Function button again.
2. To reject a call, press and hold the Function button.

Troubleshooting

If the earbuds experience any static, delay or cutting out of sound follow these steps.

• Make sure the earbuds are fully charged.
- Power the earbuds OFF, then ON again. Let them reconnect automatically and try playing audio again. Repeat if needed.

If the earbuds should become unpaired or will not connect normally, open your device's Bluetooth Settings Menu and follow these steps.

- Disconnect, then reconnect to the earbuds.

- If the problem persists, delete the earbuds from the list of available devices ("Forget This Device").

- Turn Bluetooth OFF then ON again, and repeat the Initial Bluetooth Connection steps.

If two earbuds can not link successfully, press and hold to POWER OFF and POWER ON of each earbud again, the LED indicator on both of the earbuds will flash blue and red slowly.

• Quickly press the left earbud twice to link the earbuds. A beep will indicate earbuds are connected.
• Then repeat the Initial Bluetooth Connection steps.

Customer Support

Customer Service: 1-888-999-4215 | Email Support: [e-mail] | Email Parts: [e-mail]

For Warranty Information and the most up-to-date version of this User's Guide, go to www.iLiveElectronics.com

To download this User's Guide in English, Spanish, or French, or to get answers to frequently asked questions, visit the support section at: www.iLiveElectronics.com

Copyright © 2020 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of their respective owners. Specifications are subject to change without notice.

FCC Warnings

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Additional Warnings

• WARNING: To prevent fire or shock hazards, do not expose this unit to rain or moisture.
• WARNING : Where the mains plug or appliance coupler is used as the disconnect device, such disconnect device shall remain readily operable.
• Lithium batteries, like all rechargeable batteries, are recyclable and should be recycled or disposed of according to state and local guidelines. They should never be disposed of in normal household waste, and they should never be incinerated, as they might explode. Contact your local government for disposal or recycling practices in your area.
• This product meets and complies with all Federal regulations.
• To avoid hearing damage, make sure that the volume on your music player is turned down before connecting your headphones. After placing headphones in/on your ears, gradually turn up the volume until you reach a comfortable listening level.

WARNING : This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. This product meets and complies with required Federal product guidelines.
