HT1288 - Heating Lifesmart - Free user manual and instructions

Product Type	Infrared Heater
Brand	Lifesmart
Model	HT1288
Power Consumption	1,000 W / 1,500 W (selectable)
Voltage Rating	120 V, 60 Hz
Amperage Requirement	Dedicated 15 amp circuit minimum
Dimensions (Height)	2.24 in.
Weight	Not specified in manual
Heat Output (BTU)	5,118 BTU at 1,500 W
Heating Method	Infrared (heats objects, not air)
Control Panel	Mode Select Knob (High, Low, Flame Only) and Thermostat Knob
Overheat Protection	Automatic shut-off when internal temperature exceeds safe limit
Fan Operation	Fan continues to run after heating stops to cool internal components
Safety Features	Do not use with extension cord; keep 3 ft clearance from combustibles; not for outdoor use
Cleaning Maintenance	Wipe with soft damp cloth; vacuum air intake vents every 3 months
Replacement Parts	Heating elements available from manufacturer; contact customer support
Warranty	1-year limited warranty on functional parts
Customer Support	657-341-0362, Mon-Fri 9am-5pm PST, or www.lifesmartcomfort.com
Recommended Use	Supplemental heat in insulated rooms; not a primary heat source
Burn-in Odor	Normal for first few hours; dissipates after break-in period

Frequently Asked Questions - HT1288 Lifesmart

Why does my heater emit a strange odor when first used?

This is normal. The heater is treated with a heat-safe coating that produces an odor during the first few hours of operation. The smell will dissipate after the break-in period. If sensitive, pre-burn the unit in a garage with the door open.

How many BTUs does the heater produce at 1,500 watts?

At 1,500 watts, the heater produces 5,118 BTUs. For reference, 1,000 watts yields 3,412 BTUs, and 750 watts yields 2,559 BTUs.

Can the heating elements be replaced?

Yes, replacement heating elements can be obtained from the manufacturer. If out of warranty, all parts may be purchased. If faulty out of the box, contact Customer Support for guidance.

How long will it take to heat my room?

Heating begins immediately, but noticeable room temperature change varies due to factors like room size, insulation, ceiling height, and drafts. Smaller rooms heat quickly; larger open-floor plans may need up to 24 hours to fully heat.

Can I use more than one heater at a time?

Yes, but each heater must be on a separate 15-amp dedicated circuit. Do not plug multiple heaters or appliances into the same circuit, as heaters draw high amperage. Verify with a certified electrician if unsure.

Why does the fan continue to run after the heater turns off?

This is normal. The fan runs to expel remaining heat from the chamber and continue filtering air. It will shut off automatically once internal components cool. This may take a few minutes.

My power cord feels warm. Is that normal?

A warm power cord is normal and safe up to 105°C/221°F. However, if you notice heat, smoke, or melting at the outlet, discontinue use immediately. It may indicate loose or worn wall contacts. Contact warranty support and have an electrician replace the outlet.

What is the difference between infrared and traditional space heaters?

Infrared heaters heat objects directly, not the air. They are designed to supplement an already heated, insulated room and may take longer to warm a space but maintain temperature efficiently. They do not blow hot air like traditional heaters.

Is it safe to use the heater on carpet or soft surfaces?

No, do not use on soft surfaces like beds or carpets where openings may become blocked. Always place on a firm, level surface and keep at least 3 feet clearance from combustibles.

What should I do if the heater does not turn on?

First, ensure the power cord is plugged into a working 120V outlet. Check the main fuse box for tripped breakers. If the problem persists, contact technical support at 657-341-0362.

USER MANUAL HT1288 Lifesmart

LIFE SMART® is a registered trademark of

Supply Chain Sources LLC., All Rights Reserved.

model #HT1288

Line drawing of a vintage portable stove with arched front panel and control knobs (no text or symbols)

ATTACH YOUR RECEIPT HERE

Intertek

Purchase Date ____ Serial Number (located on back of unit) ____

Questions, problems, missing parts? Contact technical support department at

657-341-0362, 9:00 a.m. - 5 p.m., PST, Monday - Friday or visit us online at

www.lifesmartcomfort.com

Please have your model and serial number ready

Package Contents.... 3

Safety Information 4

Frequently Asked Questions 6

Preparation....7

Troubleshooting 8

Control Panel....8

Operating Instructions 9

Care and Maintenance....10

One-Year Limited Warranty 11

Replacement Parts List 12

Line drawing of a portable air conditioner unit with labeled components (E and D), no text or symbols present.

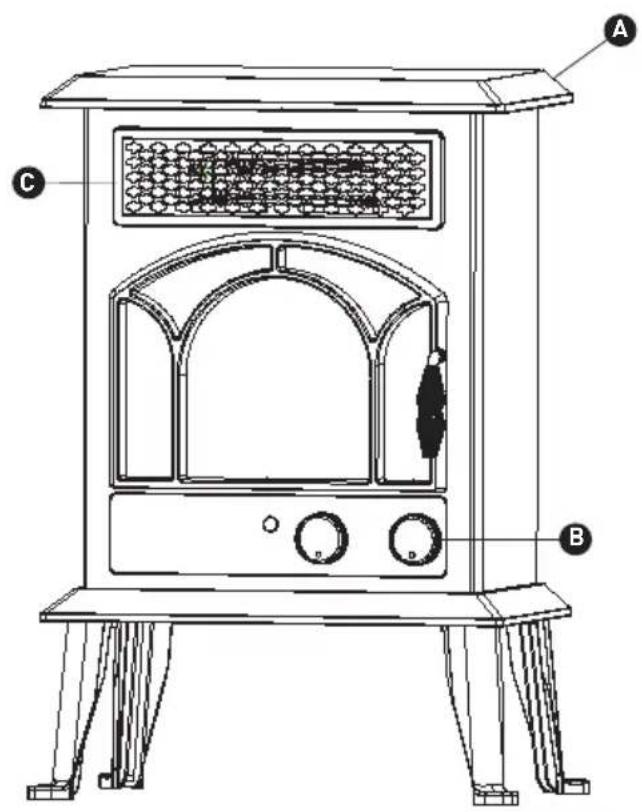

PART DESCRIPTION QUANTITY
A Infrared Heater 1
B Control Panel (preassembled to Infrared Heater (A)) 1
C Heat Output Vent (preassembled to Infrared Heater (A)) 1
D Unit Legs 4
E Temperature Sensor (preassembled to Infrared Heater (A)) 1

Please read and understand this entire manual before attempting to assemble, operate, or install the product.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: POTENTIAL ELECTRICAL HAZARD IF NOT ADHERED TO. When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• This heater must be plugged into a 120 V, 15 amp (or more) circuit of its own. Do not plug anything else into the same circuit. If unsure if your home meets this specification, consult a certified electrician prior to use. Risk of fire, overheating, malfunction, property damage, injury, or even death may result if not adhered to!
• Connect to a properly grounded, 2-prong outlet only. Do not connect the heater to extension cords, surge protectors, timers, direct breakers, or an outlet with other appliances connected to the same outlet. Risk of fire, overheating, malfunction, property damage, injury, or even death may result if not adhered to!
• This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Use handles (certain models) or wheels to move this heater.
• Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 ft. (0.9 m) from the front of the heater and keep them away from the sides and rear of the heater.
• Extreme caution is necessary when any heater is used by or near children, invalids, pets, or when the heater is left operating unattended.
  • Always unplug the heater when not in use.
• Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped, or damaged in any manner. Contact the manufacturer for resolution options.
• Do not use outdoors. Exposure to outdoor elements such as rain, snow, sun, wind, or extreme temperatures may cause the heater to become a safety hazard.
• This heater is not intended for use in bathrooms, laundry areas, and similar indoor locations, nor any locations that use GFCI outlets.
• Never place the heater where it may fall into a bathtub or other water receptacles.
• Do not run the cord under carpet. Do not cover the cord with throw rugs, runners, or similar coverings. Arrange the cord away from traffic areas and where it will not be tripped over.
• The heater must be plugged into a wall outlet that is a dedicated circuit with a minimum 15 amp rating on that individual circuit.
• To disconnect the heater, first turn the power button to the OFF position and then remove the plug from the wall outlet.
• Do not allow foreign objects to enter or block any ventilation or exhaust opening as this may cause electric shock, fire, or damage the heater.
• Allow at least 3 ft. of unobstructed space to the front and rear of the heater to allow for maximum heat, air, and ventilation flow.
• A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored, nor use flammable solvents to clean the heater. Keep the heater dry at all times.
• Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
• Do not use abrasive solvents to clean the heater as it may cause damage to the finish or casing.
• To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where opening may become blocked.
• Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).

SAVE THESE INSTRUCTIONS

Overheat Safety Feature

This heater is equipped with an overheat safety feature. When the internal components of the heater reach a certain temperature that could cause overheating or possible fire, the heater will automatically shut off.

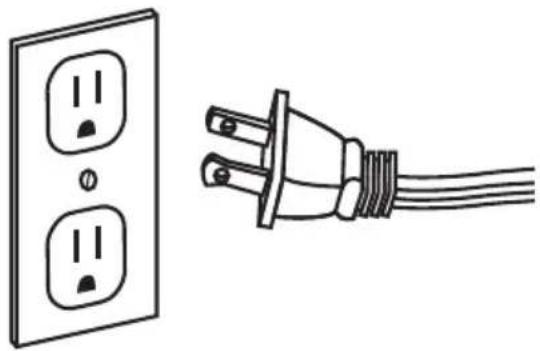

WARNING: TO PREVENT ELECTRICAL SHOCK, MATCH THE WIDE BLADE OF THE PLUG TO THE WIDE SLOT OF THE RECEPTACLE AND FULLY INSERT.

Illustration of a two-pin electrical outlet and a separate wire-wrapped power plug (no text or symbols)

WARNING: It is normal for the power cord to feel warm to the touch. However, a loose fit between the outlet and the plug may cause overheating of the plug. If this occurs, try inserting the plug into a different outlet. Contact a qualified electrician to inspect the original outlet for damage.

Specifications

Voltage Rating
Power Consumption	1,000 W/1,500 W
Unit Size	2.24 in. (H)
Unit Weight

Please review these frequently asked questions on the next few pages prior to using your heater.

Q. My heater emits a strange odor when I first open the box and when I turn the heater on for the first time. Why is this happening?

A. This is normal. This heater is treated with a special heat safe/resistant coating. This odor will sometimes be present when the box is opened. When the coating is exposed to heat, it produces this particular odor during the first few hours of operation. This will dissipate after the break-in period. If you are sensitive to odors, you may want to pre-burn the unit in a garage with the door open until the initial odor dissipates.

Q. If my heater runs on its max wattage setting, how many BTUs is that?

A. This heater is intended to be used as supplemental heat in areas most needed. It may take several minutes to several hours to heat your area, depending on various factors. The below chart provides BTU translations for different wattages.

WATTAGE BTUS
1,500 5,118
1,000 3,412
750 2,559
500 1,706

Q. Can the heating elements be replaced?

A. Replacement heating elements can be obtained from the manufacturer. All parts may be purchased through the manufacturer if your product is out of warranty. If you feel that the elements are definitely faulty right out of the box, contact Customer Support. A representative can then direct you to the next step.

Q. Once I plug the unit in and turn it on, how long will it take to heat my room?

A. The heating process in the heater begins immediately upon powering on and setting the desired temperature above the ambient temperature. A noticeable change in the ambient temperature of the room will vary due to variables such as the location of the heater (in the home), floor plan and size of the room, how well the room is insulated, how many doors/windows, how much bare concrete (acts as a heat sink with any type of heating), the opening and closing of an exterior door, long hallways, high ceilings, etc. Customers with smaller rooms experience quick heat changes. Rooms with larger and open floor plans can expect up to 24 hours to completely heat up.

Q. Can I use more than one heater at a time? Can I use the heater and another appliance at the same time?

A. Yes, but make sure they are not plugged into the same circuit. Each heater requires its own minimum 15-amp circuit with no other items plugged into that circuit or outlet. This is because heaters are considered appliances and draw out high amperage. If you are unsure your circuit meets these requirements, verify with a certified electrician.

WARNING: Risk of fire, damage to property, or injury may result if requirements are not met.

Q. Why does my heater's fan continue to run after the set temperature is reached or the power is turned off?

A. This is normal. The heater's fan will continue to run even after the heater automatically cycles down. The fan continues to run so that every last bit of heat is blown out of the heat chamber while allowing the unit to continue filtering your air. Once the internal box/components cool completely, the fan should then shut off on its own. In this case, allow a few minutes after the heat cycles off (with power on). The fan will shut off faster when the power is turned off.

Q. My heater's power cord gets warm. My cord is showing signs of heat or melting at the outlet. Is this normal?

A. A warm power cord is normal. These power cords are rated safe for up to 105^ C/221°F by the UL, CSA, or ETL. The exception is, if you detect heat, smoke, or signs of melting at the contact point of the wall outlet, it may be due to loose or worn wall contacts (or arcing). Please stop using the heater immediately, contact warranty support for a replacement power cord, and have a certified electrician replace the wall outlet as soon as possible.

PREPARATION

Place the heater on a firm, level surface and plug into a grounded 120 V, 60 Hz power outlet. Only operate heater in upright position.

Please note that infrared heaters do not heat like a traditional space heater. You should not expect infrared heaters to blow hot air like a traditional space heater. Infrared heaters heat objects not air. Infrared heaters are intended to supplement an already heated, insulated room. Square footage specifications assume a single enclosed room not an entire home. Infrared heaters do not heat through walls, floors, and are not intended to replace a main heat source. Infrared heat can take at least 24 hours to warm a room but operate much more efficiently to maintain the desired temperature. Infrared heaters will not work well in uninsulated unheated spaces like screened in porches, RV's, garages, unheated basements, etc.

To assemble the unit feet align the foot to the mounting bracket and press up firmly until secured with a "CLICK" sound. For permanent attachment you can secure the leg by adding a screw into the pre-drilled hole (1 per leg).

Technical line drawing of a mechanical support structure with no visible text or symbols

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The heater does not turn on.	1. The power cord is not plugged in.2. The electricity at the main fuse box is not working.	1. Plug the power cord into an electrical outlet.2. Check the electricity at the main fuse box.
The flame effect does not turn on	1. There is no light for the flame 2. Change the light bulb.
There is no heat from the unit	1. The thermostat on the heater is set lower than the room temperature.2. The switch for heat is not on.	1. Increase the thermostat temperature on the heater to a higher heat setting.2. Turn the low and/or high heat switch to the on position along with the flame and fan effect switch.

CONTROL PANEL

PART NAME DESCRIPTION
1 Power Indicator Light Indicates		when unit is recieving power.
2 Mode Select Knob		Powers the unit ON / OFF and toggles power between high, low, and flame only modes.
3 Thermostat Knob Increases or decreases desired temperature

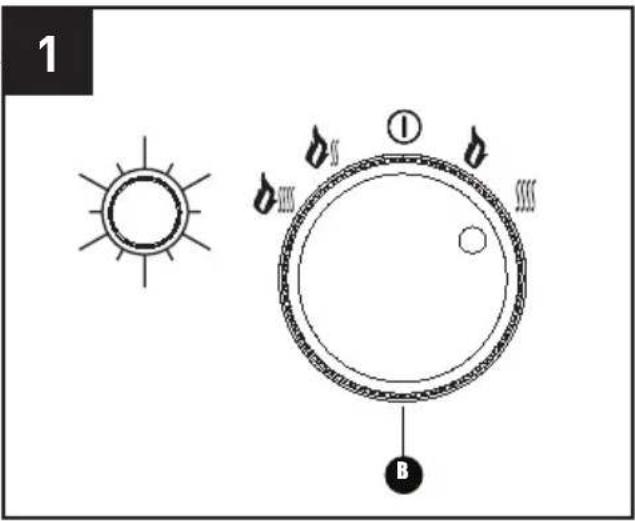

1. Turn the heater ON / OFF by selecting a desired heat setting on the unit control panel (B). The unit's power indicator light will illuminate.

1. Select the desired heat setting by turning the mode dial clockwise or counter clockwise.

1. Set the thermostat by turning the thermostat knob on the control panel (B)

To increase the desired temperature, turn the thermostat dial to the right (clockwise) to increase, or left to decrease temperature. The thermostat control knob can only be used while the Power and Heat switch/switches are in the on position.

Once you have chosen the desired temperature, the heater will remain on until the room temperature increases to that level. Then, the heater will cycle on and off to maintain the desired room temperature.

WARNING: Before performing any maintenance task, turn off the power, unplug the unit, and allow it to cool completely.

1. To keep the heater clean, clean the outer shell with a soft, damp cloth. Use a mild detergent if necessary. After cleaning, dry the unit with a soft cloth.

CAUTION: DO NOT let liquid enter the heater.

1. DO NOT use alcohol, gasoline, abrasive powders, furniture polish, or rough brushes to clean the heater. This may cause damage or deterioration to the surface of the heater.
2. DO NOT immerse the heater in water.
3. Wait until the unit is completely dry before use.
4. Store the heater in a cool, dry location when not in use. To prevent dust and dirt build-up, use the original packaging to repack the unit.

⚠ WARNING: Do not use the heater without all assembly in place.

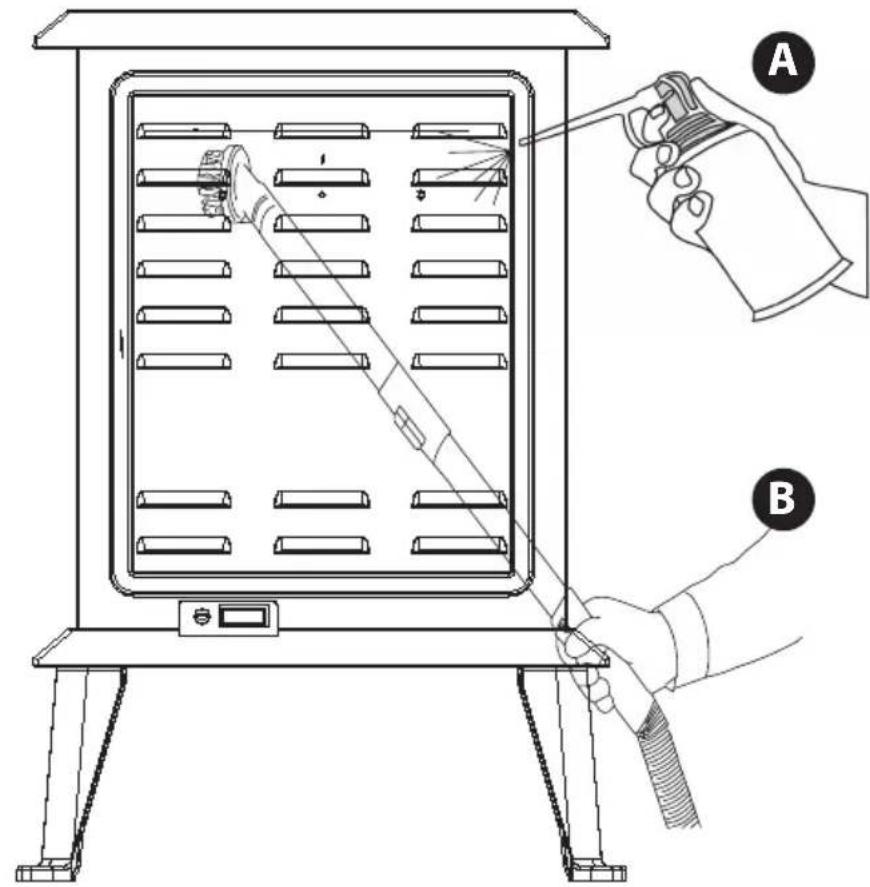

CLEANING THE AIR INTAKE VENT

1. Clean the air intake or inside the unit after three months or if it appears to be blocking airflow. With the heater unplugged, use a vacuum hose attachment (B) or compressed air (A) to blow out or clean out any dirt, hair, or debris that may have built up around and inside the unit as this will obstruct airflow.

The manufacturer warrants this heater against defects in materials and workmanship on functional parts, for a period of 1 year from the original date of purchase. Your sales receipt showing the date of purchase of the product is your proof of purchase. Keep it in a safe place for future reference. This warranty is subject to personal use only, commercial or rental applications will not be covered.

This product is made with the highest quality materials and is warranted to be free from defects in materials and workmanship at the time of purchase. This limited warranty applies to products manufactured or distributed by the manufacturer, are delivered in the continental United States or Canada and extends to the original purchaser, or gift recipient. This warranty becomes valid at the time of purchase and terminates either by the specified time frame listed above and/or owner transfer. Any refunds or monetary compensations must be claimed through the place of purchase (retailer), and not through the manufacturer. Any extended warranties (warranties that cover above and beyond this manufacturer warranty) that are sold through a retailer or third party, are not directly correlated with this products' limited warranty, and may be redirected to said retailer or third party for coverage.

This warranty extends through the manufacturer of the product, and covers functional parts only. Cosmetics are not covered, unless unequivocally determined it is a workmanship defect. Shipping damage should be addressed with the shipping company, retailer, or place of purchase, not the manufacturer unless the manufacturer was the direct shipper.

The manufacturer's sole obligation under this warranty shall be limited to furnishing the original purchaser replacement parts for units deemed repairable by the supplier's warranty department. The purchaser is responsible for insuring any parts shipped or returned, if desired. The purchaser is responsible to prepay any shipping charges (both ways) including, but not limited to taxes and duties. All exchanged parts and products replaced under this warranty will become the property of manufacturer. The manufacturer reserves the right to change manufacturers of replacement parts or products for use, in order to cover any existing warranty.

The purchaser may be asked to provide the supplier with proof of purchase documents (including the date of purchase) if requested. Any evidence of alteration, erasing, or forgery of proof of purchase documents will be just cause to VOID this limited warranty. Products, in which the serial number has been defaced or removed are not eligible for warranty coverage.

This warranty does not apply if the unit has been subject to negligence, fabrication, misuse, abuse, or repairs, alteration by non-manufacturer authorized personnel, inappropriate installations, or any case beyond the control of the manufacturer. Examples of warranty invalidation may also include, but are not limited to:

• Use of lacquer or paints in (and around) the heaters
  • Heater placed on non-approved surfaces
  • Electrical requirement deficiencies (15-20 amp dedicated outlet)
• Use on extension cords/timers/surge protectors/GFCI
  • Outdoor applications
  • Normal wear/tear/weathering
• Pet/consumer accidents

• Purchases from dealers unauthorized by the manufacturer (Authorization in writing)

The manufacturer shall not be liable for any loss due to use (or misuse) of the heater or other incidental or consequential costs, expense or damages without irrefutable foundations. Under no circumstances shall the manufacturer or any of its representatives be held liable for injury to any person or damage to any property, however arising. Any implied warranty shall have duration equal of the applicable warranty stated above. Specifications are subject to change without notice or obligation.

This limited warranty gives the original purchaser specific legal rights. Other rights may vary from state to state.

For replacement parts, call our technical support department at 657-341-0362, 9:00 a.m. - 5 p.m., PST, Monday - Friday

PLEASE REMEMBER TO REGISTER YOUR WARRANTY:

web: www.lifesmartcomfort.com

LIFE SMART® is a registered trademark of Supply Chain Sources LLC., All Rights Reserved.
