FHCP072AKR - Air conditioner FREONIC - Free user manual and instructions

Product Type	Split Air Conditioner
Brand	FREONIC
Model	FHCP072AKR
Cooling Capacity	7,000 BTU/h
Energy Efficiency Ratio (EER)	10.0
Power Supply	220-240V / 50Hz
Indoor Unit Dimensions (WxHxD)	28.3 x 19.3 x 10.2 inches (720 x 490 x 260 mm)
Outdoor Unit Dimensions (WxHxD)	33.5 x 21.7 x 13.0 inches (850 x 550 x 330 mm)
Indoor Unit Weight	22.0 lbs (10.0 kg)
Outdoor Unit Weight	55.1 lbs (25.0 kg)
Refrigerant	R-32
Main Functions	Cooling, Fan, Dehumidification, Turbo Mode
Additional Features	Timer, Sleep Mode, Auto Restart, Self-Diagnosis
Remote Control	Included (batteries not included)
Airflow Direction	Vertical/Horizontal auto swing
Filter Type	Washable antibacterial filter
Noise Level (Indoor)	28-45 dB(A)
Noise Level (Outdoor)	52 dB(A)
Maintenance	Clean filter every 2 weeks; professional cleaning recommended annually
Safety Features	Overheat protection, anti-freeze protection, compressor delay
IP Rating (Outdoor)	IPX4
Operating Temperature Range	Cooling: 17-46°C (62-115°F)
Spare Parts Availability	Filters, remote, fan motors available from authorized service centers
Reparability Index (France)	7.5 / 10 (estimated)

Frequently Asked Questions - FHCP072AKR FREONIC

How do I clean the air filter on my FREONIC FHCP072AKR?

Turn off and unplug the unit. Open the front panel, remove the filter, and vacuum or wash with mild soap. Dry completely before reinstalling.

What is the recommended room size for this air conditioner?

The FHCP072AKR is suitable for rooms up to 250 sq ft (23 m²) with standard ceiling height.

Does this air conditioner have a heating function?

No, this model is cooling-only. For heating, consider a heat pump model.

How often should I service the outdoor unit?

It is recommended to have the outdoor unit professionally serviced once a year to ensure optimal performance.

Can I install the FHCP072AKR myself?

Installation should be performed by a qualified technician to ensure proper refrigerant handling and electrical connections.

What should I do if the air conditioner is not cooling properly?

Check if the filter is clean, ensure doors/windows are closed, and verify the set temperature is lower than room temperature. If issue persists, call support.

Is a remote control included?

Yes, a remote control is included. Please note batteries are not provided.

What is the noise level of this air conditioner?

Indoor noise ranges from 28 to 45 dB, outdoor noise is approximately 52 dB, similar to a quiet conversation.

How do I reset the timer or sleep mode?

Press the Timer or Sleep button on the remote to cancel or adjust. Refer to the manual for detailed instructions.

Where can I find spare parts for the FHCP072AKR?

Contact FREONIC customer service or authorized service centers. Common parts like filters are often available online.

USER MANUAL FHCP072AKR FREONIC

Questions? We're here to help!

Contact us: 1-888-984-2755 or [e-mail]

Welcome to the Freonic Family! Your life just got COOLER!

Thank you for purchasing one of our innovative home climate products! We know that you will be thrilled by the features and functionality. If, for an reason, you are not completely satisfied, have a general question, or need further guidance on installation, please reach out to the Freonic customer service team at 888-984-2755 or [e-mail]. We're here to help!

Inside this manual you will find many helpful tips on how to use and maintain your product properly. Before you attempt to install your air conditioner, please read this owner's manual carefully. Your safety and the safety of others is very important to us. Please pay attention to all safety messages outlined in this manual and make sure to keep this manual for future reference.

Table of Contents

Notes 03

Components 04

Installation and Adjustment 05

Control Setting 07

Drainage Instructions 09

Maintenance 10

Troubleshooting 11

Notes

• The portable air conditioner is only suitable for indoor use, and is not suitable for other applications.
• Follow local grid interconnection rules while installing the air conditioner and ensure that it is properly grounded. If you have any question on electrical installation, follow the instructions of the manufacturer, and if necessary, ask a professional electrician to install.
• Place the machine in a flat and dry place and keep a distance of above 19 inches between the machine and the surrounding objects or walls.
• After the air conditioner is installed, ensure that the power plug is intact and firmly plugged into the power outlet, and place the power cord orderly to prevent someone from being tripped or pulling out the plug.
• Do not put any object into the air inlet and outlet of the air conditioner. Keep the air inlet and outlet free from obstructions.
• When drainage pipes are installed, ensure that the drainage pipes are properly connected, and are not distorted or bended.
• While adjusting the upper and lower wind-guide strips of the air outlet, pluck it with hands gently to avoid damaging wind-guide strips.
• When moving the machine, make sure that it is in an upright position.
• The machine should stay away from gasoline, flammable gas, stoves and other heat sources.
• Don't disassemble, overhaul and modify the machine arbitrarily, otherwise it will cause a machine malfunction or even bring harm to persons and properties. To avoid danger, if a machine failure occurs, ask the manufacturer or professionals to repair it.
• Do not install and use the air conditioner in the bathroom or other humid environments.
• Do not pull the plug to turn off the machine.
• Do not place cups or other objects on the body to prevent water or other liquids from spilling into the air conditioner.
• Do not use insecticide sprays or other flammable substances near the air conditioner.
• Do not wipe or wash the air conditioner with chemical solvents such as gasoline and alcohol. When you need to clean the air conditioner, you must disconnect the power supply, and clean it with a half-wet soft cloth. If the machine is really dirty, scrub with a mild detergent.
• The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children without supervision.

Components

Installation:

Warning: before using the portable air conditioner, keep it upright for at least two hours.

The portable air conditioner can be easily moved in the room. In the moving process, ensure that the air conditioner is in the upright position and the air conditioner should be placed on a flat surface. Do not install and use the air conditioner in the bathroom or other humid environments.

Install the heat pipe assembly (as shown in Figure 1):

1) Screw the heat pipe assembly (exhaust fitting end) into the exhaust port on the rear panel (counterclockwise).

Line drawing of a portable air conditioner unit with a hand inserting a hose, showing airflow direction (no text or symbols)

Install the window sealing plate assembly:

1) Half open the window, and mount the window sealing plate assembly to the window (as shown in Figure 2 and Figure 3); the assembly can be placed in horizontal and vertical direction.

Diagram of a device with two downward arrows and an arrow indicating leftward movement (no text or symbols)

Figure 2 Figur

Diagram showing two arrows pointing to a window with a vertical arrow and a rectangular object inside (no text or symbols)

e 3

2) Pull various components of the window sealing plate assembly open, adjust their opening distance to bring both ends of the assembly into contact with the window frame, and fix various components of the assembly.

Install the Body:

1) Move the machi ne with installed heat pipe and fittings before the window, and the distance between the body and walls or other objects shall be least 19 inches (as shown in Figure 4).

2) Elongate the heat pipe and snap the flat end of the heat pipe joints into the elliptical hole of the window sealing plate assembly (as shown in Figure 5 and Figure 6).

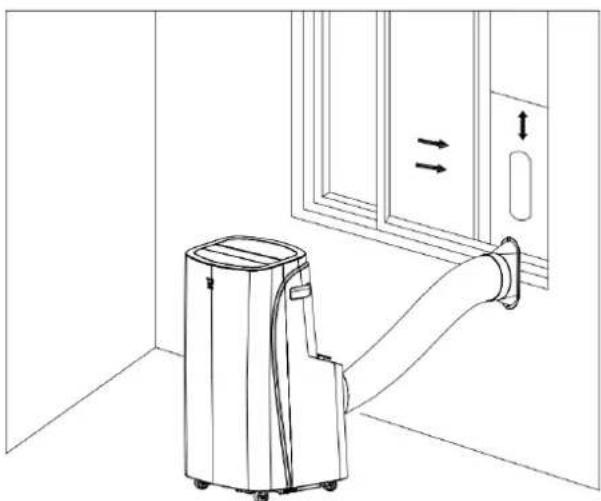

Notes:

1) The flat end of the heat pipe joints must be snapped into place.
2) The pipe cannot be distorted nor has substantial turning (greater than 45°).
3) Keep the ventilation of the heat pipe unobstructed.

Line drawing of a portable air conditioner unit attached to a door, with directional arrows indicating airflow or movement (no text or symbols)

Figure 5

Line drawing of a small air conditioner unit with airflow direction arrows (no text or symbols)

Figure 6

Important Notice: The length of the exhaust hose shall be 11-59 inches, and this length is based on the specifications of the air conditioner. Do not use extension tubes or replace it with other different hoses, or this may cause a malfunction. Exhaust must be unobstructed; otherwise it may cause overheating.

Control Setting

Operating instructions:

1) Power: Pr ess the key to turn on and turn off the unit.

2) Sleep: When the power is on and in the cooling mode (or heating mode), press 'SLEEP' button to start the sleep mode. Under sleep mode, the FAN speed is set to LOW speed and not adjustable. The SLEEP mode can be canceled by pressing the button.

3) Mode: When the e power is on, press this key to switch between cooling → heating → fan → dehumidifying mode.

4) DOWN: Pressing this button to decrease the temperature setting or set down the timer to the required timer setting. This function is not available under FAN mode and DEHUMIDIFYING mode.

5) DISPLAY W INDOW

6) UP: Pressin g this button to increase the temperature setting or set up the timer to the required timer setting. This function is not available under FAN mode and DEHUMIDIFYING mode. Simultaneously press UP and DOWN keys to switch between Celsius (°C) and Fahrenheit (°F).

7) FAN SPEED: In cooling, heating and fan mode, pressing the key to select high, middle, low fan speed. This function is not available in SLEEP mode and DEHUMIDIFYING mode.

8) TIMER: Pr ess TIMER button to set the unit automatically turn ON or OFF. Use the + and - buttons to program the hour increment.

9) SWING: T he louver on the portable air conditioner will open automatically, Press the auto swing button to fix the louver in your desired position.

Operating Instructions of the Remote Control:

Power: Press	to turn on or turn off the machine.
Mode: Press dehumidificatio	twitch between cooling, air supply, heating (single cold with no such function) mode.
Up: Press +	crease temperature and timing set value.
Down: Press	to reduce temperature and timing set value.
Fan: Press	to select high, medium and low wind speed output.
Timer: Press	the key to set timing value.
Swing: Press	the key to fix the louver in your desired position.
Press the key	itch between Celsius and Fahrenheit.
Sleep Mode:	to turn on the sleep mode.

Protection Functions:

• Frost Protection Function: In cooling, dehumidification or economic power saving mode, if the temperature of the exhaust pipe is too low, the machine will automatically enter protection status; if the temperature of the exhaust pipe rises to a certain temperature, it can automatically revert to normal operation.
• Overflow Protection Function: When water in the water pan exceeds the warning level, the machine will automatically sound an alarm, and the LDC temperature display area will show "FL". At this point, you need to move the drainage pipe connecting the machine or the water outlet to sewer or other drainage area to empty the water (details see Drainage Instructions at the end of this chapter). After the water is emptied, the machine will automatically return to the original state.
• Automatic Defrosting (heating and cooling models have this function): The machine has automatic defrosting function: during defrosting, heating symbol on the display screen will flash.
• Automatic Thermal Protection: To protect the service life of the machine, the machine has automatic thermal protection in heating mode. During the protection period, the compressor and the lower motor will stop operation and will automatically return to normal heating state after the temperature of the machine recovers.
• Protection Function of the Compressor: To increase the service life of the compressor, it has a 3-minute delay booting protection function after the compressor is turned off.

Drainage Instructions

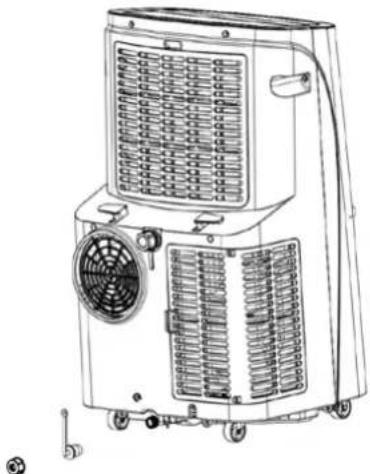

Manual Drainage:

1. When the machine stops after the water is full, turn off the machine power and unplug the power plug.

Notes:

- Please move the machine carefully, so as not to spill the water in the water pan at the bottom of the body.

1. Place the water container below the side water outlet behind the body.

2. Unscrew the rotary knob and unplug rubber stopper, the water will automatically flow into the water container.

Notes:

- Keep the rotary knob and rubber stopper properly.

- During drainage, the body can be tilted slightly backwards.

- If the water container cannot hold all the water, before the water container is full, stuff the water outlet with rubber stopper as soon as possible to prevent water from flowing to the floor or the carpet.

1. When the water is discharged, stuff rubber stopper, and tighten the rotary knob.

Notes:

- Restart the machine after rubber stopper and rotary knob are installed, otherwise condensate water of the machine will flow to the floor or the carpet.

Line drawing of an air conditioning unit with fan and cooling fans (no text or symbols)

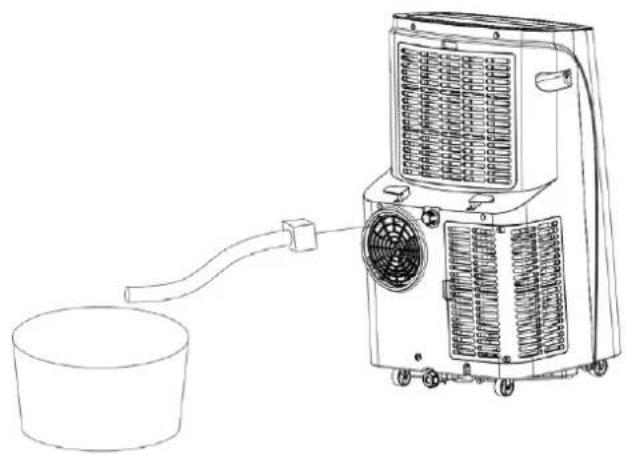

Continuous Drainage: Only applicable to cooling and dehumidification mode, as shown in figure:

1. Unscrew t he rotary knob, and unplug rubber stopper.

2. Set the drainage pipe into the water outlet.

3. Connect the drainage pipe to the bucket.

Line drawing of an air conditioning unit with a cylindrical container connected to a fan (no text or symbols)

Maintenance

Cleaning: before cleaning and maintenance, turn off the machine and unplug the plug.

1. Clean the sur face: Clean with surface of machine with a wet soft cloth. Don't use chemicals, such as benzene, alcohol, gasoline, etc.; otherwise, the surface of the air conditioner will be damaged or even the whole machine will be damaged.

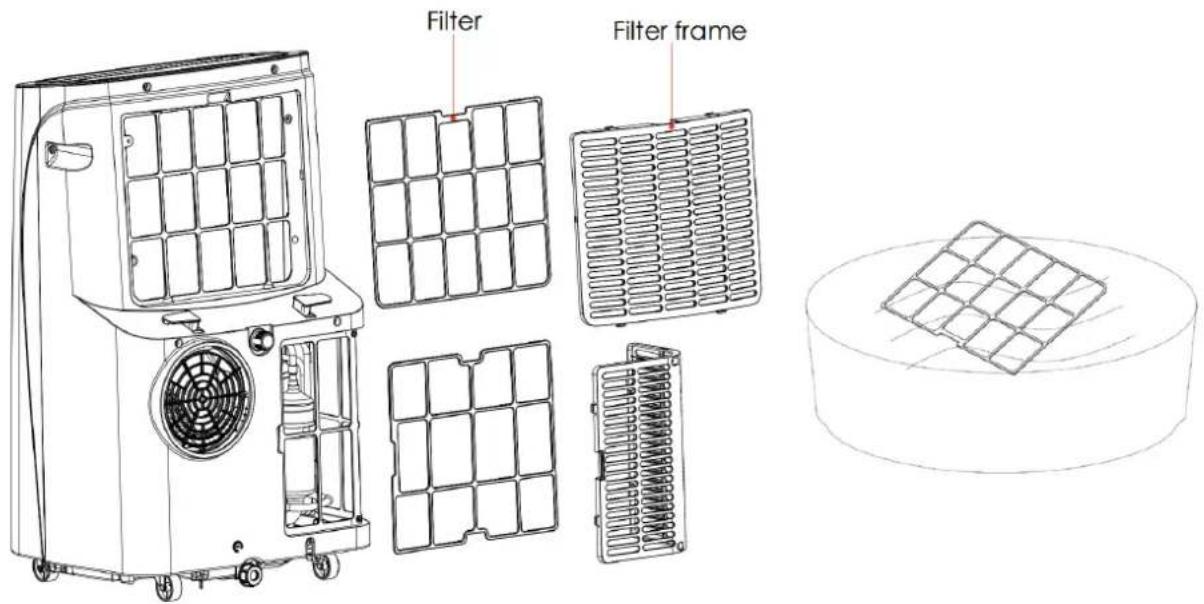

2. Clean the filter screen

1) If the filter screen is clogged with dust, and the effectiveness of the air conditioner is reduced, be sure to clean the filter screen once every two weeks.

2) Clean the upper filter screen frame
3) Clasp the wedging block of the filter screen frame with hands. Force down from the outside to remove the filter screen frame. Unscrew four screws fixing the filter screen and the rear housing to remove the EVA filter screen (as shown in the above figure).
4) Put the filter screen into warm water with neutral detergent (about 40^ C / 104^ F) and dry it in the shade after rinsing clean.

Postseason Storage:

1) Unscr ew the rotary knob, unplug rubber stopper, and discharge the water in the water pan into other water containers or directly tilt the body to discharge the water into other containers.
2) Turn on the machine, adjust it to low-wind ventilation mode, and maintain this state until the drainage pipe becomes dry, so as to keep the inside of the body in a dry state and prevent it from mildewing.
3) Turn off the machine, unplug the power plug, and wrap the power cord around the wrapping post; install rubber stopper and the rotary knob.
4) Remove the exhaust pipe and keep it properly.
5) Cover the air conditioner with a plastic bag. Put the air conditioner in a dry place, keep it out of the reach of children, and take dust control measures.
6) Remove batteries of the remote control and keep them properly.

Note: ensure that the body is placed in a dry place and keep all machine components properly.

Troubleshooting

Do not repair or disassemble the air conditioner by yourself. Unqualified repair will lead to failure of the warranty card, and may cause damage to you or your property.

Problems	Reasons	Solutions
The air conditioner does not work	There is no electricity.	Turn it on after connecting it to a socket with electricity.
	The overflow indicator displays "FL".	Discharge the water inside.
	The ambient temperature is too low or too high	Recommend to use the machine in at the temperature 44-95 °F.
	In cooling mode, the room temperature is lower than the set temperature; in heating mode, the room temperature is higher than the set temperature.	Change the set temperature.
	In dehumidification mode, the ambient temperature is low.	The machine is placed in a room with an ambient temperature of greater than 62 °F.
The cooling or heating effect is not good	There is direct sunlight. Pull the Curtain.
	Doors or windows are open; there are a lot of people; or in cooling mode, there are other sources of heat.	Close doors and windows, and add new air conditioner.
	The filter screen is dirty. Clean or replace the filter screen.
	The air inlet or outlet is blocked. Clear obstructions.
Loud Noise	The air conditioner is not placed on a flat surface.	Put the air conditioner on a flat and hard place (to reduce noise).
Compressor does not work	Overheat protection starts.	Wait for 3 minutes until the temperature is lowered, and then restart the machine.
The remote control does not work	The distance between the machine and the remote control is too far.	Let the remote control get close to the air conditioner, and make sure that the remote control directly faces to the direction of the remote control receiver.
	The remote control is not aligned with the direction of the remote control receiver.
	Batteries are dead. Replace batteries.
Displays 'E1'.	The room temperature sensor is abnormal.	Check the room temperature sensor and related circuitry.
Displays 'E2'	The pipe temperature sensor is abnormal.	Check the pipe temperature sensor and related circuitry.

If problems not listed in the table occur or recommended solutions do not work, please contact the professional service organization.
