SR3117 - Microphone Earthworks - Free user manual and instructions

Product Type	Supercardioid Condenser Vocal Wireless Capsule
Frequency Response	20Hz - 20kHz
Polar Pattern	Supercardioid
Dimensions	2.7" × 1.93" (68.6 mm × 49.0 mm)
Weight	0.26 lbs (0.118 kg)
Sensitivity	6.3 mV/Pa (-44 dBV/Pa)
Wireless Compatibility	Shure ULX-D, QLX-D, Axient; Audio-Technica 3000, 5000, 6000 Series; Lectrosonics HH, HHa; Line 6 V75, V55
Power Requirement	Active power supply (via wireless transmitter)
Placement	1-2 inches from mouth for best results; aim away from unwanted sources
Windscreen Cleaning	Use alcohol wipes or soft cloth with alcohol; ensure completely dry before reassembly
Inner Pop Filter	Self-aligning, may fall out when outer windscreen is removed; handle with care
Handling Noise	Treated to minimize; best mounted on microphone stand
Warranty	Limited warranty (parts and labor); register at earthworksaudio.com/register
Compliance	UKCA and EU compliant
Included Accessories	1 SR3117 Capsule

Frequently Asked Questions - SR3117 Earthworks

What is the Earthworks SR3117?

The Earthworks SR3117 is a supercardioid condenser vocal wireless capsule designed for professional use with compatible wireless systems.

Which wireless systems are compatible with the SR3117?

The SR3117 is compatible with Shure ULX-D, QLX-D, Axient; Audio-Technica 3000, 5000, 6000 Series; Lectrosonics HH, HHa; and Line 6 V75, V55.

How do I clean the windscreen of the SR3117?

Clean the outer windscreen with alcohol wipes or a soft cloth with a small amount of alcohol. Ensure all parts are completely dry before reassembling.

What should I do if the inner pop filter falls out?

The inner pop filter is self-aligning and may fall out when unscrewing the outer windscreen. Simply align it properly and screw the outer sleeve back in place.

What is the best placement distance for the SR3117?

For best results, place the SR3117 1-2 inches from the vocalist's mouth. Getting closer increases bass response.

Does the SR3117 require phantom power?

The SR3117 requires an active power supply provided by the compatible wireless transmitter; it does not use phantom power.

What is the polar pattern of the SR3117?

The SR3117 has a supercardioid polar pattern, with maximum rejection at 135 degrees off-axis.

Can I use the SR3117 with a second-hand wireless system?

Yes, but the warranty only applies to microphones purchased brand new. For second-hand units, contact Earthworks via their website.

How do I register the warranty for my SR3117?

Register your warranty at earthworksaudio.com/register to activate the limited warranty (parts and labor).

What should I do if I encounter issues with the SR3117?

Ensure the microphone is connected to an active power supply, placed at appropriate distance, and the environment is quiet and at room temperature. If issues persist, contact Earthworks via their website.

USER MANUAL SR3117 Earthworks

Close-up of a black mesh microphone with metallic base and threaded cap (no text or symbols visible)

SR3117

SUPERCARDIOID CONDENSER

VOCAL WIRELESS CAPSULE

Follow us on social media @EarthworksAudio

For more information, please visit

earthworksaudio.com or call 1-603-654-2433.

Version 3.0, Last Updated 3/31/23

Thank you for purchasing the Earthworks SR3117 Vocal Wireless Capsule

YOUR PURCHASE INCLUDES

1 SR3117 Capsule

COMPATIBILITY

• Shure: ULX-D, QLX-D, Axient
• Audio Technica: 3000 Series, 5000 Series, 6000 Series
• Lectrosonics: HH, HHa
• Line 6: V75, V55

TROUBLESHOOTING

If you encounter issues while using your Earthworks Audio capsule, please make sure that:

• Your microphone is connected to an active power supply.
• The microphone is positioned at an appropriate distance from the sound source.
• External noise in your recording environment is kept to a minimum.
• Your recording space is at room temperature and free of dust.

If your issue persists after checking, please contact us via our website.

ADDITIONAL TIPS

• Aim the SR3117 toward the intended vocalist and away from unwanted sources.
  • (Maximum rejection is found at the 135-degree point of the polar pattern.)
• Place the SR3117 1-2 inches away from the vocalist's mouth for best results.
• Get closer to the SR3117 for extra bass response.
• Place the SR3117 as far as possible from reflective surfaces.
• Even though the SR3117 is treated to minimize handling noise, the best position for it is mounted onto a microphone stand.
• Do not cover any part of the microphone grille with your hand, as this will adversely affect microphone performance.
• Do not aim directly at your speaker or PA.

The windscreen can be removed if it requires cleaning. See details below.

CLEANING THE SR3117's WINDSCREEN

All cleaning should be done with either alcohol wipes, or with a small amount of alcohol on a soft cloth. Make sure any cleaned elements are completely dry before reassembling.

A NOTE ABOUT THE SR3117'S INNER WINDSCREEN

The internal fine mesh pop filter is self aligning, and it stays in place because of the interference fit. Be careful when unscrewing the outer windscreen, as the inner pop filter may fall out.

When putting it all back together, make sure that it is properly aligned and then simply screw the outer sleeve back in pace.

SPECIFICATIONS

Frequency Response

20Hz - 20kHz

Dimensions

2.7" × 1.93"

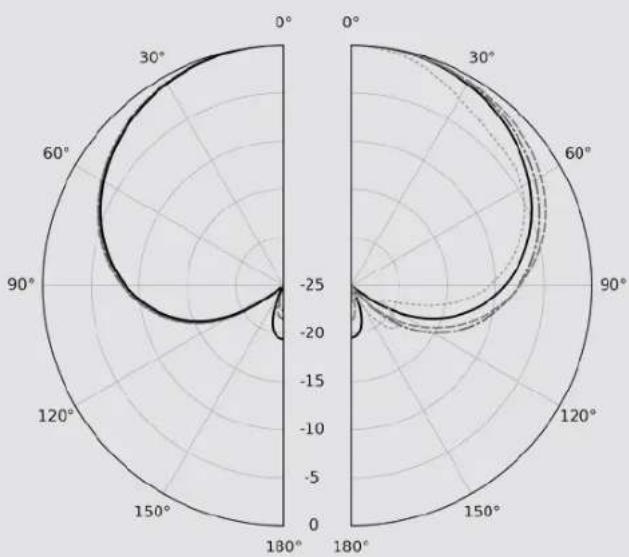

Polar Pattern

Supercardioid

Weight

0.26 lbs (0.118 kg)

Sensitivity

6.3 mV/Pa (-44 dBV/Pa)

Wireless Compatibility

Shure: ULX-D, QLX-D, Axient Audio-Technica: 3000 Series, 5000 Series, 6000 Series Lectrosonics: HH, HHa Line 6: V75, V55

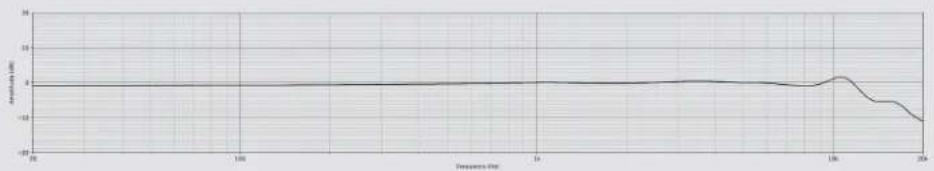

Frequency (Hz)
......	125
----	250
----	500
—	1000

Frequency (Hz)
—	2000
—	4000
—	8000
—	16000

COMPLIANCE REQUIREMENTS

Hereby, Earthworks Inc. declares that this product has been determined to be in compliance with UKCA requirements.

The full text of the UK declaration of conformity is available at the following site:

https://earthworksaudio.com/support/documents/uk

Hereby, Earthworks Inc. declares that this product has been determined to be in compliance with European Union requirements.

The full text of the EU declaration of conformity is available at the following site:

https://earthworksaudio.com/support/documents/eu

WARRANTY

All Earthworks® products carry a limited warranty (parts and labor). Please register your warranty at: earthworksaudio.com/register. If you have any problems with your Earthworks products, please contact our warranty/repair department by email at: [e-mail].

NOTE

This warranty only applies to Earthworks microphones purchased brand new. For microphones purchased/received second-hand, please contact us via our website.

Version 3.0, Last Updated 3/31/23

37 Wilton Rd. Milford, NH 03055

[e-mail]

© 2023 Earthworks, Inc
