Product Type	Bi-directional Mini Drop Amplifier
Brand	Rocketfish
Model	RF-G1179
Frequency Range	5-42 MHz (return) / 54-1000 MHz (forward)
Gain	4 dB (forward)
Insertion Loss	7 dB (return)
Return Loss	14 dB minimum
Noise Figure	7.5 dB (forward)
Output Level (3rd order 60 dB)	93 dBµV
Impedance	75 ohm
Connector Type	F Female
Number of Outputs	4
Power Source	120V ~ 60Hz / 12V DC (via AC adapter or coaxial DC injection)
Dimensions (W×H×D)	3.7 × 2.72 × 0.87 inches (94 × 69 × 22 mm)
LED Indicator	Power on indicator
Compatibility	Cable TV, indoor/outdoor VHF/UHF/FM antenna, digital cable, cable modems
Installation	Simple inline connection using coaxial cables
Warranty	One-year limited (see www.rocketfishproducts.com)

Frequently Asked Questions - RF-G1179 Rocketfish

What is the RF-G1179 used for?

The RF-G1179 is a bi-directional mini drop amplifier designed to boost cable TV signals, supporting digital cable, pay-per-view, and cable modems. It works with indoor/outdoor antennas.

What frequency ranges does it support?

It supports 5-42 MHz for the return path and 54-1000 MHz for the forward path, covering standard cable TV and modem frequencies.

How many devices can I connect?

The amplifier has 4 output ports, allowing connection of up to four TVs, cable boxes, or other devices.

Does it require an external power source?

It can be powered via the included AC adapter (120V ~ 60Hz/12V DC) or through DC injection from a compatible cable component (coaxial cable). If your component does not provide DC, use the AC adapter.

How do I install the amplifier?

Connect a coaxial cable from the wall jack to the INPUT port. Then connect another cable from the OUT 1/PWR IN port to your TV or cable box. Additional devices can be connected to OUT2, OUT3, and OUT4. Finally, plug in the AC adapter if needed.

What type of coaxial cable should I use?

Use standard 75 ohm coaxial cable with F-type connectors, which is typical for cable TV and antenna systems.

Can I use this amplifier outdoors?

Yes, it is suitable for outdoor use with an antenna, but it should be protected from direct moisture. The Quick Setup Guide does not specify an outdoor rating, so ensure proper weatherproofing if used outside.

What does the LED indicator mean?

The LED power on indicator lights up when the amplifier is receiving power, either from the AC adapter or via DC over coax.

What is the warranty period?

The RF-G1179 comes with a one-year limited warranty. For details, visit www.rocketfishproducts.com or call 1-800-620-2790.

Can it amplify both TV and internet signals?

Yes, its bi-directional design works with cable modems and digital cable, as it supports the return path (5-42 MHz) needed for internet and interactive services.

USER MANUAL RF-G1179 Rocketfish

RF-G1179 Bi-directional Mini Drop Amplifier

This bi-directional mini drop amplifier is designed to work with cable systems that have pay-per-view, digital cable, or cable modems.

Features

• 5-42 MHz, 54-1000 MHz two-way frequency range
- For use with cable TV, indoor or outdoor VHF/UHF/FM antenna.
- Simple to install
- Two-way frequency range
• LED power on indicator
- Connections for up to four devices

Package contents

• Bi-directional mini drop amplifier
- AC adapter
- Quick Setup Guide

Connecting the amplifier

1 Connect a coaxial cable to the coax INPUT jack on the amplifier and to the cable TV or antenna jack.
2 Connect a coaxial cable to the OUT 1/PWR IN jack on the amplifier and to the ANTENNA IN jack on the back of the TV, or cable box.
3 Connect the AC adapter to the INPUT jack and to a power outlet. When the amplifier is connected to a power outlet, the INPUT indicator lights.

NOTE: You can also connect devices to the OUT2, OUT3, and OUT4 jacks.

NOTE: This amplifier can be powered by DC current provided through the coaxial cable connection of certain components; however, not all components provide this DC current. If you do not receive power from your component, it will be necessary to power the amplifier with the included AC adapter.

Specifications

	5-42 MHz frequency	54-1000 MHz frequency
Gain	n.a.	4dB normal
Insertion loss	7dB normal	n.a.
Return loss	14dB minimum	14dB minimum
Noise figure	n.a.	7.5dB
Output level (3rd 60dB)	n.a.	93dBμV

Impedance	75 ohm
Connector	F Female
Output	4 connectors
Power source	120V ~ 60Hz/12V ---
Dimensions	3.7 × 2.72 × 0.87 inches(94 × 69 × 22 mm)

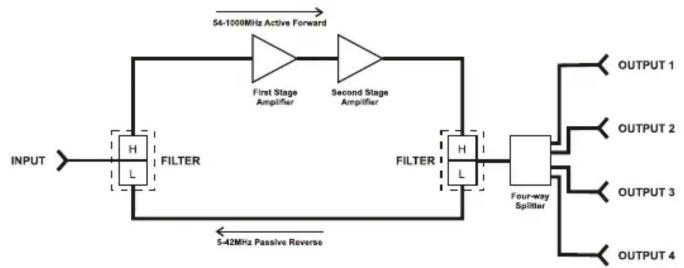


One-year limited warranty

Visit www.rocketfishproducts.com for details

Contact Rocketfish: 1-800-620-2790

© 2009 Best Buy Enterprise Services, Inc. All rights reserved.

ENGLISH 09-0635
