| Type | Portable Air Conditioner |
| Brand | Whynter |
| Model | ARC-102CS |
| Cooling Capacity (BTU) | 10,000 BTU |
| EER (Energy Efficiency Ratio) | 10.8 |
| Cooling Area | Up to 350 sq. ft. |
| Dehumidification Capacity | 50 pints per day |
| Air Flow | 200 CFM |
| Voltage | 115 V / 60 Hz |
| Power Consumption | 12 Amps |
| Dimensions (H x W x D) | 29.5 x 15.5 x 17.5 inches |
| Weight | 67 lbs |
| Noise Level | 52 dB (medium speed) |
| Remote Control | Yes |
| Auto Restart | Yes |
| Washable Filter | Yes, easy access |
| Window Kit Included | Yes |
| Refrigerant | R-410A |
| Caster Wheels | Yes |
| Maintenance | Clean filter every 2 weeks; drain condensate as needed |
| Safety Features | Overheat protection, auto shut-off |
| Certifications | ETL listed |
Frequently Asked Questions - ARC-102CS Whynter
How do I install the Whynter ARC-102CS window kit?

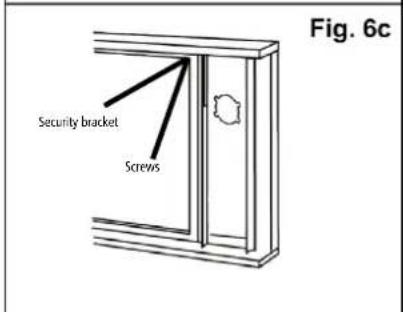

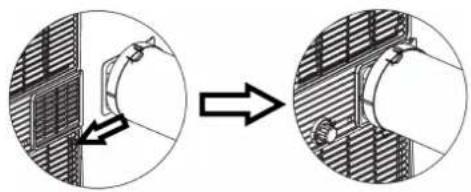

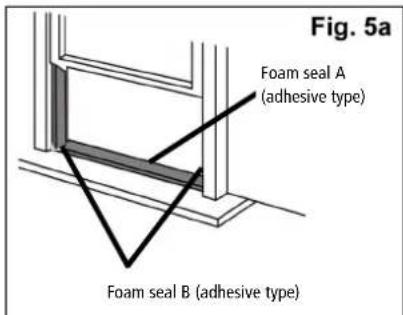

Install the window kit by sliding the adjustable panel into your window opening. Secure with the provided screws and weather seal. Then attach the exhaust hose from the unit to the kit.
How often should I clean the filter?

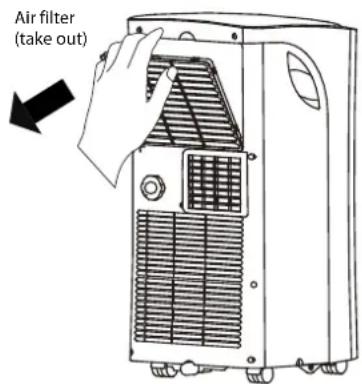

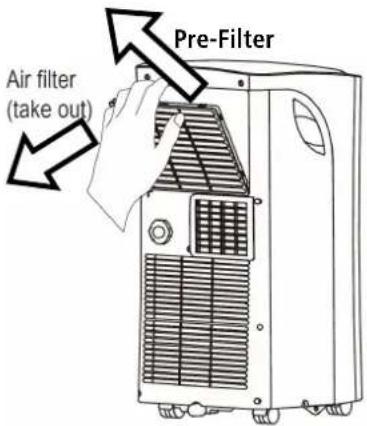

The washable filter should be cleaned every two weeks under normal use. Remove the filter, rinse with water, and let dry completely before reinstalling.
Why is water collecting in the unit?

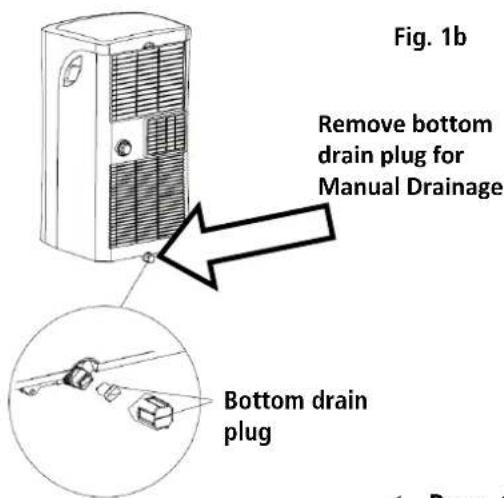

Water collection is normal due to dehumidification. The unit will self-evaporate most water, but in high humidity you may need to drain the water via the bottom drain plug.
The remote control is not working. What should I do?
Check the batteries first. If still not working, ensure there is a clear line of sight between remote and unit. Reset by unplugging the unit for 1 minute.
What is the maximum window opening for the kit?
The window kit fits windows up to 52 inches wide. For larger windows, an additional extension kit may be needed.
Can I use an extension cord?
It is not recommended. Plug directly into a grounded wall outlet. If necessary, use a heavy-duty 14 AWG cord no longer than 10 feet.
How do I switch between cooling and fan mode?

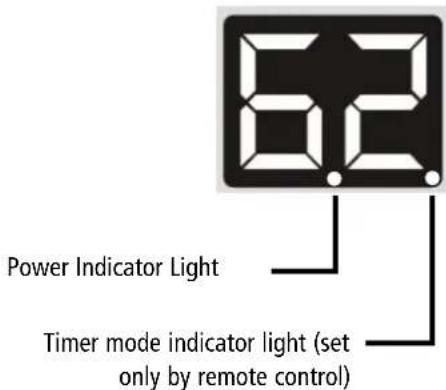

Press the MODE button on the control panel or remote to cycle through Cool, Dry, and Fan modes. The display will show the current mode.
What should I do if the unit displays an error code?
Refer to the manual for error code meanings. Common codes: E1 (room sensor fault), E2 (coil sensor fault). Unplug for 10 minutes to reset, if persists contact support.
Is the ARC-102CS compatible with a smart thermostat?
No, this unit does not support smart thermostat integration. It uses its own remote and control panel.
What is the warranty period?
The Whynter ARC-102CS typically comes with a 1-year limited warranty. Extended warranties may be purchased.
