RCD111 - Hi-Fi System Duronic - Free user manual and instructions

Product Type	Hi-Fi System
Model	RCD111
Brand	Duronic
Power Supply	AC mains (normal household AC)
Speaker Configuration	2 speakers (left and right)
Display	Digital LED display with blue backlight
CD Playback	CD, CD-R/RW, CD-MP3 data discs
Radio	PLL FM radio with 20 station presets
USB Playback	USB 1.1/2.0, MP3 audio files
SD Card Playback	SD card slot, supports MP3 files (max 16GB)
Bluetooth	Bluetooth audio streaming (pair with devices)
Aux Input	3.5mm stereo audio input
Headphone Jack	3.5mm stereo headphone output
Clock	Digital clock with 12/24 hour format
Alarm	Dual alarm with snooze (9 minutes)
Sleep Timer	Automatic off timer (up to 90 minutes)
Volume Control	Electronic push-button (VOL+/VOL-)
Antenna	FM wire antenna
Maintenance	Clean with dry cloth; avoid liquids
Safety	Do not expose to dripping/splashing; refer servicing to qualified personnel

Frequently Asked Questions - RCD111 Duronic

How do I set the clock on the Duronic RCD111?

To set the clock, switch the unit to standby mode. Press and hold the CLOCK ADJ key for 2 seconds. The display will flash showing 12H or 24H. Use the TUNE + or TUNE - keys to select your preferred format and press CLOCK ADJ to confirm. Then set the hour and minute using the same keys, confirming each with CLOCK ADJ.

How do I set the alarm?

Press and hold the ALARM key for 2 seconds in standby mode. The display shows Alarm 1 with a flashing hour. Use TUNE +/TUNE - to set the hour, press ALARM to confirm. Then set the minute similarly. After that, choose the wake-up source (CD, FM, USB, etc.) using the same keys and press ALARM to save. Repeat for Alarm 2.

How do I pair a Bluetooth device?

Press the FUNCTION key repeatedly until 'BT' is displayed. On your phone, enable Bluetooth and search for devices. Select 'Duronic RCD111' or similar. If prompted for a passcode, enter '0000'. The Bluetooth indicator will light solid when paired. Only one device can be connected at a time.

How can I program tracks on a CD?

Insert the CD and press STOP. Press PROGRAM. The display shows 'P01'. Use NEXT/BACK or SKIP+10 to select the first track, then press PROGRAM to save. Repeat for up to 20 tracks. Press PLAY/PAUSE to start the programmed sequence. Press STOP to cancel programming.

How do I play music from a USB flash drive?

Press FUNCTION repeatedly until 'USB' appears. Insert your USB drive into the USB socket. The unit will read the files. Use NEXT/BACK to select a song and press PLAY/PAUSE to start playback. Note: only MP3 files are supported and some drives may not be compatible.

How do I play music from an SD card?

Press FUNCTION repeatedly until 'CARD' appears. Insert an SD card (max 16GB) into the SD slot. Use NEXT/BACK to select a song and press PLAY/PAUSE to play. Only MP3 files are supported.

How do I connect an external device via the AUX input?

Use a 3.5mm stereo audio cable to connect the headphone or line-out of your device to the AUX INPUT socket on the rear. Press FUNCTION repeatedly until 'AUX' is displayed. Adjust volume on both devices. The sound will play through the Hi-Fi speakers.

How do I manually tune the radio?

Press FUNCTION until 'FM' appears. Briefly press and release the TUNE + or TUNE - key to adjust frequency step by step. To auto-scan, press and hold the same key for 2 seconds to seek the next station. You can save stations as presets by pressing PROGRAM, selecting a number, and pressing PROGRAM again.

How do I use the sleep timer?

While the unit is playing (not in standby), press and hold the SLEEP key for 2 seconds until the sleep symbol appears. Then repeatedly press SLEEP to choose the off timer: 80, 70, 60, 50, 40, 30, 20 minutes, or 'OFF' to disable. The unit will automatically switch to standby after the set time.

How should I clean and maintain the Duronic RCD111?

Unplug the unit before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use any liquids or aerosol cleaners. For the CD lens, use a specialized CD cleaning disc if needed. Avoid exposing the unit to direct sunlight, heat, or moisture. Refer to the manual for further maintenance tips.

USER MANUAL RCD111 Duronic

E-5

E-6

E-7

E-8

Warranty

BLANK

BLANK

BLANK

Front

OPERATING INSTRUCTIONS

DURONIC

Bluetooth

PLL USB MP3 SD TUNING FLASH MEMORY MP3 PLAYBACK DIGITAL PLAYBACK MEMORY CARD MP3 PLAYBACK

DIGITAL CD-USB-SD MP3

PLL FM RADIO MICRO HI-FI SYSTEM RCD111 BK

The lightning flash and snowhead within the triangle is a warning sign alerting you of "stangensa voltage" inside the product.
CAUTION:THE RISK OF ELECTRIC SHOCKDO NOT SPIN	WARNING:Toduce the risk of electric shock, do not remove cover (or back). No van-serveivable parts inside. Refer servicing to qualified service personnel.
	CAUTION:The extamination point within the triangle is a warning sign alerting you of important instructions accompanying the product.
WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO DRYPING OR SPLASHING LIQUIDS.THE MAINS PLUG IS USED AS THE DISCONNECTIVE DEVICE AND IT SHALL REMAIN READABLE MOUNT TO COMPLETE SHOULD CONNECT THE POWER INPUT.THE MAINS PLUG OF THE APPARATUS MUST BE DISCONNECTED FROM THE MAINS COMPLY. THE MAINS PLUG IS TO BE OBSTRUCTED OR SHOULD BE EASLY ACCESSED DURING INTENDED USE.
PLEASE NOTE: YOU WILL FIND THERATING LABEL, FOR THIS PRODUCT IS NOT REPRODUCED IN THE UNIT.	CAUTIONDO NOT EXPOSE TO DRYPING OR SPLASHING LIQUIDS
CAUTION: GROUNDING OR POLDERIZATION. THE PRECAUTIONS SHOULD BE TAKEN SO THAT THE WIDER BLADE OF THE AC PLUG MUST MATCH THE SLOT IN RECEPTACLE WALL SOCKET**
NOTE: CAUTION SYMBOLS ARE PRINTED ON REAR OF UNIT. PLEASE REFER TO INSTRUCTION NO. NO. 10345

CAUTION: INVISIBLE LASER RADIATION WITH OPEN ON INTERLICKS DEPLIATED, ANDED EXPOSURE TO BEAR.

VORSICHT: ASCHYSTRANE LÄSTERBRAST TITTET AWED, WEIM SECKEL GEÖFNETT UND WEIM BICHNEUTSTVERMEISGLÜNG OÖNHEKDET NCT MEET DER STRAIJ AVENZAL.

WARNING: OSYSLAS LÄSTERBRAST NÄR SIMMA NO, AT SPIND AD SOR EN ARBIATEN.

ADNARSEL: VENTILAS LÄSTERBRAST VED ABRIEN, NÄR ASCHYSTRAN/ASTIRISTE ORUS AF PUNCTURA UNDA USMETTELBER FOR STAIING.

ATTINENZONE: RADONE LASER INBILE, NON-GARANTES EATTINENONE, ASCHYSTRANE LÄSTERBRAST.

ADTUNG: LASERNE NEUT DESGEBEN ASCHYSTRANE LÄSTERBRAST.

ANSO: A LEATE MUNCE NEE NO TOCADA.

THE APPARATUS SHOULD NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS SHOULD BE PLACED ON THE APPARATUS.

UNDER THE INFLUENCE OF ELECTROSTATIC PHENOMENON, THE PRODUCT MAY MALFUNCTION AND USER TO POWER RESET.

E-2

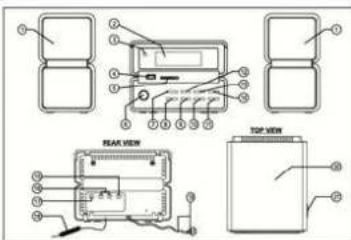

LOCATION OF CONTROLS

1. SPEAKERS (LEFT & RIGHT)
2. CLO DISPLAY
3. BLUETOOTH
4. USB SOCKET
5. SO-CARD SOCKET
6. ON STANDBY KEY
7. BACK/TONE KEY
8. FUNCTION KEY
9. STOP/FM RECA
10. PLAY MODE/PROGRAM/Skip+10 KEY
11. VOLUME √ ALARM KEY
12. PLAY/ PAUSE/ PAIR/ FM MODE KEY
13. NEXT/TUNE + KEY
14. VOLUME +/-/LOCK
15. VOLUME 4/ CLOCK ADJUST KEY
16. AVG-INPUT SOCKET
17. SPEAKER OUTPUT SOCKETS (LEFT & RIGHT)
18. HEADPHONE SOCKET
19. FM-ANTENNA WIRE
20. AC-CORD
21. CO DOOR
22. CO DOOR

E-3

POWER SUPPLY

- THIS SET WORKS ON NORMAL HOUSEHOLD AC-POWER

- MAKE SURE THE SET VOLTAGE OF THE UNIT MATCHES YOUR LOCAL VOLTAGE. - INSERT THE PLUG OF THE AC-CORD INTO A WALL OUTLET WITH AC-POWER. - PRESS THE ON STANDRY KEY TO SWITCH 'ON' THE UNIT.

IMPORTANT: HOW TO TELL IF THE UNIT IS "ON"?

WHEN THE UNIT IS "ON" THE ENTIRE DIGITAL DISPLAY WILL BE LIT UP WITH A "BLUE" BACK-LIGHT. THIS INDICATES THE HIFI IS SWITCHED "ON".

- THIS UNIT IS DESIGNED TO OPERATE WITHOUT EVER BEING TOTALLY POWERED

- OFF. IT WILL EITHER BE "ON" OR "STANDBY MODE". IN STANDBY MODE, THE BLUE BACK-LIGHT OF THE DIGITAL DISPLAY WILL BE

SWITCHED OFF BUT THE DISPLAY WILL SHOW THE CURRENT TIME (CLOCK FUNCTION)

- WHEN INSTANDBY MODE, YOU CAN USE THE ON STANDBY KEY TO SWITCH "ON"

THE UNIT - TO CONSERVE ELECTRICITY PLEASE SWITCH THE UNIT TO "STANDBY MODE"

WHEN NOT LISTENING TO RADIO OR CD MUSIC

WHEN IT DETECTS THAT THE SET IS NOT IN USE.

- THIS AUTOMATIC SWITCHING TO "STANDBY MODE" WILL HAPPEN

APPROXIMATELY TO ITS MINUTES AFTER THE FOLLOWING CIRCUMSTANCES. (A) "CD" MODE. CD PLAYBACK HAS STOPPED (e.g., AT THE END OF A DISC).

(II) "USB" MODE: USB PLAYBACK HAS STOPPED.

(D) "CARD" MODE: SI/ CARD PLAYBACK HAS STOPPED. (D) "BT" MODE: BLUETODTY © PLAYBACK HAS STOPPED

- TO RE-ACTIVATE THE UNIT AFTER IT HAS AUTOMATICALLY SWITCHED

TO "STAIIDBY MODE", SIMPLY PRESS THE "STANDBY/ON" KEY TO SWITCH ON THE UNIT.

CONNECTION OF SPEAKER BOXES

- UNWRAP THE SPEAKER-CORDS OF BOTH SPEAKER-BOXES AND INSERT THE LEFT RIGHT PLUGS WITH GROKETS IN THIS HEAD OF MAIN UNIT

THE LEFT RIGHT PLUGS INTO SOCKETS IN THE REAR OF MAIN UNIT. PLACE THE SPEAKER BOXES AS FAR APART AS POSSIBLE FOR BEST SOUND

EFFECT

DIGITAL CLOCK FUNCTION

- THE SET HAS A BUILT-IN DIGITAL CLOCK, WHICH IS DISPLATED WHEN THE SET IS

IN "STANDET MODE". (THE DISPLAY WILL AUTOMATICALLY ALWAYS SHOW THE CURRENT TIME). IN THIS SITUATION THE BLUE BACKLIGHT IS NORMALLY OFF

(TO SAVE ELECTRICITY) BUT YOU CAN SWITCH ON THE BLUE DISPLAY LIGHT

BY PRESSING ANY KEY, EXCEPT THE "ON/ STANOSY THE BLUE LIGHT FOR APPROXIMATELY 5 SECONDS.

E4

HOW TO SET THE CORRECT TIME:

TO SET THE CORRECT CURRENT TIME, PLEASE FOLLOW THIS PROCEDURE:

SWITCH UNIT TO "STAND-BY" MODE

PRESS & HOLD (CLICKAD) FOR 2 SECONDS

DISPLAY SHOWS 3 HOUR OR 24 HOUR (FLASHING)

PRESS (HOTURE) OR (HOTURE) TO SELECT 12-HOUR OR 24-HOUR

CLOCK DISPLAY SYSTEM & PRESS (CLOCK ADJ.) TO CONFIRM YOUR SELECTION

PRESS (HOTURE) OR (HOTURE) REPEATED TO SET

THE CORRECT HOUR IN THE DISPLAY & PRESS (CLOCK ADJ.) TO CONFIRM

PRESS (HOTURE) OR (HOTURE) REPEATED TO SET

THE CORRECT MUTE IN THE DISPLAY & PRESS (CLOCK ADJ.) TO CONFIRM

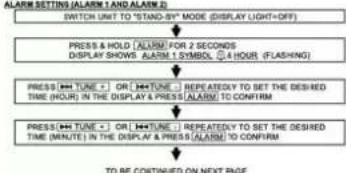

DUAL ALARM FUNCTION

THIS SET HAS ADUAL ALARM FUNCTION. YOU CAN SET THE ALARM FOR TWO DIFFERENT

TIMES (ALARM 1 AND ALARM 2)

E-5

CONTINUED FROM PERVIOUS PAGE

THE ALARM 1 TIME IS NOW STORED IN THE MEMORY, THE UNIT SHOULD NOW HAVE THE WAKE UP SOURCE TEXT FLASHING.PRESS THE ➕ ➕ TUNE + OR ➕ ➕ TUNE - KEY TO SELECT THE WAKE UP SOURCE:OR = SP / BUY / WHEN LYN = RWD / UP = MWD / CARD = RD / LND / N

CD + CD / BOZZ + BOZZER / FM + RADIO / USB = USB-MPS / CARD = SD CARD-MPS

PRESS THE [ALARM] KEY TO CONFIRM & COMPLETE THE ALARM 1 SETTING.

THE ALARM 1 TIME IS NOW STORED IN THE MEMORY, DISPLAY SHOWALARM 2 SYMBOL & HOUSE (FLASHING)

IMPORTANT: DURING THE TIME SETTING PROCEDURE, WHENEVER ANY PART OF THE DISPLAY IS -FLASHING: (HH OR MN) IT MEANS THAT THE SET IS WAITING FOR YOU TO ADJUST THE TIME. HOWEVER IF NO KEY IS PRESSED WITHIN

10 SECONDS, THE SET WILL RETURN TO ITS NORMAL (PREVIOUS) OPERATING MODE,

ALARM ON/OFF SETTING AT STANGRY MODE PRESS THE ALARM KEY REPEATEDLY TO CHOOSE

THE DESIRED ALARM SETTING

ALARM MODE SETTING

1. FOR RADIO: TUNE IN THE DESIRED STATION, PRIOR TO PLAYING THE UNIT ON STANERY MODE

2. THE WAKE UP VOLUME LEVEL AUTONATICALLY WILL RISE FROM

LEVEL 0 - 16 (MINIMUM) FOR WAKE UP VOLUME LEVEL MORE THAN 16

IT MUST BE SET OF THE USER. 1. THE ALARM WASTE UP TIMER

1. THE REARM WIRE OF THER WEE AUTOMATISLY TURN OFF AS TEN AROUND AN HOUR.

2. ADJUST THE SETTINGS FOR THE SELECTED SOURCE. FOR EXAMPLE

FOR RADIO: TUNE IN THE DESIRED STATION FOR CD: PLACE THE DESIRED MUSIC CO DIS

FOR USB: INSERT YOUR USB FLASH MEMORY PEN-DRIVE (WHICH CONTAINS)

THE SET WILL NOW AUTOMATICALLY SWITCH "ON" AT THE WAKE-UP TIME AS YOU HAVE

TO TURN OFF THE UNIT AFTER IT HAS AUTOMATICALLY SWITCHED ON, SIMPLY PRESS THE ON STANDBY KEY ONCE, THIS WILL SWITCH OFF THE SET, BUT WILL NOT CLEAR THE ALARM SETTINGS, AND THE SET WILL SWITCH ON AGAIN AUTOMATICALLY ON THE NEXT DAY AT EACTLY THE SAME RESET TIME.

E-0

SNOOZE FUNCTION

-WHNEVER THE ALARM (ALARM 1, ALARM 2) COMES ON, IT CAN BE TEMPORARILY SUSPENDED FOR A SHORT PERIOD OF APPROXIMATELY 9 MINUTES. BY PRESSING THE "SNOOZE" KEY ONCE.

- THE ALARM (ALARM 1, ALARM 2) WILL THEN AUTOMATICALLY COME

ON AGAIN AFTER APPROXIMATELY 9 MINUTES "SNOOZE" PERIOD HAS

THE PROCEDURE CAN BE REPEATED FOR APPROXIMATELY AN HOUR

THE PROCEDURE CAN BE REPEATED FOR APPROXIMATELY AN HOURS. AND THE "SNOOZE" SYMBOL WILL SHOW ON THE DISPLAY TO REMIND

AND THE SNOOZE SYMBOL WILL SHOW THAT THE SNOOZE FUNCTION IS ACTIVE.

- TO DEACTIVATE THE SNOOZE, PRESSAND RELEASE THE "ON/STANDBY"

KEYONCE

AUTOMATIC POWER OFF SLEEP FUNCTION

THIS SET HAS A SPECIAL SLEEP TIMER FUNCTION WHICH CAN AUTOMATICALLY

SWITCH OFF THE UNIT. THIS IS USEFUL FOR SLEEPING TO MUSIC AT NIGHT.

- AT ANY TIME WHILE THE UNIT IS OPERATING (CD PLAYER OR RUDID OR USB OR RD CARD) PRESS A HOLD [SLEER] KEY SOIL BEGONDS, PUEESE SYMBOL, ABOVE

SD/CARD PRESS & HOLD (SLEEP) KEY FOR 2 SECONDS, "SLEEP" SYMBOL APPEAR, PRESS (SLEEP) KEY REPEATEDLY TO CHOOSE THE AUTOMATIC POWER OFF TIME.

80 70 60 52 40 30 20

MINS MINS MINS MINS MINS MINS MINS MINS MINS OFF

(“OFF MEANS SLEEP TIMER IS DEACTIVATED)

ELECTRONIC VOLUME CONTROL

- THIS UNIT USES AN ELECTRONIC VOLUME CONTROL (PUSH BUTTON TYPE).

- TO INCREASE OR DECREASE THE LOUDNESS OF UNIT, PRESS THE VOLUME UP

(VOL+) OR VOLUME DOWN (VOL-) KEYS RESPECTIVELY.

- RELEASE THE KEY WHEN VOLUME LEVEL IS AT THE DESIRED LODNESS - SOMETIMES, ESPECIALLY DURING LISTENING TO THE RADIO. YOU MAY IN

"CLICK-CLICK-CLICK" (REPEATING) SOUND WHEN YOU ARE INCREASING OR

DECREASING THE VOLUME. THIS IS A NORMAL CONDITION & THE SOUND WILL DISABBEAR WHEN YOU RELEASE THE VOLUME KEY WHEN YOU REACH THE

SMEF YEAR WHEN FOR RELEASE THE VOLUME KEY (WHEN YOU ARE DESRED VOLUME LEVEL).

OPERATION OF RADIO

- PRESS THE "ON STANDAY" KEY ONCE TO SWITCH ON THE UNIT

- PRESS THE FUNCTION KEY REVEATEDLY UNTIL THE DISPLAY SHOWS "FM".

- EXTEND AND ADJUST THE FM-WIRE ANTENNA TO OBTAIN THE BEST RECEPTION. - USE THE PLAY/PAUSE FM MODE KEY TO SELECT THE DESUBED MODE.

IN SOME CASES, WHERE RECEPTION IS POOR, IT MAY BE ADVISABLE TO

SELECT "MONO" MODE, TO IMPROVE CLARITY OF THE RAD MANUAL EFFICIENCY ADJUSTMENT (SCAN MODE)

MANUAL FREQUENCY ADJUSTMENT (SCAN MODE) PRESS (AND IMMIGIATIEN RELEASE) THE TIME 41 AND

"SCAN" (MANUALLY ADJUST) THE RADIO FREQUENCY "UP" OR "DOWN" BY 1-STEP AT

- THE RADIO DIGITAL DISPLAY WILL INDICATE THE EXACT FREQUENCY AT EACH

STEPS POSITION

- WHEN A DESIRED FREQUENCY OR STATION IS REACHED. IT CAN BE SAVED INTO ONE OF THE "MEMORY" POSITIONS. (SEE "AUDIO MEMORY" SECTION)

E-7

AUTOMATIC FREQUENCY ADJUSTMENT (SEEK MODE)

- PRESS AND HOLD (FOR 2 SECONDS) THE TUNE • AND TUNE •] KEYS TO "SEEK" (AUTOMATICALLY ADJUST) THE RADIO SEQUENCE USE OR USING TO THE NEXT

(AUTOMATICALLY ADJUST) AVAILABLE RADIO STATION

- THE RADIO DIGITAL DISPLAY NILL INDICATE THE EXACT FREQUENCY OF THE NEXT

STATION THAT IS FOUND.

- WHEN A DESIRED STATION IS REACHED. IT CAN BE SAVED INTO ONE OF THE 'MEMORY' POSITIONS. (SEE 'RADIO MEMORY' SECTION):

MEMS1 EDITIONS (SEE RADIO MEMS1 SECTION)

RADIO MEMORY (STATION PRESET MEMORY STORAGE AT ANY TIME, THE CURRENTY DISPLAYED STATION OR FREQUENCY

- AT ANY TIME, THE CURRENTY DISPARED STATION OR FREQUENCY CAN BE STORED INTO ONE OF THE MEMORY POSITIONS

- PRESS PROGRAM KEY ONCE

- PRESS 📄️ NEXT OR 📋 BACK

(THERE ARE 20 MEMORY POSITIONS)

- PRESS [PROGRAM] KEY ONCE SELECTED MEMORY POSITION

- TO RECALL ANY SAVED MEMORY, SIMPLY PRESS FM RECALL KEY ONCE

THEN PRESS NM NEXT OR HEMBACK KEY TO SELECT THE SAVED STATION TO CLEAR THE MEMORY OF HY POSITION, SIMPLY SAVE A NEW STATION TO

TO CLEAR THE MEMORY OF IN THE SAME MEMORY POSITION

INSERTION AND REMOVAL OF DISCS

PRESS THE "FUNCTION" KEY REPEATEDLY UNTIL THE DISPLAY SHOWS "CD". GENTLY

LIFT UPWARDS TO OPEN THE CO-DOOR CAREFULLY PLACE A COMPACT DISC (CD OR NR3 DISC) ONTO THE CENTER SPINDLE WITH THE LABS SIDE (PRINTED SIDE OF

ORMP'S DISC) ONTO THE CENTER SPINDLE WITH THE LABEL SIDE (PRINTED) SIDE OF DISC) FACING UPWARDS. CLOSE THE CD-DOOR. THE CD-DISPLAY WILL

MOMENTABLY SHOW THE TOTAL NUMBER OF TRACKS ON THE DISC AND THE TOTAL

PLAYBACK TIME OF THE DISC AFTER A FEW SECONDS, THEN THE CD/WILL START PLAYING AT THE FIRST TRACK (SONG).

TO REMOVE A DISC. GENTLY OPEN THE CD DOOR UPWARDS AND LIFT UP AT THE

EDGE OF THE DISC, WHILE PLACING A FINGER ON THE CENTER SPINDLE. NEVER BEND OR FORCE THE DISC AS THIS MAY DAMAGE IT

SEND ON FORCE THE DISCRETE THIS WAY DAMAGE. IMPORTANT: ALWAYS HOLD A CD BY ITS EDGES: AVO

PRINTS, SMUDGES OR DIRT ONTO THE SURFACE OF A DISC. IN CASE THIS HAPPENS,

USE A SPECIAL CD-CLEANING/CLOTH OR CLEANING KIT TO REMOVE THE DIRT OR SHUDGES

SMODLES

NORMAL CD OPERATION

- PRESS ON STANODY KEY TO SWITCH ON THE UNIT

- PRESS THE FUNCTION RETREPEATEDLY UNTIL THE DISPLAY SHOWS CO- - INSERT ACD AS DESCRIBED

- THE DISC WILL START SPINNING & THE FIRST SONG (TRACK) WILL START PLAYING.

THE DISPLAY WILL INDICATE THE CURRENT TRACK NO. - AT ANYTIME DURING PLAYBACK, PRESS THE BEAVES/BEET KEY TO RAUSE

OPERATION OF THE UNIT. PRESS [PLAY/FAUSE] KEY TO RESUME OPERATIC

AT THE SAME TRACK & POSITION. AT ANOTHE DURING PLAYBACK, PRESS THE KEY TO STOP OPERATION OF

- AT ANY TIME DURING PLAYBACK, PRESS THE STOP KEY TO STOP OPERATION OF THE SET. THIS WILL RESET THE SET TO THE FIRST TRACK (IF YOU PRESS PLAY

AFTER STOP THE FIRST TRACK WILL ALWAYS START PLAYING!

- AT ANYTIME DURING PLAYBACK, PRESS AND RELEASE THE NEXT OR BACK) TO SKIP FORWARD OR BACKWARDS BY ONE TRACK AS DESBRED

- AT ANYTIME DURING PLAYBACK, PRESS AND HOLD THE NEXT OR BACK KEY TO

FAST-FORWARD (CUE) OR FAST-REVERSE (REVIEW) THE SPECIFIC TRACK, WHICH IS CURRENTLY PLAYING.

E-8

PROGRAMMING THE CD-PLAYER (FOR REGULAR CD-AUDIO DISCS)

- THE CD PLAYER CAN BE PROGRAMMED TO PLAY ANY SEQUENCE OF UPTO TRACKS, AS DESIRED

- ALWAYS PRESS THE STOP KEY BEFORE STARTING THE PROGRAMMING.

1. PRESS ON STANDBY KEY TO SWITCH ON THE UNIT AND SELECT "CD" FUNCTION

THEN PRESS | STOP | KEY. 2. PRESS | PROGRAM | KEY. THE DISPLAY SHOWS

AT STOP MODE, PRESS AND HOLD THE SKIP +10 KEY REPEATEDLY UNTIL YOU REACH A SONG NUMBER NEAR TO YOUR DESIRED SONG, AND THEN PRESS ➕ ➕ NEXT OR ➕ BACK REPEATEDLY TO ARRIVE AND THE EXACT SONG WILL BEANSING

YOU DESHED:

E-9

USB FLASH PEN DRIVE MP3 PLAYBACK

THIS UNIT IS EQUIPPED WITH A USB SOCKET WHICH CAN ACCEPT AND PLAY MP3

PRICE STORED FOR STANDARDS USB FORM DRIVES (ABS KNOWN AS "FEN SRAMES") WHICH ARE FOR MEMORY STORAGE. (COMPATIBLE WITH USB VERSION 1.1 & 20)

- TO UTILIZE THIS FUNCTION PRESS THE FUNCTION KEY REPEATEDLY UNTIL THE

DISPLAY SHOWS "USB", & THEN INSERT A USB FLASH DRIVE INTO THE USB SOCKET PRESS NEXT OR BACK TO SWR FORWARD OR BACKWINDS TO SELECT THE

PRESS [NEXT] OR [BACK] TO SRIP FORWARD ON BACKWARDS TO SELECT THE DESIRED MP3 FILE ON THE USB FLASH MEMORY DRIVE.

- PRESS PLAY/ PALSE TO START PLAY BACK OF THE SELECTED SONG.

(No text)

NOTE: ALTHOUGH THIS PRODUCT IS FULLY COMPATIBLY

WITH USB 1.1 & 2.0 STANDARDS: A SMALL

PERCENTAGE (ABOUT SN) OF USB FLASH DRIVES

MIGHT NOT BE READABLE, DUE TO THOSE USB FLASH

DRIVE MANUFACTURERS NON COMPLIANCE WITH

THE FULL (OFFICIAL) USB 1.1 / 2.8 STANDARDS.

2、中国证券股份有限公司

IMPORTANT

IF USB DRIVES & SD-CARDS

SD-CARDS OR USB-DRIVES FROM THE SET INGS FROM THESE MEDIA

AND THEN PRESS FUNCTION KEY TO SI

AND THEN PRESS (FUNCTION) KEY TO SHO WHOLOGS 1990 BEFORE REMOING OR

AUDIO OR "CD" BEFORE REMOVING OR

Y, TO PREVENT DAMAGE TO YOUR SONG FILES

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

SD-CARD (FLASH MEMORY) MP3 PLAYBACK

- THIS UNIT HAS A BUILT-IN SQ-CARD SECRET WHICH CAN ACCEPT AND PLAY MPS

FILES STORED ON STAR COMMONLY AVAILABLE

- TO UTILIZE THIS FUNCTION PRESS THE FUNCTION KEY REPEATEDLY UNTIL THE

DISPLAY SHOWS "CARD" AND THEN INSERT A STANDARD "SD" CARD (OF MAXIMUM

CAPACITY = 18 GB INTO THE SD CARD SLOT AS SHOWN.

- PRESS NEXT AND BACK TO SKIP FORWARD OR

BACKWARDS TO SELECT THE DESIRED MP3 SONG FILE

ON THE 10 CARD PRESS PLAY TO START PLAYBACK OF THE SELECTED

FRESS [FLAT] TO START FLEMBAGE OF THE SELECTED SONG.

E-10

PROGRAMMING THE CD-PLAYER

(FOR CD-MP3 DATA DISCS/USB-MP3/SD CARD-MP3)

THE CD PLAYER CAN BE PROGRAMMED TO PLAY ANY SEQUENCE OF UPTO 20

- ALWAYS PRESS THE STOP KEY BEFORE STARTING THE PROGRAMMING

1. PRESS ON/STANDBY KEY TO SWITCH ON THE UNIT AND SELECT THE F

FOR PROGRESSING, OD / 005 ON SD THEN PRESS STOP KEY

1. PRESS [PROGRAM] KEY THE DISPLAY SHOWS:

IF PROGRAMMING IS 208

USB-MP3 OR 50 CARD-MP2

"USE" OR "CARD" WILL BE

[DEPLAYED HERE]

1. PRESS ➕ ➕ NEXT OR ➕ BACK KEYS TO SELECT THE TRACK (SONG) NUMBER

IN THE CURRENT MEMORY POSITION (AS DISPLAYED ON THE SCREEN).

1. PRESS [PROGRAM] KEY. THIS SAVES THE SELECTED SONG INTO THE PREVIOUS MEMORY POSITION AND ADVANCES THE MEMORY POSITION TO THE NEXT NUMBER

SO THAT YOU CAN SAVE ANOTHER SONG IN THIS POSITION.

1. REPEAT STEP (3) AND (4), EACH TIME SELECTING ANY TRACK (SONG) NUMBER OF YOUR CHOICE TO BE STORED IN SUCCESSIVE PROGRAM MEMORY POSITIONS.

MAKE SURE TO PRESS PROGRAM KEY EACH TIME

1. AFTER A MAXIMUM OF 20 SONGS (OR LESS) HAVE BEEN SELECTED AS DESCRIBED. PRESS THE [PLAY PAUSE] KEY TO START PLAYING YOUR PROGRAMMED

SEQUENCE OF SONGS.

1. TO CLEAR (CANCEL) THE ENTIRE PROGRAM WHICH IS STORED IN THE MEMORY, SIMPLY PRESS/STOP KEY. THIS WILL RESET THE MEMORY AND CLEAR THE PROGRAM

(2) All * TO REPEAT ALL TRACKS

XC = TO SHUFFLE ALL SONGS IN RANDOM ORDER

m = 311

USING THE AUDIO LINE IN CONNECTION (AUX-INPUT)

- YOU CAN CONNECT THE AUDIO OUTPUT OF AN EXTERNAL DEVICE SUCH AS A MP3

PLAYER TO THIS UNIT, TO LISTEN TO THE SOUND O

HIGH QUALITY AMPLIFIER OF THIS MUSIC SYSTEM

- TO CONNECT THE EXTERNAL DEVICE PLEASE USE A STANDARD STEREO HEADPHONE (149MM TO 25MM PLUGS) CABLE TO CONNECT THE

THEADPHONE-OUT OR AUDIO LINE-OUT" OF THE DEVICE TO THE AUX-INPUT SOCKET

OF THIS UNIT.

- SWITCH THE FUNCTION"AUX" USING THE FUNCTION KEY

- MAKE SURE THAT THE SPEAKERS ARE CONNECTED TO THE MAN UNIT.

- SWITCH ON THE POWER OF THE MAIN UNIT AND THE EXTERNAL DEVICE (H. MP3-PLAYERS)

- START PLAYBACK OF THE EXTERNAL DEVICE AND

OF THE MAIN UNIT TO THE DESIRED LEVEL

- RENEMBER TO SWITCH OFF THE POWER OF THE MUSIC SYSTEM (MAIN UNIT)

WHEN YOU ARE FINISHED USING THE EXTERNAL DEVICE.

E-11

WILL REMAIN LIT CONTINUOUSLY WHEN PAIRED.

*NOTE ONLY ONE DEVICE CAN BE PAIRED AND HAVE PLAYBACK FROM AT ANY GOWN TIME

GIVEN TIME

PREPARE YOUR PHONE OR OTHER BLUETOOTH DEVICE

- TURN ON THE BLUE TOOTHE FUNCTION. THIS IS USUALLY FOUND UNDER GENERAL SETTINGS OR OPTIONS

"PLEASE REFER TO YOU

- GO TO YOUR DEVICE'S BLUETOOTHE SETTINGS - ADD OR RESEARCH SOIL DEVICES

- ADD ON SEARCH FOR DEVICES - IF ASKED FOR A PASS CODE, ENTER "2000"

*THIS IS A ONE-TIME EVENT PER DEVICE. TO PAIR YOUR UNIT TO ANOTHER DEVICE,

REPEAT THE ABOVE

DISABLING THE CONNECTION:

TO UNPAIRA BLUETOOTH DEUGE THAT IS ALREADY PAIRED, PRESS AND HOLD THE
