X50 - Garden hose xhose - Free user manual and instructions

Product Type	Expandable Garden Hose
Brand	xhose
Model	X50
Expanded Length	50 ft (15.24 m)
Contracted Length	17 ft (5.18 m)
Inner Core Material	Latex
Outer Cover Material	Polyester Fabric
Connector Type	3/4 inch GHT Brass Fittings
Max Water Pressure	150 PSI
Operating Temperature	40°F - 120°F (4°C - 49°C)
Expansion Ratio	3:1
Anti-Kink	Yes
Leak-Proof	Yes
Weight (approx)	1.5 lbs (0.68 kg)
Included Accessories	Hose, Brass Connectors, Hanging Loop
Recommended Storage	Drain and store indoors when not in use
Care Instructions	Keep away from sharp objects, avoid kinking
Color Options	Green, Orange, Blue (varies)

Frequently Asked Questions - X50 xhose

How do I connect the X50 hose to my faucet?

Attach the 3/4 inch brass fitting to your faucet by hand-tightening. For a secure fit, use pliers gently but avoid overtightening.

Why does my X50 hose not expand fully?

Ensure the water pressure is at least 40 PSI. The hose requires sufficient pressure to expand. Also, check that the water is turned on fully.

Can I leave the hose connected overnight?

It is recommended not to leave water pressure on the hose for extended periods, as it can reduce the lifespan. Drain and disconnect after each use.

How do I clean the X50 hose?

Rinse with fresh water after use, especially if used with soap or chemicals. Wipe the outer fabric with a damp cloth. Do not use abrasive cleaners.

Is the X50 hose safe for drinking water?

The hose is not intended for potable water. It is made for gardening and general outdoor use only.

What should I do if the hose leaks at the connector?

Check the rubber gasket inside the connector; it may be worn or missing. Replace the gasket if necessary, and ensure the connector is tightly secured.

How long does the X50 hose typically last?

With proper care (draining, storing indoors, avoiding sun exposure), the hose can last 1-2 seasons. The latex core may degrade over time.

Can I use the X50 hose with a hose reel?

Yes, but ensure the reel is large enough to avoid sharp bends. It is best to hang the hose loosely rather than tightly coiling.

What is the maximum temperature for the hose?

The operating temperature range is 40°F to 120°F (4°C to 49°C). Avoid using with hot water or in freezing conditions.

Does the X50 hose come with a warranty?

xhose offers a limited warranty. Check the product packaging or contact customer support for specific warranty details.

USER MANUAL X50 xhose

EXPANDING LIGHTWEIGHT XHOSE THAT NEVER KINKS

YOUR XHOSE IS LIGHTWEIGHT AND COMPACT WITH A LOWER CARBON FOOTPRINT THAN OTHER COMPARABLE HOSES. YOU DON'T NEED TO PURCHASE A REEL TO STORE IT ON: SIMPLY STORE IT IN A PLANT POT OR HANG ON THE XHOSE HOOK WHICH IS DESIGNED TO FIT OVER YOUR OUTSIDE TAP

INSTRUCTIONS FOR USE

BEFORE USING YOUR XHOSE

PLEASE BE AWARE THAT WHEN YOU FIRST USE YOUR XHOSE BLUE DYE FROM THE OUTER WEBBING MAY TRANSFER WHEN IN CONTACT WITH WATER. WE ADVISE YOU TO SOAK THE XHOSE IN WATER (TWICE FOR 10 MINUTES EACH TIME) BEFORE USE. THIS SHOULD REDUCE THE AMOUNT OF BLUE DYE TRANSFERRED.

YOUR XHOSE WILL FIT ANY STANDARD 3/4" TAP

NOTE: AN ADAPTOR IS AVAILABLE TO BUY FOR 1/2"

TAPS (SEE ACCESSORIES ON THE REVERSE OF THIS BOOKLET

YOUR XHOSE MUST BE CONNECTED TO AN EXTERNAL TAP OR PUMP

THE XHOSE END CONNECTOR IS EU STANDARD

SIZING SO WILL CONNECT TO ALMOST ANY GARDEN HOSE ACCESSORIES

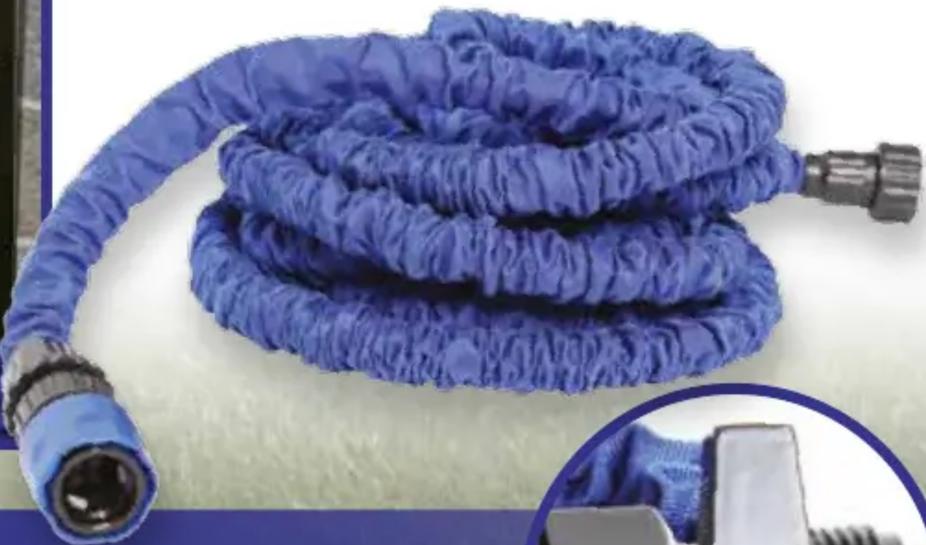

Blue flexible hose with threaded connectors and a small inset showing a mechanical component (no text or symbols visible)

IMPORTANT INFORMATION

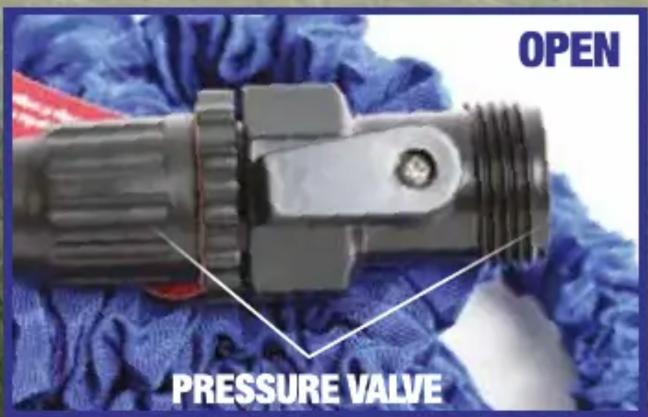

YOUR XHOSE IS FITTED WITH A PRESSURE VALVE TO CONTROL THE FLOW OF WATER TURNING THE ARM ON THE PRESSURE VALVE WILL CONTROL THE WATER PRESSURE TO START USING YOUR XHOSE: SCREW HOS CAP TO TAP (SEE DIAGRAMS ON FOLLOWING PAGE)

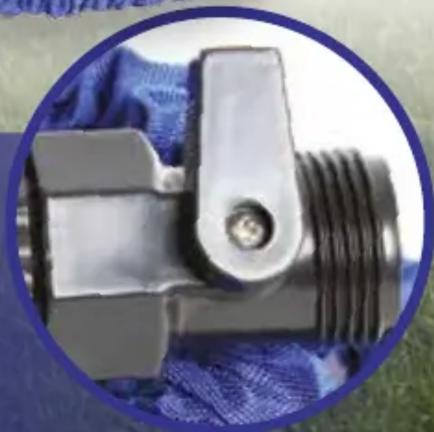

Close-up of a metallic valve component with threaded end and central hub, partially covered by blue cloth (no visible text or symbols)

WARNING: MAKE SURE CAP AND CONNECTORS ARE CLOSED TIGHT

THE XHOSE HAS BEEN TESTED AT STANDARD 3 BAR PRESSURE (EQUIVALENT TO 100 LITRES PER MINUTE). *WATER PRESSURE VARIES GREATLY ACROSS THE UK DEPENDENT ON LOCATION, INTERNAL PLUMBING SYSTEMS, HOW MUCH DEMAND THERE IS AT THE TIME AND HOW FULL THE RESERVOIRS ARE. UK WATER PRESSURE CAN VARY BETWEEN 1 AND 6 BWAR. YOUR WATER COMPANY WILL BE ABLE TO ADVISE YOU FURTHER.

FOR MORE DETAILS VISIT WWW.OFFICIALXHOSE.CO.UK

INSTRUCTIONS FOR USE

1 TO START USING YOUR XHOSE WITH ACCESSORIES:

• INSERT ACCESSORY INTO CONNECTOR

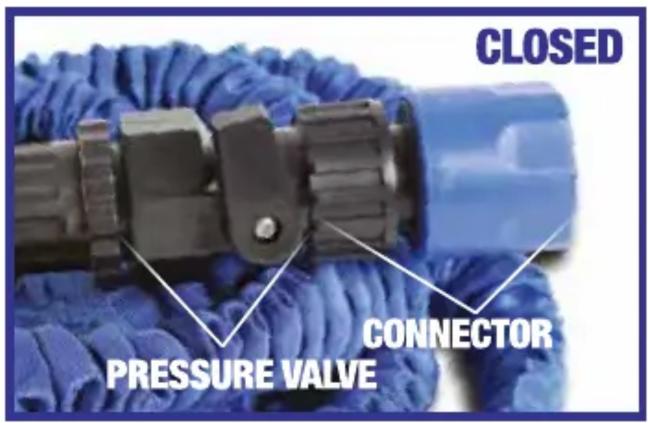

• TURN VALVE TO CLOSED POSITION AND TURN WATER ON - XHOSE WILL EXPAND UP TO 3X ITS ORIGINAL LENGTH

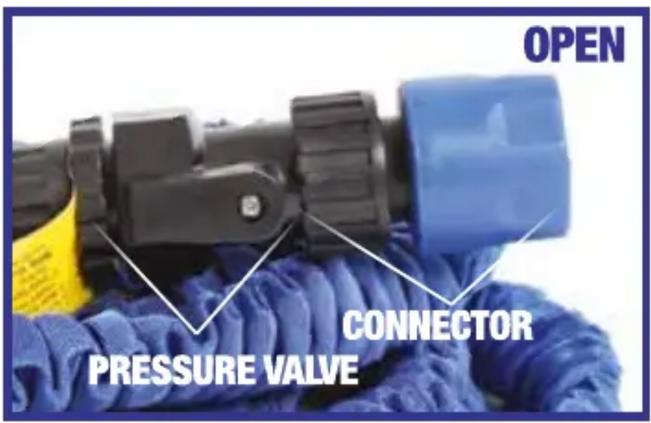

• SLOWLY TURN THE ARM ON THE PRESSURE VALVE TO OPEN TO REQUIRED WATER PRESSURE
  • ENSURE ALL CONNECTIONS ARE TIGHTENED PRIOR TO USE

2 TO START USING YOUR XHOSE WITHOUT ACCESSORIES:

• REMOVE THE END CONNECTOR
• TURN VALVE TO CLOSED POSITION AND TURN WATER ON - XHOSE WILL EXPAND UP TO 3X ITS ORIGINAL LENGTH

• SLOWLY TURN THE ARM ON THE PRESSURE VALVE TO OPEN TO REQUIRED WATER PRESSURE
  • WARNING! YOUR XHOSE WILL EXPAND BUT THEN REDUCE IN LENGTH DUE TO LACK OF BACK PRESSURE IF YOU DO NOT USE ANY ATTACHMENTS OR ACCESSORIES.

HOW DO I LOOK AFTER MY XHOSE?

TO PROLONG THE LIFE OF YOUR XHOSE STORE INDOORS - IF LEFT IN DIRECT SUNLIGHT THE FABRIC WILL FADE. IN FREEZING CONDITIONS, IF WATER IS LEFT INSIDE YOUR XHOSE, IT MAY CAUSE SPLITTING AFTER EACH USE, TURN THE WATER OFF AND OPEN THE VALVE TO RELEASE THE WATER FROM INSIDE THE XHOSE SO IT WILL CONTRACT TO A SMALL SIZE.

XHOSE ACCESSORIES ARE AVAILABLE

POWERFUL WATER JET

VISIT WWW.OFFICIALXHOSE.CO.UK
