Product Type	Weather-rated Bluetooth speaker and amplifier system
Brand	Boss Audio Systems
Model	MCBK425BA
Speaker Type	3" (76 mm) full-range driver with built-in amplifier
Driver Size	3 inches (76 mm)
Impedance	4 Ω
Frequency Response	50 Hz – 15 kHz
Total Harmonic Distortion (THD)	< 0.1%
Signal-to-Noise Ratio	> 75 dB
Power Supply	12 VDC (allowable 10 – 16 VDC)
Current Consumption	Max 5 A
Fuse Type	ATO type, 7.5 A
Mounting Bar Diameter Range	0.75" – 1.25" (19 – 32 mm)
Speaker Wire Length	10.8 ft (3.3 m)
Power Cable Length	10.5 ft (3.2 m)
Function Knob Cable Length	3.9 ft (1.2 m)
Dimensions (each speaker)	4.7" x 6.3" x 4.7" (120 x 160 x 120 mm)
Water Resistance	Splash-proof (IP rating not specified; do not submerge)
Bluetooth Version	5.0 + EDR
Bluetooth Profiles	A2DP
Bluetooth Range	Up to 33 ft (10 m) line of sight
AUX Input	3.5 mm stereo (via function knob cable)
Controls	Inline rotary knob: power on/off and volume
Cleaning	Use a dry, fiber-free cloth; no aggressive cleaning agents

Frequently Asked Questions - MCBK425BA BOSS

How do I pair my phone via Bluetooth?

Power on the product by rotating the inline function knob. It will automatically enter pairing mode. On your mobile device, enable Bluetooth and select 'Boss Audio MCBK425BA'. If prompted for a PIN, enter '0000'. A confirmation tone indicates successful pairing.

How do I connect an external audio device via AUX?

Ensure the product is powered on and not connected to Bluetooth. Connect a 3.5 mm audio cable from your device to the AUX input jack on the function knob cable. Play audio on your device; use the knob to adjust volume.

What should I do if there is no power?

Check that the power source connection is secure and correct. Verify the vehicle ignition is on if connected to ignition switch. Inspect the inline 7.5A fuse; replace it with the same type and rating if blown.

How should I mount the speakers?

Find a safe location on the handlebar (0.75-1.25 inch diameter). Use the provided clamp and rubber shims to secure the bracket. Tighten the mounting nuts, adjusting the speaker to point directly at the rider. Ensure cables are away from pinch points and moving parts.

Can I submerge the speaker in water?

No. The product is water resistant against splashing water only. Never submerge it in water. Doing so may cause permanent damage.

What is the correct fuse rating?

Use an ATO type 7.5A fuse. Replacing with a different type or rating may damage the product or cause fire.

How do I clean the speakers?

Clean with a dry, fiber-free cloth. Do not use any aggressive cleaning agents.

Can I connect the speakers directly to the vehicle battery?

Yes, but ensure you use the inline function knob to turn off power when not in use to avoid battery drain. Connect the red wire to battery positive and black wire to chassis ground or battery negative. Always disconnect the negative battery terminal before wiring.

What is the maximum mounting bar diameter?

The included clamp fits 0.75 to 1.25 inches (19 to 32 mm) in diameter handlebars or cage bars.

How do I adjust the volume?

Rotate the inline function knob clockwise to increase volume and counterclockwise to decrease. For best audio quality, set your mobile device volume to maximum and adjust the knob as needed.

USER MANUAL MCBK425BA BOSS

BLUETOOTH° | 3" (76 mm) WEATHER RATED

SPEAKER AND AMPLIFIER SYSTEM

FEATURING BUILT-IN AMPLIFIER

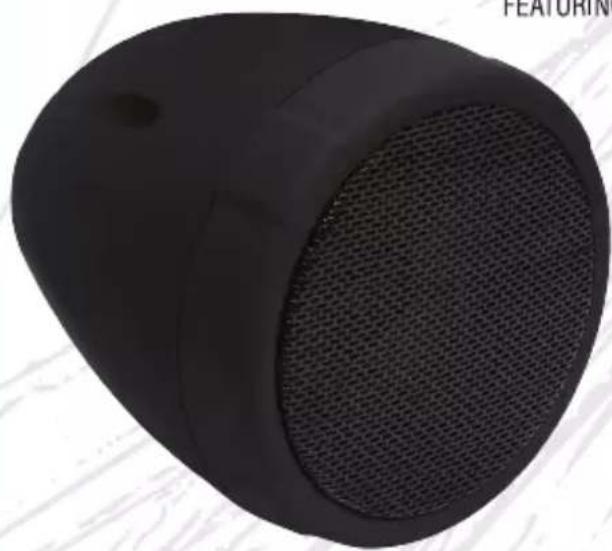

Black cylindrical device with mesh grille, no visible text or symbols

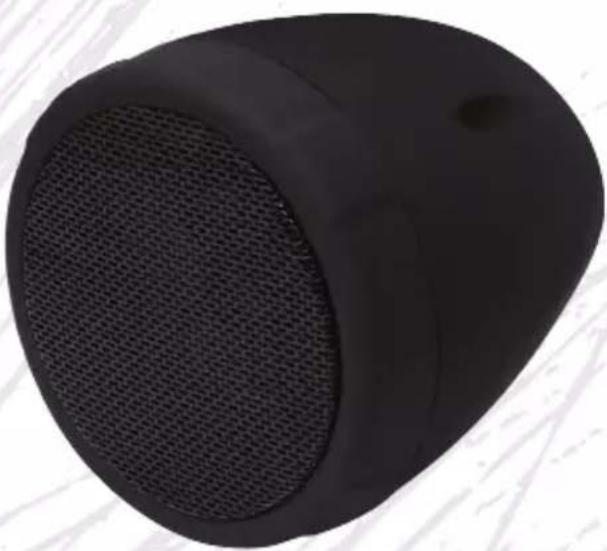

Black cylindrical device with mesh grille and circular top, no visible text or symbols

BOSS®

AUDIO SYSTEMS

Thank you for choosing our product!

Please read the instructions carefully so you will know how to operate your product properly.

If there are any technical questions, please contact:

Customer care: [phone] & Live chat

Online support: www.bossaudio.com/support

IMPORTANT

Please enter below the Serial No. which is located on the exterior of the product. Retain this information for future reference.

Model No. ____

Serial No.

Date of Purchase ____

Table of Contents

Introduction....1

Package Contents .... 1

Important 2

Mounting....3

Wiring 4

Bluetooth Streaming....5

AUX Input 6

Troubleshooting....7

Specifications 8

Introduction

This product is a pair of speaker pods with a built-in amplifier. The product is designed to be installed on the handlebar of a motorcycle or cage bar of a UTV vehicle. The applicable mounting bar ranges 0.75" to 1.25" in diameter.

You can stream audio from a mobile phone to this product via Bluetooth. You can also play music from an external device (e.g. a mobile phone or MP3 player) via 3.5mm audio input. The product has inline ON/OFF control and volume control.

This product is water resistant. However, never submerge the product in water. Connect this product to only 12VCD power source. Do not connect to other voltage for power supply.

Package Contents

When first unpacking this product, please check that the package contains each of the items listed below. If something is missing, contact the store where you purchased the product.

• 2 x Speakers (with a built-in amplifier)
• 1 x Power cable harness (with a 7.5A inline fuse)
  • 1 x Function knob cable (with 3.5mm audio input)
• 4 x Rubber mounting shims
• 5 x Cable zip tie
• 2 x Clamp mounting kits (pre-attached to the speakers)
• Quick Installation Guide / User Manual / Warranty card

Important

Read and understand all instructions before you use your product. If you do not follow the instructions in this manual, we are not responsible for any resulting personal injury or damage to property. This will also void the warranty.

Important Safety Precautions

- Be sure to observe the following guidelines:

• Do not increase speaker volume so high that you cannot hear what is around you.

• Use caution or temporarily discontinue use in potentially hazardous situations.

• Do not make any adjustment on the product when driving or in other situations where distractions can be hazardous. Responsible and safe driving is your primary responsibility when operating a vehicle.

• Start volume at a low setting then gradually increase the volume until you can hear it comfortably, without sound distortion or ear discomfort.
• In the event of smoke, strange noise or odor emitted from the product or any other abnormal operational signs appearing on the product, disconnect the product from the power supply. Discontinue use and contact your dealer or our technical support. Using the product in this condition may result in permanent damage to the product.
• Servicing must only be carried out by a technician. Contact our technical support for any service questions.

Installation Precautions

• WARNING: Always consult a professional installer.
• Installation must be performed by a professional. Contact our technical support for any installation questions.
• Before installation, disconnect the negative terminal of the vehicle battery to prevent damage to the product, fire, and/or possible injury.
• Use only installation parts provided with the product. Using other mounting methods may void the warranty.
• Observe the safety and operating instructions of the devices which are connected to the product.
• Important! Replace the faulty fuse with the same type and rating. Using a different type or rating of use may result in damage to the product or vehicle, or cause a fire.
• Do not use any aggressive cleaning agents. Clean the product with a dry, fiber-free cloth.
• This product is water resistant against splashing water. Do not submerge the product in water under any circumstances.

Environmental Care

Do not throw away the product with normal household waste at the end of its life. Follow your local laws if/when disposing of electronic products. By doing this, you help preserve the environment.

Mounting

See the section "Installation Precautions" on page 2. Keep connection cables away from any pinch points, moving parts, or any hot exhausts.

Do not install the speakers where they may obstruct the rider's view or inhibit any safety features on the vehicle (e.g. lights, horns, brake levers, etc.).

To ensure security of the mounted speakers, always check the mounting conditions (e.g. clamp fastening) of the speakers before each vehicle ride.

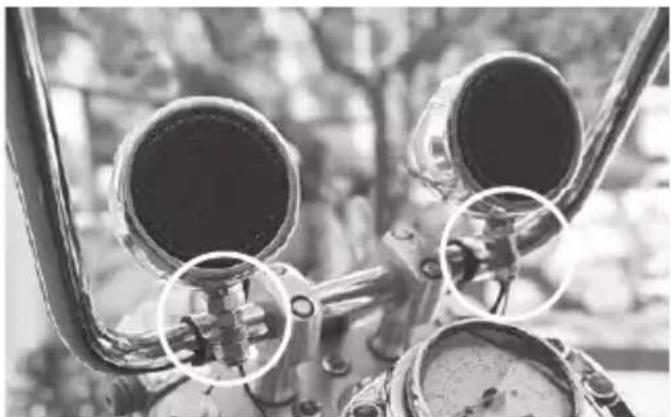

1. Find a safe and ideal mounting location on the handlebar. Make sure the speakers will not obstruct the rider's view or any safety features.

Close-up of mechanical components with circular features and a central valve, no visible text or symbols

1. The supplied clamp is pre-attached to the bottom of the speaker. Unfasten the clamp through the mounting nuts.

2. Fit the clamp around the handlebar of your vehicle. Remember to attach the supplied rubber shims over the mounting bar to secure clamping and prevent abrasion.

3. Re-fasten the mounting nuts to tighten the clamp. Before fully tightening, adjust the speaker so it points directly at the rider.

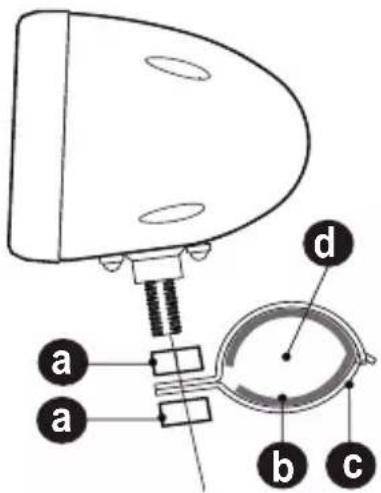

a. Mounting nut

b. Rubber shim

c. Speaker clamp

d. Mounting bar (0.75" - 1.25" in diameter)

Mounting inline function knob

Mount the function knob in a safe, easy-to-access location where it will not impede the rider's ability to drive safely. Secure the function knob using a supplied zip tie.

Wiring

See the section "Installation Precautions" on page 2.

For safety, disconnect the negative terminal of the vehicle battery prior to wiring.

Keep connection cables away from any pinch points, moving parts, or any hot exhausts.

Secure the connected cables.

Reconnect the negative terminal of the vehicle only when all wire connections are

correctly and securely made.

Power Source Connection

Important:

Before you make power connection, disconnect the negative battery terminal to avoid short circuits and any resulting damage to the speakers.

Option 1: Connection to ignition switch

When connecting the speakers to the vehicle's ignition switch, the speakers can be automatically powered on or off with the operation of the ignition switch.

1. Locate and identify two power wires in the ignition switch, one for switched +12V and the other for negative/ground.
2. Using the supplied power cable harness, connect the black cable (labeled "GROUND") to the negative/ground wire of the accessory power and the red cable (labeled "+12V") to the switched + / 12V wire of the accessory power.

Insulate the cable connection with electrical tape.

1. Connect the power cable harness to the connector of the power cable (labeled "POWER") which is attached to the speaker.

Option 2: Direct connection to vehicle battery

Note: Direct connection to vehicle battery consumes power. Always use the inline function knob to cut the battery power when the speakers are not used.

1. Using the supplied power cable harness, connect the black cable (labeled "GROUND") to the vehicle's metal frame or to the negative battery terminal and the red cable (labeled "+12V") to the positive battery terminal.
2. Connect the power cable harness to the connector of the power cable (labeled "POWER") which is attached to the speaker.

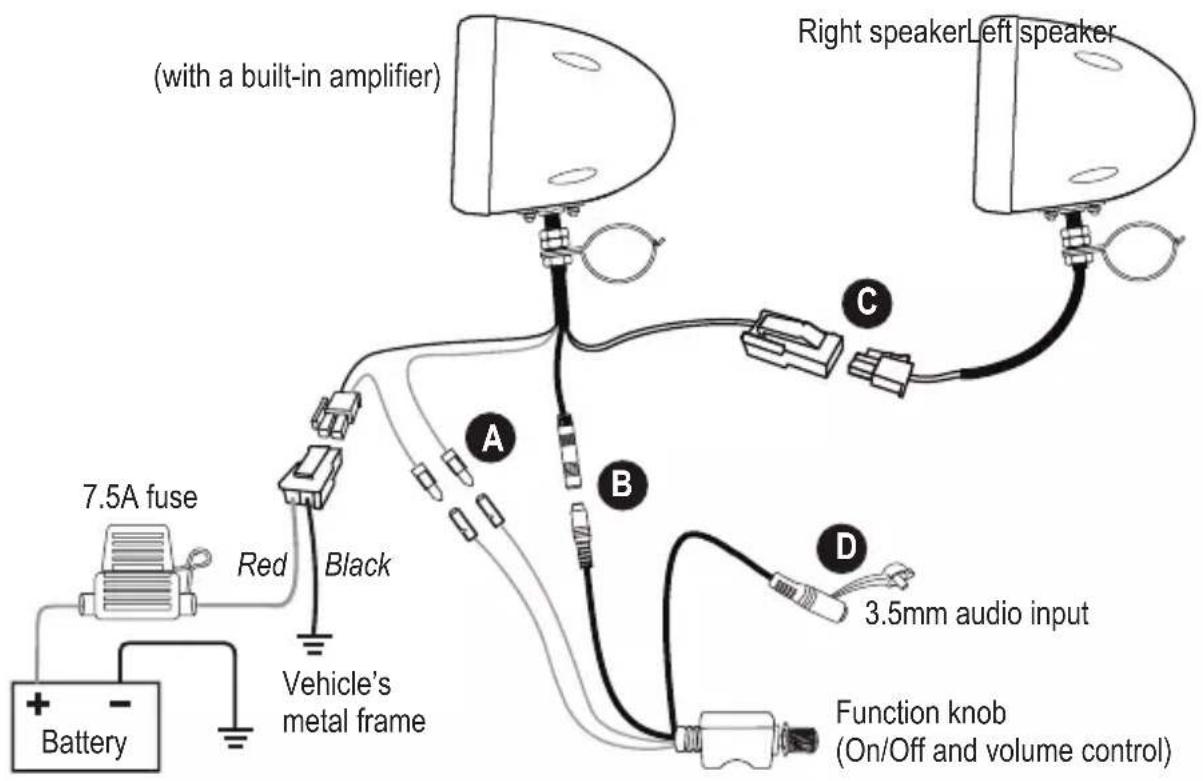

Wiring Overview

A: Connect the power control wires so that the function knob can work as ON/OFF control. See the section "Power Source Connection" for complete power connection instructions.
B: Connect the signal input cables to enable the volume control and the 3.5mm audio input.
C: Connect two speakers together using the speaker wires (white/black) which are pre-attached to the speakers.
D: Connect your mobile phone or MP3 player for audio input to the speakers, using an audio cable (e.g. 3.5mm audio cable or 3.5mm audio input adapter).

Bluetooth Streaming

Before you can stream music from your mobile device (iOS device or Android device) to this product through Bluetooth, pair this product with your mobile device.

1. Power on the product (rotate the inline function knob). The product will automatically switch to Bluetooth mode.

2. On your mobile device, enable Bluetooth function and select the device name ("Boss Audio MCBK425BA") to pair this product with the mobile phone.
   If prompted for password input on your mobile device, input "0000".
   Note: Only one device can be paired at a time.

3. When successfully paired/connected, confirmation tone can be heard. Play audio on your mobile device, and audio will be streamed to this product. Rotate the inline function knob to adjust volume.

After pairing, the product will be automatically connected to your mobile device each time the two are turned on. To change Bluetooth source, disconnect the Bluetooth connection on the current mobile device. Then repeat Step 2 above to pair/connect with another mobile device.

For best audio performance, set the volume of the mobile device to maximum. If there is distortion heard, turn down the mobile device's volume a little.

Operating this product consumes the vehicle battery. To avoid battery exhaustion, be sure to run the vehicle engine when operating the product.

Operational range can be reduced by any obstacle between this product and the device.

If the connected device is out of the effective range from this product, the device will be automatically disconnected. The device will be automatically re-connected if it is within the effective range again.

AUX Input

You can listen to an external audio device (e.g. a mobile phone or MP3 player) through this product.

1. Power on the product (rotate the inline function knob), and make sure the product is not connected to Bluetooth.

2. Connect the 3.5mm audio input jack of the speaker to the audio output connector on your mobile phone, using the following audio cable.

3. For a mobile phone with 3.5mm headphone jack, use a 3.5mm audio cable (not included).

4. For a mobile phone with a USB-C port, use a USB-C to 3.5 audio cable (not included).

5. For an iPhone, use a lightning to 3.5 audio cable (not included).

6. Play audio files on your audio device. Audio from the mobile phone will be played on this product. Rotate the inline function knob to adjust volume.

For best audio performance, set the volume of the mobile device to maximum. If there is distortion heard, turn down the connected device's volume a little.

Operating this product consumes the vehicle battery. To avoid battery exhaustion, be sure to run the vehicle engine when operating the product.

Troubleshooting

If you have problems using this product, check the following points before you request service. If you still have a problem, contact our technical support.

Problem Solution
No power Check that power source	source connection is correctly or securely made. See the section “Power Source Connection” for details.
	Check that the power ON/OFF wires are correctly or securely connected. See the section “Wiring Overview”.
	Turn on the vehicle’ ignition switch if power is connected to the ignition switch.
	The inline fuse is blown. Replace the fuse with the same type and rating.
No sound Check the connected device	device for volume level or playback status (e.g. pause or stop).
	For 3.5mm audio input, make sure Bluetooth connection is disabled.
Bluetooth not connected Check	that Bluetooth on your mobile device is enabled.
	Ensure your mobile device is within Bluetooth’s range.
	This product is connected with another Bluetooth device. Disconnect the current Bluetooth connection.
Poor audio quality from Bluetooth connection	Move your mobile device closer to the product, or remove obstacles or sources of interference that are affecting Bluetooth reception.

Specifications

Bluetooth

Bluetooth version....5.0 / EDR

Bluetooth profiles.....A2DP

Bluetooth frequency....2402 – 2480 MHz

Transmission power.... <4 dBm

Transmission distance....up to 33 ft /10 m (line of sight)

Audio

Speaker driver 3" (76 mm)

Speaker impedance....4Ω

Frequency response....50 Hz – 15 KHz

Total harmonic distortion (THD)....<0.1%

Signal-to-noise ratio.....>75 dB

Channel separation ....>50 dB

Input sensitivity....750 mV

General

Power supply....12VDC (allowable 10 – 16VDC)

Current consumption .... max. 5A

Fuse....ATO type, 7.5A

Clamp range ( )....0.75" – 1.25"

Cable length 10.8'/3.3 m (speaker wires); 10.5'/3.2 m (power cable);

3.9'/1.2 m (function knob cable)

Dimensions.... 4.7" x 6.3" x 4.7" (120 x 160 x 120 mm)

Specifications are subject to change without notice.

BOSS®

AUDIO SYSTEMS

BOSS Audio Systems

3451 Lunar Court · Oxnard, CA 93030

www.bossaudio.com

805-751-4853 Customer Service

Tech Support: www.bossaudio.com/support

0922

EN

Close-up of two metallic cylindrical objects with black centers, no visible text or symbols

MC425BA / MCBK425BA / MCBC425B

QUICK INSTALLATION GUID

Keep power and speaker wires away from any pinch points, moving parts, or any hot exhausts.

rev 0922

1. Fasten the mounting bolts on the bottom of the speaker brackets. Before fully tightening, adjust the speakers so they are pointing directly at the rider. Proceed to tighten mounting bolts securely, then connect the corresponding colored speaker wires together.

IN-LINE FUNCTION KNOB (VOLUME/ON-OFF)

Mount the In-Line Function Knob in a safe, easy to access location where it will not impede the rider's ability to drive safely.

*DISCLAIMER: Basic electrical knowledge and tools are required for the following steps.

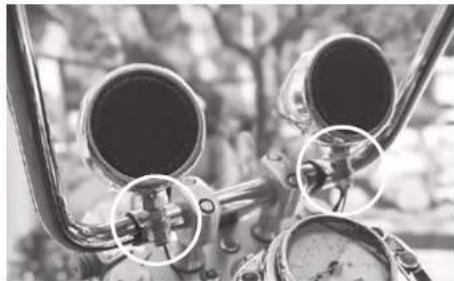

WIRING - OPTION 1

Power On w/ Key (Recommended)

Ignition OFF = System OFF

Ignition ACC/ON = System ON

1) Remove the seat.

2) You will need to locate the fuse box, generally near the battery.

3) Look for and identify the two wires needed, Switched +12V and Ground (-).

4) Disconnect the negative battery terminal, before making any connections.

Connect the Red wire (+12V) to the identified Switched wire on the motorcycle.

Protect it by wrapping it with electrical tape and secure it.

Connect the Black wire (Ground, -) to the identified Ground wire on the motorcycle.

Protect it by wrapping it with electrical tape and secure it.

Reconnect the negative battery terminal and switch on motorcycle to test system.

MOUNTING

Close-up of mechanical components with circular annotations highlighting specific parts (no visible text or symbols)

Find a safe, ideal mounting location. Ensure the speakers will not obstruct the riders view or any vehicle safety features.

1. Fit the speaker brackets around the handlebar of the desired installation location. Use the included Rubber Mounting Shims to secure the speaker brackets.

WIRING - OPTION 2

Directly to Vehicle Battery (is could affect battery life)

See the supplied user manual for complete power connection instructions. Use the in-line function knob to control power.

SUPPORT

www.bossaudio.com

805-751-4853 Customer Service

Tech Support: www.bossaudio.com/support
