| Product Type | Motorcycle/UTV Amplified Speaker System |
| Brand | BOSS Audio Systems |
| Model | MC720B |
| Amplifier Type | Class D |
| Speaker Size | 4 inches (102 mm) |
| Speaker Finish | Chrome mesh, weather-rated |
| Bluetooth Audio Streaming | Yes |
| Aux-In (3.5mm) | Yes |
| Frequency Response | 50 Hz – 15 kHz |
| Sensitivity | >400 mV |
| Signal-to-Noise Ratio | >85 dB |
| Total Harmonic Distortion | <0.1% |
| Channel Separation | >50 dB |
| Operation Voltage | 10 – 16 V DC |
| Fuse Rating | 7.5 A |
| Amplifier Dimensions (WxHxD) | 3.6 x 2.3 x 1.5 inches (9.1 x 5.8 x 3.8 cm) |
| Bracket Size Range | 0.75 – 1.25 inches (19 – 32 mm) |
| Weatherproof | Yes (speakers and volume control) |
| Volume Control | Wired weatherproof remote included |
| Power Cable Length | 6.2 ft (1.9 m) |
| Speaker Wire Length | 4.6 ft (1.4 m) |
| Audio Input Cable Length | 1.9 ft (0.58 m) |
| Mounting Hardware Included | Yes |
| What's in the Box | Amplifier, 2 speakers, mounting screws, rubber shims, fuse, manual |
Frequently Asked Questions - MC720B BOSS
User questions about MC720B BOSS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Loudspeaker in PDF format for free! Find your manual MC720B - BOSS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MC720B by BOSS.
USER MANUAL MC720B BOSS
BLUETOOTH® | 4" (102 mm) WEATHER RATED
CHROME SPEAKERS (1 PAIR) AND AMPLIFIER SYSTEM
FEATURING CLASS D AMPLIFIER
BOSS Audio Systems
3451 Lunar Court · Oxnard, CA 93030
www.bossaudio.com
805-751-4853 Customer Service
Tech Support: www.bossaudio.com/support
0720
The Bluetooth word mark and logo are registered trademarks owned by Bluetooth SIS, Inc. and any use of such marks by BOSS Audio Systems is under license. Other trademarks and trade names are those of their respective owners.


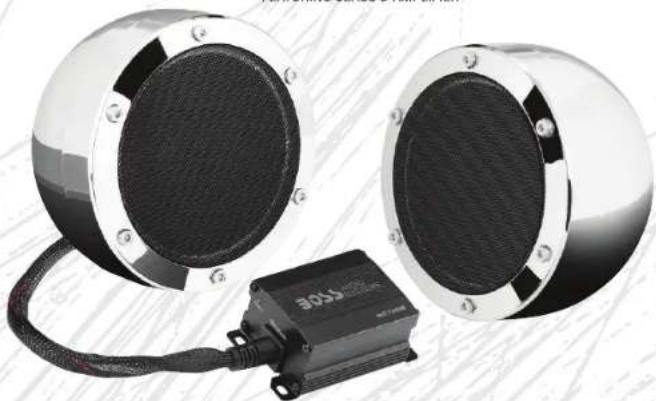

Two identical metallic circular speakers with mesh head and connected to a black BOS electronic device (no visible text or symbols)MC720B Motorcycle/UTV Amplified Speaker System
NOTES
MC720B Motorcycle/UTV Amplified Speaker System
Congratulations on your purchase of a BOSS Audio Systems amplified speaker system. It has been designed, engineered and manufactured to bring you the highest level of performance and quality, for years of listening pleasure.
Thank you for making BOSS AUDIO SYSTEMS your choice for entertainment!
MC720B Motorcycle/UTV Amplified Speaker System
Contents
Amplifier 1 PC
High-Performance, Weatherproof Speakers ---- 2 PCS
Amplifier Mounting Screws 4 PCS
Mounting Hardware 2 PCS
Rubber Mounting Shims 4 PCS
Amplifier Mounting Hardware 8 PCS
Fuse 1 PC
User's manual 1 PC
Features
Aux-In (3.5mm)
Speaker Clamp Mounts
Weatherproof Volume Control
High-Impact, High Temperature Speaker Enclosures
Weatherproof Speakers
Bluetooth Audio Streaming
MC720B Motorcycle/UTV Amplified Speaker System
Specifications
Operation Voltage 10\~16 V
THD----<0.1%
S/N---->85 dB
Channel Separation >50 dB
Frequency Response 50Hz - 15KHz
Sensitivity---->400mv
Speaker Wires 4.6'
Volume Control Wire 6.2'
Audio Input Cable 1.9'
Power Cable 6.2'
Bracket Size Range 0.75"\~1.25"
Fuse Rating 7.5A
Amplifier dimensions 3.6"x2.3"x1.5"
MC720B Motorcycle/UTV Amplified Speaker System
Installation
- Screw the brackets to the bottom of the speakers.
- Find a safe, ideal mounting location and fit the brackets over the chosen mounting bars.
- Fasten the mounting screws after you review the safety of the mounting location.
Wiring
- Be sure to run the wiring securely and far away from any moving components.
- Connecting the power cable to the power source: You will need to connect the 12V red wire to a (fused 7.5 A) switched power source.
- Use the 3.5mm stereo jack to connect to your entertainment source(MP3 player, etc).
- Use your player device and wired remote volume controller to control your level of loudness.
Bluetooth
To pair and connect your Bluetooth device to the MC720B Enter Settings >Bluetooth Menu >Search > "Boss Audio MC720B" >If Prompted to enter a passcode enter : "0000".
MC720B Motorcycle/UTV Amplified Speaker System
Connections
- AUX 3.5 female input connector for output of other audio device like mobile phone, MP3, Ipod and so on.
- Should use standard 3.5mm 3-pole male plug AUX cable (not included).
- Stop BT connection first when using the 3.5mm AUX input as an audio source input.

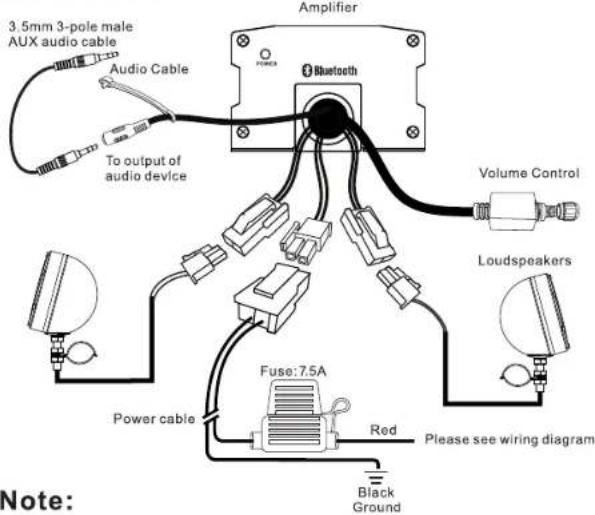

Amplifier and Loudspeaker Mounting
Installation Reminder
The components and wiring should not be installed around any moving parts, keep away from ignition parts, fuel lines, or any hot exhaust.
Speakers should not be installed where they might inhibit safety features on the vehicle (i.e. lights, horns, brake levers, etc...).
BOSS®
AUDIO SYSTEMS
Power Supply Connection

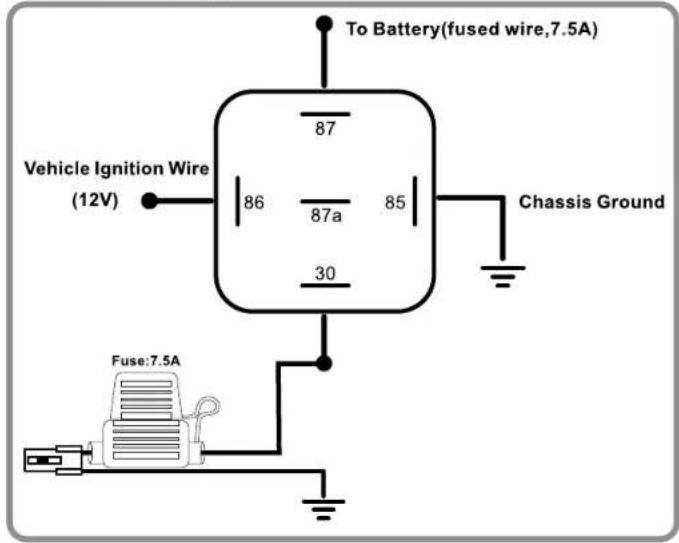

Option A
Connected to Battery through a
12 VDC SPDT Relay
(Single Pole Double Throw)
NOT INCLUDED, SOLD SEPARATELY

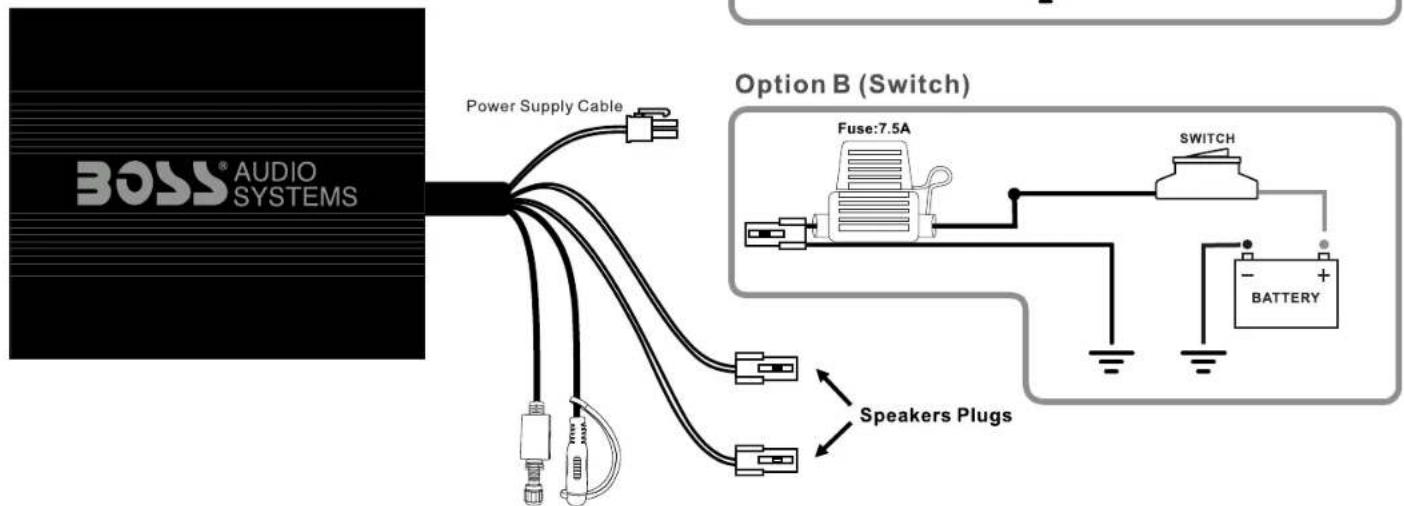

Option B
Connected to Battery through a
Waterproof Switch (250V AC/6A)
NOT INCLUDED, SOLD SEPARATELY
Option A (Relay)
