C15 - Coffee maker Avantco - Free user manual and instructions

Product Type	Commercial Coffee Brewer
Brand	Avantco
Model	C15 (also 177C15)
Electrical Rating	120V, 50-60Hz, 1450W
Water Capacity	2.2 liters (approx. 75 oz)
Brewing System	Thermo Pump
Funnel Material	Stainless Steel
Warming Plate	Yes, single warming plate
Controls	Power switch with indicator light
Safety Features	Automatic thermostat, manual thermostat
Certifications	Intertek 3154156, Listed 89GF
Construction	Stainless steel and plastic
Included Accessories	Wire funnel guard
Replacement Parts Available	Yes, refer to parts list
Cleaning Recommendations	Daily cleaning with non-abrasive detergent; regular deliming every 6 months
Usage	Indoor commercial use only
Power Cord Length	51 inches

Frequently Asked Questions - C15 Avantco

How do I clean the Avantco C15 coffee brewer?

Unplug the appliance. Use a damp cloth for exterior. For interior, run a cycle of water with Klearly Koffee or similar daily. For decanters, use hot water and a brush.

How often should I descale the coffee maker?

At least every 6 months. If water is hard, monthly. Use a mixture of 10 oz lemon juice and 32 oz water, then rinse with plain water cycles.

What type of coffee filter should I use?

Standard paper coffee filter suitable for commercial brewers.

Can I use the brewer for tea?

Yes, but ensure to clean thoroughly after each use to avoid flavor transfer.

What should I do if the brewer overflows?

Immediately turn off the power switch and allow the unit to cool. Check for overfilling or blockages in the funnel.

How much coffee grounds should I use?

The manual does not specify the amount; adjust to taste and brew strength. Typically 2 tablespoons per 6 oz of water.

Is the Avantco C15 suitable for home use?

It is designed for commercial use only, but can be used at home if space and electrical compatibility allow.

What is the power cord length?

The replacement power cord is 51 inches long.

Why does the indicator light turn off before brewing is complete?

The readiness indicator turns off when the brew cycle ends. If it turns off prematurely, deliming may be necessary to remove mineral buildup.

Can I leave water in the reservoir?

For short periods yes, but for extended non-use, empty and clean the machine to prevent buildup. Always pour out remaining water before storage.

USER MANUAL C15 Avantco

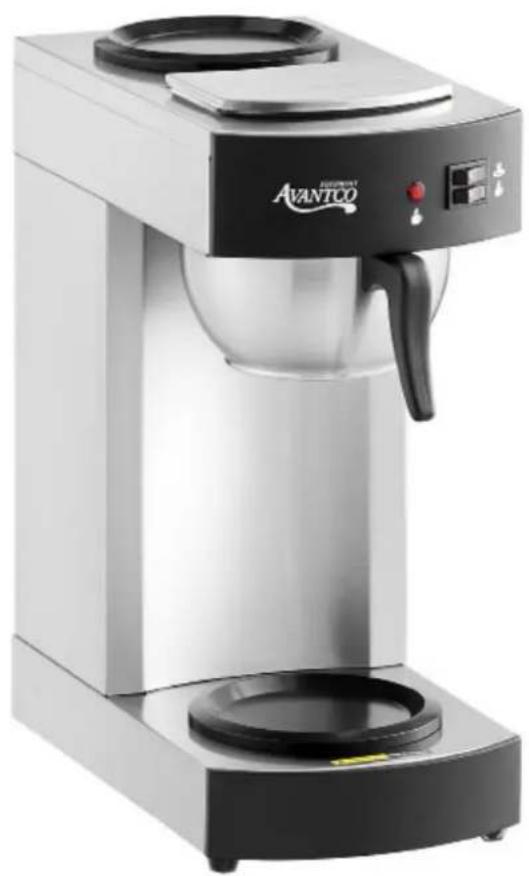

Exterior view of a modern silver coffee maker with black control panel and brand logo (no text or symbols on device body)

Exterior view of a silver coffee maker with dual cups and control panel (no visible text or symbols)

Thermo Pump System Coffee Brewers – User Manual

Intertek 3154156

Intertek 3154156

LISTED 89GF

Models: 177C10, 177C15

08/2022

Please read and keep these instructions. Indoor use only.

User Manual

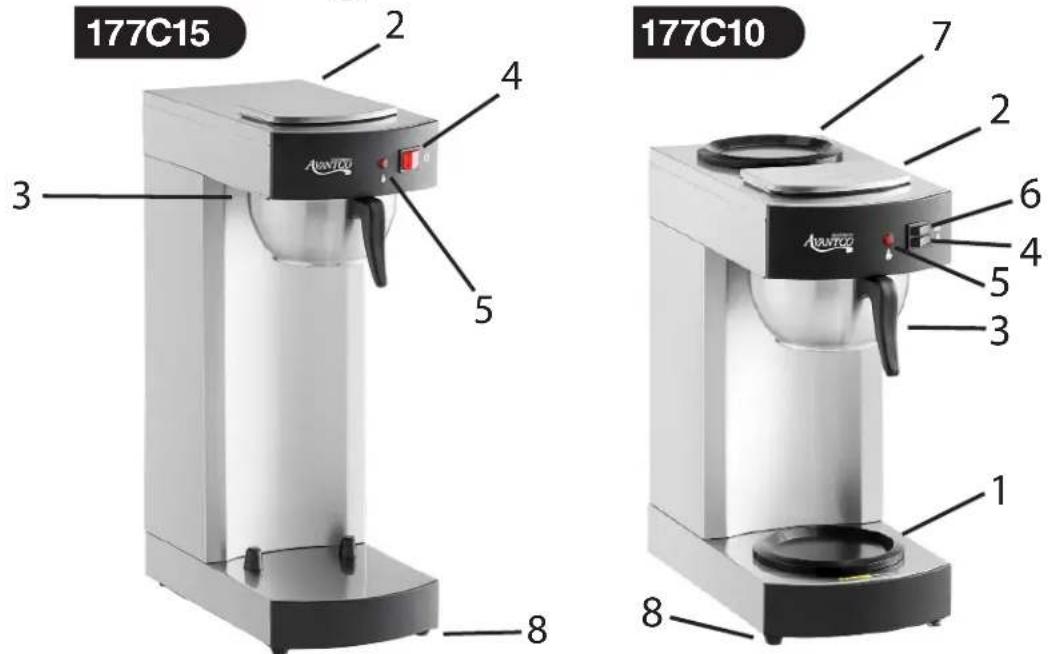

Parts Diagram

Parts Key
Parts Diagram # Part Name Replacement Part Item #
1 Warming Plate 177CPLATE (C10)
2 Reservoir Lid 177CRES LID
3 Stainless Steel Brewing	Funnel 177C1015BASK
4 Power Switch
5 Indicator Light
6 Power Switch for Upper	Warming Plate - C10 only
7 Warming Plate 177CPLATE (C10)
8 Foot 177CFOOT
Not Pictured Wire Funnel	Guard 177C1015GARD
Not Pictured Automatic Thermostat 177CATHM
Not Pictured Manual Thermostat 177CMTHM
Not Pictured 51" Power Cord 177CCORD
Not Pictured Heating Element 177CELEMENT
Not Pictured Warmer Plate	Heating Element - C10 only	177CPLTELM (C10)
Not Pictured Relay		177CRELAY
Not Pictured Reservoir Screen		177CRSCREEN

User Manual

Specifications

Intertek 3154156

Intertek 3154156

LISTED 89GF

Model: 177C10, 177C15,

Electrical: 120V, 50-60Hz; 1650W(C10), 1450W(C15),

Water Capacity: 2.2 liters

Read and understand all instructions before using the appliance. CAUTION! HOT SURFACE!

Warnings

• This appliance is designed for commercial use only.
• This appliance must be placed on a level surface able to adequately support its weight.
• Users should not leave the appliance unattended while it is in operation.
• Never immerse the appliance in water.
• Never pour hot water, coffee, or coffee powder into the water reservoir.
• Do not overfill the water reservoir.
• Do not unplug the appliance if your hands are wet.
• Do not unplug the appliance by pulling the cord.
• Do not attempt to repair or replace the power cord if it becomes damaged. Contact a qualified service agent.
• Be careful not to touch any hot surfaces.
• Do not allow empty decanters to sit on the hot plate.

- While the appliance is in use, some parts will become very hot. Ensure that the cord does not come in contact with any hot parts.

Prop 95 Warning:

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov

User Manual

Installation

Carefully unpack the coffee brewer and inspect for damage and missing parts.

1. Position the brewer on a sturdy, level surface. Allow enough room above it for safe and easy filling of the water reservoir.
2. Place an empty glass decanter or airport under the funnel.
3. Fill the brewer's reservoir with water (approximately 75 ounces).
4. Turn the power switch to "ON". The Readiness Indicator should light. After approximately 2 minutes, the machine will begin brewing.
5. After 4-5 minutes, the Readiness Indicator should turn off, indicating that the brewing process has ended.
6. Repeat steps 2 through 5 twice to clean the machine's internal parts before brewing coffee for the first time.

NOTE: It is normal to hear some brewing and pumping sounds and to see water vapor coming out of the machine during this procedure.

In case of overflow, turn the power switch "OFF" immediately to stop the process.

Operation

1. Remove the funnel, and insert a paper coffee filter. Add the appropriate amount of coffee grounds. Return the funnel to its correct position.
2. Make sure the empty airport or decanter is positioned correctly under the funnel.
3. Fill the water reservoir, and turn the brewer "ON".

a. Note: Do not add more than 1 decanter (64 oz.) of water to 177C10 to prevent overflow.

b. The Readiness Indicator should light up and brewed coffee will start flowing into the airport or decanter. When the Readiness Indicator light turns off, the brewing cycle is complete.

CAUTION: To prevent spills or burns, wait until coffee has stopped dripping from the funnel before removing it.

1. Dispose of the used coffee grounds and coffee filter and rinse the funnel with clean water. The unit is now ready to brew another batch.

CAUTION: Do not leave empty decanters on the hot plates as this can damage the unit as well as the decanter.

NOTE: After the first use, a small amount of water will always remain in the machine. If it will not be used for an extended period, you should always pour out the remaining water and clean the machine to prepare it for storage or transport.

User Manual

Cleaning

Regular cleaning ensures long life. For dirt or smudges on the brewer's exterior, a damp cloth will suffice. If necessary, a non-corrosive, non-abrasive detergent or cleaner may be used. Be sure to unplug the appliance before cleaning.

Klearly Koffee is a simple, easy-to-use product that should be used daily to remove or prevent oil residue and mineral build-up, which turns rancid, causing bitter tasting coffee or tea.

Directions for Cleaning Glass Decanters

Use daily for best results.

1) Shake bottle. Apply 3-4 squirts (approx. 1/4 oz. Per 1 gal. of liquid) Klearly Koffee into the decanters (not included). Add very hot water (not boiling).
2) Use a carafe brush for best results on tough stains.
3) Empty solution and rinse vessel thoroughly with clean, warm water. Air dry or wipe clean before next use.

The Importance of Deliming

To prolong your coffee brewer's life and maintain a consistent, quality product, regular deliming is recommended. When hard water is heated, minerals are left behind which can inhibit optimum performance. You should perform the following deliming process at least every 6 months. If your water is extremely hard, monthly deliming is recommended.

Deliming Procedure

• Mix 10 oz. of fresh or condensed lemon juice with 32 oz. of water and pour it into the water reservoir.
• Make sure an empty decanter is underneath the funnel, and turn the unit "ON" as if you are brewing a pot of coffee.
• If the brewer has stopped working, the use of a deliming spring (sold separately) may be necessary to loosen lime deposits in the spray head.
• After the brewer has completed its cycle, turn it "OFF" and empty the decanter.
• Run two or three brewing cycles of plain water through the machine to rinse out all traces of the lemon water solution before brewing more coffee.

If the brewer suddenly stops working during a normal brewing cycle, deliming may be necessary.

Pure diagram of a coiled wire or filament without any text, numbers, or symbols

20" Deliming Spring 3591901033

This deliming spring fits into the sprayhead opening of pour-over coffee makers to loosen lime deposits. Made of stainless steel. Sold Separately.
