Product Type	Air Fryer
Model	AB-Airfryer100
Brand	Avalon Bay
Capacity	3.2 lbs (approx. 1.5 kg)
Temperature Control	200°F - 400°F (approx. 93°C - 204°C)
Timer	0-30 minutes with automatic shut-off
Basket Material	Non-stick coating
Dishwasher-Safe Parts	Yes (basket and pan)
Power Supply	120V, 60Hz, polarized plug
Power Cord Length	Short power supply cord (approx. 0.8m)
Main Functions	Air frying, baking, reheating, roasting
Cleaning & Maintenance	Wipe exterior with damp cloth; basket and pan dishwasher safe; avoid abrasive materials
Safety Features	Automatic shut-off, cool-touch handle, polarized plug
Spare Parts & Repairability	Basket and pan available via customer service; do not attempt unauthorized repairs
Warranty	Limited 1-year manufacturer's warranty
Certifications	Complies with EMF standards
Weight (approx.)	10.5 lbs (4.8 kg)
Dimensions (approx.)	12 x 12 x 14 inches (30 x 30 x 35 cm)

Frequently Asked Questions - AB-Airfryer100 Avalon Bay

Can I use oil in the Avalon Bay AB-Airfryer100?

No, the air fryer is designed to use hot rapid air circulation and does not require oil. However, you can add a small amount of oil (e.g., 1/2 tbsp) to homemade fries for crispiness.

How do I clean the basket and pan?

Both the basket and pan are dishwasher safe. Alternatively, clean with hot water, mild soap, and a non-abrasive sponge. Avoid metal utensils or abrasive cleaners to protect the non-stick coating.

Why is white smoke coming out of my air fryer?

White smoke is usually caused by grease residue from previous use or cooking greasy foods. Clean the pan thoroughly after each use. If cooking fatty foods, some smoke is normal.

What is the maximum capacity?

The maximum capacity is 3.2 lbs (approx. 1.5 kg). Do not overfill the basket beyond the MAX indicator to ensure even cooking.

Can I bake a cake in the air fryer?

Yes, you can bake a cake. Place a cake pan or oven dish directly in the basket. Use the settings: 320°F (160°C) for 20-25 minutes. Refer to the cooking chart for details.

How do I preheat the air fryer?

To preheat, set the timer for at least 3 minutes without food. Once the heating-up light turns off (after about 3 minutes), add food and set the required cooking time.

What foods should I avoid cooking in the air fryer?

Avoid extremely greasy foods like sausages or bacon, and vegetables that are usually steamed (e.g., carrots, broccoli, beans). These may cause excessive smoke or not cook well.

How do I adjust cooking time for different amounts?

A larger amount of food requires a slightly longer cooking time; a smaller amount requires a slightly shorter time. Shake smaller items halfway for even cooking.

Why is my food not crispy?

For snacks, use oven-ready products or lightly brush with oil. Ensure the basket is not overloaded and shake halfway. For fries, dry potato sticks thoroughly and add a bit more oil.

What should I do if the pan does not slide in properly?

Check that the basket is pushed down into the pan until it clicks and that you haven't exceeded the MAX fill line. Reduce the amount of food if necessary.

USER MANUAL AB-Airfryer100 Avalon Bay

Geometric logo of four teal squares arranged in a 2x2 grid (no text or symbols)

Avalon Bay

Black and white photo of a black air fryer with control knobs and a handle (no visible text or symbols)

Air Fryer Product Guide (AB-Airfryer100)

Introducon

Congratulaons on your purchase of a new Avalon Bay Air Fryer. This "air" fryer provides an easy and healthy way to prepare your favorite foods. Your Air Fryer uses hot rapid air circulaon and a top grill to cook your food in all direcons, and the best part is that it doesn't require any oil.

Before using your Air Fryer, please read this manual carefully. Incorrect operaon can result in serious damage or injury.

Need to Contact Us?

WEBSITE:	hp://www.avalon-bay.com
SUPPORT EMAIL ADDRESS:	[e-mail]
TELEPHONE NUMBER:	1-844-528-2566

Thank You for Choosing the Avalon Bay Air Fryer

Please read this manual thoroughly and follow all instrucons and safety guidelines. With proper care and maintenance, this appliance will provide you with many years of trouble-free use.

For future reference, we recommend you each a copy of your sales receipt below and record the following informaon, located on the manufacturer's nameplate on the rear of the unit. You will need this informaon if it becomes necessary to contact the manufacturer for service inquiries.

Date of Purchase: ____

Serial Number:

Model Number: ____

Contents

Introducon 2

Need to Contact Us? 2

Contents....3

List of Main Parts....4

Product Specicaons....4

Important Safety Precauons 4

Geng To Know Your Avalon Bay Air Fryer 6

Before Your First Use....6

Assembling your Air Fryer....7

Operang your Air Fryer 7

Cooking Tips....9

Preheang Your Air Fryer....10

Reheang food....10

Baking a Cake?......10

Foods NOT to cook in your Air Fryer 10

Sengs....11

Caring For Your Air Fryer....12

Cleaning and Storage....12

Environmental Concerns 12

Troubleshoong....13

Limited manufacturer's warranty 15

Warranty Terms 15

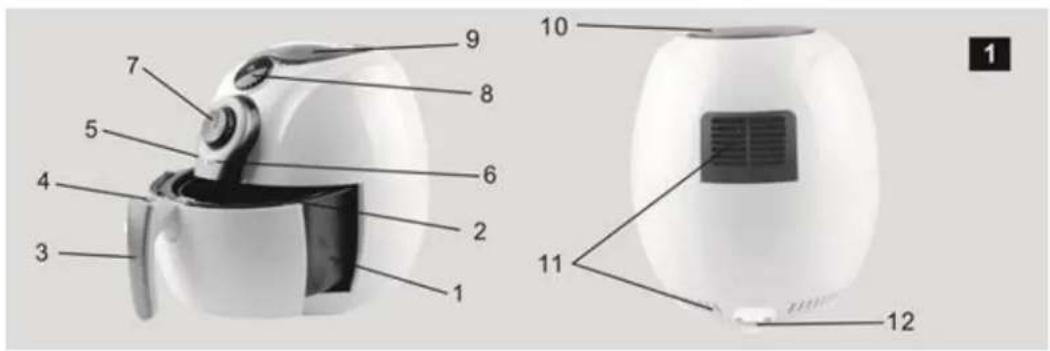

List of Main Parts

1 - Pan
2 - Basket
3 - Basket handle
4 - Basket release buon
5 - Power indicator light
6 - Heang-up indicator light

7 - Timer (0-30 min)/power-on knob
8 - Temperature control knob (176-392 F)
9 - Handle
10 - Air inlet
11 - Air outlet
12 - Main cord

Product Specicaons

TEMPERATURE CONTROL :	200 - 400°Fahrenheit
TIMER:	30-minutes
CAPACITY:	3.2 Lbs
FOOD BASKET:	Non-sck
DISHWASHER-SAFE PARTS:	Yes

Important Safety Precauons

CAUTION: Some Air Fryer parts, including outer surface, may get too hot to touch. To prevent burns, refrain from touching the body of the Air Fryer during operaon, and wait unl Air Fryer has cooled down to handle.

This Air Fryer is designed for household use only. It is not suitable to be safely used in environments such as sta kitchens, farms, motels, and other non-residenal environments. The guarantee is invalid if the Air Fryer is used for professional or semi-professional purposes, or if it is not used according to instrucons.

Please read all instrucons before using your Air Fryer and do not use the appliance for any other purpose than described in this manual.

When using electrical appliances, basic safety precautions should always be followed, including the following:

Before Cooking

• Ensure the appliance is placed on a at, even, and stable surface.
• Check if the voltage indicated on the appliance is the local main voltage.
• Do not use the appliance if there is any damage to the plug, main cord, or other parts.
• Do not plug in the appliance to an earthed wall socket. Always make sure that the plug is inserted into the wall socket properly.
• Do not connect the appliance to an external mer switch.
• Do not place the appliance on or near combustible materials such as a tablecloth or curtain.
• Do not place the appliance against a wall or against another appliance. Leave at least 4 inches free space on the back and sides and 4 inches free space above the appliance.
• Do not place anything on top of the appliance.
• Keep the appliance and its main cord out of the reach of children.
• Do not use an unauthorized person to replace or x a damaged main cord.

While Cooking

• Keep all food in the basket to prevent any contact with the heang elements.
• Do not cover the air inlet or the air outlet when the appliance is working.
• Do not ll the pan with oil. This may cause a re hazard.
• Do not touch the inside of the appliance while it is operang.
• Do not let the appliance operate unaended. During hot air frying, hot steam is released through the air outlet openings. Keep your hands and face at a safe distance from the steam and from the air outlet openings.
• Be careful of hot steam and air when you remove the pan from the appliance.
• Keep the main cord away from hot surfaces.
• Any accessible surfaces may become hot during use (Figure 2.)

Immediately unplug the appliance if you see dark smoke coming out of the Air Fryer. Wait for the smoke emission to stop before you remove the pan from the appliance.

Automac Switch-O

Your Air Fryer has a built-in mer. The appliance will automacally shut o when the mer count reaches zero. You can also manually switch o the appliance by turning the mer knob counter clockwise to zero.

Special Cord Set Instrucons

A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a long cord. A longer detachable power supply cord or extension cord is not recommended for use with the Air Fryer.

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to t into a polarized outlet only one way. If the plug does not t fully into the outlet, reverse the plug. If it sll does not t, contact a qualified electrician. Do not aempt to modify the plug in any way. Improper use of the grounded plug can result in electrical shock. If the power cord is damaged, please contact customer service.

Electromagnec Fields (EMF)

The appliance complies with all standards regarding Electromagnec elds (EMF). Under proper handling, there is no harm for the human body based on available scienc evidence.

Geng To Know Your Avalon Bay Air Fryer

Your Avalon Bay Air Fryer uses a unique combinaon of fast circulang hot air and a grill element that allows you to fry an assortment of delicious foods quickly, easily, and more importantly, with much less fat. You can prepare a variety of foods in your Air Fryer including French fries, chicken, vegetables, and even a cake. Any snacks that can be prepared in an oven can also be easily prepared in your air fryer.

Before Your First Use

1. Remove all packaging materials, sckers or labels from your Air Fryer. Be sure all parts (see list of main parts on page 4) have been included before discarding any packaging materials. You may want to keep the box and packing materials for use at a later date.
2. Clean the basket and pan using hot water, mild soap, and a non-abrasive sponge. The basket and pan are also dishwasher safe.
3. Wipe the inside and outside of the appliance with a cloth. Never immerse the appliance in water; water must not be allowed to penetrate the interior of the appliance.

Assembling your Air Fryer

Since your Air Fryer uses hot air, do not ll the pan with oil or any other liquid. Do not put anything on top of the appliance – this will disrupt airrow.

1. Place your Air Fryer on a clean, at surface where you intend to cook. Do not place the appliance on a NON heat-resistant surface.
2. Put the basket in the pan (Figure 3).
3. Make sure the mer knob is set to 0.
4. Plug the cord into a standard electrical outlet. Now you are ready to begin hot air frying.

Close-up of a hand holding a black air fryer with a black arrow pointing to the lid (no text or symbols visible)

Operang your Air Fryer

Once your Air Fryer is assembled properly, you are ready to begin frying.

1. Carefully pull the pan out of your Air Fryer (Figure 4) and place your food in the basket.
2. Slide the pan back into your Air Fryer (Figure 5). Never use the pan without the basket.

1. Do not touch the pan during or immediately aer use. The pan will be very hot. Be sure to only hold the pan by the handle.
2. Turn the temperature control knob to the proper temperature (Figure 6). See Sengs to determine the right temperature.

If the appliance is cold, add 3 minutes to your preparaon me.

1. Determine the required preparaon me for your food (see Sengs). Turn the mer

White air fryer with black handle and control panel (no visible text or symbols)

Close-up of a white air fryer with a black handle, no visible text or symbols

Close-up of a stylized eye with a magnified inset showing the eye and lens (no text or symbols)

knob to the required preparaon me to switch on your Air Fryer (Figure 7).

• The power-on light and the heang-up light goes on.
• The mer starts counng down your set preparaon me.
• During the hot air frying process, the heang-up light occasionally turns on and o. This indicates that the heang element is switched on and o to maintain your set temperature.

• Any excess oil from the food collects on the boom of the pan.

• Some foods require you to shake halfway during cooking (Figure 8). Pull the pan out of the appliance by the handle and shake it. Then slide the pan back into your Air Fryer (Figure 11).

Do not press the buon of the handle during shaking (Figure 9).

To reduce the weight while shaking, remove the basket from the pan and shake only the basket. Just pull the pan out, place it on a heat-resistant holder surface, such as a trivet, and press the buon of the handle (Figure 10).

If you set the mer for half of the preparaon me, when the mer bell rings, shake the food. Don't forget to set the mer again for the remaining cook me.

Close-up of a white object with a metallic ring and a curved handle, no visible text or symbols

Hand holding a black air fryer with a brush, showing airflow direction (no text or symbols)

Hand holding a black air fryer with food inside (no visible text or symbols)

Hand holding a small object with an arrow pointing to it, next to a black cylindrical container (no text or symbols visible)

Hand holding a cooking tool next to a black air fryer with a brush, no visible text or symbols

1. When you hear the mer bell, the set cooking me has elapsed. Pull the pan out of your Air Fryer and place it on a heat-resistant surface. You can switch o your Air Fryer manually by turning the temperature control knob to 0.
2. Check if your food is ready. If not ready yet, slide the pan back into the appliance and set the mer for a few extra minutes.
3. To remove small foods (e.g., fries), press the basket release buon (1) and li the basket out of the pan (2) (Figure 10).

NOTE: Don't turn over the pan; otherwise, the oil collected on the boom of the pan will leak onto the food.

The pan and the food are hot aer hot air frying. Depending on the type of the food in your Air Fryer, steam may also escape from the pan.

1. Empty the basket into a bowl or onto a plate (Figure 12). Use tongs to remove large or fragile food out of the basket.

Once your basket is empty, your Air Fryer is immediately ready to prepare the next batch.

Once you're nished cooking, don't forget to thoroughly clean your Air Fryer so it is ready the next me you need to use it.

Hand pouring liquid into a bowl with a mesh fan (no text or symbols visible)

Cooking Tips

You can use your Avalon Bay Air Fryer to cook many of the foods you love. This includes any meat you usually broil, grill, or bake (like chicken or beef). You can also cook most frozen foods in your Air Fryer too (and you don't need to defrost them rst either).

Keep these ps in mind when cooking:

• Smaller items usually require slightly shorter cooking mes than larger items (e.g., smaller fries will cook faster than larger fries).
• Shaking smaller items halfway through the cooking me enhances the end result and can help prevent unevenly fried food. Because the Rapid Air technology reheats the air inside the appliance instantly, pulling the pan briey out of the appliance during hot air frying barely disturbs the process.
• A larger amount of food only requires a slightly longer cooking me, a smaller amount of food only requires a slightly shorter cooking me.
• Use pre-made dough to prepare lled snacks quickly and easily. Pre-made dough also requires a

shorter preparaon me than homemade dough. We suggest placing a baking n or oven dish right in your fryer basket if you want to fry fragile food or lled food.

Preheang Your Air Fryer

You can preheat your Air Fryer without any food inside.

1. Set the mer knob for at least 3 minutes.
2. Once the heang-up light turns o (usually aer about 3 minutes), Il your Air Fryer basket with food.
3. Turn the mer knob to the required preparaon me.

Reheang food

You can also use your Air Fryer to reheat food. Just set the temperature to 302^irc F and allow up to 10 minutes for your food to reheat.

Baking a Cake?

Baking a cake in your Air Fryer is easy. Just place a cake pan or oven dish directly in your Air Fryer basket. See Sengs on page 10 for more informaon.

Foods NOT to cook in your Air Fryer

Do not prepare extremely greasy food such as sausages or bacon in your Air Fryer. Also avoid vegetables that you usually cook or steam, such as carrots, broccoli and beans.

Sengs

Use the frying mes in this chart as a guide. You'll need to adjust these mes to suit the dierent quanes or thickness of food along with your own taste.

	Min-max amount (ounces)	Time (min)	Temp (F)	Shake	Extra informaon
Potatoes & Fries
Thin frozen fries	10-35	20-50	392	Shake
Thick frozen fries	10-35	22-50	392	Shake
Home-made fries (thin scks)	10-35	22-50	392	Shake	Add 1⁄2 tbsp. of oil
Home-made potato wedges	10-28	20-28	392	Shake	Add 1⁄2 tbsp. of oil
Home-made potato cubes	10-26	20-28	356	Shake	Add 1⁄2 tbsp. of oil
Ros	9	18-22	356	Shake
Potato gran	17	20-25	356	Shake
Meat & Poultry
Steak	4-16	12-18	356
Pork chops	4-16	15-20	356
Hamburger	4-16	9-18	356
Sausage roll	4-16	18-20	392
Drumscks	4-16	22-28	356
Chicken breast	4-16	18-22	356
Snacks
Spring rolls	10-14	12-18	392	Shake	Use oven-ready
Frozen chicken nuggets	10-17	10-15	392	Shake	Use oven-ready
Frozen sh ngers	10-14	10-15	392		Use oven-ready
Frozen bread crumbled cheese snacks	10-14	10-15	356		Use oven-ready
Stued vegetables	10-14	10	320
Baking
Cake	10	20-25	320		Use cake pan
Quiche	14	20-22	356		Use cake pan/ oven dish
Muns	10	15-18	392
Sweet snacks	14	20	320		Use cake pan/ oven dish

Caring For Your Air Fryer

Cleaning and Storage

You should thoroughly clean your Air Fryer aer every use.

To preserve the non-sck coang, do not use metal kitchen utensils or abrasive cleaning materials to clean the pan, basket, or the inside of the Air Fryer.

1. Unplug your Air Fryer and allow it to cool down (about 30 minutes). You can also remove the pan to cool down your Air Fryer a lile faster.
2. Wipe the outside of your Air Fryer with a damp cloth. Never use an abrasive cleaner or harsh pad.
3. Clean the pan and basket using hot water, mild soap, and a non-abrasive sponge (the pan and basket are also dishwasher-safe). If necessary, use a degreasing liquid to remove any remaining dirt.

a. NOTE: If dirt is stuck to the basket or the boom of the pan, Il the pan with hot water and a mild liquid soap. Put the basket in the pan and soak for about 10 minutes.

1. Clean the inside of the appliance using hot water and a non-abrasive sponge.
2. Clean the heang element using a cleaning brush to remove any food residue.
3. Push the cord into the cord storage compartment. Fix the cord by inserng it into the cord xing slot.

WARNING: Never immerse the base in water or other liquid due to the mul electrical and heang components.

Avoid any liquid entering the appliance to prevent from electric shock or short-circuit.

Environmental Concerns

Do not throw away your Air Fry with the normal household waste when it is worn out. Hand it in at an ocial collecon point for recycling. By doing this, you contribute to environmental protecon (see Figure 13).

Troubleshoong

My Air fryer doesn't turn on

Problem	Possible cause	Soluon
Fryer does not work	You did not plug in the appliance.	Put the cord into a standard electrical outlet.
	You did not set the mer.	Turn the mer knob to the required me to switch on the appliance.

The pan doesn't slide into my Air fryer

Problem	Possible cause	Soluon
Pan does not slide into the appliance properly	You put too much food in the basket.	Do not ll the basket beyond the MAX indicator.
	You did not place the basket in the pan correctly.	Push the basket down into the pan unl it clicks.

White smoke is coming out of my Air Fryer

Problem	Possible cause	Soluon
White smoke comes out of the appliance	You are preparing greasy food.	When frying greasy food, a large amount of oil will leak into the pan.The oil produces white smoke & the pan may heat up more than usual. This will not aect the appliance or the end result.
	The pan sll contains grease residue from a previous use.	White smoke is caused by grease heang up in the pan. Make sure you clean the pan properly aer each use.

My food isn't cooking correctly

Problem	Possible cause	Soluon
Food is undercooked	You put too much food in the basket.	Put smaller batches of food in the basket. Smaller batches are fried more evenly.
	You set the Air Fryer temperature too low.	Turn the temperature control knob to the required temperature seng.
Food is fried unevenly	Certain types of food require shaking halfway through the preparaon me.	Food that lies on top of or across each other (e.g., fries) need to be shaken halfway through the preparaon me.See Sengs for preparaon informaon.
Fried snacks are not crispy	You used a type of snack meant to be prepared in a traditional deep fryer.	Use oven snacks or lightly brush some oil onto the snacks for a crispier result.
Fresh fries are fried unevenly	You did not use the right potato type.You did not rinse the potato scks properly before you fried them.	Use fresh potatoes and make sure that they stay rm during frying.Rinse the potato scks again to remove starch from the outside of the scks.
Fresh fries are not crispy	The crispiness of the fries depends on the amount of oil and water in the fries.	Make sure you dry the potato scks properly before you add the oil.Cut the potato scks smaller.Add slightly more oil.

Limited manufacturer's warranty

This appliance is covered by a limited manufacturer's warranty. For one year from the original date of purchase, the manufacturer will repair or replace any parts of this appliance that prove to be defective in materials and workmanship, provided the appliance has been used under normal operating conditions as intended by the manufacturer.

Warranty Terms

During the rst year, any components of this appliance found to be defective due to materials or workmanship will be repaired or replaced, at the manufacturer's discreon, and at no charge to the original purchaser. The purchaser will be responsible for any removal or transportaon costs.

Exclusions

The warranty will not apply if damage is caused by any of the following:

• Power failure
• Damage in transit or when moving the appliance
• Improper power supply such as low voltage, defective household wiring, or inadequate fuses
• Accident, alteraon, misuse, or abuse of the appliance such as using non-approved accessories, inadequate air circulaon in the room or abnormal operang condions (extreme temperatures)
• Use in commercial or industrial applicaons
• Fire, water damage, the, war, riot, hostility, or acts of God such as hurricanes, oods, etc.
• Use of force or damage caused by external inuences
• Parally or completely dismantled appliances

Obtaining service

When making a warranty claim, please have the original bill of purchase with purchase date available. Once conrmed that your appliance is eligible for warranty service, all repairs will be performed by an Avalon Bay authorized repair facility. The purchaser will be responsible for any removal or transportaon costs. Replacement parts and/or units will be new, re-manufactured, or refurbished and is subject to the manufacturer's discretion. Do not use an unauthorized person to replace or x a damaged main cord.

For technical support and warranty service, please email [e-mail].
