HURVBTR30 - Fitness Equipment Hurtle - Free user manual and instructions

Product Type	Standing Vibration Fitness Machine
Brand & Model	Hurtle HURVBTR30
Dimensions (L x W x H)	26.8" x 15.5" x 5.5"
Weight	35.02 lbs
Power Supply	120V, 200W
Maximum User Weight	265 lbs (100 KGS)
Speed Levels	20 levels (Manual 1-20)
Default Timer	10 minutes, adjustable
Display & Controls	Digital touch button controls
Remote Control	Included, infrared, effective range 2.5m
Resistance Bands	Detachable handheld bands for upper body workouts
Vibration Technology	Dynamic oscillating motion
Material	Engineered ABS
Surface Pad	Rubber grip anti-slip surface
Body Benefits	Muscle toning, fat burning, improved circulation, cellulite reduction
Safety Features	Auto off after 10 min, overload protection (max weight)
Cleaning	Wipe with damp cloth; avoid corrosive detergents; dry cloth for controller
Moving	Two handles; lift and roll on built-in castors
Storage	Keep in clean, dry place; dust cover optional
Warranty	Not specified; contact manufacturer for service

Frequently Asked Questions - HURVBTR30 Hurtle

What is the maximum weight limit for the Hurtle HURVBTR30?

The maximum user weight is 265 lbs (100 KGS). Do not exceed this limit to ensure safe operation.

How do I start and stop the vibration machine?

Plug in the power, switch ON, then press the Start/Stop button on the controller or remote to start. Press again to stop.

Can I use the machine if I have a heart condition?

It is strongly advised to consult your doctor before use. People with heart disease, pacemakers, or other medical implants should not use the machine.

How long is the default work time and can I change it?

The default work time is 10 minutes. You can adjust it up to 10 levels using the Time + and Time - buttons.

What should I do if the machine suddenly stops?

If it stops during operation, it may be because the default time has run out. Wait 10 minutes before restarting. If it stops unexpectedly, check the power supply and fuse.

How do I clean and maintain the machine?

Turn off and unplug before cleaning. Wipe the pedal and covers with a damp cloth and mild detergent. Use only a dry cloth for the controller. Avoid corrosive cleaners and do not splash water inside.

Can I use the machine while pregnant?

No, pregnant women or women during menstrual period should not use the product. Consult your doctor if you have any health concerns.

What is the remote control range?

The infrared remote control has an effective range of 2.5 meters. Aim the controller’s emitter at the machine’s receiving window.

How do I move the machine?

Use the two handles located on the ends of the middle cover. Lift the side opposite the castors and roll the machine to the desired location.

What are the different exercise postures?

You can stand upright, bend knees, sit on a chair with feet on the pad, sit on the floor with legs on the pad, or kneel and place hands on the pad. Each targets different muscle groups.

USER MANUAL HURVBTR30 Hurtle

White and black swat machine with coiled straps and a remote control (no text or symbols visible)

HURVBTR30

Standing Vibration Fitness Machine

Vibrating Platform Exercise & Workout Trainer

USER MANUAL

Before using, please read this USER MANUAL carefully, and pay special attention to the safety precaution to ensure proper operation and use. Please keep this USER MANUAL for further reference.

CONTENTS

Safety Precautions 3-4

Product Name and Functions 5

Controller Name and Functions 6

Using Method 7

Moving Method 8

Cleaning and Maintenance 9

Common Problems and Solutions 10

Technical Specification 11

Safety Precautions

Environment for use

• Do not use the Product in humid or dusty environment to avoid electric shock or breakdown of the mechanical parts.
• Do not use the Product when indoor temperature is over 104^ .
• Do not use the Product in the oper air or under the direct sunlight.
• Place the Product on flat floor.

⚠️ Please wait for one hour before using the Product when it is moved from low to high temperature, so as to prevent water vapor from condensing on the machine and resulting in any failure.

People under these conditions below are not suggested to use the Product

• It is strongly advised to consult your doctor before use
• Patients who are under treatment or feel not good;
• Patients with malignant tumor;
• Pregnant women or women in menstrual period;
• People with heart disease;
- Osteoporosis patients;
• People with heart pacemaker or other medical electronic instrument implanted;
• People with artificial limb;
• People who are sensitive to vibration and strenuous exercise.

Notices during Operation

Before use, please undress watch, bangle, cell phone or other valuable objects, and keys, knife or other incisive objects, so as to avoid damage or body injury. Do not smoke while using the Product. Please do not use the Product together with other medical equipments. Please do not use the Product for medical treatment purpose. Do not use the Product right after a meal or drink. During use, please keep child or pet away from the Product. It is forbidden to put fingers or other foreign bodies into the gap between the middle cover and base cover. Supervision is needed for child under 10 years and the aged over 60 years using the Product. The load capability of the Product is 100KGS; people over this weight are not suggested to use the Product. This product is only limited for one-person use.

⚠ Warning:

Unauthorized dismantle, disassembly or renovation is not allowed to prevent electrical shock or any malfunctions. Please contact manufacturer or local dealer immediately if there is any service work needed.

Stop using the Product under below conditions, then power off and remove the plug from power supply

• Water or other liquid is accidentally splashed onto the Product or controller.
- Any accessory is found damaged or internal component is exposed
• Feel abnormal or severe pain during use. Power failure.
• Thundering or lighting weather.

Plug and Power Cord

• Check if the voltage complies with the one specified for the Product.
• Do not retract the power plug with wet hand to prevent electric shock.
• Hold the plug rather than the power cord to pull out the power cord.
• Turn off the power switch and remove the plug from the power supply in case of electrical failure of not in use for a long time.
• Stop using the Product if the power cord has any damage, turn off the power switch, pull out the plug, and contact technicians for repair.

Product Name and Functions

1. Name and Components

Moving Wheel Cover Power Plug Feet

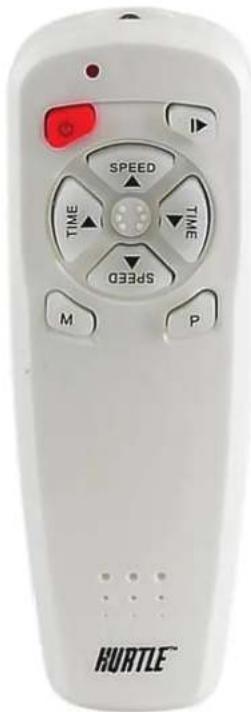

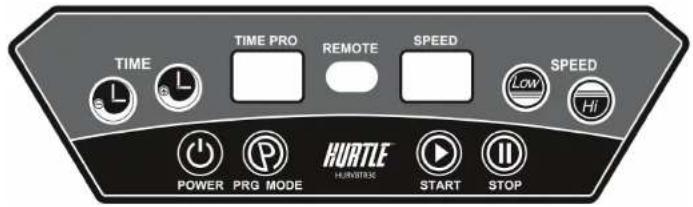

Controller Name and Functions Using Method

Start/Stop: Insert the power plug, switch ON power, then press the button to start the product. In the operation of the machine, press this button to stop working.

Time - : Time decrease: the default working time is 10 minutes, divided into 10 levels, press this button to decrease time.

Speed + : Speed increase: Manual 1 -20. Press this button to increase the speed when the machine is operating.

Time + : Time increase: the default working time is 10 minutes, divided into 10 levels, press this button to increase time.

Speed - : Speed decrease: Manual 1-20. Press this button to decrease the speed when the machine is operating.

M: QUICK BUTTON for Levels 1610 6, press once for Level16 and twice for Level 10 and 3 times for Level 6 repeatedly.

Auto/Mode: Auto/Mode: Default to manual mode, automatic mode is activated once pressing this button. Press the button repeatedly to cycle through the 'PI' P2' P3' automatic operating mode or '88' manual mode. Auto mode, humanized programming, automatically adjusting vibration frequency. In automatic mode, speed and time is not adjustable. In the manual mode, the standby can adjust the time, the speed is not adjustable; when operating,- speed adjustable, but time is not adjustable.

Note: The effective reception range of the remote control signal is 2.5 meters, the infrared emission indicator of the controller should be aligned the infrared receiving window on the product..

1. Stand upright on the Product, with two legs apart, the distance of two legs is mostly the same as width of shoulder. This position can exercise waists and buttocks to relieve stress on waists and sculpture beautiful curve of buttocks
2. Stand on the Product with two legs apart and knees bent. The posture can exercise thighs to sweep pain and soreness, improve blood circulation, and reduce fat deposits.
3. Seat on chair or sofa, with feet put on the Product. This posture can exercise both thigh and calf.
4. Seat on carpet, with two legs put on the Product. This posture can exercise leg.
5. Kneel on the carpet, put hands onto the Product, with body lean forward, this posture can exercise shoulder joint and arms.

Functions and Features:

Body Beauty

By reposeful and high-frequency vibration and sway, combined with various exercise postures, this machine can deeply stimulate muscle tissue, lower fat accumulation, rehabilitate elasticity of muscle, sculpture beautiful body shape, then make users vitalized and feel confident.

Exercise

Borrow health and fitness ideas from Chinese traditional culture like Kung Fu, Buddhism, Taoism, it advocates passive exercise, which allow you to exercise indoor in a relatively static manner to get mind and body relaxed, pain and soreness relieved, fatigue swept away, inner circulation improved, then make you stronger and healthier.

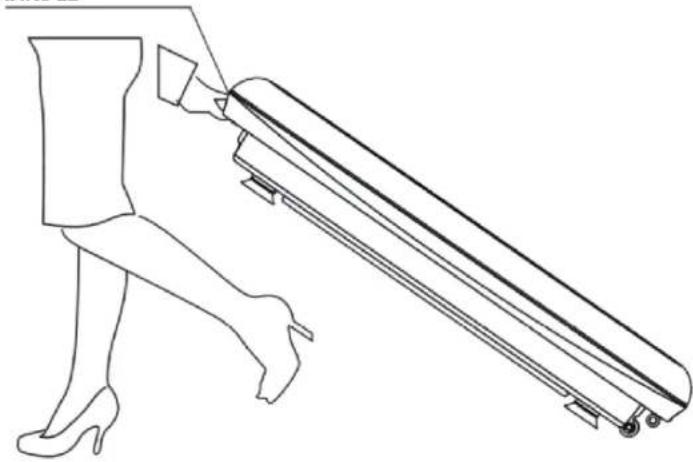

Moving Method

HANDLE

Line drawing of a person pushing a long roller or pulley device (no text or symbols)

Two handles are designed on both ends of the middle cover.

When moving the Product, lift the end opposite of the castor, grasp the handle and move the Product to the desired place.

Storage and Maintenance

Surface Cleaning

Before cleaning, ensure the power switch is turned off, and the attaching plug is pulled out of the socket

The rubber pedal and covers can be cleaned with a wet cloth containing detergent, and the detergent should be removed with a cloth

Notice

Do not clean the Product with corrosive detergent such as benzene or thinner, as it may cause fading, corrosion or crack on the Product. Do not splash water into the Product to avoid short circuit.

Controller

As wet cloth may cause malfunction of the controller, only dry cloth can be used.

Storage and Maintenance

Make sure that the power switch is turned off and the plug is removed from the power supply. Clean off the dust and dirt on the Product and keep it clean and away from places with high temperature or high humidity. If the Product is not going to be used for a long period of time, a dustproof cover (sold separately) should be applied on the Product to prevent the entry of dust.

Common Problems & Solutions HURVBTR30

S/N	Problems Causes	Solutions
1	The Product can not be started	The plug is not in place Insert the plug
		The power switch is off	Turn switch on, the indicator
		The fuse is burnt	Replace with a new fuse of the same model
2	Sound like phew or Da-da is heard during working	Normal sound generated by the motor or from the abrasion between mechanical units	No additional treatment is required
3	Operate the controller, but the Product has no action	The electricity of batteries is worn out	Replace batteries
		The controller is too far away from the Product	The effective distance of infrared signal is 2.5M
4	Sudden stop	Default working time is up	Restart it after 10 minutes interval
5	Can not operate	Too many commands sent to the Product and they can not be responded in time	Power off and then restart

Standing Vibration Fitness Machine

Vibrating Platform Exercise & Workout Trainer

Features:

• Revolutionary Design for Fitness that's Fun
• Vibration Assisted Exercise for Full Body Training
• Excellent Toning for Abs, Thighs & Buttocks
• Dynamic Oscillating Motion Technology
• High-Powered Vibrations do the Hard Work
• Accelerated Fat Burning & Weight Loss
• Incorporates Upper Body, Lower Body & Core Workouts
• Lab Tested to Improve Muscle Strength, Flexibility & Circulation
- Detachable Handheld Resistance Bands for More Versatile Routines
- Reduce Appearance of Cellulite, Improves Metabolic Rates
• Simple Operation: Stand On & Power On
• Ideal for All Body Types & Age Groups
• (20) Level Adjustable Speeds
• Digital Touch Button Controls
• Rubber Grip 'Anti-Slip' Surface Pad
• Perfect for Sports Training, Weight Loss, Burning Fat
• Includes Remote Control

Technical Specs:

• High Power Output: 200 Watt
• RPM (Revolutions Per Minute): 2300+
• Construction Material: Engineered ABS
• Maximum Session Time Setting: 10 Minute
- Load Capacity: 265 lbs.
Power: 120V
• Dimensions (L x W x H): 26.8" x 15.5" x 5.5"
- Sold as: 1
• Weight: 35.02 lbs.
