USER MANUAL PLTB101 Pyle

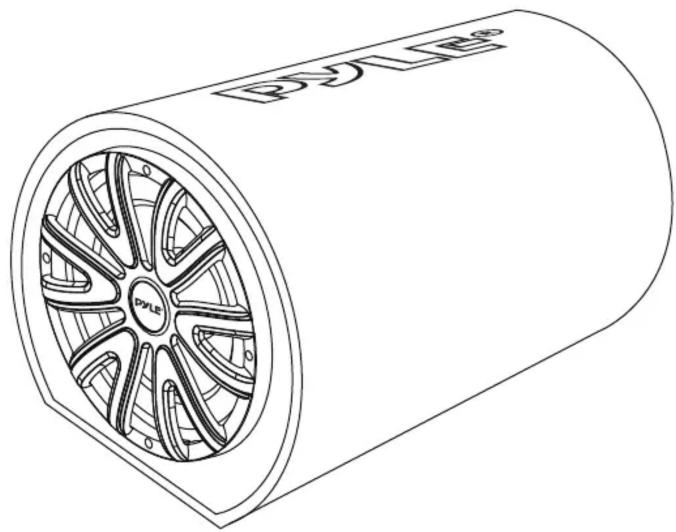

Carpeted Subwoofer Tube Enclosure System with Rear Vented Design

PYLE

PyleUSA.com

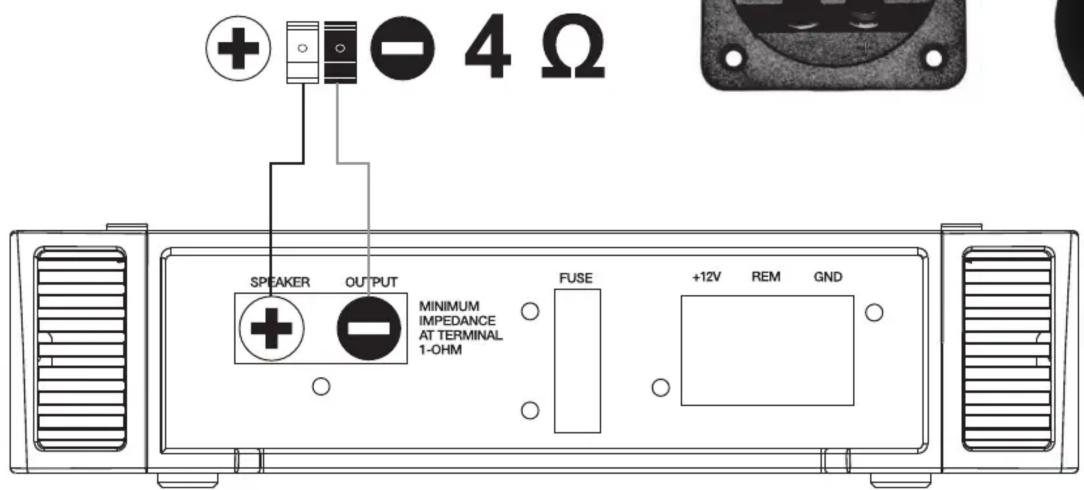

WIRING CONNECTION

Power amplifier for schematic diagram.

Connect the power amplifier to the positive and negative terminals accordingly as shown.

Close-up of a circular mechanical component with two cylindrical pins, mounted on a flanged base (no text or symbols visible)

Close-up of a black cylindrical object with metallic blades and 'PYLE' branding on the top (no other text or symbols visible)

Features:

• Subwoofer Box System
• Rear Vented Design
  • Silver Paper Cone with Rubber Surround
  • High Power 4 Ohm Subwoofer
  • Specially Treated Black Rubber Edge Suspension
• 2" Aluminum Voice Coil
• Bass Reflex Vent for Added Sub-Bass Response
  • High-Quality Carpeted Construction

What's in the Box:

- Subwoofer Box

Questions? Issues?

We are here to help!

Phone: [phone]

Email: [e-mail]

PLTB101

10" 500-Watt Carpeted Subwoofer Tube Enclosure System

with Rear Vented Design

Technical Specs:

• Construction Materials: 15mm Particleboard
  • Power Rating: 500 Watts Max Power
• Voice Coil: 2.0"
• Impedance: 4 Ohms
• Magnet: 40 Oz
• Sensitivity: 90 dB
  • Frequency Response: 35-300 Hz
• Product Dimensions (L x W x H): 18.9" x 13.4" x 12.2" -inches

Line drawing of a cylindrical object with a segmented wheel and 'DVL8' branding (no text or symbols on the diagram itself)

PLTB121

12" 500-Watt Carpeted Subwoofer Tube Enclosure System

with Rear Vented Design

Technical Specs:

• Construction Materials: 15mm Particleboard
  • Power Rating: 600 Watts Max Power
• Voice Coil: 2.0"
• Impedance: 4 Ohms
• Magnet: 50 Oz
• Sensitivity: 91 dB
  • Frequency Response: 25-200 Hz
• Product Dimensions (L x W x H): 18.9" x 16.4" x 15.2" -inches

Close-up of a black PYLE car wheel with silver hub and metallic rim (no text or symbols visible)

California Prop 65 Warning

! WARNING:

This product contains Nickel carbonate which is known to the state of California to cause cancer birth defects and other reproductive harm. Do not ingest.

For more info go to: www.P65warnings.ca.gov
