Product Type	Charging Base Station for Tablets and Smartphones
Brand	iPort
Model	72353 (BaseStation - White)
Color	White
Dimensions (BaseStation)	Approx. 7 x 5 x 3 inches (18 x 13 x 8 cm)
Weight (BaseStation with security weight)	Approx. 2.5 lbs (1.1 kg)
Power Input	DC 25V, 1.5A via provided adapter; also supports PoE+ (Power over Ethernet Plus)
Power Adapter Connector	2.1 mm x 5.5 mm barrel plug
Mounting	Desk or table mount using included screws; security lock prevents tampering
Charging Orientation	Portrait or landscape (selectable before locking)
Security Features	BaseStation security lock for case; security weight can be screwed to surface; includes proprietary security tool
Compatibility	iPort CONNECT PRO Case (sold separately) for various tablets and smartphones
What's in the Box	1 BaseStation, 1 power supply (25V 1.5A DC), 4 mounting screws, 1 security tool, 1 info card
Upgradable	Yes, to PoE+ using optional PoE+ upgrade adapter (Cat 5 cable required, sold separately)
Materials	Plastic and metal (security weight)
Care and Cleaning	Wipe with dry or slightly damp cloth; do not use harsh chemicals
Safety Warnings	Security weight is heavy; use caution when handling. Keep away from water and heat sources.
Repairability	Contact iPort support for service; no user-serviceable parts
Warranty	Refer to product documentation

Frequently Asked Questions - 72353 iPort

What devices are compatible with the iPort 72353 BaseStation?

The BaseStation is designed for use with iPort CONNECT PRO Cases, which are available for various tablets and smartphones. It is not compatible with devices directly.

How do I install the BaseStation on a desk?

Use the included security tool to remove the security weight from the BaseStation. Mark the four mounting holes on the desk, drill pilot holes, and secure the weight with the provided screws. Then reattach the BaseStation and tighten the security screws clockwise.

Can I use Power over Ethernet (PoE) instead of the AC adapter?

Yes, you can upgrade to PoE+ by purchasing the iPort PoE+ Upgrade Adapter and connecting a Cat 5 cable from a PoE+ switch or iPort PoE Injector (model 72106 sold separately). See the manual for installation steps.

How do I lock the case onto the BaseStation?

Place the iPort CONNECT PRO Case onto the BaseStation in either portrait or landscape orientation. Insert the security tool into the back of the BaseStation and rotate clockwise until the red indicator aligns with the lock icon. To unlock, rotate counterclockwise.

What is the power output of the BaseStation?

The BaseStation provides power to the connected case for charging. The exact output depends on the case and device, but the BaseStation accepts 25V 1.5A DC input or PoE+.

Can I rotate the case after locking?

No, the case cannot be rotated once locked. Ensure you select the desired orientation (portrait or landscape) before locking the case to the BaseStation.

What is the security weight and why is it heavy?

The security weight is a heavy metal component at the bottom of the BaseStation that can be screwed to a table to prevent theft or tipping. It is intentionally heavy to provide stability.

What is the length of the included power cable?

The manual does not specify the exact length, but it is a standard barrel plug DC cable suitable for desktop use. For longer runs, use the PoE+ option with a Cat 5 cable.

Does the BaseStation support charging two devices at once?

No, the BaseStation is designed to charge a single iPort CONNECT PRO Case at a time. It is not a multi-device charger.

How do I clean the BaseStation?

Unplug the unit before cleaning. Wipe the exterior with a soft, dry or slightly damp cloth. Do not use abrasive cleaners or solvents. Avoid getting moisture into the connectors.

USER MANUAL 72353 iPort

Black IPORT smartwatch with a circular display and charging case (no visible text or symbols on the device body)

72352 - BaseStation - Black

72353 - BaseStation - White

IPORT CONNECT PRO BaseStation Install Manual

Thank you for purchasing the all new IPORT CONNECT Platform. We hope you enjoy this revolutionary new system and if at any time you need more assistance please contact IPORT Tech Support via Online chat or through our help desk online.

- IPORT Team

Whats in box:

1 - IPORT CONNECT BaseStation

1 - IPORT Power Supply - 25V 1.5A DC. 2.1 mm x 5.5 mm connector.

4 - Mounting Screws

1 - IPORT Security Tool

1 - Info Card

Product Info Page - www.iportproducts.com/cpbase

Glossary of Terms:

- BaseStation - The main mounting station on a solid surface where the IPORT CONNECT Case mounts and charges.

- Security Weight - The bottom removable portion of the BaseStation which can be secured to a table or desk.

- BaseStaion Cable Housing - The removable plastic DC cover.

- Cable Retention Clip - The small metal clip on the bottom of the BaseStation used to h the DC or Cat 5 Cable in place.

- BaseStation Security Lock - The small round lock on the back of the BaseStation used to actuate the lock to secure the Case to the BaseStation.

Using the Provided DC Power Adapter

1. Remove BaseStation and Power Supply from the box and place on a table.

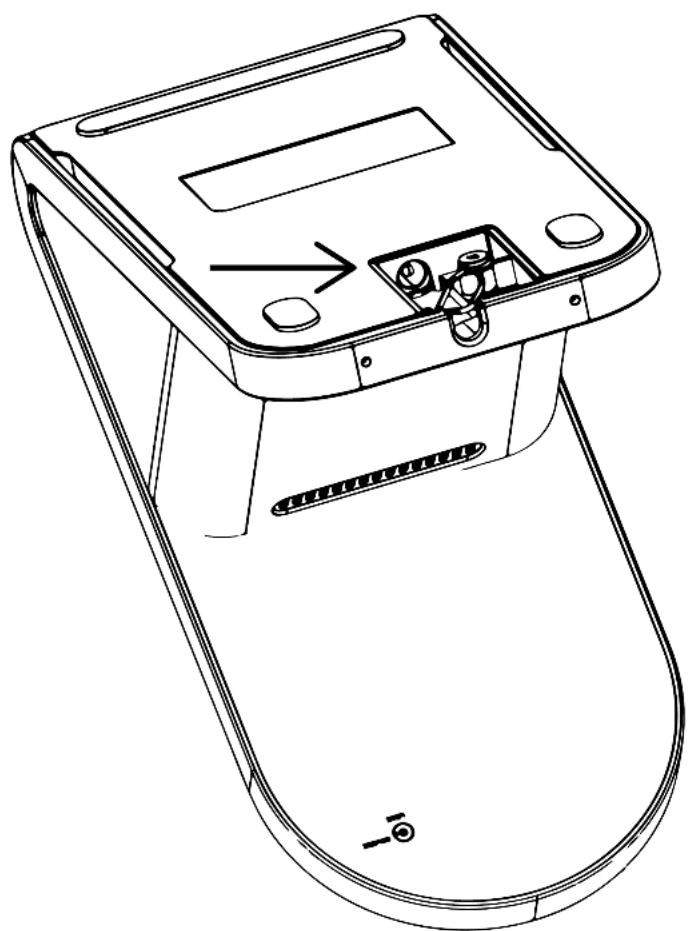

2. Insert the DC barrel plug into the bottom of the BaseStation.

Line drawing of a handheld device with labeled ports and an arrow indicating direction (no text or symbols present)

3. Rotate the Cable retention clip over the DC cable.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Plug in the IPORT DC Power Adapter into the wall.

2. Place the BaseStation in the desired location and attach the IPORT CONNECT PRO Case onto the BaseStation to charge in portrait or landscape.

Line drawing of a tablet device with IPORT branding, showing front and side views (no text or symbols on the device itself)

Upgrading the BaseStation to PoE

1. Remove PoE+ Upgrade from the box and place on a table.
2. Insert the IPORT Security Tool into the small holes in the back of the BaseStation foot. Rotate the tool counterclockwise until it stops. Repeat for the second hole.

Line drawing of a handheld electronic device with a cable inserted into its base (no text or symbols)

3. Tilt the BaseStation forward to allow the BaseStation weight to come out of the bottom of the BaseStation.

Use caution as the BaseStation weight is very heavy.

Line drawing of a chair with an arrow pointing to the seat (no text or symbols present)

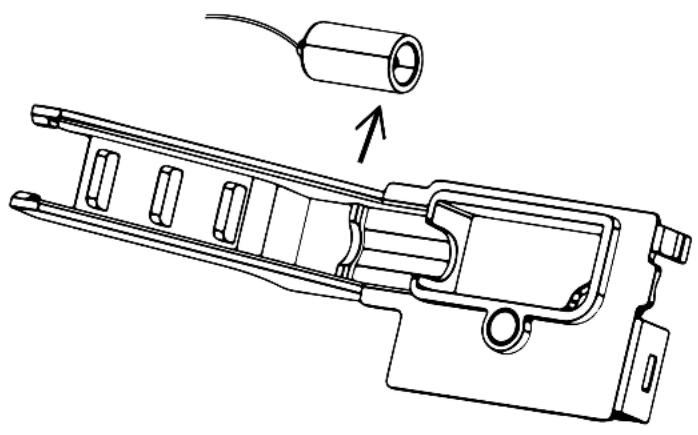

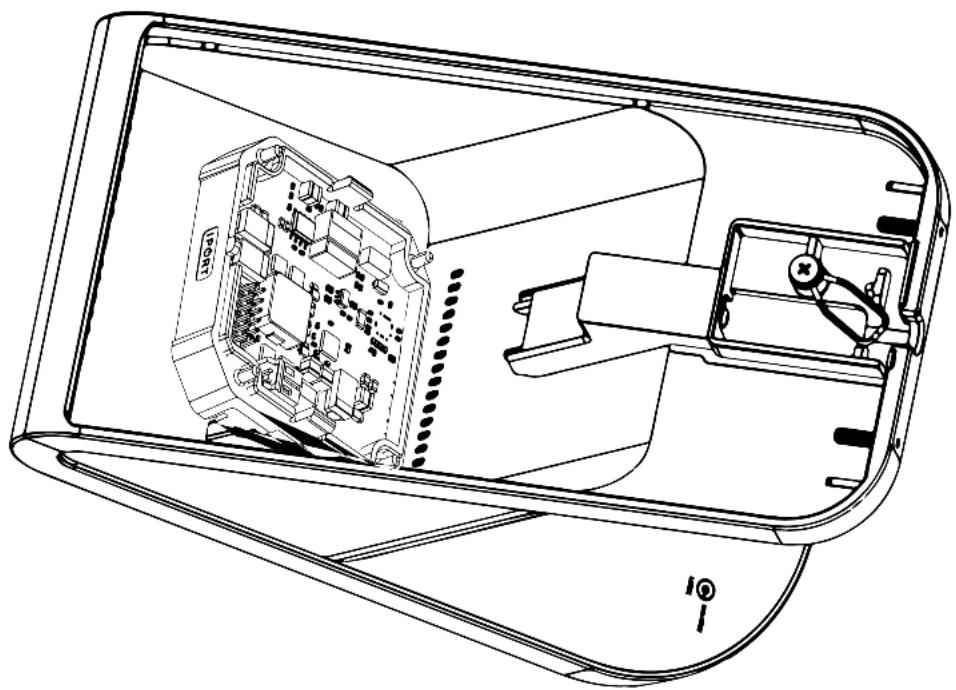

4. Disconnect the DC Barrel cable if installed and pop out the BaseStation Cable Housing cover.

Technical line drawing of an electronic device showing internal components and wiring (no text or symbols)

Technical line drawing of a device interior showing internal components and wiring (no text or symbols)

1. Remove the DC Barrel cable from the BaseStation Cable Housing and disconnect the cable from the IPORT DC Adapter.

Technical line drawing of a mechanical assembly with an arrow indicating assembly direction (no text or symbols present)

Technical line drawing of an electronic device casing with internal components and a cable connector (no text or symbols)

6. Attach the IPORT CONNECT PoE+ Upgrade Adapter to the IPORT DC Adapter as shown:

Technical line drawing of an electronic device showing internal components and wiring (no text or symbols)

Technical line drawing of a device interior showing internal components and wiring (no text or symbols)

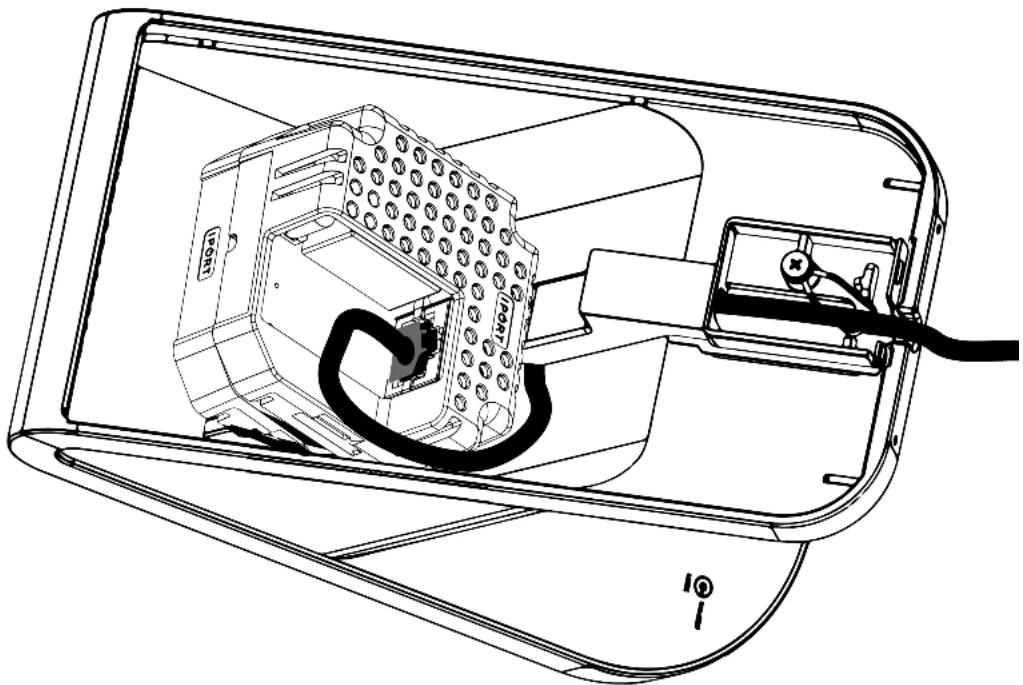

7. Run a Cat 5 Cable through the cable housing and attach to the PoE + Splitter.

Technical line drawing of an electronic device interior showing internal components and wiring (no text or symbols)

Technical line drawing of an electronic device showing internal components and wiring (no text or symbols)

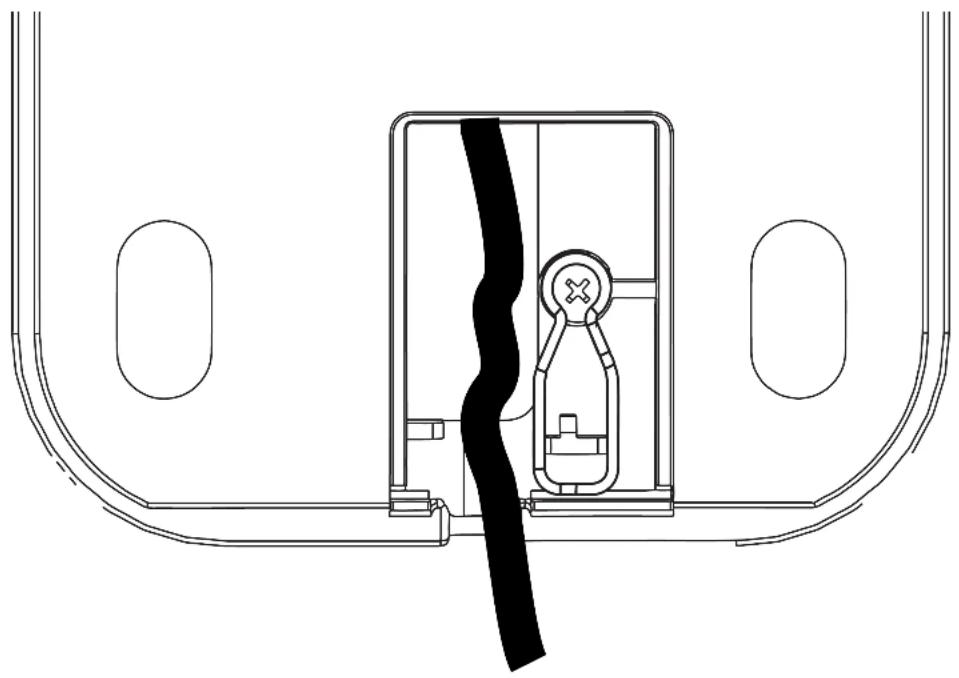

1. Run the Cat 5 cable in the Cable Retention Channel and rotate the Cable Retention clip over the Cat 5 Cable.

Technical line drawing of a mechanical component with a central vertical seam and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

1. Reassemble the BaseStation back onto the BaseStation Weight and tighten the Security Screws rotating clockwise.

Line drawing of a handheld electronic device with a cable being inserted into it (no text or symbols)

1. Connect the other end of the Cat 5 Cable to a PoE+ Switch or an IPORT PoE Injector 72106 (sold separate).

BaseStation Security Features - Securing the Base to a Table.

1. Remove BaseStation from the box and place on a table.
2. Insert the IPORT Security Tool into the small holes in the back of the BaseStation foot. Rotate the tool counterclockwise until it stops. Repeat for the second hole.

Line drawing of a handheld electronic device with a cable inserted into it (no text or symbols)

BASESTATION

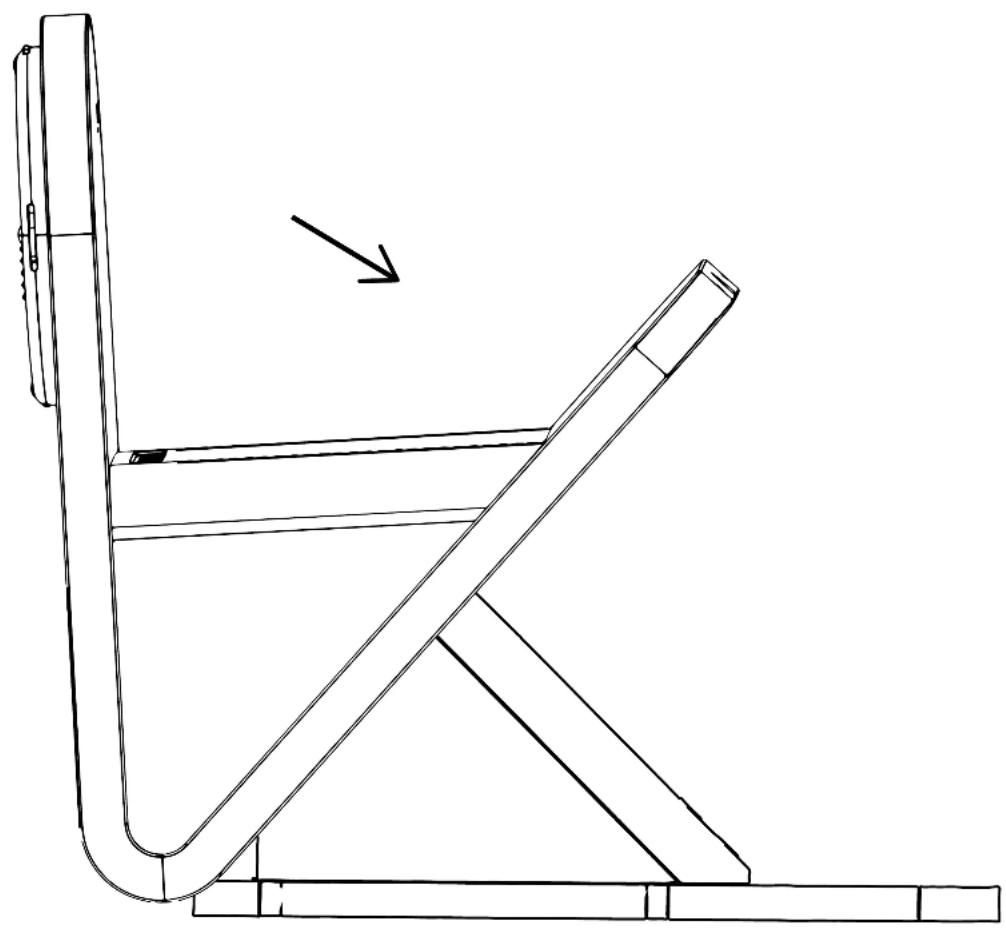

3. Tilt the BaseStation forward to allow the BaseStation Weight to come out of the bottom of the BaseStation.

Use Caution as the BaseStation Weight is very heavy.

Line drawing of a chair with a vertical post and horizontal arm, showing structural details (no text or symbols)

1. Place the BaseStation Weight in the desired location for securing the BaseStation. Use a pencil to mark the four mounting locations. Make sure the rectangle notch is facing where the back of the BaseStation will be positioned.

Technical line drawing of a mechanical bracket component with mounting holes and a curved internal cavity (no text or symbols)

1. Remove the BaseStation Weight and drill a pilot hole in the center of the marked locations.

2. Use the four provided screws to secure the BaseStation Weight to the desired surface.

Technical line drawing of a mechanical bracket with four screws inserted (no text or symbols)

1. Reinstall the BaseStation by hooking the front of the BaseStation foot the to front of the BaseStation weight and then placing the back of the BaseStation down on the weight.

Line drawing of a chair with an arrow pointing to the seat (no text or symbols present)

1. Insert the IPORT Security Tool into the small holes in the back of the BaseStation foot. Rotate the tool Clockwise until it stops. Repeat for the second hole.

Line drawing of a handheld device with a cable being inserted, showing internal components and a wire (no text or symbols)

BaseStation Security Features - Securing the Case to the BaseStation.

1. Place the Case onto the BaseStation in the final orientation desired (Portrait or Landscape) NOTE the case can not be rotated once it is locked in place.

Line drawing of a tablet device with IPORT branding, showing front and side views (no text or symbols on the device itself)

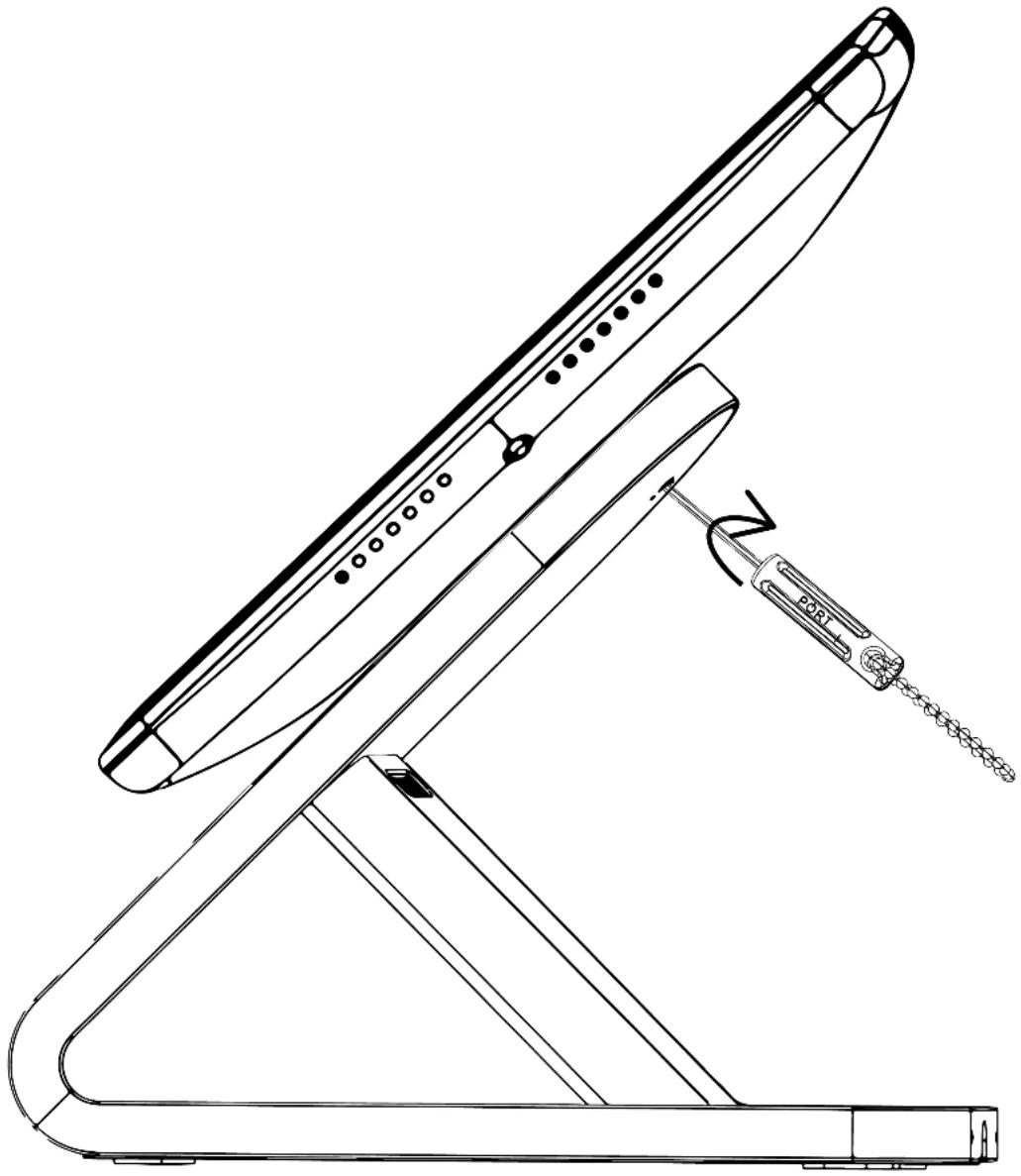

1. To lock the Case to the BaseStation, insert the IPORT Security tool into the back of the BaseStation and rotate the tool clockwise with the red indicator facing the Lock icon.

Technical line drawing of a mechanical device with a lever and base, no text or symbols present

1. To unlock the Case from the BaseStation, insert the IPORT Security tool into the back of the BaseStation and rotate the tool counterclockwise with the red indicator facing the Unlock icon.

Technical line drawing of a mechanical device with a lever and base mount (no text or symbols)
