Product Type	Tape Measure
Brand	Milwaukee
Model	48-22-4259
Blade Length	25 ft (7.62 m)
Blade Width	1 in (25.4 mm)
Standout	9 ft (2.74 m)
Blade Coating	Nylon
Weight	0.5 lb (227 g)
Case Material	Impact-resistant polymer
Blade Material	High-carbon steel
End Hook Type	Magnetic, double-sided
Scale Markings	Multi-coded (in/ft, cm/mm)
Locking Mechanism	Sliding lock
Belt Clip	Integrated
Grip	Rubber overmold
Power Source	None (manual)
Cleaning Instructions	Wipe with a damp cloth; do not use solvents
Safety Precautions	Keep away from children; avoid use near live electrical wires
Replacement Parts	Replacement blades available (contact Milwaukee)
Warranty	Limited lifetime warranty

Frequently Asked Questions - 48-22-4259 MILWAUKEE

What is the blade length of the Milwaukee 48-22-4259?

The Milwaukee 48-22-4259 has a blade length of 25 feet (7.62 meters).

How far can the tape measure stand out without support?

The standout is 9 feet (2.74 meters), meaning the tape can extend straight out before bending.

Is the blade coated to resist wear?

Yes, the blade has a nylon coating for durability and protection against abrasion.

How do I lock the tape measure?

Slide the locking mechanism upward to secure the blade and downward to release. The lock holds the blade firmly in place.

What type of hook does it have?

It features a magnetic double-sided hook that attaches to metal surfaces for easy one-person measuring.

Can I read both metric and imperial measurements?

Yes, the blade has multi-coded markings with both inches/feet and centimeters/millimeters.

Is the tape measure impact resistant?

The case is made of impact-resistant polymer with a rubber overmold to withstand drops.

How do I clean the tape measure?

Wipe the case and blade with a damp cloth. Avoid using harsh chemicals or solvents that may damage the coating.

What safety precautions should I take?

Keep the tape measure away from children and do not use near live electrical lines to avoid shock.

Can I replace the blade if it breaks?

Yes, replacement blades are available. Contact Milwaukee customer service or visit an authorized dealer.

USER MANUAL 48-22-4259 MILWAUKEE

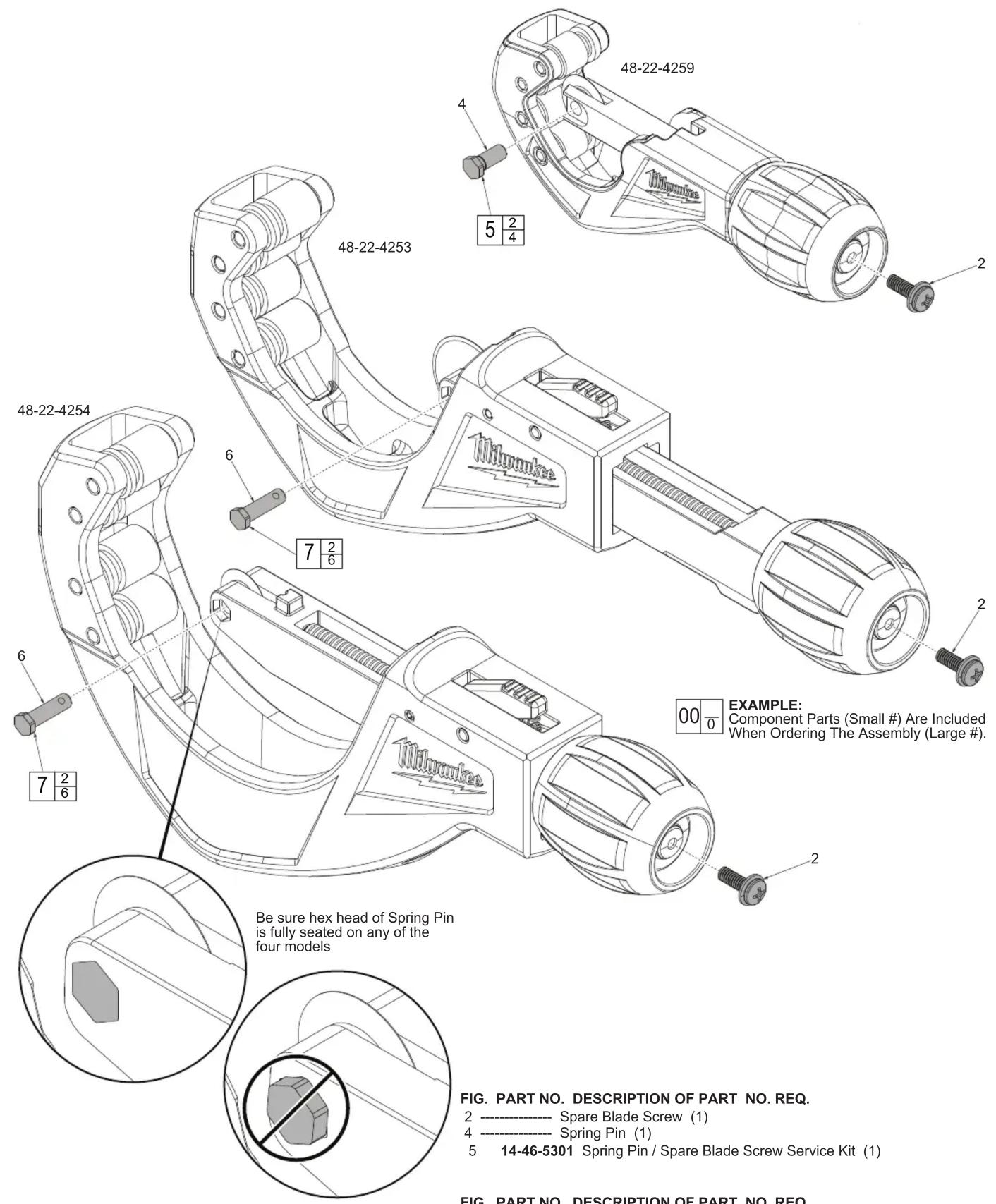

SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS	REVISED BULLETIN	DATEOct. 2017
TUBING and SWING CUTTERS
CATALOG NO. 48-22-4250 1/2" Mini Cutter See Below48-22-4251 1" Mini Cutter See Below48-22-4252 1-1/2" Constant Swing See Below48-22-4258 3/4" Mini Cutter See Below48-22-4253 2-1/2" Quick Adjust Cutter See Page Two48-22-4254 3-1/2" Quick Adjust Cutter See Page Two48-22-4259 1" Constant Swing Cutter See Page Two

48-22-4250 and 48-22-4258 do not utilize a Spare Blade Screw (2). Discard that screw when installing the 14-46-4253 Service Kit onto this model.

FIG. PART NO. DESCRIPTION OF PART NO. REQ.

1	--------	Spring Pin	(1)
2	--------	Spare Blade Screw	(1)
3	14-46-4253	Spring Pin / Spare Blade Screw Service Kit	(1)

EXAMPLE:

Component Parts (Small #) Are Included When Ordering The Assembly (Large #).

Technical line drawing of a mechanical component inside a circular frame (no text or symbols)

Be sure hex head of Spring Pin is fully seated on any of the three models

Diagram showing a mechanical component with a circular boundary and a crosshair overlay (no text or symbols)

2 ---- Spare Blade Screw (1)
6 ---- Spring Pin (1)
7 14-46-5302 Spring Pin / Spare Blade Screw Service Kit (1)
