Product Type	Digital Camera
Brand	Sanyo
Model	VPC-S750
Resolution	7.1 Megapixels (3072x2304)
Sensor	1/2.5-inch CCD
Optical Zoom	3x (F2.8 - F4.9)
Digital Zoom	5x
LCD Screen	2.4-inch TFT, 110,000 pixels
Dimensions (WxHxD)	92.9 x 60.4 x 22.2 mm
Weight (approx.)	130 g (without batteries)
Power Supply	2x AA batteries (Alkaline, NiMH, or rechargeable)
Internal Memory	16 MB
External Memory	SD/MMC card slot
File Formats	Still: JPEG (Exif 2.2); Video: AVI
Flash Modes	Auto, Fill Flash, Flash Off
Scene Modes	Auto, Program, Portrait, Night Portrait, Landscape, Sport, Night Landscape, Backlight, Museum, Snow, Sunset, Fireworks, Party, Beach, Copy, Video
White Balance	Auto, Sunny, Tungsten, Fluorescent, Cloudy
ISO Speed	Auto, 80, 100, 200, 400, 800
Self-Timer	2 sec or 10 sec delay
Video Resolution	640x480 @ 30fps, 320x240 @ 30fps
Connectivity	USB 2.0, A/V output (NTSC/PAL)
PictBridge	Supported for direct printing
Language Support	English, German, French, Italian, Spanish, Russian, Portuguese, Simplified Chinese, Traditional Chinese, Turkish, Korean, Thai
Manufacturer	SANYO Electric Co., Ltd., Made in China

Frequently Asked Questions - VPC-S750 SANYO

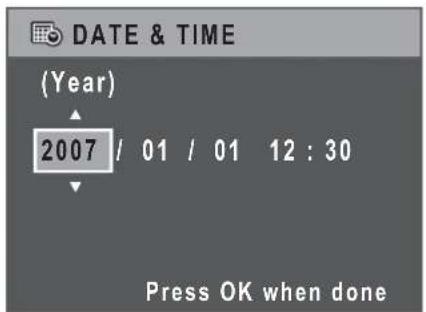

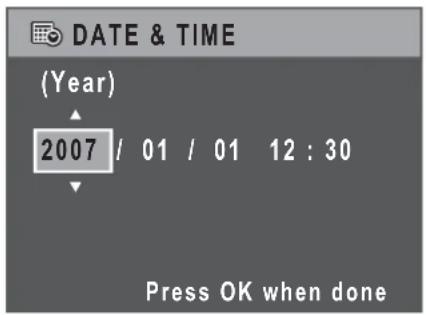

How do I turn on the camera and set the date and time for the first time?

Press and hold the Power button to turn on the camera. On first use, a language menu appears. Select your language, then a date and time setup screen appears. Use the navigation buttons to adjust the year, month, date, hour, and minute fields, then press OK to confirm.

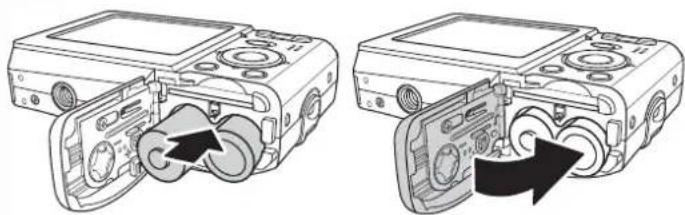

What type of batteries does the Sanyo VPC-S750 use and how should I install them?

The camera uses two AA batteries (Alkaline, NiMH, or rechargeable). Open the battery compartment on the bottom, insert the batteries observing correct polarity (+/-), and close the compartment. Always turn off the camera before installing or removing batteries.

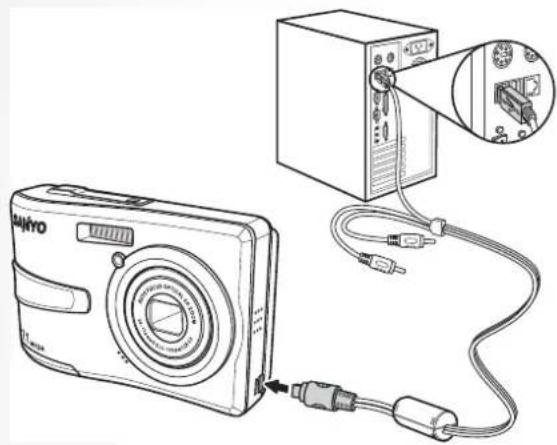

How can I transfer photos and videos from the camera to my computer?

Install the driver from the included CD. Connect the camera to your PC via the USB cable. The internal memory or SD card appears as a removable drive. Copy files to your computer. You can also use ArcSoft PhotoImpression and ArcSoft VideoImpression to view or edit files.

How do I set the flash mode for taking pictures?

In Capture mode, press the Up/Flash/Delete navigation button repeatedly to cycle through flash modes: Auto (automatic), Fill flash (always on), and Flash off. The selected icon appears on the LCD screen.

What should I do if the camera does not turn on?

Check that the batteries are not exhausted; replace or recharge them. Also verify that the batteries are inserted with correct polarity. If the problem persists, contact a service center.

How do I use the self-timer or burst mode?

Press the Right/Self-timer/Burst navigation button repeatedly to select between Self-timer (2 or 10 sec), Burst (continuous shooting while holding shutter), or M-Burst (16 consecutive VGA shots). The selected icon will display on the LCD.

Can I record videos with this camera? How?

Yes. Press the Scene button and scroll to Video mode using the navigation buttons, then press OK to select. Frame your subject and press the Shutter button to start recording. Press the Shutter button again to stop. Videos are saved as AVI files.

How do I clean the camera lens and LCD screen?

Use a slightly damp soft cloth to gently wipe the exterior. Do not use abrasive chemicals, cleaning solvents, or strong detergents. Avoid touching the lens directly. For the LCD, wipe gently to avoid scratches.

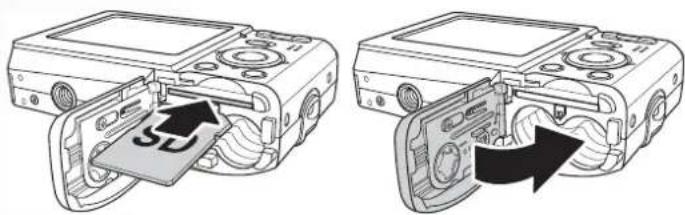

What memory cards are supported and how do I insert one?

The camera supports SD and MMC cards. Open the battery compartment on the bottom, insert the card into the slot until it clicks, then close the compartment. To remove, gently push the card until it pops out. The camera also has 16 MB internal memory.

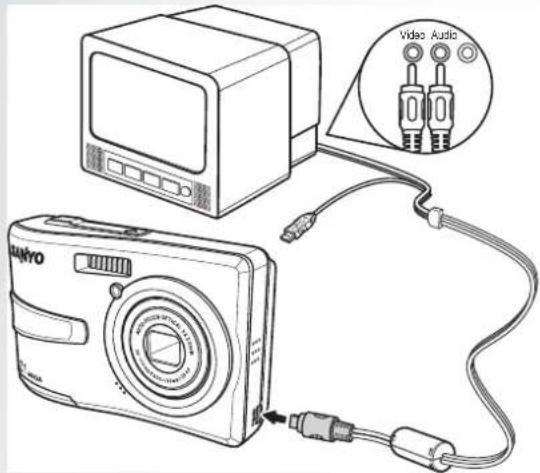

How can I view photos on a TV?

Connect the camera to your TV using the USB/AV 3-in-1 cable via the camera's A/V port. Ensure the TV's video out format (NTSC or PAL) matches the camera's setting (see Setup Menu > Video Out). The LCD turns off and images display on the TV.

USER MANUAL VPC-S750 SANYO

This manual is designed to assist you in using your new digital camera. All information presented is as accurate as possible but is subject to change without notice.

Copyright

This manual contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of the manufacturer.

© Copyright 2007

Federal Communications Commission (FCC) Compliance

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Warning: A shielded-type power cord is required in order to meet FCC emission limits and to prevent interference to radio and television reception. Use only shielded cable to connect I/O devices to this equipment. Any changes or modifications not expressly approved by the manufacturer may void your warranty and service agreement.

Declaration of Conformity

This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions:

• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undersired operation.

ii Preface

Trademark Recognition

Windows 98/2000/ME/XP are registered trademarks of Microsoft Corporation in the United States and/or other countries. Windows is an abbreviated term referring to the Microsoft Windows Operation System. Adobe is a trademark of Adobe Corporation. ArcSoft is the trademark of ArcSoft System, Inc. All other companies or product names are trademarks or registered trademarks of their respective companies.

Safety and Handling Precautions

Camera Information

• Do not take apart or attempt to service the camera yourself.
• Do not expose the camera to moisture, or extreme temperatures.
• Allow the camera to warm up when moving from cold to warm temperatures.
• Do not touch the camera lens.
• Do not expose the lens to direct sunlight for extended periods.
• Do not use abrasive chemicals, cleaning solvents or strong detergents to clean the product. Wipe the product with a slightly damp soft cloth.

Battery Information

• Turn off the camera before installing or removing the battery.
• Use only the type of battery. Using other types of battery may damage the equipment and invalidate the warranty.
• Inserting the battery upside down can cause damage to the product and possibly start a fire.
• Download all pictures and remove the battery from the camera if you are going to store the camera for long periods.

Safety Instructions

Read and understand all Warnings and Cautions before using this product.

WARNING

Do not disassemble, change or repair the camera.

This might cause fire or electric shock. For repair or internal inspection, ask the store of purchase.

Do not use the camera in areas near water.

This might cause fire or electric shock. Take special care during rain, snow, on the beach, or near the shore.

Do not place the camera on inclined or unstable surfaces.

This might cause the camera to fall or tilt over, causing injury.

Keep the battery out of the reach of children.

Swallowing battery might cause poisoning. If the battery is accidentally swallowed, immediately consult a physician.

Do not use the camera while you are walking, driving or riding a vehicle.

This might cause you to fall over or result in traffic accident.

iv Preface

CAUTION

Insert the battery paying careful attention to the polarity (+ or -) of the terminals.

Inserting the battery with its polarities inverted might cause fire and injury, or damage to the surrounding areas due to the battery rupturing or leaking.

Do not fire the flash close to anyone's eyes.

This might cause damage to the person's eyesight.

Do not subject the LCD monitor to impact.

This might damage the glass on the screen or cause the internal fluid to leak. If the internal fluid enters your eyes or comes into contact with your body or clothes, rinse with fresh water.

If the internal fluid has entered your eyes, consult a physician to receive treatment.

A camera is a precision instrument. Do not drop it, strike it or use excessive force when handling the camera.

This might cause damage to the camera.

Do not use the camera in humid, steamy, smoky, or dusty places.

This might cause fire or electric shock.

Do not remove the battery immediately after long period of continuous use.

The battery becomes hot during use. Touching a hot battery might cause burns.

Do not wrap the camera or place it in cloth or blankets.

This might cause heat to build up and deform the case, resulting in fire. Use the camera in a well-ventilated place.

Do not leave the camera in places where the temperature may rise significantly, such as inside a car.

This might adversely affect the case or the parts inside, resulting in fire.

Before you move the camera, disconnect cords and cables.

Failure to do this might damage cords and cables, resulting in fire and electric shock.

Warning:

TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE

FOR AMERICAN USERS

The following advisory is included in accordance with the laws of the State of California (USA):

WARNING:

This product contains chemicals, including lead, known to the States of California to cause cancer, birth defects or other reproductive harm. Wash hands after handling.

Safety Instructions

- This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designated to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.

- Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FOR CANADIAN USERS

This Class B digital apparatus complies with Canadian ICES-003

FOR EU USERS

Note:

This symbol mark and recycle system apply to EU countries and do not apply to countries in other areas of the world.

Your SANYO product is designed and manufactured with high quality materials and components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.

Please dispose of the equipment at your local community waste collection/recycling centre.

In the European Union there are separate collection systems for used electrical and electronic products.

Please help up to conserve the environment we live in!

Symbols used in this manual

Points giving some extended instructions or special points to pay attention to.

You many find the answers to questions or problems concerning camera operation in the sections "Troubleshooting".

vi Preface

FCC information

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

Declaration of Conformity

Model number: VPC-S750

Trade Name: SANYO

Responsible party: SANYO FISHER COMPANY

Address: 21605 Plummer Street

Chatsworth, California 91311

Telephone No.: [phone]

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Canadian ICES-003 information

This class B digital apparatus complies with Canadian ICES-003.

TRADEMARK INFORMATION

• Micr® and Windows® are U.S. registered trademarks of Microsoft Corporation.
• Pentium ^® is a registered trademark of Intel Corporation.
• Macin® is a trademark of Apple Computer, Inc.
• SD ^TM is a trademark.
• SDHC ^TM is a trademark.

- Other names and products may be trademarks or registered trademarks of their respective owners.

READ THIS FIRST

Notice:

• Product design and specifications are subject to change without notice. This includes primary product specifications, software, software drivers, and user's manual. This User Manual is a general reference guide for the product.
• The product and accessories that come with your camera may be different from those described in this manual. This is due to the fact that different retailers often specify slightly different product inclusions and accessories to suit their market requirements, customer demographics, and geographical preferences. Products very often vary between retailers especially with accessories such as batteries, memory cards, cables, pouches, and language support. Occasionally a retailer will specify a unique product color, appearance, and internal memory capacity. Contact your dealer for precise product definition and included accessories.
• The illustrations in this manual are for the purpose of explanation and may differ from the actual design of your camera.
• The manufacturer assumes no liability for any errors or discrepancies in this user manual.

viii Preface

Table of Contents

Preface ....i

About this Manual ....i

Copyright ...... i

Federal Communications Commission (FCC) Compliance ...... i

Declaration of Conformity .... i

Trademark Recognition ....ii

Safety and Handling Precautions ......ii

Camera Information ....ii

Battery Information ....ii

Introduction 1

System Requirements ....1

Package Contents ....1

Main Features ....1

Camera Views 2

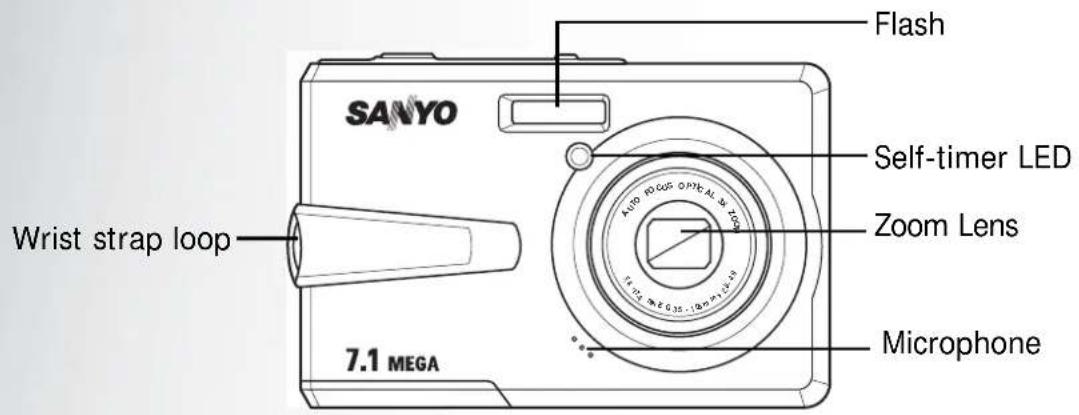

Front View 2

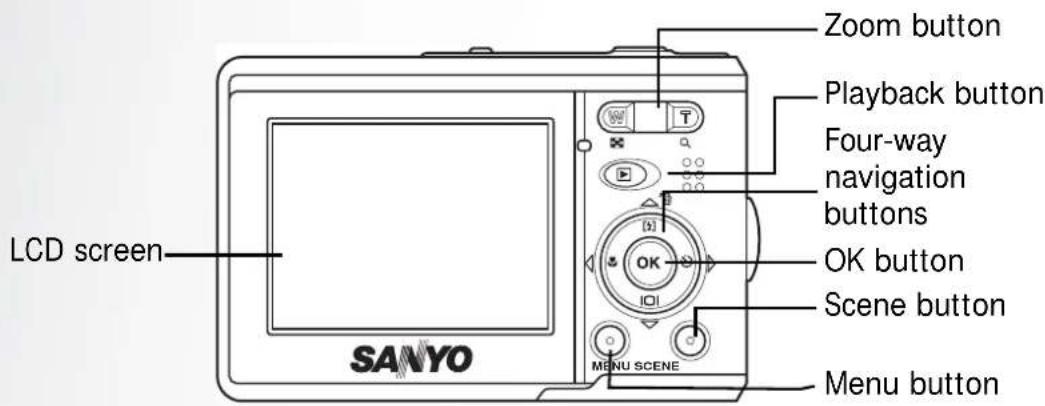

Back View 2

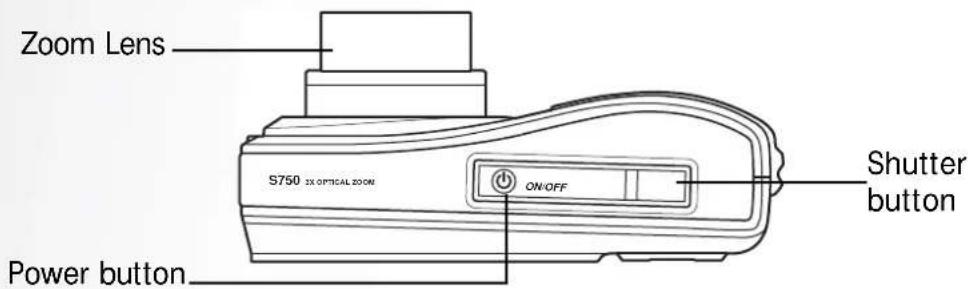

Top View 2

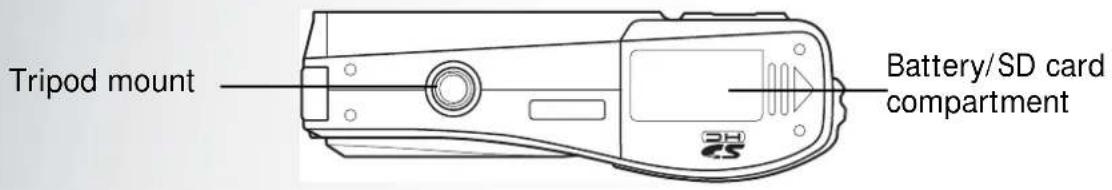

Bottom View 3

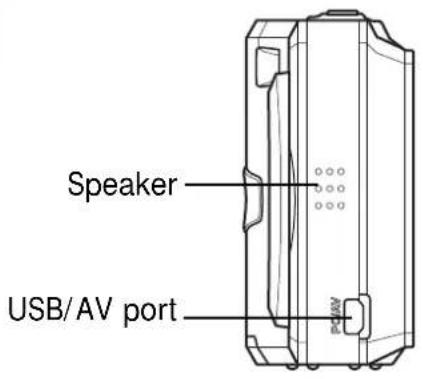

Left / Right View 3

LED Indicators ....3

Camera Buttons ....4

Navigation Buttons 4

The Scene Button 6

Function Buttons 7

LCD screen 8

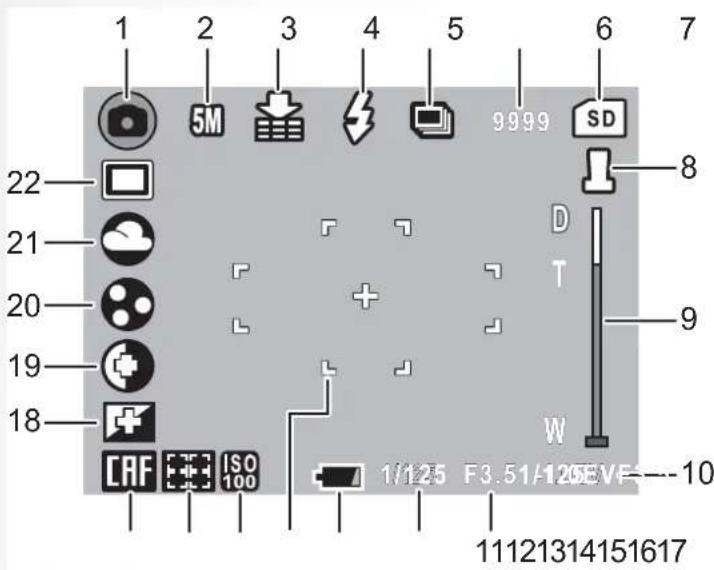

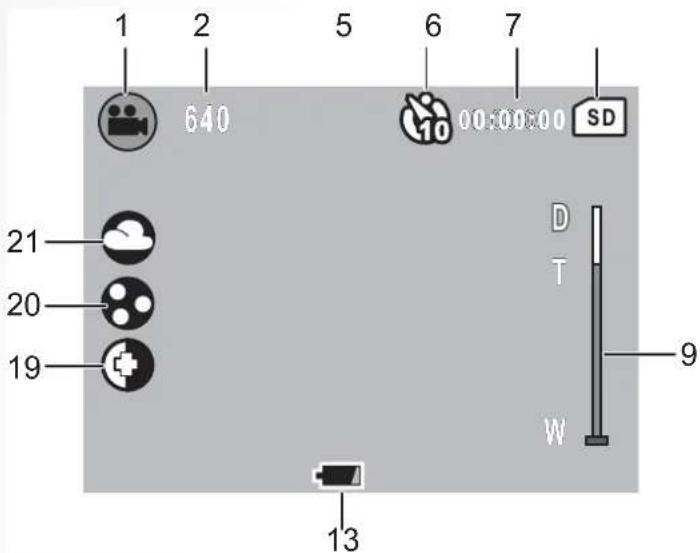

Capture/Video Mode Display 8

Camera Setup 13

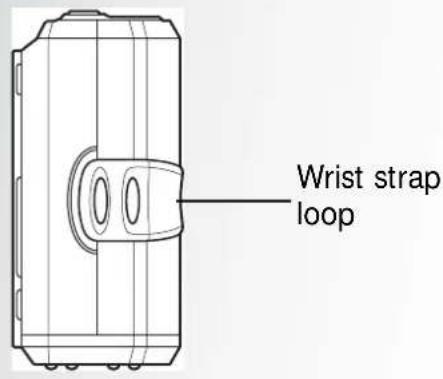

Attaching the Wrist Strap ....13

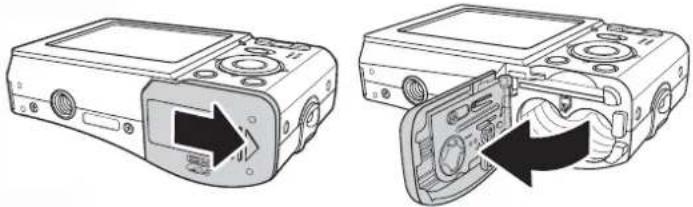

Inserting the Batteries ....13

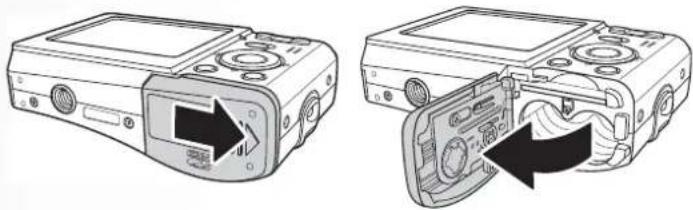

Inserting an SD/MMC Memory Card ....14

Turning On 14

First Time Use 15

Getting Started 16

Taking your First Photo 16

Using Macro Mode 16

Setting the Flash Mode 16

Using the Zoom in/out Function 16

Using the Self-timer and Burst Photography 17

Recording Voice Memos 17

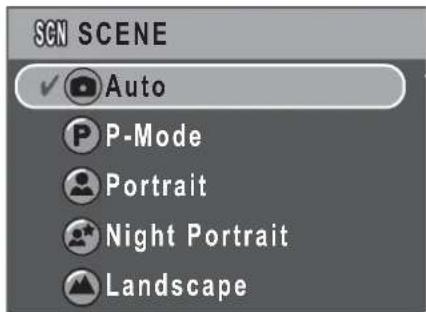

Setting the Scene Mode 18

Recording your First Video 18

Recording Voice Memos ....19

Capture Settings 20

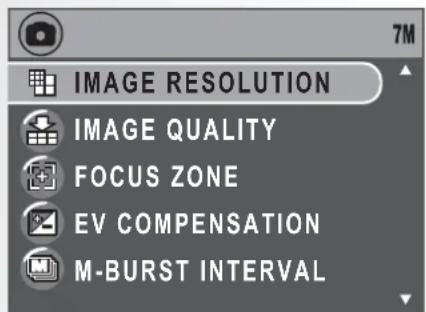

The Capture Menu 20

Image Resolution 20

Image Quality 21

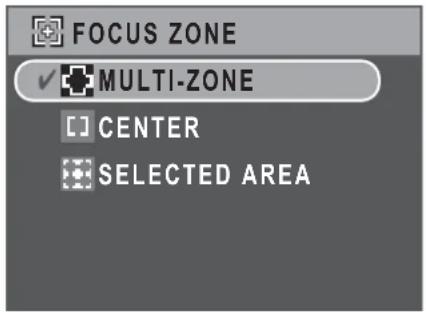

Focus Zone 21

EV Compensation 21

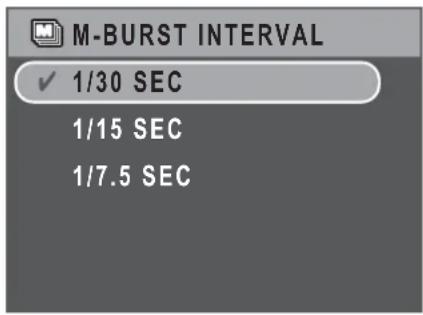

M-Burst Interval 22

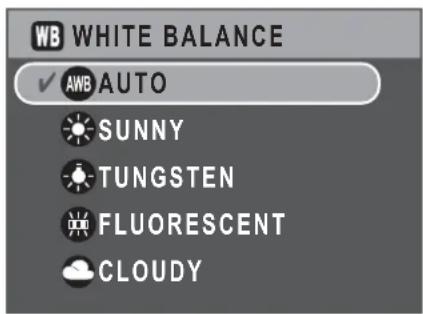

White Balance 22

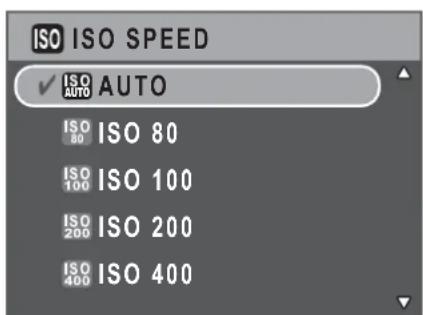

ISO Speed 22

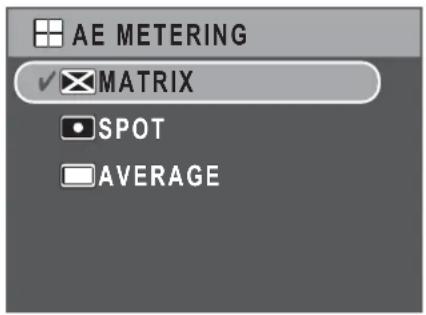

AE Metering 23

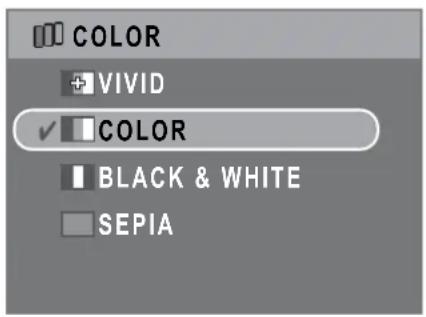

Color 23

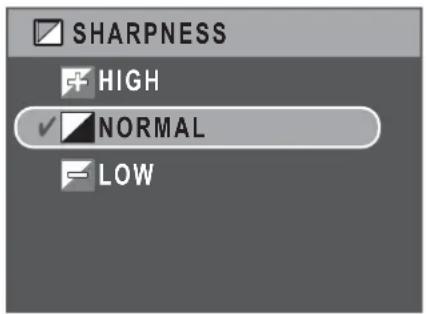

Sharpness 23

Saturation 23

Contrast 24

Setup 24

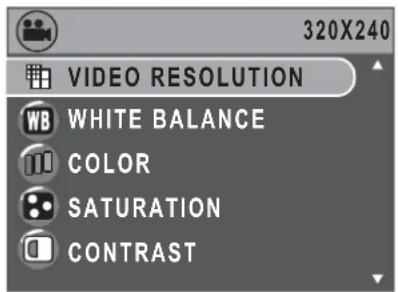

Video Capture Menu 24

Video Resolution 24

White Balance 24

Color 24

Saturation 24

Contrast 25

Setup 25

Photo & Video Playback 26

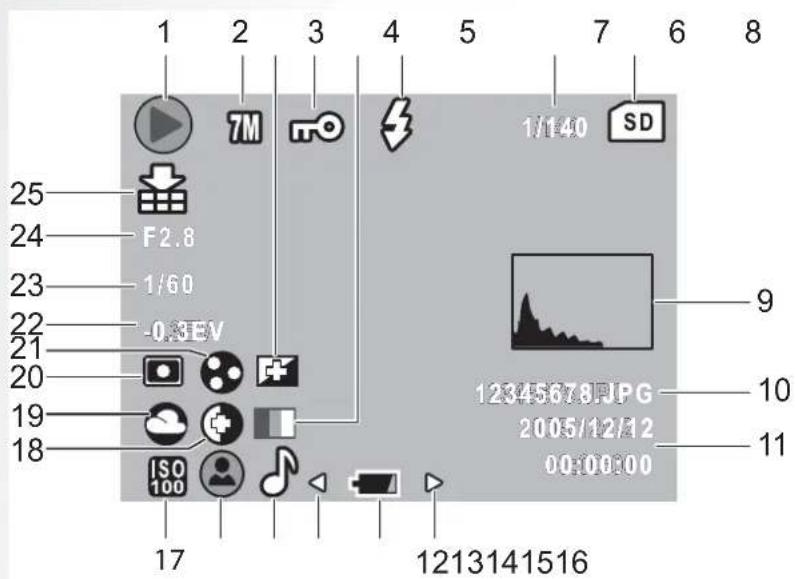

Playback Mode Display 26

Viewing Photos/Videos on the LCD Screen 28

Viewing M-Burst Photos 28

Listening to Voice Memo 28

Viewing Photos/Videos on your TV 29

Zooming In During Playback 30

Deleting Photos/Videos 30

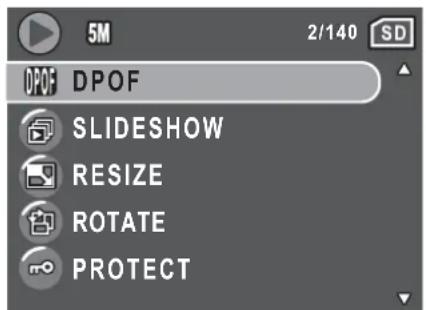

Using the Playback Menu 30

DPOF 30

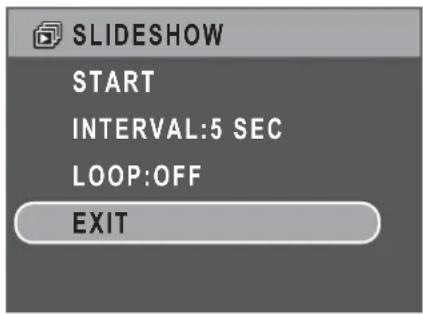

Slideshow 32

Resize 32

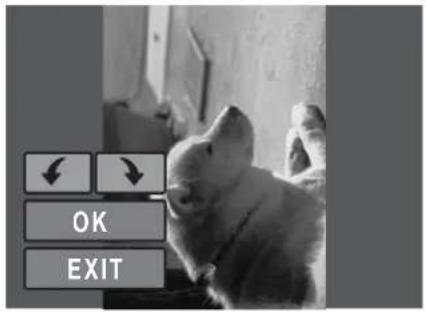

Rotate 33

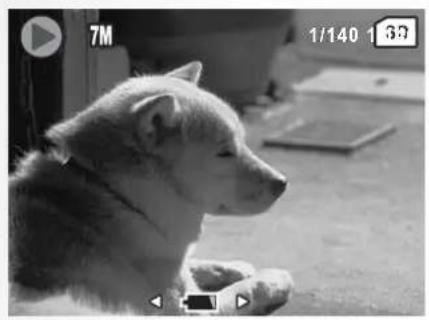

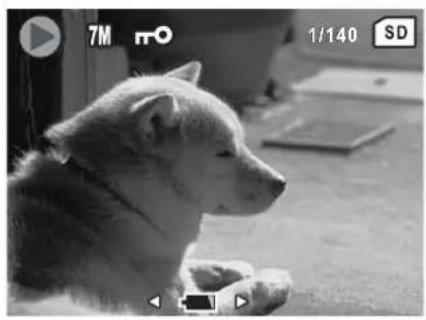

Protect 33

Move 34

Transferring Photos/Videos to your PC 35

Camera Settings 36

The Setup Menu ....36

File Number 36

Digital Zoom 36

Quick View 37

Camera Sound 37

Auto LCD Off 37

Auto Power Off 37

Video Out 38

USB Mode 38

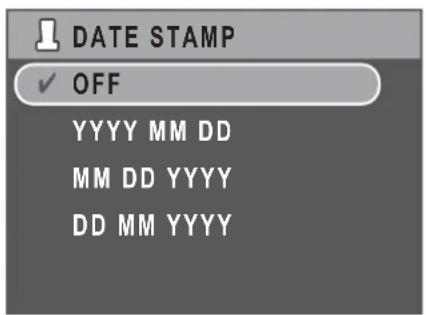

Date Stamp 38

Date and Time 39

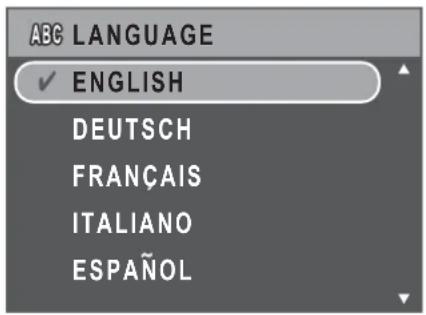

Language 39

Image Storage 39

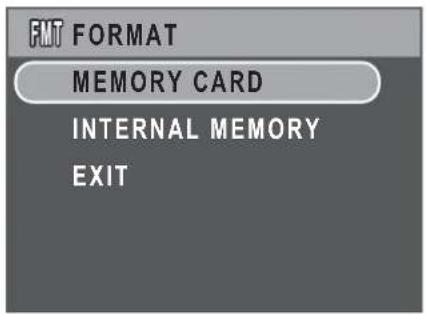

Format 40

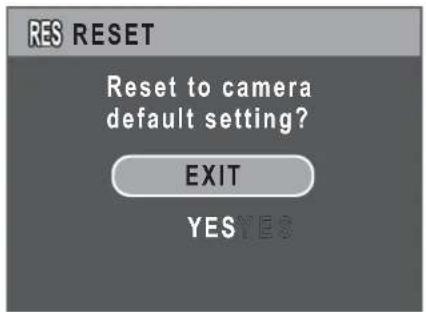

Reset 40

Voice Memo 40

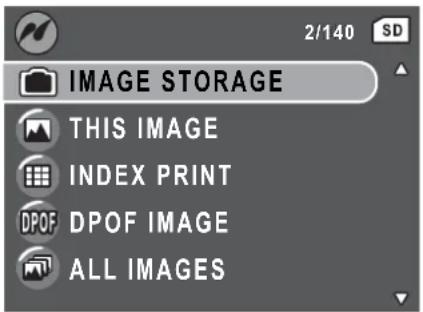

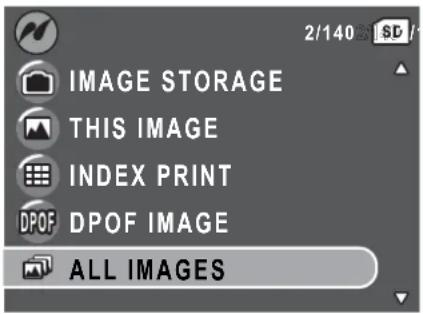

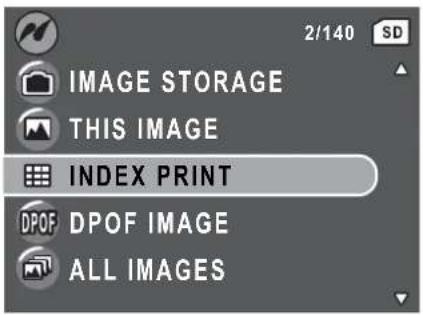

PictBridge Print (PTP) 41

Image Storage 41

This Image 42

Index Print 43

DPOF Image 43

All Images 44

Specifications 45

Troubleshooting 48

Introduction

Congratulations on the purchase of your new digital camera. This manual provides step-by-step instructions on how to use your camera, and is intended for your reference only.

System Requirements

In order to get the most out of your camera, your computer must meet the following system requirements:

• OS: Windows 98/98SE/2000/XP
• Memory: 128MB or above
• HDD space: 40 MB or above
• USB port

Package Contents

Check the contents of your camera package. It should contain:

• Digital camera
- USB/AV 3-in-1 cable
- Wrist strap
- Two AA batteries
- Camera pouch
- Quick start guide for all regions
- Bundled AP-CD (Application Software, Driver and User's Manual for all regions)

Main Features

• 7.1 mega pixels resolution
- 15x zoom (Up to 3x optical zoom and 5x digital zoom)
• 1/2.5 inch CCD image sensor
• 2.4 inch LTPS TFT LCD monitor
- 16 MB internal flash memory with optional external SD/MMC card
- Sleek and slim design
- Easy-to-use button interface
- PictBridge compatibility
- Slideshow feature to review your pictures and movies
• A/V output to view your pictures and movies on your TV
- USB port to transfer photos and movies to your PC

2 Introduction

Camera Views

Front View

Back View

Top View

Camera Views

Bottom View

Left / Right View

LED Indicators

LED LED Status Camera Status

Power/Flash LED	Off Power Off.
	Green (steady) Ready to take pictures.
	Green (blinking) Camera busy.
Self-timer LED/ Assist Lamp	Off Self-timer off.
	Red (blinking) (1Hz)	Self-timer count down, flashes during last 8 seconds.
	Red (blinking) (4Hz)	Self-timer count down, flashes during last 2 seconds.

4 Introduction

Camera Buttons

Navigation Buttons

The four-way navigation buttons and the OK button allow you to access the various options available from the On Screen Display (OSD) menu. You can configure a wide range of settings to ensure maximum results from your photos and videos.

Icon Button Function
OK OK		1. Confirms a selection when using the OSD menus.2. In Capture mode:Press to enable AF area selection when Selected Area is selected in Focus Zone submenu3. In Playback mode:Press to start and pause the video playbackPress to stop the voice memo playback4. In USB mode:MSDC: N/APTP: Press to confirm the selection
[5] 60	Up/Flash/DeleteRight/Self-timer/Burst mode	1. Moves up in the OSD menus.2. In Capture mode:Scroll through the flash mode options (Auto, Off and Fill.)3. In Playback mode:Press to pan up in magnify/crop modePress to move up in the thumbnail displayPress to delete images.4. In USB mode:MSDC: N/APTP: Press to scroll up through a menu1. Moves right in the OSD menus.2. In Capture mode:Press to scroll through the Self-timer/Burst/Multi-Burst mode3. In Video mode:Press to scroll through the Self-timer options4. In Playback mode:Press to pan right in magnify/crop modePress to move right in the thumbnail displayPress to navigate to next image in single upPress to fast forward video playback5. In USB mode:MSDC: N/APTP: Press to select the next image in This Image submenu
IOI	Down/Screen	1. Moves down in the OSD menus.2. In Capture mode:Press to turn off extra icons on the LCD screen, press again to turn all icons back on the LCD screen3. In Video mode:Press to turn off extra icons on the LCD screen, press again to turn all icons back on the LCD screen4. In Playback mode:Press to pan down in magnify/crop modePress to move down in the thumbnail displayPress to show the file information5. In USB mode:MSDC: N/APTP: Press to scroll down through a menu

6 Introduction

Icon Button Function
	Left/Macro

The Scene Button

The camera is equipped with a convenient Scene button that takes you to the Scene Menu where you can scroll between different modes and choose different scene options. Use the Up/Down navigation buttons to scroll and use the OK button to select. Use the Scene button to:

Mode Type Icon Function

Auto Scroll to Auto mode.
P-Mode(Program Mode)	Scroll to Program mode.
Portrait Scroll to Portrait mode.
Night Portrait Scroll to Night Portrait mode.
Landscape Scroll to Landscape mode.
Sport Scroll to Sport mode.

Night Landscape Scroll to Night Landscape mode.

Backlight Scroll to Backlight mode.

Museum Scroll to Museum-mode.

Snow Scroll to Snow mode.

Sunset Scroll to Sunset mode.

Fireworks Scroll to Fireworks mode.

Party Scroll to Party mode.

Beach Scroll to Beach mode

Copy Scroll to Copy mode. T

Video Scroll to Video mode

Function Buttons

Icon Button Function

MENU Menu Press to display the Menu options.

Playback

Press to review photos/videos clips saved in the internal memory or on the memory card.

Zoom in

In Capture mode:

- Press to zoom in on subject to be taken In Playback mode:

- Press to zoom in on saved photos

In Capture mode:

- Press to zoom out from the subject to be taken

Zoom out

In Playback mode:

- Press to zoom out of saved photos

- Press to view thumbnails of all current saved media

8 Introduction

LCD screen

The high resolution 2.4" TFT LCD screen shows all important information regarding camera settings as well as the visual image for your photo or video.

Use the Scene button to switch between screen modes. Press the Down/ Screen IOI button to switch between a Full display (all icons are displayed), or a Simple display (only mode icon and focus area are shown while other icons are hidden).

Capture/Video Mode Display

Capture Mode

Video Mode

No. Name Scene Icon

1 Scene indicator	Auto
	P-Mode
	Portrait
	Night Portrait
	Landscape
	Sport
	Night Landscape
	Backlight
	Museum
	Snow
	Sunset
	Fireworks
	Party
	Beach
	Copy
	Video
2 Image Resolution	7M		7M
	5M		5M
	3M		3M
	2M		2M
	VGA		VGA

10 Introduction

3 Image Quality		Best
		Better		[B727]
		Good
4	F I a	Auto Flash
		Fill Flash
		Flash Off
5 Self-timer/ Burst mode		M-Burst
		Burst Mode
		Self Timer	2 Seconds
			10 Seconds
6 Macro indicator Macro Mode
7 Image Counter Capture		Mode Quantity 9999
		Video Mode Timer 00:00:00
8 Memory Interface		SD Card
		Internal Memory
9 Date Stamp -
10 Zoom Bar		-
11	EV Compensation	--1.0EV
12 Aperture Value - F3.5
13 Shutter Speed - 1/125
14 Battery Indicator		Battery Low
		Battery Insufficient		[K44G]
15 AF Frame --
16 ISO Speed		Auto
		ISO 80
		ISO 100
		ISO 200
		ISO 400
		ISO 800
17 Focus Zone		Multi-Zone
		Center
		Selected Area
18 Sharpness		High
		Normal
		Low
19 Contrast		High
		Normal
		Low
20 Saturation		High
		Normal
		Low

12 Introduction

21 White Balance		Auto		AWB
		Sunny
		Tungsten
		Fluorescent
		Cloudy
22 AE Metering		Average
		Matrix
		Spot

Camera Setup

Attaching the Wrist Strap

Follow these instructions to attach the wrist strap to your camera to facilitate easy carrying:

1. Insert the short loop of the strap in the strap eyelet.
2. String the larger loop of the strap though the short loop and pull tight to attach the strap to the camera.

Diagram of a device with coiled cable and directional arrows indicating motion (no text or symbols)

Inserting the Batteries

Follow these instructions to insert the two AA batteries into the battery compartment.

1. Open the battery compartment at the bottom of the camera.

Two technical diagrams showing internal components of a device, one with an arrow indicating direction and the other with a black arrow pointing to a component (no text or symbols present)

1. Insert the batteries into the compartment observing the correct polarity.

Two views of a device showing internal components and directional arrows (no text or symbols)

1. Close the battery compartment.

Illustration of a digital camera with an arrow pointing to the left side (no text or symbols present)

Note:

The AA batteries should be fully charged before using for the first time.

14 Camera Setup

Inserting an SD/MMC Memory Card

The camera features 16 MB internal flash memory but you may also use an optional SD/MMC memory card for additional storage.

Follow these instructions to insert the SD/MMC card.

1. Open the battery compartment at the bottom of the camera.

Two views of a computer monitor showing internal components and a close-up view (no text or symbols)

1. Insert the SD/MMC card into the memory card slot as shown.

Two views of a computer case showing internal components with arrows indicating movement or assembly (no text or symbols present)

1. Close the battery compartment.

Line drawing of a portable electronic device with an arrow indicating left-side control (no text or symbols)

To remove the SD/MMC card, gently push the card until it pops out. Pull out the card carefully.

Turning On

Press and hold the Power button to turn on the camera. To turn off the camera, press the Power button again.

First Time Use

Press the Power button as described in "Turning On" on page 14, a welcome screen displays on the LCD screen.

If the camera is turned on for the first time, the Language menu pops up automatically after powering on the camera.

After the desired language is selected, the Date and Time menu pops up. Use the navigation buttons to toggle each field and adjust the value. Press the OK button to confirm.

Note: If the Date and Time is reset (when running out the battery and not in use for a long period), the Date and Time setup screen displays automatically.

16 Getting Started

Getting Started

Now that you are familiar with the layout of your camera, you are ready to start taking photos and movies.

Taking your First Photo

Taking a photo with the camera is very simple.

Turn the camera on and press the Scene button to access the Auto mode.

1. Frame the shot on the LCD screen and press the Shutter button halfway. The camera automatically adjusts the focus and exposure. The focus bracket turns green when ready.
2. Press fully and hold the Shutter button to capture the image.

When a camera steady warning icon 📋 appears, hold the camera as still as possible, as a longer exposure time (more than 1/30 second) is required.

Using Macro Mode

Macro mode is designed for close-up photography and can capture all detail even when your subject is very close to the camera. Press the Left/ Macro navigation button. The Macro icon displays on the LCD screen.

Setting the Flash Mode

You can choose from four flash modes to suit various lighting conditions.

Press the Up/Flash/Delete [幻] navigation button to scroll through the four modes on the LCD screen. The flash setting remains the same for subsequent photos until you change it as described above.

A3 Auto flash: The flash fires automatically when needed.

Fill flash: The flash always fires.

Flash off: The flash is turned off.

Using the Zoom in/out Function

The camera comes equipped with 3x optical zoom and 5x digital zoom that allows you to zoom in on your subject.

To use the zoom:

1. Press the right side of the Zoom switch to zoom in on your subject.

Taking your First Photo

1. Press the lefts side of the Zoom switch ☒ to zoom out from your subject.

Using the Self-timer and Burst Photography

The camera comes equipped with a self-timer which allows you to take photos after a pre-defined delay. The burst photography feature allows you to take multiple consecutive photos by pressing and holding the Shutter button. The multi-burst photography feature allows you to take multiple (16) consecutive VGA photos by pressing the Shutter button once.

To set the self-timer/burst mode:

1. Press the Right/ Self-timer/ Burst mode ⏻ navigation button to cycle

through the self-timer( 📄 ) and burst photography options ( or ) on the LCD screen.

1. Once you have selected an option, frame and take your shot. In self-timer mode, the icon will flash until the time expires and the photo is taken.

2. After taking a photo, the Self-timer automatically exit. If you want to use these functions for the next photo, press the Right/ Self-timer/ Burst mode navigation button again to activate the function.

Recording Voice Memos

You can add a 1-minute voice memo to an image right after it's taken.

To record a voice memo:

1. Hold the Shutter button to start recording and release the Shutter button to stop recording.

2. While recording, the selected image is shown on the LCD screen.

3. The elapsed time screen shows the length of a voice memo.

Note:

A Voice Memo can also be added in Playback mode.

18 Getting Started

Setting the Scene Mode

The camera supports various preset modes for shooting in different environments and conditions. Each setting is configured automatically by the camera.

To select scene modes:

Press the Scene button to access Scene SCN menu which displays the Scene menu options.

1. Use the Up/Down navigation buttons to scroll through the modes.

2. Portrait

3. Night Portrait
4. Landscape
5. Sport
6. Night Landscape
7. Backlight
8. Museum
9. Snow
10. Sunset
11. Fireworks
12. Party
13. Beach
    • Copy

1. Press OK to confirm your selection.

Recording your First Video

You can also record video clips with the camera.

To record a video clip:

1. Turn the camera on and press the Scene button. Use the Up/ Down navigation buttons to locate Video mode. Press the OK button to select.

2. Frame your subject using the LCD screen and press the Shutter button to start recording. The self-timer LED is steady on to indicate recording is in progress.

3. Press the Shutter button again to stop recording. If not, recording will continue until all free memory space is used.

1. In playback mode, press the OK button to playback the recording. Press the Up/ Flash/ Delete [5] navigation button to delete the recording if needed.

Recording Voice Memos

You can add a 1-minute voice memo to an image right after it's taken.

To record a voice memo:

1. Hold the Shutter button to start recording and release the Shutter button to stop recording.
2. While recording, the selected image is shown on the LCD screen.
3. The elapsed time screen shows the length of a voice memo.

Note:

A Voice Memo can also be added in Playback mode.

20 Capture Settings

Capture Settings

This section describes the various settings you can modify to get better results when taking photos and video clips.

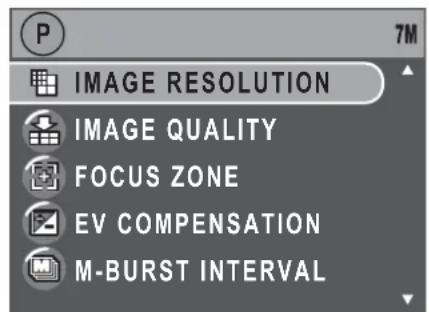

The Capture Menu

To access the Capture menu:

1. Press the Scene button. Use the Up/Down navigation buttons to select Auto

1. Press the MENU button to display menu options.
2. Press the Up/Down navigation buttons to highlight an option and press the OK button to confirm.

Refer to the following sections for more detailed information about each setting.

Note: All the options in this section may vary according to the different modes.

Image Resolution

The Image Resolution setting refers to the size of the image in pixels. Use the Up/Down navigation buttons to select from the options. Six settings for image resolution are available:

• 7M (3072 x 2304)
• 5M (2576 x 1932)
  • 3M (2048 x 1536)
• 2M (1600 x 1200)
  • VGA (640 x 480)

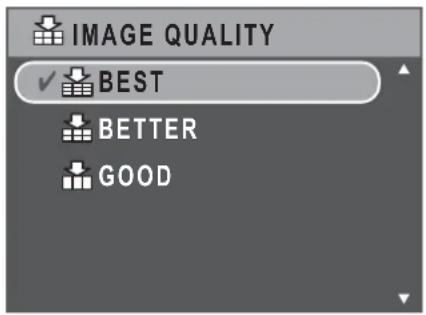

Image Quality

The Image Quality setting refers to the compression ratio of the JPG. The higher the image quality, the less the image compression ratio but more memory space is required. Use the Up/Down navigation buttons to select from the options. Three settings for image quality are available:

• Best (default)
• Better
  • Good

Focus Zone

The Focus Zone setting allows you to select the number of zones the camera will focus on when taking a photo. Use the Up/Down navigation buttons to select from the options. Three settings for focus zone are available:

• Multi-Zone (default)
• Center

- Selected Area: The new setting is applied to the

Live View image each time the Up/Down navigation buttons are pressed. Press the OK button to return to the Capture menu and save the current setting, which will take effect until it is changed again.

EV Compensation

The EV Compensation menu allows you to adjust the exposure or amount of light that enters the lens while capturing photos or videos. Use this feature to lighten or darken the image when the brightness between the subject and background is not balanced or when the subject occupies only a small part of the photograph. Use a positive (+) EV compensation for spotlit subjects, especially against dark backgrounds or scenes with low reflectivity, such as green or dark foliage.

Use the Up/Down navigation buttons to modify the value. This setting can be modified from -2.0 to +2.0 in a 0.3 increment/decrement.

22 Capture Settings

M-Burst Interval

The M-Burst Interval setting allows you to adjust the burst interval when the multi-burst function is enabled. Use the Up/Down navigation buttons to select from the options.

• 1/30 Sec (default)
• 1/15 Sec
• 1/7.5 Sec

White Balance

The White Balance setting allows you to adjust the camera setting according to the ambient white light when shooting. White balance represents the degree of coolness of the light. If the light has a yellowish or reddish tinge, it is said to be warm; if it has a bluish tinge, it is said to be cool. You can select the setting and preview it on screen before confirming your choice. Use the Up/Down navigation buttons to select from the options. Five white balance settings are available:

• Auto (default)
• Sunny
  • Tungsten
• Fluorescent
• Cloudy

ISO Speed

The ISO Speed setting allows you to adjust the CCD light-sensitivity. Use the Up/Down navigation buttons to select from the options. Seven ISO settings are available:

• Auto (default)
  ·ISO80
• ISO 100: For outdoor photography in bright sunlight.
• ISO 200: For outdoor or indoor photography in bright light.
• ISO 400: For indoor photography or low light environments.
• ISO 800: For moving object photography or low light environments without using flash.

AE Metering

AE Metering allows you to select the area of the subject or frame by which the camera measures light. Use the Up/Down navigation buttons to select from the options. Three AE metering settings are available:

• Matrix (default): Camera metering is set for evaluating 16 zones of objects with intelligent weighting in the frame.
• Spot: Camera metering is set for the brightness of a single object in the center of the frame.
• Average: Camera metering is set for the average brightness of objects in the frame.

Color

The Color setting allows you to take photos and apply different colors or color tones for an artistic effect. Use the Up/Down navigation buttons to select from the options. Four color settings are available:

• Vivid
- Color (default)
- Black & White
- Sepia

Sharpness

The Sharpness setting allows you to enhance the finer details of your photos. Use a higher setting for very sharp photos and a lower setting for a soft-toned photo. Use the Up/Down navigation buttons to select from the options. Three sharpness settings are available:

• High
• Normal (default)
• Low

Saturation

The Saturation setting allows you to adjust the saturation of the colors in your photos. Use a high saturation setting for rich colors and a lower saturation setting for more natural tones. Use the Up/Down navigation buttons to select from the options. Three saturation settings are available:

• High
• Normal (default)
• Low

24 Capture Settings

Contrast

The Contrast setting allows you to adjust the contrast of your photos. Use the Up/Down navigation buttons to select from the options. Three contrast settings are available:

• High
- Normal (default)
- Low

Setup

See "The Setup Menu" on page 36 for more details on the setup menu options.

Video Capture Menu

To access the video menu:

1. Press the Scene button and scroll to Video mode.
2. Press the MENU button to display the menu options.
3. Use the Up/Down navigation buttons to highlight an option and press the OK button to confirm. Refer to the following sections for more detailed information about each setting.

Video Resolution

The Video Resolution setting allows you to adjust the resolution at which your videos are recorded. Two video size settings are available:

• 640X480
  • 320X240

White Balance

See “White Balance” on page 22 for more details on the setup menu options.

Color

See "Color" on page 23 for more details on the setup menu options.

Saturation

See “Saturation” on page 23 for more details on the setup menu options.

Video Capture Menu

Contrast

See "Contrast" on page 24 for more details on the setup menu options.

Setup

See "The Setup Menu" on page 36 for more details on the setup menu options.

Photo & Video Playback

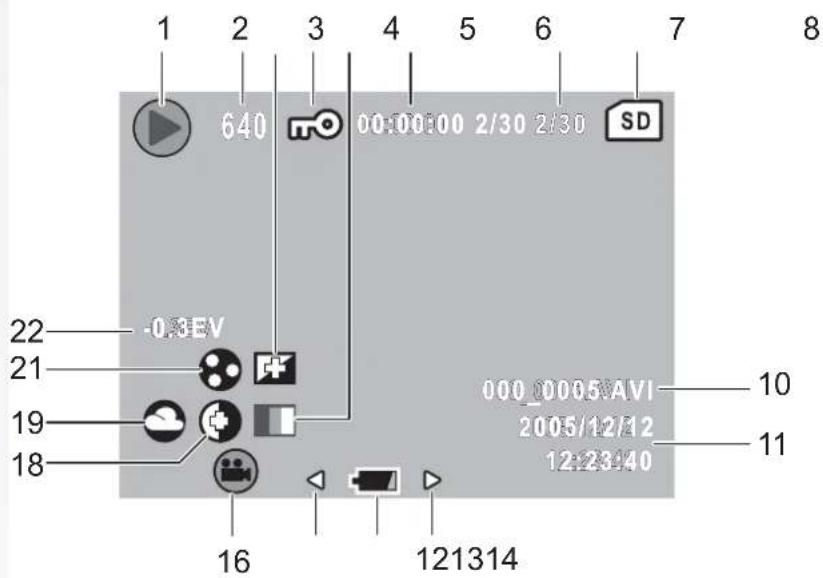

Playback Mode Display

Photo Playback

Video Playback

No. Name Icon

1 Playback mode
2 Image resolution	Photo mode: 7M 5M 3M 2M VGAVideo mode:640 (640x480), 320 (320x240)
3 Sharpness
4 P r o t e c
5 Color mode
6 Flash mode	Photo mode: A3 & 📋Video mode: 00:00:00(Length of the video clip.)
7 Quantity 1/140, 2/30
8 SD card / Internal memory
9 Histogram
10 File Name Photo mode: 12345678.JPG	Video mode: 000_0005.AVI
11 Date and Time 2005/12/12	0:00
12 Next	Move to next item.
13 Battery status
14 Previous	Move to previous item.
15 Voice memo
16 Mode icons	Please see “Capture/Video Mode Display” on page 8 for detailed information.
17 ISO Speed	[B28X]ISO 800
18 Contrast
19 White balance

28 Photo & Video Playback

20 AE Metering

21 Saturation

22 EV Compensation -0.3EV

23 Shutter speed 1/60

24 Aperture value F2.8

25 Image quality

Viewing Photos/Videos on the LCD Screen

To view your photos and video files on the LCD screen:

1. Press the Playback button ▶. The most recent photo or video clip is displayed.
2. Use the Right/ Left navigation buttons to scroll through photos and video clips.
3. Press the OK button to begin playback of a video clip.
4. Press the Left/Right navigation buttons at any time during playback to skip to the previous/next photo or video.
5. Press the OK button and press the Left/Right navigation buttons to fast-rewind/fast-forward during video playback.
6. Press the OK button at any time during playback to pause the video.
7. After the video clip finishes playing, the LCD screen displays the first frame of the clip.

Viewing M-Burst Photos

To view your multi-burst photos on the LCD screen:

1. Press the Playback button ▶. The most recent photo or video clip is displayed.
2. Use the Right/ Left navigation buttons to scroll through photos.
3. When reviewing a multi-burst image, it will be displayed from the 1^st frame to the 16^th frame at 2 frames/per second like a slideshow.
4. To stop the M-Burst slideshow, press the Left/Right navigation buttons and skip to the previous/next image.

Listening to Voice Memo

A voice memo plays simultaneously when playing a saved image with voice memo.

To stop a voice memo while reviewing an image, press the OK button.

To skip to previous/next image, press the Left/Right navigation buttons.

Viewing Photos/Videos on your TV

To view images stored on the camera on your TV, you must connect via the A/V port on the side of the camera. To connect your camera to a TV:

1. Turn on the camera and make sure that the camera's video out format is set to the same as that of the TV. See "Video Out" on page 38 for more information.
2. Connect the USB/AV 3-in-1 cable to the USB port on the camera.
3. Connect the other end of the cable to the TV's AV input port.

1. The LCD screen turns blank and all images and video clips are displayed on the TV screen. Follow the same steps described in "Viewing Photos/Videos on the LCD Screen" on page 28.

30 Photo & Video Playback

Zooming In During Playback

The camera's zoom feature can also be used during Playback. This allows you to view photos in greater detail.

To zoom in on saved photos:

1. Press on the right side of the Zoom button 🔒 to zoom in and on the left side of the Zoom button 📋 to zoom out of the photo/video.
2. Use the navigation buttons to pan across the image.
3. When zoomed in on a photo, press the OK button to crop the image. When zoomed out to the maximum, the LCD screen will display all photos and videos as a series of thumbnails.

Deleting Photos/Videos

The Delete function allows you to remove unwanted files stored on internal memory or a memory card.

To delete a photo/video:

1. In Playback mode, press the Up/Flash/Delete Navigation button to display the Delete menu.

1. Press the Up/Down navigation buttons and the OK button to select from the three available options:

2. Cancel: Select to cancel the action and exit to the main menu.

3. This Image: Select to delete the current image.
4. A | | Images: Select to delete all images.

Using the Playback Menu

Access the Playback menu to view further information, configure printing settings, view a slideshow, or delete photos or movies.

To access the Playback menu:

1. Press the Playback button ▶.
2. Press the MENU button to display the menu options.
3. Use the Up/Down navigation buttons to highlight an option and press the OK button to confirm.

DPOF

DPOF (Digital Print Order Format) allows you to specify the number of copies of a certain image that you want to print at a later date.

Zooming In During Playback

Use this function to tag pictures stored in your memory card with print information. You can tag all pictures to be printed or just the current picture. You can also select how many copies print and whether to include the date and time.

When all images to be printed are tagged, remove the memory card and take it to a photographic shop for printing, or use it with a DPOF compatible printer.

To set DPOF:

1. Press the MENU button to select DPOF from the menu.
2. Press the Up/Down navigation buttons and the OK button to select from the available options:

• This Image: Select to print the current image.
- All Images: Select to print all images.
- Exit: Select to exit to the main menu.

1. Use the Up/Down navigation buttons to set the number of copies you wish to print.

32 Photo & Video Playback

Slideshow

The Slideshow function allows you to view all stored photos in a continuous sequence.

To view a slideshow:

1. Press the MENU button to select Slideshow from the menu.
2. Press the Up/Down navigation buttons and the OK button to select from the available options:

SLIDESHOW

START

INTERVAL:5 SEC

LOOP:OFF

EXIT

• Start: Select to start the slideshow.
• Interval: Select to set the interval time between each photo during the slide-show. Use the Up/Down navigation buttons to set a value in seconds. The default setting is 5 seconds.
• Loop: Select to enable/disable a continuous loop of the slideshow. Select On or Off (default) from the submenu.
• Exit: Select to exit to the main menu.

Resize

The Resize function allows you to change the image resolution.

To resize a photo:

1. Press the MENU button to select Resize from the menu.
2. Press the Up/Down navigation buttons and the OK button to select the resize ratio you require: 4M, 2M, 1M, and VGA.
3. Select Exit to return to the main menu.

RESIZE

4M

2M

1M

VGA

EXIT

Note: It is only possible to scale-down image resolutions. If the current image resolution is VGA, this menu item is disabled in the Resize submenu. The ratio of the image (4:3 or 3:2) remains unchanged after resizing.

• This function only supports native pictures
- Cropped images cannot be resized
- If there is not sufficient storage space, images cannot be resized
- If the SD/MMC card is locked, images cannot be resized
• VGA images cannot be resized

Rotate

The Rotate function allows you to change the orientation of a saved photo.

To rotate an image:

1. Press the MENU button to select Rotate from the menu.

2. Press the Left/Right navigation buttons and the OK button to rotate the select image.

3. OK: Select to rotate the image.

4. Exit: Select to exit to the main menu.

Black-and-white photo of a dog resting on the floor, no visible text or symbols

Protect

You can lock a photo or video to protect it from being accidentally erased.

To lock a photo or video:

1. Press the MENU button to select Protect from the menu.
2. Press the OK button to confirm.
3. A key icon displays at the top of the screen to indicate the photo/video is now locked.

Black-and-white photo of a young dog resting on the floor, looking down at camera interface (no text or symbols visible)

Black-and-white photo of a young dog resting on the ground, looking down (no text or symbols visible)

34 Photo & Video Playback

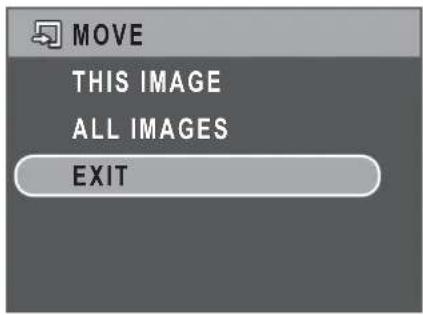

Move

The Move function allows you to move images stored in internal memory to a memory card.

To move an image:

1. Press the MENU button to select Move from the menu.
2. Press the Up/Down navigation buttons and the OK button to select from the three available options:

• This Image: Select to move the current image to a memory card.
• All Images: Select to move all images to a memory card.
• Exit: Select to exit to the main menu.

Note: The Move function is only available when you choose internal memory as the storage media and an SD card has been inserted into the camera.

Transferring Photos/Videos to your PC

To transfer photos and videos to your PC:

Use the software CD to install the camera driver. Follow the on-screen instructions to complete the installation.

Connect the camera's USB port to a free USB port on your PC using the USB cable.

Line drawing of a digital camera connected to a server unit via cable, showing internal components (no text or symbols)

The camera's internal memory and/or SD/MMC card appear as removable drives in the file manager. Copy the files from the drives to the directory on your PC.

Use ArcSoft PhotoImpression and ArcSoft VideoImpression (provided on the software CD) to view or edit the photos and videos respectively.

36 Camera Settings

Camera Settings

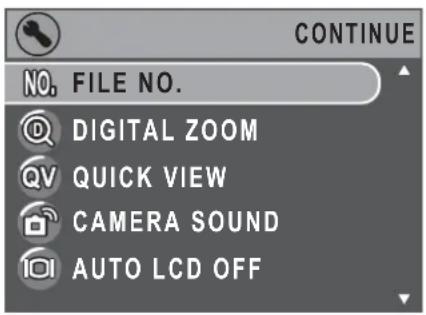

The Setup Menu

The setup menu, available in capture and playback modes, allows you to configure the camera's general settings according to your preferences.

To access the setup menu:

1. Press the MENU button when in Playback or any of the capture modes.
2. Select Setup from the menu. The submenu appears.
3. Use the Up/Down navigation buttons to scroll through the options and press the OK button to enter further submenus and to confirm your selection. Refer to the following sections for more detailed information about each setting.

File Number

The File No. setting allows you to reset all file numbers assigned to each of the files on your camera. Select Reset to reset or Continue to set the file numbers in continuous order.

Digital Zoom

The Digital Zoom setting allows you to turn the digital zoom function on or off. Select On to enable the function or Off (default) to disable it.

Quick View

The Quick View setting allows you to view the photo that you have just taken. Once you have taken your photo, it displays on the LCD screen. If you are not satisfied with the result, you can press the button to delete the photo immediately. Select On (default) to enable the function or Off to disable it.

Note: The Quick View function is not available in Burst and M-Burst modes.

Camera Sound

The Camera Sound setting allows you to adjust the camera sound level. Three options are available:

• Off
• Low (default)
• High

Auto LCD Off

The Auto LCD Off setting allows you to adjust the length of time that the LCD screen will remain lit before turning off to save battery power. Three options are available:

• Off (default)
  • 30 sec
  • 1 min

Auto Power Off

The Auto Power Off setting allows you to adjust the length of time after which the camera will power down when inactive. Use the Up/Down navigation buttons to select from the menu options. Two options are available:

• 5 min (default)
  • 2 min

38 Camera Settings

Video Out

The Video Out setting allows you to adjust the video output, depending on the type of your TV. Use the Up/Down navigation buttons to select from the menu options. Two options are available:

• NTSC (default)
  • PAL

USB Mode

The USB Mode setting allows you to select the transfer method between your camera and your PC. Two options are available:

• PTP (PictBridge Print): When the camera is connected to a printer by a USB cable which supports Pictbridge, it can directly print images stored on the media. For details on PTP function, please See “PictBridge Print (PTP)” on page 41.
• MSDC (default): The camera is set up to act as a mass storage device, allowing only for transfer of files between your camera and PC.

Date Stamp

The Date Stamp setting allows you to adjust the format in which the date will appear on each photo or video. You can also deactivate this function if you wish. Setting a date stamp allows for easy sorting and the date will appear on the photo when printed. Use the Up/Down navigation buttons to select from the menu options. Four options are available:

• Off (default)
• YYYY MM DD: year-month-date format
  • MM DD YYYY: month-date-year format
  • DD MM YYYY: date-month-year format

Date and Time

The Date and Time setting allows you to set or adjust the date and time on your camera. To set or adjust the date and time:

• Press the Left/ Right navigation buttons to select the Year field.
• Press the Up/Down navigation buttons to adjust the Year value.
• In the same way, select the Month, Date, Hour and Minute fields and adjust them accordingly.

Language

The Language setting allows you to choose which language the OSD menu uses. Scroll down the list and select your language. Use the Up/Down navigation buttons to select from the menu options.

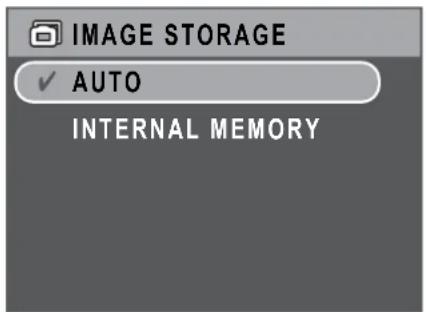

Image Storage

The Image Storage setting allows you to specify where photos and video clips will be stored. The camera features 16 MB internal memory but you can also insert an SD/MMC card (See "Inserting an SD/MMC Memory Card" on page 14 for more details). Two options are available:

• Auto (default): When selected, the camera chooses the storage medium automatically. If an SD/MMC card is inserted in the camera, all
  photos and videos are stored on the card. If an external card is not detected, all photos and videos are stored in the internal memory.
• Internal Memory: All photos and videos are stored in the internal memory.

40 Camera Settings

Format

The Format setting allows you to erase all data in the internal memory or on the SD/MMC card. Use the Up/Down navigation buttons to select from the menu options. Three options are available:

• Memory Card (default): All data on the SD/MMC will be formatted.
• Internal Memory: All data in the internal memory will be formatted.
• Exit: Cancel format action.

Reset

The Reset setting allows you to reset the camera to the original factory default settings. This means all modifications you have made to the camera settings will be cleared.

Once selected, the Reset screen displays a confirmation message. Select Yes to proceed with the reset or Exit (default) to cancel.

Voice Memo

The Voice Memo setting allows you to record a voice memo when a photo is taken. Select On to enable the Voice Memo function or Off (default) to disable it.

PictBridge Print (PTP)

The PTP function allows you to print images captured by the camera directly without connecting the camera to a PC.

If the camera is not connected to a PTP compliant printer, an error message displays on the LCD screen. To enable PTP function, see "USB Mode" on page 38 for detailed information. If the USB mode is not set at PTP, an error message displays on the LCD screen.

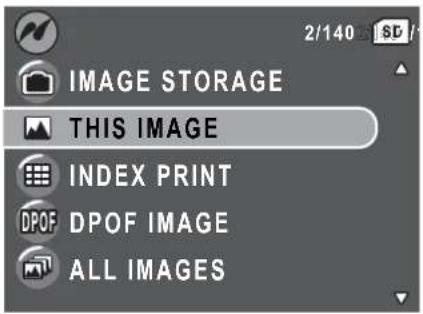

When a PTP compliant printer is connected to the camera, the Printer Connecting screen displays on the LCD screen. The Print menu pops up automatically.

Use the Up/ Down navigation buttons to select an option and press the OK button to confirm.

Image Storage

See "Image Storage" on page 39 for detailed information.

42 Camera Settings

This Image

Print the selected image with the current setting.

1. Use the Up/Down navigation buttons to select This Image from the options and press the OK button to confirm. Use the Left/Right navigation buttons to select previous/next file.

1. Press the Up/Down navigation buttons to set the number of copies.

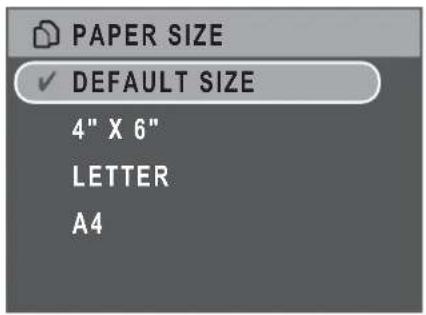

1. Press the Up/Down navigation buttons again to select the paper size.

2. Default Size
   • 4 " x 6 "

3. Letter
   • A4

1. Press the Up/Down navigation buttons to Continue or Cancel the action.

Index Print

Use this function to print all images in index format.

1. Press the Up/Down navigation buttons to select the Paper size.

2. Default Size

3. Letter
   • A4

1. Press the Up/Down navigation buttons to set the number of copies. After the number of copies is set, press the Up/Down navigation buttons again to continue or cancel the action.

DPOF Image

See "DPOF" on page 30 for detailed information.

44 Camera Settings

All Images

Print all images saved in memory.

1. Use the Up/Down navigation buttons to select All Images from the options and press the OK button to confirm.

1. Press the Up/Down navigation buttons to set the number of copies.

1. Press the Up/Down navigation buttons to select the Paper size.

2. Default Size
   • 4 " x 6 "

3. Letter
   • A4

1. Press the Up/Down navigation buttons to select Continue or Cancel this action.

Specifications

General Resolution / Image Type 7M Pixels / 1/2.5" CCD
	LCD 2.4"TFT, 110,000 Pixels
	Dimensions 92.9(W)x60.4(H)x22.2(D)mm
	Exterior Casing Plastic Housing
Optics Aperture Wide: F2.8 Tele: F4.9

46 Specifications

Resolution Image	Image File Formats Still Image: JPEG (Exif2.2)
	Image Quality Mode Still Image:3072x2304, 2576x1932,2048x1536, 1600x1200,640x480Movie Mode:640x480@30fps,320x240@30fps
	Quality Levels Best, Better, Good
Capture Features DPOF Version 1.1
	Erase Protection Yes
	Exposure Compensation Selectable +/-2.0EV with0.3 EV steps
	Sharpness High, Normal, Low
	Color B&W, Sepia, Vivid, Color
	Metering Average, Matrix, Spot
	Focus Multi-Zone	Single-Zone: Center, Selected area
	Flash Range 2.5m@wide
	Lens Thread None
	Aperture Priority	No
	Shutter Priority	No
	Drive Mode	Single Mode, Burst Mode, Multi-Burst (VGA@16 shots)
	Quick Delete	Yes
	Quick View	Yes
	Quick Review	No
	Self Timer	2 or 10 seconds
	Playback Magnify	Up to 6X (10 steps)
	White Balance	Auto, Sunny, Tungsten, Fluorescent, Cloudy
Video Video Out PAL, NTSC
	Stream to SD/MMC Yes
	Speaker Yes, Mono
	Movie File Format AVI
	Movie Length Unlimited as long as space is available on the SD/MMC card
	Microphone Yes, Mono
Power Battery AA NiMH/Alkaline/Rechargeable batteries x 2
Capability Camera Interface USB 2.0 full speed
Standards Operating Temperature	0°C ~ 40°C
	Language English, German, French, Italian, Spanish, Russian, Portuguese, Simplified Chinese, Traditional Chinese, Turkish, Korean, Thai

Troubleshooting

Problem Action
Camera does not turn on	The batteries may be exhausted. Charge or replace the batteries.The batteries are installed incorrectly. Re-insert the batteries observing the correct polarity.
Camera turns off automatically	Press any button to turn on the camera.
LCD turns off automatically Press any button to turn on the LCD.
Empty battery icon is displayed on the LCD after which camera turns off	Batteries are exhausted. Replace the batteries.
LCD screen displays ‘Card Requires Formatting’	Memory card format not recognized. Re-format the memory card.
LCD screen displays ‘Card is Full’	Memory card is full. Replace the memory card with a new one or delete unnecessary images from the existing card.
LCD screen displays ‘Card is locked’	The card is protected by a protect switch mechanism. Move the switch to the unlock position.
Insufficient memory space to complete request	Insufficient space in memory to rotate an image. Delete unnecessary images.
No image displays on the TV screen	Incorrect TV-out type was selected. Set correct TV-out type to match your TV system.
Insufficient space on the card	Delete unnecessary images.

SANYO Electio Co., Ltd.

Made in China
