Product Type	Vinyl Turntable with CD Player, Cassette, Analog Radio, Bluetooth, and MP3 Encoding
Brand	Boytone
Model	BT-22MS (also BT22C, BT22M, BT22B)
Power Supply	230V AC 50Hz
Turntable Speeds	33, 45, 78 rpm
Radio Bands	AM, FM, FM-Stereo
Bluetooth Version	5.0
Media Playback	CD, Cassette, USB, SD/MMC (MP3/WMA), Auxiliary Input
Recording	MP3 encoding to USB/SD from turntable, cassette, CD, AUX (128 kbps)
File Copy	Copy individual tracks, folders, or all files between USB and SD
File Deletion	Delete individual tracks, folders, or all files from USB/SD
Programmable Playback	Up to 64 tracks programmable for CD/USB/SD
Dimensions	Approximately 17.5 x 14 x 7 inches (estimated)
Weight	Approximately 10 lbs (estimated)
Speaker Output	Built-in stereo speakers (not specified wattage)
Headphone Jack	3.5mm
Auxiliary Input	3.5mm AUX IN
Auto Stop	Selectable ON/OFF for turntable
Tone Arm Lock	Yes
Dust Cover	Included
Cleaning	Dry cloth only, no solvents
Safety	Do not expose to moisture, unplug during storms, use only specified voltage
Warranty	Not specified, damage from improper power source not covered

Frequently Asked Questions - BT-22MS Boytone

How do I play a vinyl record on the BT-22MS?

Open the dust cover, turn the volume knob clockwise to power on, set the function selector to PHONO, select the correct speed (33/45/78), place the record on the turntable, and use the lift lever to gently lower the tone arm onto the record.

How can I connect my smartphone via Bluetooth?

Turn the function selector to BT In mode. Enable Bluetooth on your device and search for Boytone. Once paired, you will hear a confirmation sound and can stream music to the unit.

How do I record from a vinyl record to a USB drive?

Insert a USB drive into the USB port. Set the function selector to PHONO, press the REC button, select USB via the skip buttons, and press REC again. Lower the tone arm to start playback; recording begins. Press STOP to finish.

What formats are supported for USB/SD playback?

The system supports MP3 (bitrate 32-256 kbps) and WMA (bitrate 32-320 kbps) files. The unit can read MP3/WMA files from USB drives and SD/MMC cards up to 8GB.

How do I program tracks to play in a specific order?

In CD/USB/SD mode, press STOP, then press PROG. Use SKIP UP/DOWN to select a track, press PROG to store, and repeat. Press PLAY to start programmed playback. Up to 64 tracks can be programmed.

Why is my turntable not producing sound?

Check that the function selector is set to PHONO, the volume is turned up, the power cord is plugged into a working outlet, and the correct speed (33/45/78) is selected. Also ensure the tone arm is properly positioned.

Can I copy files from USB to SD card or vice versa?

Yes. Insert both USB and SD card, select USB/SD mode, and during playback of the desired track/folder, press REC. Use SKIP UP/DOWN to choose ONE, FOL (folder), or ALL, then press REC again to confirm the copy.

How do I delete files from my USB drive using the unit?

Insert the USB drive, select USB/SD mode, and during playback of the file press DEL. Use SKIP UP/DOWN to choose ONE, DIR (folder), or ALL, then press DEL again to confirm. Deletion is permanent.

What should I do if the FM reception is poor?

Fully unravel the FM wire antenna at the back and extend it. Reposition the unit or try a different location. If stereo reception is weak, switch to FM (mono) mode using the radio band selector.

How do I clean the turntable?

Use a soft, dry cloth to clean the exterior. Do not use chemical solvents or abrasive cleaners. For the stylus, use a stylus brush if needed. Avoid touching the needle with fingers.

USER MANUAL BT-22MS Boytone

Turntable with CD Player, Cassette, Analog Radio MP3 Encoding to USB/MMC

MODEL(S): BT22C | BT22M | BT22MS | BT22B

Operating Instructions Manual

CAUTION

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH A EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT F SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURI

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated 'dangerous voltage' within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK), NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

IMPORTANT SAFETY INSTRUCTIONS

1) Please read these instructions and keep them for future reference.
2) Pay attention to all warnings.
3) Follow all instructions.
4) Do not use this apparatus near water.
5) Clean only with a dry cloth.
6) Do not block any ventilation openings.
7) Install in accordance with the manufacturer's instructions.

Do not install near any heat sources such as radiators, heaters, stoves, or apparatus (including amplifiers) that produce heat.

8) Protect the power cord from being walked on or kinked, in particular where plug is fitted and at the point where it exits from the apparatus.
9) Only use attachments / accessories specified by the manufacturer.
10) Unplug this apparatus during lightning storms or when unused for long periods
11) Refer all servicing to qualified service personnel. Servicing is required when apparatus has been damaged in any way, such as power-supply cord or plug liquid has been spilled or objects have fallen into the apparatus, the apparatus exposed to rain or moisture, does not operate normally, or has been dropped.
12) This appliance should not be exposed to dripping or splashing water and object filled with liquids, such as vases, should be placed on the apparatus.
13) Do not overload the wall power outlet. Use only power source as indicated - i.e. 220V AC mains.

IMPORTANT NOTES

Avoid installing this unit in places exposed to direct sunlight or close to heat radiating appliances such as electric heaters, on top of other stereo equipment that radiates too much heat, places lacking ventilation or dusty areas, places subject to constant vibration and/or humid or moist areas.

Do not attempt to clean this unit with chemical solvents as this might damage the finish. Use a clean dry cloth. Operate controls and switches as described in manual. Before turning On the power, make certain the AC power cord is plugged in.

Store your CDs, Cassettes in a cool area to avoid damage from heat. When m be sure to first disconnect the power cord.

PREPARATION FOR USE

UNPACKING AND SET UP

• Carefully remove the unit from the display carton and remove all packing ma the unit.
• Unwind the AC power cord and extend it to its full length.
• Unwind the FM Antenna wire and extend it to its full length.
• Place the unit on a stable, level surface, convenient to an AC outlet, out sunlight, and away from sources of excess heat, dust, moisture, humidity or strong magnetic fields.
• Remove the opaque white plastic stylus cover from the phonograph stylus by forward and down.
• Discard the stylus cover
• Remove the twist-tie that was used to secure the tone arm during shipment.
• Release the tone arm lock lever.
• Connect the plug to your AC outlet.

POWER SOURCE

This product is designed to operate on 230V 50Hz AC Mains only. Attempting this system from any other power source may cause damage to the system, and such damage is not covered by your warranty.

PROTECT YOUR FURNITURE

This model is equipped with non-skid rubber 'feet' to prevent the product from when you operate the controls. These 'feet' are made from non-migrating rubber specially formulated to avoid leaving any marks or stains on your furniture. How types of oil based furniture polishes, wood preservatives, or cleaning sprays may rubber 'feet' to soften, and leave marks or a rubber residue on the furniture. damage to your furniture we strongly recommend that you purchase small self-ac pads, available at hardware stores and home improvement centers everywhere, at these pads to the bottom of the rubber 'feet' before you place the product or furniture.

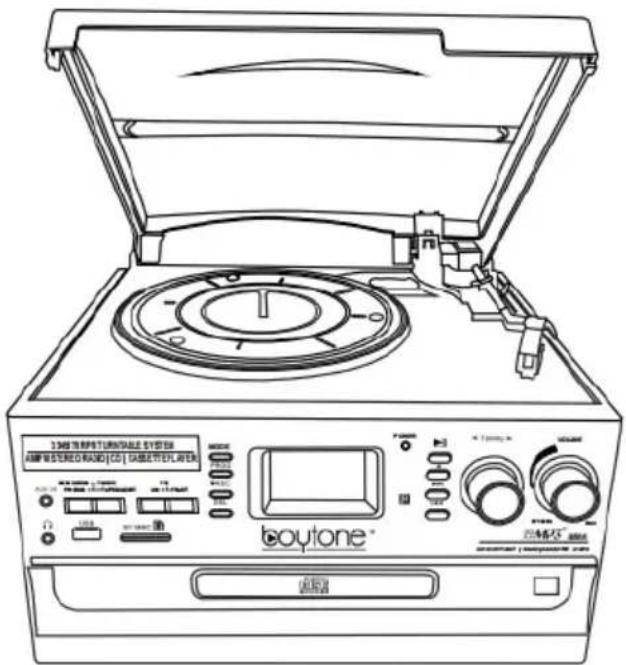

LOCATION OF CONTROLS AND INDICATORS

1) Dust cover
2) Revolving shaft
3) Turntable
4) Mode(USB/SD)
5) Function selector

6) Radio selector (AM/FM/FM-Stereo)
7) Auxiliary input
8) Program button
9) 3.5mm headphone socket
10) Record ● button

36) Cassette EJ/FF Button (Eject/Fast Forward.)

37) Cassette Player Slot.

NOTE: All the buttons on the remote control just use for CD/USB/SD function.

OPERATING INSTRUCTIONS

Listening to radio

1. Turn the volume knob in a clockwise direction to turn the equipment on.
2. Use the function selector to select TUNER mode.
3. Use the radio band selector to select the desired band (AM, FM or FM-St
4. Turn and hold the tuning knob for a few seconds to tune into a radio station will start searching automatically and stop when a radio station is found. Release the knob once a station has been found.
5. Repeat the above step until your desired radio station is found.
6. Adjust the volume knob to your desired volume level.
7. AM reception: the receiver has a built-in AM bar antenna. If reception is weak, slightly rotate or reposition the unit to improve AM reception.
8. FM reception: the receiver has a built-in FM wire antenna hanging at the rear cabinet. For best reception, completely unravel and extend this wire.

FM and FM-stereo mode

● FM mode: use the radio band selector to select the FM band. Programs are received in mono mode. Use this mode when stereo reception is weak.
● FM-Stereo mode: use the radio band selector to select FM-ST for receiving stereo programs. Once a stereo signal is received, the ST icon will light up on

AM/FM Radio memorization for preselected channel

1. Turn the volume knob clockwise to turn the equipment on.
2. Use the function selector to select TUNER mode.
3. Use the radio band selector to select the desired band (AM, FM or FM-Ster
4. Turn and hold the tuning knob for a few seconds to choose a desired radio save. Then press PROG button → press or to set the Saved Number (such P01, P02)
5. Repeat the 4th operation to save other preselect radio stations

Phono Operation

1. Open the dust cover and turn the volume knob clockwise to turn the equip
2. Use the function selector to select PHONO mode.
3. Set the speed selector to the appropriate position: 33, 45 or 78, depending record to be played.
4. Set the auto stop control to ON if you want the turntable to stop turning reached the end of the record. If the switch is set to OFF, the turntable turning at the end of the record.
5. Place the record on the turntable (use the 45 rpm adaptor, if required).
6. Move the lift lever towards the back to raise the tone arm from the arm slowly move the arm to the record, as illustrated on the right. The turntable rotating.
7. Move the lift lever towards the front, the tone arm will gently drop onto the and playback will start.
8. To stop playback, move the lift lever towards the back to raise the tone a turntable will still be rotating but the record will stop playing. To continue p move the lift lever towards the front.
9. To play a different piece on the record, move the lift lever towards the ba raised tone arm to the start of the piece and then move the lift lever tov

lower the tone arm and start playback.

1. To adjust the volume level, turn the volume knob to the right or left.
2. At the end of the record, move the lift lever towards the back to raise the move it back to the tone arm park, and then move the lift lever towards the arm onto its rest.
3. Alternatively, lift the tone arm off the record and return it to the arm rest
4. When you have finished playing records, engage the tone arm lock to prote-accidental movement. Turn the volume knob in a counterclockwise direction to the unit off. Unplug it from the power supply if you are not going to use

NOTE: Should your record stop before the last track finishes, set the auto sto OFF. Your record will now play to the end, but you will have to stop rotation manually. (Return the tone arm to its rest manually and if the still rotating, switch off the unit by the volume control knob. Then set the control back to ON.)

Phono encoding

1. Set the function button to PHONO mode and then insert a memory device SD or MMC card).
2. Put your record onto the turntable and get it ready for playback.
3. Press the record ●REC button. It will take about 3 - 4 seconds to read the memory device, then the USB or SD icon will be flashing on the LC displ
4. Press the skip ▶ or skip down ▶ button to select the desired mode (USB or SD) for encoding, then press the record REC button again to confirm. (You can skip this step if only a USB drive or an SD/MMC card is inser
5. The system will start the encoding mode after a few seconds.
6. Lower the tone arm to start playback of the record. During encoding, the L icon will be flashing on the display.
7. To finish encoding, press the stop button. The display will show "END" and PHONO mode.

NOTE:

● The recording speed is 1:1. Recording will take as long as playing the rec
● The recording format is preset at MP3 bit rate 128 kbps.

Cassette Operation

1. Turn the volume knob clockwise to turn the equipment on.
2. Use the function selector to select TAPE/AUX mode.
3. Insert a cassette with the tape facing away from you, as illustrated on the EJECT/FAST FORWARD button will pop out and the system will start playing the tape automatically.
4. Turn the volume knob to your desired level.
5. To fast forward the cassette tape, press the EJECT/FAST FORWARD button down while the cassette is playing. The tape will be advanced forward rapid
6. To resume normal playback, slightly press the EJECT/FAST FORWARD button The button will fully pop out again.
7. To stop playback, press the EJECT/FAST FORWARD button completely. Playback be stopped and the cassette tape will be ejected.

IMPORTANT!

When using the cassette deck:

● Make sure to insert the cassette in the correct direction.
- To avoid damaging the cassette, we strongly recommend taking it out of the equipment after playing the cassette.

Cassette encoding

1. Set the function button to TAPE/AUX mode and then insert a memory device drive, SD or MMC card).
2. Press the record REC button, it will take 3 - 4 second to read the mem then the USB or SD icon will be flashing on the LC display.
3. Press the skip up or skip down button to select the desired mode (USB or SD) for encoding, then press the record REC button again to confirm.

(You can skip this step if only a USB drive or an SD/MMC card is inser

1. The system will start the encoding mode after a few seconds. Insert your playback slot. During encoding, the USB or SD icon will be flashing on
2. To finish encoding, press the stop button. The display will show "END" and to TAPE/AUX mode.

NOTE:

● The recording format is preset at MP3 bit rate 128 kbps.
● The recording speed is 1:1. Recording will take as long as playing the rec

CD Operation

1. Turn the volume knob clockwise to turn the equipment on.
2. Press the CD-Rom switch, then the disk tray door opens.
3. Place the CD face up inside, making sure it is fully placed. Then press the switch again, the disk tray door closes.
4. To play a different piece on the record, Press the skip up or skip down button to select the desired piece.
   5 To adjust the volume level, turn the volume knob to the right or left.

CD encoding

1. Set the function button to CD/USB/SD mode and then insert a memory dev (USB drive, SD or MMC card).
2. Press the record REC button, it will take 3 - 4 second to read the mem device, then the USB or SD icon will be flashing on the LC display.
3. Press the skip up ▶▶| or skip down |◀◀ button to select the desired mode

(USB or SD) for encoding, then press the record REC button again to conf (You can skip this step if only a USB drive or an SD/MMC card is inser

1. The system will start the encoding mode after a few seconds. Insert your the playback slot. During encoding, the USB or SD icon will be flashing on the

2. To finish encoding, press the ▪stop button. The display will show

"END" and return to CD/USB/SD mode.

NOTE:

- The recording speed is 1:1. Recording will take as long as playing the rec The recording format is preset at MP3 bit rate 128 kbps.

Bluetooth Operation:

1. Turn the Function Knob to BT In mode, you will hear an activation sound from the unit.
2. Turn on the Bluetooth feature of your audio device, search for "Boytone" ar
3. Once your device is successfully paired with the unit, you will hear a short confirmation sound from the unit.
4. Play and stream music from your device to the unit.

Note:

• Bluetooth version - 5.0
• The Bluetooth and Aux In modes are shared under the same Function Swit. Make sure no auxiliary cable is plugged into the Aux In jack.

The USB Port and SD Card Slot

Playback of music in MP3/WMA format via USB device or memo

The system is able to decode and playback all MP3/WMA files stored in the media connected to the USB port or SD/MMC card slot.

1. Turn the volume knob clockwise to turn the equipment on.

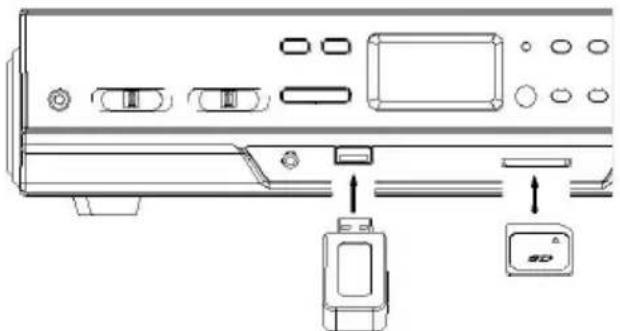

2. Following the illustration below, insert a USB device face up into the USB sure it is fully inserted. Alternatively, insert a memory card in the direction (as shown on the label next to the memory card slot), making sure to ins without bending.

IMPORTANT: Connecting the USB device upside down or backwards could da the audio system or storage media (USB drive, SD or MMC ca to ensure the direction is correct before connection.

Diagram of a computer monitor rear panel with labeled ports and connectors (no text or symbols present)

1. Set the function selector to USB/SD mode. (If you have both a USB device memory card inserted, press the MODE button to toggle between USB and The system will start reading the storage medium automatically after mode set and will display the total number of folders and MP3/WMA files.

2. The system will then start audio playback from the media storage device (U SD card) automatically.

Playback controls

PLAY/PAUSE Press this button once to stop playing, press it again to continue

STOP Press this button to stop audio playback, the display will then show the total number of MP3/WMA files.

SKIP UP Press this button once to play the next file, press and hold this bit to fast forward through the files/tracks.

SKIP DOWN Press this button once to play the previous file, press and hold button to fast reverse through the files/tracks.

TUNING KNOB Turn this knob to the right/left to search a folder backward or forward.

MODE Press this button to toggle between USB and SD Card mode.

Important notes

- The system can detect and read files in MP3 / WMA format only via the card slot.

- You can connect an MP3 player to the system via the USB socket, however, players may not be able to play via the USB socket. This is due to va

MP3 encoding format; it is not a malfunction of the system.

• There are numerous USB and SD device producers and their products vary and format. We therefore cannot guarantee that this unit will support all US devices from every brand.
  ● This system supports SD cards up to 8GB.
  ● MP3 / WMA track format requirements:
• MP3 bit rate: 32 kbps\~256 kbps; WMA bit rate: 32 kbps \~ 320 kbps.

Programming tracks for playback

Up to 64 tracks can be programmed for MP3 / WMA file playback in any or Before programming, however, be sure the system is in STOP mode.

1. Set the function selector to CD/USB/SD mode, then press the stop button.
2. Press the program PROG button, MEM will be flashing on the LC display, a indicate the program number and digits for the track number to be programm

3. Press the SKIP UP ▶▶▶| or SKIP DOWN ◀◀◀ button to select a desired track.

4. Press the program PROG button to store the track into the memory.

5. Repeat steps 3 and 4 to enter additional tracks into the memory.

6. When all desired tracks have been programmed, press the PLAYHAUSE button to play the tracks in the assigned order.

7. To cancel programming, press the STOP button twice.

Copying of MP3 / WMA files

The system allows you to copy files from USB to SD/MMC or vice versa. Yo single file/track, a folder of files/tracks, or all files/tracks on the storage medium

Copying a single file/track

1. Insert a USB storage device and SD/MMC card, then select USB/SD mode (a described previously).

2. Press the record REC button during playback of the track you want to cop

will be flashing on the display. Press the record REC button again to confirm

1. The USB or SD icon will be flashing on the display while the system is c
2. Once the file has been copied, the unit will stop playback automatically. "EN" shown on the display and the system will revert to USB or SD mode.

Copying a folder

1. Insert a USB storage device and SD card, then select USB/SD mode (as de previously). When the system has recognised the device, press the stop button
2. Turn the tuning knob to select the desired folder for copying.
3. Press the record REC button: "ONE" will be flashing on the display. Press the SKIP UP ▶ | SKIP DOWN button to select "FOL" (folder) on the display. Press the record REC button again to confirm.
4. The USB or SD icon will be flashing on the display while the system is c folder.
5. When the folder has been copied, the USB or SD icon will stop flashing

Copying all files/tracks

1. Insert a USB storage device and SD card, then select USB/SD mode (as previously). When the system has recognised the device, press the stop button
2. Press the recoil REC button: "ONE" will be flashing on the display. Press the SKIP UP ▶▶ or SKIP DOWN ◀◀ button to select "ALL" on the display.

Press the record REC button again to confirm.

1. The USB or SD icon will be flashing on the display while the system is tracks.
2. When all files/tracks have been copied, the USB or SD icon will stop flashing display.

NOTE: If you press the record ● REC button during playback in USB or SD mode, the file will copy from USB to SD or vice versa.

Deleting files from the USB device / SD card

The system is able to erase files stored on the USB drive or SD card. You single file/track, a folder of files/tracks, or all files/tracks on the storage medium

Deleting a single file/track

1. Insert the USB storage device or SD card, then select USB/SD mode (as de previously).
2. Press the delete DEL button during the playback of the track you want to will be flashing on the display. Press the delete DEL button again to confirm
3. “DEL” will show on the display while the file/track is being deleted until the complete.

Deleting a folder

1. Insert a USB storage device and SD card, then select USB/SD mode (as de previously). When the system has recognised the device, pre■ the stop button
2. Turn the tuning knob to select the desired folder for deleting.

3. Press the delete DEL button: "ONE" will be flashing on the display. Press the
   SKIP UP ▶ ISKIP DOWN button to select "DIR" (directory) on the display. Press the delete 'DEL' button again to confirm.

4. “DEL” will show on the display while the folder is being deleted until the complete.

Deleting all files/tracks

1. Insert a USB storage device and SD card, then select USB/SD mode (as previously). When the system has recognised the device, pre■ the stop button

2. Press the delete DEL button: "ONE" will be flashing on the display. Press the

SKIP UP ▶ SKIP DOWN button to select "ALL" on the display.

Press the delete DEL button again to confirm.

1. While the system is deleting the files/tracks, the USB or SD icon will be displayed until the deletion is complete.

NOTE: Pressing the delete DEL button will completely delete all files/tracks on the USB device or SD card.

Removing the USB device / SD card

• First move the function selector to another mode (tuner, phono, tape), then volume knob counterclockwise to turn off the power.
• To remove a USB device, pull it out of the USB port.
• To remove a memory card, press the memory card inwards and then releases card will be released (partially ejected) and you can remove it by hand.

The auxiliary input

Listening to a CD (or other auxiliary input)

1. Turn the volume knob clockwise to turn the equipment on.
2. Use the function selector to select TAPE/AUX mode, then connect the external device (such as a CD player) to the AUX IN socket at the front of the audio signal from the external audio device will now be played through the
3. If an external audio device is connected to the AUX IN socket, playing of device takes priority over cassette playback.

NOTE:

If you won't use the unit for a long time, you had better take the CD out door.

AUX IN encoding

1. Use the function selector to select TAPE/AUX mode and then insert a mem (USB drive, SD or MMC card).
2. Press the record REC button, it will take 3 - 4 seconds to read the men then the USB or SD icon will be flashing on the LC display.

3. Press the skip ▶ or skip down ◀ button to select the desired mode (USB or SD) for encoding, then press the record REC button again to confirm. (You can skip this step if only a USB drive or an SD/MMC card is inser

4. The system will start the encoding mode after a few seconds. During encoding USB or SD icon will be flashing on the display.

5. To finish encoding, press the stop button. The display will show "END" and to TAPE/AUX mode.

NOTE:

• The recording speed is 1:1. Recording will take as long as playing the CD auxiliary input).
  ● The recording format is preset at MP3 bit rate 128 kbps.

Troubleshooting Guide

If you are experiencing problems with your USB Turntable with Cassette Deck a check in the section below whether there are any quick and easy checks you may help you solve the problem. If you cannot solve the problem by yourself, after sales support line for advice. Do not attempt to open, repair or modify to yourself.

Problems with sound

• Clockwise rotate the power/volume knob to increase the volume.
• Make sure the unit's power cord is connected to an appropriate electrical ou
  ● Make sure the wall socket is switched on.
• Make sure the function switch is set to your desired function: PHONO, USB TUNER, TAPE/AUX.
• When playing records, make sure you've selected correct speed (33, 45, 78 rpm).
• When playing a cassette, make sure it is properly inserted.
• When playing a CD, make sure the CD is dealt face up.
• When playing a CD via the AUX IN connection, make sure the cable is full controls on the CD player are properly set, the disc tray is closed and clean and undamaged.
• When playing music from USB device (or SD/MMC card), make sure the mer is properly inserted in USB port (SD/MMC card slot) and correct MODE is

Problems with radio reception

● Make sure you are in an area that can receive signals for your selected
- If AM reception is weak, rotate or reposition the equipment to improve rece
- If FM reception is weak, try the following to improve reception:
- Completely unravel the wire aerial at the back of the cabinet.
- Slightly move the wire aerial for better reception.
- If none of these measures improve stereo reception, try the same station or (mono) band.
● Try moving your radio to an alternative location to see if the reception imp
- Check that you do not have other electrical equipment too close to your rad may cause interference.
