Product Type	Electrostatic powder spray gun
Model Series	Corona C4 (manual) and PEA-C4 (automatic)
Technology	Corona charging with integral high-voltage cascade up to 100 kV
Dimensions (Manual Gun)	Length: 395 mm; Weight: 504 g (PEM-C4 Ergo) / 890 g (PEM-CG4)
Dimensions (Automatic Gun)	Length: 395 mm to 1800 mm; Weight: 555 g to 1400 g depending on model
Max Powder Output (Manual)	450 g/min (PEM-C4) / 200 g/min (PEM-CG4)
Max Powder Output (Automatic)	Up to 800 g/min (PEA-C4 Twin)
Construction Standard	EN 50050 (manual), EN 50177 (automatic); Enclosure class IP54
Polarity	Negative
Key Features	HiCoat technology for homogeneous powder cloud; optimized electrostatic; FlexNozzle system; Powerlock quick cleaning; low maintenance
Safety Certifications	CE, FM, PTB; certified for Zone 21 internal coating; protection against high-voltage breakthroughs
Powder Types	Metallic, UDS, and special effect powder paints; universal corona application
Cleaning and Maintenance	Powerlock system for fast cleaning of powder duct; easily accessible wear parts; linear powder duct for simple cleaning
Spare Parts and Accessories	Wide range including nozzles, electrode holders, deflector cones, powder hoses, extensions, retrofit sets, and service tools
Repairability	Modular design with replaceable wear parts; low service costs; extended service life

Frequently Asked Questions - Corona WAGNER

What is the operating principle of the Wagner Corona paint gun?

The Corona process uses a high-voltage cascade integrated in the gun body to generate a high voltage (up to 100 kV). The charged powder particles move along field lines to the grounded workpiece, creating an even coating.

What is the difference between Corona and Tribo powder coating?

Corona uses high-voltage electrostatic charging, suitable for a wide range of powders including metallics (UDS). Tribo uses frictional charging, offering better penetration into recesses and smoother finish, but is not suitable for all powder types.

What are the main advantages of the HiCoat technology?

HiCoat technology delivers a homogeneous powder cloud, optimized electrostatic charging for increased transfer efficiency, reduced wear, and uniform film thickness distribution.

How do I clean the powder duct in the gun?

The Powerlock system allows fast and effective cleaning. It provides safe automatic cleaning of the powder duct, stable positioning of nozzle components, and easy accessibility to wear parts.

What safety certifications does the Corona gun have?

The gun holds CE, FM, and PTB certificates. It is certified for Zone 21 internal coating and features increased electrical safety to prevent high-voltage breakthroughs or blowbacks.

What is the maximum powder output of the manual Corona gun?

The PEM-C4 Ergo model can output up to 450 g/min (0.99 lb/min), while the PEM-CG4 cup gun outputs up to 200 g/min (0.44 lb/min).

Can I use metallic and special effect powders with the Corona gun?

Yes, the Corona process is ideal for metallic and UDS powder paints. The HiCoat technology ensures high-quality application with these materials.

How do I change nozzles on the automatic gun?

The WAGNER quick lock system provides a secure hold and enables fast nozzle changes. A large range of nozzles is available for different applications.

What is the weight of the manual Corona gun?

The PEM-C4 Ergo weighs 504 g, making it light and easy to handle. The PEM-CG4 with integrated powder cup weighs 890 g.

Are spare parts and accessories available for the Corona gun?

Yes, WAGNER offers a comprehensive range of spare parts and accessories including nozzles, electrode holders, powder hoses, extensions, retrofit sets, and service tools.

USER MANUAL Corona WAGNER

Industrial Solutions

Corona and Tribo Guns

Powder manual and automatic Guns

Interior view of a room with blue curtains and hanging shelves (no visible text or symbols)

■ Efficient and economical
■ Perfect application efficiency
Light and handy

WAGNER HiCoat gun technology

The HiCoat gun technology is the first step in reducing variations in coating thickness. This technology achieves a significantly more homogeneous powder distribution and an increased transfer efficiency.

SPECIAL ADVANTAGES:

■Homogeneous powder cloud
■Optimized e-static for efficient powder charging
■ Significant increase in the transfer rate
■Reduced wear
■Soft powder cloud
■Atomization selected to suit the workpiece
■Uniform film thickness distribution

Close-up of industrial machinery components with black cylindrical parts on a yellow surface (no visible text or symbols)

Reliable application of metallic and UDS powder paints

The new generation of guns from WAGNER represent efficiency and perfection. The integral high voltage cascade with a power rating of up to 100 kV works perfectly and safely. All electronic components are integrated in the robust plastic body of the gun. This means low service costs and a much longer service life.

Safety power & highest quality

The focus of all WAGNER developments is on safety and quality. WAGNER powder guns provide all the important certificates and are subject to permanent controls to avoid high voltage breakthroughs or blow backs into the powder duct.

CE declaration
■ FM certificate
■ PTB certificate
■ Increased electrical safety
■ Certified for Zone 21 internal coating

Powder coating technology

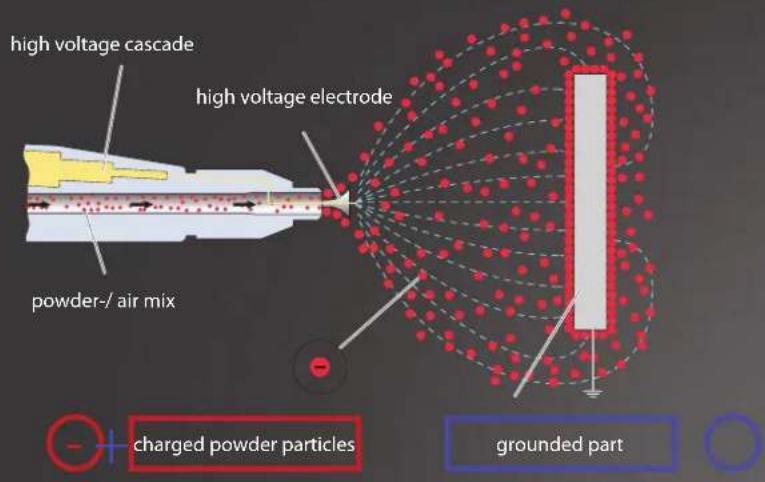

Corona powder coating

The producing of high voltage in the corona process is done with the aid of a high voltage cascade, which is integrated in the gun body. The high voltage is generated by means of a high voltage cascade that is installed in the gun body. The voltage level is regulated in the control module and is matched to the geometry of the work piece, or to the powder coating system in use. The charged particles „move“ along the field lines to the grounded work piece.

The advantages of the corona process are the low wear of the gun, the low air consumption as well as the universal application as many powder coatings (e.g. effect powder coatings) are not suitable for the tribo process.

Tribo powder coating

The Tribo process is based on frictional charging. In this case, the fluidized powder/air mixture in a PTFE powder tube is charged by means of friction against the inside tube wall. Due to its excellent electrical insulation properties (negative), PTFE is well-suited to charging the particles and its good anti-frictional properties prevent build-up on the walls.

The advantages of the tribo process are the good penetration depth and the better film thickness distribution. In comparison to the corona process, the powder can easily penetrate into depressions (e.g. mailboxes and rims). The coated surface is smoother with no "orange peel" effect.

Corona - Proven technology for outstanding results

Corona manual guns

Corona C4 manual guns are easy to handle as well as producing excellent coating results. They are the perfect tool for modern electrostatic powder coating.

Corona manual guns:

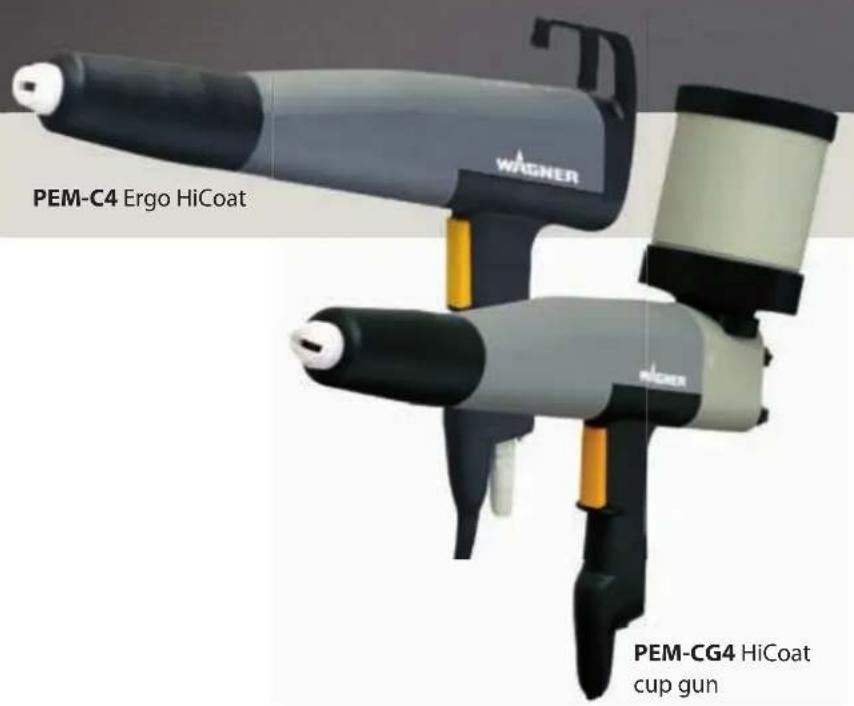

C4-HiCoat manual guns

PEM-C4 & PEM-CG4

High surface quality
Perfect ergonomics
Low maintenance

Technical data PEM-C4 PEM-CG4

Length 395 mm 395 mm

Weight 504 g 890 g

Build EN 50050 EN 50050

Enclosure class IP 54 IP 54

Polarity Negative Negative

Max. powder

output

450 g/ min.

0,99 lb/min.

200 g/ min.

0,44 lb/min.

The Powerlock system, fast and effective!

Save time when changing powders. The new system for fast effective cleaning.

■ Safe, automatic cleaning of the powder duct in the gun
■Stable positioning of the nozzle components
■ Easy accessibility to wear parts

Cross-sectional diagram of a mechanical device showing internal components and flow paths (no text or symbols)

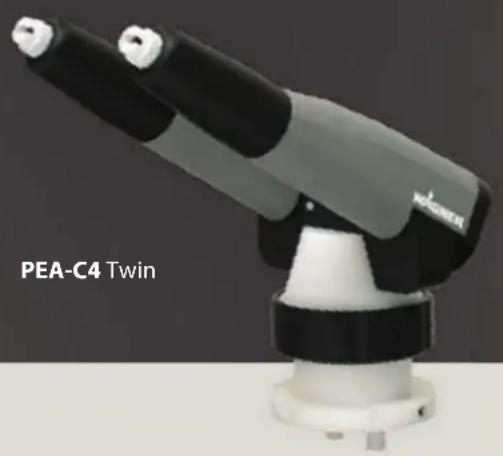

Corona automatic guns

The automatic guns don't leave anything to wish for either. Superior surface results and high transfer rates speak for themselves. With PEA-C4 XL HiCoat automatic guns even complex 3D coatings can be easily accomplished. The PEA-C4 Twin gun for buckling arm robots follows the work piece geometry fully automatically and with highest precision.

Close-up of a PEA-C4 Twin robotic arm with black and white body segments (no text or symbols on the device itself)

PEA-C4 XL HiCoat

C4-HiCoat-automatic guns

PEA-C4 Twin, PEA-C4 XL & PEA-C4

■ Maximum application efficiency
Fast nozzle exchange
Perfect geometry

PEA-C4 HiCoat

Exterior view of a WAGNER electric shaver tool (no text or symbols visible on body)

Technical data PEA-C4 Twin PEA-C4 XL PEA-C4

Length 500 mm up to 1800 mm 395 mm

Weight 1.400 g 1.230 g 555 g

Build EN 50177 EN 50177 EN 50177

Enclosure class IP 54 IP 54 IP 54

Polarity Negativ

Negativ

Negative

Max. powder output

800 g/ min. 1,76 lb/min.

450 g/ min. 0,99 lb/min.

450 g/ min. 0,99 lb/min.

Application advantages of PEA-C4 HiCoat guns

■Increased transfer rates (application efficiency) in combination with an optimized electrostatic for higher profitability.
■Process optimized FlexNozzle flat jet atomizing system for the widest variety of coating demands in practical applications.
■Homogenized and soft powder cloud for more uniform film thicknesses and optimized deposition of powder on the work-piece. Advantageous for applications that require long hose lengths.
■High quality application with metallic and special effects powder including UDS powder paints.
■ Infinite jet spray control for a perfect adjustment to all surface contours.
■ Newly developed round jet nozzle system with oval and soft powder cloud.

Tribo - Proven technology for outstanding results

Tribo manual guns:

PEM-T3 Tribo manual gun for difficult parts

PEM-TG3 Tribo manual gun with integrated powder supply via the attached powder cup.

T3 manual guns

PEM-T3 & PEM-TG3

Ergonomic shape
Flexible
High application efficiency

Gun technology

Tribo Coating

SPECIAL CHARACTERISTICS

■Light weight gun allows long and fatigue-free working.
■ Low maintenance costs on wear parts including the charge body. Single parts can be exchanged separately according to their wearing.
■Flexible for all coating tasks as round and flat jet nozzles are included.
■ Easy cleaning and maintenance due to the linear powder duct and easily cleaned gun geometry.
■Additional Tribo air entrance for the handling of powder with poor charging properties.

Technical data PEM-T3 PEM-TG3

Length 500 mm 500 mm

Weight 590 g 890 g

Build according to ATEX regulation 94/9/EG, EN 50050

Enclosure Class IP 54 IP 54

Polarity Positive Positive

Max. powder

output

200 g/ min.

0,44 lb/min.

150 g/min.

0,33 lb/min.

Tribo automatic guns:

The PEA-T3 XL powder gun is particularly suitable for the use in plastic booth and available as Tribo and electrostatic version.

The PEA-T3 Tribo automatic gun for universal applications, with integrated gun holder.

T3 automatic guns

PEA-T3 & PEA-T3 XL

- Flexible application possibilities

User friendly

Optimal geometry

Technical data PEA-T3 PEA-T3 XL

Length 480 mm 1.048 mm

Weight 900 g 1.620 g

Build according to ATEX regulation 94/9/EG

Enclosure Class IP 54 IP 54

Polarity Positive Positive

Max. powder

output

300 g/ min.

0,66 lb/min.

300 g/ min.

0,66 lb/min.

Tribo automatic spray guns

The guns are available in different lengths. Color changes can be carried out quickly.

■ Maximum application efficiency

The usage of high performance cascades allows a maximum application efficiency and therefore reduced powder consumption.

■Flexible fields of application

The large range of different nozzles enlarges the field of application of the WAGNER automatic guns.

Fast nozzle change

The WAGNER quick lock system provides a secure hold of the gun and enables fast nozzle changes.

Interior view of a large industrial or laboratory facility with metal beams and structural supports (no visible text or symbols)

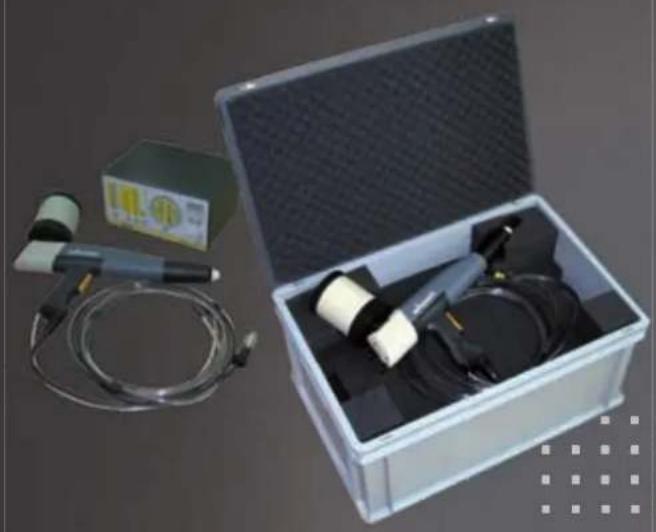

Powder cup laboratory set Sprint-C

The PEM-CG4 powder gun is the perfect device for the coating of individual parts and very small quantities, as well as for laboratory and development purposes. No containers or boxes are required due to the integrated powder cup. The WAGNER accessory program offers a large selection of cup sizes and nozzle systems.

The EPG SPRINT control unit offers extensive settings and allows storing of more than 50 coating programs. Individual settings for different parts can be stored to guarantee fast and easy coating with highest reproducibility.

Open laboratory equipment including a medical device with tubing and a box labeled 'B' (no visible text or symbols on main subject)

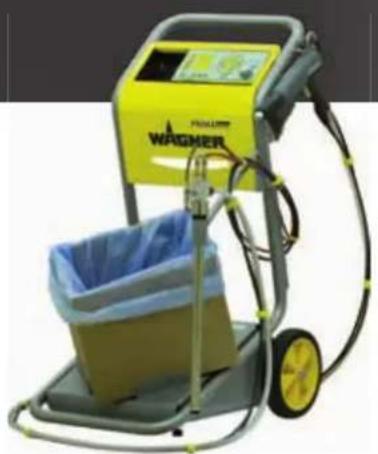

Manual Unit

PrimaSprint

PrimaSprint, WAGNER's new manual powder system, combines attractive design and superior functionality. Easy handling and exceptional coating results are achieved by the electronic controller EPG-Sprint. Its central dynamic control dial combines the operation of all parameters, which are divided into four functional sections. Unique cascade characteristic curve settings, for instance and Tribo compatibility offer the greatest flexibility for all types of powder.

Yellow WAGMER Gasoline electric shock absorber with blue filter and wheels (no visible text or symbols)

www.wagner-group.com

J. Wagner GmbH

Industrial Solutions

D-88677 Markdorf

Tel. [phone]

Industrial Solutions

CH-9450 Altstätten/SG

Tel. [phone]

Fax [phone]

BASIC UNITS

Description		Corona Guns Tribo Guns
Basic Units
	Corona manual gun PEM C4 Ergo	2305069	-
	Corona manual gun PEM-CG4	390003	-
	Corona automatic gun PEA-C4 Twin	390010	-
	Corona automatic gun PEA-C4XL 1.1	390006	-
	Corona automatic gun PEA-C4XL 1.4	390007	-
	Corona automatic gun PEA-C4XL 1.8	390008	-
	Corona automatic gun PEA-C4	390004	-
	Tribo manual gun PEM-T3	-351019
	Tribo manual gun PEM-T3 DDF	-351043
	Tribo manual gun PEM-CG3	-351036
	Tribo automatic gun PEA-T3	-351018
	Tribo automatic gun PEA-T3XL 1.1	-351030
	Tribo automatic gun PEA-T3XL 1.4	-351029
	Tribo automatic gun PEA-T3XL 1.8	-351032

ACCESSORY

Powder hoses - Manual and automatic application systems
	Powder hose conductive d8 351798
	Powder hose conductive d9 351794
	Powder hose conductive d10 2310699
	Powder hose conductive d11 2307502
	Powder hose conductive d12 2310700
Nozzel Accessory - Manual and automatic application systems
	Nozzel F1 390324 * -
	Nozzel F2 390325 * -
	Nozzel F3 390326 * -
	Nozzel F4 2311889 * -
	Deflector cone D20 390207 * -
	Deflector cone D28 390208 * -
	Deflector cone D38 390209 * -
	Fan tip packaged - 260926 *
Accessory - Manual and automatic application systems
	Electrode holder for fan spray nozzles for C4 guns 390915 * -
	Electrode holder for round spray nozzles for C4 guns 390916 * -
	Protective wedge C4 390310 * -
	Wedgetool including 20 wedges 390900 * -
	CoronaStar for C4 guns	390918	-
Accessory - Manual application systems
	Extension 150 mm	2308703	-
	Extension 300 mm	390977	-
	Extension 500 mm	2301006	-
	Deflector cone Tribo ∅22 mm	-259474 *
	Deflector cone Tribo ∅28 mm	-259475 *
	Nozzel extension 300 mm	-260934
	Powder cup 220 CM3	241117
	Powder cup 500 CM3	3050701
	Powder cup 900 CM3	3053662

ACCESSORIES

Description Corona Guns Tribo Guns

Nozzle Accessory - Manual application systems
	Finger nozzle, 10 fingers - 260638
	Finger nozzle, 10 fingers, crossed - 260641
	Finger nozzle, 16 fingers - 260637
	Finger nozzle, 16 fingers, crossed - 260642
	Adapter, 10-fingers - 260639
	Adapter, 16-fingers - 260648
	Powder shower - 260504 *
	Round nozzle ∅ 2,3mm - 260505
	Nozzle ∅ 8mm - 260519
	Nozzle ∅ 10mm - 260518
Retrofit sets - Manual application systems
	Retrofit set, PEM-C2 to PEM-C4 round spray 390929 -
	Retrofit set, PEM-C2 to PEA-C4 fan spray 390928 -
	Retrofit set, PEM-C3 to PEM-C4 round spray 390920 -
	Retrofit set, PEM-C3 to PEA-C4 fan spray 390903 -
Service Accessory - Automatic application systems
	Powder measurement bag C4 390940 -
	Powder measurement bag C3 935517 -
	High voltage tester HV200N	259010 -
	Mounting tool	390939 -
Accessory - Automatic application systems
	Mini CoronaStar	390957 -
	Electrical cable 5 m	351216 -
	Electrical cable 10 m	351217 -
	Electrical cable 20 m	351215 -
	Deflector conr Tribo ∅18 mm	- 260267 *
	Deflector conr Tribo ∅25 mm	- 260266 *
	Deflector conr Tribo ∅32 mm	- 260268 *
	Fan spray nozzle Tribo	- 260928
	Electrical cable 5 m	- 351297
	Electrical cable 10 m	- 351296
	Electrical cable 20 m	- 351295
Special Accessory - Automatic application systems
	Angle adapter WA30 C4	390927 -
	Angle adapter WA60 C4	390930 -
	Angle adapter WA90 C4	390931 -
	CoronaStar WA C4	2306335	-
	Angular nozzle 90°	- 260106
	Tribo lance 1700 mm	- 259272
Retrofit sets - Automatic application systems
	Retrofit set, PEA-C2/C3 to PEA-C4 round spray	390922 -
	Retrofit set, PEA-C2/C3 to PEA-C4 fan spray	390905 -
	Retrofit set, PEA-C2A/C3A to PEA-C4A round spray	390924 -
	Retrofit set, PEA-C2A/C3A to PEA-C4A fan spray	390907 -
	Retrofit set, PEA-C2XL/C3XL to PEA-C4XL round spray	390923 -
	Retrofit set, PEA-C2XL/C3XL to PEA-C4XL fan spray	390906 -
	Retrofit set, PEA-C2 TWIN to PEA-C4 Twin round spray	390925 -
	Retrofit set, PEA-C2 TWIN to PEA-C4 Twin fan spray	390908 -
