Product Type	Cassette Player with Radio, Bluetooth, USB/SD
Brand	Crosley
Model	CT100B
Power Source	AC 120V/60Hz or 4 x D (UM-1) batteries (not included)
Power Consumption	10 W
Power Output	4 W
Speaker	8 Ω, 10 W
Frequency Range AM	522 – 1710 KHz
Frequency Range FM	87.5 – 108 MHz
Frequency Range SW1	3.0 – 13.0 MHz
Frequency Range SW2	13.0 – 23.0 MHz
Bluetooth Version	5.0
USB/SD Card Support	Up to 32 GB
Recording Functions	Microphone to Tape, Radio to Tape, USB/SD to Tape, Radio to USB/SD, Cassette to USB/SD
Controls	Play, Record, Fast Forward, Rewind, Pause, Stop/Eject, Function Switch (OFF/TAPE, RADIO, BT/USB/SD), Band Switch (FM, AM, SW1, SW2), Tone, Volume, Tuning Knobs
Indicators	Red light for recording
Antenna	Telescopic antenna for FM/SW bands
Package Contents	Cassette Player, Power Plug
Safety Features	Polarized plug, ventilation slots, auto power-off after 20 minutes idle
FCC Compliance	Part 15, Class B device

Frequently Asked Questions - CT100B Crosley

How do I turn on the radio?

Set the Function Switch to RADIO position, then select a band (FM, AM, SW1, SW2) using the Band Switch, and rotate the Tuning Knob to find a station.

How can I record from the radio to a cassette tape?

Set the Function Switch to RADIO, insert a cassette tape, and press the Record button. To pause, press Pause; to stop, press Stop/Eject.

Does the CT100B support Bluetooth?

Yes, it supports Bluetooth 5.0. Set the Function Switch to BT/USB/SD, activate Bluetooth on your device, and pair with 'CROSLEY CT100B'.

What type of batteries does it use?

It uses 4 D (UM-1) 1.5V batteries, which are not included. Alternatively, you can use the included AC power plug (120V/60Hz).

Can I play music from a USB drive or SD card?

Yes. Set the Function Switch to BT/USB/SD, insert a USB drive or SD card (up to 32 GB), and use the USB/SD Play/Pause, Fast Forward, and Rewind buttons.

How do I record a cassette to USB/SD?

Set the Function Switch to TAPE, play the cassette, insert a USB/SD, and long-press the USB/SD Play/Pause/Record button. The red light will flash. To stop, long-press again.

What should I do if the device does not power on?

Check that the power cord is properly connected to an outlet (120V/60Hz) or that batteries are inserted correctly. Ensure the Function Switch is not set to OFF.

Can I record from the built-in microphone?

Yes. Set the Function Switch to TAPE, insert a cassette, and press the Record button. The microphone will pick up sound. Use Pause to pause recording.

What is the auto power-off feature?

To save energy, the device will automatically switch off after 20 minutes of no audio input. To resume, turn the power off and on again.

How do I clean the cassette player?

Unplug the device. Use a soft, dry cloth to wipe the exterior. For the cassette heads, use a head cleaning cassette (not included). Avoid using liquids or abrasives.

USER MANUAL CT100B Crosley

Read and understand this entire manual before using this product. Keep these instructions for future reference.

1. Do not use this product near water.
2. This product should be operated only by the type of power source indicated on the marking label or in this instruction manual.
3. Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet try reversing the plug. If the plug should still fail to fit, contact your electrician.
4. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
5. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
6. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
7. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
8. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
9. Do not use attachments not recommended by the product manufacturer as they may cause hazards.
10. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
11. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. Do not block or cover these openings.
12. Unplug the product during lightning storm or when unused for long periods of time.

Items in this package

Before throwing away any packaging materials, please check thoroughly and make sure you find the following items that come along with this package:

• Cassette Player
• Power plug

Please contact Crosley customer service if there is any accessory missing from the package. Retain the original packaging materials for exchange or return purposes.

Specifications

Power AC 120V / 60Hz

Battery Supply "D" (UM-1) 1.5V X 4 (Not Included)

Power Output 4 W

Power consumption 10 W

Speaker 8 Ω 10W

Frequency Range AM 522 – 1710 KHz

FM 87.5 - 108 MHz

SW1 3.0 - 13.0 MHz

SW2 13.0 – 23.0 MHz

Note:

• Design and specifications are subject to change without notice.
• To help save power consumption, some models will comply with ERP energy saving standard. When there is no audio input for 20 minutes, their powers will automatically cut-off. To turn power back on and resume playing, you will need to turn off the power and turn it on again.

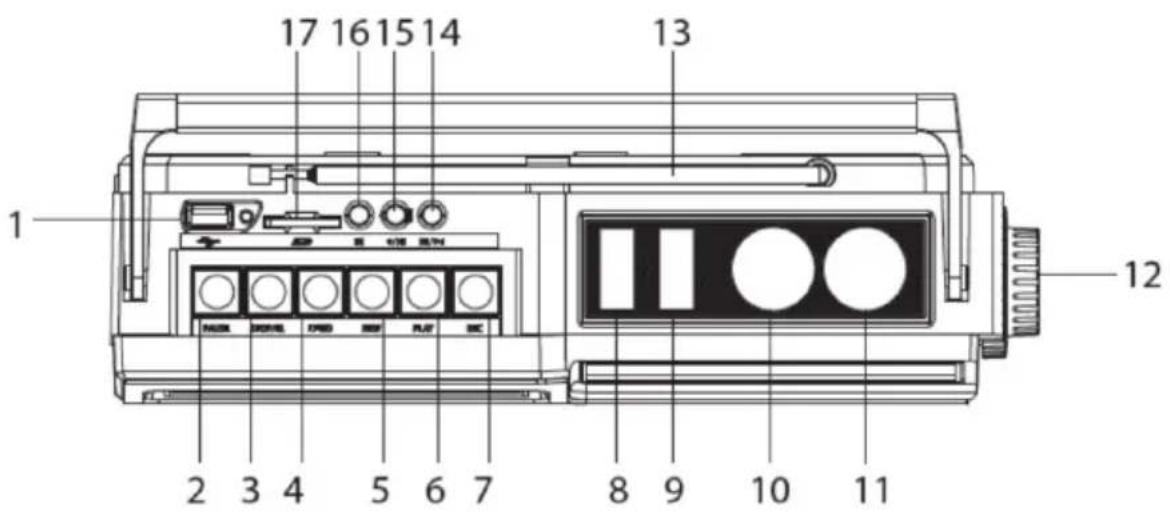

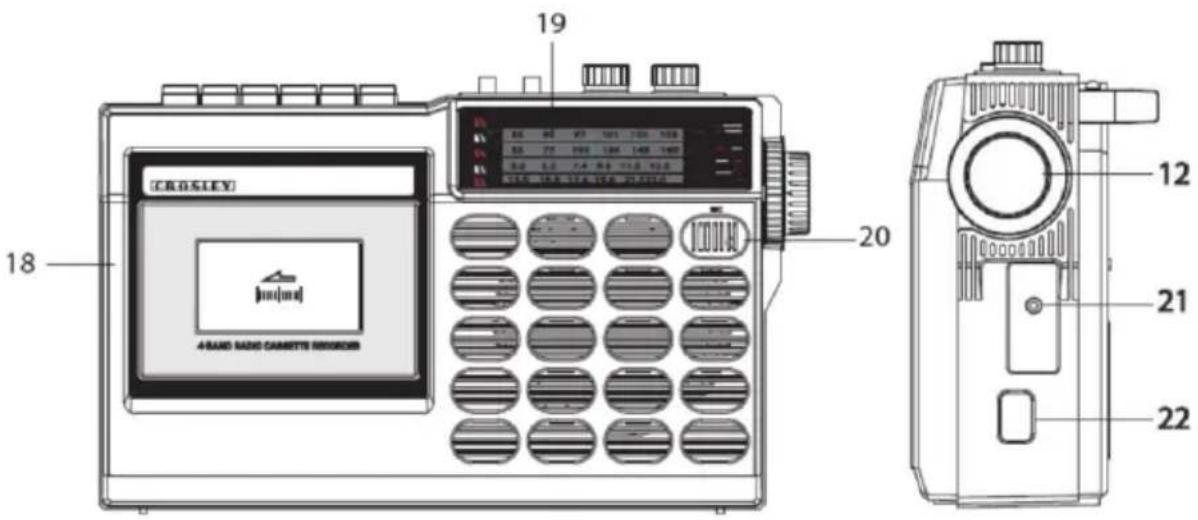

Product Description

1. USB Port
2. Pause Button
3. Stop/Eject Button
4. Fast Forward Button
5. Rewind Button
6. Play Button
7. Record Button
8. Function Switch
9. Band Switch
10. Tone Knob
11. Volume Knob

12. Tuning Knob

13. External Antenna

14. USB/SD Fast Forward Button
15. USB/SD Play/Pause/Record Button
16. USB/SD Rewind Button
17. SD Card Slot
18. Cassette Tray
19. Dial Scale
20. Microphone
21. Headphone Jack
22. Power Plug

Radio Operation

1. Set the Function Switch to RADIO position
2. Set the Band Switch to FM, AM, SW1, or SW2 position.
3. Rotate the Tuning Knob for desired radio station.
4. To turn off the unit, set the Function Switch to the OFF/TAPE position and make sure none of the cassette button are pressed in.

Note:

• When operating FM and SW band radio, pull up the TELESCOPIC ANTENNA, and adjust position to get better reception.
  • SW1 and SW2 are shortwave radio bands.

Cassette Operation

1. Set the Function Switch to TAPE position.
2. Insert the prerecorded cassette into the cassette tray, and press the Play button.
3. To fast forward, press the Fast Forward button in. To stop fast forwarding and return to the playback mode, press the Play button.
4. To rewind, press the Rewind button in. To stop rewinding and return to the playback mode, press the Play button.
5. To stop the playback, press the Stop/Eject button once. To eject the cassette, press the Stop/Eject button again.
6. To turn off the unit, set the Function Switch to the OFF/TAPE position and make sure none of the cassette button are pressed in.

Note: Remove the cassette from the cassette holder when it is not in use.

Cassette Recording

MICROPHONE to TAPE

1. Set the Function Switch to TAPE position
2. Insert a cassette tape, and press the RECORD button to record the sounds through the microphone.

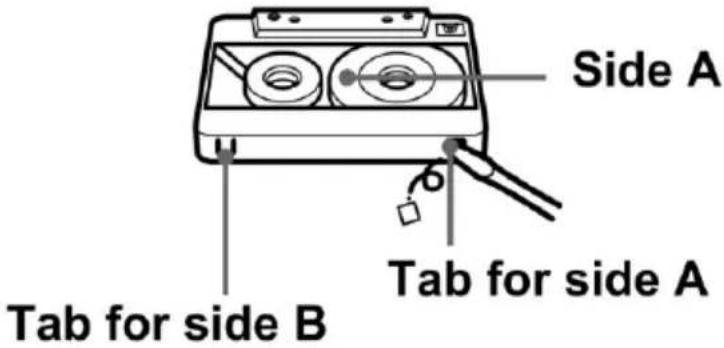

Note: To prevent accidental recording, break off the cassette tab from side A or B.

1. To pause recoding, press the Pause button.
2. To stop recording, press the Stop/Eject button.

RADIO to TAPE

1. Set the Function Switch to RADIO position
2. Insert a cassette tape, and press the RECORD button to record the sounds from the radio.

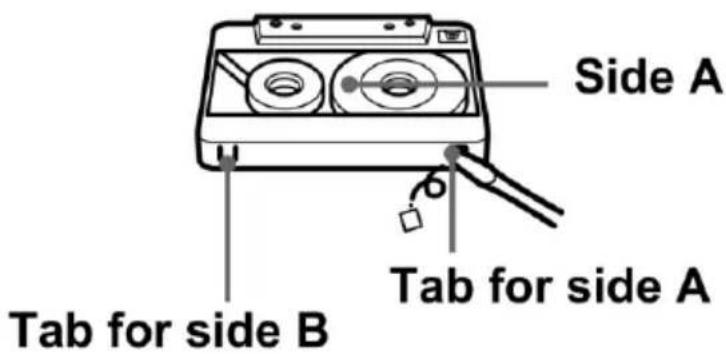

Note: To prevent accidental recording, break off the cassette tab from side A or B.

1. To record, press the Record button to start recording.
2. To pause recoding, press the Pause button.
3. To stop recording, press the Stop/Eject button.

USB to TAPE

1. Set the Function Switch to BT/USB/SD position
2. Insert a cassette tape, and press the RECORD button to record the sounds from USB/SD.

Note: To prevent accidental recording, break off the cassette tab from side A or B.

1. To pause recoding, press the Pause button.
2. To stop recording, press the Stop/Eject button.

BT to TAPE

1. Set the Function Switch to BT/USB/SD position
2. Insert a cassette tape, and press the RECORD button to record the sounds from USB/SD.

Note: To prevent accidental recording, break off the cassette tab from side A or B.

1. To pause recoding, press the Pause button.
2. To stop recording, press the Stop/Eject button.

Bluetooth Operation

1. Set the Function Switch to BT/USB/SD position, you will hear an activation sound from the unit.
2. Turn on the Bluetooth feature of your audio device, search for "CROSLEY CT100B" and pair.
3. Once your device is successfully paired with the unit, you will hear a short confirmation sound from the unit.
4. Play and stream music from your device to the unit.
5. To turn off the unit, set the Function Switch to the OFF/TAPE position and make sure none of the cassette button are pressed in.

Note: Bluetooth version - 5.0

USB/SD Playback

1. Set the Function Switch to BT/USB/SD position.
2. Insert a USB device into the USB port or a SD memory card into the SD card slot.
3. To fast forward, press the USB/SD Fast Forward Button in and release.
4. To rewind, press the USB/SD Rewind Button in and release.
5. To stop the playback, press the USB/SD Play/Pause/Record button.
6. To turn off the unit, set the Function Switch to the OFF/TAPE position and make sure none of the cassette button are pressed in.

Note:

- Only use 32 GB or smaller USB or SD memory card

USB/SD Recording

RADIO to USB/SD RECORDING

1. Set the Function Switch to Radio position.
2. Insert a USB device or SD memory card and long press USB/SD Play/Pause/Record Button. To record the current radio program into the USB device or SD memory card. The red light will flash quickly indicating recording has begun.
3. When you have finished recording, long press USB/SD Play/Pause/Record Button.
4. Set the Function Switch to USB position to hear recorded file.

CASSETTE to USB/SD RECORDING

1. Set the Function Switch to Tape position.
2. Insert a USB device or SD memory card and long press USB/SD Play/Pause/Record Button. To record the current cassette playing into the USB device or SD memory card. The red light will flash quickly indicating recording has begun.
3. When you have finished recording, long press USB/SD Play/Pause/Record Button.

Note:

- USB/SD recording will record any background noise.

FCC Statements

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

2. This device may not cause harmful interference, and

3. This device must accept any interference received, including interference that may cause undesired operation.

4. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum distance 20cm between the radiator & your body

RF warning statement:

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
