2711APRDK-LF - Irrigation Controller Irritrol - Free user manual and instructions

Product Type	Irrigation Controller
Brand	Irritrol
Model	2711APRDK-LF
Number of Stations	11
Power Input	120VAC, 60Hz (transformer included)
Output Voltage	24VAC
Display Type	LCD with backlight
Programming Capabilities	Multiple start times, day scheduling, seasonal adjustment
Watering Duration	1 minute to 99 hours per cycle
Rain Sensor Compatible	Yes
Manual Operation	Yes
Backup Battery	9V alkaline (for time and programming retention)
Dimensions (approximate)	22.5 cm x 18.5 cm x 6.5 cm
Weight (approximate)	1.2 kg
Enclosure Material	UV-resistant polypropylene
Operating Temperature	-10°C to 55°C (14°F to 131°F)
Waterproof Rating	NEMA 3R (indoor/outdoor with rain shield)
Zone Valve Compatibility	24VAC latching or standard solenoid valves
Pump Start Relay	Master valve output (for pump or main valve)
Warranty	2 years
Regulatory Compliance	FCC, UL, CSA, CE
Included Accessories	Mounting screws, user manual, 9V battery

Frequently Asked Questions - 2711APRDK-LF Irritrol

How do I set the time and date on the 2711APRDK-LF?

Press the SET button until the year flashes. Use the + or - buttons to adjust. Press SET again to move to month, day, and time. Confirm with SET.

How many watering programs does this controller support?

The 2711APRDK-LF supports up to 3 independent programs (A, B, C), each with multiple start times and days.

What type of battery is required for backup?

A standard 9V alkaline battery is used to retain time and program settings during power outages. Replace it annually.

Can I manually start a zone without affecting the program?

Yes, press the MANUAL button, select the desired zone, and set the run time. The controller will resume its normal schedule after manual watering.

How do I connect a rain sensor?

Connect the rain sensor wires to the SENSOR terminals (S1 and S2). Ensure the sensor is normally closed. Then enable rain sensor function in the settings menu.

What is the maximum run time per zone?

The maximum run time per cycle is 99 hours, but typical residential zones run 10-60 minutes. Adjust via the RUN TIME setting for each zone.

Why is my controller not turning on?

Check the transformer connection to AC power and ensure the breaker is on. Verify the fuse (if any) is intact. A dead backup battery won't prevent operation but may cause display issues.

How do I reset the controller to factory defaults?

Press and hold the RESET button (located behind the door panel) for 5 seconds while the unit is powered. All programs will be erased.

Can I use this controller for drip irrigation?

Yes, but you may need a pressure regulator and filter. Set shorter run times (e.g., 15-30 minutes) as drip irrigation delivers water slowly.

What does the 'LF' in the model number stand for?

'LF' indicates lead-free construction, complying with RoHS and environmental regulations.

USER MANUAL 2711APRDK-LF Irritrol

Click on the links to view the documents.

Drip Zone Valve Kit

Models 2500DK-1-LF and 2500DK-1-MF

Installation Instructions

373-0512 Revision B

Drip Zone Valve Kit

Models 2711APRDK-LF and 2711APRDK-MF

Installation Instructions

373-0513 Revision B

Drip Zone Valve Kit

Models 2713APRDK-LF and 2713APRDK-MF

Installation Instructions

373-0514 Revision B

Drip Zone Valve Kit

Models 700DK-075-LF

Installation Instructions

373-0515 Revision B

Drip Zone Valve Kit

Models 700DK-1-LF and 700DK-1-MF

Installation Instructions

373-0516 Revision B

Drip Zone Kit - Less Valve

Models DK-LV-LF and DK-LV-MF

Installation Instructions

373-0535 Revision A

Drip Zone Valve Kit Models 2500DK-1-LF and 2500DK-1-MF Installation Instructions

Kit Components

• Irritrol 2500 Series Valve, Model 2500TF
• Pressure Regulator - 25 psi at 0.1–8 GPM, 3/4" Female NPT (Low Flow [LF] model)
• Pressure Regulator - 25 psi at 2–20 GPM, 3/4" Female NPT (Medium Flow [MF] model)
  • 3/4" MPT x MPT F Series Y-filter, 150 Mesh Screen
  • Drip Line Compression Adapter, CA-710
  • 1" x 3/4" Male NPT Reducer Bushing
  • 3/4" MPT x 1/2" Slip Fitting

Specifications

• Downstream Pressure Regulation: 25 psi
• Flow Rate at 25 psi: (LF Model) 0.1–8 GPM (MF Model) 2–20 GPM
  • Filtration: 150 Mesh Stainless Steel Screen
  • 1" In-line Electric Control Valve, Model 2500TF
  ♦ Operating Pressure: 10–150 psi
  ♦ 24 VAC, 50/60 Hz Solenoid
  ♦ Inrush: 0.40 amp, 9.6 VA
  ♦ Holding: 0.20 amp, 4.8 VA
• Manual On/Off - Internal and External Bleed
• Adjustable Flow Control

Installation Procedure

CAUTION: When assembling the drip zone valve kit components, use just 1 12 to 2 turns of PTFE tape on male threads. Never use pipe dope. To achieve a leak-free thread connection, turn the male fitting until it is finger-tight, and then add one or two more turns. Over-tightening can cause splitting and failure of the female threads.

⚠️ Important: Ensure the Y-filter, control valve and pressure regulator are installed in the correct flow orientation. Flow direction arrows are provided on each component. Refer to Figure 1.

1. Thread the Y-filter inlet into the valve outlet with the provided 1" x 3/4" NPT reducer bushing. Use PTFE tape on all threaded connections. Angle the Y-filter slightly downward as shown in Figure 1.
2. Thread the pressure regulator inlet into the Y-filter outlet.
3. Connect the water source supply line and piping to drip emitters.

NOTE: Installing the valve assembly below grade in a valve box is recommended for protection and ease of service.

NOTE: Refer to the 2500TF Series Valve Instruction Guide provided in the kit for complete valve installation and operation information.

NOTE: To adapt the Drip Zone Valve Kit for dripline applications, install the provided 3/4" MPT x 1/2" Slip fitting and CA-710 dripline compression adapter to the pressure regulator outlet.

1. Flush the system to remove debris.
2. To determine the recommended minimum/maximum number of drip emitters per control valve, refer to the table below.

Table 1

Emitter (GPH)	Low Flow	Medium Flow
0.5	30–960	240–2400
1.0	15–480	120–1200
2.0	1–240	60–600

Drip Zone Valve Kit Models 2711APRDK-LF and 2711APRDK-MF Installation Instructions

Kit Components

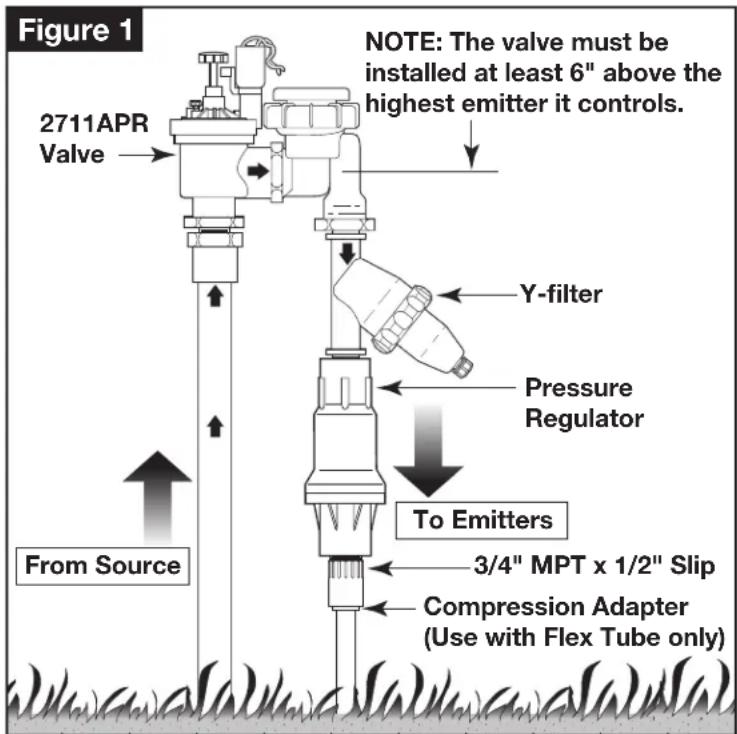

• Irritrol 2700 Series Valve, Model 2711APR
• Pressure Regulator - 25 psi at 0.1–8 GPM, 3/4" Female NPT (Low Flow [LF] model)
• Pressure Regulator - 25 psi at 2–20 GPM, 3/4" Female NPT (Medium Flow [MF] model)
• 3/4" MPT x MPT F Series Y-filter, 150 Mesh Screen
  • Drip Line Compression Adapter, CA-710
• 3/4" MPT x 1/2" Slip Fitting

Specifications

• Downstream Pressure Regulation: 25 psi
• Flow Rate at 25 psi: (LF Model) 0.1–8 GPM (MF Model) 2–20 GPM
  • Filtration: 150 Mesh Stainless Steel Screen
• 3/4" Anti-siphon Electric Control Valve, Model 2711APR
  ♦ Operating Pressure: 10–150 psi
  ♦ 24 VAC, 50/60 Hz Solenoid
  ♦ Inrush: 0.40 amp, 9.6 VA
  ♦ Holding: 0.20 amp, 4.8 VA
• Manual On/Off - Internal and External Bleed
• Adjustable Flow Control

Installation Procedure

CAUTION: When assembling the drip zone valve kit components, use just 1½ to 2 turns of PTFE tape on male threads. Never use pipe dope. To achieve a leak-free thread connection, turn the male fitting until it is finger-tight, and then add one or two more turns. Over-tightening can cause splitting and failure of the female threads.
⚠️ Important: Ensure the Y-filter, control valve and pressure regulator are installed in the correct flow orientation. Flow direction arrows are provided on each component. Refer to Figure 1.

1. Thread the Y-filter inlet into the valve outlet. Use PTFE tape on all threaded connections. Angle the Y-filter slightly downward as shown in Figure 1.

2. Thread the pressure regulator inlet into the Y-filter outlet.

3. Connect the water source supply line and piping to drip emitters.

NOTE: Refer to the 2711APR Series Valve Instruction Guide provided in the kit for complete valve installation and operation information.

NOTE: To adapt the Drip Zone Valve Kit for dripline applications, install the provided 3/4" MPT x 1/2" Slip fitting and CA-710 dripline compression adapter to the pressure regulator outlet.

1. Flush the system to remove debris.

2. To determine the recommended minimum/maximum number of drip emitters per control valve, refer to the table below.

Table 1

Emitter (GPH)	Low Flow	Medium Flow
0.5	30–960	240–2400
1.0	15–480	120–1200
2.0	1–240	60–600

Kit Components

• Irritrol 2700 Series Valve, Model 2713APR
• Pressure Regulator - 25 psi at 0.1–8 GPM, 3/4" Female NPT (Low Flow [LF] model)
• Pressure Regulator - 25 psi at 2–20 GPM, 3/4" Female NPT (Medium Flow [MF] model)
• 3/4" MPT x MPT F Series Y-filter, 150 Mesh Screen
  • Drip Line Compression Adapter, CA-710
• 1" x 3/4" Male NPT Reducer Bushing
  • 3/4" MPT x 1/2" Slip Fitting

Specifications

• Downstream Pressure Regulation: 25 psi
• Flow Rate at 25 psi: (LF Model) 0.1–8 GPM (MF Model) 2–20 GPM
  • Filtration: 150 Mesh Stainless Steel Screen
  • 1" Anti-siphon Electric Control Valve, Model 2713APR
  ♦ Operating Pressure: 10–150 psi
  ♦ 24 VAC, 50/60 Hz Solenoid
  ♦ Inrush: 0.40 amp, 9.6 VA
  ♦ Holding: 0.20 amp, 4.8 VA
• Manual On/Off - Internal and External Bleed
• Adjustable Flow Control

Installation Procedure

CAUTION: When assembling the drip zone valve kit components, use just 1½ to 2 turns of PTFE tape on male threads. Never use pipe dope. To achieve a leak-free thread connection, turn the male fitting until it is finger-tight, and then add one or two more turns. Over-tightening can cause splitting and failure of the female threads.

⚠️ Important: Ensure the Y-filter, control valve and pressure regulator are installed in the correct flow orientation. Flow direction arrows are provided on each component. Refer to Figure 1.

1. Thread the Y-filter inlet into the valve outlet with the provided 1" x 3/4" NPT reducer bushing. Use PTFE tape on all threaded connections. Angle the Y-filter slightly downward as shown in Figure 1.
2. Thread the pressure regulator inlet into the Y-filter outlet.
3. Connect the water source supply line and piping to drip emitters.

NOTE: Refer to the 2713APR Series Valve Instruction Guide provided in the kit for complete valve installation and operation information.

NOTE: To adapt the Drip Zone Valve Kit for dripline applications, install the provided 3/4" MPT x 1/2" Slip fitting and CA-710 dripline compression adapter to the pressure regulator outlet.

1. Flush the system to remove debris.
2. To determine the recommended minimum/maximum number of drip emitters per control valve, refer to the table below.

Table 1

Emitter (GPH)	Low Flow	Medium Flow
0.5	30–960	240–2400
1.0	15–480	120–1200
2.0	1–240	60–600

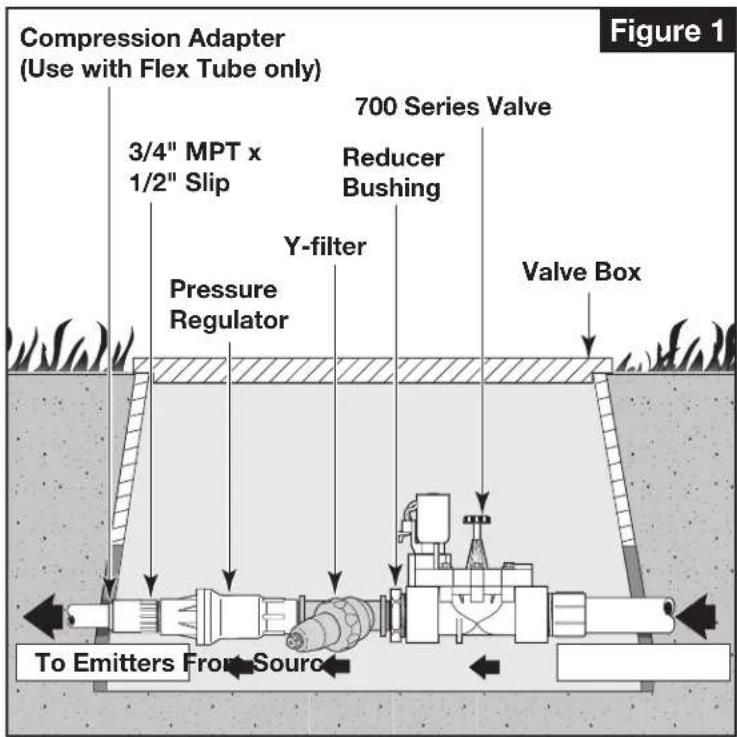

Kit Components

• Irritrol 700 Series Valve, Model 700B-.75
• Pressure Regulator - 25 psi at 0.1–8 GPM, 3/4" Female NPT
  • 3/4" MPT x MPT F Series Y-filter, 150 Mesh Screen
  • Drip Line Compression Adapter, CA-710
  • 3/4" MPT x 1/2" Slip Fitting

Specifications

• Downstream Pressure Regulation: 25 psi
  • Flow Rate at 25 psi: 0.1–8 GPM
  • Filtration: 150 Mesh Stainless Steel Screen
  • 1" In-line Electric Control Valve, Model 700B-.75
  ♦ Operating Pressure: 10–150 psi
  ♦ 24 VAC, 50/60 Hz Solenoid
  • Inrush: 0.40 amp, 9.6 VA
  ♦ Holding: 0.20 amp, 4.8 VA
• Manual On/Off - Internal and External Bleed
• Adjustable Flow Control

Installation Procedure

CAUTION: When assembling the drip zone valve kit components, use just 1 ½ to 2 turns of PTFE tape on male threads. Never use pipe dope. To achieve a leak-free thread connection, turn the male fitting until it is finger-tight, and then add one or two more turns. Over-tightening can cause splitting and failure of the female threads.

⚠️ Important: Ensure the Y-filter, control valve and pressure regulator are installed in the correct flow orientation. Flow direction arrows are provided on each component. Refer to Figure 1.

1. Thread the Y-filter inlet into the valve outlet. Use PTFE tape on all threaded connections. Angle the Y-filter slightly downward as shown in Figure 1.
2. Thread the pressure regulator inlet into the Y-filter outlet.
3. Connect the water source supply line and piping to drip emitters.

NOTE: Installing the valve assembly below grade in a valve box is recommended for protection and ease of service.

NOTE: Refer to the 700 Series Valve Instruction Guide provided in the kit for complete valve installation and operation information.

NOTE: To adapt the Drip Zone Valve Kit for dripline applications, install the provided 3/4" MPT x 1/2" Slip fitting and CA-710 dripline compression adapter to the pressure regulator outlet.

1. Flush the system to remove debris.
2. To determine the recommended minimum/maximum number of drip emitters per control valve, refer to the table below.

Table 1

Emitter (GPH)	Low Flow	Medium Flow
0.5	30–960	240–2400
1.0	15–480	120–1200
2.0	1–240	60–600

Irritrol®

Get more done™

Drip Zone Valve Kit Models 700DK-1-LF and 700DK-1-MF Installation Instructions

Kit Components

• Irritrol 700 Series Valve, Model 700-1
• Pressure Regulator - 25 psi at 0.1–8 GPM, 3/4" Female NPT (Low Flow [LF] model)
• Pressure Regulator - 25 psi at 2–20 GPM, 3/4" Female NPT (Medium Flow [MF] model)
• 3/4" MPT x MPT F Series Y-filter, 150 Mesh Screen
  • Drip Line Compression Adapter, CA-710
  • 1" x 3/4" Male NPT Reducer Bushing
  • 3/4" MPT x 1/2" Slip Fitting

Specifications

• Downstream Pressure Regulation: 25 psi
• Flow Rate at 25 psi: (LF model) 0.1–8 GPM (MF model) 2–20 GPM
  • Filtration: 150 Mesh Stainless Steel Screen
  • 1" In-line Electric Control Valve, Model 700-1
  ♦ Operating Pressure: 10–150 psi
  • 24 VAC, 50/60 Hz Solenoid
  ♦ Inrush: 0.40 amp, 9.6 VA
  ♦ Holding: 0.20 amp, 4.8 VA
• Manual On/Off - Internal and External Bleed
• Adjustable Flow Control

Installation Procedure

CAUTION: When assembling the drip zone valve kit components, use just 1 ½ to 2 turns of PTFE tape on male threads. Never use pipe dope. To achieve a leak-free thread connection, turn the male fitting until it is finger-tight, and then add one or two more turns. Over-tightening can cause splitting and failure of the female threads.
⚠️ Important: Ensure the Y-filter, control valve and pressure regulator are installed in the correct flow orientation. Flow direction arrows are provided on each component. Refer to Figure 1.

1. Thread the Y-filter inlet into the valve outlet with the provided 1" x 3/4" NPT reducer bushing. Use PTFE tape on all threaded connections. Angle the Y-filter slightly downward as shown in Figure 1.

2. Thread the pressure regulator inlet into the Y-filter outlet.

3. Connect the water source supply line and piping to drip emitters.

NOTE: Installing the valve assembly below grade in a valve box is recommended for protection and ease of service.

NOTE: Refer to the 700 Series Valve Instruction Guide provided in the kit for complete valve installation and operation information.

NOTE: To adapt the Drip Zone Valve Kit for dripline applications, install the provided 3/4" MPT x 1/2" Slip fitting and CA-710 dripline compression adapter to the pressure regulator outlet.

1. Flush the system to remove debris.

2. To determine the recommended minimum/maximum number of drip emitters per control valve, refer to the table below.

Table 1

Emitter (GPH)	Low Flow	Medium Flow
0.5	30–960	240–2400
1.0	15–480	120–1200
2.0	1–240	60–600

Irritrol®

Get more done™

Drip Zone Kit - Less Valve Models DK-LV-LF and DK-LV-MF Installation Instructions

Kit Components

• Pressure Regulator - 25 psi at 0.1–8 GPM, 3/4" Female NPT (Low Flow [LF] model)
• Pressure Regulator - 25 psi at 2–20 GPM, 3/4" Female NPT (Medium Flow [MF] model)
  • 3/4" MPT x MPT F Series Y-filter, 150 Mesh Screen
  • Drip Line Compression Adapter, CA-710
• 1" x 3/4" Male NPT Reducer Bushing
• 3/4" MPT x 1/2" Slip Fitting

Specifications

• Maximum Supply Pressure: 150 psi
- Downstream Pressure Regulation: 25 psi
- Flow Rate at 25 psi: (LF model) 0.1–8 GPM (MF model) 2–20 GPM
• Filtration: 150 Mesh Stainless Steel Screen

Installation Procedure

CAUTION: When assembling the drip zone kit components, use just 1 12 to 2 turns of PTFE tape on male threads. Never use pipe dope. To achieve a leak-free thread connection, turn the male fitting until it is finger-tight, and then add one or two more turns. Over-tightening can cause splitting and failure of the female threads.

⚠️ Important: Ensure the Y-filter and pressure regulator are installed in the correct flow orientation. Flow direction arrows are provided on each component. Refer to Figure 1.

1. Thread the pressure regulator inlet into the Y-filter outlet.
2. Connect the water source supply line and piping to drip emitters.

NOTE: Installing the assembly below grade in a valve box is recommended for protection and ease of service.

NOTE: To adapt the Drip Zone Kit for dripline applications, install the provided 3/4" MPT x 1/2" Slip fitting and CA-710 dripline compression adapter to the pressure regulator outlet.

1. Flush the system to remove debris.

2. To determine the recommended minimum/maximum number of drip emitters per control valve, refer to the table below.

Table 1

Emitter (GPH)	Low Flow	Medium Flow
0.5	30–960	240–2400
1.0	15–480	120–1200
2.0	1–240	60–600

© Irritrol • www.irritrol.com • For Technical Assistance, call 1-800-333-3125 Part Number 373-0535 revision A
