Product Type	Radio Installation Kit
Brand	American International
Model	CFK510
Mount Type	DIN and ISO Mount Compatible
Vehicle Compatibility	Chrysler, Dodge, Eagle, Ford, Jeep, Lincoln, Mercury, Plymouth (1980s-2000s)
Material	High-grade ABS Plastic
Color	Black
Includes	DIN sleeve, ISO mounting brackets, screws, optional mounting spacers
Radio Compatibility	Aftermarket single-DIN radios
Dimensions (approx.)	7 x 2 x 1 inches
Weight (approx.)	0.5 lbs
Installation Difficulty	Easy, basic hand tools required
Safety	Ensure secure fit to prevent movement while driving
Maintenance	Wipe with a dry, soft cloth
Spare Parts Availability	Contact manufacturer or authorized dealers
Warranty	1 year limited warranty

Frequently Asked Questions - CFK510 American International

Will the CFK510 fit my 1995 Dodge Neon?

Yes, the Dodge Neon for 1995-1999 is listed in the vehicle applications for this kit.

Does this kit include instructions?

Yes, a user manual is included with the kit. It provides step-by-step installation guidance.

What tools are needed for installation?

Basic hand tools such as a screwdriver and trim removal tool are typically required.

Can I install a double-DIN radio using this kit?

No, this kit is designed for single-DIN aftermarket radios only.

Are mounting spacers included with the CFK510?

Yes, optional mounting spacers are included for vehicles that may require the kit to be spaced forward. Check the vehicle application list.

How do I remove the factory radio from my vehicle?

Refer to your vehicle's owner manual or a specific removal guide. The kit does not include tools for removal of factory radio.

Is the kit painted or does it need painting?

The kit comes in a black ABS plastic finish that matches most factory dashboards. No painting is required.

What is the warranty for the CFK510?

American International offers a 1-year limited warranty against defects in materials and workmanship.

Where can I purchase the CFK510 installation kit?

It is available through online retailers, auto parts stores, and electronics distributors. Check with your preferred seller.

Can I use this kit with a Ford F-150 1995?

Yes, the Ford F-150 (listed as Ram Pickup under Chrysler? No, Ford F-150 is not explicitly listed, but Ford trucks from 1974-2001 (Ram Pickup is Dodge) may not be compatible. Please compare your vehicle's dash shape with the kit's application list. For Ford, only passenger cars and vans are listed, not F-150. For 1995 F-150, it is not included.

USER MANUAL CFK510 American International

Exploded view diagram of a mechanical assembly with multiple components (no text or labels)

VEHICLE APPLICATIONS

Chrysler		1988-93	DYNASTY
1982-87	400/600K	1993-97	INTREPID	1975-89	GRAND FURY
1995-00	CIRRUS	1984-89	LANCER	1978-90	HORIZON
1993-97	CONCORDE	1978-79	MAGNUM XE	1987	LASER
1975-83	CORDOBA	1980-83	MIRADA	1996-99	NEON
1984-90	E CLASS	1975-78	MONACO	1981-89	RELIANT
1979-93	FIFTH AVENUE	1995-99	NEON	1983-84	SCAMP
1994-97	LHS	1978-90	OMNI	1987-94	SUNDANCE
1979-94	IMPERIAL	1974-01	RAM PICKUP	1981-90	TC3
1977-81	LE BARON	1974-93	RAMCHARGER	1985-86	TOURISMO, DUSTER
1987-95	LE BARON SEDAN	1982-87	RAMPAGE	1974-91	TRAILDUSTER
1985-89	LE BARON GTS	1987-94	SHADOW	1981-92	VAN
1982-95	LEBARON COUPE (CONVT.)	1989-95	SPIRIT	1976-80	VOLARE
1975-83	NEWPORT	1979-81	ST. REGIS	1984-00	VOYAGER
1975-97	NEW YORKER	1978-00	VAN	Ford
1995-00	SEBRING	1981-82	024	1985-91	AEROSTAR
1996-00	SEBRING (CONVT.)	1995-00	STRATUS	1979-89	CROWN VICTORIA
1984-00	TOWN & COUNTRY	Eagle		1975-91	ECONOLINE VAN
Dodge		1993-97	VISION	1984-90	ESCORT/EXP/PONY
1981-89	ARIES	Jeep		1979-86	LTD
1976-80	ASPEN	1997-01	CHEROKEE	1983-88	RANGER/BRONCO II
1995-00	AVENGER	1996-98	GRAND CHEROKEE	1980-88	THUNDERBIRD
1984-00	CARAVAN	1997-02	WRANGLER	Lincoln
1975-91	CHARGER	Plymouth		1983-87	CONTINENTAL
1987-00	DAKOTA TRUCK	1989-95	ACCLAIM	1985-89	TOWN CAR
1984-94	DAYTONA	1996-00	BREEZE	Mercury
1977-89	DIPLOMAT	1985-88	CARAVELLE SE	1980-82	COUGAR
1998-00	DURANGO	1975-78	FURY	1979-85	GRAN MARQUIS

Chrysler

1993-97 CONCORDE

1975-83 CORDOBA

1984-90 E CLASS

1994-97 LHS

1979-94 IMPERIAL

1984-86 LASER

1977-81 LE BARÓN

1987-95 LE BARON SEDAN

1985-89 LE BARON GTS

1982-95 LEBARON COUPE (CONVT.)

1975-83 NEWPORT

1975-97 NEW YORKER

1984-00 TOWN & COUNTRY

Dodge

1981-89 ARIES

1976-80 ASPEN

1984-00 CARAVAN

1975-91 CHARGER

1987-00 DAKOTA TRUCK

1984-94 DAYTONA

1977-89 DIPLOMAT

1998-00 DURANGO

1988-93 DYNASTY

1993-97 INTREPID

1984-89 LANCER

1978-79 MAGNUM XE

1980-83 MIRADA

1975-78 MONACO

1995-99 NEON

1978-90 OMNI

1974-01 RAM PICKUP

1974-93 RAMCHARGER

1982-87 RAMPAGE

1987-94 SHADOW

1989-95 SPIRIT

1979-81 ST. REGIS

1978-00 VAN

1981-82 024

Eagle

1993-97 VISION

Jeep

1997-01 CHEROKEE

Ford

1985-91	AEROSTAR	1983-87	CONTINENTAL
1979-89	CROWN VICTORIA	1985-89	TOWN CAR
1975-91	ECONOLINE VAN	MERCURY
1984-90	ESCORT/EXP/PONY	1980-82	COUGAR
1979-86	LTD	1979-85	GRAN MARQUIS
1983-88	RANGER/BRONCO II
1980-88	THUNDERBIRD

Lincoln

NOTE: Optional mounting spacers are included for vehicles listed above that may require the kit to be spaced forward.

CHRYSLER

1995-00 SEBRING

DODGE

1995-00 AVENGER

JEEP

Chrysler

1995-00 CIRRUS

1996-00 SEBRING (CONVT)

Dodge

1995-00 STRATUS

Plymouth

1996-00 BREEZE

CF-K510

KIT ASSEMBLY

FOR DIN MOUNT APPLICATIONS

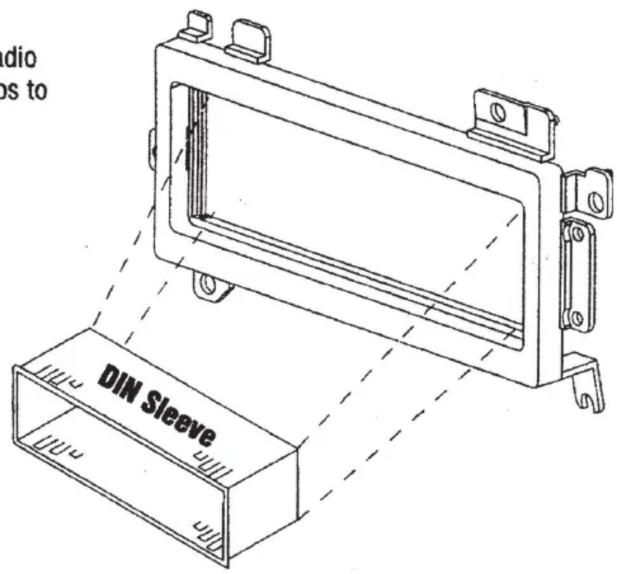

Insert DIN sleeve from your new radio into the radio opening of the installation kit and depress the tabs to secure sleeve to kit.

NOTE: Aftermarket DIN sleeve is only supplied with radio.

FOR ISO MOUNT APPLICATIONS

Note: ISO trim ring use optional for both DIN and ISO mount applications.

Insert ISO mounting brackets into radio opening, as shown in illustration, and attach radio to brackets using screws supplied with radio or kit. only when ISO Mounting radio.

Note: It is recommended to support the rear weight of the radio.
