USER MANUAL 70-1770 Metra
Receiver Wiring Adaptor
IMPORTANT
Before starting, compare items on your invoice with items received. Carefully check through packaging material. If an item is missing, please call Crutchfield at 1-888-955-6000.
120 70-1770
STEP 1 -- CONNECT WIRES
Revision 10/17/16
A. Connect wires below to the matching function of each wire on your receiver (refer to instruction supplied with receiver). The wire colors of your new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
B. Your receiver illumination wire could be Orange or Orange/White. As with other wires, match this wire to the illumination wire in this harness by function, not by color. If your receiver does not have an illumination wire, tape off the illumination wire.
C. If there is no Ground wire in the factory harness, connect new receiver's Ground wire to vehicle chassis.
D. Individually tape off any unused wires.
E. Make final connections following instructions on page 3.

Receiver Wiring Adaptor
120 70-1770
STEP 1 -- CONNECT WIRES (continued)
F. The speaker plug in this harness set may not be directly compatible with your vehicle's wiring if the vehicle is equipped with a JBL, or Premium Sound amplifier. An additional adaptor may be needed to correctly interface an aftermarket receiver with a JBL or Premium Sound amplifier.
G. In some cases, Ford's front speaker negative leads (wires) are reversed. To test, plug in the wiring harness. Touch the positive and negative leads of the left speaker to a "C" or "D" cell battery (1.5 volts). If you hear a "pop", your vehicle is wired normally. If no "pop" is heard, connect the front speaker negative leads in reverse. Left front speaker negative becomes right front speaker negative.
H. Individually tape off any unused wires.
I. Make final connections following instructions on page 3.

Receiver Wiring Adaptor Connections
120 70-1770
STEP 2 -- CRIMP CONNECTIONS
Tools & Parts Required ▶
Wire Stripper/Crimp Tool Crimp Caps


A. Strip wires back 1/2".


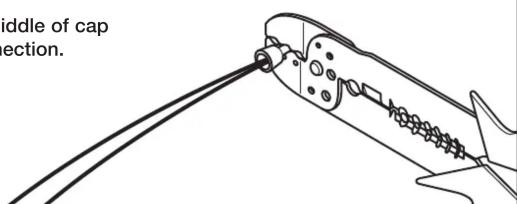

Diagram showing a cable being inserted into a plug, with no text or symbols present.C. Squeeze middle of cap for tight connection.

STEP 2 -- CONTINUED
D. Complete crimp connections for all necessary wires.
E. Be sure to wrap any wires from the Wiring Adaptor that are not necessary (wires with no match from the new receiver) with electrical tape.
Receiver Wiring Adaptor
Generic Illustration
STEP 3 -- APPLICATION
When ready to install the receiver, plug the Wiring Adaptor from the new receiver or receiver assembly into the factory radio harness(es) in the vehicle dash.

Generic Illustration
CRUTCHFIELD®
Copyright 2016 Crutchfield Corporation
