Product Type	Tabletop Radio
Brand	Crosley
Model	CR3036D
Dimensions (W x H x D)	12 x 8 x 5 inches (approx.)
Weight	3.5 lbs (approx.)
Power Source	AC 120V 60Hz or 4x AA batteries (not included)
Radio Bands	AM / FM
Bluetooth	Yes, for wireless streaming
Audio Output	Built-in speaker (mono or stereo)
Headphone Jack	3.5mm
Auxiliary Input	3.5mm for external devices
Controls	Rotary knobs for volume, tuning, and function selection
Display	Analog tuner dial with light
Cabinet Material	Wood veneer or plastic (retro design)
Color Options	Various retro colors (e.g., turquoise, red, black)
Power Consumption	10W max
Care Instructions	Wipe with a soft, dry cloth. Do not use harsh chemicals.
Safety Warnings	Do not expose to rain or moisture; unplug during storms.
Spare Parts	Contact Crosley customer service for replacement parts.
Repairability	User-serviceable only for battery replacement; other repairs by qualified technician.

Frequently Asked Questions - CR3036D Crosley

How do I set the clock on the Crosley CR3036D?

The CR3036D is an analog tuner radio and does not have a digital clock. Time is not displayed.

How do I pair my phone via Bluetooth?

Turn the radio to Bluetooth mode (usually a dedicated button or knob position). On your phone, search for nearby Bluetooth devices and select 'Crosley CR3036D'. If prompted, enter '0000' or '1234'.

Can I use batteries?

Yes, the radio can operate on 4 AA batteries (not included) for portable use. Insert them into the compartment on the bottom.

Why is the sound distorted?

Check the volume level – if too high, distortion may occur. Also ensure the antenna is fully extended for FM. For AM, try rotating the radio for better reception.

How do I clean the radio?

Unplug the radio and wipe the exterior with a soft, dry cloth. For stubborn stains, slightly dampen the cloth with water. Do not use alcohol or abrasive cleaners.

Can I connect external speakers?

The CR3036D has a headphone jack but no line output for external speakers. You can use the aux input to play audio from external devices.

What is the warranty period?

Crosley typically offers a 1-year limited warranty from the date of purchase. Keep your receipt for service.

Does the radio have an alarm?

No, the CR3036D is a simple manual radio without alarm or sleep timer functions.

How do I improve AM reception?

AM reception is directional. Rotate the entire radio for best signal. Avoid placing near metal objects or electronic devices like computers.

What should I do if the radio does not turn on?

First, check if the power cord is plugged in securely. If using batteries, ensure they are inserted correctly and have charge. Try a different outlet. If still no power, contact Crosley support.

USER MANUAL CR3036D Crosley

Read and understand this entire manual before using this product. Keep these instructions for future reference.

1. Do not use this product near water.
2. This product should be operated only by the type of power source indicated on the marking label or in this instruction manual.
3. Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet try reversing the plug. If the plug should still fail to fit, contact your electrician.
4. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
5. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
6. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
7. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
8. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
9. Do not use attachments not recommended by the product manufacturer as they may cause hazards.
10. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
11. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. Do not block or cover these openings.
12. Unplug the product during lightning storm or when unused for long periods of time.

Items in this package

Before throwing away any packaging materials, please check thoroughly and make sure you find the following items that come along with this package:

- Radio

- USB Cable

Please contact Crosley Customer Service if there is any accessory missing from the package. Retain the original packaging materials for exchange or return purposes.

Specifications

Power DC Input 5V

Power consumption 5W

Speaker 4Ω

Frequency Range FM 88 – 108 MHz

AM 520 - 1710 KHz

Note:

• Design and specifications are subject to change without notice.
• To help save power consumption, some models will comply with ERP energy saving standard. When there is no audio input for 20 minutes, their powers will automatically cut-off. To turn power back on and resume playing, you will need to turn off the power and turn it on again.

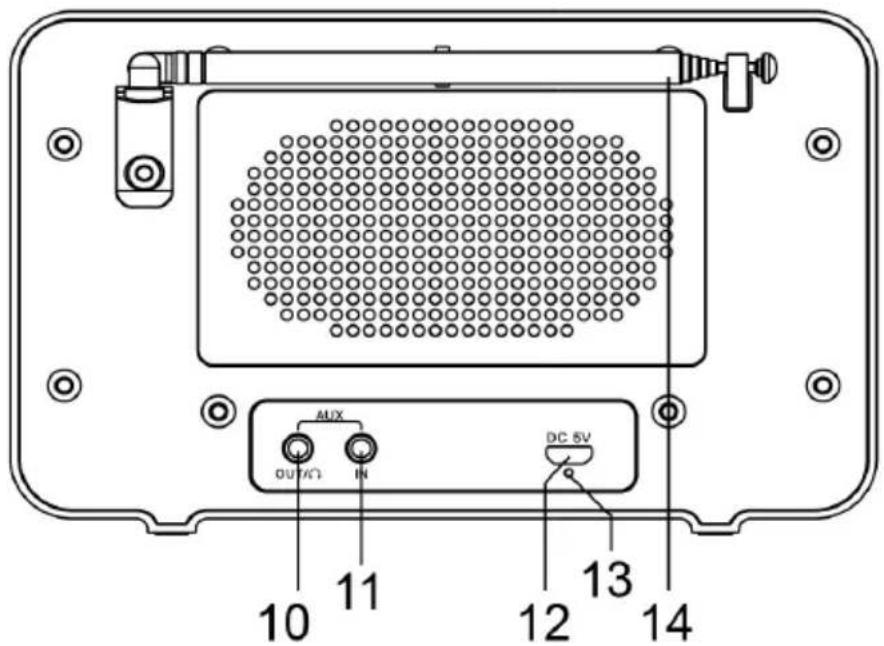

Product Description

1. Backward Skip Button
2. Play/Pause Button
3. Forward Skip Button
4. Mode Button
5. Function Indicator
6. Tuner Dial

7. Function Knob

8. On/Off Volume Knob

9. Tuning Knob
10. Headphone Jack
11. Aux In Jack
12. Power Jack
13. Charging Indicator
14. FM Antenna

Initial Setup

Essential Setup

1. Place the unit on a flat and level surface. The selected location should be stable and free from vibration.
2. Connect the USB Cable to the Power Jack of the unit.

Charging/Power Source

1. This unit has a built in rechargeable battery.
2. Connect to a PC, Laptop or 5V USB adaptor with the provided USB cable.
3. The Charging Indicator will be red when charging, and change to green when fully charged.

Aux Input Connection

You can connect an audio device to this unit and play your music through its speakers. To do this, turn on the unit, set the Function Knob to Aux mode, connect a 3.5 mm auxiliary cable between your audio device to the Aux In Jack of this unit and start playing the music.

Note:

• Press the Mode Button to switch from Aux to Bluetooth.
• When in Aux Mode, the Function Indicator will be green.

Bluetooth Operation

1. Set the Function Knob to Bluetooth mode ✝
2. Turn on the Bluetooth feature of your audio device, search for "CROSLEY CR3036D" and pair.
3. Once your device is successfully paired with the unit.
4. Play and stream music from your device to the unit.
5. During the playback, press the Play/Pause Button to suspend and resume playback.
6. During the playback, press the Backward Skip Button or the Forward Skip Button for the previous or next song.

Note:

• Press the Mode Button to switch from Bluetooth to Aux.
• When in Bluetooth Mode, the Function Indicator will blink blue.
• If the cable is inserted during Bluetooth Mode, AUX will take priority.

Radio Operation

1. Set the Function Knob to the desired radio band AM or FM position.
2. Rotate the Tuning Knob for desired radio station.

Note:

• The AM antenna is built inside the unit. If AM reception is poor, try to rotate the unit for better reception.
• If the FM reception is poor, extend the FM Antenna on the back of the unit for better reception.

Troubleshooting

There is no power

• No power at the power outlet.
  • The battery needs to be charged.

There is no sound

• Headphones are plugged in.
• Make sure the volume is turned up.
• Function Knob is in the Bluetooth position.
• Make sure the volume on your third party device is turned up.

FCC Statements

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
