Product Type	Whole Room Heater
Brand	Vornado
Model	Tempa
Power Supply	120 V, 60 Hz
Heat Settings	Low (450 W), High (900 W)
Fan Modes	Auto (cycles with heat), Continuous (fan always on)
Thermostat	Adjustable knob (1-7) including Fan Only position
Power Cord Length	6 ft (1.8 m)
Safety Features	Child lock switch, auto shutoff on overheating, tip-over protection, cool touch case
Placement	Floor use only, at least 3 ft from objects
Cleaning	Vacuum grille weekly; use pressurized air for interior
Storage	Wrap cord inside base; store in cool, dry place
Warranty	5 years limited
Certifications	ETL listed

Frequently Asked Questions - Tempa Vornado

How do I reset my Vornado Tempa heater after it shuts off?

Press the Power switch Off and unplug the heater. Remove any obstructions and wait 5-10 minutes for it to cool down. Plug it back in and press Power On. If it repeatedly shuts off, contact Vornado Consumer Services at 1-800-234-0604.

Can I use the heater in a bathroom or outdoors?

No, this heater is intended for indoor living spaces only. Do not use in bathrooms, laundry areas, or damp locations. Do not use outdoors.

How do I use the fan without heat?

Set the Thermostat knob to the 'Fan Only' position and the Fan switch to 'Continuous'. This will run the fan without activating the heating element.

What should I do if the heater produces no heat?

Check that the heat setting is on High and the thermostat is set high. Also check the tip-over switch on the bottom: press it 4-5 times to ensure it is not stuck. Make sure the power cord is not under the unit.

How do I clean the Tempa heater?

Turn off and unplug the heater. Use a vacuum brush attachment to clean the grille weekly. Periodically blow out the interior with pressurized air to remove dust and debris. Do not use chemicals.

Can I use an extension cord or power strip?

No, always plug the heater directly into a wall outlet. Never use an extension cord, power strip, or GFCI outlet.

How does the child lock work?

The child lock switch (Lock Arm) prevents the heater from being turned on when not in use. To unlock, pivot the Lock Arm then press Power On. To lock, turn Power Off and the Lock Arm automatically protects the switch.

What is the recommended placement for the heater?

Place the heater on the floor, at least 3 feet away from walls, furniture, curtains, and other objects. Position it so the air beam flows unobstructed across the room. Avoid walkways and unstable surfaces.

How do I store the heater during off-season?

Turn Off and unplug. Wrap the power cord neatly inside the Power Cord Storage. Clean the heater thoroughly. Cover or place it in its original carton. Store in a cool, dry location.

What is covered under the warranty?

The Vornado Tempa comes with a 5-year limited warranty against defects in material or workmanship. Vornado will repair or replace the product at no cost. See manual for full details.

USER MANUAL Tempa Vornado

read & save these important instructions

White portable electric fan with spiral blades and brand logo (no visible text or symbols on fan body)

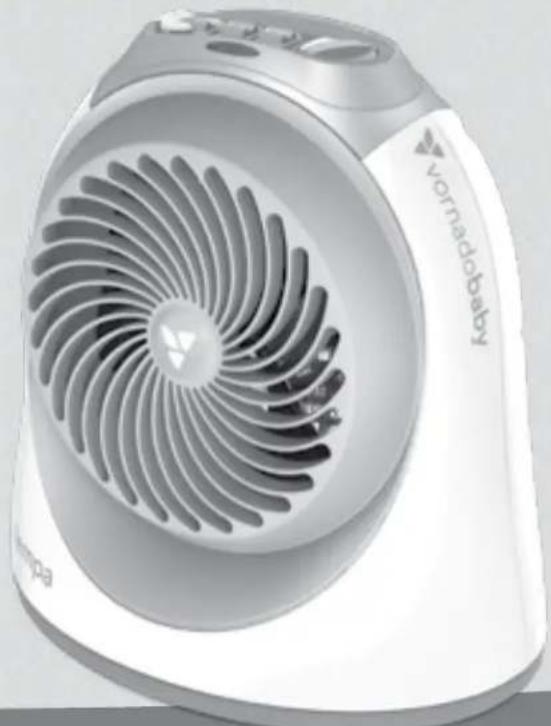

T HELLO, I'M Tempa

whole room heater

Welcome to Vornadobaby

Thank you for choosing to put a Vornadobaby product in your nursery. Our goal is to provide healthy, comfortable air - through every season. Vornado has been doing this for quite a while now. We've brought all our experience in air health and comfort, and tailored it exclusively for your nursery.

A THIRD generation NAME

Vornado

VORNADO

vornadobaby™

Vornado began in 1945, continues to revolutionize airflow today and is now tailored for the nursery.

Contents

Important Safety Instructions....4

Safety 8

Tempa Controls....9

Plug In & Placement....10

How To Use....12

Keeping Tempa Clean....14

Tips 15

Troubleshoot 16

Warranty....18

READ ALL INSTRUCTIONS BEFORE USING THIS HEATER IMPORTANT SAFETY INSTRUCTIONS

This owner's guide and any additional inserts are considered part of the product. They contain important information about safety, use and disposal. Before using the product, please familiarize yourself with all operating and safety instructions. Please keep all documents for future reference and pass these documents on, together with the product, to any future owner. See www.vornado.com to view, download and print the most current version of this owner's guide.

INTENDED USE: This product is intended to heat and circulate the air in indoor living spaces only. This product is not intended for commercial or industrial use. This heater is not intended for use in bathrooms, laundry areas, and similar damp locations. The manufacturer assumes no responsibility for damage or injury due to unauthorized use or product modification. Failure to follow these directions will void the product warranty. This product is intended for floor use only.

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

WARNING: Risk to Children and Impaired Persons

- Extreme caution is required during the installation, operation, cleaning and maintenance of this product by or around

children age 12 years and younger and anyone with reduced physical, sensory or mental capabilities, and whenever the heater is left operating and unattended. Children should be supervised to ensure that they do not play with the appliance, its parts and packaging material.

INSTALLATION WARNING – To reduce risk of fire, electrical shock and injury to persons, observe the following:

• A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored.
• Do not use this heater in an RV, boat or during any application where battery power is converted to AC power.
• Place this product at least 3 feet away on all sides from, electrical outlets, furniture, pillows, bedding, papers, clothes, curtains and other objects that may cause or catch on fire. Do not place the heater near a bed because objects such as pillows or blankets can fall off the bed and be ignited by the heater.
• To prevent a possible fire, do not place the heater on soft surfaces, like a bed, where air intakes or exhaust can be blocked in any manner.
• No part of this product (the appliance, power cord, plug, packaging, etc.) should be placed near furnaces, fireplaces, stoves or other high temperature heat sources. Do not use in a window, on an uneven or unstable surface, or near water.
• Do not use this product on an elevated surface such as shelf or desktop. Use only while placed on the floor. Operate only in the upright position.
• The appliance, power supply, power cord and plug cannot

come into contact with water. Do not use this product on wet surfaces. Do not use this product in a bathtub or shower or position product where it may fall into a bathtub, laundry, swimming pool or other water container. Do not use this product outdoors or expose it to weather or elements.

• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over. The cord should not hang over edges of counters or be placed where it can be crimped or closed in doors. Place appliance near an easily accessible outlet so the product can be unplugged quickly during an emergency.
• Do not modify the product with any aftermarket accessory.

SAFE USE WARNING – To reduce risk of fire, electrical shock and injury to persons, observe the following:

• Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
• Extreme caution is required at all times a heater is in operation. Always unplug heater when not in use. Vornado does not recommend unattended and unsupervised use of this heater.
• This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this heater.

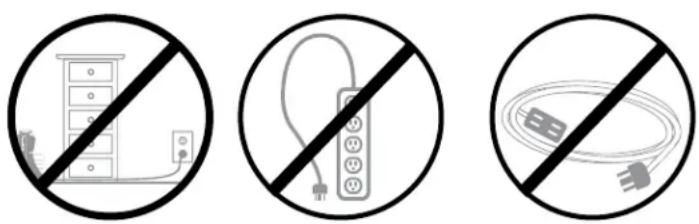

• Always plug heaters directly into a wall outlet/receptacle.
  Never use with an extension cord or relocatable power tap (outlet/power strip). Do not use this heater on a surge-protected unit or Ground Fault Circuit Interrupted (GFCI) outlet.

• Before plugging power cord into electrical outlet, be sure that all electrical information on the rating label, including voltage, is compatible with your outlet's power supply.

• WARNING: To reduce likelihood of circuit overload, fire and electric shock, do not operate with a solid state speed device, such as a dimmer control switch. Use of this appliance on the same electrical circuit as another high energy use product, such as a vacuum cleaner, blender, variable speed fan or circular saw is not advised. Do not use this heater with a timer designed to automatically turn the unit on or off, as this may accidentally disable the heater's thermal cutout safety feature.
• Risk of fire. Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Discard heater, or return to a Vornado authorized service facility for examination and/or repair.
• Never use the cord as a handle or otherwise yank, strain or stretch the power cord.
• While the product is plugged in, do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
• Check your heater cord and plug connections. A loose fitting outlet can cause the plug to overheat or cause a fire. Be sure plug fits tight in the outlet. Check frequently during use to make sure plug and outlet are not hot. If so, discontinue using heater and have outlet replaced by a qualified electrician.
• Never ignore the signs of an electrical problem, such as: warm outlet coverplates, sparks when plugging in or operating, lights flickering/dimming during operation. Immediately turn off and unplug the appliance if any such problems are noticed. Contact a qualified electrician to investigate possible causes

before operating the appliance again.

• Note: Heaters draw more current than small appliances, overheating of the outlet may occur even if it has not occurred with the other appliances.
• This product's power cord is equipped with a three-prong, grounded plug that must be inserted into a grounded receptacle. Connect to properly grounded outlets only.
• This heater is for use with 120 volt electrical outlets. Connect to properly grounded outlets only. The cord has a plug as shown at A in Figure 68.1, below. An adapter as shown at C is available for connecting three-blade grounding-type plugs to two-slot receptacles. The green grounding lug extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box. The adapter should not be used if a three-slot grounded receptacle is available.

Figure 68.1

- Before moving, repositioning, servicing, cleaning and when not in use, use the product controls to turn off the power and then unplug. To disconnect from outlet, grasp and pull only the plug. Also, power off and unplug if the product will be left unattended for an extended period of time or during electrical storms.

- If your heater suddenly stops working:

• This heater is equipped with a thermal cutout safety feature

designed to automatically shut off when overheating is detected. See the "RESET HEATER" instructions in this guide to determine how to check and reset the heater.

- If the heater and other electrical products suddenly stop working at the same time, your home circuit breaker or fuse may have tripped due to an overload of power. Consider only running your heater on the "low" setting, only running one heater at once and unplugging all other electrical products while running the heater, and/or hiring an electrician to install an additional circuit to your home's electrical system.

SERVICING WARNING – To reduce risk of fire, electrical shock and injury to persons, observe the following:

• Clean your product regularly, only as is instructed in this manual. Prior to cleaning, turn off the power on your product and unplug. Do not use gasoline, thinners, solvents, ammonias or other chemicals for cleaning. Refer to the CLEANING instructions provided.
• Do not open appliance housing while product is plugged in. To avoid risk of shock, all service and/or repairs must be done by a Vornado Authorized Service Center.

SAVE THESE INSTRUCTIONS

Safety

Plug It In Safely! Your Tempa has a 6 ft. power cord, covered for additional safety. Vornado recommends placing product as close to an outlet as possible and securing the remaining cord.

Child Locking Switch

Keeps Tempa Off when not in use.

Auto Shutoff

If airflow becomes blocked and overheating occurs, the heating element will shut off.

Finger Friendly Design

Resists curious fingers.

Topple Protection

Tempa will automatically shut off if tipped over.

Cool Touch Case

Safe to touch, even on high heat setting.

Covered Power Cord Storage

Safely store power cord inside base of Tempa.

Tempa Controls

① Power (⏻)
② Heat ()))
③ Fan (
④ Thermostat (1-7)
⑤ Lock Arm (🔒)

Plug In & Placement

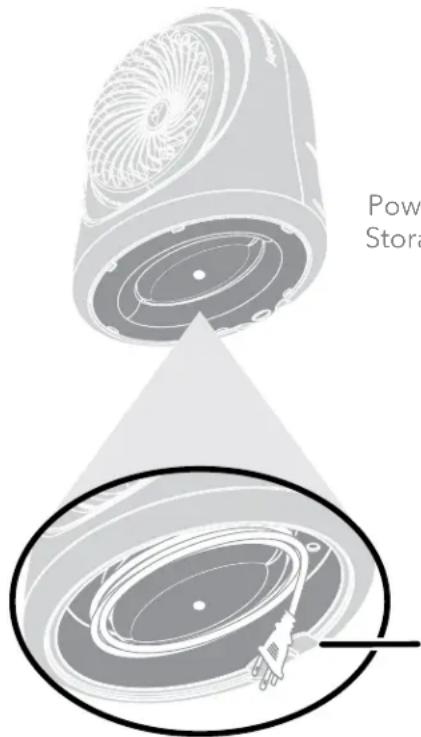

Power Cord Storage

For your convenience and safety the Power Cord Storage keeps the power cord neat and out of harms way.

1. Lift the Power Cord Storage flap to locate plug, then unwind the power cord stored inside.

Safety Tip: Power cords increase strangulation risks. Secure as much excess cord as possible inside the Power Cord Storage.

Power Cord Storage flap
Note: Place power cord through slotted opening on bottom of Tempa to ensure stability of heater.

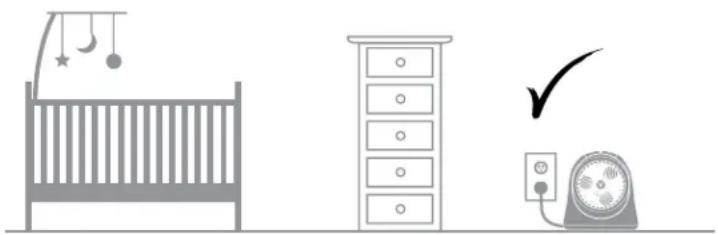

Set Up

1. Position Tempa so the vortex beam of air is directed across the room, unobstructed.
2. Plug power cord into grounded wall outlet.

Safety Tip: It is best to position Tempa close to the power outlet and store excess power cord inside the Power Cord Storage.

Place Tempa away from walkways, doorways and anywhere it may pose a tripping hazard.

Simple line drawing of a baby crib, a framed drawer, and a fan with a checkmark (no text or symbols)

How To Use

Locking Controls

1. To unlock this feature first pivot the Lock Arm (💡), then press the Power switch (💡) On. The red light will illuminate when On.

Close-up of a desktop computer control panel with buttons and a rotary knob (no readable text or symbols)

1. To disengage this feature press the Power switch Off and the Lock Arm will automatically protect the Power switch.

Close-up of a control panel with buttons and dials, no visible text or symbols

Operation

1. Select Heat setting (###). Low Heat (I) 450 watts or High Heat (II) 900 watts.

Note: It is normal for the exit air from the heater to feel cooler on low heat than on high heat.

Close-up of a control panel with buttons and dials, no visible text or symbols

1. Select Fan setting. In the Auto position (∞), the fan will cycle on and off with the heating element. In the Continuous position (∞), the fan will run continuously and the heating element will cycle on and off.

Control panel with icons for medical devices and a rotary knob (no text or symbols)

1. Set Thermostat. Turn knob to desired comfort level. Monitor the desired setting and adjust Thermostat accordingly.

Close-up of a control panel with four buttons and a circular dial indicator (no text or symbols visible)

1. For fan use only without heat, select Fan Only on the Thermostat and Continuous on the Fan.

Close-up of a control panel with icons and a magnified circular detail showing a knob (no text or symbols visible)

Keeping Tempa Clean

Because Tempa moves a substantial amount of air, it will need regular cleaning. Cleaning the outside of the heater is recommended on a weekly basis.

Cleaning the Grille

1. Power Tempa Off and unplug.

2. Use the brush attachment on your household vacuum cleaner to vacuum any accumulated dust on the unit or wipe down the entire surface with a soft, dry cloth.

Illustration of a fan with a hand pointing to the center (no text or symbols)

Note: Do not use gasoline, thinners, solvents or other chemicals for cleaning.

Note: Do not modify Tempa with any aftermarket accessory.

You should periodically blow out Tempa with pressurized air to keep heat element and motor clear of dust, hair and debris that can build up inside the heater as it moves air during use. This also eliminates unwanted odors caused by accumulation of these particles inside the unit.

Always unplug Tempa before starting any part of the cleaning process.

Tips

Resetting Your Vornado Heater

Your Vornado Tempa has a multi-level safety shut-off system designed to prevent overheating. If this happens, the safety shut-off system will cut power to the heat element and you will need to manually reset Tempa.

1. Press Power Switch Off and unplug Tempa.
2. Remove any obstructions and wait 5 -10 minutes, allowing Tempa to cool down.
3. Plug in Tempa and press Power Switch to On. Your Vornado Tempa is ready.

Note: If the safety shut-off system repeatedly shuts off Tempa or if it will not reset, DO NOT ATTEMPT TO DISASSEMBLE Tempa.

Call Vornado Consumer Services toll-free at 1-800-234-0604.

- During the off-season or after extended periods of non-use, you may choose to store Tempa. To ensure long life of the product, it is recommended to store Tempa by following these instructions:

• Always set Power switch to Off and unplug Tempa before cleaning.
• After unplugging unit, wrap cord neatly inside the Power Cord Storage.
• Thoroughly clean Tempa. Use the brush attachment on your household vacuum cleaner to vacuum any accumulated dust on Tempa or wipe down the entire surface with a soft, dry cloth.
• Cover, or place Tempa back into retail carton if available. This will prevent Tempa from accumulating dust over time.
• Store Tempa in a cool and dry location.

- The motor is permanently lubricated and requires no oiling. Do not use gasoline, thinners, solvents or other chemicals for cleaning.

Troubleshoot

Unit fails to power on.	Unit is not plugged in. Plug Power Cord into electrical outlet.
	Household circuit breaker / ground fault interrupter has tripped or blown a fuse. Reset circuit breaker / ground fault interrupter, or replace fuse (See IMPORTANT SAFETY INSTRUCTIONS).
	The unit has overheated. Automatic Safety Shut-Off has initiated (See RESETTING YOUR VORNADO HEATER).
	Unit is damaged or in need of repair. Cease usage and unplug. Contact Consumer Service for assistance.
Unit is not producing sufficient amount of heat.	Ensure unit is set to High Heat and thermostat is set to highest temperature setting.
	Close all doors and windows to contain heat.
	Allow the unit to fully circulate the heat throughout the room, may take several minutes.
Unit powers on but there is no heat.	Power off and unplug the unit. On the bottom of the unit, there is a gray tip over switch. Push in 4-5 times ensuring it is not stuck. Set unit down on flat surface. Be sure power cord is not under unit. Plug unit in and power on. Turn to highest heat setting.

Happy Parent Guarantee

Call Toll Free

800.234.0604

vornado.com

[e-mail]

If you're not satisfied with this product, let us know. We'll go the extra mile to ensure you're a happy Vornadobaby parent!

Vornado Air LLC ("Vornado") warrants to the original consumer or purchaser this Vornadobaby® Tempa Whole Room Heater ("Product") is free from defects in material or workmanship for a period of five (5) years from the date of purchase. If any such defect is discovered within the warranty period, Vornado, at its discretion, will repair or replace the Product at no cost.

For warranty or repair service:

Call 1-800-234-0604 or email [e-mail] to obtain a Return Authorization ("RA") form. Please have or include your Product's model number and serial number, as well as your name, address, city, state, zip code and phone number when contacting Vornado for warranty service.

After receiving the RA form, ship your Product to:

Vornado Air LLC Attn: Warranty & Repair 415 East 13th Street Andover, KS 67002. For your convenience, please have your model number and serial number when contacting Vornado with service inquiries. To assure proper handling, packages must be clearly marked with the RA number. Packages not clearly marked with the RA number may be refused at the receiving dock. Please allow 1-2 weeks for repair and return of your Product after the Product is received.

Product registration available online at www.vornado.com

Repairs not covered by the warranty or outside the warranty period will require a fee to cover the cost of materials, labor, handling and shipping. This warranty does not apply to defects resulting from abuse of the Product, modification, alteration, mishandling, improper maintenance, commercial use or repair or service of the Product by anyone other than Vornado; damages which occur in shipment or are attributed to acts of God. Improper product use, which includes using an external device that alters or converts the voltage or frequency of electricity, or shipping a Vornado product to a country

not intended for use will void all warranties. Any unauthorized product modification, repair by unauthorized repair center or use of non-approved replacement parts is not recommended and any consequences will not be covered by support services or product warranties. The product warranty will be honored only on models that are being used in the country intended. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, VORNADO SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights that vary from state to state. The manufacturer assumes no responsibility for damage or injury caused by failure to follow these instructions, improper product use or unauthorized product modifications. Any such actions will invalidate the product warranty.

All company names and product names are trademarks of their respective owners. © All rights reserved. All technical information, data and instructions for the installation, connection and operation contained in these instructions for use correspond to the latest available information at time of printing. The contents of this manual may differ slightly from the actual product. Observe any additional supplements.

Designed, engineered and supported in Andover, KS

© 2020 Vornado Air LLC Andover, KS 67002 Patent US 9,620,311 B2 and U.S. Patent D780,301. Specifications subject to change without notice. Vornado® and Vornadobaby® are trademarks owned by Vornado Air LLC.
