Product Type	Cordless Multi-Function Tool
Model	PXCMFTS-018
Brand	Ozito
Sanding Pad Size	90 x 90 x 90 mm (triangular)
Sandpaper Size	93 x 93 x 93 mm (triangular)
Accessory Compatibility	Starlock & Universal
Weight	0.99 kg
Power Source	18V Li-ion battery (Ozito Power X Change)
Charger Input Voltage	230V – 240V AC
Variable Speed Control	Yes, via dial
On/Off Switch	Yes, slide switch
Included Accessories	Sanding pad, sanding papers (60/80/120 grit), wood plunge blade, metal plunge blade, scraper, hex key
Applications	Sanding, sawing (wood, plastic, non-ferrous metal), scraping
Battery Protection System	Yes, overload and low battery cut-off
Insulation	Double insulated
Certification	RCM (Regulatory Compliance Mark)
Maintenance	Clean ventilation slots; no lubrication required
Warranty (Tool)	5 years replacement (DIY use)
Warranty (Battery & Charger)	36 months
Spare Parts Availability	Order from Bunnings Special Orders Desk or contact Ozito

Frequently Asked Questions - PXCMFTS-018 Ozito

How do I attach an accessory to the Ozito PXCMFTS-018?

Remove the battery. Loosen and remove the accessory locking bolt and washer with the provided hex key. Place the desired accessory onto the drive spindle ensuring the holes align with the notches. Replace the washer and locking bolt and tighten. Pull on the accessory to verify it is secured.

What materials can I saw with this multi-function tool?

With the correct blade, you can saw wood, plastic, and non-ferrous metals such as aluminium, copper, and brass. Use the wood plunge blade for wood and plastic, and the metal plunge blade for non-ferrous metals.

How do I change the sanding paper?

First, ensure the sanding pad is attached. Press the sanding paper onto the pad, aligning the edges and holes. To remove, peel away starting from an edge. Use the supplied sanding papers (60, 80, 120 grit) or compatible replacements.

What type of battery does this tool use?

It uses any battery from the Ozito Power X Change range, which are 18V Li-ion batteries. The tool is compatible with all chargers from that range.

How do I clean and maintain the tool?

Always remove the battery before maintenance. Keep ventilation slots clean by blowing air through them. Use a moist soft cloth or soft brush for the housing; do not use solvents or let liquid inside. No lubrication is needed as bearings are sealed.

What is the warranty period?

The tool has a 5-year replacement warranty for DIY use. The battery and charger are covered by a 36-month warranty. Consumable parts like cutting blades are excluded.

Can I use this tool for scraping?

Yes. Fit the scraper accessory as described. Hold the tool at a 10° to 15° angle to the workpiece and let the scraper do the work without applying heavy pressure.

What should I do if the tool stops during use?

The battery protection system may cut off power if overloaded or if the battery is low. Release the trigger, remove the cause of overload, and restart. If battery capacity is low, recharge it.

Where can I purchase spare parts?

Spare parts can be ordered from the Special Orders Desk at your local Bunnings Warehouse. For further assistance, visit www.ozito.com.au or contact Ozito Customer Service.

Is the tool safe to use near electrical wiring?

Hold the tool only by insulated gripping surfaces when cutting accessories may contact hidden wiring. If the accessory contacts a live wire, exposed metal parts could become live and cause electric shock.

USER MANUAL PXCMFTS-018 Ozito

Sanding Pad Size: 90 x 90 x 90mm

Sandpaper Size: 93 x 93 x 93mm

Accessory Compatibility: Starlock & Universal

Weight: 0.99kg

ozito.com.au

5YEAR REPLACEMENT WARRANTY

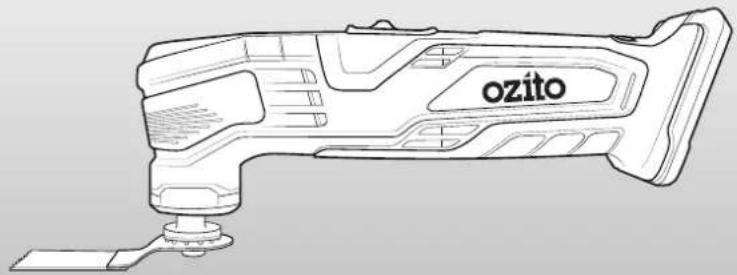

Line drawing of a ozito tool with no visible text or symbols on the body

STANDARD EQUIPMENT

Multi Function Tool

8 x Accessories

PXCMFTS-018

WARRANTY

IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE:

Australia 1800 069 486

New Zealand 0508 069 486

TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.

WARNING

The following actions will result in the warranty being void.

• If the tool has been operated on a supply voltage other than that specified on the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.

The benefits provided under this warranty are in addition to other rights and remedies which are available to you at law.

Our goods come with guarantees that cannot be excluded at law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Generally you will be responsible for all costs associated with a claim under this warranty, however, where you have suffered any additional direct loss as a result of a defective product you may be able to claim such expenses by contacting our customer service helpline above.

5 YEAR REPLACEMENT WARRANTY

Your Product is guaranteed for a period of 60 months from the original date of purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it will be replaced in accordance with the terms of this warranty. Lithium Ion

batteries and chargers are covered by a 36 month

warranty and are excluded from the warranty extension. Warranty excludes consumable parts, for example: cutting blades.

KNOW YOUR PRODUCT SETUP & PRE

COMPACT MULTI FUNCTION TOOL

10n/OffSwitch

4 Sure Grip Handle

2 Variable Speed Dial

5 Accessory Drive Spindle

3BatterySeating

6 Accessory Locking Bolt & Washer

ACCESSORIES

7 Sanding Pad

10 Metal Plunge Blade

8SandingPaper

11 Scraper

(60grit, 80grit, 120grit)

12 Hex Key

9 Wood Plunge Blade

BATTERY & CHARGER

This tool is compatible with all batteries and chargers from the Ozito Power X Change Range.

ONLINE MANUAL

Scan this QR Code with your mobile device to take you to the online manual.

ARATION

1. FITTING THE BATTERY

Inserting & Removing the Battery

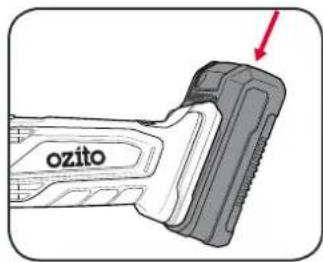

1 Slide the battery into the seating at the back of the tool until it clicks into place.

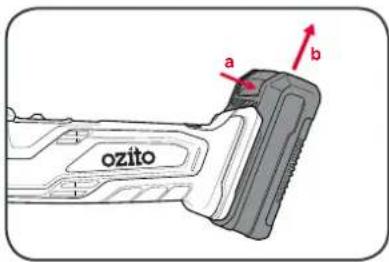

2 To remove, press and hold the battery release tab and then slide out.

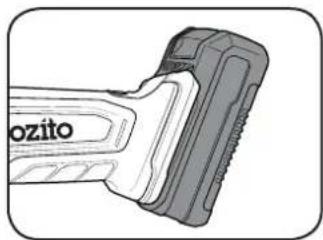

Vibration Absorption

To absorb the vibrations which arise on the rechargeable battery, there is some play between the battery and the tool's battery seating. This is normal and has no effect on the performance of the equipment or the rechargeable battery

Illustration of a hand holding a device labeled 'ozito' (no additional text or symbols)

Battery protection system

The tool is equipped with the battery protection system, which helps to ensure a long service life.

The output power automatically cuts off during operation when the tool and/or battery are placed under the following situations:

- When the tool is overloaded:

If this occurs, release the trigger switch and remove causes of overload, then pull the switch trigger again to restart.

- When the remaining battery capacity becomes low:

Recharge the battery pack.

Note: The battery protection system does not in any way damage the tool.

Note: The indicated capacity may be lower than the actual level during use or immediately after using the tool.

2. FITTING ACCESSORIES

WARNING: ENSURE THE TOOL IS SWITCHED OFF AND THE BATTERY IS REMOVED BEFORE PERFORMING ANY OF THE FOLLOWING TASKS.

Attaching Accessories

1 Loosen and remove the accessory locking bolt and washer with a hex key.

Illustration of a hand tool applying red curved lines to a mechanical component (no text or symbols)

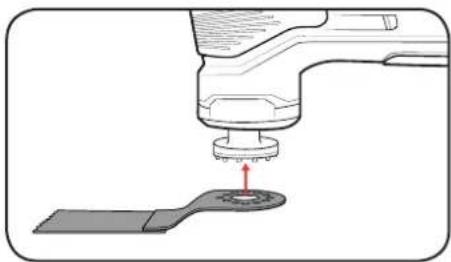

2 Place the desired accessory onto the accessory drive spindle ensuring the holes in the accessory align with the notches on the tool.

Diagram of a mechanical device with a knob and base, showing a press or adjustment mechanism (no text or symbols present)

3 Replace the washer and accessory locking bolt.

Diagram of a mechanical device with a lever and rotating arm, showing motion direction (no text or symbols)

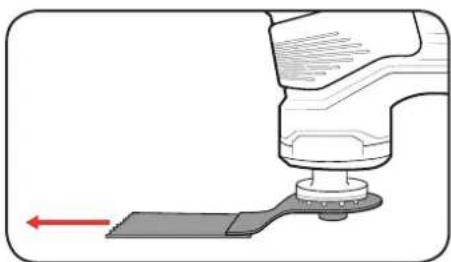

4 Pull on the accessory to check if it is secured correctly.

Diagram of a mechanical device with a red arrow indicating direction, no text or symbols present

WARNING: KEEP FINGERS CLEAR OF SPINDLE WHEN SECURING THE ACCESSORY TO AVOID PINCHING.

3. CONTROLS

Turning On and Off

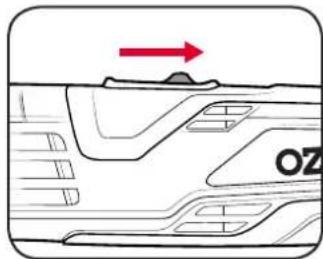

1 To start the tool press the on/off switch forward into the on position.

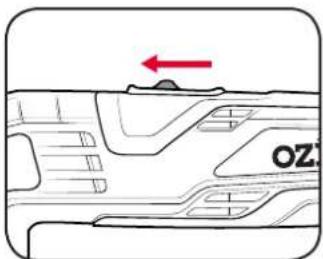

2 To stop the tool press the on/off switch backward into the off position.

Diagram of a vehicle interior with a red arrow indicating direction, no readable text or symbols present

WARNING AFTER USE, HOLD THE TOOL AWAY FROM YOUR BODY UNTIL THE SPINDLE STOPS COMPLETELY.

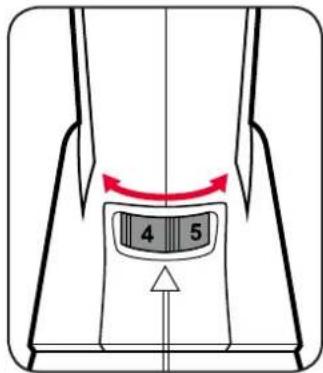

Variable Speed Control

1 To increase the speed of the tool, rotate the variable speed dial to a higher number.

2 To decrease the speed of the tool, rotate the variable speed dial to a lower number.

4. SANDING

With the sanding pad and sand paper fitted, the multi function tool can be used on materials such as wood, plastic and painted surfaces.

Fitting Sand Paper

1 The sanding pad must first be fitted to the spindle following the instructions in Section 2: Fitting Accessories.

Illustration of a mechanical component with a red arrow indicating force or direction (no text or symbols)

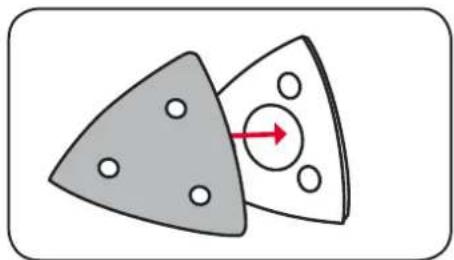

2 Press the sanding paper onto the sanding pad by aligning the edges and holes.

Two triangular objects with circular holes and a red arrow pointing to one (no text or symbols)

3 To remove, peel away from the sanding pad starting from an edge.

Diagram of a triangular object with a red curved arrow indicating rotation or movement (no text or symbols)

Sanding

1 Ensure the accessory is secure, and then start the tool.

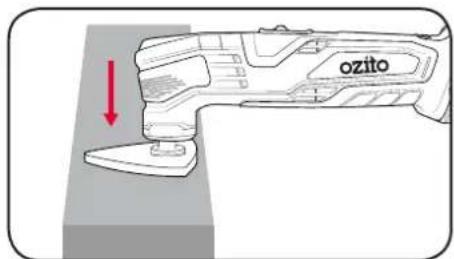

2 Place the multi function tool flat on the workpiece and make smooth back and forth movements.

Note: Do not apply heavy pressure to the tool or tilt the sanding base as this will wear out the sanding paper and may damage the sanding pad.

5. SAWING AND SCRAPING

Sawing or Cutting

When sawing, the multi function tool can be used on wood, plastic and sheet metal using the correct accessory.

Note: Ensure blades are not blunt or damaged in any way before commencing.

1 Ensure the work piece is securely held down and the accessory is secure.

Illustration of a C-shaped clamp with a metal hook (no text or symbols)

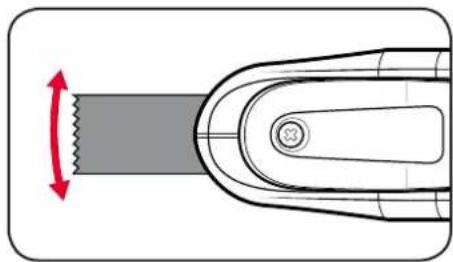

2 Switch the tool on use a slight pendulum motion while cutting.

Diagram of a mechanical component with a highlighted section and red directional arrow (no text or symbols)

WARNING USE THE APPROPRIATE BLADE FOR THE WORKPIECE MATERIAL. THE METAL BLADE IS ONLY SUITABLE FOR NON-FERROUS METALS SUCH AS ALUMINIUM, COPPER & BRASS.

WARNING NEVER FORCE THE TOOL. ALLOW THE TOOL TO DO THE WORK.

Scraping

When being used as a scraper, the tool can remove materials such as fabric, adhesives, vinyl or paint from wood, plastic and metal.

1 Ensure the accessory is secure, and then start the tool.

Technical diagram of a mechanical component with no visible text or symbols

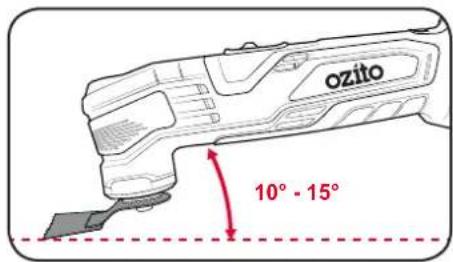

2 Hold the tool at an angle of 10^-15^ to the workpiece.

Note: Allow the scraper to do the work; do not apply heavy pressure to the tool. This may cause the multi function tool to overload or cut into the surface of the material.

MAINTENANCE

WARNING! ALWAYS ENSURE THE TOOL HAS COMPLETELY STOPPED AND THE BATTERY IS REMOVED PRIOR TO ANY MAINTENANCE.

• Keep ventilation slots of the multi function tool clean at all times to ensure efficient operation.
• After each use, blow air through the tool housing to ensure it is free from all dust, dirt, etc. Build up of dust, dirt particles may cause the tool to overheat and shorten the life of the tool.
• If the housing of the multi function tool requires cleaning, do not use solvents but a moist soft cloth or soft brush only.
• Never let any liquid get inside the tool, never immerse any part of the tool into liquid.
• No lubrication is necessary as the tool has sealed bearings.
• When not in use, the multi function tool should be stored in a dry, frost free location not within the reach of children.

Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the multi function tool by an unauthorised person or by mishandling of the multi function tool.

DESCRIPTION OF SYMBOLS

V Volts	Diameter
dc/---	Direct Current	[60KA]	No load speed
[W0HA]	Wear eye protection		Wear gloves
	Regulatory Compliance Mark (RCM)		Double Insulated
	Warning		Read instruction manual

TROUBLESHOOTING

The battery has a short run time

Ensure the battery is properly charged. It will take 4-5 charging cycles before the battery reaches optimum charge and run time. On the initial charge, the battery requires 5 hours of charging. Subsequent charging only requires 3-5 hours.

Sparking visible through the housing air vents

A small amount of sparking may be visible through the housing vents. This is normal and does not indicate a problem.

CARING FOR THE ENVIRONMENT

Power tools that are no longer usable should not be disposed of with household waste but in an environmentally friendly way. Please recycle where facilities exist. Check with your local council authority for recycling advice.

Recycling packaging reduces the need for landfill and raw materials. Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice.

SPARE PARTS

Spare parts can be ordered from the Special Orders Desk at your local Bunnings Warehouse.

For further information, or any parts not listed here, visit www.ozito.com.au or contact Ozito Customer

Service:

Australia 1800 069 486

New Zealand 0508 069 486

E-mail: [e-mail]

ELECTRICAL SAFETY

WARNING! When using mains-powered tools, basic safety precautions, including the following, should always be followed to reduce risk of fire, electric shock, personal injury and material damage.

Head the whole manual carefully and make sure you know how to switch the tool off in an emergency, before operating the tool. Save these instructions and other documents supplied with this tool for future reference.

The charger has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate.

The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.

This tools charger is double insulated; therefore no earth wire is required.

If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid a hazard.

Note: Double insulation does not take the place of normal safety precautions when operating this tool. The insulation system is for added protection against injury resulting from a possible electrical insulation failure within the tool.

Using an Extension Lead

Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.

When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not suitable for the power input of the tool or which is damaged or defective may result in a risk of fire and electric shock.

The power supply for this products charger should be protected by a residual current device (rated at 30mA or less). A residual current device reduces the risk of electric shock.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated [corded] power tool or battery-operated [cordless] power tool.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control

2. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
c. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

3. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
1. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired
c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
8. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Service

a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

MULTI FUNCTION TOOL SAFETY WARNINGS

WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

WARNING! Hold power tool by the insulated gripping surfaces, when performing an operation where the cutting accessory may contact

hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

WARNING! Some dust created by power sanding, sawing, grinding, drilling and other construction activities contain chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

- Lead from lead-based paints

• Crystalline silica from bricks and cement and other masonry products
• Arsenic and chromium from chemically treated timber

Your risk from exposure to these chemicals varies, depending on how often you do this type of work. To reduce your exposure to these chemicals; work in a well ventilated area and work with approved safety equipment, such as dust masks that are specially designed to filter out microscopic particles.
