USER MANUAL Professional MP24FA4R Marvel

24" Marvel Professional All Freezer

Model # MP24FA

Performance

• Tested to hold up to 200 lbs of frozen goods
• Dynamic Cooling Technology™ delivers rapid cool down, frost-free operation and the industry's best temperature stability
  • Insulated thermal-efficient cabinet and drawer fronts ensure optimum efficiency and preservation
• Now even quieter operation thanks to exclusive design enhancements to buffer and minimize sound

Storage Capabilities

• 4.6 total cu. ft. of food storage
- Keep bulky items organized and within easy reach with 3 commercial-grade chrome wire bins on the fully extendable Smooth Glide™ ball bearing system

Touchpad Controls

• Multifunction Marvel Intuit™ Integrated Controls allow you to select a precise cabinet temperature from -10°F to 10°F
  • Vacation mode conserves energy during times when unit is not in use

Aesthetics

• Soft-close integrated hinge provides a seamless zero clearance installation and a smooth gentle close
• At the touch of a button, change the interior light color to sapphire blue, amber glow, or arctic white
• Two-stage theater-style lighting offers full or half illumination
  • Elegant midnight black interior
• Professional styling: stainless steel door, sturdy full-length handle, sleek stainless steel shelf fronts and stainless steel toe kick adjustable to 4" with leveling legs
• Finish options: stainless steel or overlay (panel ready)

Additional Convenience

• Close Door Assist System™ gently and automatically draws door to a close, ensuring door is never accidentally left ajar
  • Door lock provides added safety and security
  • 3-year parts and labor warranty, 5-year sealed system parts warranty

Ordering Options

Solid Stainless Steel Door with Lock, Integrated Right Hinge, Professional Handle	MP24FAS4RS
Solid Stainless Steel Door with Lock, Integrated Left Hinge, Professional Handle	MP24FAS4LS
Panel-Ready Solid Overlay Door with Lock, Integrated Right Hinge (Handle Not Included)*	MP24FAP4RP
Panel-Ready Solid Overlay Door with Lock, Integrated Left Hinge (Handle Not Included)*	MP24FAP4LP

*Easy installation! No panel kit required. Consult your cabinet maker for overlay panel and handle options.

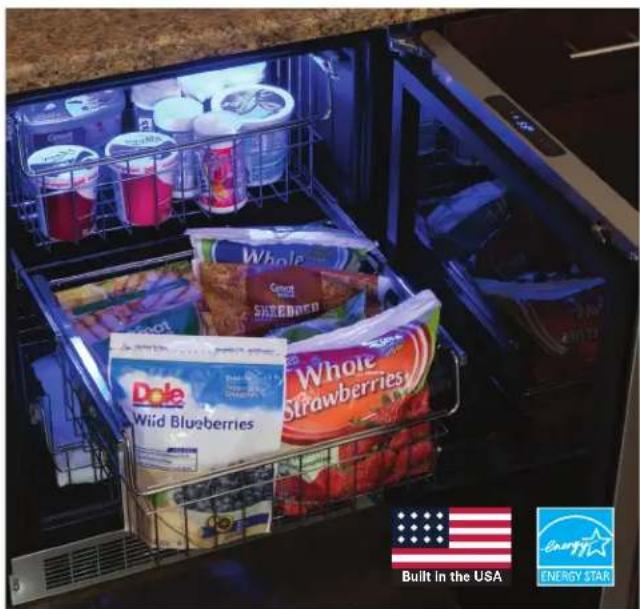

Interior view of a refrigerator with open storage compartments filled with various food items, including Whole Blueberries and Whole Strawberries, with a U.S. flag and Energy Star logo visible (no text on main objects)

Finish Options

Stainless Steel

Solid Overlay (Panel Ready)*

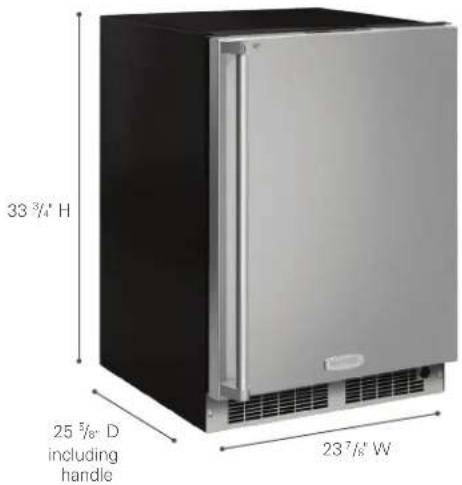

Product Dimensions

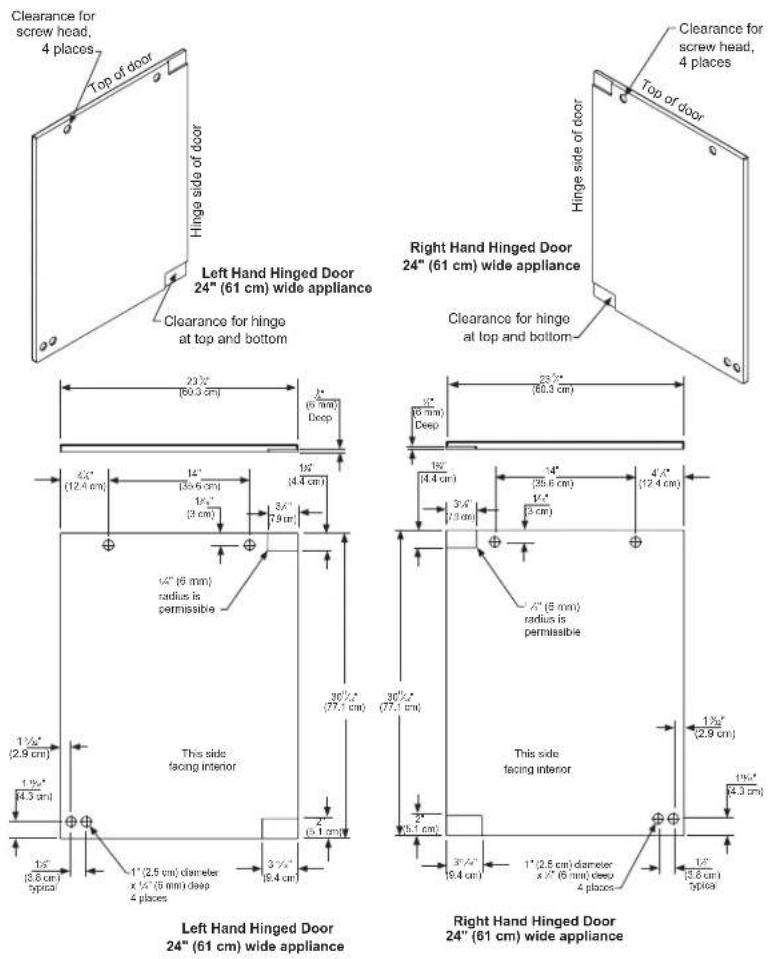

Panel Overlay Dimensions

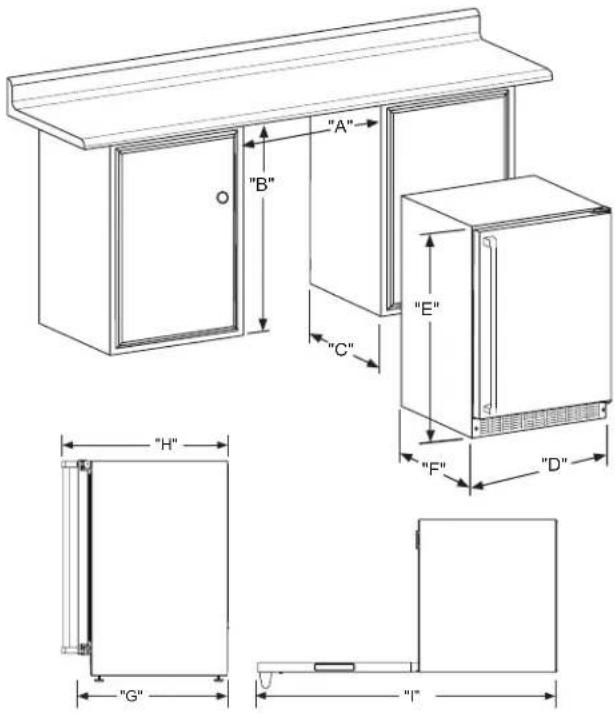

Rough-In Dimensions

A. Rough-In Width 24"
B. Rough-In Height 34 1/4"	to 35 1/25"
C. Rough-In Depth 24"

Product Dimensions

D. Width 23 7/8"
E. Height 34" to 35"
F. Depth 21 1/2"
G. Depth to Front of Door	Solid Door 23 23/32"
	Overlay Door	22 7/8" Without Handle
H. Depth to Handle 26 7/32" (Stainless Steel)
I. Depth with door at 90"	Solid Door 46 13/32"
	Overlay Door 46 1/2"

Product Features

Interior Cabinet Finish Black
Capacity Up to 200 lbs of frozen goods
Shelving System Smooth Glide System	12
Shelf Fronts NA
Other Storage 3 Wire Bins
Interior Lighting	Tri-Color LED
Toe Grill Finish	Stainless Steel
Hinge	Soft Close Integrated Hinge
Handle	Professional(Panel Overlay Does Not Include Handle)
Control Type	IntuitTM
Temperature Range	-10oF to 10oF
Lock	Yes
Electrical Requirements	120V / 60Hz / 15A
Length of Power Cord	6'
Shipping Weight	160 lbs
Finishes	Stainless Steel, Overlay
Vacation Mode	Yes
Agency Approvals	CSA, ENERGY STAR

For comprehensive installation instructions, please visit www.marvelrefrigeration.com to access the owner's guide.
