Product Type	Panel PC with 15" TFT LCD Display
Display Size	15"
Resolution	1024 x 768 (XGA)
CPU	Intel Core i5-6300U (2.4 GHz base, 3.0 GHz turbo)
Memory	1 x 260-pin DDR4 SO-DIMM, up to 16 GB
Storage	1 x 2.5" SATA HDD/SSD
Network	2 x GbE LAN ports
I/O Ports	2 x RS-232, 1 x RS-422/485, 4 x USB 3.0, 1 x VGA, 1 x DP, Line-out, Mic-in
Expansion Slots	1 x PCIe x1, 1 x PCI (in accessory box), 1 x Mini PCIe, 1 x M.2 (22x42mm, SATA)
Touchscreen	5-point projective capacitive, 88%+/-5% light transmission
Power Input	9-32 VDC, 10-3 A
Power Consumption	60 W (i5-6300U, Win7 64bit)
Operating Temperature	0 to 50°C (SSD), 0 to 45°C (HDD)
Storage Temperature	-40 to 60°C
IP Rating (Front)	IP65 (dustproof and waterproof)
Dimensions (W x H x D)	391.4 x 312.5 x 55.35 mm
Weight	5.4 kg (11.90 lb)
Certifications	CE, FCC Class B, BSMI, CCC, UL
Fanless Design	Yes, effective thermal solution
Mounting	Panel mount, VESA, optional hook

Frequently Asked Questions - PPC-3151 Advantech

How do I install memory (RAM) in the PPC-3151?

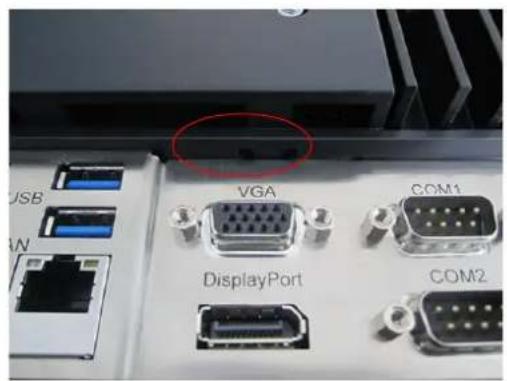

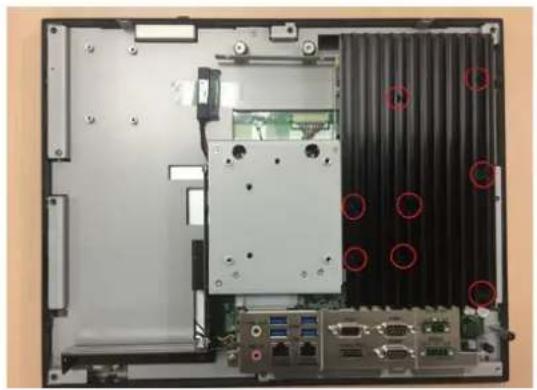

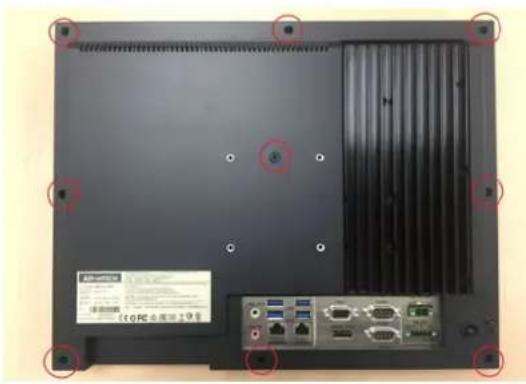

Remove the rear cover by unfastening the screws, then remove the heatsink. Locate the DDR4 SO-DIMM slot and insert the memory module. Reverse steps to reassemble. See Chapter 2.3 in the manual for details.

What type of hard drive is supported?

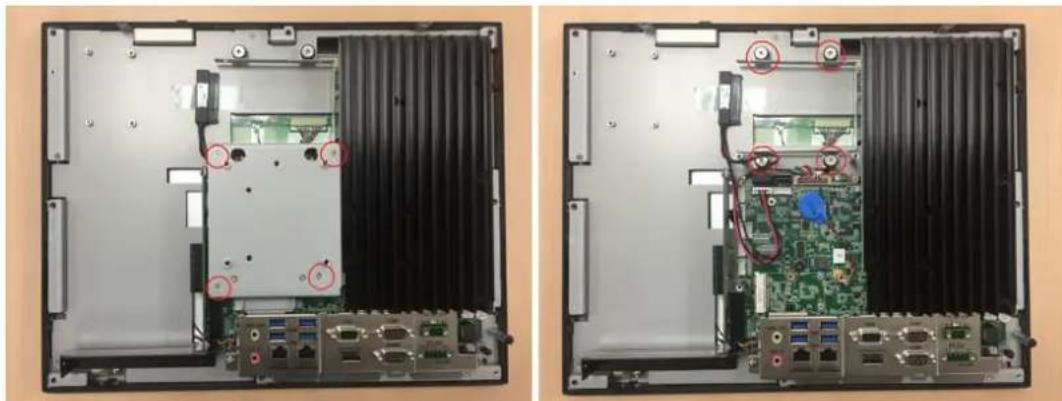

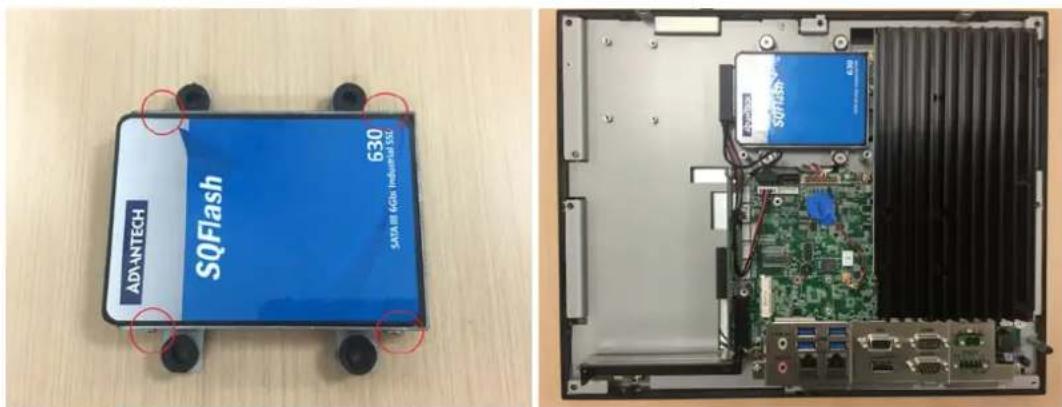

The PPC-3151 supports a single 2.5" SATA HDD or SSD. Installation requires removing the rear cover and VESA holder, then securing the drive into the bracket with four screws.

Can I install a wireless LAN card?

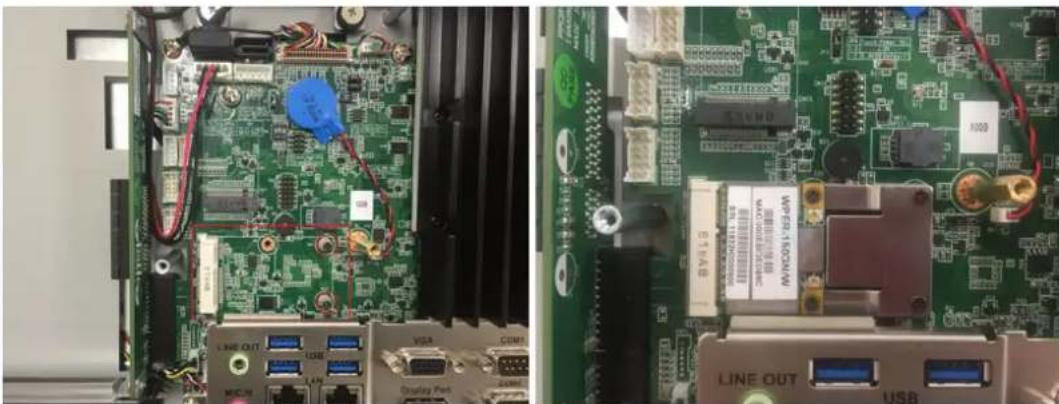

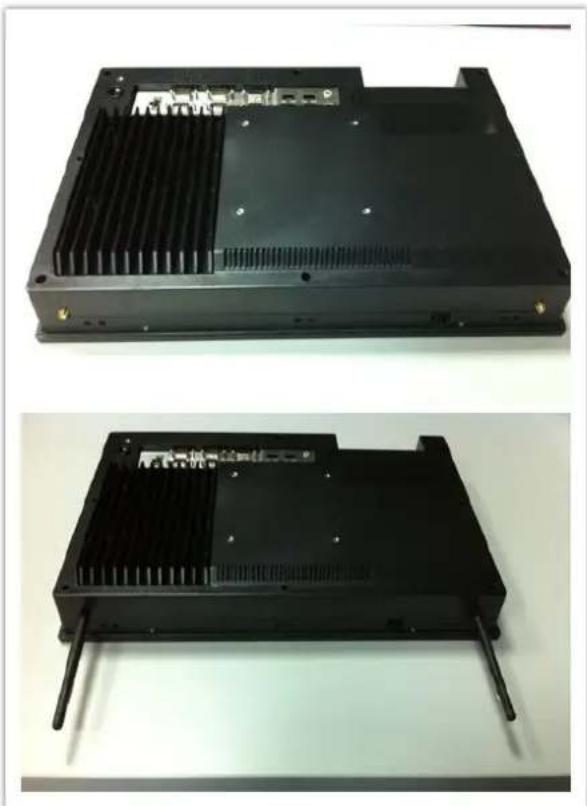

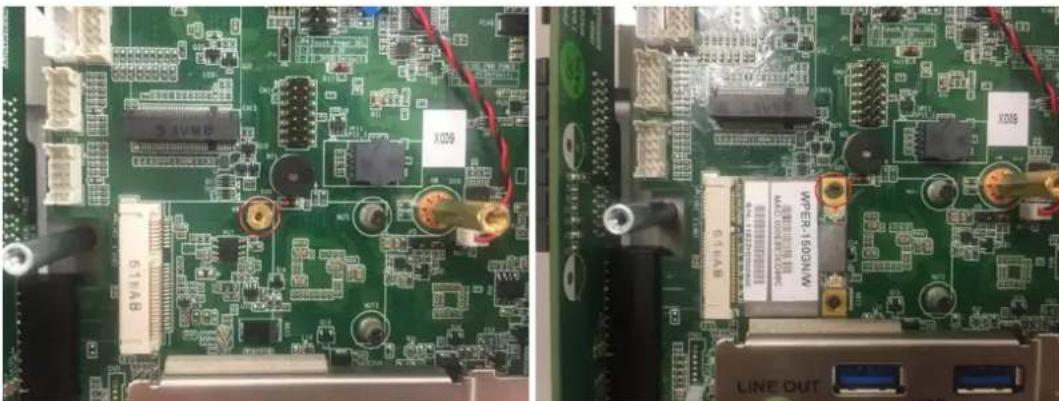

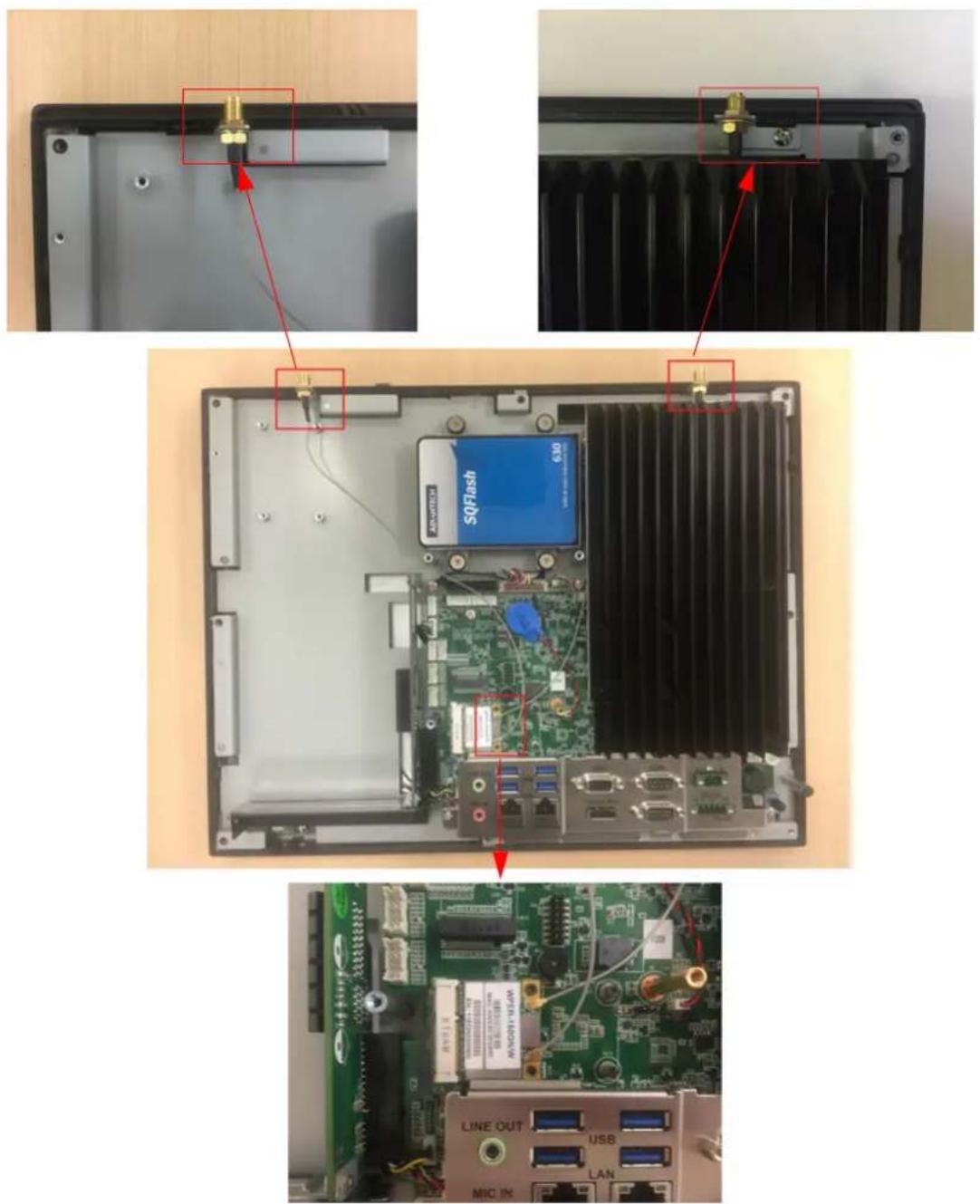

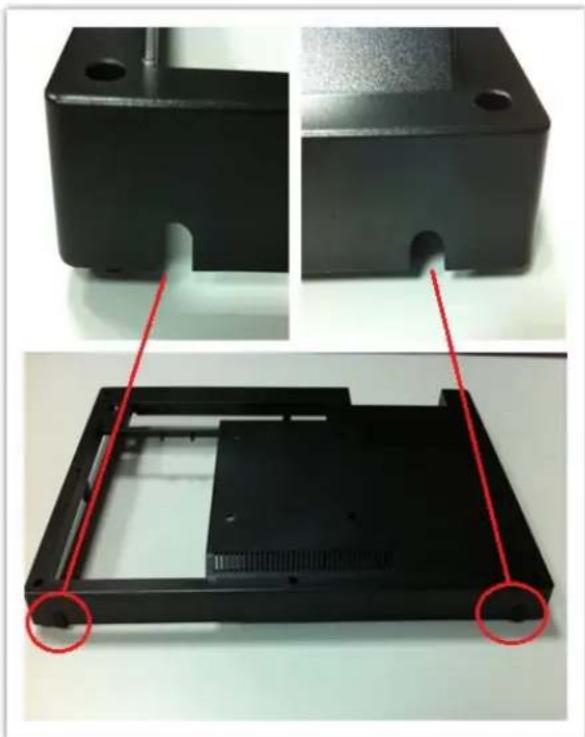

Yes. Remove the rear cover and VESA holder, then install a Mini PCIe wireless card (full-size or half-size). Use the provided antenna bracket and connect cables. An optional Advantech module (PPC-WLAN-A1E) is available.

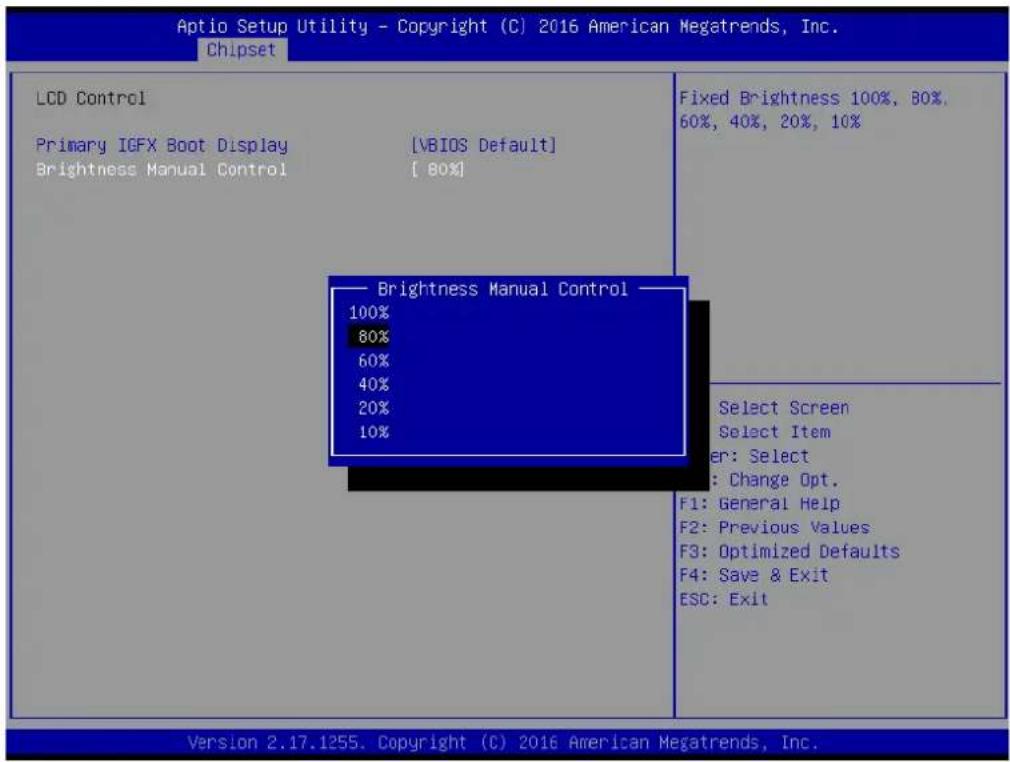

What are the BIOS settings for adjusting LCD brightness?

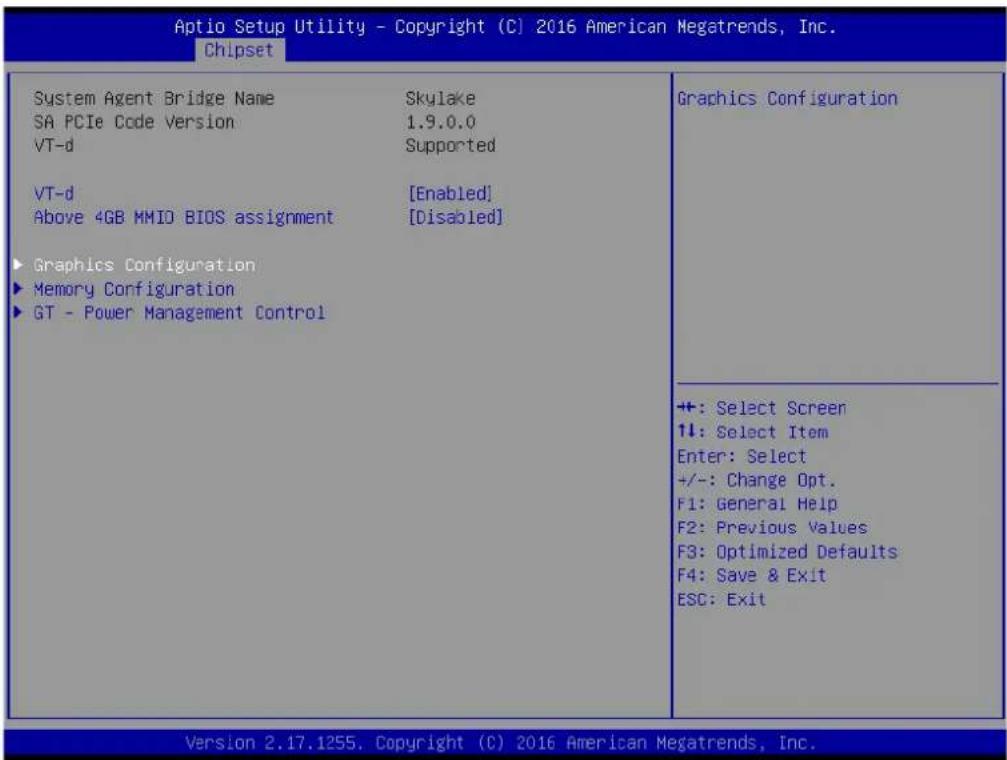

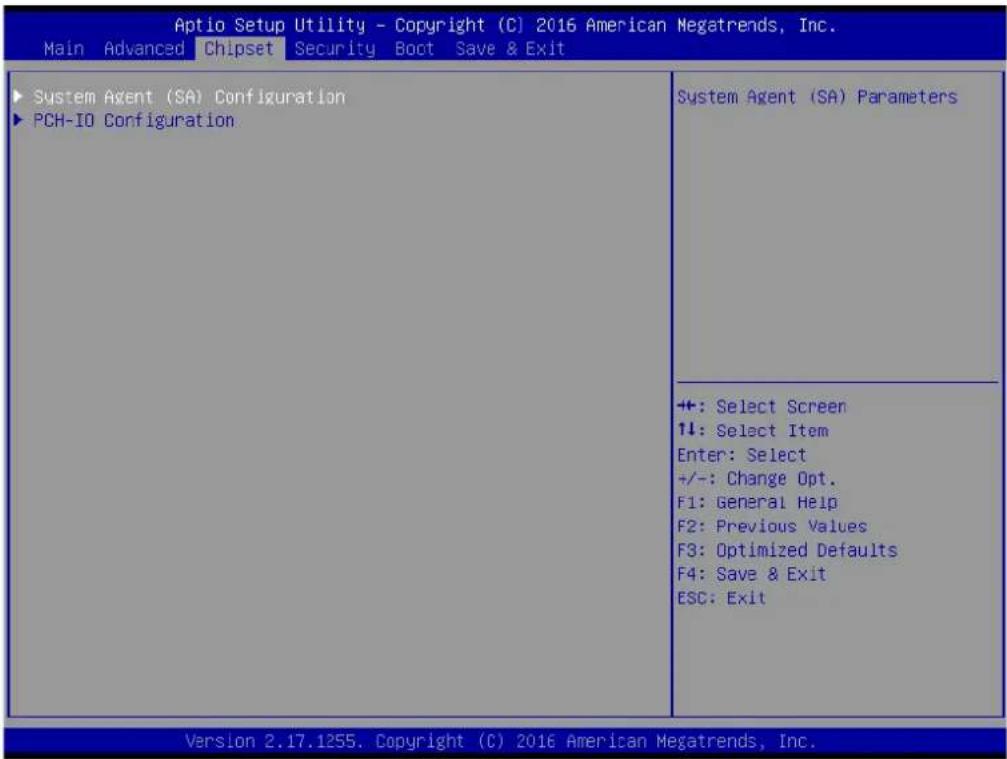

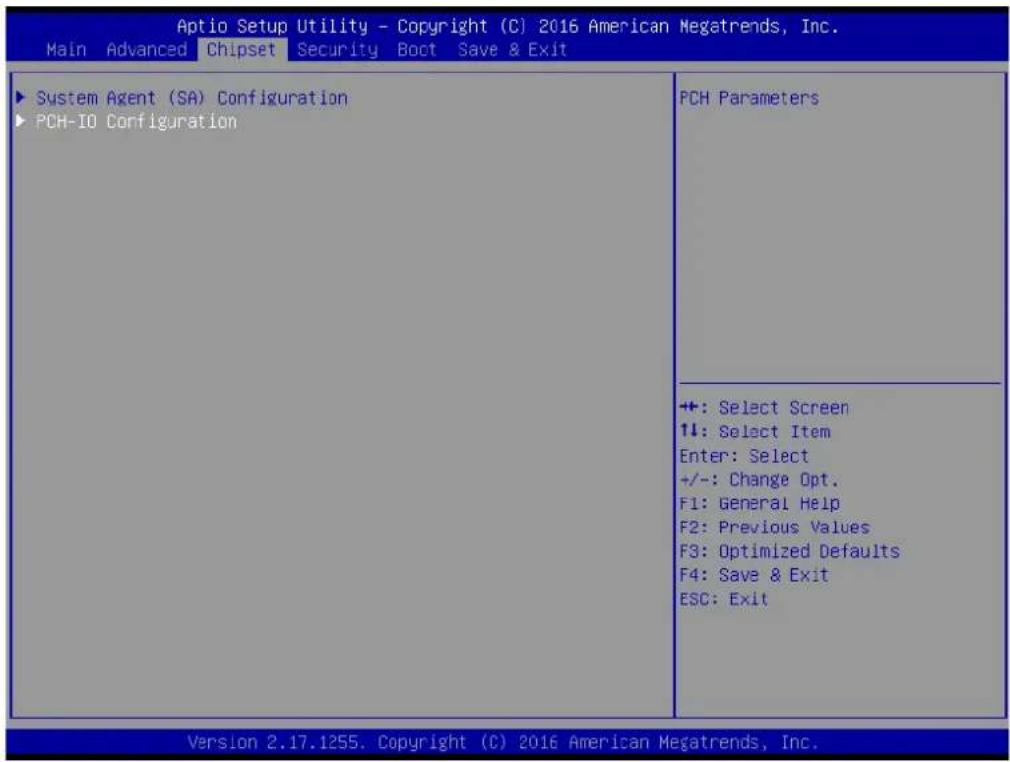

Enter BIOS by pressing Delete. Go to Chipset > System Agent (SA) Configuration > Graphics Configuration > LCD Control > Brightness Control. Select Manual and choose one of six brightness levels.

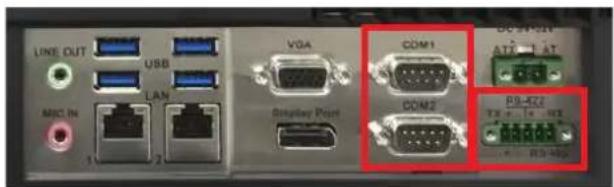

How do I set COM5 to RS-422 or RS-485?

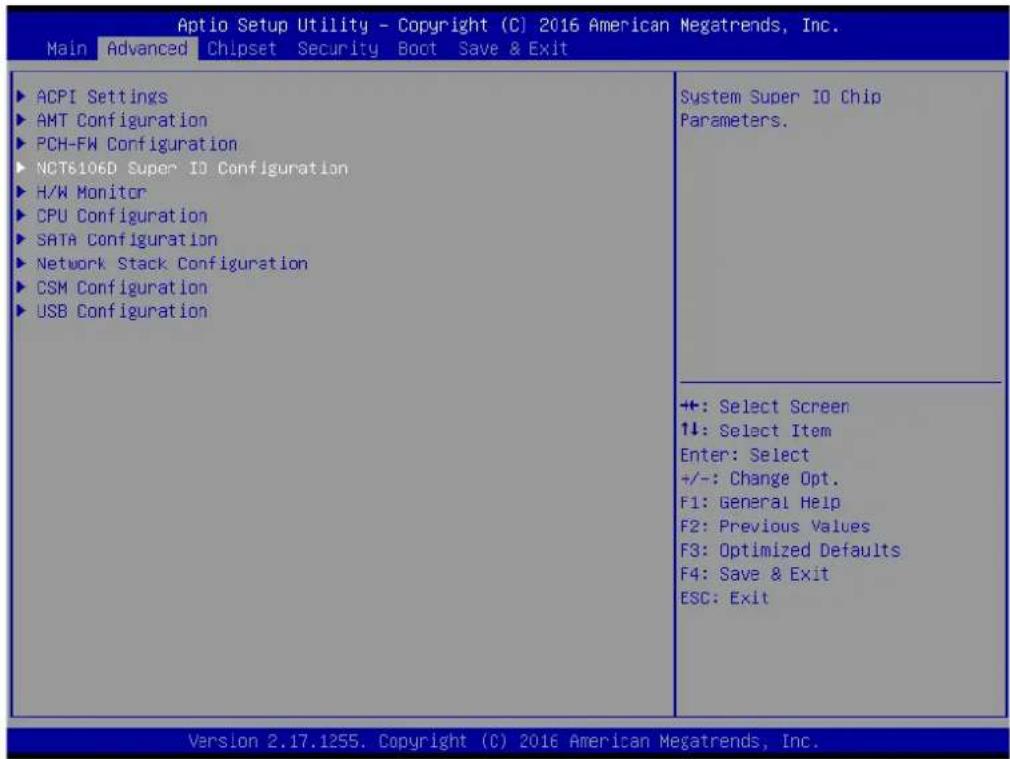

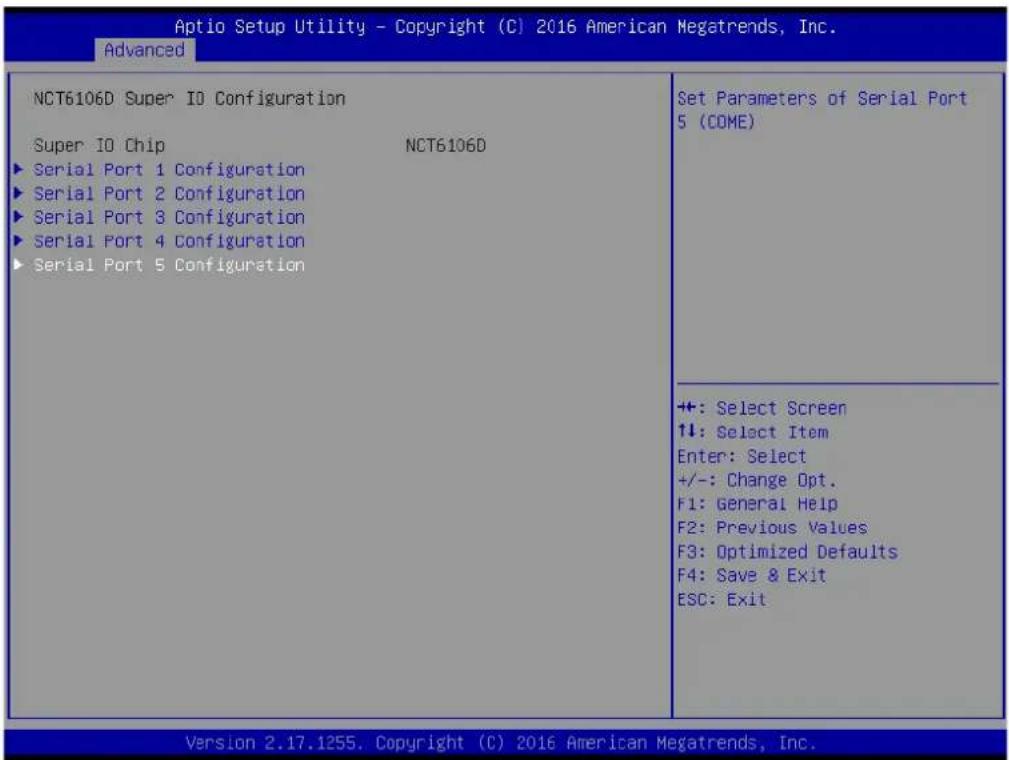

In BIOS, go to Advanced > NCT6106D Super IO Configuration > Serial Port5 Configuration. Select the desired mode. COM5 supports RS-422/485 with auto flow control.

What power supply is required?

The PPC-3151 accepts 9-32 VDC input. The power connector is a 2-pin Phoenix type. An adapter may be needed; ensure the power source is UL certified and provides sufficient current (10-3A depending on voltage).

How do I clean the touchscreen?

Disconnect the device from AC power. Use a damp cloth (not liquid or spray) to clean the screen. Avoid abrasive cleaners. The front panel is IP65 rated, so it is dustproof and waterproof.

Is grounding necessary?

Yes, especially for capacitive touchscreens. Use the grounding screw located on the I/O panel (marked with a red circle in the manual) to connect to a proper earth ground.

What is the warranty period?

Advantech provides a two-year warranty from the date of purchase against defects in materials and workmanship. Repairs or replacements are free during the warranty period. Contact your dealer with an RMA number for returns.

Can I install an expansion card?

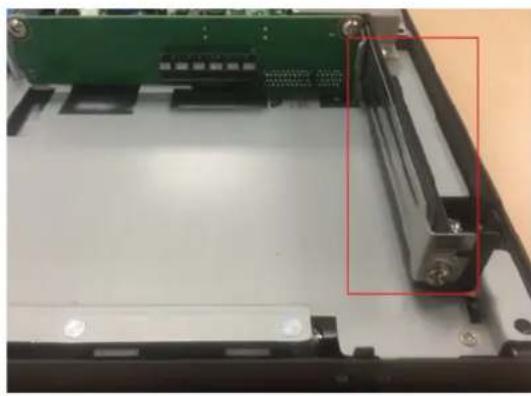

Yes. Remove the rear cover, then remove the blank plate. Install the card into the PCIe x1 or PCI slot (PCI riser card in accessory box). Maximum card size is 176mm x 107mm.

USER MANUAL PPC-3151 Advantech

Illustration of three kitchen appliances in a green outline style (no text or symbols)

PPC-3151

Intel® Core i Processor Based Micro-Computer with a 15" Color TFT LCD Display

Copyright

The documentation and the software included with this product are copyrighted 2016 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. However, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringements of the rights of third parties, which may result from its use.

Acknowledgements

Intel and Pentium are trademarks of Intel Corporation.

Microsoft Windows and is registered trademarks of Microsoft Corp.

All other product names or trademarks are properties of their respective owners.

Product Warranty (2 years)

Advantech warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for two years from the date of purchase.

This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorized by Advantech, or which have been subject to misuse, abuse, accident or improper installation. Advantech assumes no liability under the terms of this warranty as a consequence of such events.

Because of Advantech's high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defective, it will be repaired or replaced at no charge during the warranty period. For out-of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight. Please consult your dealer for more details.

If you think you have a defective product, follow these steps:

1. Collect all the information about the problem encountered. (For example, CPU speed, Advantech products used, other hardware and software used, etc.) Note anything abnormal and list any onscreen messages you get when the problem occurs.

2. Call your dealer and describe the problem. Please have your manual, product, and any helpful information readily available.

3. If your product is diagnosed as defective, obtain an RMA (return merchandize authorization) number from your dealer. This allows us to process your return more quickly.

4. Carefully pack the defective product, a fully-completed Repair and Replacement Order Card and a photocopy proof of purchase date (such as your sales receipt) in a shippable container. A product returned without proof of the purchase date is not eligible for warranty service.

5. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer.

Part No. 200K315110 Edition 1

Printed in China April 2017

Declaration of Conformity

CE

This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for ordering information.

CE

This product has passed the CE test for environmental specifications. Test conditions for passing included the equipment being operated within an industrial enclosure. In order to protect the product from being damaged by ESD (Electrostatic Discharge) and EMI leakage, we strongly recommend the use of CE-compliant industrial enclosure products.

FCC Class B

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

Technical Support and Assistance

1. Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product.
2. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call:
   – Product name and serial number
   – Description of your peripheral attachments
   – Description of your software (operating system, version, application software, etc.)
   – A complete description of the problem
   – The exact wording of any error messages

Safety Instructions

1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall may cause damage.

7. The openings on the enclosure are for air convection. Protect the equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting the equipment to the power outlet.

9. Position the power cord so that people cannot step on it. Do not place anything over the power cord.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or electrical shock.

13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

14. If one of the following situations arises, get the equipment checked by service personnel:

■ The power cord or plug is damaged.
- Liquid has penetrated into the equipment.
■ The equipment has been exposed to moisture.
The equipment does not work well, or you cannot get it to work according to the user's manual.
■ The equipment has been dropped and damaged.
■ The equipment has obvious signs of breakage.

1. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE THE STORAGE TEMPERATURE MAY GO BELOW -40°C (-40°F) OR ABOVE 60°C (140°F). THIS COULD DAMAGE THE EQUIPMENT. THE EQUIPMENT SHOULD BE IN A CONTROLLED ENVIRONMENT.

2. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER, DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER'S INSTRUCTIONS.

3. This product is intended to be supplied by an UL certified DC source rated 9-32Vdc, 10-3A. Tma 50 degree C minimum, if need further assistance, please contact Advantech for further information.

The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A).

DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.

Safety Precaution - Static Electricity

Follow these simple precautions to protect yourself from harm and the products from damage.

To avoid electrical shock, always disconnect the power from your PC chassis before you work on it. Don't touch any components on the CPU card or other cards while the PC is on.

■ Disconnect power before making any configuration changes. The sudden rush of power as you connect a jumper or install a card may damage sensitive electronic components.

Battery Information

Batteries, battery packs and accumulators should not be disposed of as unsorted household waste. Please use the public collection system to return, recycle, or treat them in compliance with the local regulations.

Contents

Chapter 1 Overview......1

1.1 Introduction ...... 2

1.2 Specifications.... 2

1.2.1 General Specifications.... 2

1.2.2 Power Specifications.... 3

1.2.3 Touchscreen Specifications.... 3

1.2.4 Environment Specifications.... 3

1.2.5 Certifications 3

1.2.6 IP Grade.... 3

1.3 Dimensions 4

Chapter 2 System Installation and Setup .....5

2.1 A Quick Tour 6

Figure 2.1: Front View 6

Figure 2.2: Side View....6

Figure 2.3: I/O Connectors 7

2.2 Installation Procedures....8

2.2.1 Connecting Power Cord....8

Figure 2.4: Connecting Power Cord 8

2.2.2 Connecting Keyboard and Mouse.... 8

2.2.3 Switching on the Panel PC 8

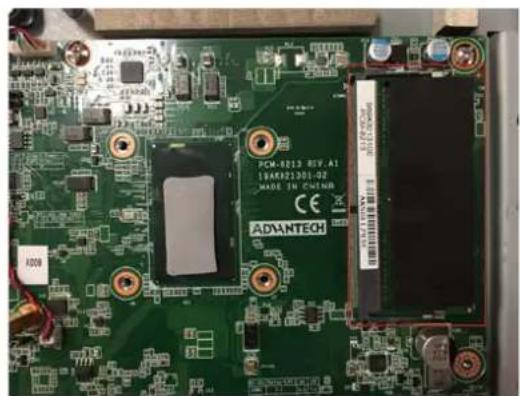

2.3 Installing Memory....9

2.4 Installing HDD 10

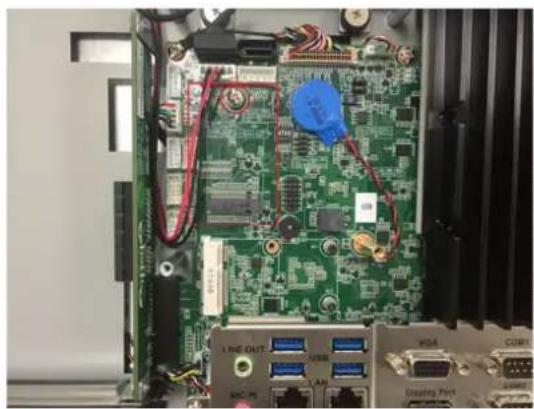

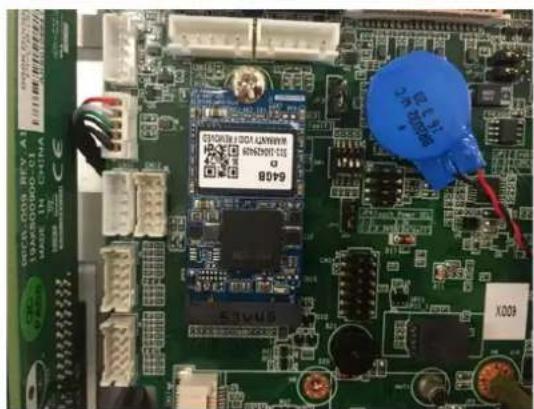

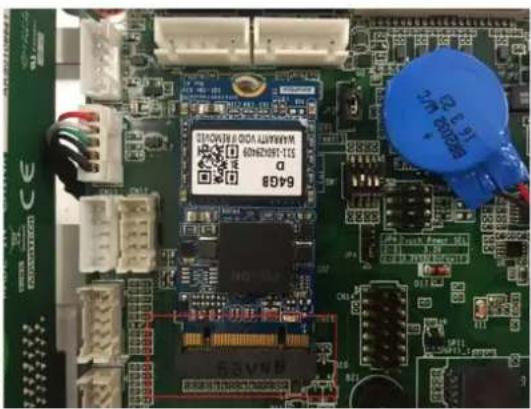

2.5 Installing M.2.... 11

2.6 Installing Wireless LAN Card 12

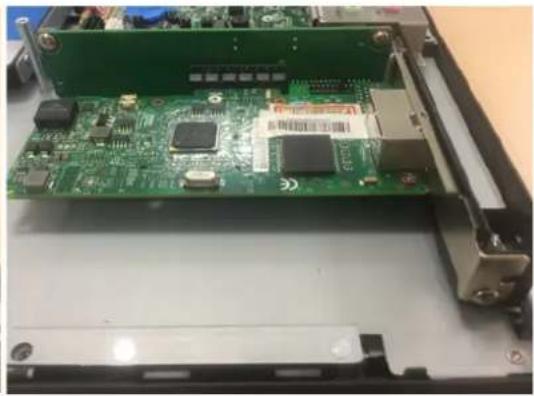

2.7 Installing Expansion Card 15

2.8 Adjusting AT/ATX Functions 15

2.9 Grounding 15

2.10 Installing Hook.... 16

2.11 Solo Quick Installation.... 17

Chapter 3 Jumper and Switch Settings .....19

3.1 Jumpers and Connectors.... 20

3.2 External COM Port Pin Assignments 22

Chapter 4 Software Setup ......23

4.1 Installing Drivers.... 24

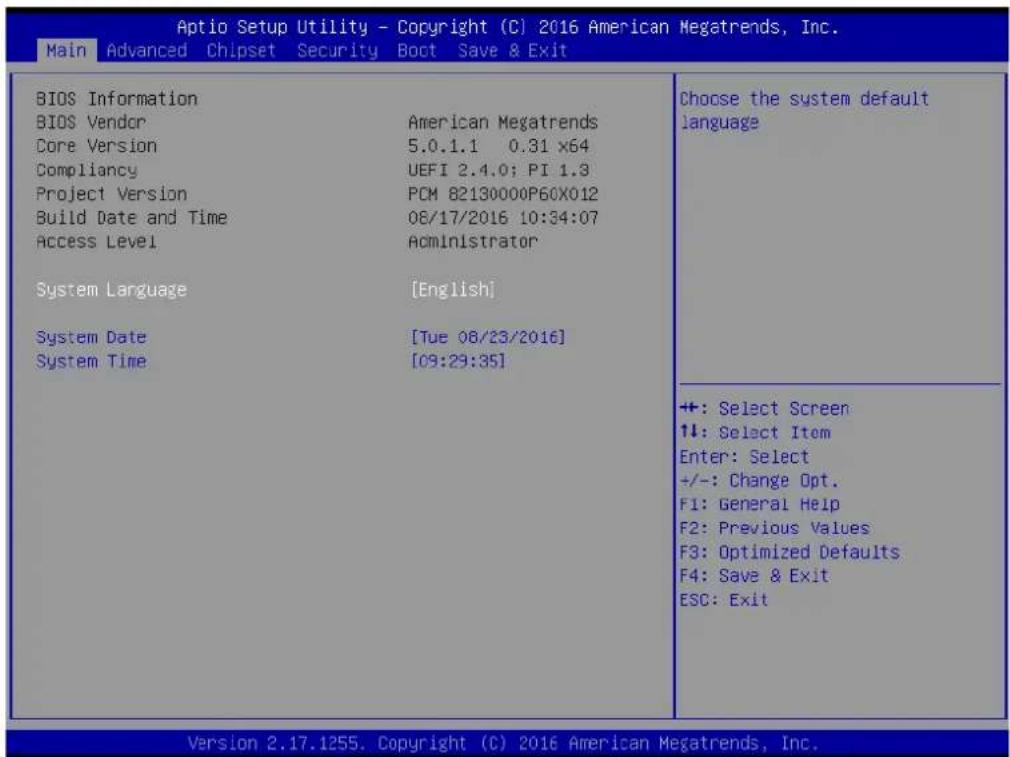

4.2 BIOS Setup Utility 24

4.2.1 Entering BIOS Setup.... 24

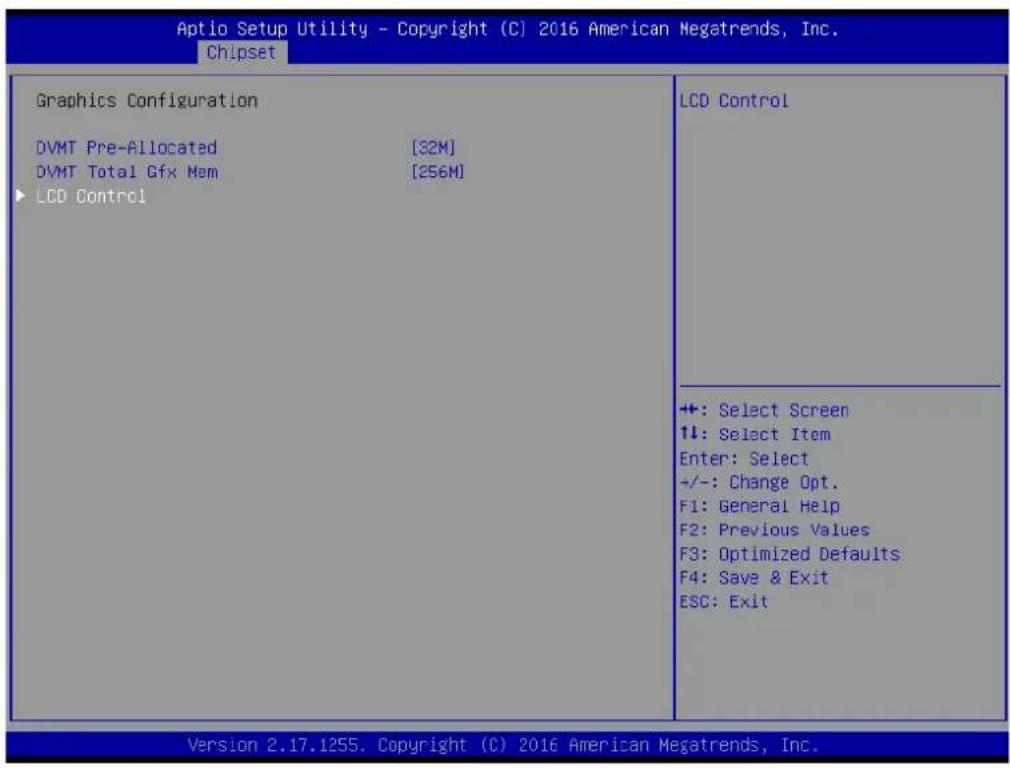

4.2.2 LCD Brightness Adjustment.... 25

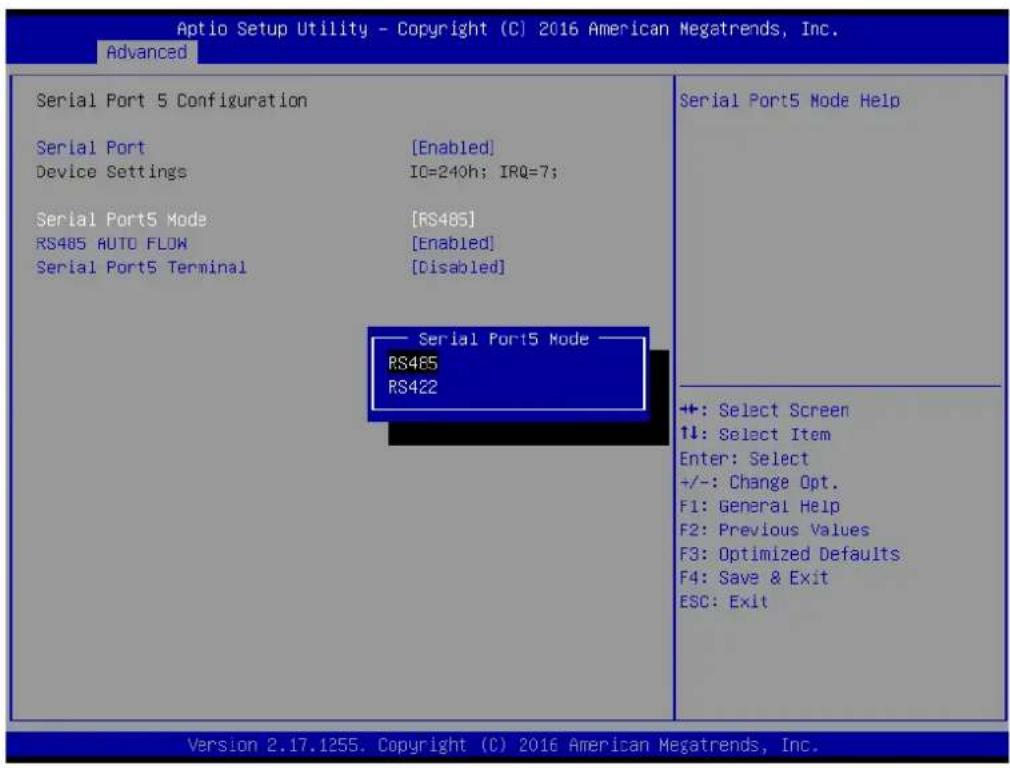

4.2.3 COM5 Mode (RS422/485) Selection 27

4.2.4 Wake up by LAN.... 28

Appendix A RoHS List 31

A.1 RoHS List.... 32

Chapter 1

Overview

This chapter gives background information on the PPC-3151 panel PC.

Sections include:

Introduction
Specifications
Dimensions

1.1 Introduction

PPC-3151 is a new generation XGA (1024 x 768) panel PC. It is based on the 6th. Gen Intel Core processor and adopts the effective fanless thermal solution, featuring excellent performance and reliability of this product series. PPC-3151 offers rich IOs, including 3 COMs, 4 USBs and dual Giga Ethernet ports, which makes it easier to connect with any peripheral devices and integrating with machine manufacturing. Besides, it also provides PCIe/ PCI expansion for more applications. Lastly, its multi-control touchscreen is consistent with current operating experience and user habits.

1.2 Specifications

1.2.1 General Specifications

Product Name PPC-3151
LCD Specification 15" LCD
Display Type 15" TFT LCD (LED backlight)
Max. Resolution 1024 x 768
Color 16.7M
Dot Pitch 0.297 x 0.297 mm
Viewing Angle	80° (Left), 80° (Right), 70° (Up), 70° (Down) (Typ.)
Luminance 400 cd/m2(Typ.)
Contrast 700 (Typ.)
Backlight Life 50,000 hrs
Weight 5.4 Kg (11.90 lb)
Dimension	391.4 x 312.5 x 55.35 mm (15.41" x 12.3" x 2.18")
CPU	Model Base Frequency Turbo Cache
	i5-6300U 2.4GHz 3.0GHz 3M
Memory	1 x 260-pin slot, supports up to 16G DDR4
Storage	1 x 2.5" SATA HDD/SSD
Network (LAN1, LAN2)	2 x Giga Ethernet ports
I/O Connectors	2 x RS-232 ports, 1 x RS-422/485 port, 4 x USB 3.0 connectors2 x Giga Ethernet ports1 x VGA port, 1 x DP connector1 x Line-out, 1 x Mic-in, 2 x 1 W speaker (internal)1 x Phoenix power connector, 1 x power switch
Expansion Slots	1 x PCIe x1 (standard configuration)
	1 x PCI (in accessory box)
Additional Expansion Slots	1 x Mini PCIe card slot1 x M.2 card slot (supported model: 22 x 42 mm, SATA interface)
OS	Win 7(32Bit/64Bit)/Win 8.1(64Bit)/Win 10(64Bit)/Linux

1.2.2 Power Specifications

Power Consumption i5: 60 W (Test system: Windows7 64bit)

Input Voltage 9 - 32 Vdc, 10 \~ 3 A

Note! For its test conditions, please see Note 1.

1.2.3 Touchscreen Specifications

Type 5-point projective capacitive

Light Transmission 88%+/-5%

Controller USB interface

1.2.4 Environment Specifications

Operating temperature 0 \~ 50°C (32 \~ 122°F) (SSD) 0 \~ 45°C (32 \~ 113°F) (HDD)

Storage Temperature -40 \~ 60°C (-40 \~ 140°F)

Relative Humidify 10 \~ 95% @ 40°C (Non-condensing)

Shock 10 G peak acceleration (11 ms duration)

Vibration 5 \~ 500 Hz 1 G RMS

1.2.5 Certifications

EMC BSMI, CE, FCC Class B

Safety CB, CCC, UL, BSMI

1.2.6 IP Grade

Front Panel Dustproof and waterproof IP65

Note 1:
Power consumption of PPC-3151 is shown as below:

Test Software	Test Configuration	Test System
Burn-in 7.0	Memory: 8G DDR4 2133HDD: 2.5" 500G SATA IIIIO: COM Port RS232 loopback x 2, USB 3.0 x 4	Win 7 (64bit)

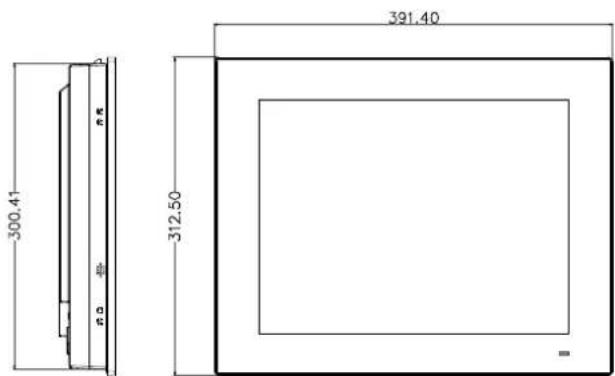

1.3 Dimensions

Unit: mm

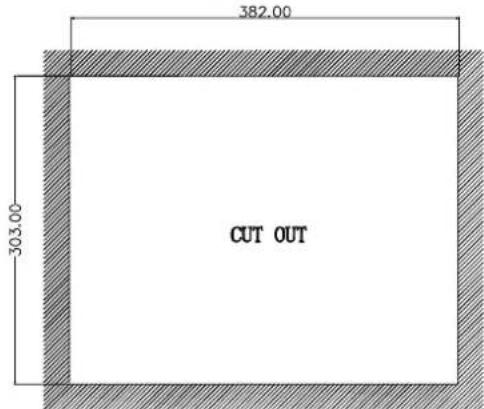

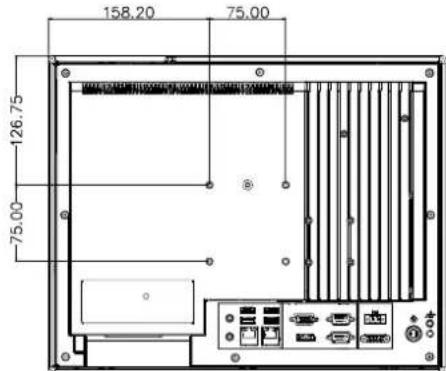

Cut-Out dimension:382 x 303 mm

Note! Screw specification: M4; hole depth is 8 mm for maximum. Use suitable mounting apparatus to avoid risk of injury.

Chapter 2

System Installation and Setup

Sections include:

A Quick Tour
■ Installation Procedures
■ Replacing Memory
Installing HDD
Installing M.2
■ Installing Wireless LAN
■ Installing Expansion Card
■ Adjusting AT/ATX Functions
Grounding
Installing Hook
■ Single Person Quick Installation Guide

2.1 A Quick Tour

Before you install the panel PC, please be familiar with the location and function of each control key, driver, connector and port (please refer to the following content and figures).

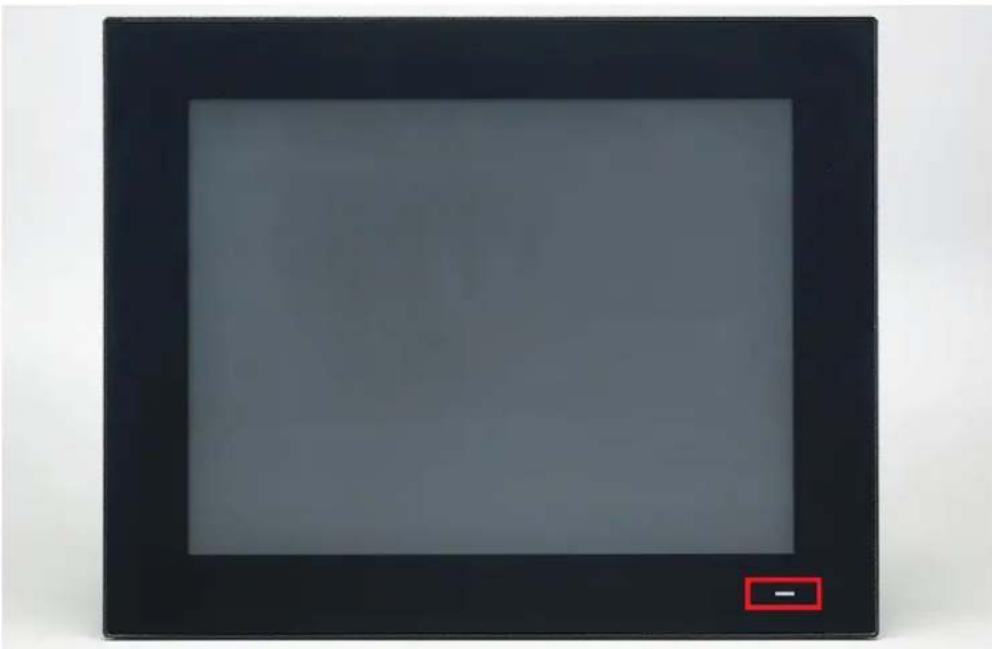

When the panel PC is placed on the desk, its front panel is shown as Figure 2.1.

Black rectangular frame with a white background and a red button labeled '一' (no text or symbols on the screen)

Figure 2.1: Front View

Power status LED: Off (S5) Orange; Sleep (S3) Orange; On (S0) Blue.

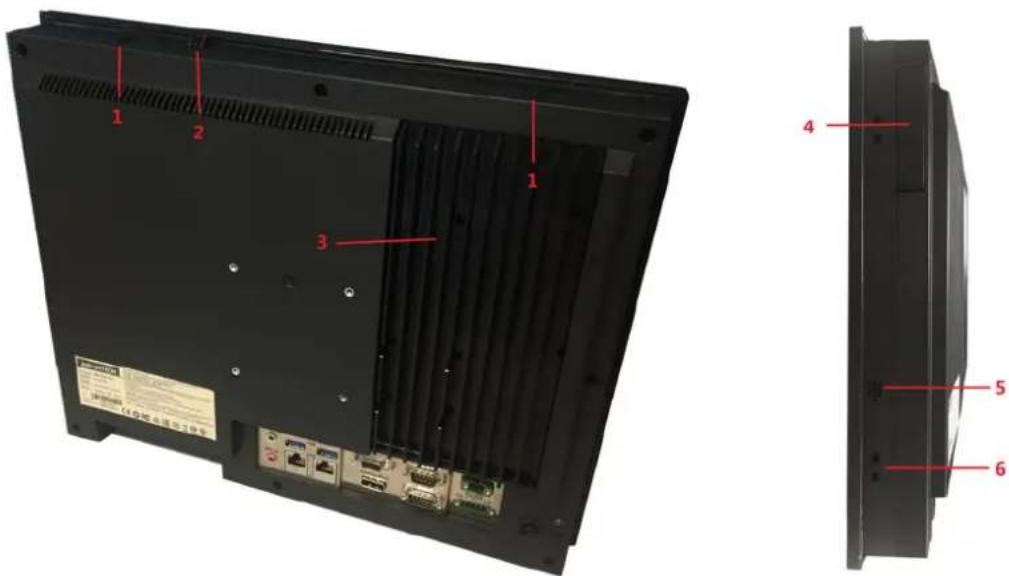

Figure 2.2: Side View

1. Antenna hole
2. Quick installation clip
3. CPU heatsink
4. Expansion slot for optional module
5. Speaker (left, right)

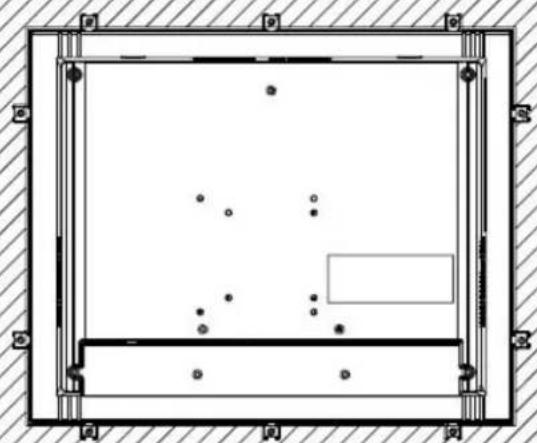

6. Hooking holes for panel installation (ten holes)

I/O connectors:

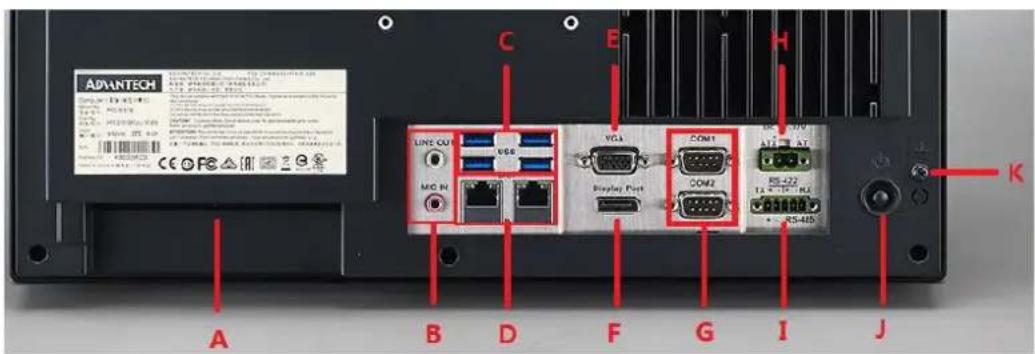

Figure 2.3: I/O Connectors

A: PCI/PCIE expansion slots x 4

B: Line-out / Mic-in

C: 4 × USB 3.0

D: 2 x Giga Ethernet ports

E: VGA

F: DP

G: 2 x RS-232

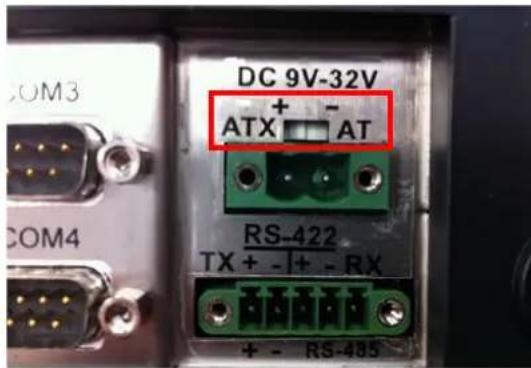

H: DC power connector (9-32V)

I: 1 x RS-422/485

J: Power switch

K: Grounding screw

2.2 Installation Procedures

2.2.1 Connecting Power Cord

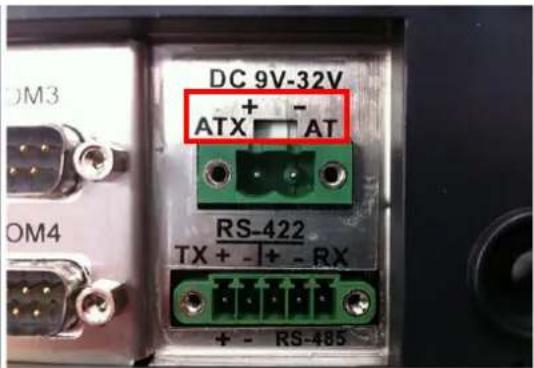

The panel PC supports 9 - 32 V DC power supply. Please always hold the plug end when connecting the power cord. Please follow the below procedures to connect the power cord:

1. Plug the 2-pin connector into the DC inlet of the panel PC.

2. Connect power cord with power adapter with the 3-pin female connector.

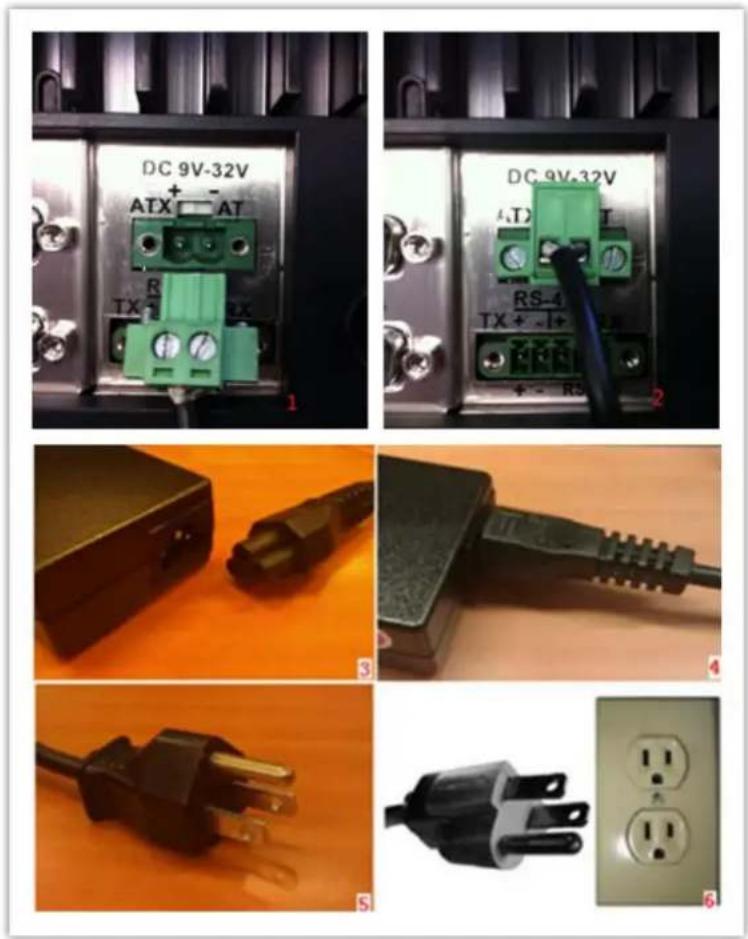

Figure 2.4: Connecting Power Cord

2.2.2 Connecting Keyboard and Mouse

Connect mouse and keyboard to the I/O connector of the panel PC. Refer to Figure 2.3, C, USB.

2.2.3 Switching on the Panel PC

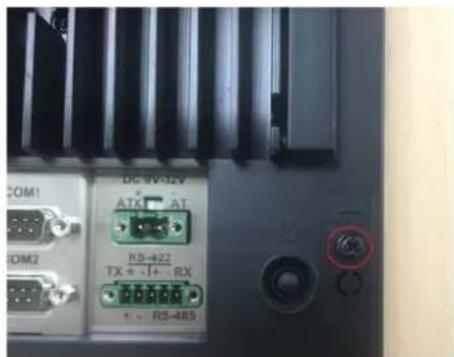

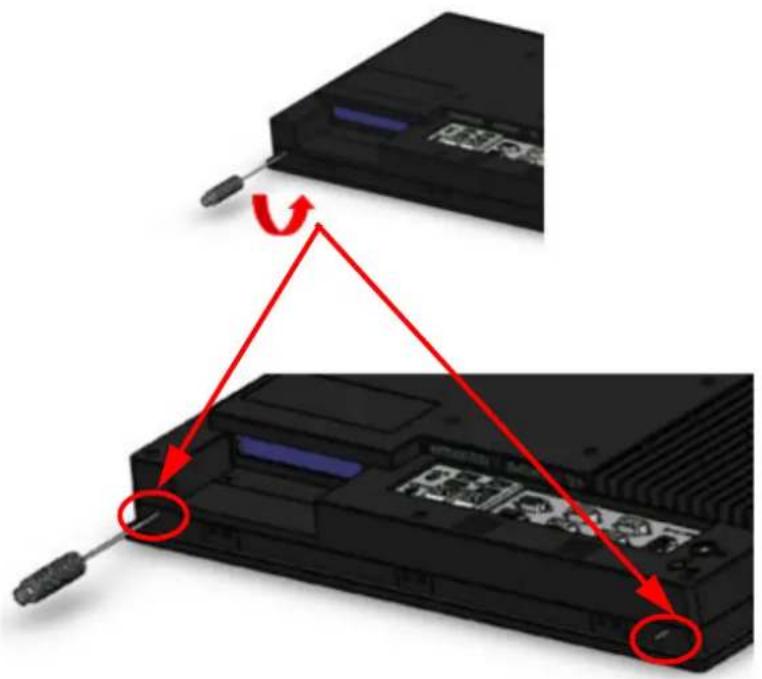

Power switch is located at the lower right corner of the rear cover. Refer to Figure 2.3, J, Power switch.

Note!Power cord and adapter are optional.

2.3 Installing Memory

1. Unfasten the screws marked with red circles (see below left figure).
2. Pop-up the hook marked with a red oval (see below right figure) to remove the rear cover.

Back panel of a computer monitor with ventilation slots and external ports (no visible text or symbols)

Close-up of a computer interface showing ports and connectors (no readable text or symbols)

1. Unfasten the screws indicated in the below left figure and take out the heatsink, then replace the memory.

Interior view of a computer drive bay showing internal components and ventilation ducts (no text or symbols visible)

Close-up of a green printed circuit board with visible components and connectors (no readable text or symbols)

2.4 Installing HDD

1. Follow the procedures in Chapter 2.3 to remove the rear cover. Unfasten the screws marked with red circles and remove VESA holder below left, then take out the HDD bracket below right.

Two views of an internal electronic device showing exposed circuit board and ports, with red circles highlighting specific components (no text or symbols visible)

1. Take out 4 screws (see below) from the accessory box to secure the HDD onto the bracket, then replace and fix the HDD bracket.

Two views of an electronic device showing front and interior views with labeled components (no readable text or symbols)

2.5 Installing M.2

1. Follow the procedures in Chapter 2.3 and 2.4 to remove rear cover and VESA holder.
2. Unfasten the screws marked with red circles, and then fix M.2 to the location marked with a red rectangle.

Close-up of a computer motherboard with visible circuit board, connectors, and ports (no readable text or symbols)

Close-up of a green printed circuit board with visible traces, capacitors, and components (no readable text or symbols)

Close-up of a green printed circuit board with electronic components and a blue circular component (no readable text or symbols)

Note! Please note the pin direction when installing a M.2 device. Only 22 x 42mm M.2 device with a SATA interface is supported.

2.6 Installing Wireless LAN Card

1. Follow the procedures in Chapter 2.3 and 2.4 to remove rear cover and VESA holder.

2. The installation of a full-size card is shown as below. Unfasten the screws marked with rec circles and then secure the card to the location with a red rectangle.

Close-up of a computer motherboard showing internal components and connectors (no readable text or symbols)

1. The installation of a half-size card is shown as below. Take out copper cylinders and screws from the accessory box.

Close-up of a green printed circuit board with visible components and connectors (no readable text or symbols)

1. Please refer to the below to connect the cables of wireless LAN card module to antenna bracket. Note the installation direction of cable end, screw caps and washers. To make the antenna installation easier, please firstly remove two brackets marked with the red rectangles, and then replace them when the installation is completed.

1. Remove two plugs on the rear cover as shown in the below.

Two views of a black plastic enclosure with red annotations highlighting features, no text or symbols present.

1. Then replace the rear cover and install the antenna of wireless LAN card module .

Two views of a black electronic device casing with ventilation grilles and mounting feet (no visible text or symbols)

Note!Advantech wireless LAN card module (PN: PPC-WLAN-A1E) is optional for you.

2.7 Installing Expansion Card

1. Follow the procedures in Chapter 2.3 to remove rear cover
2. Remove the screws and the blank plate marked with a red rectangle to install the expansion card. The product comes with a PCIE riser card, and a PCI riser card is also provided in the accessory box for additional use.

Close-up of a green electronic device with a black connector and a red annotation box highlighting a component (no visible text or symbols)

Close-up of a green electronic circuit board with internal components and connectors (no visible text or symbols)

Note! The maximum supported size of the expansion card is 176mm x 107mm.

2.8 Adjusting AT/ATX Functions

You can adjust AT or ATX function by the internal switch indicated by the red rectangle without removing the rear cover.

2.9 Grounding

Grounding screw is marked with a red circle in below. It is recommended that the product with a capacitive screen should be properly grounded.

2.10 Installing Hook

Please refer to the below figure:

Hook Installation Method

Hook

Place the PC into the cabinet and prepare the hook.

Put the hook into the hook hole in the direction shown as above to hook the PC.

Fasten the screw to secure the PC.

Pure technical diagram of a rectangular frame with internal components and scattered dots, no text or symbols present.

2.11 Solo Quick Installation

Please follow the below procedures to complete the wall mount by yourself.

1. Unfasten the two screws at the bottom as shown in below.

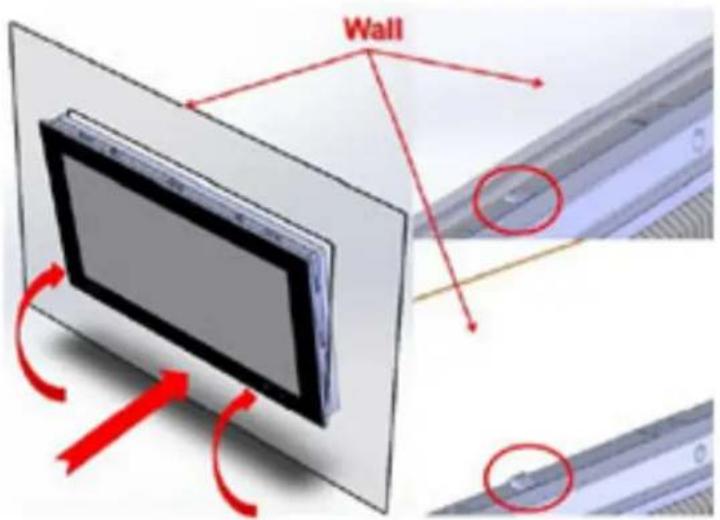

1. Please refer to the below figure to place and push the panel PC into the opening on the wall, then the hook will secure the PC onto the wall.

1. Here the wall mount is completed. Then please refer to Chapter 2.10 "Installing Hook" to fasten the hook screw to firmly secure the panel PC.

3D rendering of a rectangular panel with a black border, labeled 'Done' in red text (no other symbols or text)

Note! It is recommended that the panel inlaid depth should be less than 2mm (0.079") according to "Quick Installation Guide". In other circumstances, it is recommended that the panel inlaid depth should be less than 3mm (0.118").

Chapter 3

Jumper and Switch Settings

Sections include:

■ Jumpers and Connectors
■ External COM Port & DIO Switch and Pin Assignments

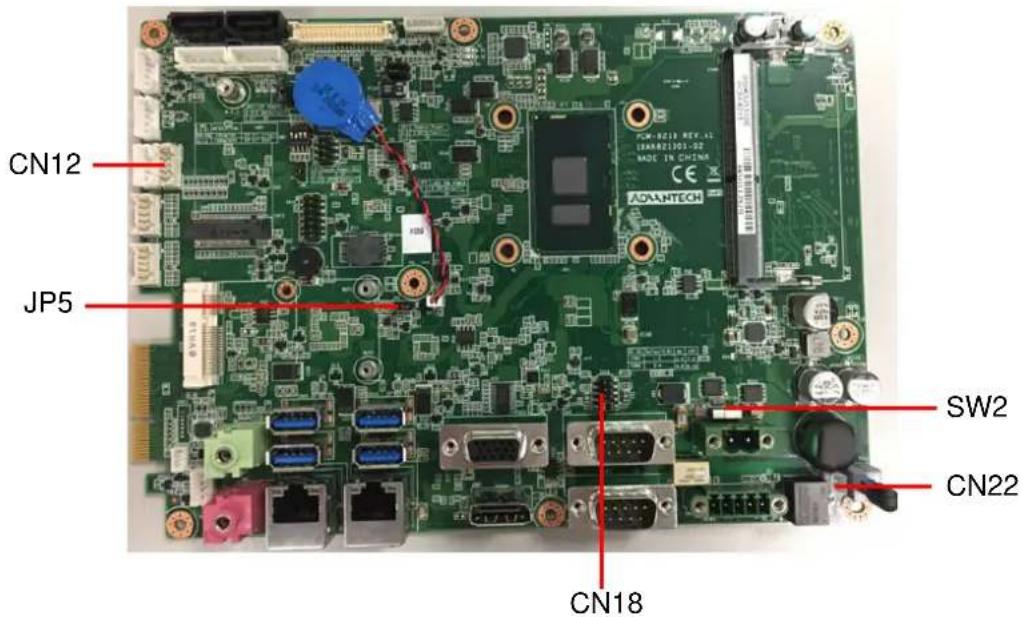

3.1 Jumpers and Connectors

Connector Function

CN12 GPIO

CN18 COM Pin9 power selection

CN22 Power button

SW2 AT/ATX selection

JP5 Clear CMOS

JP5 Icon Clear CMOS

(1-2) P9 Normal * Default *

(2-3) P10 Clear CMOS

P9

P10

CN18 COM1/2 RI type selection

(1-3)/(2-4) P9/P10 COM1/COM2 RI Default *

(3-5)/(4-6) P11/P12 COM1/COM2 5V

(7-9)/(8-10) P13/P14 COM1/COM2 12V

P9

P10

P11 P12

P13 P14

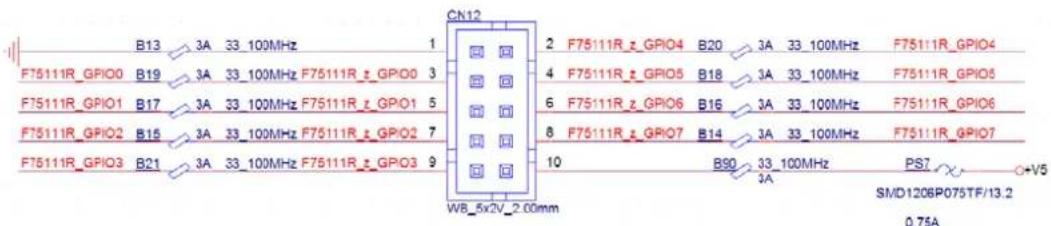

CN12 Pin Signal

1	GND
2	G	P
3	G	P
4	G	P
5	G	P
6	G	P
7	G	P
8	G	P
9	G	P
10	5V

3.2 External COM Port Pin Assignments

COM 1, COM 2 (RS232, Pin9 supports 5 V/12 V output)

COM 3 RS-422/485

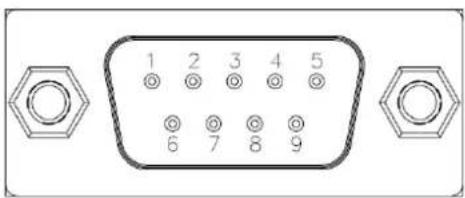

COM1-2:

Pin COM1/COM2
1	DCD
2	RXD
3	TXD
4	DTR
5	GND
6	DSR
7	RTS
8	C	T	S
9 RING or 5V/12V output

Pin9 is set as RI signal in COM port by default, and could be set as 5V/12V output by Jumper. 12V: Max. 200 mA; 5V: Max. 500 mA.

COM3: RS422/485 supports isolation voltage of 1000 VDC, which can be selected by BIOS.

P	i	n	1	2	3	4
RS422 TX+ TX- RX+ RX- GND
RS485 D+ D- GND

UART RS485 auto flow control

COM5 supports RS485 auto flow control function.

When enabling the RS485 auto control function, it will automatically drive RTS# pin to logic high or low for flow control.

Chapter 4

Software Setup

Sections include:

Installing Drivers
BIOS Setup Utility

4.1 Installing Drivers

When you install the system for the first time, please install the corresponding drivers in advance to make sure all the functions could run normally. Please select the drivers to be installed based on the OS you use. Please go to Advantech official website to get the latest versions of drivers: http://www.advantech.com.cn/

4.2 BIOS Setup Utility

4.2.1 Entering BIOS Setup

You can enter BIOS setup utility by pressing "Delete".

You should always press "F4" to save the settings you have made and exit the setup utility, otherwise those settings will not be saved in BIOS.

4.2.2 LCD Brightness Adjustment

1. Select "System Agent(SA) Configuration" under "Chipset" tab.

1. Then choose "Graphics Configuration" under "System Agent (SA) Configuration" item.

1. Select "LCD Control" under "Graphics Configuration".

1. Select "Brightness Manual Control" under "Brightness Control", and there will be 6 brightness options to choose.

4.2.3 COM5 Mode (RS422/485) Selection

1. Select "NCT6106D Super IO Configuration" under "Advanced" tab.

1. Then choose "Serial Port5 Configuration" under "NCT6106D Super IO Configuration" item.

1. Click "Serial Port 5 Configuration" item to choose the operating mode of COM5.

4.2.4 Wake up by LAN

1. Select "PCH-IO Configuration" under "Chipset" tab.

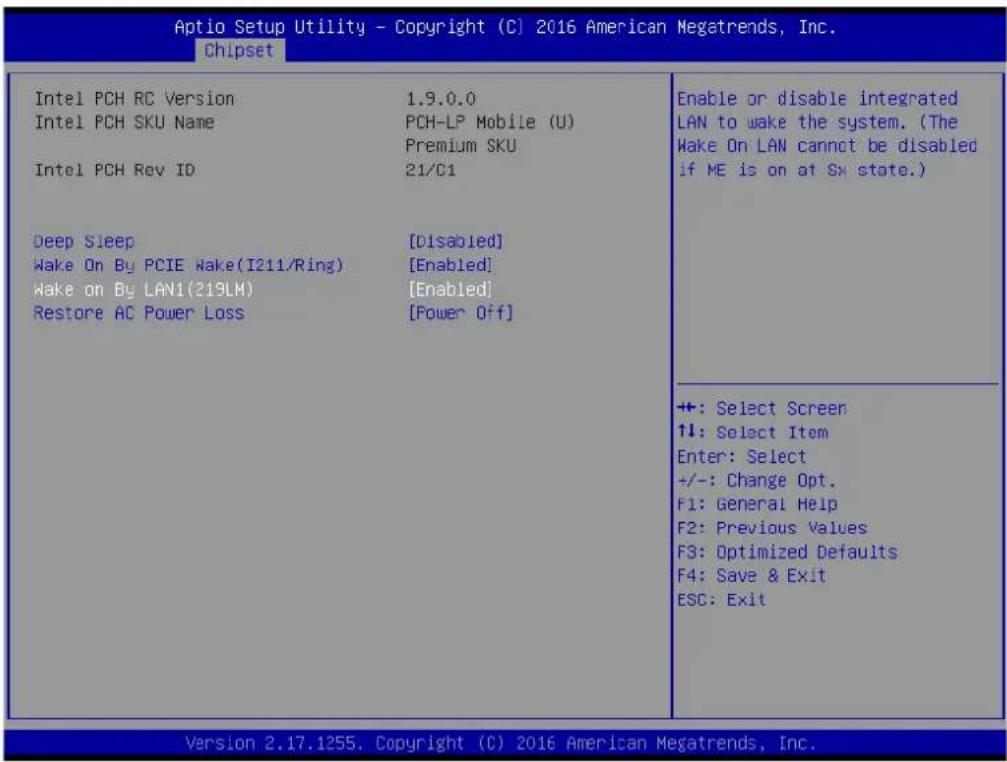

1. Set "Deep Sleep" as "Disabled". Then set "Wake On By PCIE Wake" and "Wake on By LAN1 (219LM)" as "Enabled".

1. Save all the settings and exit. Then enter the OS.

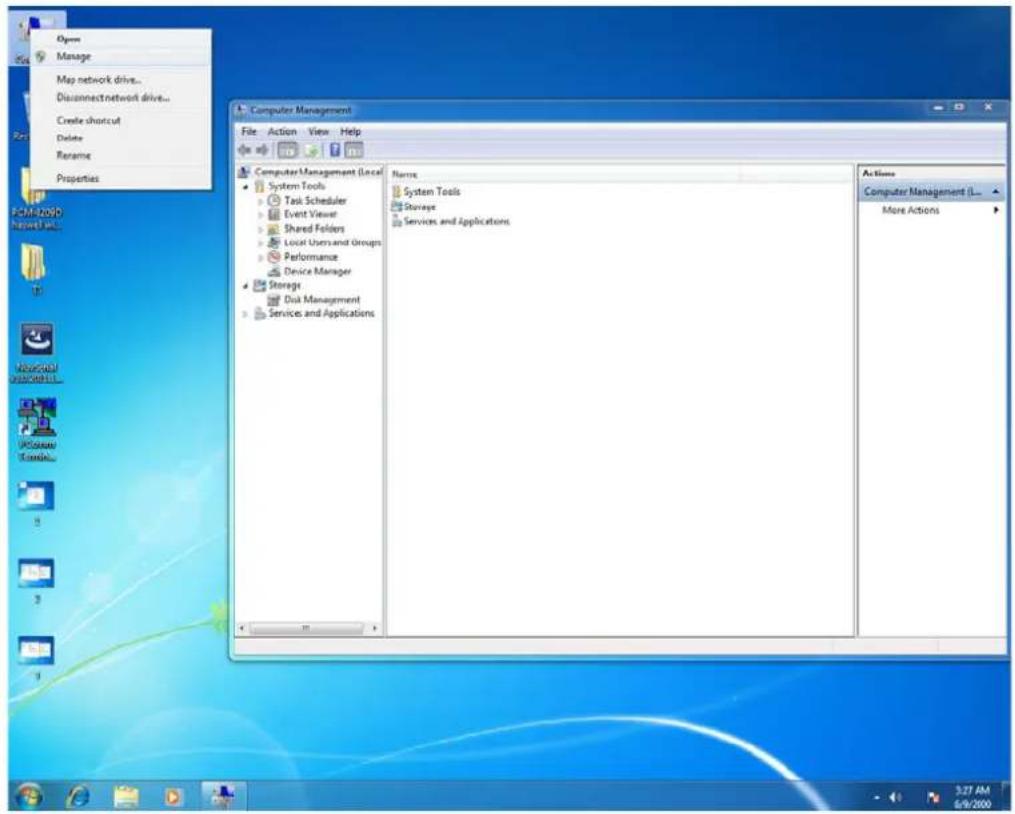

2. Right-click on "Computer" and select "Manage" to pop up "Computer Management" window.

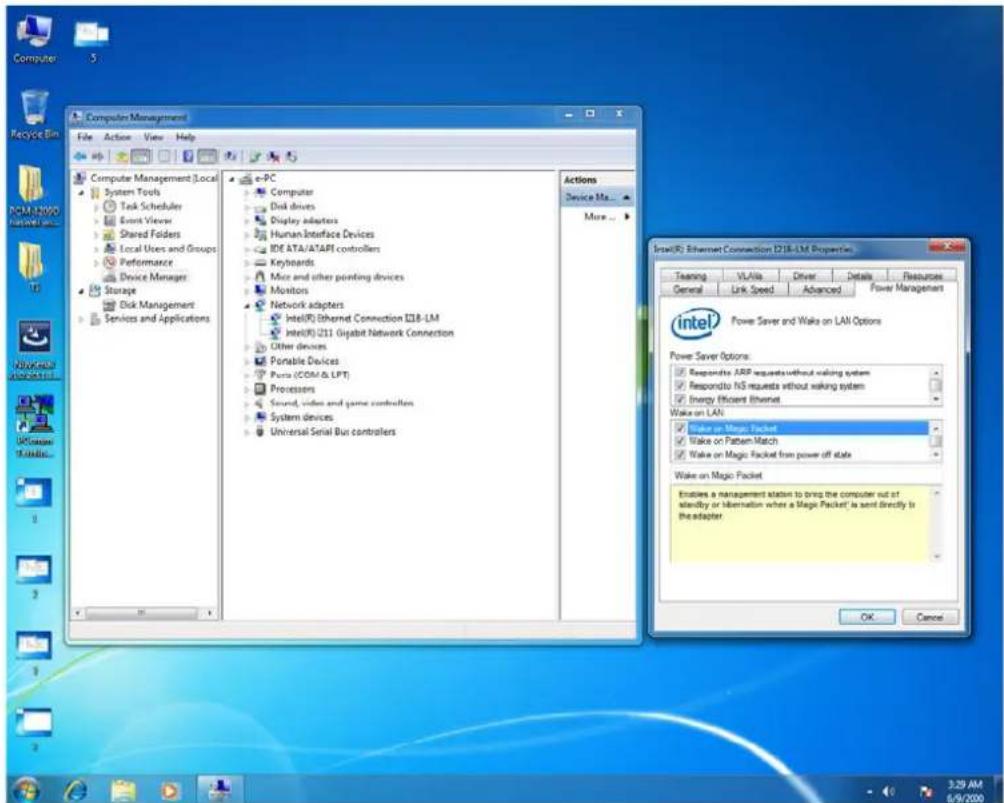

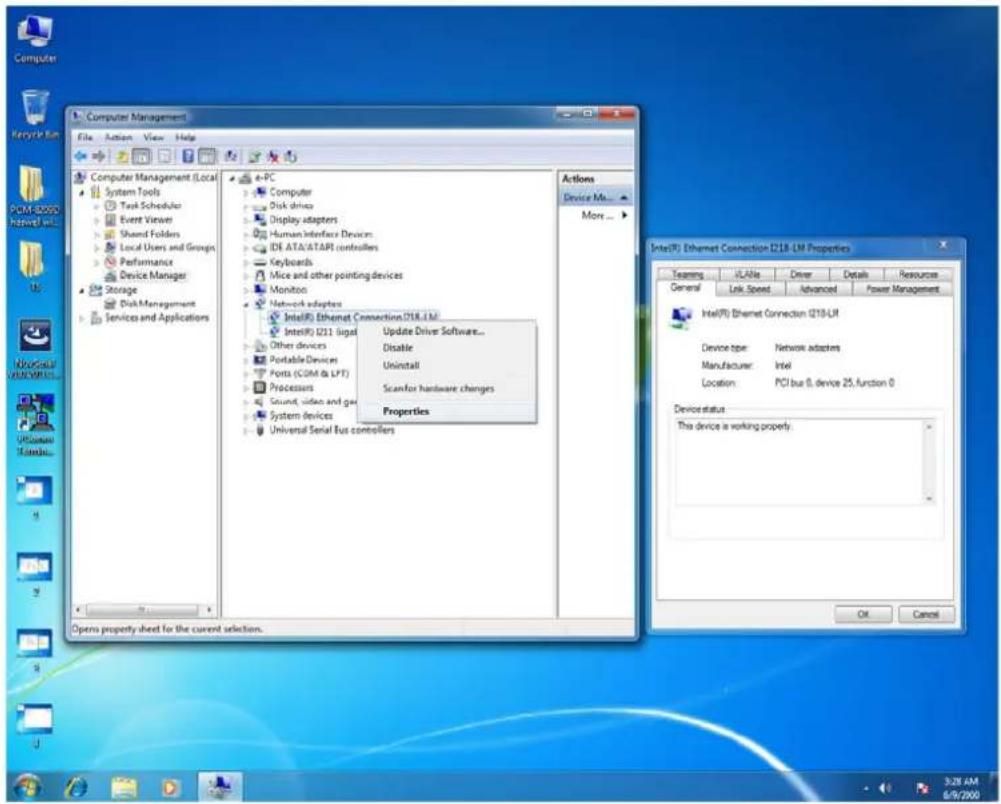

1. Click "Device Manager" to select "Network adapters". Then right-click on the LAN port you want to use and select "Properties" to pop up "Intel(R) Ethernet" window.

1. In "Intel(R) Ethernet" window, go to "Power Management" tab and check the boxes of "Work On Magic Packet", "Work On Pattern Match" and "Work On Magic Packet From Power Off State".

Appendix A

RoHS List

A.1 RoHS List

Dear Customer,

Thanks for choosing Advantech Product, to comply with China Electronic Industry Standard SJ/T11364 which require Marking for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products, herein report to you product's environmental protection as follows.

Please disregard this notice if the product is not to be sold / installed in China.

Model name P	PC-31X1S Series
Substance	Name and concentration of hazardous substances contained in product
	(Pb) (Hg)	(Cd) (Cr(VI))	(PBB) (PBDE)
PCB X O O O	O O
Panel X O O O	O O
DDR	X O O O O
Front Bezel Rear Cover	X	O	O	O	O	O
Others	X O O O O
O: Represent the concentration for this hazardous substance in all homogeneous materials of the part Comply with the limit of the standard of GB/T 26572.X: Represent the concentration for this hazardous substance at least in one homogeneous material of this part exceeds the limit of the standard of GB/T 26572.Enterprise statements: (for those exceeding the standard)Content:The mark of EPUP(Environmental Protection Use Period) in product label means in this period, by the normal operation mode, the hazardous substances won't leak out and deviate, so the product use won't result in serious environmental pollution, human injury or property loss, meanwhile, please don't take this period as the warranty date.The products which attach with pollution control mark can be recycled, and should not be discarded at will.

www.advantech.com

Please verify specifications before quoting. This guide is intended for reference purposes only.

All product specifications are subject to change without notice.

No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permission of the publisher.

All brand and product names are trademarks or registered trademarks of their respective companies.

© Advantech Co., Ltd. 2017
