Product Type	Soundbar with Wireless Subwoofer
Brand	VIZIO
Model	SB4021M-A1
Channel Configuration	2.1 Channels
Soundbar Dimensions (W x H x D)	40.0 x 2.5 x 3.0 inches
Subwoofer Dimensions (W x H x D)	7.5 x 11.0 x 7.5 inches
Soundbar Weight	3.5 lbs
Subwoofer Weight	10.0 lbs
Power Supply	120V ~ 60Hz, 100W Total
Key Features	Bluetooth, Optical, Coaxial, AUX, USB Inputs; Remote Control; Wall-Mountable
Audio Decoding	DTS TruSurround, Dolby Digital
Wireless Subwoofer Connection	2.4GHz Wireless
Frequency Response	50Hz - 20kHz
Maintenance & Cleaning	Wipe with soft, dry cloth. Do not use liquid cleaners.
Safety Instructions	Do not expose to rain or moisture. Use only supplied power adapter. Unplug during lightning storms.
Spare Parts & Repairability	No user-serviceable parts. Contact VIZIO support for assistance.
Remote Control	Included (CR2025 battery)

Frequently Asked Questions - SB4021M-A1 VIZIO

How do I connect the soundbar to my TV?

Use the optical cable or coaxial cable (not included) to connect the TV's digital audio output to the soundbar. Alternatively, use the AUX cable if your TV has a headphone jack.

How do I pair the soundbar with Bluetooth?

Press the Bluetooth button on the remote or soundbar. The LED will blink. On your device, select 'VIZIO SB4021M' from the Bluetooth list. Once connected, the LED will stay solid.

The subwoofer is not working. What should I do?

Ensure the subwoofer is plugged into power and the power switch is on. The subwoofer should automatically pair wirelessly. If not, press the Pair button on the back of the subwoofer. Also check that the soundbar is on.

Can I wall-mount the soundbar?

Yes. Use the included wall-mount brackets and screws. Consult the manual for proper placement and drilling guidelines.

How do I clean the soundbar?

Unplug the soundbar. Wipe the surface with a soft, dry cloth. Do not use any liquid cleaners or sprays.

What audio formats are supported?

It supports Dolby Digital and DTS TruSurround. PCM stereo is also supported. The soundbar decodes audio through optical and coaxial inputs.

How do I reset the soundbar to factory defaults?

Press and hold the Power and Volume Up buttons on the soundbar for 5 seconds until the LED flashes. This resets all settings.

The remote control stopped working. What can I do?

Replace the CR2025 battery. Ensure you are within 20 feet and pointing directly at the soundbar. Remove any obstacles.

Can I use the USB port to play music?

Yes. Insert a USB flash drive with MP3 files into the USB port. Press the Input button to select USB mode. Use the remote to navigate tracks.

Is there a warranty for this product?

VIZIO offers a 1-year limited warranty from the date of purchase. Keep your receipt. For service, contact VIZIO support or visit their website.

USER MANUAL SB4021M-A1 VIZIO

IMPORTANT SAFETY INSTRUCTIONS

Your Unit is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire. To prevent your Unit from being damaged, the following rules should be observed for its installation, use, and maintenance. Please read the following safety instructions before operating your Unit. Keep these instructions in a safe place for future reference.

- Read these instructions.

- Keep these instructions.

- Heed all warnings.

- Follow all instructions.

- Do not use this apparatus near water.

- Clean only with a dry cloth.

- Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

- Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

- Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

- Only use attachments/accessories specified by the manufacturer.

- Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

- Unplug this apparatus during lightning storms or when unused for long periods of time.

- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

- To reduce the risk of electric shock or component damage, switch off the power before connecting other components to your Unit.

- Unplug the power cord before cleaning your Unit. A damp cloth is sufficient for cleaning. Do not use a liquid or a spray cleaner on your Unit. Do not use abrasive cleaners.

- Always use the accessories recommended by the manufacturer to insure compatibility.

- When moving your Unit from an area of low temperature to an area of high temperature, condensation may form in the housing. Wait before turning on your Unit to avoid causing fire, electric shock, or component damage.

- Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of your Unit and to protect it from overheating, be sure these openings are not blocked or covered. Do not place your Unit in a bookcase or cabinet unless proper ventilation is provided.

- Never push any object into the slots and openings on your Unit enclosure. Do not place any objects on the top of your Unit. Doing so could short circuit parts causing a fire or electric shock.

Never spill liquids on your Unit.

- The power cord must be replaced when using different voltage than the voltage specified. For more information, contact your dealer.

- When connected to a power outlet, power is always flowing into your Unit. To totally disconnect power, unplug the power cord.

- The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of un-isolated, dangerous voltage within your Unit that may be of sufficient magnitude to constitute a risk of electric shock to persons.

- The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying your Unit.

- Do not overload power strips and extension cords. Overloading can result in fire or electric shock.

- The wall socket should be located near your Unit and be easily accessible

- Keep your Unit away from moisture. Do not expose your Unit to rain or moisture. If water penetrates into your Unit, unplug the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock.

- Do not use your Unit if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your dealer immediately. Do not try to repair your Unit yourself.

- Avoid using dropped or damaged appliances. If your Unit is dropped and the housing is damaged, the internal components may function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of your Unit may cause fire or electric shock.

- Do not install your Unit in an area with heavy dust or high humidity. Operating your Unit in environments with heavy dust or high humidity may cause fire or electric shock.

- Ensure that the power cord and any other cables are unplugged before moving your Unit.

- When unplugging your Unit, hold the power plug, not the cord. Pulling on the power cord may damage the wires inside the cord and cause fire or electric shock. When your Unit will not be used for an extended period of time, unplug the power cord.

e • To reduce risk of electric shock, do not touch the connector with wet hands.

- Insert the remote control battery in accordance with instructions. Incorrect polarity may cause the battery to leak which can damage the remote control or injure the operator.

• See the important note and rating located on the bottom of the unit.

- WARNING - This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near the equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain, or moisture.

- CAUTION - Danger of explosion or fire if battery is mistreated. Replace only with the same or specified type.

- Do not leave the battery exposed to direct sunlight for a long period of time with doors and windows closed. Do not disassemble the battery or dispose of it in fire.

- Disconnect the mains plug to shut off when you experience trouble or the device is not in use. The mains plug shall remain readily operable.

PACKAGE CONTENTS

Front view of a black rectangular electronic device with a small display and mounting feet (no visible text or symbols)

Home Theater Sound Bar

Remote Control with Battery

Black rectangular electronic device with no visible text or symbols on its body

Wireless Subwoofer

Black electronic device with two black cables and a connector (no visible text or symbols)

Power Adapter for Sound Bar

3.5mm to RCA Stereo Audio Cable

Wall Mount Brackets (2)

Wall Mount Template

Quick Start Guide

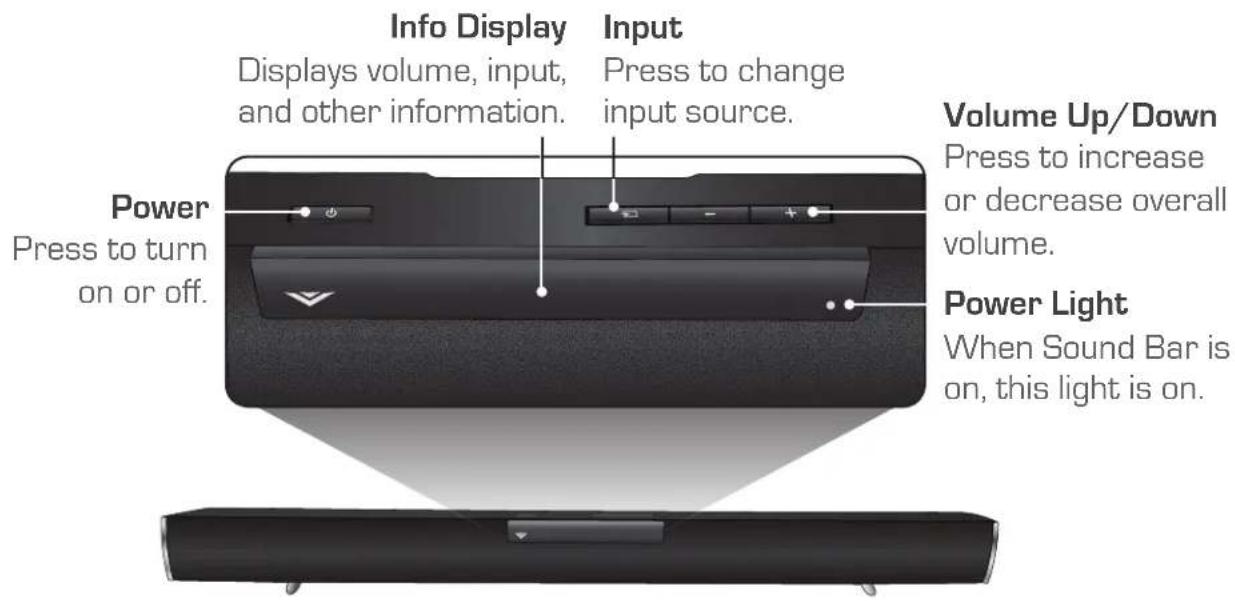

CONTROLS & CONNECTIONS

Top-down view of a black audio speaker with a circular vent and control panel (no text or symbols visible)

Link LED Light

Link Button

Used to re-link the

Subwoofer with the Sound Bar.

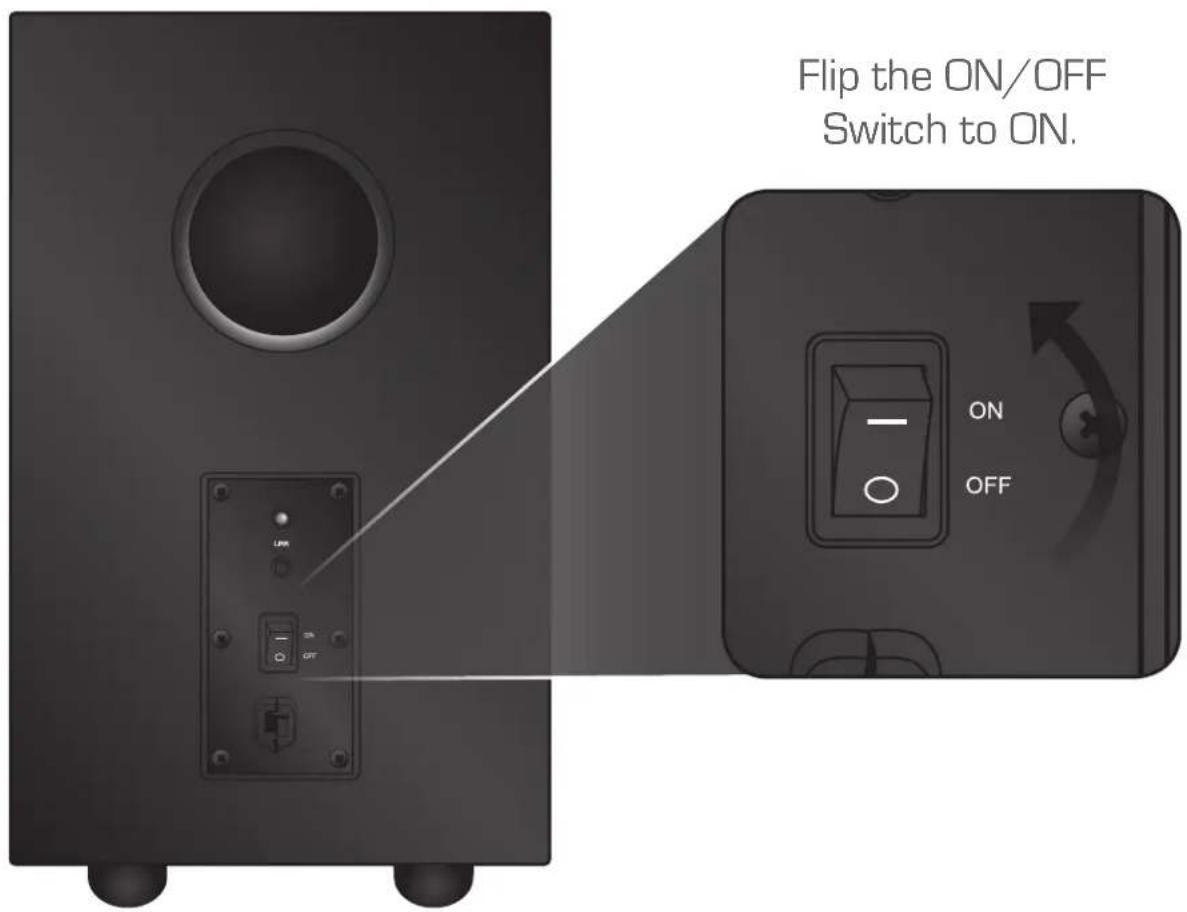

Power Switch

Press to turn on or off.

Power Cord

Digital Optical In
Digital Coaxial In
Analog 3.5mm In

FIRST-TIME SETUP

1

Front view of a modern flat-screen television displaying a black screen and stand (no visible text or symbols)

CHOOSE ONE CABLE:

GOOD

BETTERGO

AND CONNECT IT TO YOUR TV

*Not Included

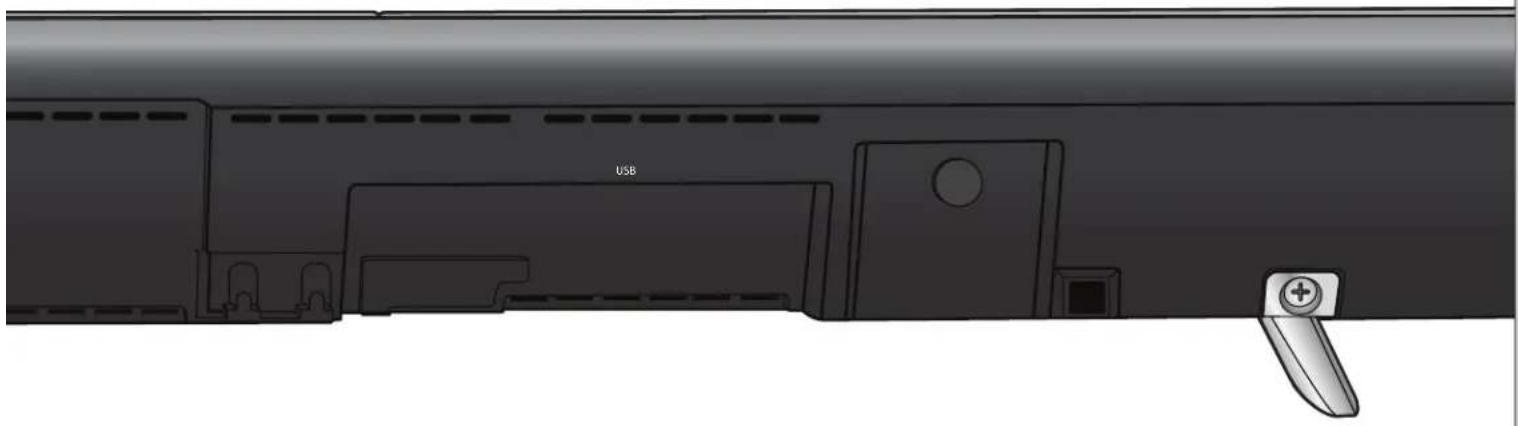

Technical line drawing of a device interior with labeled USB port (no text or symbols beyond label)

Connect the Sound Bar to your TV using one of the connection types to the left. Choose the best possible connection type.

Be sure the TV port is an audio output, not an audio input.

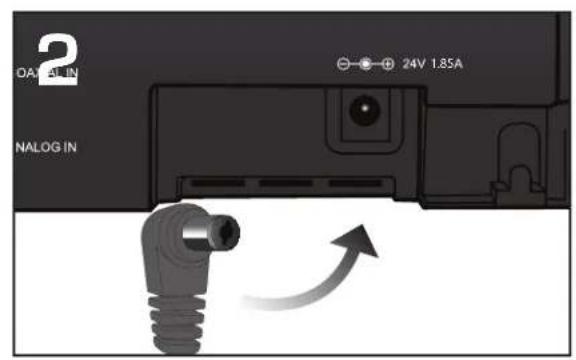

Diagram showing a black electrical plug connected to a cable with an arrow indicating rotation (no text or symbols)

Illustration of a black electronic device rear panel with attached cable and connector (no text or symbols)

6

Sound Bar is centered below the TV, close to ear level.

Illustration of a flat-screen monitor with blank screen (no text or symbols)

Line drawing of a person seated at a desk with two chairs, no text or symbols present

Wireless Subwoofer is in the front corner of the room, up to 60 feet away from the Sound Bar. Bass is projected outward.

For the best surround sound experience, position the speakers as shown.

7

8

Turn your TV on, then press the Power button on the remote to turn the Sound Bar on.

Press the Input button on the remote until your connection type is displayed. Push repeatedly to cycle through input sources (Analog In, Coaxial In, Optical In, and USB).

9

Black rectangular electronic device with a control panel and wheels, no visible text or symbols

Setup is complete.

If there is no sound coming from the Sound Bar or Subwoofer, or if you experience other issues, turn to page 18 for help and troubleshooting tips.

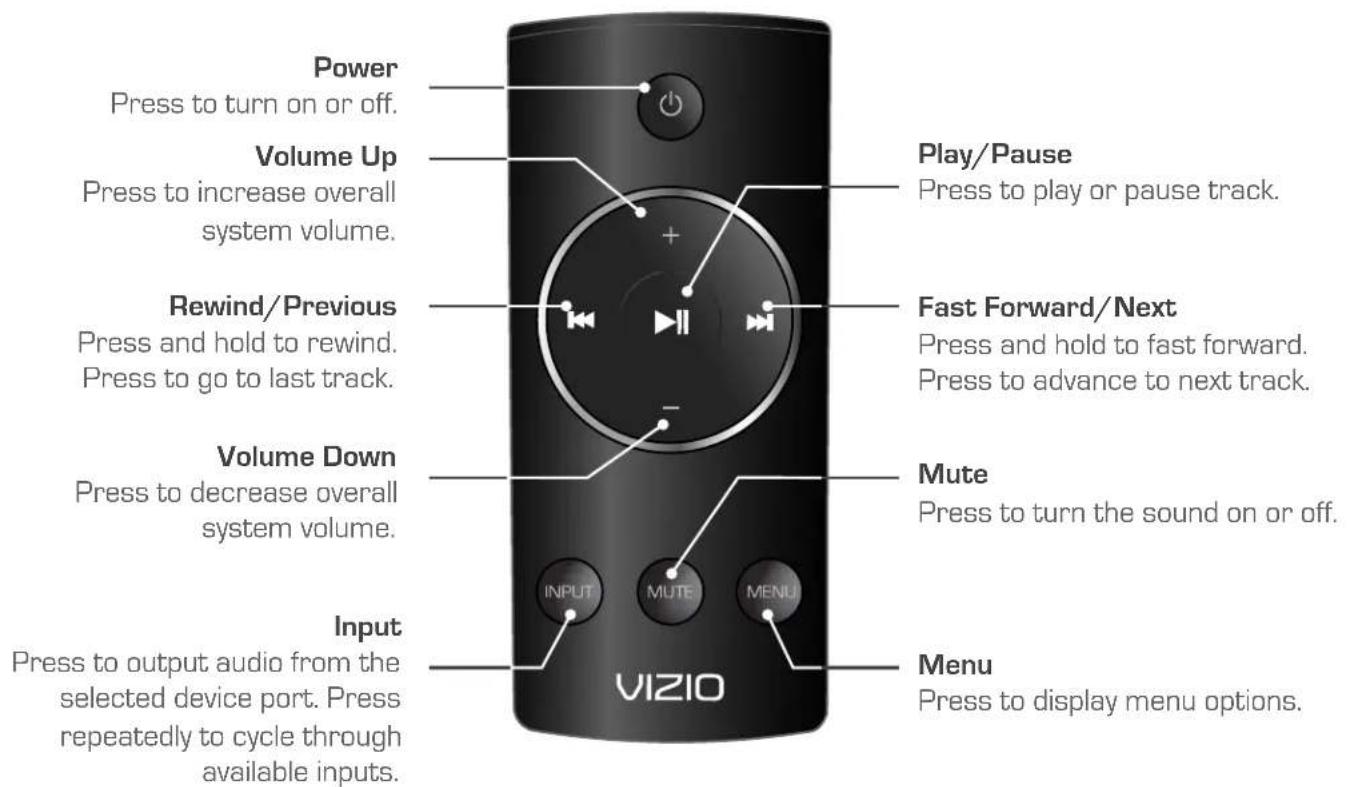

USING THE REMOTE

SRS TruVolume

When on, SRS TruVolume intelligently normalizes volume fluctuations due to television commercials or channel changes.

SRS TruSurround HD

When on, SRS TruSurround HD delivers enveloping, immersive surround sound, making every seat in the room the "sweet spot".

EXTENDED FUNCTIONS USING BUTTON COMBINATIONS

User interface button with three buttons (one minus sign, one plus sign) and no visible text or symbols

Mute/Unmute = Volume Up + Volume Down

Press and hold both buttons for 1 second to mute/unmute your Sound Bar.

Two black buttons with icons: one open, one filled, and one plus sign, arranged side by side (no text or symbols)

Factory Reset = Power + Volume Up + Volume Down

Press and hold all 3 buttons for 10 seconds to return your Sound Bar to its factory default settings.

Close-up of a gray button with a white downward arrow icon, no text or symbols visible

THE SOUND BAR INFO DISPLAY

Volume - Increase or decrease volume

Bass Level - Increase or decrease bass level

Treble Level - Increase or decrease treble level

SRS TruVolume - Toggle SRS TruVolume on or off

SRS TruSurround - Toggle SRS TruSurround on or off

Brightness Level - Increase or decrease brightness level

To conserve energy, after displaying a message for several seconds, the Info Display automatically shuts off.

WALL MOUNTING THE SOUND BAR

1

3D diagram of a mechanical assembly with two hanging components and directional arrows indicating motion (no text or symbols)

Use a phillips-head screwdriver to remove the screws from the Sound Bar stands. Reinsert the screws for safekeeping. Save the stands for future use.

2

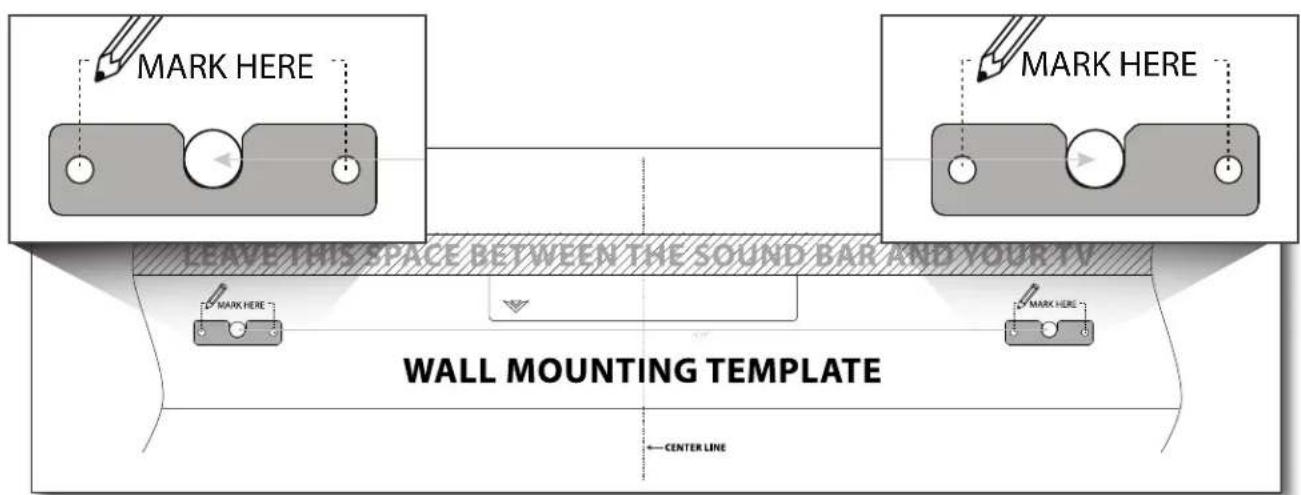

Place the included wall mounting template against the wall under your TV. Mark the locations of the 4 bracket holes using a pencil.

3

Technical illustration of a metal bracket with screws and fasteners, no text or symbols present

The screws and anchors depicted are not included. The appropriate screws and anchors will depend on the material of your wall. Be sure that the screws and/or anchors you use are securely fastened and can support the weight of the Sound Bar.

Attach the brackets to the wall as shown. Gently hang the Sound Bar on the brackets using the wall mount posts on the back of the Bar.

4

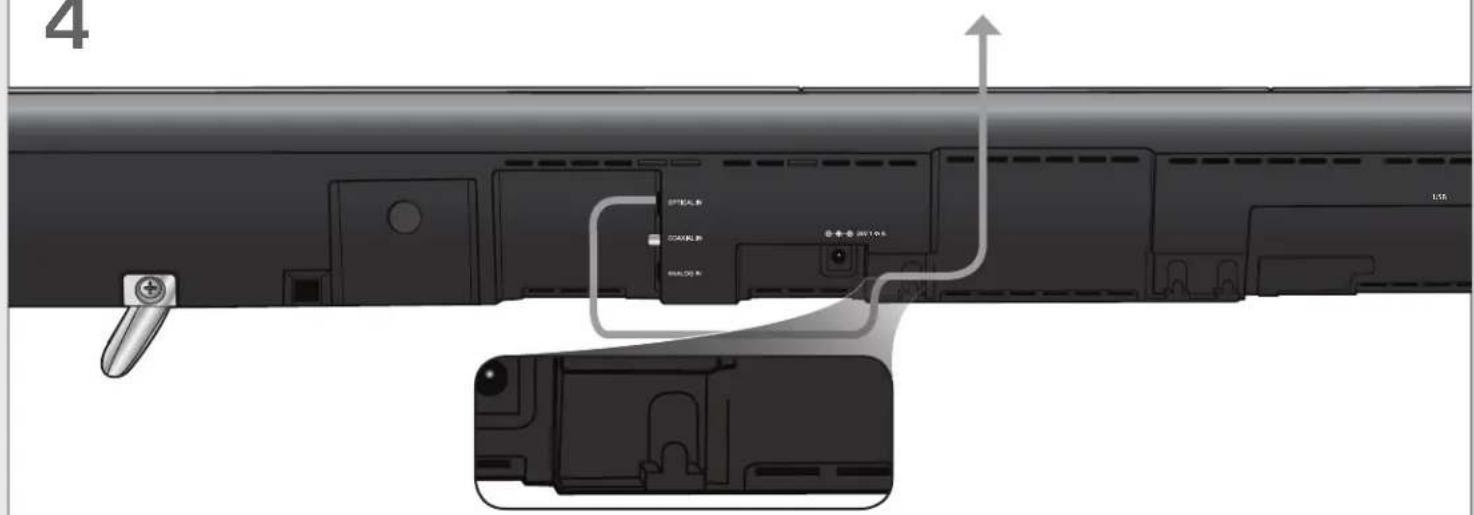

Use the cable management hooks to route your audio cables to your TV.

RE-LINKING THE SUBWOOFER AND SOUND BAR

1

Back view of a black speaker with circular head and control panel (no text or symbols visible)

You may need to re-link the Subwoofer to the Sound Bar if there is no sound coming from the Subwoofer and the orange light on the rear of the Subwoofer is either blinking or not lit.

2

Diagram showing a device with a screen and a monitor, no text or symbols present

Press and hold the INPUT button on the top of the Sound Bar for 5 seconds. The Sound Bar will display Pairing.

3

Two black audio/video speakers with sound waves and control buttons, one showing a lens and the other a button labeled 'LINK' (no text or symbols on devices)

Press and hold the LINK button on the back of the Subwoofer until the Sound Bar displays Paired.

REPLACING THE REMOTE BATTERY

1

3D illustration of a screwdriver inserted into a cylindrical black object (no text or symbols)

Insert a flat-head screwdriver into the slot as shown. Gently push down on the tab, then press and pull downward on the battery cover to open.

2

Close-up of a device with a circular dial labeled 'CR2032' and a battery inserted into it (no readable text beyond label)

When replacing an old battery with a new CR2032, be sure that the + sign on the battery is facing up. Push the battery cover until it clicks back into place.

PROGRAMMING YOUR UNIVERSAL REMOTE

Many universal remote controls can be programmed to control your Sound Bar.

As each universal remote works differently, you should refer to your remote's user manual for instructions on programming.

Black VIZIO remote control device with playback buttons and menu (no text or symbols on main body)

ADVANCED SETUP

Connect up to four different devices to the Sound Bar (devices shown are examples-you can use any device). To listen to a device, change the input source on the Sound Bar.

Black compact gaming device with controller and game controller (no visible text or symbols)

Illustration of a laptop, tablet, and music player (no text or symbols)

Game Console Tablet/MP3 Player/LaptopNetwork Media Player

ONE POWERFUL MOVIE MACHINE

Black VIZIO 3D-branded electronic device with digital display and control buttons (no readable text beyond branding)

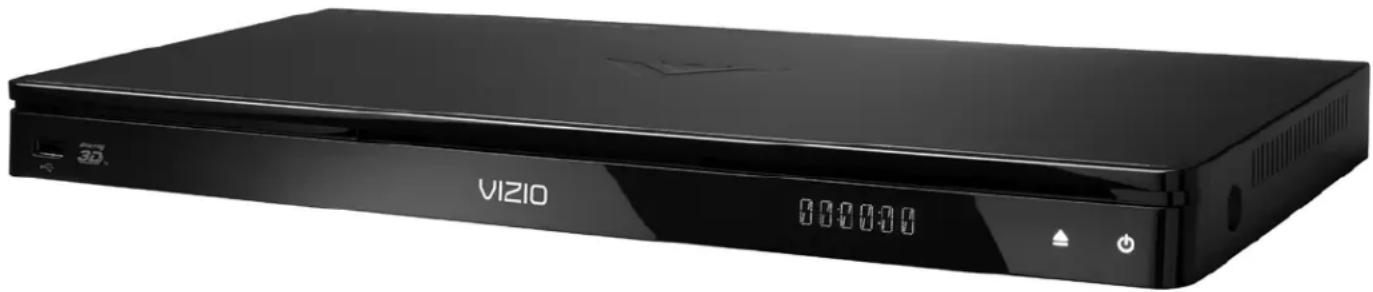

3D BLU-RAY™ PLAYER WITH WIRELESS INTERNET APPS

The VIZIO 3D Blu-ray™ Player with Wireless Internet Apps delivers breathtaking 3D and 1080p Full HD video performance with up to 7.1 channels of crystal-clear digital surround sound. It's stylishly slim with an easy slot-load design so there's no waiting for a tray to eject. Built-in Wi-Fi delivers easy wireless access to on-demand movies, TV shows, music, and more. It's all at the push of a button on the enhanced

2-sided remote with full keyboard.*

Sold separately. Available at www.VIZIO.com

TECHNICAL SUPPORT

There is no power.	Press the POWER button on the remote control or on the top of your Sound Bar.Ensure the power cords are securely connected.Turn the Subwoofer power switch to ON.Plug a different device into the electrical outlet to verify that the outlet is working correctly.To conserve power, the Sound Bar shuts off automatically after 30 minutes if not in use.
There is no sound from the Sound Bar.	Increase the volume. Press Volume Up on the remote control or on the top of your Sound Bar.Press MUTE on the remote to ensure the Sound Bar is not muted.Select a different input source (Analog, Coaxial, or Optical).Be sure the audio cable coming from the TV is connected to an audio output, not an audio input.If listening to a USB source, be sure the files are in MP3 format.
There is no sound coming from the Subwoofer.	If the lights on the Subwoofer are in a slow blink pattern, you will need to pair the Subwoofer with the Sound Bar. See Re-Linking the Subwoofer and Sound Bar on page 14.Move the Subwoofer closer to the Sound Bar.Turn the Subwoofer power switch to ON.To conserve power, the Subwoofer will automatically enter a low power state when not in use. It may take up to 10 seconds for the Subwoofer to link after the Sound Bar is turned on.
I hear buzzing or humming.	Ensure all cables and wires are securely connected.Connect a different source device (TV, Blu-ray player, etc) to see if the buzzing persists. If it does not, the problem may be with the original device.Connect your device to a different input on the Sound Bar.
How do I listen to SRS TruSurround or Dolby Digital?	To activate SRS TSHD, press the Menu button on the remote and use the arrow keys to scroll to the TSHD screen to toggle between on and off.To listen to Dolby Digital, your device must be playing content in Dolby Digital format. Dolby Digital is only available over Digital Coaxial or Digital Optical.
I would like to adjust the sound on the Subwoofer and Sound Bar.	Adjust the bass and treble levels using the remote.Try enabling/disabling SRS TruSurround.
I want to return my Sound Bar to factory settings.	Press and hold the Power, Volume Up, and Volume Down buttons for 10 seconds to return your Sound Bar to its factory default settings.

DO YOU HAVE QUESTIONS?

LET US HELP!

YOUR PRODUCT INCLUDES FREE LIFETIME TECH SUPPORT

The VIZIO support team is highly trained and is based in the United States.

We can help with:

• New Product Setup
• Connecting Your Devices
  • Technical Problems
• And More

Phone: [phone] (TOLL-FREE)

Email: [e-mail]

Web: www.VIZIO.com/support

Hours of operation:

Monday - Friday: 5 AM TO 9 PM (PST)

Saturday - Sunday: 8 AM TO 4 PM (PST)

ONE-YEAR LIMITED WARRANTY

ON PARTS AND LABOR

Covers units purchased as new in United States and Puerto Rico Only

VIZIO provides a warranty to the original purchaser of a new Product against defects in materials and workmanship for a period of one year of non-commercial usage and ninety (90) days of commercial use. If a Product covered by this warranty is determined to be defective within the warranty period, VIZIO will either repair or replace the Product at its sole option and discretion.

To obtain warranty service, contact VIZIO Technical Support via email: [e-mail] or via phone at 877 MY VIZIO (877.698.4946) from 6:00AM to 9:00PM Monday through Friday and 8:00AM to 4:00PM Saturday and Sunday, Pacific Time, or visit www.VIZIO.com. PRE-AUTHORIZATION MUST BE OBTAINED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE CENTER. Proof of purchase in the form of a purchase receipt or copy thereof is required to show that a Product is within the warranty period.

Parts and Labor

There will be no charge for parts or labor during the warranty period. Replacement parts and Products may be new or recertified at VIZIO's option and sole discretion. Replacement parts and Products are warranted for the remaining portion of the original warranty or for ninety (90) days from warranty service or replacement, whichever is greater.

Type of Service

Defective Products must be sent to a VIZIO service center to obtain warranty service. VIZIO is not responsible for transportation costs to the service center, but VIZIO will cover return shipping to the customer. PRE-AUTHORIZATION IS REQUIRED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE CENTER FOR WARRANTY SERVICE. Product returns to VIZIO's service centers must utilize either the original carton box and shipping material or packaging that affords an equal degree of protection. VIZIO

SPECIFICATIONS

Sound Bar: Two 3" High-Fidelity Drivers

Subwoofer: One 6.5" Long Throw (High Excursion) Driver

Frequency Response

(Sound Bar): 150 Hz - 18 kHz (+/-5dB)

Frequency Response

(Subwoofer): 40 Hz - 150 Hz (+/-5dB)

Subwoofer Wireless Range: > 60' with Clear Line of Sight

Sound Pressure Level (SPL): 89 dB 1w-1m

Voltage (Sound Bar): 100-240 V, 50-60 Hz

Voltage (Subwoofer): 120V, 60 Hz

Dimensions (Sound Bar): 40.1" x 4.1" x 2.1" (with Stand)

40.1" x 3.3" x 2.1" (without Stand)

Dimensions (Subwoofer): 8.5" x 12.8" x 11.0"

Net Weight (Sound Bar): 3.53 lbs (1.6 kg)

Net Weight (Subwoofer): 11.0 lbs (5.0 kg)

Gross Weight: 23.2 lbs (10.5 kg)

Compliances: FCC, NOM, cULus

Technical Support will provide instructions for packing and shipping the covered Product to the VIZIO service center.

Limitations and Exclusions

VIZIO's one-year limited warranty only covers defects in materials and workmanship. This warranty does not cover, for example: cosmetic damage, normal wear and tear, improper operation, improper voltage supply or power surges, signal issues, damages from shipping, acts of God, any type of customer misuse, modifications or adjustments, as well as installation and set-up issues or any repairs attempted by anyone other than by a VIZIO authorized service center. Products with unreadable or removed serial numbers, or requiring routine maintenance are not covered. This one year limited warranty does not cover Products sold "AS IS", "FACTORY RECERTIFIED", or by a non-authorized reseller.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED OR DESCRIBED ABOVE. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN DURATION TO THE PERIOD OF TIME SET FORTH ABOVE. VIZIO'S TOTAL LIABILITY FOR ANY AND ALL LOSSES AND DAMAGES RESULTING FROM ANY CAUSE WHATSOEVER INCLUDING VIZIO'S NEGLIGENCE, ALLEGED DAMAGE, OR DEFECTIVE GOODS, WHETHER SUCH DEFECTS ARE DISCOVERABLE OR LATENT, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCT. VIZIO SHALL NOT BE RESPONSIBLE FOR LOSS OF USE, LOSS OF INFORMATION OR DATA, COMMERCIAL LOSS, LOST REVENUE OR LOST PROFITS, OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE. THIS WARRANTY IS SUBJECT TO CHANGE WITHOUT NOTICE. CHECK www.VIZIO.com FOR THE MOST CURRENT VERSION.

TruSurround HD

TruVolume

SRS

and srs are trademarks of SRS Labs, Inc.

TruSurround HD and TruVolume technologies are incorporated under license from SRS Labs, Inc.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

ENERGY STAR

This product qualifies for ENERGY STAR in the "factory default" setting and this is the setting in which power savings will be achieved. Changing the factory default settings or enabling other features will increase power consumption that could exceed the limits necessary to qualify for ENERGY STAR rating.

LEGAL & COMPLIANCE

FCC Class B Radio Interference Statement

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference caused by

unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference.

RF Exposure Information

This device meets the government's requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. This device complies with FCC radiation exposure limits set forth for an uncontrolled environment.

IC Statement

Operation is subject to the following two conditions:

1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Disposal and Recycling

You must dispose of this product properly, according to local laws and regulations. Because this product contains electronic components and a battery, it must be disposed of separately from household waste. Contact local authorities to learn about disposal and recycling options.

INFORMATION ON HEARING DAMAGE

Understanding Noise Induced Hearing Loss

Exposure to loud sounds can damage your hearing, causing hearing loss and tinnitus (ringing or buzzing in the ears). While a variety of things can lead to hearing loss, including aging and side effects of certain medications, the most common cause of non-age-related hearing damage is loud noise. Extremely loud sounds, such as gun shots or firecrackers at close range, can cause immediate hearing damage. Hearing damage can also occur over time due to repeated exposure to loud sounds such as industrial noise or loud music. With continued exposure to loud noises, ears may become accustomed to the sound level, which may result in permanent damage to hearing without any noticeable discomfort.

Temporary and Permanent Hearing Loss

Noise induced hearing loss and tinnitus may be temporary or permanent. Ears typically recover from temporary hearing damage in a short time. However, ears may not recover completely, and some damage may be permanent. Repeated exposure to loud sound can cause more and more damage, and eventually lead to serious hearing problems. Scientists generally agree that, over time, exposure to harmful levels of noise can lead to permanent noise induced hearing loss by damaging and/or destroying the inner ear's sensory hair cells.

Loud Sounds + Time = Hearing Loss

The more time you spend exposed to loud sounds, the more likely you are to damage your hearing. All of the loud sounds that you are exposed to during a day add up - continued exposure to loud sounds can prevent your ears from recovering and also cause additional damage.

Symptoms of Hearing Loss

While not all noise induced hearing loss is noticeable, symptoms may include a sensation of pressure or fullness in your ears, ringing in your ears, or muffled speech. If you experience these symptoms or believe you may have experienced noise induced hearing loss, you should have your hearing checked by an ear doctor or audiologist.

CARE & MAINTENANCE

Do not use volatile solvents (such as toluene, rosin, or alcohol) to clean this product. Such chemicals may damage it. Do not spray cleaners directly on the product. To clean this product, gently wipe it with a clean, dry, soft cloth.

© 2012 VIZIO INC. ALL RIGHTS RESERVED.

1206290C-NC
