Product Type	Television
Brand	Polaroid
Model	TLA-04011C
Screen Size	40 inches (102 cm)
Display Technology	LED
Resolution	1920 x 1080 (Full HD)
Refresh Rate	60 Hz
Aspect Ratio	16:9
Smart TV	No
HDMI Ports	2
USB Ports	1
Composite Input	1
RF Input	1
Speaker Power	2 x 10 W
Power Supply	AC 100-240 V, 50/60 Hz
Power Consumption (typical)	70 W
Standby Power Consumption	< 0.5 W
Dimensions (W x H x D) with stand	915 x 575 x 220 mm
Dimensions without stand	915 x 530 x 80 mm
Weight with stand	8.5 kg
Weight without stand	8.0 kg
VESA Mount Pattern	200 x 100 mm
Remote Control	Included (batteries: 2 x AAA)
Cleaning Instructions	Use a soft, dry cloth. Do not spray liquids directly.
Ventilation	Do not block the ventilation slots.

Frequently Asked Questions - TLA-04011C POLAROID

How do I connect external devices to my Polaroid TLA-04011C TV?

Connect devices via HDMI, USB, or composite inputs. Use the HDMI ports for the best quality. Select the corresponding input source using the Source button on the remote.

Can I wall mount this TV?

Yes, the TV supports VESA mount pattern 200 x 100 mm. Use a compatible wall mount bracket and follow the installation instructions carefully.

How do I clean the TV screen?

Turn off the TV and wait for it to cool. Gently wipe the screen with a soft, dry, lint-free cloth. Do not use any liquids, cleaners, or abrasive materials.

My remote control is not working. What should I do?

Check the batteries (2 x AAA) and replace if necessary. Ensure there are no obstacles between the remote and TV. Try resetting the remote by removing batteries and pressing any button for 5 seconds.

How do I reset the TV to factory settings?

Press the Menu button, navigate to Settings > System > Reset and confirm. This will erase all personalized settings.

What should I do if I see 'No Signal' on the screen?

Check that the input source is correctly selected. Ensure the connected device is powered on and the cable is firmly plugged in. Try a different HDMI cable or port.

How can I play media from a USB drive?

Insert the USB drive into the USB port. Press Source and select USB. Use the remote to navigate and play supported formats (MP4, AVI, MP3, JPEG).

How do I adjust the picture settings?

Press the Menu button, select Picture settings. You can adjust brightness, contrast, color, sharpness, and select preset modes like Standard, Movie, or Sport.

Does this TV have built-in Wi-Fi?

No, the Polaroid TLA-04011C does not have built-in Wi-Fi. It is a standard LED TV without smart features. Use external devices like a streaming stick for internet content.

What are the power requirements?

The TV operates on AC 100-240 V, 50/60 Hz. Typical power consumption is 70 W, and standby consumption is less than 0.5 W.

USER MANUAL TLA-04011C POLAROID

40" HD Widescreen LCD Television

TLA-04011C

Polaroid

©2007 by Polaroid All rights reserved.

"Polaroid" and "Polaroid and Pixel" are trademarks of Polaroid Corporation, Waltham, MA, USA. Changes are periodically made to this document. Changes, technical inaccuracies, and typographic errors will be corrected in subsequent editions. For service, support and warranty information, visit www.polaroid.com.

This product contains electrical or electronic materials. The presence of these materials may, if not disposed of properly, have potential adverse effects on the environment and human health. Presence of this label on the product means it should not be disposed of as unsorted waste and must be collected separately. As a consumer, you are responsible for ensuring that this product is disposed of properly. To find out how to properly dispose of this product, please go to www.polaroid.com and click on "Company" or call the customer service number for your country listed in the instruction manual.

DOLBY DIGITAL

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works. © 1992 -1997 Dolby Laboratories, Inc. All rights reserved.

HDMI ^TM

This TV incorporates High-Definition Multimedia Interface (HDM ^™ ) technology. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Federal Communications Commission Statement

This equipment has been tested and found to comply with the limits of a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient/Relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit which is different from what the receiver is connected to.
4. Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user authority to operate the equipment.

FCC

ENGL

Warnings and Precautions

To prevent any injuries, the following safety precautions should be observed in the installation, use, servicing and maintenance of this equipment. Before operating this equipment, please read this manual completely, and keep it nearby for future reference.

WARNING

This symbol is intended to alert the user to avoid the risk of electric shock. This equipment must not be disassembled by anyone except qualified service personnel.

CAUTION

This symbol is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance.

To reduce the risk of fire or electric shock, do not expose this equipment to rain or moisture.

• TO REDUCE THE RISK OF ELECTRIC SHOCK,
- DO NOT REMOVE COVER (OR BACK).
- NO USER-SERVICEABLE PARTS INSIDE.
• REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Important Safety Instructions

	This symbol indicates caution points.
	This symbol indicates actions that should not be done.
	This symbol indicates actions that must be performed.
	Do not place the equipment on any uneven or unstable carts, stands, tables, shelves etc.The equipment may fall, causing serious injury to children or adults and serious damage tothe equipment itself.Use only a cart or stand recommended by the manufacturer. This equipment andrecommended cart or stand should be handled with care. Quick stops, excessive force, anduneven surfaces may cause the equipment and cart/stand to overturn.
	Do not disable the 3-wire grounding type plug. The grounding pin on the 3-prong plug is animportant feature. Removing the grounding pin will increase the risk of damaging theequipment.If you can not sit the plug into the electrical outlet, contact an electrician to install a groundingoutlet.Always operate this equipment from the type of power source indicated on the rear of theserial/model plate.Never overload wall outlets and extensions.

- Use and handle the power cord with care. Do not place any heavy objects on the AC power cord.

- Do not pull the AC power cord. Do not handle the AC power cord with a wet hand.

- Do not touch the power cord and antenna cable during lightning.

- Remove the plug from the wall outlet, if the equipment will not be used for a long period of time.

- Do not place, use or handle this equipment near water.

- Never expose the equipment to liquid, rain, or moisture. Seek for service if any of the above is spilled into the equipment.

- Do not expose the equipment to extreme temperature or to direct sunlight, as the equipment may heat up and suffer damage.

- Do not install the equipment near any heat sources such as radiators, heat registers, stoves, or any other apparatus that might produce heat.

- Do not attempt to service the equipment yourself.

- Opening and removing the covers may expose you to dangerous voltage or other hazards and may void your warranty. Refer service to qualified personnel.

- Do not place or drop any other objects on top.

- Do not insert anything into the ventilation holes of your equipment. Inserting any metal orammable objects may result to fire or electric shock.

- Protect the power cord from being walked on or pinchrd particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

- Do not place the equipment on uneven or unstable carts, stands, tables, shelves etc. The equipment may fall, causing serious injury to children or adults and serious damage to the equipment itself. Always place the equipment on the floor or on a surface that is sturdy, level, stable and strong enough to support the weight of the equipment.

- Do not block any ventilating openings. Leave an open space around the equipment. Never place the equipment: on a bed, sofa, rug, or any other similar surfaces; too close to drapes/curtains/walls, in a bookcase, built-in cabinet, or any other similar places that may cause poor ventilation.

- Unplug this apparatus during lightning storms or when unused for long periods of time.

- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

- Always remove the power cord from the outlet before cleaning the equipment.

- Never use liquid or aerosol cleaners on the equipment. Clean only with a soft dry cloth.

- Only use attachments/accessories specified by the manufacturer.

Antenna Safety Instructions

If an outdoor antenna is connected, follow the precautions below:

• An outdoor antenna should not be located in any area where it could come in contact with overhead power lines, or any other electric light or power circuits.
• When installing an outdoor antenna system, extreme caution should be taken to prevent contact with power lines. Direct contact with power lines may be fatal and should be avoided at all costs.

Section 810 of National Electrical Code (NEC) provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

TABLE OF CONTENTS

■ Federal Communications Commission Statement....1
■ Warnings and Precautions

Important Safety Instructions....2

Antenna Safety Instructions....4

■ Chapter 1 Introducing the LCD TV

Key Features 6
Package Contents 7
Setting Your LCD TV....8
Your LCD TV....11
Your Remote Control 13

■ Chapter 2 Installing the LCD TV

Connecting a TV Cable or an Antenna 15
Connecting a VCR....20
Connecting a Video Camera or Game Console 21
Connecting a DVD Player 22

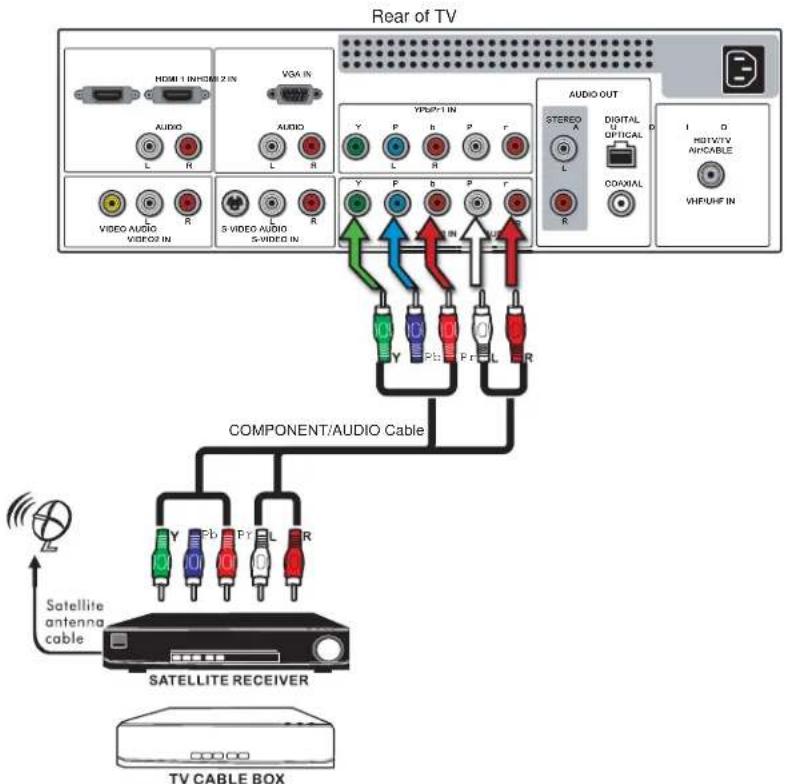

Connecting a Digital TV Cable Box or Digital Satellite Receiver 24

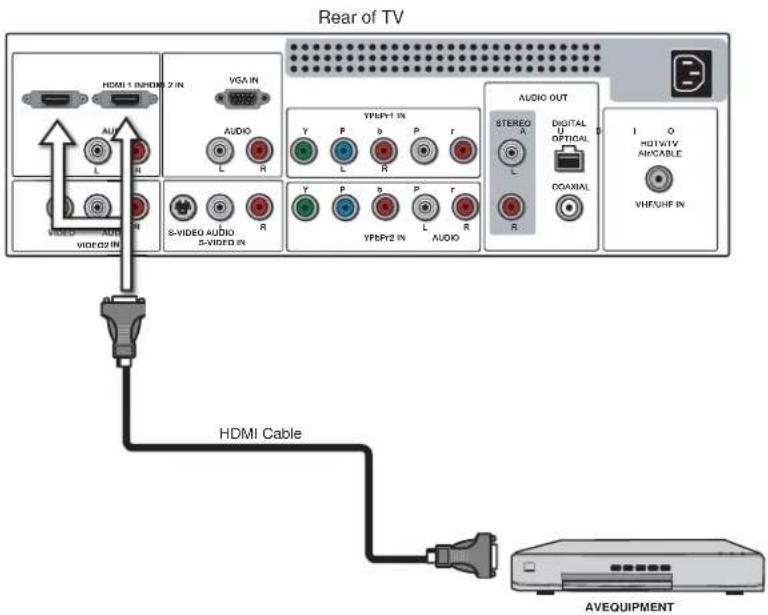

Connecting an AV Equipment with HDMI Connector.... 25
Connecting an AV Equipment with DVI Connector 26
Connecting a PC....27
Connecting an Audio Receiver or a Dolby Digital 5.1 Sound System....28

■ Chapter 3 USING THE FEATURES

Wide Screen Viewing....29
Operating the Menu....30
Customizing the VIDEO Settings....32

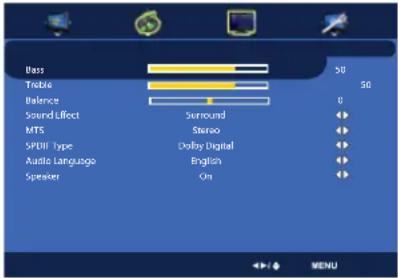

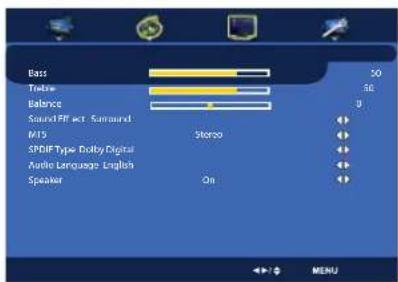

Customizing the AUDIO Settings....34
Customizing the TV Settings....36
Customizing the SETUP Settings 38

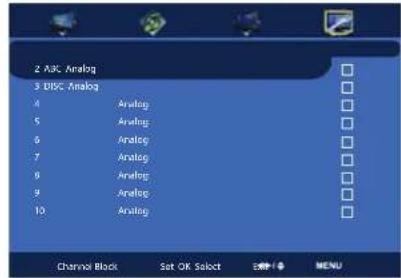

Using the Program Block Settings....41

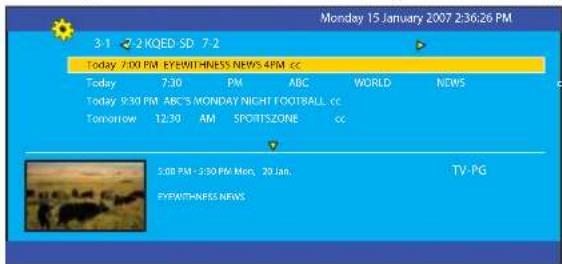

Using the Program Guide....46

Specifications 47
■ Programming your Remote Control 48

Chapter 1 Introducing the LCD TV

Key Features

Various Audio/Video terminals for external equipment connection

• 2 sets of composite A/V input terminals
• 1 set of S-VIDEO terminals
• 2 sets of component Video input terminals
• 1 VGA/ Audio input terminals
• 2 HDMI/Audio input terminals
• 1 set of Audio(L/R) output terminals
• 2 SPDIF output terminals (Optical x 1 /Coaxial x 1)
• 1 Headphone terminal

The built-in TV tuner to receive HD ATSC

- This function allows the reception of HD broadcasting without the addition of a set top box.

High Definition Multimedia Interface (HDMI)

- High Definition Multimedia Interface (HDMI) is a small, user-friendly interconnect that can carry up to 5 Gbps of combined video and audio in a single cable. This system eliminates the cost, complexity and confusion of multiple cables used to connect current A/V systems.

HDTV Component Video Inputs

- Offers the best video quality for DVD (1080i, 720p) and digital set-top-box (1080i, 720p) connections.

3D Digital Noise Reduction

- This function can digitally reduce image noise to provide better picture quality.

Film-Mode Detection (3:2 Reverse Pull Down)

- This function can automatically detect content derived from film and adjust the interlacer's frame matching to provide a more natural-looking, clearer image of the moving picture.

Package Contents

Make sure all of the following contents are included.

LCD TV

☑ Bottom Stand / Screw Driver and Screws

Illustration of a computer monitor with a keyboard and a knife, accompanied by scattered black fragments (no text or symbols)

AAA Batteries x 2

☑ VIDEO Cable☑ Remote☑ Component Cable

Power Cord

☑ AUDIO Cable ☑ Warranty Card

User's Manual
Stand Assembly Guide
Quick Start Guide
☑ Remote control Guide

These items are all you need to set up and operate the LCD TV in its basic configuration.

Make sure all of the above contents are included in the package. If you are missing any items, please contact the Polaroid customer service department.

Setting Up Your LCD TV

How to install the TV Stand

Read all instructions before continuing with the stand installation.

Attach the Stand the TV with the bottom foam packaging material still attached.

a. Lift foam packaging material from the top of the LCD out of the box.
b. Lift LCD out of the box, with the bottom foam packaging material still attached, and place onto a stable surface.

c. Remove protective bag from LCD unit, but DO NOT remove the bottom foam packaging material from the TV.

d. Locate the place on the back of the TV to attach the stand. Secure the stand to the LCD with all four screws.

How to remove the TV Stand

If you prefer to mount your new Polaroid TV on a wall instead of attaching it to the stand, please reference the instructions included in the wall mounting kit (sold separately).

Verify your TV's model and be sure to use the wall mounting kit specified for your TV model only. Contact a qualified technician for assistance when installing the wall mounting kit.

1

To prevent damaging the surface of the LCD TV, place the TV on a soft cloth.

2

Remove the screws of the table stand and detach the table stand from the TV.

3

Align the holes on the wall mounting hook units with the corresponding holes on the rear of the TV and fasten four screws.

How to setup the TV

Use a supplied antenna cable to connect the VHF/UHF signal to the LCD TV's ANT. terminal (refer to page15-17).

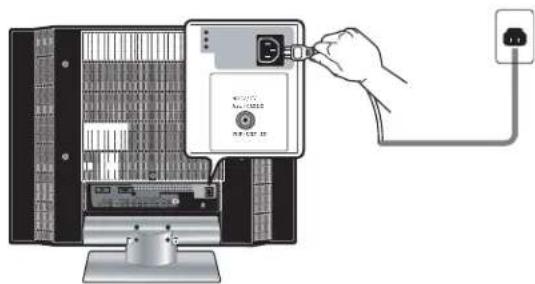

2 Connect the AC power cord at the back of the TV and connect the power cord to wall outlet.

3 Insert the 2 batteries supplied in remote control.

Step1 Slide the back cover up to open the battery compartment of the remote control.

Illustration of a hand pressing a button on a remote control (no text or symbols)

Step2 Insert two AAA size batteries. Make sure to match the (+) and (-) ends of the batteries with the (+) and (-) ends indicated in the battery compartment. Slide the cover back into place.

3D illustration of a remote control device with a handle and cable (no text or symbols)

Do not use caustic cleaners (porcelain, stainless steel, toilet, or oven cleaner etc.) on the remote, as it may suffer damage.

4 Connect other an external AV device (refer to page19-27).

Your LCD TV

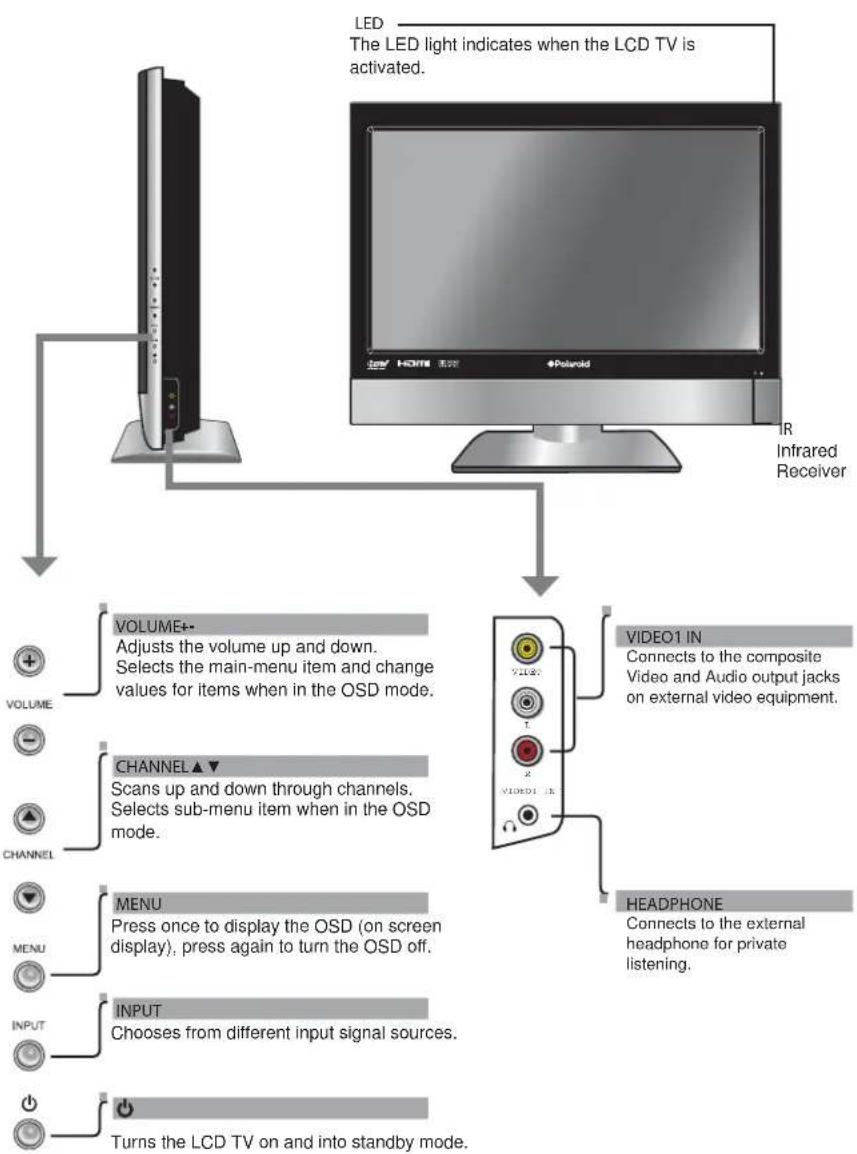

Front/Right Side View and Controls

ENGLISH

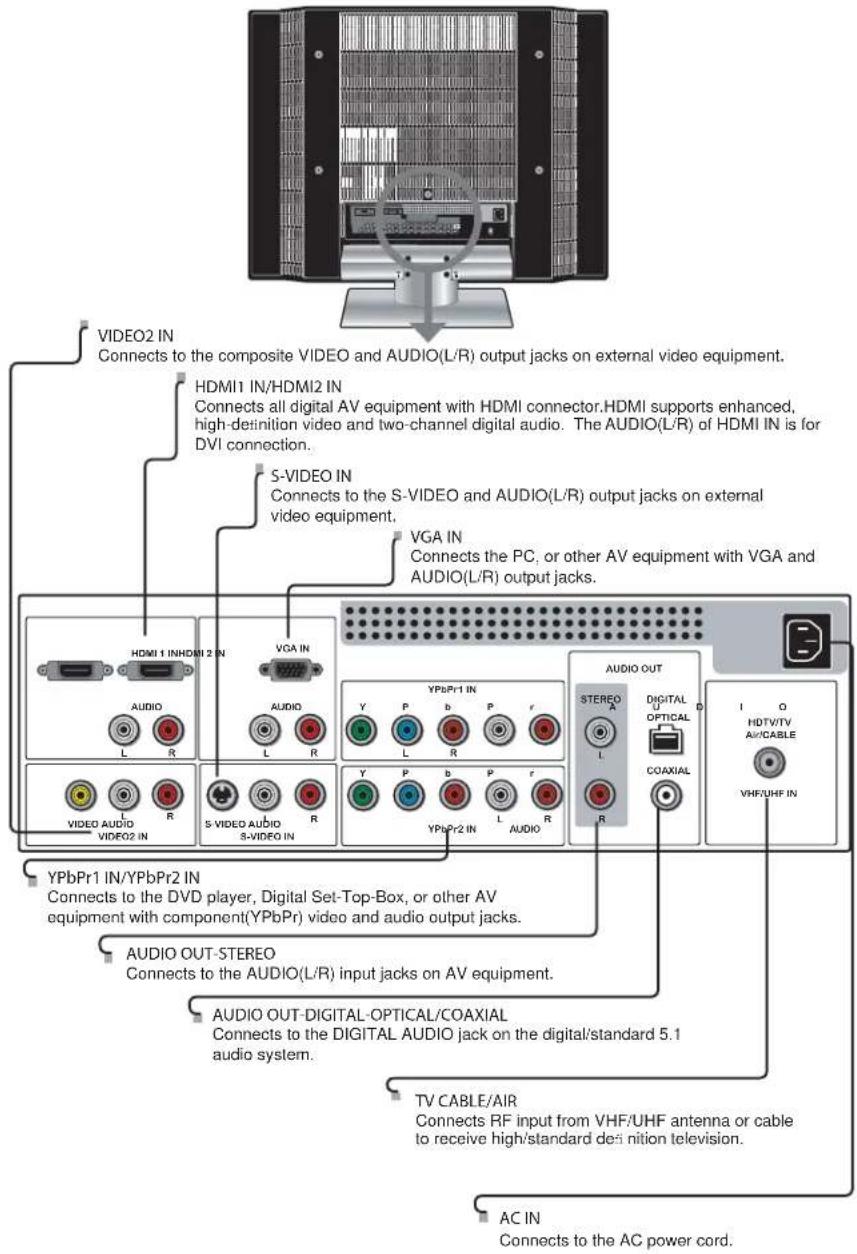

Rear View and Jacks

Your Remote Control

This package includes a Polaroid remote that enables control of up to four devices. To select a device, simply select one of the following device mode controls: TV, CBL/SAT, DVD/VCR, or AUDIO.

1 Turns the LCD TV on and off
2 SET UP Remote control universal code setup. For more information on setting up your remote control, please see the "Programming Your Remote Control" section (refer to page 47)
3 TV Controls this LCD TV
CAB/SAT Controls Cable Converter or Satellite Receiver
DVD Controls DVD player or Video player
AUX Controls Audio Amplifier
4 SLEEP Cycles through the LCD TV sleep time: OFF/30/60/90/120 mins
5 • II ▶ ■ Other device function keys
6 VOL+- Increases and decreases volume
7 CH▲▼ Change channel up and down
8 ASPECT Cycles through Wide mode settings: NORMAL/FULL/WIDE/ZOOM
9 MUTE Pressing once mutes audio. Pressing again restores audio
10 LAST Returns to previously selected channel
11 GUIDE In TV mode, pressing GUIDE displays the Program Guide on the screen

12	PIP PIP function is not available. Only for other devices function.
13	MENU Displays the OSD menu on the screen.
14	◀▶▲▼,OK Cycles through OSD options and selects individual menu items. OK confi rms option settings
	OK In TV mode, pressing OK to display a channel list
15	INFO Displays information on the LCD TV screen such as input source, channel, program title.
16	CC Cycles through the Closed Caption:Analog Closed Caption:OFF/CC1/CC2/CC3/CC4/Text1/Text2/Text3/Test4Digital Closed Caption:Service1/Service2/Service3/Service4/Service5/Service6/OFF
17	EXIT Exits the OSD menu
18	0-9/ENTER Pressing a number selects a channel.Following selection, pressing ENTER activates the channel, or channel activates automatically in 3 seconds
19	INPUT Pressing INPUT to display a source list, use ▲▼buttons to select the video equipment connected to the video inputs of your LCD TV: TV/VIDEO1/VIDEO2/VIDEO3/VIDEO4/VIDEO5/VIDEO6/VIDEO7/COMPUTERIn TV mode, use with 0-9 and ENTER buttons to select a digital channels

Eff ective range:

The remote can control the LCD TV from up to 5m away, if pointed directly at the receiver.

Chapter 2 Installing the LCD TV

Refer to the owner's manual of any external equipment to be connected.

When connecting any external equipment, do not connect any AC power cords to wall outlets until all other connections are completed.

Connecting a TV Cable or an Antenna

Antenna Connection

The antenna requirements for good color TV reception are more important than those for a black s white TV reception. For this reason, a good quality outdoor antenna is strongly recommended. The following is a brief explanation of the type of connection that is provided with the various antenna systems.

■ A 75-ohm system is generally a round cable (not included) with F-type connector that can easily be attached to a terminal without tools.

A 300-ohm system is a fl at twin-lead cable (not included) that can be attached to a 75-ohm terminal through a 300-75-ohm adapter (not included).

Use one of the following two diagrams when connecting an outdoor antenna.

A: Shows how to use a VHF/UHF combination outdoor antenna.
B: Shows how to use a separate VHF and/or UHF outdoor antenna.

A. Combination VHF/UHF antenna

B. Separate VHF and/or UHF antennas

Cable TV (CATV) Connection

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the National Electrical Code (NEC) that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building accurately, or as close to the point of cable entry as possible. Use of this TV for other than private viewing of programs broadcasted on UHF, VHF or transmitted by cable companies for the use of the general public may require authorization from the broadcast/cable company, and/or program owner.

A 75-ohm coaxial cable connector is built into the set for easy hookup. When connecting the 75-ohm coaxial cable to the set, connect the 75-ohm cable into the ANT. terminal.
■ Some cable TV companies offer premium pay channels. Since the signals of these premium pay channels are scrambled, a cable TV converter/descrambler is generally provided to the subscriber by the cable TV company.

This converter/descrambler is necessary for normal viewing of scrambled channels. (Set your TV to channel 3 or 4, typically one of these channels is used. If this is unknown, consult your cable TV company.)

For more specific instructions on installing cable TV, consult your cable TV company. One possible method of connecting the converter/descrambler provided by your cable TV company is shown in the diagram below.

■ The RF switch (not included) is required to provide two inputs (A and B). Setting the RF switch to position A allows viewing of all unscrambled channels by using the TV channel keys.
■ Setting the RF switch to position B allows viewing of all scrambled channels via the converter/descrambler by using the converter channel keys.

Use a supplied antenna cable to connect the TV signal to the LCD TV's TV CABLE terminal.

2 Connect the AC power cord at the back of the TV and connect the power cord to wall outlet.

This TV is equipped with a safety fuse. In the event of an electrical storm or power outage the safety fuse is designed to protect your TV. If your TV has no power, check the fuse by prying the cover off, following the illustration below.

If the fuse is blown, visit your local hardware store and ask for a 4A 250V - 5x20mm Time Lag Fuse (Slow Blow) to replace the fuse.

BE SURE TO UNPLUG AC POWER CORD BEFORE REMOVING THE FUSE.

3 Press the button on the remote to turn on the LCD TV.

Always disconnect the LCD TV from the main voltage when the LCD TV will not be used for a long period of time. The POWER button on the front panel is only used for switching the LCD TV into standby, it does not disconnect the device from the main voltage. To completely disconnect the main voltage, please remove the power plug from the socket.

3

Press the button on the remote to turn on the LCD TV. (Scroll down using the UP/DOWN buttons to see Computer-VGA option)

4

Press the INPUT button on the remote to display the Input List. Use the ▲▼ buttons to select TV (Cable/Air) and press the OK button.

5

Press the MENU button on the remote control to display the Main menu, and use the ◀▶ buttons to select the TV icon.

The Channel Scanning will create a list of receivable channels for the current input (antenna or cable). You will be required to run Channel Scanning for each RF input to create a list of available channels from both inputs.

7

Press the OK button to display the received channel list, then press ▲▼ to select a channel. Use the • (INPUT button) with 0-9 buttons to select digital channel (for example 9.1)

The digital main channel might include many subchannels (for example 9-1, 9-2...) that are showing program at the same time.

Connecting a VCR

1 METHOD A:

Use a composite cable to connect the VCR's composite video/audio jacks to the LCD TV's VIDEO2 IN jacks.

METHOD B:

Use an audio cable to connect the VCR's audio output jacks to the LCD TV's audio inputs. Use a S-Video cable to connect the VCR's s-video output jack to the LCD TV's S-VIDEO IN input jack.

2 Connect all AC power sources, before turning on the power switch of the LCD TV or other connected equipment.

3 Press the button on the remote to turn on the LCD TV.

4 To watch a videotape, press the INPUT button on the remote to select VIDEO2(METHOD A), or VIDEO3(METHOD B).

Connecting a Video Camera or Game console

METHOD A:

Use a composite cable to connect the video camera's or game console's composite video/audio jacks to the LCD TV's VIDEO2 IN jacks or VIDEO1 IN jacks.

METHOD B:

Use an audio cable to connect the video camera's or game console's audio output jacks to the LCD TV's audio inputs. Use an S-Video cable to connect the video camera's or game console's s-video output jack to the LCD TV's S-VIDEO IN input jack.

Connect all AC power sources, before turning on the power switch of the LCD TV or other connected equipment.

Press the button on the remote to turn on the LCD TV.

To watch a video vis camera or game console, press the INPUT button on the remote to select VIDEO2/VIDEO1(METHOD A), or VIDEO3 (METHOD B).

Not all cameras have the ability to connect to a TV. Please check your video camera user guide for compatibility.

Connecting a DVD Player

METHOD A:

Use a composite cable to connect the DVD player's composite video/audio jacks to the LCD TV's VIDEO2 IN jacks.

METHOD B:

Use an audio cable to connect the DVD player's audio output jacks to the LCD TV's audio inputs. Use an S-Video cable to connect the DVD player's s-video output jack to the LCD TV's S-VIDEO IN input jack.

METHOD C:

Use a component cable to connect the DVD player's component output jacks to the LCD TV's YPbPr1 IN or YPbPr2 IN input jacks.

Use an audio cable to connect the DVD player's component audio jacks to the LCD TV's audio input jacks.

The component video jacks on your DVD player are sometimes labeled YPbPr, or YCbCr. For an explanation of component video, see your DVD player's user guide.

2 Connect all AC power sources, before turning on the power switch of the LCD TV or other connected equipment.
3 Press the button on the remote to turn on the LCD TV.
4 To watch a DVD, press the INPUT button on the remote to select VIDEO2(METHOD A), or VIDEO3(METHOD B), or VIDEO4/VIDEO5(METHOD C).

For best picture quality, if your equipment has component video output, use a component cable instead of a composite video or S-video cable.

Connecting a Digital TV Cable Box or Digital Satellite Receiver
        G3["I D HISTVTV AIRCABLE VHFUHF IN"]
    end
    F1 --> G1
    F2 --> G2
    F3 --> G3
    H1 --> G4["Yellow LED"]
    H2 --> G5["Green LED"]
    H3 --> G6["Red LED"]
    H4 --> G7["Blue LED"]
    H5 --> G8["Light Blue LED"]
    H6 --> G9["White LED"]
    H7 --> G10["Light Red LED"]
    H8 --> G11["Light Green LED"]

Use a component cable to connect the satellite receiver's/TV Cable Box's component (YPbPr1) output jacks to the LCD TV's component input jacks. Use an audio cable to connect the satellite receiver's/TV Cable Box's component audio jacks to the LCD TV's audio input jacks.
2 Connect all AC power sources, before turning on the power switch of the LCD TV or other connected equipment.
3 Press the button on the remote to turn on the LCD TV.
4 To watch programs via satellite receiver or TV Cable Box, press the INPUT button on the remote to select VIDEO4/VIDEO5.

Connecting an AV Equipment with HDMI Connector

ENGLISH

1 Use a HDMI cable to connect the AV equipment's HDMI output jack to the LCD TV's HDMI IN jacks.
2 Connect all AC power sources, before turning on the power switch of the LCD TV or other connected equipment.
3 Press the button on the remote to turn on the LCD TV.
4 Press the INPUT button on the remote to select VIDEO6 or VIDEO7.

The HDMI connector provides both video and audio signals, it's not necessary to connect the audio cable.

Connecting an AV Equipment with DVI Connector

Use a HDMI-to-DVI cable to connect the AV equipment's DVI output jack to the LCD TV's HDMI IN jacks. Use an audio cable to connect the AV equipment's audio output jacks to LCD TV's HDMI AUDIO jacks.
2 Connect all AC power sources, before turning on the power switch of the LCD TV or other connected equipment.
3 Press the button on the remote to turn on the LCD TV.
4 Press the INPUT button on the remote to select VIDEO6 or VIDEO7.

If the LCD TV is connected to AV equipment's DVI connector, you will need an HDMI-to-DVI cable or an HDMI adapter(not supplied) and an audio cable.

Connecting a PC

ENGLISH

Use a D-SUB cable to connect the PC's D-SUB output jack to the LCD TV's VGA input jack. Use an audio cable to connect the PC's audio output jacks to LCD TV's.
2 Connect all AC power sources, before turning on the power switch of the LCD TV or other connected equipment.
③ Press the button on the remote to turn on the LCD TV.
4 Press the Input button on the remote to select COMPUTER.

Connecting an Audio Receiver or a Dolby Digital 5.1 Sound System

For better sound quality, you may want to use a Home Theater/Stereo System.

NOTE: If you have a Home Theater/Stereo System that you would like to use with your new TV, we recommend that you do NOT use your TV's audio output for this connection. For the best sound quality, our product testing has shown that you should connect your Home Theater/Stereo System directly to your A/V device. I.E. You should connect your Home Theater/Stereo System to your DVD player, Cable/Satellite box or other AV equipment. Although not recommended, if you prefer to use the TV audio output to make this connection to your Home Stereo System, please follow the instructions below.

Connecting to Audio Receiver:

Use an audio cable to connect the audio receiver's audio LINE IN jacks to LCD TV's AUDIO OUT jacks.

Connecting to Digital 5.1 Sound System:

METHOD A:

Use a optical cable to connect the audio amplifier's OPTICAL IN jacks to LCD TV's OPTICAL OUT jacks.

METHOD B:

Use a coaxial cable to connect the audio amplifier's COAXIAL IN jacks to LCD TV's COAXIAL OUT jacks.

Connect all AC power sources, before turning on the power switch of the LCD TV or other connected equipment.

Press the ⏻ button on the remote to turn on the LCD TV.

Chapter 3

USING THE FEATURES

Wide Screen Viewing

Wide Screen function allows viewing of 4:3/16:9 images in wide screen mode, cycling through the following wide screen settings. Press the ASPECT button repeatedly to select the screen format you want.

FULL

Stretches the image vertically and horizontally to keeps the image size consistent in the center of the screen and stretches the sides

Three red tomatoes on a tiled surface (no text or symbols visible)

ZOOM

Stretches the image vertically and horizontally to fill the screen at 1:2.35 aspect ratio

Close-up of three red tomatoes with green stems, arranged on a plain background (no text or symbols visible)

WIDE

Stretches the image vertically and horizontally to fill the screen at 1:1.85 aspect ratio

Three red tomatoes on a tiled surface (no text or symbols visible)

NORMAL

Displays at 4:3 aspect ratio

Three red tomatoes on a tiled surface, no text or symbols visible

NORMAL is not available when you are watching 720p, or 1080i source.

Operating the Menu

Press the button to turn the LCD TV on.

Press the MENU button on the remote control, the on-screen menu will appear on the screen. Use the ◀▶ buttons to select your main menu option.

VIDEO MENU:

Allows you to make adjustments to your picture settings.

- If the signal source is TV/VIDEO/S-VIDEO/YPbPr/HDMI, the VIDEO MENU appears as:

- If the signal source is VGA, the VIDEO MENU appears as:

AUDIO MENU:

Allows you to customize the audio options and effects.

- If the signal source is VIDEO/S-VIDEO/YPbPr/HDMI/VGA, the AUDIO MENU appears as:

- If the signal source is TV, the AUDIO MENU appears as:

TV MENU:

Allows you to edit and label channels.

SETUP MENU:

Allows you to set up a variety of features: Language, Closed Caption, Factory Reset, Parental Control, and Sleep Timer.

- If the signal source is TV/VIDEO/S-VIDEO/YPbPr, the SETUP MENU appears as:

- If the signal source is HDMI/VGA, the SETUP MENU appears as:

3

Use the ▲▼ buttons to highlight the option of the sub-menu, and press the OK button. While in adjustment mode, and use the ◀▶ buttons to change the value of the item.

4

Press the EXIT button to exit the menu.

ENGLISH

Customizing the VIDEO Settings

Press the button to turn the LCD TV on.

Press the MENU button on the remote control to display the Main menu, and use the ◀▶ buttons to select the VIDEO.

Use the ▲▼buttons to highlight an individual VIDEO option, use the ◀▶ buttons to change the setting, and press the MENU to exit the menu

- If the signal source is TV/VIDEO/S-VIDEO/YPbPr/HDMI, the VIDEO MENU appears as:

- If the signal source is VGA, the VIDEO MENU appears as:

The VIDEO menu includes the following options:

Picture Mode Cycles among display types: Vivid/Hi-Bright/Cinema/Sport/User

Contrast Controls the difference between the brightest and darkest regions of the picture

Brightness Controls the overall brightness of the picture

Saturation Controls the color intensity

Hue Controls the difference between the green and red regions of the picture

Sharpness Increase this setting to see crisp edges in the picture; decrease it for soft edges

Color

temperature Adjusts color components independently to achieve a warm or cool effect: Cool/Middle/Warm/User

- Warm: Increases red tint

- Nature: Increases natural tint

- Cool: Increases blue tint

- User: Allows the user to adjust red, green and blue color component levels independently.

Noise

Reduction Select to reduce the noise level of connected equipment: Medium/Strong/Off/Low.

VGA

Press the OK button to enter the VGA Setting:

• H. Position Adjusts the position of the picture left and right in the window
  • V. Position Adjusts the position of the picture up and down in the window
• Clock Controls the width of the picture based on the VGA mode

• Phase Controls the signal phase, which can improve focus clarity and image stability based on the VGA mode

Customizing the AUDIO Settings

Press the button to turn the LCD TV on.

Press the MENU button on the remote control to display the Main menu, and use the ◀▶ buttons to select the AUDIO.

Use the ▲▼buttons to highlight an individual AUDIO option, use the ◀▶ buttons to change the setting, and press the MENU to exit the menu

- If the signal source is VIDEO/S-VIDEO/YPbPr/HDMI/VGA, the AUDIO MENU appears as:

- If the signal source is TV, the AUDIO MENU appears as:

The AUDIO menu includes the following options:

Bass Controls the relative intensity of lower-pitched sounds

Treble Controls the relative intensity of higher pitched sounds

Balance Adjusts the relative volume of the speakers in a multiple speaker system

Sound Effect Allows selection of an audio-enhancement technique from among the following options: Surround/Live/Dance/Techno/Classic/Soft/Rock/POP/Off

MTS Allows you to listen to high-fidelity stereo sound while watching TV

- Stereo: Use separate audio tracks for left and right speakers, if available

- SAP: You can enjoy a second audio program from the speakers while watching a scene in the original program

- Mono: Allows mono output (useful when stereo is noisy or inconsistent)

SPDIF Type Allows to selection of the digital sound format: PCM/OFF/Dolby Digital

- PCM:

The external audio system is connected to the AUDIO OUT (L/R) of the LCD TV

- Dolby Digital:

The external audio system is connected to the AUDIO OUT DIGITAL (OPTICAL or COAXIAL) of the LCD TV

- OFF:

Select OFF to turn off the external audio system

Audio Language Allows to select the audio language: English/Spanish/French.

Speaker Allows to select to turn on or off the TV speakers.

Customizing the TV Settings

Press the button to turn the LCD TV on.

Press the MENU button on the remote control to display the Main menu, and use the ◀▶ buttons to select the TV.

Use the ▲▼buttons to highlight an individual TV option, use the ◀▶ buttons changes the setting, and press the MENU exits the menu.

The TV menu includes the following options:

Channel Scan	Press the OK button, the Channel Scanning automatically creates a list of receivable channels.
Tuner Mode	Allows selection between CATV cable and antenna signal sources: · AIR Choose this setting if you are receiving TV channels with an antenna (over the air) · Cable Choose this setting if you are receiving TV channels with a CATV (cable TV)
Channel Skip	Allows addition/removal of channels on the channel list. ➊ Press the OK button to display the Channel Skip menu:

② Press the ▼ button to select the desired channel, and press the OK button repeatedly to select show (☑) or hide(☐)

F

Time Zone Allows selection of regional TV systems of USA: Eastern Time/Indiana/Central time/Mountain Time/Arizona/Pacific Time/Alaska/Hawaii

Customizing the SETUP Settings

Press the button to turn the LCD TV on.

Press the MENU button on the remote control to display the Main menu, and use the ◀▶ buttons to select the SETUP.

Use the ▲▼buttons to highlight an individual SETUP option, use the ◀▶ buttons to change the setting, and press the MENU to exit the menu.

- If the signal source is TV/VIDOE/S-VIDEO/YPbPr, the SETUP MENU appears as:

- If the signal source is HDMI/VGA, the SETUP MENU appears as:

The SETUP menu includes the following options:

OSD Language Selects to display all on-screen menus in your language of choice: English/French/Spanish

Time

Setup Allows to set the current time.

- ON : Selects to display the system current time.

• OFF : Selects to set the current time.

① Press the ▲▼ buttons to select the Date or Time.
② Press the ◀▶ buttons to move each setting, and use 0-9 keys to set the current time.

Closed Caption

Allows to select from analog or digital closed caption modes and press the OK button. The Closed Captain list appears:

① Analog Closed Caption:

Press the ◀▶ buttons to select the basic analog closed caption options: OFF/CC1/CC2/CC3/CC4

• CC1 /CC2 /CC3 /CC4: Display a printed version of the dialog and sound effects of the program being viewed
• T1/T2: Display station information presented using either half or the whole screen
• T3/T4: Extended Data Services. For example: Network name, program name, program length, etc.

② Digital Closed Caption:

Press the ◀▶buttons to select the digital closed caption options: Service1/Service2/Service3/Service4/Service5/Service6/OFF

Note: The setting here will be applied to each DTV channel

③ Caption Style:

Press OK button to customize the settings for digital closed caption option:

Parental

The Parental Control can be set up to the TV to block Channel, Video Source and to change password.

① Use the ▼ button to select the Parental, and press the OK to display the Parental menu
② Use the Program Block function, must enter a four-digit password. The factory password is 0000
Program Block Allows to setup the TV and MPAA Rating Lock options (refer to "Using the Program Block Setting").

- Channel Block Allows to block digital channels.

- Input Block Selects to block a Input source signal

- Change Password Selects to change your password

Gamma

Allows adjustment of the display's gamma correction, which fine tunes both brightness and red/green/blue ratios: Bright/Middle/Dark.

Reset Default

Press the OK button to restore factory settings

Using the Program Block Settings

Press the MENU button on the remote control to display the Main menu, and use the ◀▶ buttons to select the SETUP.

Use the ▼ buttons to highlight Parental, and press the OK button.

Use the Parental function, must enter a four-digit password. The factory password is 0000.

Use the ▼ button to select the Program Block, and press the OK to display the Program Block menu.

The Parental block menu includes the following options:

U.S. TV Ratings	Selects to activate the TV Rating programs.
U.S. Movie Ratings	Selects to activate the MPAA Rating programs
Canadian English Ratings	Selects to activate the English Rating programs of Canada.
Canadian French Ratings	Selects to activate the French Rating programs of Canada

Block MPAA Unrated

- YES:

Block all movies that are broadcast without a MPAA rating.

NO:

Allows all movies that are broadcast without a MPAA rating

Block TV None Rating

- YES:

Block all movies that are broadcast without a TV rating.

NO:

Allows all movies that are broadcast without a TV rating.

U.S. TV Ratings

The U.S.TV Rating has 2 rating methods: Content-Based Rating and Age-Based Rating. The U.S.TV Rating includes the following options:

AGE-BASED

RATING	DESCRIPTION
TV-Y	All children
TV-Y7	Directed to children age 7 and older
TV-G	General Audience
TV-PG	Parental Guidance suggested
TV-14	Parents strongly cautioned
TV-MA	Mature Audience only

CONTENT-BASED

RATING	DESCRIPTION
FV Fantasy violence
D	Suggestive dialogue
L	Strong language
S	Sexual situations
V	Violence
ALL	All contents are blocked

		CONTENT-BASED
		FVDLSV
AGE-BASED	TV-Y
	TV-Y7	√
	TV-G
	TV-PG		√	√	√	√
	TV-14		√	√	√	√
	TV-MA			√	√	√

√ : To block programs by both content and age.
Use the ◀▶ ▲▼ buttons to select the rating you want and press the OK button repeatedly to select BLOCK ☑r UNBLOCK . □

Canadian English Ratings

The Canadian English Ratings includes the following options:

RATING

DESCRIPTION

C	All children
C8+	Children 8 years and older
G	General programming
PG	Parental guidance
14+	Viewers 14 and older
18-	Adult programming

Use the ◀▶▲▼ buttons to select the rating you want and press the OK button repeatedly to select BLOCK □ UNBLOCK . □

Canadian French Ratings

The Canadian English Ratings includes the following options:

RATING

DESCRIPTION

G	General programming
8	ans+	Not recommended for ages under 8
13	ans+	Not recommended for ages under 13
16	ans+	Not recommended for ages under 16
18 ans+	Programming restricted to adults.

Use the ◀▶ ▲▼ buttons to select the rating you want and press the OK button repeatedly to select BLOCK ☐ UNBLOCK . □

U.S. Movie Ratings

The U.S. Movie Ratings is used for original movies rated by the Motion Picture Association of America(MPAA) as broadcasted on cable TV and not edited for television. The U.S. Movie Ratings includes the following options:

RATING
DESCRIPTION

G	General Audiences. Movie is appropriate for all ages
PGviewers	Parental Guidance Suggested. May contain material not suited for younger
PG-13	Contains content that may not be appropriate for viewers under the age of 13
R	Restricted. Contains adult content, no one under 17 admitted without parent
NC-17	No one 17 and under admitted
X	No one 17 and under admitted

Use the ◀▶ ▲▼ buttons to select the rating you want and press the OK button repeatedly to select BLOCK ☑ UNBLOCK . □

Using the Program Guide

The Program Guide feature brings all sorts of information to your screen, such as program title, program duration, time remaining, rating information, closed caption, availability, etc.

With the LCD TV connected to a television programming source, press the INPUT button on the remote control and use the ▲▼ buttons to select TV and press the OK button.

Press the GUIDE button on the remote control, the Program Guide will appear on the screen:

Press the ◀▶ button to select the channel.

Press the ▲▼ button to select the program from a list, the Program Guide provides introduction about the current program being shown on each channel.

The Program information in the guide is provided by the broadcasters. It may sometimes include only the channel number, without a program title or description.

Press the GUIDE button again on the remote control to exit the Program Guide

SPECIFICATIONS

LCD Panel Panel	Size 40" TFT LCD
	Brightness 500 cm2
	Contrast Ratio 1200:1
Max. Resolution 1366x768
Input Connector V	DEO/AUDIO(L/R) 2
	S-VIDEO/AUDIO(L/R) 1
	YPbPr/AUDIO(L/R) 2
	VGA/AUDIO(L/R) 1
	HDMI/AUDIO(L/R) 2
	AUDIO OUT(L/R) 1
	OPTICAL/COAXIAL 1
	HEADPHONE 1
Power Source AC100~240V, 50/60HZ, 3.0A
Power Consumption		300 W, standby < 5 W
Dimension		38.9 w x 29.3 h x 9.4 d inch
WEIGHT		69 LB

PROGRAMMING YOUR REMOTE CONTROL

Your remote lets you control four devices with one easy-to-use, compact unit. After installing batteries, you can program the remote to control your Universal TV, VCR or DVD, Cable or Satellite Receivers, Amplifier or Tuner, and Auxiliary devices. To do so, follow the instructions in "Programming a Device". For best results, please read and follow all the remaining instructions. Keep this guide for future reference.

A Quick Look at Programming a Device

To control VCR or DVD, Cable or Satellite Receivers, Amplifier or Tuner, and Auxiliary devices, follow these steps. Before proceeding, find the codes for the devices you want to program in "Manufacturer's Codes" on the right side of this page and write them down or highlight them.

To program a DVD Player, TV/DVD Combo, TV/VCR/DVD Combo, portable DVD player, or mobile DVD player, use the DVD key.

Turn on the device (for example, DVD player) and, if needed, load media (for example, a DVD).

Press a device key (VCR/DVD, CBL/ SAT, or AUX).

Press and hold SET UP until the red LED blinks twice; then release.

Enter the first five-digit code for your device. The LED blinks once as each digit is entered. If the code is correct, the LED blinks twice.

ED does not blink twice, repeat steps 2 to 4 and try entering the code again.

Aim the remote at the device and press. The device should turn off. If it does not, repeat steps 3–5, trying each code for your brand until you find one that works. If you cannot find a code that works, see "Searching for Your Code".

Repeat steps 1–5 for the other devices you want to control. For future reference, write down each working device code below:

AUX Code:

CBL Code:

CD Code:

DVD Code:

SAT Code:

TNR Code:

VCR Code:

Press set to save and exit.

Searching for your Code

If your device does not respond to the remote after trying all codes listed for your brand, or if your brand is not listed, try searching for your code:

Press a device key once.

Press and hold SET UP until the red LED blinks twice; then release.

Enter 9-9-1, then the device group number (0= Cable, 1= TV, 2= VCR, 3= Audio). The LED blinks twice.

Aim the remote at the device and press. The remote sends IR codes from its library to the selected device, starting with the most popular code first. If the device responds, go to step 7.

If the device does not respond, press CH▲. The remote will try the next code. Continue until the device responds. Press CH▼ to try the previous code.

To search for other device codes, repeat steps 1 to 5.

Press SET UP to save and exit.

Checking the Codes

If you have set up the remote using the procedure in "Searching for Your Code", you may need to find out which four-digit code is operating your equipment.

For example, to find out which code is assigned to your TV:

Press TV once.

Press and hold SET UP until the red LED blinks twice; then release.

Enter 9-9-0. The LED blinks twice.

To view the code for the first digit, press 1. Count the LED blinks (for example, three blinks = 3), and write down the number in the appropriate code listing in step 8 under "Programming a Device".

If a code digit is 0, the LED does not blink.

Repeat step 4 for the four remaining digits, using 2 for the second digit, 3 for the third digit, 4 for the fourth digit, and 5 for the fifth digit.

Changing Volume Lock

The remote comes preset to allow independent volume control of each selected device (Global Volume Unlock). However, you may change the Volume Lock setting to Global Volume Lock so that one device's volume will control volume in all other modes. After that, you can perform Individual Volume Unlock on a selected device to set its volume control for independent operation or Global Volume Unlock to remove all volume locking.

Changing Volume Lock

The remote comes preset to allow independent volume control of each selected device (Global Volume Unlock). However, you may change the Volume Lock setting to Global Volume Lock so that one device's volume will control volume in all other modes. After that, you can perform Individual Volume Unlock on a selected device to set its volume control for independent operation or Global Volume Unlock to remove all volume locking.

Locking Volume Control to One Mode (Global Volume Lock)

Press and hold SET UP until the red LED blinks twice; then release.

Enter 9-9-3 and then press the mode key for the device you want to control volume (for example, TV). The LED blinks twice. Now when you press VOL+, VOL-, or Mute, the selected device (for example, TV) will control the volume regardless of the current mode.

Unlocking All Volume Control (Restoring Global Unlock)

Press and hold SET UP until the red LED blinks twice; then release.

Enter 9-9-3 and then press VOL+. The LED blinks four times.

Volume is now independently controlled for all programmed devices.

Unlocking a Single Device's Volume Control

Press a device key (TV, VCR/DVD, CBL/SAT, or AUX).

Press and hold SET UP until the red LED blinks twice; then release.

Enter 9-9-3 and then press VOL-. The LED blinks four times. Volume is now independently controlled for the selected devices.

Troubleshooting

PROBLEM	SOLUTION
LED does not blink when you press a key.	Replace battery with new AAA size battery.
LED blinks when you press a key, but device does not respond.	Make sure the remote is aimed at your device and is not more than 15 feet away
LED blinks one long blink.	An entry error has occurred (for example, wrong key). Try entry sequence again.
Remote does not control devices or commands are not working properly.	Try all listed codes for the device. Make sure the device operates with an infrared remote control.
CH▲, CH▼, and LAST do not work for your RCA TV.	Due to RCA design from 1983 to 1987, only the original remote control will operate these functions.
No volume on a device.	See “Changing Volume Lock”.
Channels do not change properly.	If the original remote control required you to press Enter to change channels, press Enter on this remote after entering the channel number.

Manufacturer's setup codessetup codes
Audio Amplifiers

Manufacturer	Code		Manufacturer	Code
Adcom	0577,	1100	Modulaire 0395
Aiwa 0406			NEC	0264
Arcam	0269		Naim	0269
Bose	0674		Nakamichi	0321
Carver	0892,	0269	Optimus	0013, 0300, 0823, 0395
Cinema Sound 0160			Panasonic	0308, 0521
Curtis Mathes	0300		Pass Labs 0269
Denon	0160		Philips	0892, 0269
Durabrand	1561		Pioneer 0013, 0300, 0823
Elan	0647		Polk Audio 0892, 0269
GE	0078		RCA	0013, 0300, 0823
Grundig	0269		RadioShack	0395
Harman/Kardon	0892		Realistic	0013, 0395, 0220
JVC	331		Revox	0269
Left Coast	0892		Sansui	0321
Lenoxx	1561		Shure	0264
Linn	0269		Sony	0815, 0220, 0689
Luxman	0165		Soundesign	0078
Magnavox	0269		Technics	0308, 0521
Marantz 0892, 0269, 0321			Victor	0331
McIntosh	0251		Wards	0013, 0078
Micromega	0269		Yamaha	0354, 0133

Cable Converters

Manufacturer	Code		Manufacturer	Code
A-Mark	0008,	0144	Nova Vision	0008
ABC	0237,	0003,	Novaplex 0008	0008
Accuphase	0003		Pace	0877, 1877, 0237, 0008
Acorn	0237		Panasonic	0000, 0008, 0144, 0107
Action	0237		Paragon 0000, 0008, 0525
Active	0237		Penneys	0000
Americast	0899		Philips	1305, 0317
Archer	0237		Pioneer	0877, 1877, 0144, 0533
BCC	0276		Pulsar	0000
Bell South 0899			Quasar	0000
British Telecom 0003			Regal	0276, 0279
Century	0008		Runco	0000
Digeo	1187		Samsung	0003, 0144
Director 0476			Scientific Atlanta	0877, 1877,0477,
Fosgate	0276			0237, 0003, 0000, 0008
GE	0144		Son	1006
General Instrument 0476, 0810, 0276, 0003			Sprucer 0144
Gibraltar	0003		Starcom	0003
GoldStar	0144		Supercable	0276
Hamlin	0009		Time Warner cable	1877
Hitachi	0003,	0008,	Torx 0009	0003
Insight	0476,	0810	Toshiba	0000
Jerrold 0476, 0810, 0276, 0003			US Electronics	0276, 0003, 0008
Memorex	0000		United Cable	0276, 0003
Mitsubishi	0003		Videoway	0000
Motorola 0476, 1376, 0810, 0276, 1187			Zenith	0000, 0008, 0525, 0899

Audio Amp/Tuners

		Manufacturer	CodeManufacturer	Code
ADC	0531	Kenwood	1313, 1570,1569, 0186, 0042, 0239, 0027, 0077
AMC	1077
AMW	1563, 1615	Koss	1497, 1366, 0424
Aiwa 1243, 1405,1388, 1641, 0189, 0121, 0405, 0158		LG	1293
		LXI	0181
Akai 1255, 1512, 0244, 0346		Lasonic	1798
Alco	1390	Lenoxx	1437
Amphion Media Works	1563, 1615	Lexicon	1076
Anam 1609, 1074		Linn	0189
Apex	1257	Liquid Video	1497
Apex Digital	1774, 1257, 1430	Lloyd's	0195
Arcam	1189, 1120	Lloyds	0195
Audiotronic 1189		MCS	0039, 0346
Audiovox	1390, 1627	Magnavox	1189, 1269, 0531,1266, 0189, 1514, 0195, 0391,1120
B & K 0820, 0840, 0701, 0702
BK	0702
Bose 1229, 0639, 1253		Marantz	1189, 1269, 0891, 0189, 1289, 1120, 0039
Brix	1602	McIntosh	289
Cairn	0189	Micromega	1189, 0189
Cambridge Soundworks	1370	Mitsubishi	1393
Capetronic	0531, 0195	Modulaire	0195
Carver	1189, 0189, 0121, 1289, 0042, 0360, 0008	Myryad	1189
Casio	0195	NAD	0320
Clarinette	0195	Nakamichi	1313, 0097, 1555, 0347
Classic	1352	New Castle	0502
Coby	1389	Nikko	0322
Compaq	1136	Nikkodo	0322
Criterion	1420	Norcent	1389
Curtis Mathes	0014, 0080, 0039	Nova	1389
Daewoo	1250	Onkyo	0842, 0135, 1320, 1298, 1531
Dell	1383
Delphi	1414	Optimus	1023, 0531, 0014,1074, 0670, 0121, 0186, 0080, 0195, 0738, 0801, 0042, 0181, 0502, 0219, 0158, 0074, 0163, 0177
Denon	1142, 1360, 1306, 0121, 0004
Emerson	0531, 0195, 0424
Fisher	1801, 0801, 0042, 0360, 0219, 0008	Oritron	1497, 1366
Garrard	0463, 0424	Outlaw Audio	0391
Gateway	1517, 1567	Panasonic	1308, 1518, 1548,1288, 1316, 1763, 1764, 1633, 0309, 0367, 0039
Go Video	1352, 1532
Grundig	0189
Harman/Kardon	0110, 1304, 1306, 0891, 0189, 1289	Penney	0195
		Penneys	0195, 0039
Hewlett Packard	1181	Philips	1189, 1269, 0891,1266, 0189, 0391, 1120
Hitachi	1273, 1801
Initial	1426	Pioneer	1023, 1384, 0531, 0014, 0150, 0630, 0080, 0801, 0244, 0346
Inkel	0491
Integra	0842, 0135, 1320, 1298
JBL	0110, 1306	Polaroid	1508
JVC	1058, 1374, 1495, 1811, 0074	Polk Audio	0189, 1289, 1414
		Proscan	1254, 0054
KLH	1428, 1390, 1412	Quasar	0039
Kawasaki	1390	RCA	1023, 1609, 1254, 0531, 1511, 1390, 1074, 0080,

Audio Amp/Tuners

Manufacturer	Code	Manufacturer	Code
RadioShack 1609, 0181		Sony	1058, 1441, 1258, 1759, 1758, 1622, 1858, 1658, 1558, 1406, 0405, 0474, 1349, 1442, 0158
Realistic 1609, 0121, 0186, 0195, 0042, 0181, 0158, 0163,
	0177
Regent	1437	Sounddesign	0670
Revox	0189	Stereophonics	1023
Rio	1869,	1380ntire	1313
Rio Audio 1383		Teac	1267, 1390, 1074, 1528, 0463.
Saba	1519
Samsung	1295, 1500	Technics	1308, 1518, 1633, 0309, 0039
Sansui 1189, 0189, 0346
Sanyo 1801, 1469, 1251, 0801,		Thorens	1189
	0360,	Tothnba	0842, 0135, 0080
Scott	0322,	0163Venturer	1390
Sears	0195,	0424Victor	0074
Sharp	0186,	1286Waitec	1352
Sharper Image 1556		Wards	0014, 0189, 0080, 0042, 0054, 0158
Sherwood 1077, 1653, 0491, 0502,
	1423	XM	1406.
Shinsonic	1426	Yamaha	1023, 0176, 1176, 1375, 1331, 1276, 0186
Siemens	0424
Sirius	1811, 1602, 1627	Yorx	0195
Sonic Blue	1869, 1532, 1383	Zenith	1293, 0857, 0346

0163

1414

Miscellaneous Audio

Manufacturer	Code	Manufacturer	Code
Altec Lansing	1485	Marantz	1491
Cambridge Soundworks	1530	Motorola	1464
Creative	0872	Netgear	1785
D-Link	1522	Omnizi	1605
Imerge	1491	Onkyo	1789
Integra	1789	SSI	1522
Jerrold	0520	Yamaha	1809, 1810

Satellite Receivers

Manufacturer	Code	Manufacturer	Code
AlphaStar	0772	GE	0566, 0392
Bell ExpressVu	0775	GOI	0775, 1775
Chaparral	0216	General Instrument	0869
DirecTV	0566, 0639, 1639, 1640, 0247, 0749, 1749, 1142, 1442, 0724, 0819, 1856, 1108, 1609, 0392, 1392, 1076,	Goodmans	1246
		HTS	0775, 1775
		Hitachi 1250, 0749, 0819
		Houston tracker	0775
		Hughes	0749, 1749, 1142, 1442
Dish Network	0775	Hughes Network Systems	0749, 1749, 1142, 1442
Dish Network System	0775, 1775, 1005, 1505	Innova	0099
Dishpro	0775, 1775, 1005, 1505	JVC	0775, 1775
Echostar	0775, 1775, 1005, 1505	Jerrold	0869
Expressvu	0775, 1775	LG	1226

Programming Your Remote Control

Manufacturer	Code
Magnavox	0724,	0722
McIntosh	0869
Memorex	0724
Mitsubishi 0749
Motorola 0869, 0856
NEC	1270
Netsat	0099
Next Level 0869
Optimus	0724
Panasonic	0701,	0247
Paysat 0724
Phillips 0749, 1749, 1142, 1442,0775, 0724, 0722, 0819,1076,
Pioneer	1142,	144
Primestar	0869
Proscan 0566, 0392

Manufacturer	Code
RCA	0566, 1142, 1442, 0775,0143, 0855, 0392, 1392
RadioShack	0566, 0775, 0869
SKY	0856, 0099
Samsung	1142, 1442, 1276, 1108,1609
Sanyo	1219
Sony	0639, 1639, 1640
Star Choice	0869
Star Trak	0772, 0869
Thomson 0566, 0392
Tivo	1142, 1442
Toshiba	0749, 1749, 0790, 1285,0099
UltimateTV	1640, 1392
Uniden	0724, 0722
Voom	0869
Zenith	0856, 1856

TVs

Manufacturer	Code
A-Mark	0047, 0054
AOC	0180, 0030
Accuscan	0047
Action	0030
Admiral	0463, 0180, 0047,0054,0017, 0051, 0093
Advent	0761, 0783, 0815,0817,0842
Adventuri	0000
Agna	0150
Aiko	0092
Akai	0060, 0702,0672, 0030,0145, 0812
Albatron 0700, 0843
Alà de	0672
Alleron	0030
Ambassador	0150
America Action	0180
American High	0000, 0060
Amstrad	0171
Amtron	0000, 0180
Anam	0180
Apex	0156, 0748, 0765
Apex Digital	0156, 0748, 0765,0879,0767
Audinac	0180
Audiovox	0451, 0180, 0092, 0623
Aumark	0060
Aventura	0171
Baysonic	0180
Beaumark	0017, 0030, 0178
Belcor	0030

Manufacturer	Code
Bell & Howell	0054, 0154, 0093
Bell and Howell	0054, 0154, 0093
BenQ	1756, 1032
Bradford	0180
Brockwood	0030, 0178
Broksonic	0236, 0463, 0180
CXC	0180
Candle	0030
Capehart	0017, 0030, 0178, 0092
Capetronic 0030
Carnivale	0030
Carver	0054
Celebrity	0000
Celera	0765
Changhong	0156,0765, 0783, 0767
Cineral	0451, 0092
Citek	0047
Citizen	0054, 0000, 0451, 0463, 0180,0060, 0030, 0092, 0171
Clarion 0180
Classic	0030, 0092
Colortyme	0047, 0054, 0017, 0060, 0030, 0178
Commercial Solutions	0047, 1447
Conic	0178
Contec 0180
Craig	0180, 0171
Crosley	0054, 0000, 0180, 0030, 0171
Crown	0093, 0180, 0672
Crown Mustang	0672

Manufacturer
Code

Curtis Mathes 0047, 0054, 0154, 0000,0051, 0451, 0093, 0180,0060, 0702, 0030, 0178,0145, 0166, 1147, 1347

Daewoo 0451, 1661, 0672, 0178,0092, 0623, 1755,1756,0661

Dayton 0092

Daytron 0030, 0178, 0092

Dell 1454

Denon 0511, 0

Dumont 0017, 0180, 0178

Durabrand 0463, 0180, 0178, 0171,1034,

Dwin 0093

ESA 0171, 0812

Eaton 0060

Electroband 0000

Electrograph 1755

Electrohome 0154, 0000, 0150,0030,0178

Emerald 0178

Emerson 0047, 0154, 0451, 0236,0463, 0180, 0150, 0178,0171, 0623

Envision 0030

Fisher 0054, 0154, 0000

Fortress 0093

Funai 0000, 0180, 0171

Futuretech 0180

GE 0047, 0000, 0051,0451,0060, 0030, 0178, 1147,1347,

Gateway 1755, 1756

Gemini 0047

Gibraltar 0017, 0000, 0030

Gibraltar 0017, 0030Go

A-Mark 0047, 0054

AOC 0180, 0030

Accuscan 0047

Action 0030

Admiral 0463, 0180, 0047, 0054,0017, 0051, 0093

Advent 0761, 0783, 0815, 0817,0842

Adventuri 0000

Agna 0150

Aiko 0092

Akai 0060, 0702, 0672, 0030,0145,

Albatron 0700, 0843

Alt de 0672

Alleron 0030

Ambassador 0150

America Action 0180

Manufacturer
Code

American High	0000, 0060
Amstrad	0171
Amtron	0000, 0180
Anam	0180
Apex	0156, 0748, 0765
Apex Digital	0156, 0748, 0765, 0879, 0767
Audinac	0180
Audiovox	0451, 0180, 0092, 0623
Aumark	0060
Aventura	0171
Baysonic	0180
Beaumark	0017, 0030, 0178
Belc63	0030
Bell & Howell	0054, 0154, 0093
Bell and Howell	0054, 0154, 0093
BenQ	1756, 1032
Bradford	0180
Brockwood	0030, 0178
Broksonic	0236, 0463, 0180
CXC	0180
Candle	0030
Capehart	0017, 0030, 0178, 0092
Capetronic	0030
Carnivale	0030
Carver	0054
Celebrity	0000
Celera	0765
Changhong	0156, 0765, 0783, 0767
Cineral	0451, 0092
Citek	0047
Citizen	0054, 0000, 0451, 0463, 0180,0060, 0030, 0092, 0171
1447
Clarion	0180
Classic	0030, 0092
Colortyme	0047, 0054, 0017, 0060, 0030,
Commercial Solutions	0047, 1447
Conic	0178
Contec	0180
Craig	0180, 0171
Crosley	0054, 0000, 0180, 0030, 0171
Crown	0093, 0180, 0672
Crown Mustang	0672
Curtis Mathes	0047, 0054, 0154, 0000, 0051, 0451, 0093, 0180, 0060,0702, 0030, 0178, 009520166, 1147, 1347
Daewoo	0451, 1661, 0672, 0178, 0092, 0623, 1755, 1756, 0661
Dayton	0092
Daytron	0030, 0178, 0092

Manufacturer
Code

Dell	1454
Denon	0511, 0145
Dumont	0017, 0180, 0178
Durabrand	0463, 0180, 0178, 0171, 1034,
Dwin	0093
ESA	0171, 0812
Eaton	0060
Electroband	0000
Electrograph	1755
Electrohome	0154, 0000, 0150, 0030, 0178
Emerald	0178
Emerson	0047, 0154, 0451,0236, 0463, 0180, 0150, 0178, 0171,
Envision	0030
Fisher	0054, 0154, 0000
Fortress	0093
Funai	0000, 0180, 0171
Futuretech	0180
GE	0047, 0000, 0051, 0451, 0060, 0030, 0178, 1147,1347,
Gateway	1755, 1756
Gemini	0047
Gibraltar	0017, 0000, 0030
Gibraltar	0017, 0030Go
Video	0060
GoldStar	0047, 0054, 0030, 0178
Goodmans	0360
Gradiente	0053
Logik	0236, 0180
MGA	0150, 0030, 0178
MGN Technology	0178
MTC	0180, 0060, 0030, 0092
Magnasonic	0054,0000, 0156, 0093, 0030,
Magnavox	0047, 1454, 0054,0154, 0000, 0051, 0250, 0180, 0060, 0030, 0092, 0171, 0706, 1254, 1755
Majestic	0017
Marantz	1454, 0054, 0030
Matsushita	0051, 0250, 0650
Maxcent	1755, 1756
Maxent	1755
Megapower	0700
Megatron	0047, 0178, 0145
Memorex	0154, 0463,0180, 0150, 0060, 0030, 0178
Micro Genius	0150
Midland	0047, 0017, 0051
Mitsubishi	0154, 0093, 0150, 1250, 0030, 0178, 0836

Manufacturer
Code

Monivision	0700, 0843
Motorola	0054, 0051, 0093, 0150
Multitech	0180
NAD	0156, 0178, 0166, 1156, 1463
NEC	0047, 0030, 0178, 1704
NTC	0092
NetTV	1755
Nikko	0047, 0017, 0154, 0156, 0030, 0178, 0092, 1347
Nikkodo	0030, 0178, 0092
Nishi	0030
Norcent	0748
Nyon	0000
Onwa	0180
Optellas	0154, 0250, 0093,0180, 0150, 0030, 0178, 0166, 0650,
Optonica	0093
Orion	0017, 0236, 0463, 0180, 0178,
PCE	0156, 0060
Pace	0092
Panasonic	0047, 0054, 0154, 0000, 0156, 0051, 0250, 0093,
Panda	0236, 0150, 0060, 0053, 0030, 0178, 0145,1347, 0650
Paxonic	0060, 0030
Penney	0047, 0156, 0051, 0060, 0030, 0178, 1347
Penneys	0047, 0000, 0156, 0051, 0250, 0060, 0030, 0178
Petters	1523
Philco	0054, 0463, 0030, 0145
Philips	1454, 0054, 0017, 0000, 0000, 0171, 1254, 0690
Pilot	0051, 0060, 0030, 0178
Pioneer	0166, 0866, 0679
Polaroid	0765, 0865, 1523
Portland	0451, 0092
Precision	0236, 0180
Prima	0761, 0783, 0815, 0817
Princeton	0700
Prism	0051, 0250
Proscan	0047, 0030, 1347, 1447
Proton	0178
Pulsar	0017, 0092
Pulser	0178, 0092
Quartz	0150, 0178
Quasar	0051, 0250, 0650

0679

1463

Manufacturer	Code	Manufacturer
RCA	0090, 1547, 0047, 0054,0000, 0051, 0093, 0178,1047, 1147, 1247, 1347,1447,
Rabbit	0047
RadioShack	0047, 0154, 0180, 0150,0030,
Realistic	0047, 0154, 0180, 0150,0030,
Runco	0017, 0060, 0030
SR2000	0154, 0171
SSS	0180
SV2000	0054
SVA	0748, 0865
Sampo	0047, 0030, 1755, 1756
Samsung		0047, 0054, 0017, 0154,0060, 0702, 0030, 0178,1060,
Sanky		0060, 0030
Sansui		0463, 0060, 0030
Sanyo		0088, 0047, 0054, 0154,0000, 0463, 0171, 1755
Saville		0060
Scotch		0178
Scott		0236, 0180, 0030, 0178
Sears		0047, 0054, 0017, 0154,0000, 0156, 0051, 0093,0060,
0171, 0166
Sharp		0054, 0093, 0180
Sheng Chia		0093
Shivaki		0178
Siemens		0145
Signature		0054
Signature 2000		0047,0093,0030
Simpson		0030, 0178
Singer		0060, 0092
Solar Drape		0000
Sony		1100, 0017, 0154, 0000,0150,
Soundesign		0180, 178
Spectravision		0156, 0178
Squareview		0171
Starlite		0236, 0180
Studio Experience		0843
Supreme		0000
Sylvania		0047, 0054, 0154,0000,0051, 0030, 0178, 0092,0171
Symphonic		0000, 0180, 0178, 0171

Code

TMK	0236, 0180, 0178
TNCi	0017
TVS	0463
Ta0679	0093
Tatung	0000, 0051, 1756
Teac	0154, 0706
Tech#s	0047, 0054, 0017, 0051,0250,1347,
Tech#vox	0030
Techwood	0051, 0250, 0060
Teknika	0054, 0463, 0180, 0150,0060, 0178, 0092
Telecolor	0017
Telefunken	0702
Thomas	0047, 0178
Thomson	0047, 1447
Tocom	0156
To#t#a	0154, 0156, 0150,1265,0060, 0145, 0166, 1145,1156, 1256, 1356, 1656,1704,
Totevision	0051
Toyomenka	0178
Truetone	0051, 0250
Ultra	0092
Universal	0047
V	1755, 1756
Ve053Research78,	0030
Victor	1100, 0053
Vidikron	0054
Vidtech	0178
Viewsonic	1755
Viking	0060
Visio	1755, 1756
Vizio	1756
Wards	0047,0054,0017, 0154,0000, 0156, 0051, 0093,0236,0180, 0060, 0030,0178, 0166, 1147, 1347,0053
Waycon	0156
Welton	0178
Westinghouse	0451
White Westinghouse	0451, 0236, 0463, 0623
World	0451, 0236, 0463, 0180
XR1000	0154, 0180, 0171
Yamaha	0030
Yorx	0030
Zenith	0047, 0017, 0000, 0093,0463, 0030, 0178, 0145,0092, 0171, 1145, 0812

VCRs

Manufacturer	Code	Manufacturer	Code
A-Mark	0000, 0037, 0240	Emerald	0184, 0121
ABS	1972	Emerex	0032
Admiral	0209, 0060, 0048, 0039, 0047,	Emerson	1479, 1278, 0000, 0037, 0104
Adventura	0000, 0037, 0240		0184, 0240, 0121, 0043, 0209
Adyson	0072	Fisher	0000, 0039, 0047, 0104
Aiwa	0124, 0000, 0037	Fuji	0035, 0033
Akai	0175, 0041	Fujitsu	0000
Alba	0209, 0072	Funai	0000, 0037, 0072
Alienware	1972	GE	1035, 1060, 0807, 0000, 0035, 0060, 0048, 0240
Allegro	0039
American High	0035, 0081	Garrard	0000
Amstrad	0000	Gateway	1972
Asha	0240	Gemini	0060
Astra	0035, 0240	Genexxa	0000, 0037
Audiovox	0037	Go Video	0614, 0240
Avis	0000, 0072	GoldStar	1237, 0000, 0035, 0037, 0039
Beaumark	0240
Bell & Howell	0000, 0035, 0048, 0039, 0104	Granada	0081, 0042
		Grundig	0081
Bell and Howell	0000, 0035, 0048, 0039, 0104	HI-Q	0000, 0035, 0047
		HP	1972
Broksonic	1479, 0184, 0121, 0209	Harley Davidson	0000
CCE	0072	Harman/Kardon	0081
Calix	0037	Harvard	0072
Candle	0037	Harwood	0072
Canon	0035	Hewlett Packard	1972
Carrera	0240	Hitachi	0089, 0000, 0035, 0037, 0045, 0042, 0041
Carver	0035, 0081
Citizen	1278, 0000, 0035, 0037, 0240,	Howard Computers	1972
		Ho#es Network Systems	0739, 0042
Classic	0037	Humax	0739
Colortyme	0035, 0060, 0045	Hush	1972
Colt	0000, 0072	Hytek	0000, 0047, 0072I
Craig	0037, 0047, 0240, 0072	TT Nokia	0240, 0041
Criterion	0000, 0072	JVC	0067, 0041
Crosley	0000, 0035, 0081	Janeil	0240
Crown	0072	Jensen	0067, 0041
Curtis Mathes	1035, 0000, 0035, 0060, 0162, 0240, 0041	KEC	0037
		KLH	0072
CyberPower	1972	KTV	0000
Cybernex	0240	Kenwood	0067, 0041
Daewoo	1278, 0037, 0045	Kodak	0035, 0037
Daytron	0037	LG	0037, 0240
Dell	1972	LXI	0000, 0037, 0042, 0067
Denon	0081, 0042	Linksys	1972
Derwant	0041	Lloyd's	0000
DirecTV	0739	Lloyds	0000, 0240, 0072
Dual	003, 0000	Loewe	0081
Dynatech	0000, 0240	Logik	0000, 0240, 0072
Electrohome	0000, 0060, 0037, 0240, 0043,	M Electronic	0240
		ME209	0035
Electrophonic	0037	MGA	0060, 0240, 0043

Manufacturer	Code
MGN Technology	0240
MTC	0000, 0240, 0072
MTC	0000, 0240, 0072
MTX	0000
Magnasonic	1278, 0000, 0037, 0240, 0072
Granada	0081, 0042
Grundig	0081
HI-Q	0000, 0035, 0047
HP	1972
Harley Davidson	0000
Harman/Kardon	0081
Harvard	0072
Harwood	0072
Hewlett Packard	1972
Hitachi	0089, 0000, 0035, 0037, 0045, 0042, 0041
Howard Computers	1972
Hughes Network Systems	0739, 0042
Humax	0739
Hush	1972
Hytek	0000, 0047, 0072
IKEC	0037
KLH	0072
KTV	0000
Kenwood	0067, 0041
Kodak	0035, 0037
LG	0037, 0240
LXI	0000, 0037, 0042, 0067
Linksys	1972
Lloyd's	0000
Lloyds	0000, 0240, 0072
Loewe	0081
Logik	0000, 0240, 0072
M Electronic	0240
MEI	0035
MGA	0060, 0240, 0043
MGN Technology	0240
MTC	0000, 0240, 0072
MTC	0000, 0240, 0072
MTX	0000
Magnasonic	1278, 0000, 0037, 0240, 0072.
Magnavox	1781, 0000, 0618, 0035, 0037, 0048, 0039, 081, 0240
Magnin	0035, 008,0240
Marant1 Marta	0037
Matsui	0037, 0209
Matsushita	0035, 0081, 0162
Media Center PC	1972
Memorex	1237, 0000, 0035, 0037, 0048, 0039, 0047, 0162, 0240, 0104, 0209, 0072

Manufacturer	Code
Metz	0037
Microsoft	1972
Midland	0240
Mind	1972
Minolta	0042
Mitsubishi	0807, 0000, 0060, 0048, 0047, 0042, 0067, 0043, 0041
Motorola	0035, 0048
Movie Walker	0072
Multitech	0000, 0039, 0072
NAD	0240, 0104
NAP	0035, 0037, 0039, 0033, 0042
NEC	0067, 0104, 0041
Newtech	0072
Nikko	0037
Nikkodo	0037
Nishi	0240
Niveus Media	1972
Noblex	0240
Northgate	1972
Olympus	0035, 0162, 0104
Onkyo	0222
Optimus	0000, 0035, 0037, 1062, 0048, 0047, 0162, 0240,
Orion	1479, 0000, 0184, 0240, 0104, 0121, 0209
Panama	0035
Panasonic	0225, 1035, 0000, 0614, 0616, 0035, 1062, 0162
Penney	1237, 1035, 0035, 0037, 0042, 0240
Penneys	0000, 0035, 0037, 0047, 0081, 0162, 0042, 0067, 0240
Pentax	0042
Philco	0000, 0035, 0081, 0209
Philips	0000, 0616, 0618, 0739, 0035, 0048, 0081, 0162, 0045, 0209
Pilot	0037
Pioneer	0081, 0162, 0042, 0067
Polk Audio	0081
Prot tronic	0240
Proscan	1060, 0060
Protec	0000, 0072
Protech	0072
Pulsar	0039, 0240
Pulser	0240
Quartz	0035, 0047
Quasar	1035, 0035, 0162
RCA	1035, 1060, 0807, 0000, 0880, 0035, 0060, 0048, 0045, 0042, 0240

Manufacturer	Code
RadioShack	0000, 0035, 0037, 0048, 0047, 0162, 0240, 0104
Radix	0037
Randex	0037
Realistic	0000, 0035, 0037, 0048, 0047, 0162, 0240, 0104, 0121
ReplayTV	0614, 0616
Ricavision	1972
Runco	0039
STS	0042
SV2000	0000, 0072
SVA	0000
TT Nokia	0240, 0041
JVC	0067, 0041
Janeil	0240
Jensen	0067, 0041
Samsung	0000, 1014, 0739, 0060, 0045, 0240
Samtron	0240
Sanky	0048, 0039
Sansui	1479, 0000, 0067, 0240, 0209, 0041, 0072
Sanyo	0159, 0000, 0047, 0240, 0104
Scott	0184, 0045, 0121, 0043
Sears	1237, 0000, 0035, 0060, 0037, 0048, 0039, 0047, 0033, 0162, 0045, 0042, 0067, 0104, 0043, 0209, 0041, 0072
Sharp	0807, 0000, 0048, 0047, 0032
Shintom	0000, 0039, 0240, 0072
Shogun	0240
Siemens	0037, 0104
Signature	0035
Signature 2000	0000, 0035, 0060, 0037, 0048
Singer	0037, 0240, 0072
Sonic Blue	0614, 0616
Sony	1232, 0000, 0636, 1972, 0035, 0047, 0032, 0033, 0067
Soundmaster	0000
Stack 9	1972
Sylvania	1781, 0000, 0035, 0081, 0043

Manufacturer	Code
Symphonic	0000, 0240
Systemax	1972
TMK	0000, 0240
TNIX	0037
Tagar Systems	1972
Tandy	0000, 0104
Tatung	0000, 0048, 0081, 0067, 0041
Teac	0000, 0067, 0041
Technics	0000, 0035, 0060, 0037, 0039, 0162
Teknika	0000, 0035, 0037
Telecorder	0240
Telefunken	0041
Thomas	0000
Thomson	0060, 0041
Tivo	0618, 0636, 0739, 1503
Tocom	0240
Toshiba	0845, 1145, 0000,1503, 1008, 1972, 0045, 0240, 0043, 0209, 0041
Totevision	0037, 0240
Touch	1972
Trix	0037
Ultra	0045
Unitech	0240
Vector	0045
Vector Research	0184
Vextra	0072
Victor	0067, 0041
Video Concepts	0045
Videomagic	0037
Videosonic	0000, 0240, 0072
Viewsonic	1972
Villain	0000
Voodoo	1972
Wards	0000, 0035, 0060, 0037, 0048, 0039, 0047, 0081, 0033, 0045, 0042, 0240, 0043, 0041, 0072
White Westinghouse	000, 0209, 0072
World	0209
XR-1000	0000, 0035, 0072
XR1000	0000, 0035, 0240, 0072
Yamaha	0041
ZT Group	1972
Zenith	1479, 0000, 0037, 0039, 0033, 0209, 0041

DVD Players

Manufacturer	Code	Manufacturer	Code
3D LAB	0503, 0539	Firstline	0651
Advent	1016	Fisher 0670
Aiwa	0641	Funai 0675, 1268, 1334
Akai	0899, 0770, 0705	GE 0522, 0717, 0815
Alba	0672, 0717	GPX	0699
Alco	0790	Gateway	1158, 1073
Allegro	0869	General Electric 0717
Apex	0533, 0672, 1056,1061,0830, 0794, 0796,0797,	Go Video 0573,1075, 1044,0744,0717, 0869, 0741,0783,1158, 1099, 1304,1730,0833, 0715
	1100, 1020, 0717, 0755
Apex Digital	0672, 1056, 1061, 0830,0794, 0796, 0797, 1100,	Go Vision 1071
	1004, 1020, 0717, 0755	GoldStar 0801, 0869, 0741
Aspire Digital	1168	Goodmans	0790
Audiovox	0790, 0717, 1071, 1121,1122	Gradiente	0490, 0651
		Greenhill	0717
Axion	1071	Grundig 0539, 0705
Blaupunkt	0717	Harman/Kardon	0582, 0702
Blue Parade	0571	Hitachi 0573, 0664, 1247
Blue Sky 0695, 0699		Hiteker 0672
Brandt	0651	IRT	0783
Broksonic	0695, 0868	Initial	0717
California Audio Labs	0490	Integra	0571, 0627
Celestial	1020	JBL	0702
Centrex	0672, 1004	JMB	0695
CineVision	0869, 0876, 0833	JVC	0623, 1164, 0558, 0867
Cinea	0831	Jensen	1016
Citizen	1003, 1277	KLH	1020, 0790, 0717, 1149
Clairtone	0571	KLH Digital	0717
Coby	0778, 1107	Kawasaki	0790
Craig	0831	Kenwood	0490, 0534
Creative	0503, 0539	Kloss	0533
Curtis Mathes	1087	Koss	1061, 0651
CyberHome	0816, 1023,1117,1024,1129, 0874	LG	0801, 0591, 0869, 0741
		Lasonic	0798, 0627
Cytron	0705	Lecson	1533
DVD2000	0521	Lenoxx 1127
Daewoo	0869, 1172,0784,0770,1169, 0705, 0833	Lite-On	1058, 1158
		LiteOn	1058, 1158, 1416, 1440
Dansai	0770	Loewe	0511, 0741
Decca	0770	Logix	0783
Denon	0490, 0634	Magnasonic	0675, 0651
Denver	0778	Magnavox	0503, 0539,0675, 0646,0821
DiViDo	0705
Digitrex	0672	Marantz	0503, 0539, 0675
Disney	0675, 1270	McIntosh	1533
Dual	0675	Medion	0651
Durabrand	1127	Memorex 0695, 1270, 0831
Electrohome	1003	Microsoft	0522
Emerson	0675, 0821, 1268,0591	Minato	0752
Enterprise	0591	Mintok 0717, 0839
Entivo	0503, 0539	Mitsubishi	0521, 1521
Enzer	0770	NAD	0591, 0741

Programming Your Remote Control

Manufacturer	Code	Manufacturer	Code
NEC	0785,	088	0695
Naiko	0770	Sanyo	0695, 0675, 0670, 1334, 0873
Nesa	0717
NexxTech	1402	Schneider	0783
Norcent	1003, 1107	Schwaiger	0752
Onkyo	0792, 0503, 0627	Sensory Science	1158
Optimus	0571	Sharp	0675, 1256, 0752, 0630
Orion	0695	Sharper Image	1117
Oritron	0651	Sherwood	0770, 1043
Palsonic	0672	Shinsonic	0533, 0839
Panasonic	0503, 0490, 1762,0703, 1362, 1462, 1490, 0571	Slim Art	0784
Philips	0503, 0539, 0675,1267, 0646, 0854, 1354, 1260	Sonic Blue	0573, 0869, 0783, 1099, 0715
Phonotrend	0699	Sony	0533, 1033, 1431, 0864, 1533
PianoDisc	1024	Sova	1122
Pioneer	0571, 0525, 0631	Superscan	0821
Polaroid	1061,	1020	0675, 0821, 1268, 0630
Polk Audio	0539	Symphonic	0675, 0821, 1268, 1334
Portland	0770	Tatung	0770
Prima	1016	Teac	0809, 0571, 0790, 0717
ProVision	0778	Technics	0490, 0703
Proceed	0672	Technika	0770
Proscan	0522	Tevion	0651
Prosonic	0699	Theta Digital	0571
Qwestar	0651	Thomson	0511, 0522
RCA	0522, 0571,0822, 1132, 1022, 0790, 0717	Toshiba	0503, 0695, 1045, 1154, 0573, 0539
RadioShack	0571	US Logic	0839
Radionette	0741	USLogic	0839
Realistic	0571	Unimax	0770
Reoc	0752	Universum	0591
Revoy	0699	Urban Concepts	0503, 0539
Rio	0869	Venturer	0790
Rotel	0623	Wesder	0699
Rowa	1004,	082Box	0522
SVA	0717	Yamaha	0490, 0539, 0545
Saba	0651	Zenith	0503, 0591, 0869, 0741
Sampo	0752	Zeus	0784
Samsung	0490,	0573,0820,	1075,1348
0899, 1044, 0744

CARE

• Keep the remote dry. If it gets wet, wipe it dry immediately.
• Use and store the unit only in normal temperature environments.
• Handle the remote gently and carefully. Don't drop it.
• Wipe the remote with a damp cloth to keep it looking like new.

20070301
