LD260EM2 - Television Emerson - Free user manual and instructions

Product Type	Television
Brand	Emerson
Model	LD260EM2
Display Technology	LED
Screen Size	26 inches
Resolution	1366 x 768 (HD Ready)
Aspect Ratio	16:9
Refresh Rate	60 Hz
Inputs	HDMI, VGA, Composite, USB, RF, Component
Audio Output	3.5 mm headphone jack, built-in speakers (2 x 5W)
Power Supply	100-240V AC, 50/60Hz
Power Consumption (Typical)	50W
Standby Power	Less than 1W
Dimensions (with stand)	626 x 397 x 197 mm
Weight (with stand)	4.5 kg
Compliance	FCC, UL
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use abrasive cleaners.
Safety Precautions	Do not expose to moisture; unplug during storms; no objects inserted.
Spare Parts Available	Remote control, stand base, screws

Frequently Asked Questions - LD260EM2 Emerson

How do I set up the Emerson LD260EM2 TV?

Unpack the TV and place on a stable surface. Connect the power cord and any external devices (e.g., cable box) to the appropriate inputs. Insert batteries into the remote and press Power. Follow the on-screen setup to select language and scan for channels.

What inputs are available on this TV?

The Emerson LD260EM2 has HDMI, VGA, Composite (AV), USB, RF for antenna, and Component inputs. It also has a headphone jack for private listening.

Why is there no picture or sound?

Check that the power cord is securely plugged in and the power outlet works. Ensure the input source is correctly selected. Verify that the remote has fresh batteries and press Power. If using an external device, confirm it is powered on and connected properly.

How can I clean the screen safely?

Use a soft, dry microfiber cloth to gently wipe the screen. For stubborn marks, slightly dampen the cloth with distilled water and wring it out. Never spray liquid directly on the TV or use paper towels, alcohol, or abrasive cleaners.

Can I mount the TV on a wall?

Yes, the LD260EM2 is VESA compatible (75x75 mm or 100x100 mm). Use a wall mount kit rated for the TV's weight. Follow the instructions and screw securely into wall studs. Avoid mounting near heat sources or moisture.

How do I connect a streaming stick like Roku or Fire TV?

Plug the streaming device into an HDMI port on the TV. If it requires power, connect the USB cable to the TV's USB port or a power adapter. Set the TV's input to the corresponding HDMI source.

What does the remote control do?

The remote allows you to power on/off, change volume and channels, access menu and input settings, and control features like sleep timer and aspect ratio. It uses two AAA batteries (not included).

How do I scan for over-the-air channels?

Connect an antenna to the RF input. Press Menu on the remote, go to Channel Setup, and select Auto Scan or Channel Search. The TV will find all available digital channels. This may take a few minutes.

The picture looks stretched - how to fix?

Press the Menu button, locate Picture Settings, and find Aspect Ratio. Choose options like Normal, Zoom, Wide, or Auto to match the broadcast standard. Common choices are 16:9 for widescreen content.

Where can I get a replacement remote or stand?

Contact Emerson support or visit their parts page. You can also find compatible remotes and stands on e-commerce sites by searching for the model LD260EM2. Ensure you order the correct part.

USER MANUAL LD260EM2 Emerson

Three black CRT monitors displaying outdoor scenic views of mountains and forests, no visible text or symbols on screens or background.

EN Owner's Manual

Need help?

Please call toll free or visit our web site below

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCKO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS FILLED WITH IQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the apparatus’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the apparatus.

The caution marking is located on the rear or bottom of the cabinet.

Important Safety Instructions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings
4. Follow all instructions
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat

9. Do not defeat the safepur pose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the otherA g rounding typ eplug has two blades and a hird grounding prong. I he wide blade or the third prong are provided for your safety. f the provided plug does not fi t into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments / accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or
    table specified by the manufacturer, to sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plugs damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Wall Mount Bracket Kit

Recommended Wall Mount Bracket Kit:

Brand: SANUS

Model #: LD320EN2 San25b

LD260EN2 SAN213b

Do NOT use screws packed with W all Mount Bracket Kit.

LD190EN2 San10B

Recommended Screw dimension when purchased:

LD320EN2 M4×0.787" (20mm)

+Washer 0.078"(T2mm)

LD260EN2 M4×0.629" (16mm)

LD190EN2 M4×0.472"(12mm)

• I he recommended Wall Mount Bracket Kit (sold separately) allows the mounting of the TV on the wall
• For detailed information on installing the wall mount, refer to the Wall Mount Instruction Book.
• Funai is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV Wall Mount Bracket or mount in e IV onto the Bracket on your own

• Wall Mount Bracket Kit is sold separately and is not supplied.

• The Wall Mount Bracket must be installed by experts

Funai not liable for these types of accidents or injury noted below.

• Install the Wall Mount Bracket on a sturd y vertical wall.
- If installed onto a ceiling or slanted wall, the TV and Wall Mount Bracket may fall which could result in a severe injury.
- Do not use screws that are longer or shorter than their specified length. If screws too long are used this may cause mechanical or electrical damage inside the TV set. If screws too short are used this may cause the TV set to fall
- Do not fasten the screws by excessive force; this may damage the product or cause the product to fall, leading to an injury.
- For safety reasons use 2 people to mount the TV onto a Wall Mounting Bracket
- Do not mount the IV onto the Wall Mounting Bracket while your IV is plugged in or turned on. It may result in an electrical shock injury.

When installing the unit on t he wall allow t his much space.

Top: 11.8 inches (30cm)

Left and right side: 5.9 inches (15cm)

Bottom: 3.9 inches (10cm)

FCC WARNING

This apparatus may generate or use radio frequency energy. Changes or modifications to this apparatus may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this apparatus if an unauthorized change or modification is made.

RADIO-TV INTERFERENCE

This apparatus has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This apparatus generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this apparatus does cause harmful interference to radio or television reception, which can be determined by turning the apparatus off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.
2) Increase the separation between the apparatus and receiver.
3) Connect the apparatus into an outlet on a circuit different from that to which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.

DECLARATION OF CONFORMITY

Trade Name: Emerson

Model: LD320 EM2

LD260EM 2

LD190FM 2

Responsible Party: RUNAI CORPORATION, Inc

Address: 19900 Van Ness Avenue, Torrance, CA 90501 U.S.A.
Teleph one Number: 1-866-309-8819

This Class B digital apparatus complies with Canadian ICES-003. Standard Television Receiving Apparatus, Canada BETS-7 / NTMR7

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type WARNING: Batteries (battery pack or battery installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Disconnect the mains plug to shut off when find trouble or not in use. The mains plug shall remain readily operable.

This apparatus should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. Make sure to leave a space of 4 inches (10cm) or more around this apparatus.

WARNING: To prevent injury, this apparatus must be securely attached to the wall in accordance with the instructions.

Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.

LASER SAFETY

This apparatus is classified as a CLASS 1 LASER PRODUCT. This apparatus employs a laser. Only a qualified service person should remove the cover or attempt to service this apparatus, due to possible eye injury.

CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

IMPORTANT COPYRIGHT INFORMATION

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited. This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

LAMP IN LCD CONTAINS MERCURY, DISPOSE ACCORDING TO LOCAL, STATE OR FEDERAL LA

• The American Academy of Pediatrics discourages television viewing for children younger than two years of age.

NOTE ABOUT RECYCLING

• This units packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations
• Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes
• Forp roduct recy cling information, please visit - www.emersonaudiovideo.com

WHEN CARRYING THIS UNIT

• At least 2 people are required when carrying this unit
  • Make sure to hold the upper and bottom frames of the unit firmly as illustrated

TO AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE

• Do not handle the ACpower cord with wet hands
• Do not pull on the ACp ower cord when disconnecting it from an AC outlet. Grasp it by the plug
  • Do not put your fingers or objects into the unit

Two silhouettes of two people holding a large rectangular object (no text or symbols visible)

LOCATION AND HANDLING

• Do not install the unit in di rect sunlight or in a place subject to dust or strong vibration.
• Avoid a place with drastic temperature changes
• Install the unit in a horizontal and stable position. Do not place anything directly on top or bottom of the unit. Depending only our external devices, noise or disturbance of the picture and / or sound may be generated if the unit is placed too close to them. In this case, please ensure enough space between the external devices and the unit
• Depending on the environment, the temperature of this unit may increase slightly. This is not a malfunction
• Be sure to unplug the AC power cord from the AC outlet before moving or carrying the unit.

DEW CONDENSATION WARNING

• Dew condensation may form inside the unit in the following conditions. If so, do not use this unit at least for a few hours until its insid e gets dry.
• The unit is moved from a cold place to a warm place
• Under conditions of high humidity.
• After heating a cold room

CHILD SAFETY:

INTRODUCTION

Contents

Important Safety Instructions 2 Child Safety 4

INTRODUCTION

Trademark Information 5 Features 6 Symbols Used in this Manual 6 Supplied Accessories 7 Mounting the Unit on Your Furniture / Tilt Stand 7 Attaching the Base / Installing the Batteries 7 Control Panel 8 Terminals 8 Remote Control Function 10

PREPARATION

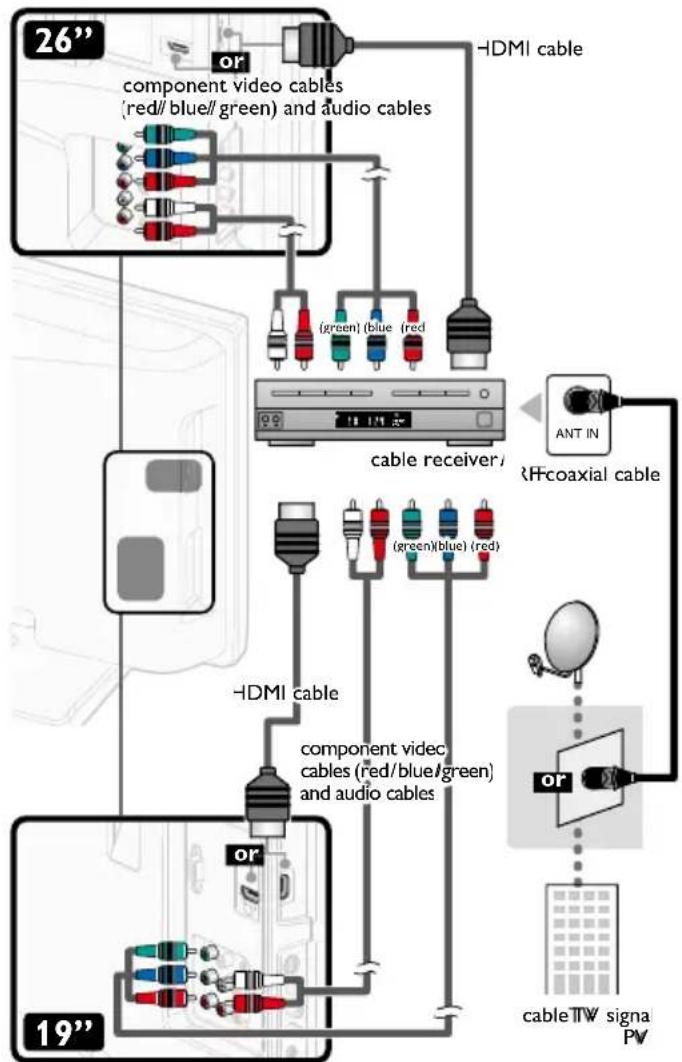

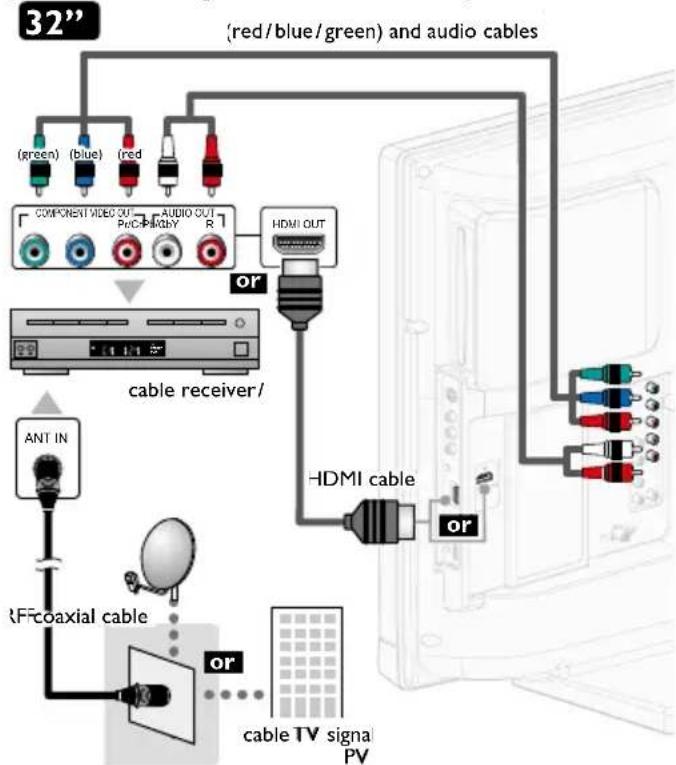

Antenna Connection 1 Connection to Cable Receiver or Satellite Box 1 Plug In the AC Power Cord Initial Setup

WATCHING TV

Sleep Timer 14
Switching Each Input Mode 14
Channel Selection 14
Still Mode 14
TV Screen Display Mode 15
Sound Functions 15
TV Screen Information 16

USING FUNCTIONS

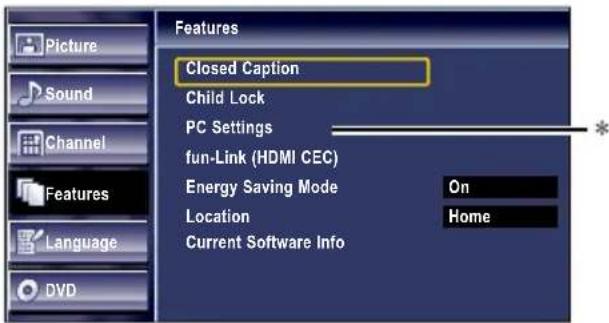

Picture 18 Sound 18 Channel 19 Features 20 Language 25 DVD 25 Language Code List 27

OPERATING DVD

Playable Media 28
Unplayable Media 28
Playback 29
Disc Menu 29
Resume Playback 29
Paused and Step-by-step Playback 29
Fast Forward/Fast Reverse 29
Slow Forward/Slow Reverse 30
Zoom 30
Search Functions 30
Repeat Playback 31
Repeat A-B Playback 31
Random Playback 31
Programmed Playback 31
On-screen Display 32
Special Settings 32

CONNECTING DEVICES

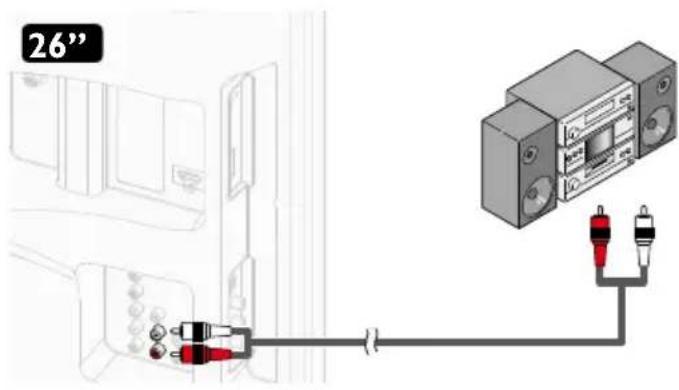

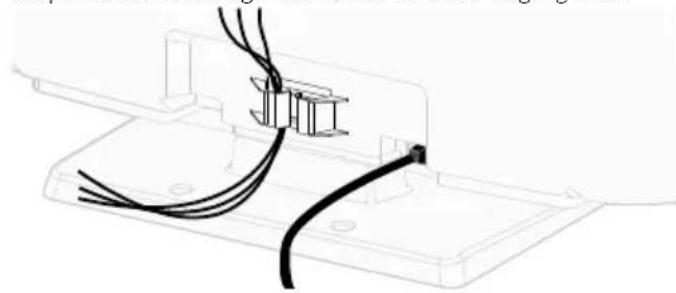

External Device Connection 34 Cable Management 3

USEFUL TIPS

Troubleshooting Guide 38 FAQ 40

INFORMATION

Glossary 41 Maintenance 41 General Specifications 42 Other Specifications 42 Limited Warranty 43

Trademark Information

HDMI®

HIGH DEPOSITION MULTIMEDIA INTERFACE

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries

DOLBY.

DIGITAL

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

DVD is a trademark of DVD Format/Logo Licensing Corporation.

©2011 Funai Electric Co., Ltd.

All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed, downloaded or stored in any storage medium, in any form or for any purpose without the express prior written consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the obligation to notify any person or organization of such changes.

FUNAI with the design is a registered trademark of Funai Electric Co., Ltd. and may not be used in any way without the express written consent of Funai. All other trademarks used exclusive property of their respective owners. Nothing contained in this manual should be construed as granting, by implication or otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights to the fullest extent of the law.

Features

TV

- DTV/TV/CATV

You can use your remote control to select channels which are broadcast in digital format and conventional analog format. Also cable subscribers can access their cable TV channels.

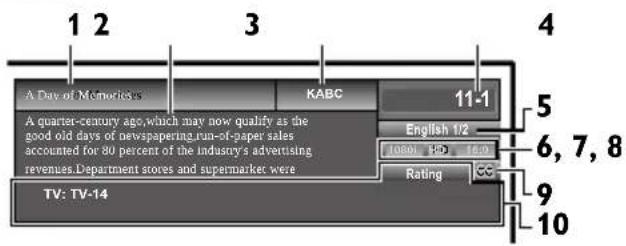

• Information Displa y (ATSC only)

You can display the title, contents and other information of the current DTV program on the TV screen.

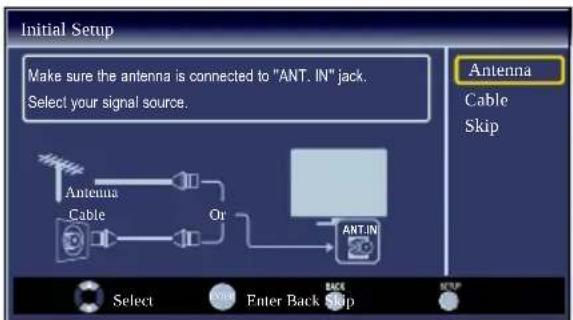

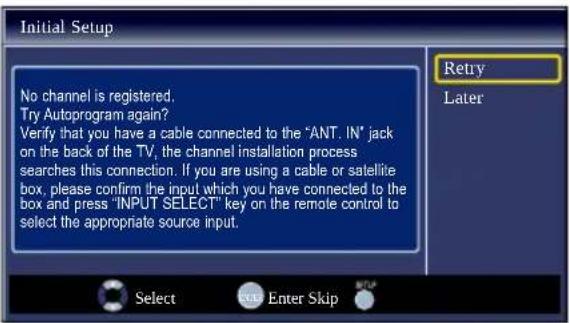

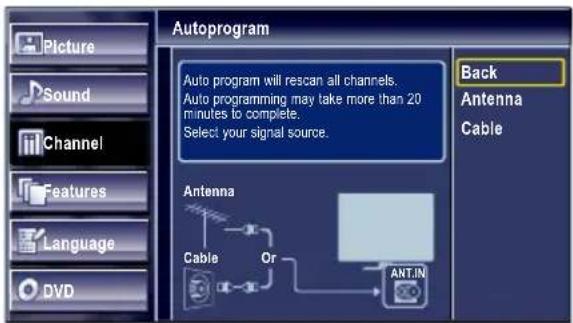

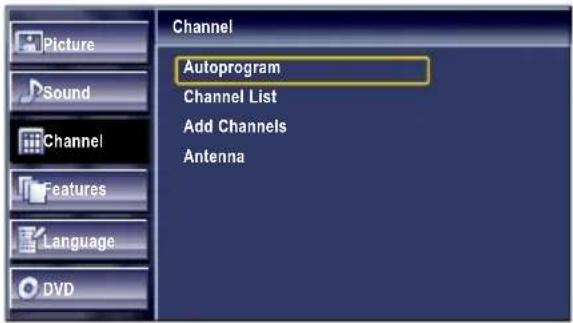

- Autoprogram

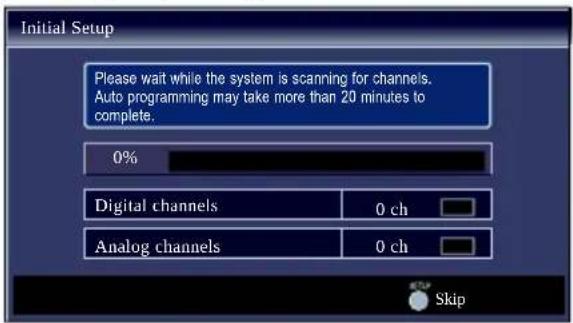

This unit automatically scans and memorizes channels available in your area, eliminating difficult setup procedures

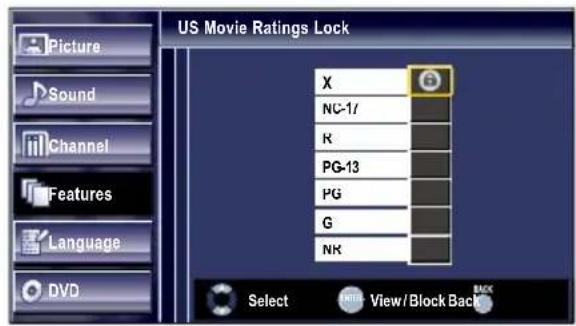

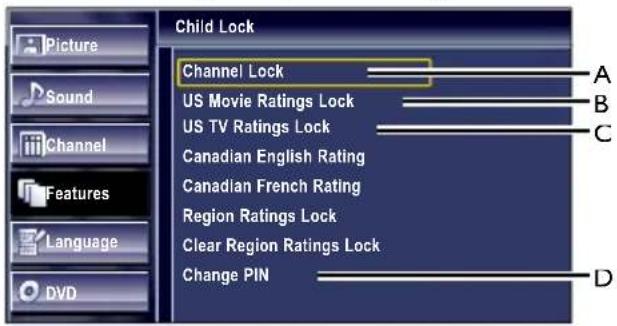

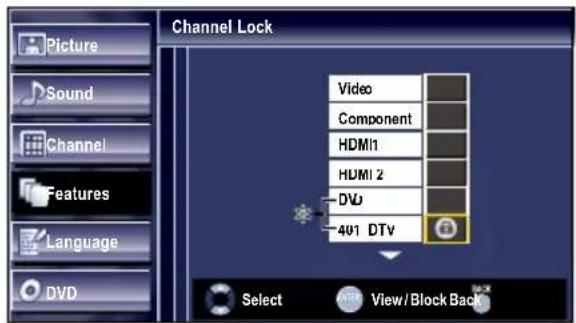

Child Lock

This feature allows you to block children's access to inappropriate programs

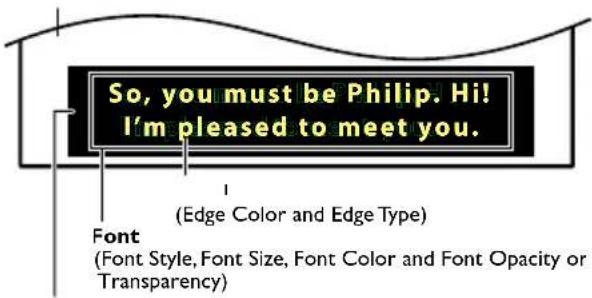

• Closed Caption Decoder

Built-in closed caption decoder displays text for closed caption supporte dprograms

MTS/SAPTuner

Audio can be selected from the remote control

- Auto Standby

If there is no input signal and no operation for 15 minutes, the unit will go into standby mode automatically

- Sleep Timer

You can set the unit to go into standby mode after a specific amount of time

• Choices for On-screen Language

Select your on-screen language English, Spanish or French

- Stereo Sound Function

• PLL Frequency Synthesized Tuning

Provides free and easy channel selection and lets you tune directly to any channel using the number and decimal point"•' buttons on the remote control.

- Various Adjustment for Picture and Sound

Customizes image quality suitable for your room and sets your sound preference.

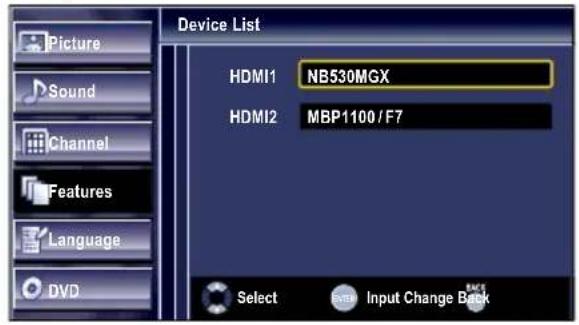

- fun-Link via HDMI Link (HDMI Cable not Included), fun-Link allows your other HDMI link devices to be controlled by the HDMI cable connected to your TV.

- HDMI Input

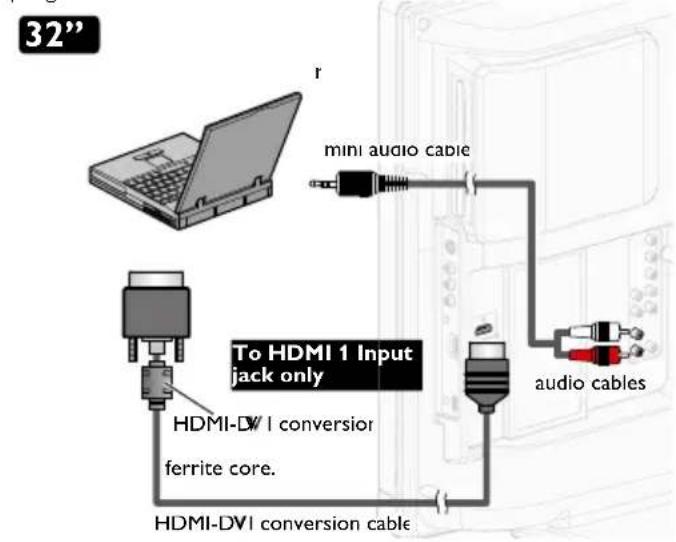

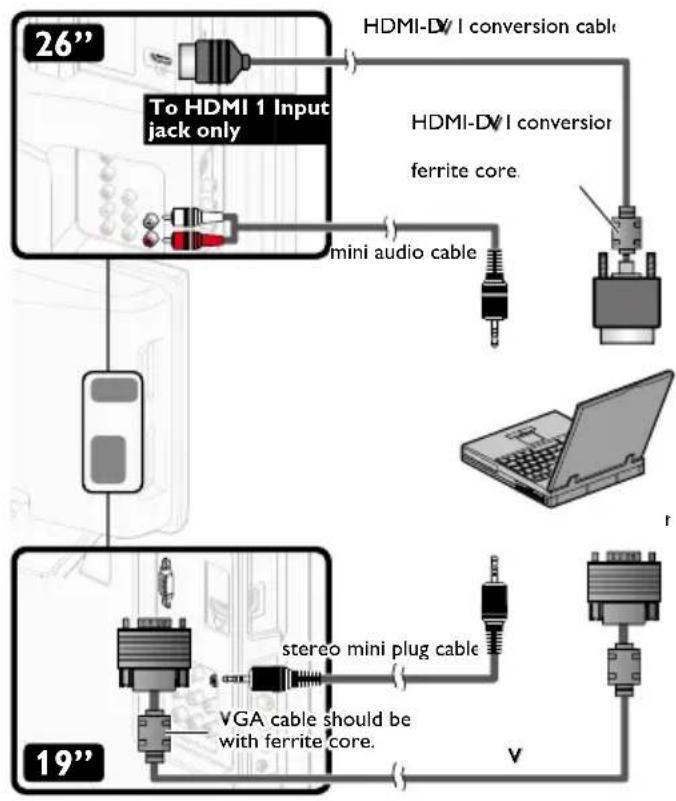

When using HDMI 1 Input, you can enjoy this unit as a PC monitor if your PC has a DVI output terminal.

- HDMI-DVI Input

- Component Video Input

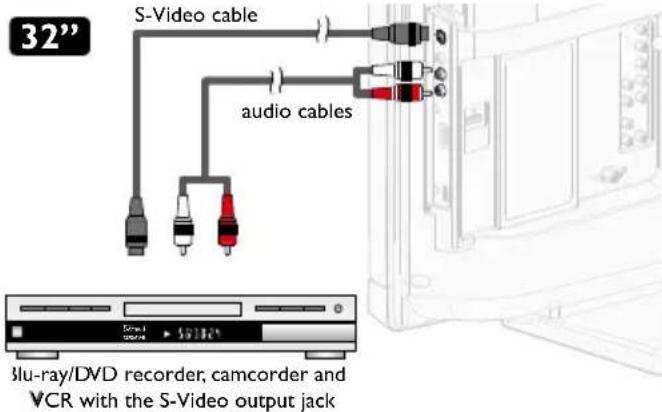

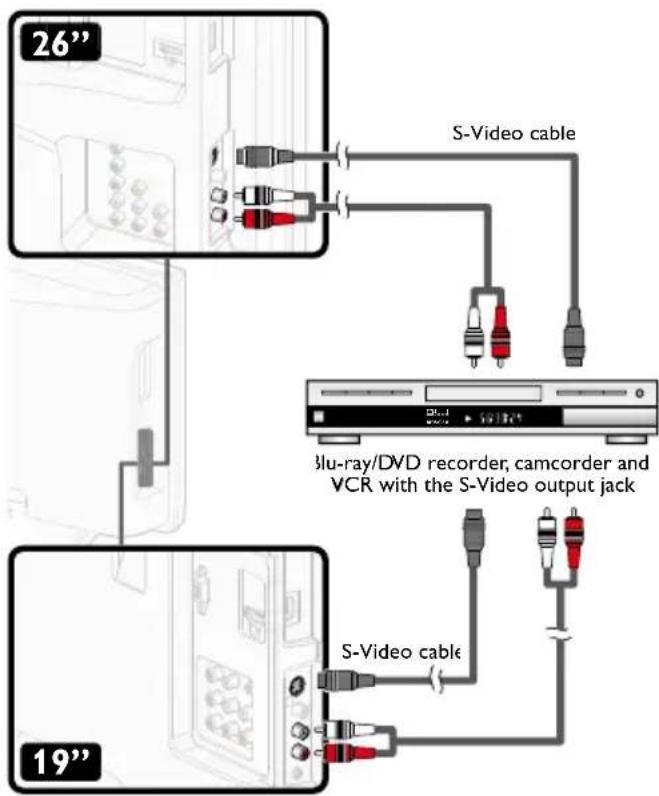

- S-Video Input

- AV Input

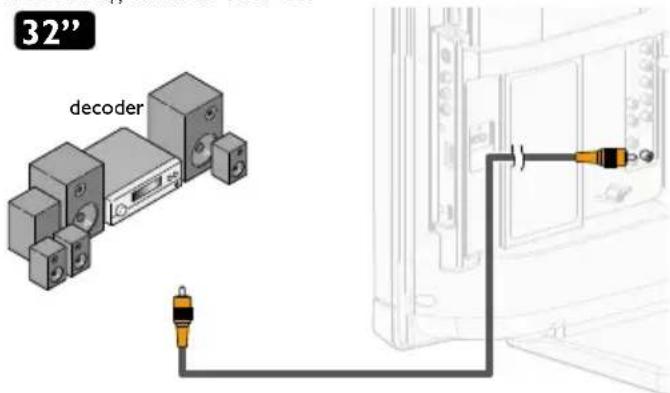

• Digital Audio Output

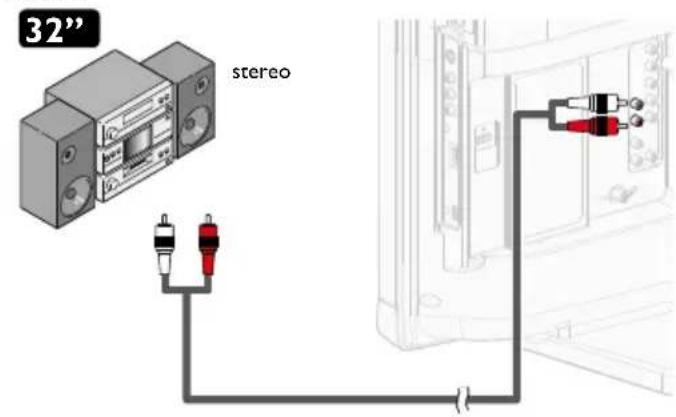

- Analog Audio output

- PC Input

• Headphone Audio Output

DVD

- Dolby Digital Sound

Enjoy Dolby Digital multi-channel surround sound when you connect the unit to your Dolby Digital decoder.

- Still/Fast/Slow/Step Playback

Various playback modes are available including still pictures, fast forward/reverse, slow motion and step frames.

• DVD Menus in a Desire d Language

You can display DVD menus in a desired language, if available on a DVD-video.

- Auto standby

If there is no operation for 20 minutes, the unit will go into standby mode automatically

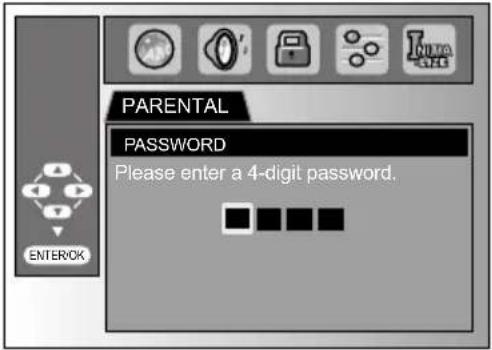

- Parental Lock

Block the viewing of a DVD-video unsuitable for children

- Resume Playb adk

Lets you resume playback from the point at which playback was stopped.

- Bit Rate Indication

• DRC (dynamic range control)

You can control the range of sound volume.

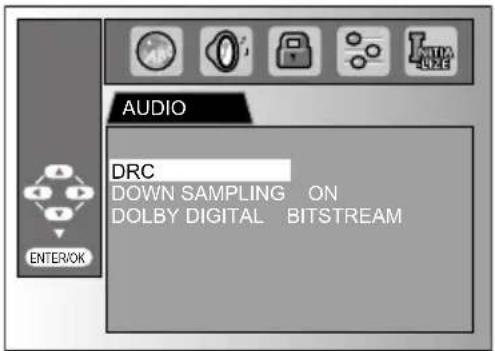

Accessing from MODE button

During playback

- Subtitles in a Desired Language

You can select a desired language for displaying subtitle, if that language is available on a DVD-video

- Selecting a Camera Angle

You can select the desired camera angle, if a DVD contains sequences recorded from different angles

- Zoom

Allows you to enlarge the size of picture image

- Black Level Adjustment

• Virtual Surround

- Search

chapter search/title search/track search/time search

- Maker

The part on the disc designated by user can be called back.

- Repeat

chapter/title/track/all/A-B

Accessing from MODE button

In stop mode

• Program Playback for audio C D

You can program the order of tracks to play them back in designated order.

• Random Playback for audio C D

This unit can shuffle the order of tracks to play them back in rand only

Accessing from AUDIO button

During playback

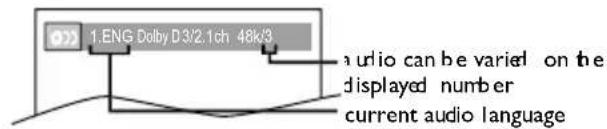

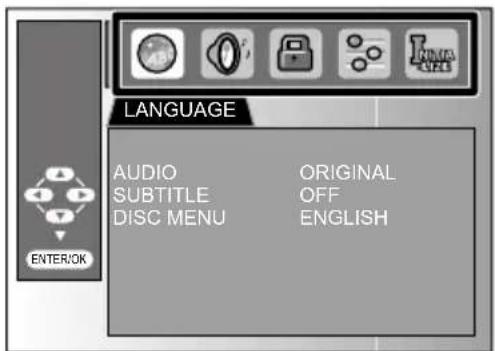

- Choices for Audio Language and Stereo Sound Function

Select your desired languages or stereo sound function when different options are available on your disc

Symbols Used in this Manual

The following is the description for the symbols used in this manual. Description refers to

TV FUNCTIONS

ATSC

: Digital V operation

NTSC

: Analog/Cable TV operation

- If neither symbol appears, the operation is applicable to both.

DVD FUNCTIONS

DVD

: Playback of DVD-video

CD

: Playback of audio CD

- If neither symbol appears under the function heading, operation is applicable to both.

Supplied Accessories

Owner's Manual

Illustration of a closed book with visible pages and cover (no text or symbols)

Quick Start Guide

Registration card

Remote Control (NF033UD) Batteries (AA, 1.5V x 2)

TV base and screws

Screws packed with this unit:

Model	Quantity	Size
LD320EM2	4	M4 × 20
LD260EM2	4	M4 × 20
LD190EM2	3	M4 × 12

Note

• If you lose the screws, please purchase the above-mentioned Phillips head screws at your localstore.
• If you need to replace these accessories, please refer to the part No. with the illustrations and call our toll free customer support line found on the cover of this manual.
  When using a universal remote control to operate this unit.
  • Make sure the component code on your universal remote control is set to our brand. Refer to the manual accompanying your remote control for more details
  • We do not guarantee 100% interoperability with all universal remote controls.

Mounting the Unit on Your Furniture

Screw this unit on your furniture tightly using wood screws (not supplied) in the 2 holes at the back of the base as shown

- Recommended screw dimension: 0.201 × 0.788 inches (5.1 × 20 mm)

Note

- When you remove this unit make sure to unscrew the wood screws from your Wood Stand, Furniture and other wood item

Tilt Stand

You can adjust the stand to change the angle of the unit (-2.5° to 10°)

Attaching the Base

You must attach the base to the unit to have it as a table top unit. Be sure the front and rear of the base match the proper direction. At least 2 people are required for these steps.

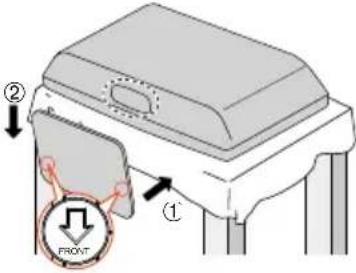

1 Spread a thick and soft cloth over a table as shown at step 2. Hace the main unit face down onto it. Make sure not to damage the screen.
2 Insert 2 hooks under the bottom of the main unit into base holes. (shown by arrow (1), then move the base in the direction as shown by arrow ② until it stops and the screw holes are aligned.

Make sure not to put the AC power cord between the base and the unit.

3 Drive Phillips head screws into the threaded holes at the bottom of the base until they are tight.

Mechanical component diagram showing a clamping mechanism with an arrow indicating force or motion (no text or symbols present)

To remove the base from this unit

- Unscrew the Phillips head screws in step 3. After the screws are removed, move the base in the opposite direction as shown by arrowin step 2, then pull the base uptoward the rear of the unit. Be careful not to drop the base when you remove it.

Note

• When attaching the base, ensure that all screws are tightly fastened. If the base is not properly attached, it could cause the unit to fall, resulting ni ri ures as well and amage to the unit
• Make sure to use a table which can support the weight of this unit and is larger than this unit.
  • Make sure the table is in a stable location
• When attaching the base, ensure that FRONT ↑ written on the base is upward. If it's not upward, the 2 hooks don't fit in the base

Installing the Batteries

Install the batteries (AA, 1.5V × 2) matching the polarity indicated inside battery compartment of the remote control.

Diagram of a mechanical device with a lever and handle, no text or symbols present

Illustration of a hand using a pliers to cut or install a piece of paper (no text or symbols present)

Simple line drawing of a mechanical assembly or tool with no visible text or symbols

Battery Precautions:

• Be sure to follow the correct polarity as indicated in the battery compartment. Reversed batteries may cause damage to the device
• Do not mix different types of batteries together (e.g. Alkaline and Carbon-Zinc, or rechargeable batteries like ni-cad, ni-mh, etc) o dd batteries with fresh ones.
• If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.
• Do not try to recharge batteries; they can overheat and rupture.

Control Panel

LD320EM2

1 VOL / p.15

Press to adjust the volume up / down or move right ( ) / left ( ) through the main menu items.

2 SETUP p.17

3 cH ▲/▼ p.14

Press to select channels or move up (▲) / down (▼) through the main menu items.

4 ▲ (eject) p.29

5 ■ (stop) p.29

6 ▶ (play) p.29

7 (power) p.13

Press to turn the unit on and go into standby mode I o completely turn off the unit, you must unplug the AC power cord

8 DVD indicator

Lights up orange when a disc is inserted.

9 STAND BY indicator

Lights up red when the unit goes into standby mode.

10 POWER ON indicator

Lights up green when power is on.

11 Infrared sensor window

Receives infrared rays transmitted from the remote control.

LD260EM2/LD190EM2

Terminals

14

8

9

10

11

13

12

15

7243156

*

16

17

22

18

19

20

21

Note for service terminal

\* service terminal (service use only)

• Use this terminal only when a software update is necessary.
• User should not connect any devices to the service terminal such as digital camera, keyboard, mouse, etc. (because these will not work)
• The software update is, in most cases, handled by an authorized service person or in some circumstances the user may be asked to do the software update themselves.

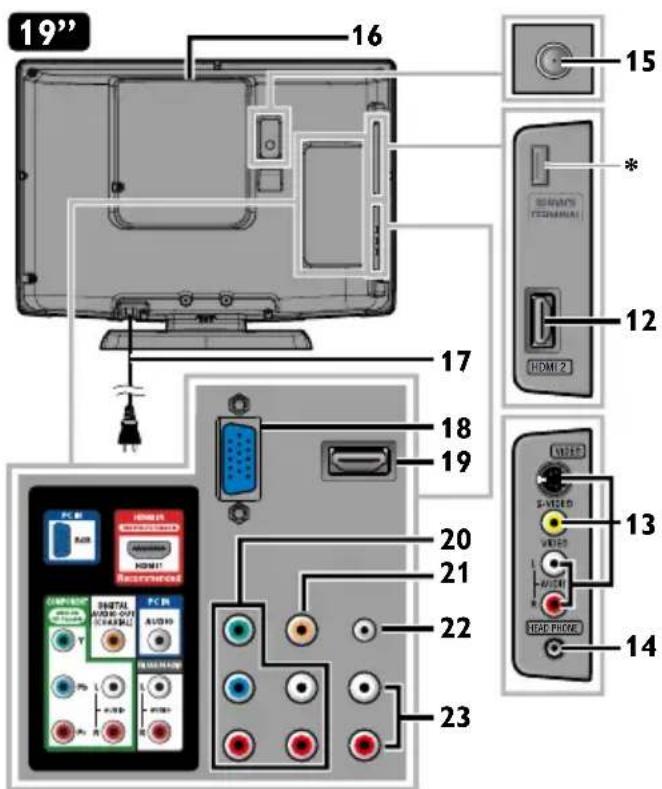

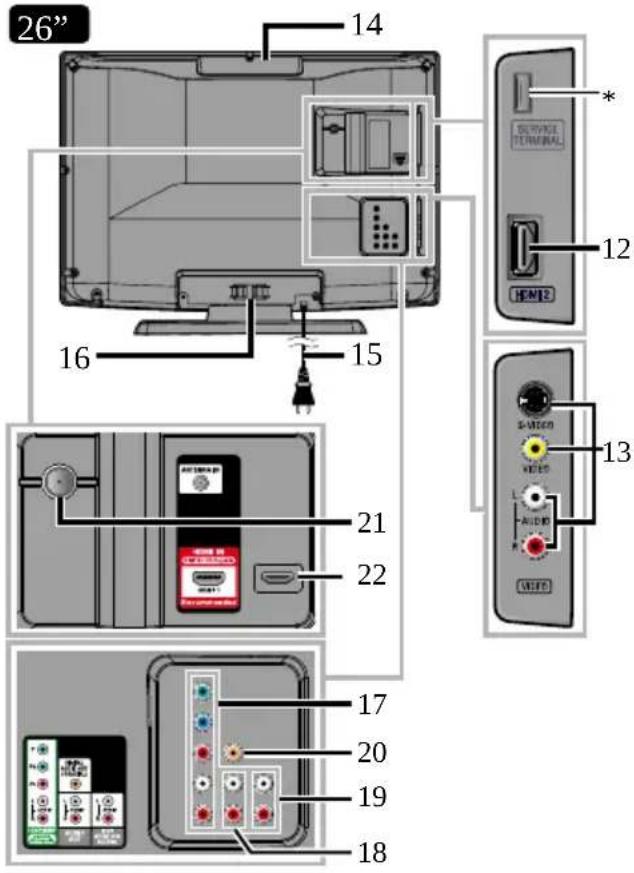

Side Panel

12 HDMI 2 Input jack p.12,34
13 S-Video/Composite Video/Audio (L/R) Input jack s for VIDEO p. 35, 36

Rear Panel

14 Disc loading slot p.29
15 AC power cord p.12
16 Cable management p.37
17 Component Video and Audio (L/R) Input jack p. 12, 35

18 Analog Audio (L/R) Output jacks p.37

19 Analog Audio (L/R) Input jacks for HDMI 1 Input jack p. 34, 37 Audio cable connection from a DVI device When you connect your PC that has a DVI terminal use a stereo mini plug conversion cable as well. (For HDMI 1 Input jack only)

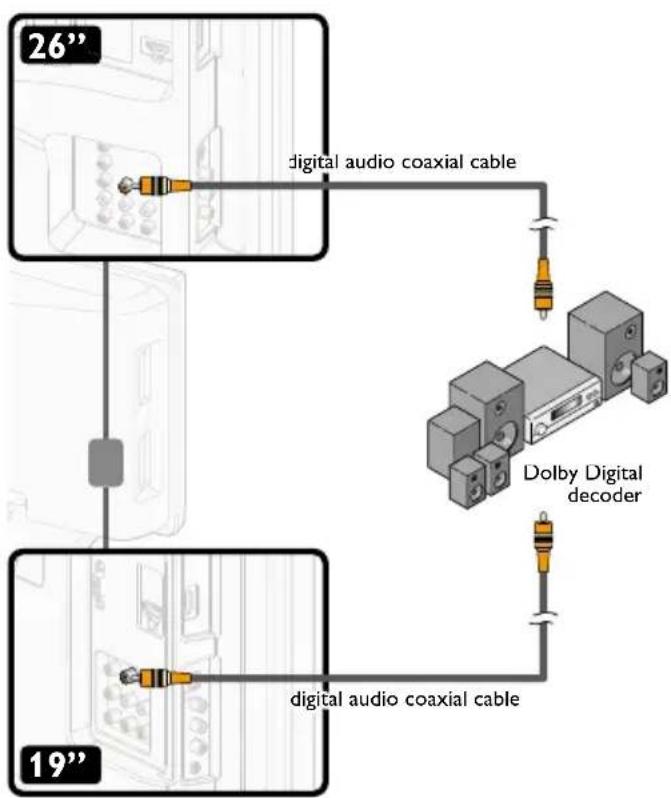

20 Digital Audio Output jack p.36

21 Antenna Input jack p.11

22 HDMI 1 (HDMI-DVI) Input jack p. 12, 34, 3 HDMI connection for HDMI or DVI device. When you connect your PC that has a DVI terminal, you can enjoy this unit as a PC monitor.

Side Panel

12 HDMI 2 Input jack p. 12, 34

13 S-Video/Composite Video/Audio (L/R) Input jacks for VIDEO p. 35, 36

14 Headphone Audio Output jak Headphone connection for personal listening.

Rear Panel

15 Antenna Input jack p.11
16 Disc loading slot p.29
17 AC power cord p.12
18 PC (VGA) Input jack p.37
19 HDMI 1 (HDMI-DVI) Input jack p. 12, 34
20 Component Video and Audio (L/R) Input jack p. 12, 35
21 Digital Audio Output jack p.36

22 Analog Audio (L/R) Input jack for PC connection p.37 Mini-plug audio cable connection from PC

23 Analog Audio (L/R) Input jacks for HDMI 1/Input jack p.34 Audio cable connection from a DVI device. (For HDMI 1 Input jack only)

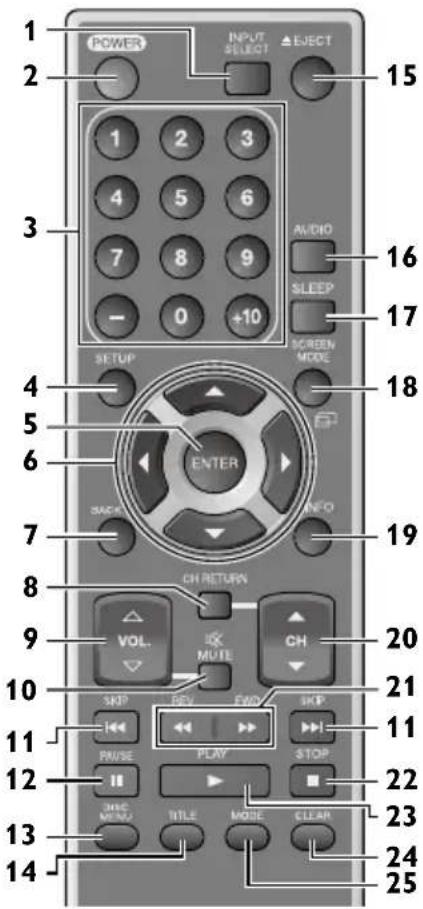

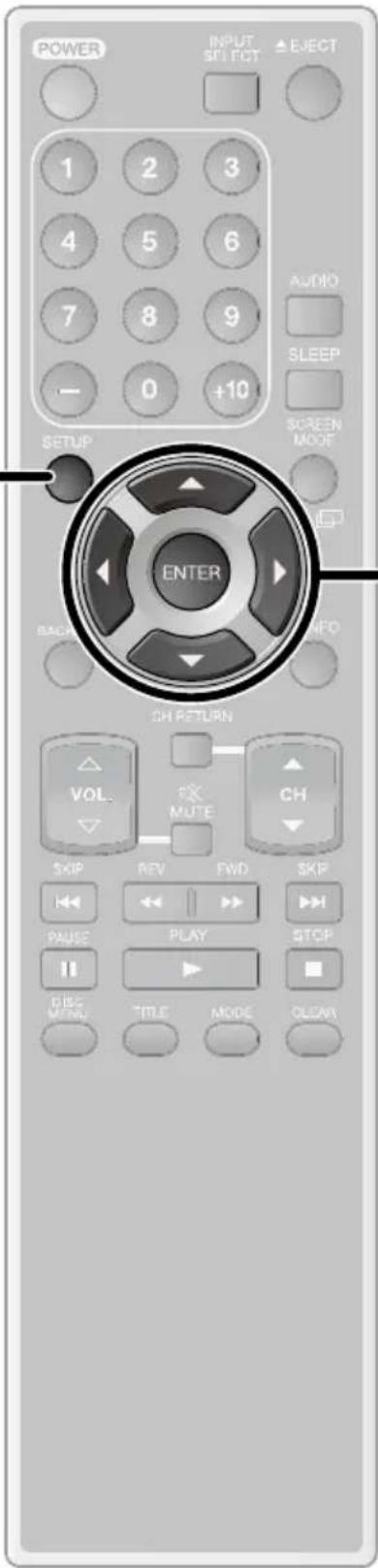

Remote Control Function

1 INPUT SELECT p.14

2 POWER p.13

Press to turn the unit on and go into standby mode. To completely turn off the unit, you must unplug the AC power cod.

3 Number buttons p.14

- (hyphen)

- Press to shift the subchannel from the main channel

+10 button

- Press to select 10 or higher number of chapters.

4 SETUP p.17

5 ENTER p.13

6 ▲/▼/◄/► (cursor) p.13

7 BAC K p.16

8 CH RETURN p.14

Press to return top previously viewed channel.

9 VOL. /△ ▽ p.15

10 MUTE p.15

11 SKIP ◀◀◀ /▶▶ p.30

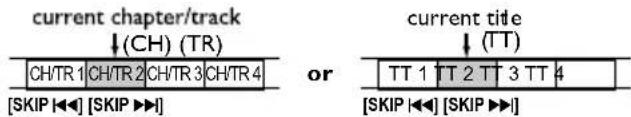

Press to skip forward or backward chapters, titles (DVD) or tracks (CD).

12 PAUSE p.14, 29

TV mode

- Press to pause screen image.

DVD mod e

- Press to pause the discplayback.

13 DISC MENU p.29

14 TITLE p.29

15 ▲ EJECT p.29

16 AUDIO p. 6, 15, 32

Digital mode (DTV)

- Press to select the audio language

Analog mode (TV)

- Press to select the audio mode.

DVD mode

- Press to select the audio language (DVD), or sound mode (CD)

17 SLEEP p.14

Press to activate the sleep timer.

Press to select aspect ratio available for the TV screen

19 INFO p. 16, 32

Digital mode (DTV)

- Press to display the channel information, signal type and IV setting.

Analog mode (TV)

- Press to display the channel number, signal type and IV setting.

External input mode

- Press to display the external input mode, signal type and IV setting.

DVD mode

- Press to display the current status

20 CH ▲/▼ p.14

21 REV ◀◀/FWD ▶▶ p.29,30

22 STOP ■ p.29

23 PLAY▶ p.29

24 CLEAR p. 30, 3

- Press to clear the numbers entered incorrectly.

- Press to cancel the point A for A-B repeat

- Press to remove the tracknumber in program input (CD).

25 MODE p.6

- Press to arrange the playing order or playback randomly (CD).

- Press to set the black level (DVD) and the virtual surround on or off.

- Press to change the camera angle to see the sequence being played back from different angle (DVD).

- Press to search chapter, title (DVD), track (CD) or time

- Press to set the marker.

- Press to repeat playback chapter, title (DVD), track, disc (CD) repeatedly or between designated point A and B.

- Press to magnify the part of picture (2x and 4x: DVD).

- Press to select the subtitles on the disc (DVD).

PREPARATION

No supplied cables are used with these connections:

- Please purchase the necessary cables at your local store.

Before you connect:

3e sure your antenna or other device is connected properly before plugging in the AC power cord

Antenna Connection

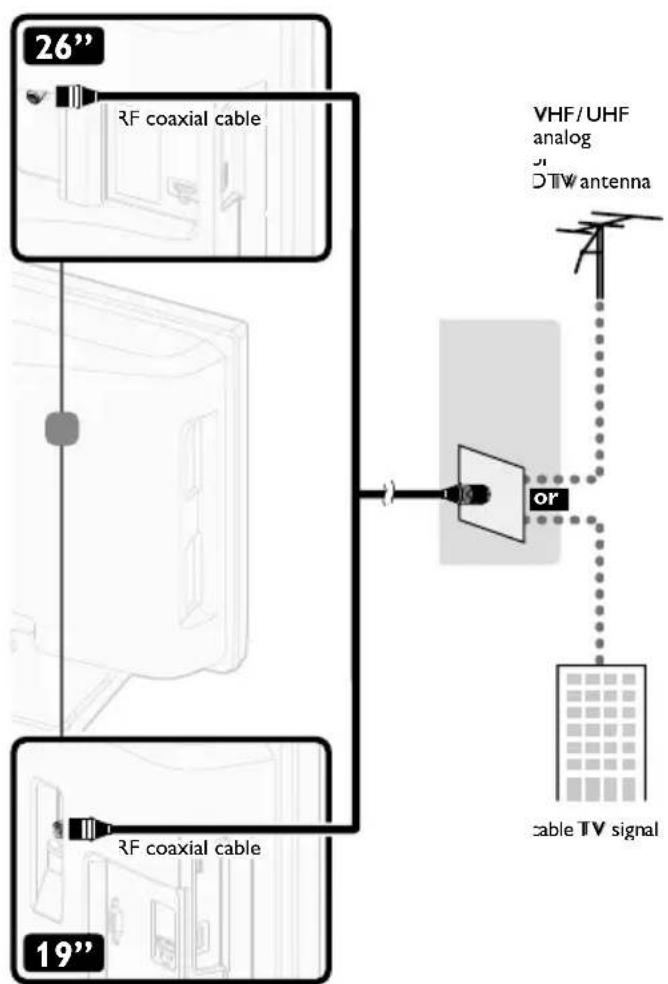

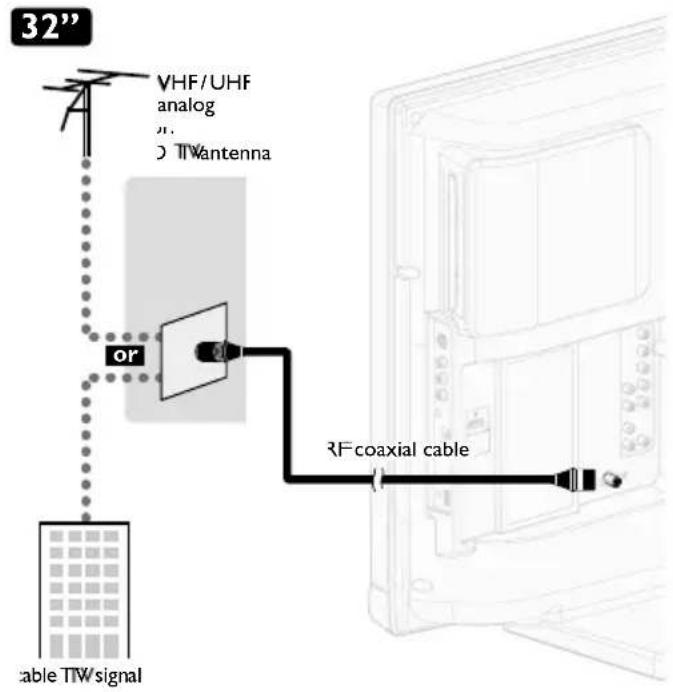

Connect the RF coaxial cable on your home outlet to the antenna input jack of this unit

Once connections are completed, turn on the unit and begin initial setup. Channel scanning is necessary for the unit to memorize all available channels in your area. [Initial Setup] p.13

Note

• If you have any question about the DTV's antenna, visit www.antennaweb.org for further information.
• Depending on your antenna system, you may need different types of combiners (mixers) or separators (splitters) for HD TV signal the minimum RF band pass on these devices is 2,000MHz or 2GHz.
• For your safety and to avoid damage to this unit, please unplug the RF coaxial cable from the antenna input jack before moving the unit
• If you did use an antenna to receive analog TV, it should also work for DTV reception. Outdoor or attic antennas will be more effective than a set top or inside antenna
• To switch your reception source easily between antenna and cable install an antenna selector:
• If you are not receiving a signal from your cable service, contact the Cable provider.

Connection to Cable Receiver or Satellite Box

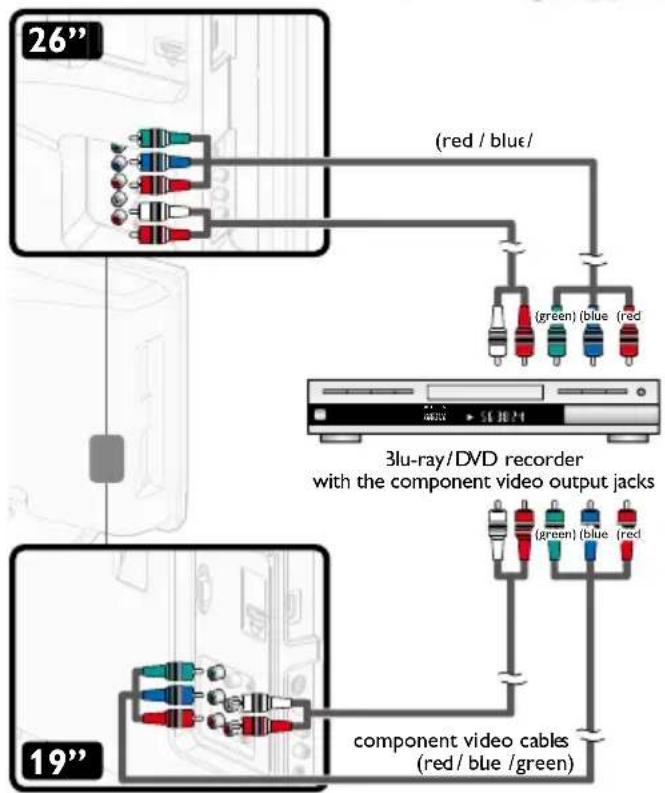

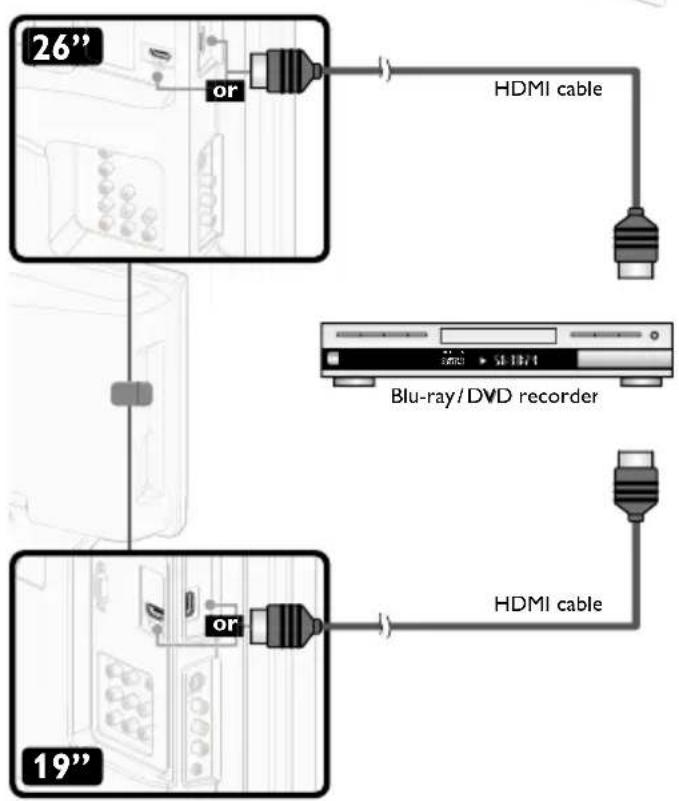

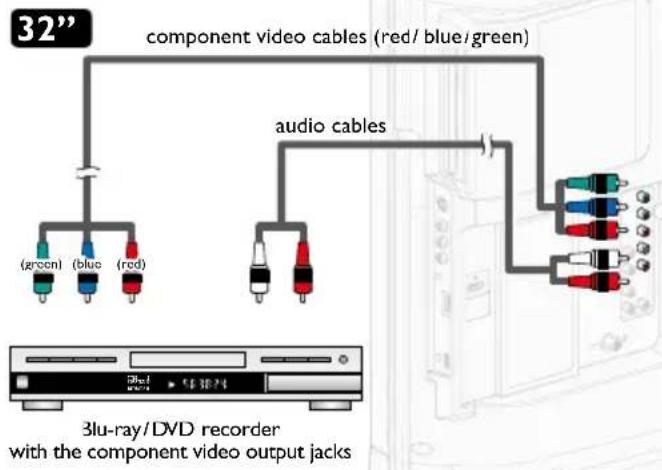

Use an HDMI or Component Video cables to connect the HDMI or the Component Video Input jacks of the unit to the HDMI or the Component Video output jacks of the cable receiver/satellite box

If you connect to the unit's Component Video Input jacks connect AnalogAudio cables to the Analog Audio L/R Input jacks for the Component Video connector jacks

You can also connect this unit to the cable receiver or satellite box other than the HDMI or the Component Video output jacks or Composite Video output jack (p. 35, 36) because they might have different output jacks

Required cables and connecting methods of the cable receiver / satellite box, or the availability channel for the clear QAM may differ depending on the cable/satellite provider or local TV roadcaster.

For more information, please contact your cable / satellite provide or local TV broadcaster.

Note

- Use an HDMI cable with the HDMI logo (a certified HDMI cable). High Speed HDMI cable is recommended for the better compatibility.

Make sure that the AC power cord must be plugged to an AC outlet after all the necessary connections are made.

Caution:

- Do not connect the AC power cord to a power supply outside the indicated voltage of this unit (AC 120V). Connecting the AC power cord to a power supply outside of this range may result in fire or electrical shocks

Note

• Each time you plug in the AC power cord, no operations will be performed for a few seconds. This is not a malfunction

These operations are accessible by remote control. Some may also be accessible by controls on the main u

Initial Setup

I his section will guide you through the unit's initial setting which includes selecting a language for your on-screen menu and autoprogram, which automatically scans and memorizes viewable channels.

Beforeyou begin:

Make sure the unit is connected to antenna or cable

1 After making all the necessary connections, press POWER to turn on the unit

• It may take a few moments to turn on the unit for the first time
• [Initial Setup] menu appears automatically after the unit is turned on.

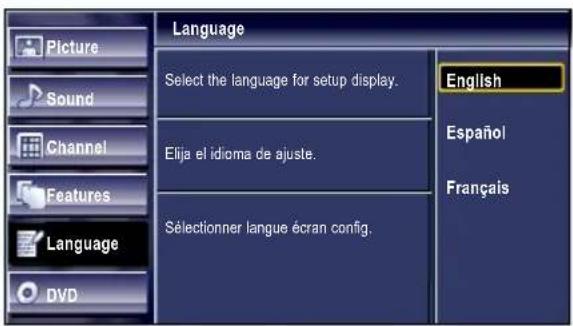

2 Use ▲/▼ to select the on-screen language from the choices (English / Español / Français) on the right side of the IV screen, then press ENTFR.

3 Use ▲/▼ to select [Antenna] for TV channels or [Cable] for CATV channels, thenpress ENTER

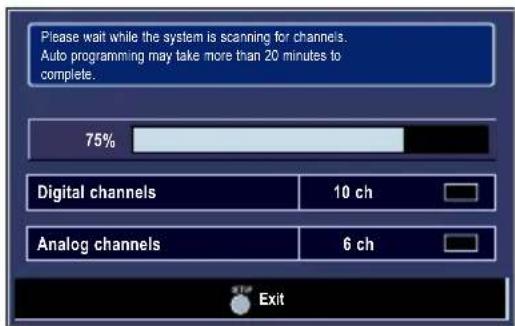

- [Autoprogram] will begin

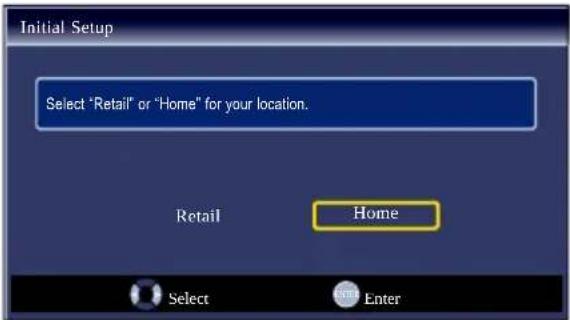

4 Use ◀/▶ to select the desired location setting, then press ENTER.

• Select [Retail] store, the unit will be set up with predefined setting for retail displays
• Select [Home], the unit is set to maximize the energy efficiency for home setting and it can be adjusted through a choice of picture and sound quality according to your preference
• When the initial setup is completed, the lowest memorized channel with the confirmation message of the location setting will be displayed on the IV screen.
• You must set [Home] in step 4. Otherwise, [Picture] and [Sound] settings you adjusted will not be memorized after the unit goes into standby mode.

Note

• If you are not receiving a signal from your cable service, contact the Cable provider.
• If you press POWER or SETUP during autoprogram, this setup of TV channels will be canceled
• The initial autoprogram function can be executed for either [Antenna] or [Cable] only once. When you change the connection (Antenna/Cable), set [Autoprogram] again. p. 19
• If there is no signal input from the antenna terminal and no operation for several seconds after ou turn on the unit, helpful hints appears. Follow the instructions listed on the TV screen

After an initial setp is completed...

• If you want to scan the channels automatically again [Autoprogram] p.19
• You can add the desired cable and analog channels unmemoized by autoprogram

[Add Channels] p.20

- If you want to change to another language.

[Language] p.25

- If you want to change the location setting.

[Location] p.24

WATCHING TV

Sleep Timer

can set the unit to go into standby mode after an incremental period of time

Press SLEEP repeatedly to change the amount of time (increases the time by 30 minutes up to 120 minutes)

SLEEP once to call up the display for checking the remaining time.

- To cancel sleep timer, press SLEEP repeatedly until [Sleep Off] is displayed.

Switching Each Input Mode can easily switch with the remote control between TV (ATSC or NTSC) and external devices when they are connected to the unit

Press INPUT SELECT or CH ▲ repeatedly to cycle through the input modes. e.g.) LD320EM2/LD260EM2

DTV/TV channel

(or PC input)

- Pressing GH ▼ reverses the direction of the input modes These may differ depending on what product you purchased. For example, LD190EM2 will be displayed [HDMI 1] [HDMI 2 and [PQ] instead.

Channel Selection

Select channels by using CH ▲▼ or the Number button:

• To select the memorized channels,
use CH ▲▼ orth e Number buttons.
- To select the non-memorized channels, use the Number buttons.

To use the Number buttons

When selecting digital channel 11-1

Be sure to press before entering the sub channel number.

NTSC

When selecting cable or analog channel 11

Press CH RETURN to return to the previously viewed change

Note

[No Signa] will appear on the TV screen after the subchannel broadcast is over:

[Audio only program] message will appear on the TV screen, when you receive only sound signal.

Still Mode can freeze the image shown on the TV screen for 5 minutes

Press PAUSE to freeze the image.

The sound output will not be paused.

• To cancel freeze mode, press any buttons except POWER

TV Screen Display Mode

5 types of display modes can be selected when the broadcasting station is sending 16:9 or 4:3 video signal. And 3 types of display modes can be selected for PC input signal

Press SCREEN MODE □re peatedly to switch the TVaspect ratio

For 16:9 video signal

Normal

4:3

Movie expand

Wide

Zoom

For 4:3 video signal

Normal

16:9

Movie expand

vv de

Loom

For PC input signal through HDMI1 Input mode

Normal

Full

Dot ByD α

Normal displays a 16:9 picture at its original size

4:3 displays a 16:9 picture at a 4:3 size; the picture is shortened horizontally. Sidebars appear on both edges of the screen

Movie expand d displays a 16:9 picture that is vertically stretched to fill the screen. This only crops out the top of the picture

Zoom displays a 16:9 picture at its maximum size without changing its horizontalandvertical ratio.

Wide displays a horizontally stretched picture. This crops out the left and right sides of the picture.

Normal displays a 4:3 picture at its original size Sidebars appear on both edges of the screen

16:9 displays a 4:3 picture at a 16:9 size; the picture is stretched horizontally to fill the screen

Movie expand displays a 4:3 picture at a 16:9 size the picture is stretched more vertically at the top of the screen. This crops out the top of the picture.

Zoom displays a 4:3 picture at a 16:9 size; at its maximum size that is more vertically stretched to fill the screen. This crops out the top and bottom of the picture.

Wide displays the picture with its center at the original size and the edges stretched horizontally to fill the screen

Normal displays a proportionate lystreted picture. Sidebars appear on both edges of the screen

Full displays a picture that is stretched out of 1 proportion horizontally to fill the screen

Dot By Dot displays a picture in its original size.

*For LD190EM2, PC input mode is available. They can only accept the PC input signal when the unit is connected to a PC (VGA) input jack.

Sound Functions

describe how to change the audio or the audio language as well as the volume

Silence Mode

Press ⬆ MUTE to turn off the sound tem porarily. Mute will be displayed for a few seconds

- Press ✗ MUTF again ∅ VOL.△ to recover t he original volume

Volume Adjustment

T1se VOL. △ to a adjust the volume

will be displayed for a few seconds when adjusting the volume.

Switching Audio Mode

ATSC

Press AUDIO repeatedly to cycle through the available audio languages

• Available languages differ depending on the broadcast
- [Other] is displayed when the audio language cannot be acquired, or the acquired languages are other than English. Spanish or French

NTSC

Press AUDIO to display the currently selected audio mode. While receiving an MTS broadcast, press repeatedly to cycle through the available audio channel

e.g.) When all audio are available

STEREC : Outputs stereo-audio SAP : Out puts second audio po gram MONC : Outputs mono-audio

TV Screen Information

You can display the currently selected channel or other information such as the audio mode on the TV screen. In the digital mode, the detailed broadcasting information for the current off the air channel such as program title and program guides are displayed.

1 Pres INFO.

ATSC

NTSC

1 program title
2 program guide (The program guide added to broadcasting information is displayed to a maximum of 4 lines.)
3 broadcast station
4 channelnumber
5 audio Image (ATSQ)/audio mode (NTSC) [Switching Audio Mode] p.1 5
6 effective scanninglines and scan mode
7 TV format
8 program's image aspect ratio
9 CC(not available if closed caption is set to [Off])
10 child lockrating

2 Press INF C or BACK to hide the information.

Note

• When the program guide consists of more than 4 lines, use ▲/▼ to scroll to the next/previous lines
• [No description provided:] is displayed when the program guide is not provided.
• While the program guide is displayed, the closed caption function is interrupted.
• In external input mode, the following screen is displayed e.g.) When an external device is connected to Video Input jack.

• The information display will automatically disappear in 1 minute.

USING FUNCTIONS

This section describes the overview of the main menu displayed when you press SETUP.

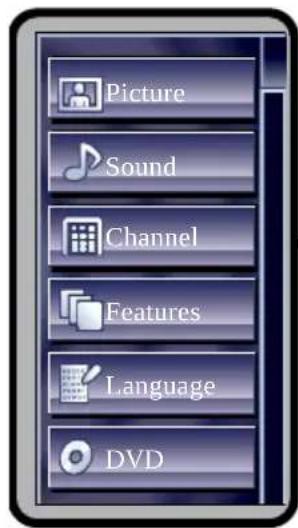

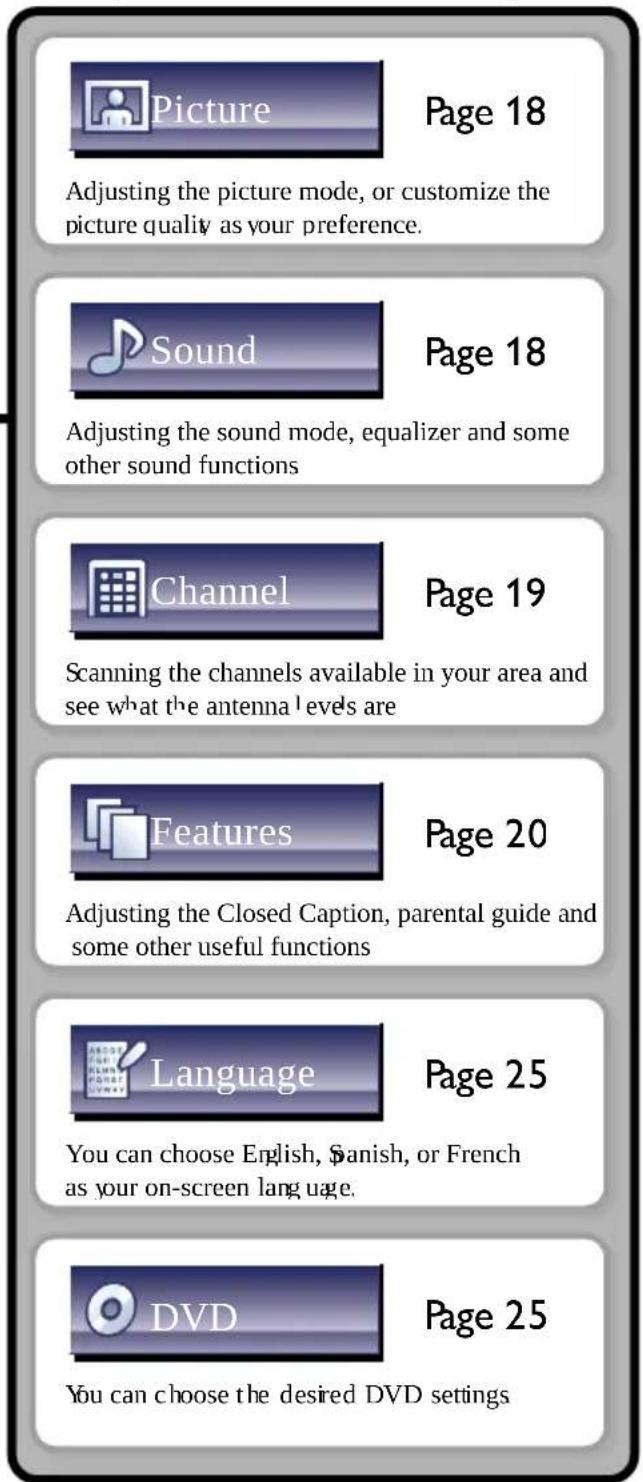

The main menu consists of the function setting items below

1
Press SETUP to display the main menu

2

Use ▲/▼ to select a desired menu and an item, then press ENTER to determine the setting.

3
When the setting is completed, press SETUP to exit.

Before you begin:

You must set [Home] in [Location]. ➞ p.24

Otherwise, the settings you adjusted will not be memorized after the unit goes into standby mode.

1 Use ▲/▼ to select the item you want to adjust, then press ENTER

2 Adjust the following items.

Picture Mode

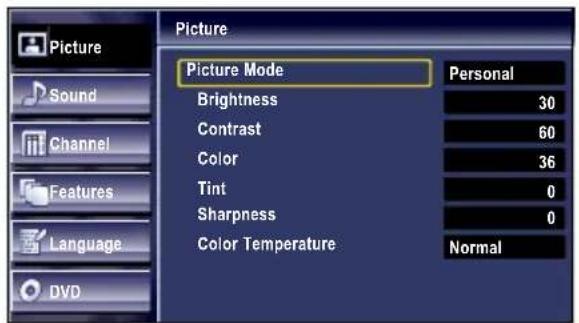

Use ▲/▼ to select the desired setting, then press ENTER ([Personal], [Standard], [Sports], [Movie], and [Game])

Brightness, Contrast, Color, Tint, Sharpness Color Temperature

You can only adjust the following options when you set to [Personal] in [Picture Mode].

Use ▲/▼ to select the desired setting, then press ENTER. Then use ◀/▶ to adjust the setting.

	Cursor ◀	Cursor ▶
Brightness	to decrease brightnes :	to increase brightnes :
Contrast	to decrease contrast	to increase contrast
Color	to decrease color ntensity	to increase cobr ntens ty
Tin t	to add red	to add green
Sharpness	to soften	to sharpen
Color Temperature	to add warm cobr s	to add cool colors

Before you begin:

You must set [Home] in [Location]. ➔ p.24

Otherwise, the settings you adjusted will not be memorized after the unit goes into standby mode.

1 Use ▲/▼ to select the item you want to adjust, then press ENTER.

2 Adjust the following items.

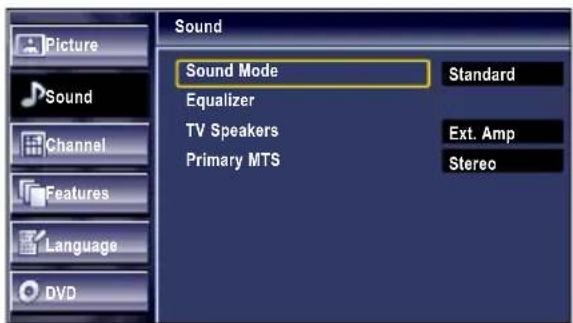

Sound Mode

Jse ▲/▼ to select the desired setting, then press ENTER. ([Personal], [Standard], [Movie], [Music] and [News])

Equalizer

Adjust tonal quality for each frequency.

Jse ◀/▶ to select the specific frequency and use ▲/▼ to adjust the level then pressENTER.

TV Speakers

select the audio output from the unit's speakers, or not. If your amplifier is HDMI link function compatible and connected by an HDMI cable to this unit, some sound operations such as volume up can be changed by using this unit's remote control. Make sure [fun-Link Control] is set to [On] p.24

Jse ▲/▼ to select the desired option, then press ENTER.

On	The sound will be output from the unit's speakers
Off	The sound will not be output from the unit's speakers
Ext. Amp	You can control audio output from your connected HDMI link devices by using this unit's remote control.

Note

- We do not guarantee 100% interoperability with other brands of HDMI link compliant devices

Primary MTS

You can set the output mode as a default for the sound mode (NTSC only).

This setting is not interlocked when you change the output mode by pressing AUDIO.[Sound Functions] ➡ p.15

Jse ▲/▼ to select the desired option, then press ENTER.

Stereo	○ utputs stereo-audio
Mono	○ utputs mono-audio
SAP	○ utputs second audio program

Before you begin:

Make sure the unitis connected to antenna or cable.

1 Use ▲/▼ to select the item you want to adjust, then press ENTER

2 Adjust the following items

Autoprogram

If you switch wires (e.g. between antenna and CATV) or if you move the unit to a different area after the initial setting, or if you restore the D1V channels you deleted, it is recommended to use Autoprogram to perform a new channel search

1 Use ▲/▼ to select [Autoprogram], then press ENTER
2 Use ▲/▼ to select an appropriate option, then press ENTER

• When connected to VHF / UHF antennaselect [Antenna]
• When connected to CATV, select [Cable].
  • [Autoprogram] will begin.

- When the scanning and memorizing are completed, the bwest memorize d channe Iw ill be disp a yed

Note

• After setting [Autoprogram ^1 , using CH ▲/▼ on the remote control skips unavailable blep rograms automatically.
- If you are not receiving a signal from your cable service, contact the Cable provider:
- If you press POWER or SETUP during autoprogram, the setup of TV channels will be canceled.
- Even f [Autoprogram] is completed, the channel setting will be lost if the ACpower cord is up lugged before the unit goes into standby mode by pressing POWER.
- The PINcode will be required once you set a PINcode in the [Child Lock]. p.21
- If you want to change your PIN code, follow the instruction of [Change PIN]. ➞ p.23

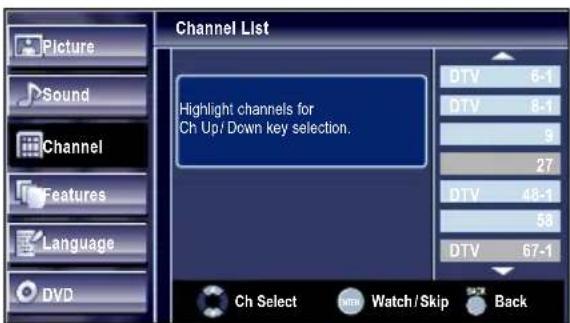

Channel List

The channels selected here can be skipped when selecting the channels using CH▲/▼.

I hose channel is can still be selected with the Number buttons

1 Use ▲▼ to select [Channel List], then press ENTER.
2 Use ▲▼ to select the channel you want to remove, then press FNTFR

• The channel display for the removed channel darkens You will not be able to select the channel again using CH▲/▼.
• I to reactivate a removed channel, use ▲▼ and press ENTER The registered channels are highlighted.
• When you remove a man channel, its sub channels are removed as we ll.

Note

- The channel I with the [DTV] indicated on the display is ATSC. Otherwise the channel is NTSC.

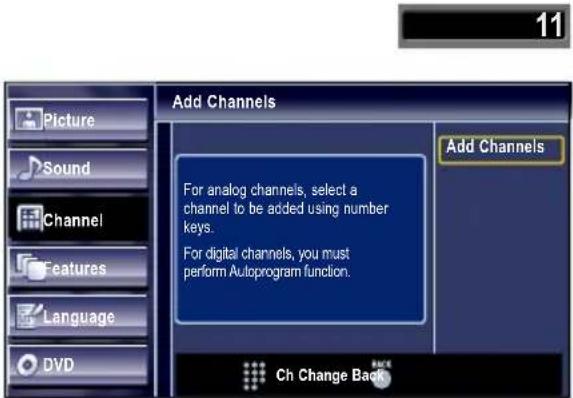

Add Channels

This function lets you add the off the air along NTSC or analog Cable channels that were not added by the autoprogram due to reception conditions at the initial setting

1 Use ▲/▼ to select [Add Channels], then press ENTER
2 Use the Number buttons to enter the number of the channel you want to add, then press ENTER.

Note

• If setup completes successfully[Added to the channel list.] is displayed.
• If external input is used, it is not possible to register the channel and [Unavailable] will be displayed on the TV screen
  • By using CH▲/▼, you can select the memorized channels only

Antenna Confir rmation

ATSC

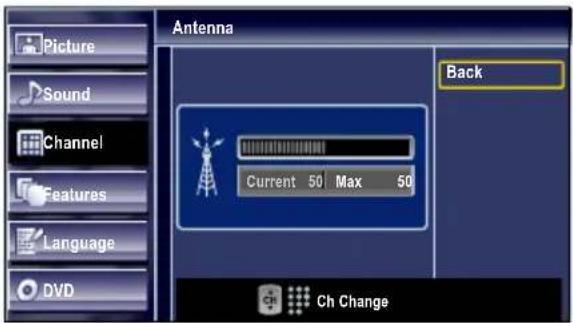

This function lets you check the digital signal strength of each channel

1 Use ▲/▼ to select [Antenna], then press ENTER
2 Use the Number buttons or CH ▲/▼ to select the channel for which you want to check the digital signal strength

Note

- If the channel is set to analog channel or external input, you cannot confirm the antenna condition

1 Use ▲/▼ to select the item you want to adjust, then press ENTER.

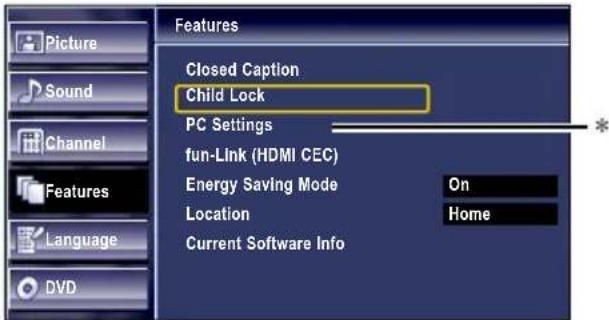

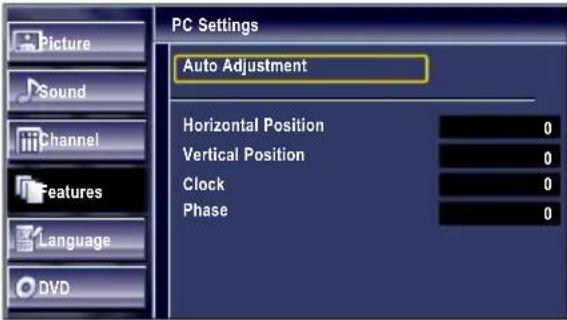

* [PC Settings] will only display for LD190EM2

2 Adjust the following items.

Closed Caption

You can view closed captioning (CC) for TV programs movies and news. Closed caption refers to text of dialog or descriptions displayed on-screen

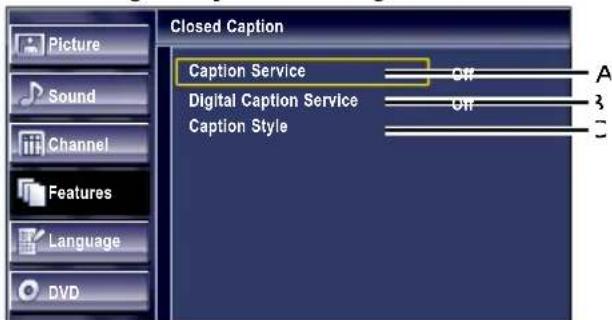

Use ▲/▼ to select [Closed Caption], then press ENTER. See the following description for setting each item

A. Caption Service

1 Tse ▲/▼ to select [Caption Service], then press FNTFR.
2 Use ▲/▼ to select the desired dosed caption, then press ENTER.

Off	Select f you do not want caption service.
C C-1 and T-1	The primary caption and text services The captioning or text is displayed in the same language as the program's dialog (up to 4 lines of script on the TVscreen, where it does not obstruct relevant parts of the picture).
C C-3 and T-3	Serve as the preferred data channels The captioning or text is often a secondary language
C C-2, CC-4, T-2 and T-4	Rarely available and broad casters use home only in special conditions, such as when [CC-1] and [CC-3] or [T-1] and [T-3] are not available

• There are 3 display modes according to programs

Paint-on mode	Di plays input characters on the TV screen immediately
Pop -on mode	Once characters are stored in memory, they are played a lat once.
Roll -up mode	Di plays the characters continuously by scrolling (max. 4 lines).

B. Digital Caption Service

ATSC

In addition to the basic closed caption, D1V has its own dosed caption called digital caption service. Use this menu to change the settings for digital caption service.

1 Use ▲/▼ to select [Digital Caption Service], then press ENTER.
2 Use ▲/▼ to select the desired digital caption service, then press ENTER.

of	Select if you do not want digital caption service
CS-1 to CS6	Select one of these before charging any other item in [Closed Caption] menu Choose [CS-1] under normal circumstances.

Note

- Digital Caption Service ] that you can switch differs depending on the b road cast d esorption

Caption Style

ATSC

You can change the caption style such as font, color or size, etc.

1 Use ▲/▼ to select [Caption Style], then press ENTER
2 Use ▲/▼ to select [User Setting] then press ENTER
3 Use ▲/▼ to select [On], then press FNTFR
4 Use ▲/▼ to select an item, then press FNTFR. Then use ▲/▼ to select the desired setting and press FNTFR.

(Background Color and Background Opacity or Transparency)

- Review your setting choice made beb by looking in the upper right corner of the displayed setting box (not all selections show the differences selected)

Font	Font Style	Closed captioning font style, size color and opacity can be changed.
	Font Size
	Font Color
	Font Opacity
Background	Background Color	Background color and opacity of the displayed caption can be switched.
	Background Opacity
Edge	Edge Color	Edge color and type of the displayed caption can be switched.
	Edge Type

Note

• Closed caption will not be displayed when you are using an HDMI connection
• To show the closed caption on your TV screen, broadcast signal must contain the dose caption data.
• Not all TV programs and commercials have the closed caption or all types of the closed caption.
• Captions and texts may not exactly match the TV voice
• Changing channels may delay the closed caption for a few seconds.
• Adjusting or muting the volume may delay the closed caption for a few seconds
• Abbreviations, symbols and other grammatical shortcuts may be used in order to keep pace with the on-screen action. This is not a malfunction
• The caption or text characters will not be displayed while the main menu or functions display is shown.
• If a black box appears on the TV screen, this means that the closed caption is set to the text mode. To dear the box, select [CC-1], CC-2], [CC-3], [CC-4] or Off.
• If the unit receives poor quality television signals, the captions may contain errors, or there might be no captions at all. Some possible causes of poor quality signals are

- Automobile ignition noise

- Electric motor noise

- Weak signal reception

- Multiplex signal reception (ghosts or screen flutter)

- Data dropout and Pixelation (for DTV only)

• The unit retains the closed cap tion setting if the power fails.
- When the unit receives special effects playback signal (e.g Search, Slow and Still) from a VCR's video output channel (ch3 or ch4) the unit may not display the correct caption or text.

Child Lock

Child lock reads the ratings for programs, then denies access to the programs which exceed the rating level you set. With this function, you can block certain programs inappropriate for children and any channels or external input modes can be invisible

1

Use ▲/▼ to select 'Child Lock', then press ENTFR.

* [PC Settings] will only display for LD190EM2

2 Use the Number buttons to enter the 4-digit number for your PIN code.

• When you have not set up your PIN code, enter 0.0.00.
• When the PIN code is correct, [Child Lock] menu is displayed
  • See the following description for setting each item.

Note

• When you select a rating and set it to [Bbck], the higher ratings will be blocked automatically. The lower ratings will be available for viewing
• When you set the highest rating to [View], all ratings turn to [View] automatically.
• T oblock any inappropriate programs, set your limits in [US Movie Ratings Lock], [US TV Ratings Lock and [Region Ratings Lock].
• The child lock setting will be retained after a power failure or after the power is removed for longer than 10 seconds (except the PIN code reverts to 0000). [Child Lock] p.21
• If the rating is blocked, will appeal
• [Region Ratings Lock] will be available when the unit receives a digital broadcast using the new rating system
• For the United States, the unit may download the Region Ratings Lock Table, if required.
• The Canadian rating systems on this unit are based on CEA-766-A and CRTC policy.

A. Channel Lock

Particular channels or external input modes can be invisible in this function.

1 Use ▲/▼ to select [Channel Lock] then press ENTER.
2 Use ▲/▼ to select the desired rating, then press ENTER repeatedly to switch between [View] and [Block].

* These may differ depending on what product you purchased. For example, LD190EM2 will be displayed [PC] and [DVD] instead.

B. Setting US Movie ratings

US Movie ratings lock is the rating system created by MPAA

1 Use ▲/▼ to select [US Movie Ratings Lock], then press ENTER.
2 Use ▲/▼ to select the desired rating, then press ENTFR repeatedly to switch between [View] and [Block].

Rating	Category
X	Mature audience only
NC-17	No one under 17 admittec
R	Restricted; under 17 requires accompanying parent or adult guardian
PG-13	Unsuitable for children under 1:
PG	Parental guidance suggested
G	General audience
NK	No rating

C. Setting TV ratings

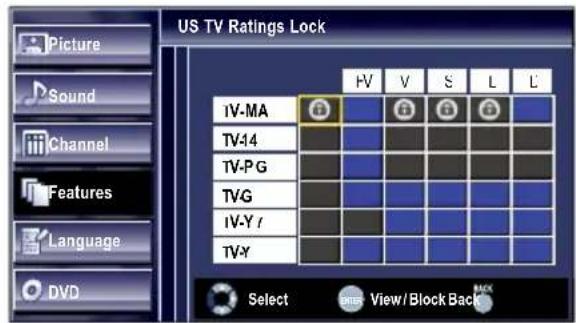

1 Use ▲/▼ to select [US TV Ratings Lock], then press ENTER.
2 Use ▲/▼/◄/► to select the desired rating, then press ENTER repeatedly to switch between [View] and [Block].

Rating	Category
TV-MA	Mature audience only	hg her
TV-14	Unsuitable for children under 14
TV-PG	Parental guidance suggested
TV-G	General audience
TV-Y7	Appropriate for all children 7 and older
TV-Y	Appropriate for all children	lower

To set the sub ratings

As for TV-MA, TV-14, TV-PG, or TV-Y7, you can further set the sub ratings to block specific elements of programming. To set the sub ratings, follow the step below

Use ▲/▼/◄/► to select the desired rating, then press ENTER repeatedly to switch between [View] and [Block].

Sub Rating	Category	Rating
FV	Fantasy Violence	TV-Y7
V	Violence	TV-MAIV-14TV-PG
S	Sexual Situation
L	Coarse Language
D	Suggestive Dialog	TV-14, TV-PG

Note

• Blocked sub rating will appear beside the main rating category in [US TV Ratings Lock] menu.
• You cannot block a sub rating (D, L, S or V) if the main rating is set to [View].
• Changing the category to [Bock] or [View] automatically changes all its sub ratings to the same ([Bock] or [View])

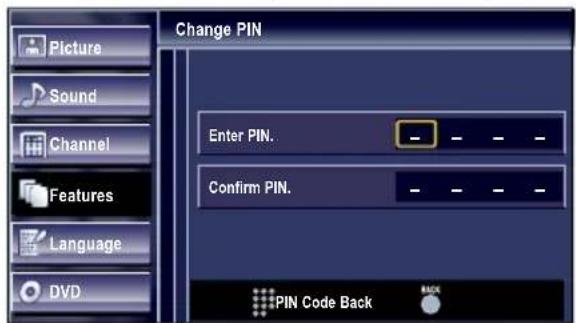

D. Change PIN

Although the default PIN code (0000) is supplied with the unit you can set your own PIN code

1 Use ▲/▼ to select [Change PIN] thenpress ENTER
2 Pres the Number button to enter the new 4-digit PIN code.

- Enter PIN code again in [Confirm PIN.] entry field.

Note

• Make sure new PIN code and confirm PIN code must be exactly the same. If they are different, the space is cleared for reentering.
• Your PIN code will be erased and returns to the default PIN code (0000) when a power failure occurs
• If you forget the PIN code, unplug the AC power cord then wait for 10 seconds to plug the AC power cord in again The unit will restore the PIN code to 0000 as the factory default.

PC Settings

This function lets you adjust the PC screen position, clock and phase during PC input.

1 Use ▲/▼ to select [PC Settings], then press ENTER
2 Use ▲/▼ to select the setting you want to adjust, then press FNTFR.

3 Adjust the following items

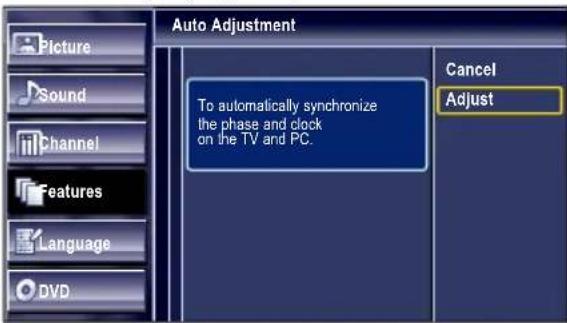

Auto Adjustment

Use ▲/▼ to select [Adjust], then press ENTER.

- The horizontal/vertical position, dock and phase of the PC screen are automatically adjusted.

Horizonta | Position, Vertica | Position

Use ◀/▶ to adjust.

	Cursor ◀	C ursor ▶
Horizontal Position	t o move PC screen left	to move PC screen right
Vertical Position	t o move PC screen down	to move PC screen up

Clock, Phase

Jse ◀/▶ to adjust [Clock] setting to stabilize the PC screen and [Phase] setting to improve the clarity of the PC screen

	Cursor ◀	Cursor ▶
Clock	todecrease setting value	to increase setting value
Phase

Note

• You may not obtain an appropriate screen with [Auto Adjustment] for some signals. In this case, adjust the settings manually.
• Adjust [Phase] setting after Clock] setting has been properly adjusted.

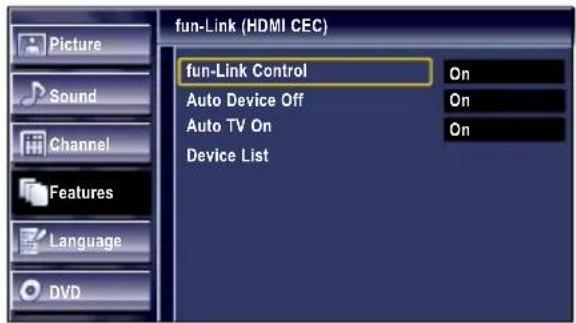

fun-Link (HDMI CEC)

This function allows you to operate the linked functions between our brand devices with a fun-Link feature and this unit connecting through an HDMI cable.

1 Use ▲/▼ to select [fun-Link (HDMI CEC)], then press ENTER.

2 Use ▲/▼ to select the desired setting, then press ENTER.

3 Adjust the following items.

fun-Link Control

Set the fun-Link[On] a [Off].

The following additional settings will be grayed out when you set to [Off].

Jse ▲/▼ to select the desired setting, then press ENTER.

ɔ n	ielects if you have connected an external device that is compatible with the fun-Link function.
ɔ f	Disables all fun-Link.

Auto Device Off

You can set your device to turn off by interlocking from this unit's power

Jse ▲/▼ to select the desired setting then press FNTFR.

D n	Your connected fun-Link device turns off automatically if when the unit goes into standby mode.
D f	Your connected fun-Link device stays on even if the unit goes into standby mode

Auto TV On

This unit will turn on detected when the power on signal is sent from your connected fun-Link device.

Jse ▲/▼ to select the desired setting, then press ENTER.

On	This unit turns on automatically when you turn on your connected fun-Link device.
Of	This unit stays the standby mode even ify ou turn your connected fun-Link device.

Device List

This function lets you see the product model number or name of connected devices.

Jse ▲/▼ to select the desired HDMI device listed on the TV screen, then press ENTER.

Energy Saving Mode

You can set whether the power consumption is save or not.

1 Use ▲/▼ to select [Energy Saving Mode], then press ENTER.

2 Use ▲/▼ to select the desire dmo de, then press ENTER.

ɔ n	Red uces the power consumption.
ɔ f	5 ets the backlight brighter.

Note

- You must set [Home] in [Location]. p.24 ○ therwise, the settings you adjusted will not be memorized after the unit goes into standby mode.

Location

You must set [Home] in this setting Otherwise, [Picture] and [Sound] settings you adjusted will not be memorized after you turn off the unit.

1 Use ▲/▼ to select [Location], then press ENTER.

2 Use ▲/▼ to select the desired location, then press ENTER.

Retail	The unit will be set up with predefined settings for retail displays. In this setting you can set the addlight brighter.
Home	The unit is set to maximize the energy efficiency for home setting and it can be adjusted through a choice of picture and sound quality according to your preference.

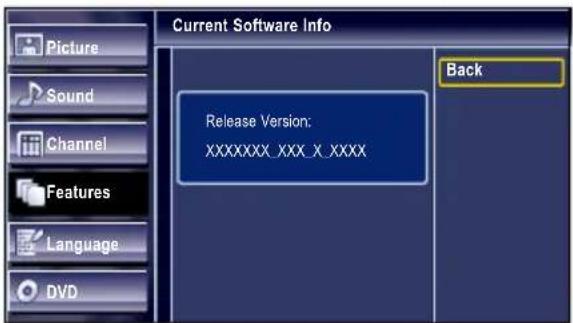

Current Software Info

This function shows what version of the software currently used.

1 Use ▲/▼ to select [Current Software Info], then press ENTER.
2 Confirm the version of the software currently used

Use ▲/▼ to select [English], [Español] or [Français], then press ENTER.

Note

- If you need the English menus instead of the Spanish or French menus, press SETUP.Use ▲/▼ to select [Idioma or [Langue], then press ENTER

Use ▲/▼ to select [English], then press ENTER Press SETUP to exit the main menu.

Settings are only effective when the unit is in DVD mode and any discs should not be played back.

1 Use ◀/▶ to select a desired setting and an item, then press ENTER to determine the setting.

2 When the setting is completed, pressSETUP to exit.

DVD Language Setting

You can change the desired language when playing back the disc

1 Use ▲/▼ to select the item you want to adjust, then press ENTER.
2 Adjust the following items.

AUDIO *1,*2 (Default: ORIGINAL)

Select the desired audio language.

SUBTITLE *1, *2 (Default: OFF)

Select the desired subtitle language.

DISC MENU *1 (Default: ENGLISH)

Select the desired language in DVD menu.

Note

• To change the on-screen language, call up [Language] from the main menu and set the desired language. [Language] p.25
*1
• _language options are not available with some discs
- f [OTHER] is selected in [AUDIO].[SUBTITLE] or [DISC MENU] menu, press 4-digit number to enter the code for the desired language. [Language Code List.]. p.27
- Only the languages supported by the disc can be selected.

*2

• Language setting for Audio and Subtitle are not available with some discs

Jse MODE to select sub titles available on the DVD. Jse AUDIO to select audio available on the DVD

- If the DVD's default settings for audio and subtitle are the same language, the subtitles may not show unless you turn them on

DVD Audio Setting

Choose the appropriate audio settings for your equipment. It only affects during the playback of DVD

1 Use ▲/▼ to select the desired item, then press FNTFR.

2 Adjust the following items.

DRC (dynamic range control) (Default: ON)

I his function is available only on the discs which are recorded in the Dolby Digital format

ON	Compress the range between soft and loud sounds
OFF	No effects (original sound).

DOWN SAMPLING (Default: ON)

This function is available only on digital outputting of a disc recorded in 96kHz.

ON	When outputting in 48kHz
OFF	When outputting the original sound.

Note

- When playing back a 96 kHz disc with the copy right protection or when [Virtual Surround] is set to [1] or [2], the sound will be down sampled at 48 kHz even if the [DOWN SAMPLING] is set to [OFF]. [Virtual Surround] p.33

DOLBY DIGITAL (Default: BITSTREAM)

Set to [BITSTREAM] when this unit is connected to a Doby Digital decoder.

BITSTREAM	Outputs Dolby Digital signals
PCM	Converts the Dolby Digital into PCM. (2 channel)

Parental Setting

Parental setting prevents your children from viewing inappropriate materials. (password protected.) Playback will stop if the ratings exceed the levels you set

1 Use the Number buttons to enter the 4-digit password for your password, then press ENTER

• If you have set password already, use the Number buttons to enter the current 4-digit password.
• You cannot use the default password (4737) to play back a DVD

2 Use ▲▼ to select the |PARENTAL LEVEL, then press ENTER.
3 Use ▲▼ to select the desired item, then press ENTER

PARENTALLEVEL
ALL	All parental locks are cancelled.
8 [ADULT]	All ratings (adult/g general/children) can be played back.
7 [NC-17]-2 [G]	Only DVD intended for general use and children can be played back.
1 [KID SAFE]	Only DVD intended for children can be played back.

To change the password

4 At step2, use ▲/▼ to select [PASSWORD CHANGE] then press ENTER
5 Use the Number buttons to enter the new 4-digit password.

Note

• DVD-video may not respond to parental lock settings. Make sure this function works with your DVD-video.
• Record the password in case you forget it.
• If you forget the password, press 4.7.3.7, then enter your new password. Password will be cleared and parental levels will be set to [ALL].
  • A power failure will not erase your password

Others

You can change the other functions

1 Use ▲/▼ to select the desired item, then press ENTER.

2 Adjust the following items .

ANGLE ICON

(Default: ON)

Set to [ON] to show the angle icon when multiple camera angles are available during DVD playback.

STILL MODE

(Default: AUTO)

Set the picture quality in the still mode If you select [AUTO], it automatically selects the best resolution setting ([FRAME] or [FIELD]) based on the date characteristics of the pictures.

FIELD	The picture in the still mode will be stabilized.
FRAME	The picture in the still mode will be high ydefined.

AUTO POWER OFF

(Default: ON)

Set to [ON] if there is no operation for 20 minutes, the unit goes into standby mode.

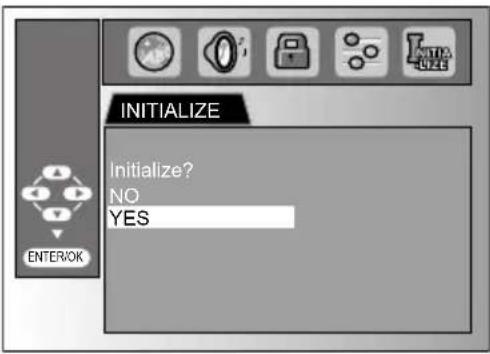

Reset to the Default Setting

You can reset all the settings except for the parental setting and on-screen menu language.

1 Use ▲/▼ to select [YES], then press ENTER.

Note

- When you want to cancel the initialization, select [NO], then press ENTER.

Language Code List

Language	Code	Language	Code
A-B		Lithuanian	5866
Abkhazian	4748	Macedonian	595/
Afar	4747	Malagasy	5953
Afrikaans	4752	Malay	5965
Albanian	6563	Malay alam	5958
Amharic	4759	Maltese	5966
Arabic	4764	Maori	5955
Armenian	5471	Marathi	5964
Assamese	4765	Moldavian	5961
Aymara	4771	Morg olian	5960
Azerbaijani	4772	Nauru	604/
Bashkir	484/	Nepali	6051
Basque	516/	Norwegian [NOR]	6061
Bengali;Bangla	4860	O-R
Bhutani	5072	Occitan	6149
Bihari	4854	Ory a	6164
Bislama	4855	Oromo(Afan)	6159
Breton	4864	Panj abi	624/
Bulgarian	485:	Pashto Pushto	6265
Burmese	5971	Persian	524/
Byelorussian	4851	Polish POLI	6258
C-E		Portuguese [POR]	6266
Cambodian	5759	Quechua	636/
Catalan	4947	Rhaeto-Romance	6459
Chinese | CHI	7254	Romanian [RUM]	6461
Corsican	4961	Russian [RUS]	646/
Croatian	5464	S
Czech | CZE	4965	Samoan	6559
Danish |DAN |	5047	Sarg ho	6553
Dutch |DUT |	6058	Sanskrit	6547
English |ENG |	5160	Scots Gaelic	5350
Esperanto	5161	Serbian	6564
Estonian	5166	Serbo-Croatian	6554
F-H		Sesotho	6566
Faroese	5261	Setswana	6660
Hiji	5256	Shona	6560
Finnish |FIN |	5255	Sindhi	6550
French |FRE |	5264	Singhalese	6555
Irishian	5271	Siswat	6565
Galician	5358	Slovak	6557
Georgian	574/	Slovenian	6558
German |GER |	5051	Somali	6561
Greek |GRE |	5158	Spanish [SPA]	5165
Greenlandic	5758	Sundanese	656/
Guarani	5360	Swahili	6569
Gujarati	536/	Swedish |SWE|	6568
Hausa	544/	T
Hebrew	5569	Tag alog	6658
Hindi	5455	Laj ik	6653
Hungarian |HUN |	546/	Tamil	6647
I-K		Iatar	6666
Icelandic |ICE |	5565	Telugu	6651
Indonesian	5560	Thai	6654
Interlingua	554/	Libetan	4861
Interlingue	5551	Tig niya	6655
nu piak	5557	Tonga	6661
Irish |IRI |	534/	Isonga	6665
Italian |TA |	5566	Turkish [TUR]	6664
Japanese |JPN |	564/	Turkmen	665/
Javanese	5669	Iwi	6669
Kannada	5760	U-Z
Kashmiri	5765	Ukrainian	675/
Kazakh	575/	Urdu	6764
Kinyarwanda	6469	Uzbek	6772
Kirghiz	5771	Vietnamese	6855
Kirundi	6460	Volap uk	6861
Korean |KOR |	5761	Welsh	4971
Kurdish	576/	Wolof	6961
L-N		Xhosa	7054
Laothian	5861	Yiddish	5655
Latin	584/	Yoruba	7161
Latvian; Lettish	5868	Z ulu	726/
Lingala	5860

Note

- If you choose a language that has a 3-letter abbreviation, the code will be displayed every time you change the audio or subtitle language setting above. If you choose any other language [--] will be displayed instead. (3-letter abbreviation is written in bracket.)

OPERATING DVD

playable Media

Media Type	Logo	Recorded Signal	Media Size
DVD-VIDEO		digital video (MPEG2)	5 inches (12 cm)
DVD-RW
DVD-R
CD-DA		digital audio
CD-RW
CD-R

Region Codes

This un it has been designed to play back DVD with region 1. DVD must be labeled for ALL regions or for region 1 in order to playback on the unit. You cannot play back DVD that are labeled for other regions. Look for the symbols on your DVD. If these region symbols are not on your DVD, you cannot play back the DVD in this unit.

The number inside the globe refers to region of the world. A DVD labeled for a specific region can only be played back on the unit with the same region code.

Color Systems

DVD is recorded in different color systems throughout the world. The most common color system is NTSC (which is used primarily in the United States and Canada).

his unit uses NTSC, so DVD you pay back must be recorded in the NTSC system. You cannot play back DVD recorded in HAL color systems.

Unplayable Media

NEVER play back the following discs. Otherwise, malfunction may result!

• 3 inches (8 cm) disc
- DVD-RAM
- DVD-audio
• CD-i
- Photo CD
- Video CD
• DVD with region codes other than 1 or AL L
• DTS-CD
• DVD-ROM forpersonal computers
• CD-ROM for personal computers
• The discs wt hlab ls, scratches, stains, blem ishes, etc.
HD DVD
- Bu-ray Disc
• DVD or CD contains MP3 / JPEG file
• KODAK Picture C D

On the following disc, the sound MAY NOT be heard.

• Super audio CD

Any other discs without compatibility indications

Note

• Unfi nalized discs cannot be played back
- For DVD-RW/-R, discs recorded in the VR (video recording) format cannot be played back. Only the fi nalized video format discs can be played back
- Some discs cannot be played back because of incompatible recording conditions, characteristics of the recorder or special properties of discs
- Only the sound recorded on the normal CD layer can be delivered. The sound recorded on the high density super audio CD layer cannot be delivered
- Do not use a single CD adaptor which makes 3 inches (8 cm) to 5 inches (12 cm) disc
- You can play back discs with the mark slisted in [Playable Meda]. If you use non-standardized discs, this unit may not play them back or the sound and video quality will be compromised
- If the recorded portion of the disc is too small (less than 2.17 inches (55 mm) across), it may not play back properly

These operations are accessible by remote control. Some may also be accessible by controls on the main unit.

Playback

Before you begin:

Ium on the amplifier and any other equipment which is connected to this unit. Make sure the external audio receiver (not included) are set to the correct channel

1 Press POWER to turn on the unit.

2 Insert a disc with label facing forward.

Illustration of a computer monitor with a hand holding an abo button (no text or symbols on the device)

A CAUTION

• Do not put coins or foreign objects into the discloading slot.

- In case the DVD was recorded on both sides, make sure the label of the side you want to play back is facing forward

3 The unit switches to the DVD mode when the unit was in IV mode and detects the type of disc.

- Press PLAY ▶ if the unit does not go to the DVD mode

4 The unit starts playb ack.

- If playback does not start automatically, press PLAY again.

5 Press STOP■ to stop payb ack temporarily

- If playback remains stopped for 20 minutes, the unit will go into standby mode automatically when [AUTO POWER OFF] is set to [ON].

6 Press ▲EJECT to eject the disc.

Note

• | Ⓧ ] may appear at the top-right on the TV screen when the operation is by the disc or this unit
- Some DVD may startp lay back from title 2 or 3 due to specific programs
- During the playback of a 2-layered disc, pictures may stop for a moment. This happens while the 1st layer is being switched to the 2nd layer. This is not a malfunction
- When you cannot remove the disc, you may try either following operations
- Press and h dd ▲ ECT on the unit for more than 5 seconds
- Unplug the ACpower cord and plug it in again, thenp ress
▲ EECT.

It will take about 10 seconds to eject the disc, while that the unit will not respond to any key commands.

Disc Menu

DVD

Some discs contain disc menus which describe the contents of the disc or allow you to customize disc playback, or title menu which lists the titles available on the DVD

lo display the DVD menu, press DISC MENU and use

▲/▼/◄/► to select an item, then press ENTER (or PLAY ►).

lo disp lay the top menu, press TITLE and use ▲/▼/◄/► to select an item, then press ENTER (or PLAY ►).

Note

- Menu operations may vary depending on the disc. Refer to the manual accompanying the disc for more details

Resume Playback

Press STOP ■ during playback. Resume message will appear on the IV screen.

Press PLAY▶. Playback will resume from the point at which pay back was stopped

Note

• To cancel resume, press STOP ■ one more time in the stop mode. On some discs, STOP ■ will not work while the resume message appears. Please wait until the message disappears.
• The resume information will be kept even when the unit goes into standby mode. However, q editing the disc will cancel the resume feature. Playback will start at the beginning the next time you insert the disc.

Paused and Step-by-step Playback

Press PAUSE III during play ack

- Play back will be paused and sound will be muted.

DVD

Each time you press PAUSE II in the pause mode, the disc goes forward one frame at a time to continue playback, press PLAY ▶.

Note

- Set [STILL MODE] to [FIELD in the OTHERS] menu if pictures in the app use mode are blurred p.27

Fast Forward/Fast Reverse

Press FWD ▶▶ or REV ◀◀ repeatedly during p lay back to select the desired forward or reverse speed.

lo continue p layback, press PLAY ▶

Note

• Set [STILL MODE] to [FIELD* in the OTHERS] menu if pictures in the fast playback mode are blurred p.27
• Fast forward / fast reverse speed varies with disc. Approximate speed is 1(2x), 2(8x), 3(20x), 4(50x) and 5(100x) on DVD and 1(2x), 2(8x) and 3(30x) on audio CD
  • For DVD, sound will be muted during this function
  • For audio CD, sound will be intermittent during the search

Slow Forward/Slow Reverse

DVD

Press FWD▶▶ or REV◀◀ repeatedly during the paused mode to select the desired forward or reverse speed I o continue playback, press PLAY▶.

Note

• Set \$TILL MODE] to [FIELD' in the [OTHERS' menu if pictures in the slow playback mode are blurred. p.2 7
• Slow forward / slow reverse speed varies with disc. Approximate speed is 1(1/16x), 2(1/8x) and 3(1/2x).
  • The sound will be muted during this function

Zoom

DVD

The zoom function allows you to enlarge the video image and to pan through the enlarged image.

1 During p layback, press MODE repeatedly until [ ] appears.
• The epiculture becomes twice as large

2 Press FNTFR repeatedly to change the zoom factor [2x] or [4x]

3 Once a desired zoom factor is set, use ▲/▼/◄/► to slide the zoomed picture across the IV screen.

4 To exit zoom, repeat steps 1 to 2 above and press FNTFR repeatedly until [OFF] a pears

Note

• The graybox with an inner blue box that shows during zoomed playback is the position guide indicates the position of the zoomed image within the overall image Position guide stays on the TV screen unit you press ENTER. Press ENTER one more time to recall the position guide when disappears
• Zoom function does not work while the disc menu is displayed
• 4x zoom is not available on some discs.
• Zoom function is also available during pause mode

Search Functions

Chapter/Title/Track Search

You can select chapters, titles or tracks on the disc.

1 During playback, press MODE repeatedly until [CH]/[TR] app ears
- If you want top erform the title search, use ▲/▼ repeatedly until [ ] appears.

2 Press the Number buttons to select your desire chapter, title or track within 60 seconds I o playb ack a single-digit chapter, title or track when there are more than 10 chapters, titles or tracks, press ENTER after entering the chapter, title or track numbe.

3 Playback will start automatically from the chapter, title or track you selected

Note

• Chapter, title or track search can only be performed during playback or when the unit has kept the resume information. It cannot be performed in the stop mode.
- The total number of chapters / titles / tracks in your disc; with less than 10 chapters/titles/tracks, press the chapter/title/track number directly. To play a double-digit chapter / title / track, press the chapter/title/track number.
- Track search is not available for programmed or random play back

Using SKIP |◀◀/▶▶|

1 During playback press SKIP |◀◀/▶▶| repeatedly until a desired chapter, title or track will be selected.

2 Playback will start automatically from the chapter, title or track you selected.

Note

- SKIP/▶▶ are not available when playback is stopped.

Time Search

You can select the desired time which the disc is played back from.

1 During playback press MODE repeatedly until [CH] / [TP] appears

2 Use ▲/▼ repeatedly until [ ] appears.

3 Press the Number buttons to select your desired time lapse within 60 seconds.

4 Playback will start automatically from the time you selected

Note

• When there is no need to enter a number, [0] appears automatically. For example [0: 0_: _ ] appears in the time search menu if the total time of the title or track is less than 10 minutes
• Press CLEAR to erase the incorrect input at step 3.
• Time search can only be performed during playback or when the unit has kept the resume information. It cannot be performed in the stop mode

Direct Search

Press the Number buttons to select your desired chapter, title or track.

Note

• To select a single-digit chapter, title or track number, press the number directly
• To select double digit chapter, title or track number: If the disc contains more than 9 and less than 100 chapter, title or track press +D first, then enter the double digit chapter, title or track number. (e.g., for track 26, press +D, 2 and 6)

Repeat Playback

Repeat function is available only during playback

1 During playback, press MODE repeatedly until [☐] appears.
2 Press ▲/▼ to change the repeat mode.

DVD

OFF re	peat off
CHAPTER	current ch apter repeat
TITLE	current t it e repeat

CD

OFF repeat of	f
TRACK	current track repeat
ALL	entire disc repeat

3 Press BACK to exit.

Repeat A-B Playback

You can repeat playback between A and B on a disc

1 During playback, press MODE repeatedly until [ACE] appears
2 Press ENTER at your desired starting point (A).
3 Press ENTER at your desired ending point (B). - Point B should be in the same title or track as point A. - Within a few seconds, the section A-B will begin to play back repeatedly.
4 To cancel repeat A-B playback, press MODE repeatedly until | ACB ]a appears Press ENTER so [OFF] appears

Note

• Repeat setting (except [ALL]) will be cleared when moving to another little or chapter, track.
• During programmed playback, repeat setting will be effective for the tracks in the program.
• Repeat playback or repeat A-B playback may not available with some discs
• Repeat A-B playback does not function during other repeat mode
  • To cancelpoint A, press CLEAR at step 2 in [Repeat A-B Playback].
• Stopping p lay back will cancel rep eat A-Bp lay back

Random Playback

CD

This function shuffl es the playing order of tracks instead of play back in the sequence.

1 In stop mode, press MODE repeatedly until [RANDOM]. menu appears
2 Press PLAY ▶ to start random playback.

Note

• To repeat the current track in the random mode, follow the steps 1 and 2 in [Repeat Playback] and select | TRACK ]. p.31
- To repeat the entire random selections, follow the steps 1 and 2 in [RepeatPlayback] and select [GALL]. p.31

Programmed Playback

CD

You may determine the order in which tracks will play back.

1 In stop mode, press MODE repeatedly until [PROGRAM]. menu appears
2 Use ▲/▼ to select a desired track, then press FNTFR to store.

• Additional tracks may be on other screens.

Use ▲/▼ to go on to the next / previous pages

- Rep eat his step until you have selected all the tracks you wish to play back in the program.

- Up to 99 tracks can be ordered.

- If 8 or more tracks were in a program, use SKIP ◀◀◀/▶▶▶ to see all the tracks

3 Press PI AY ▶ to start programmed playback.

Note

• Press CLEAR to erase the last track in the program if you make an error.
• To erase all programmed tracks at once, select [ALL CLEAR] and press ENTER at step 2.
• While a program is being played back, STOP ■ works as follows
• Pressing STOP ■ once: The track will be in the resume standby mode. Next time you press PLAY ▶, the playback will resume from the point where it is stopped in the programmed playback.
• Pressing STOP ■ twice: Resume mode will be canceled. Next time you press PLAY ▶, playback will restart from the first track in the original order. However, your programmed playb ack can be restarted when you follow the above steps. (Yourp rograms are still stored until either the disc is ejected or the unit goes into standby mode)
• On some discs STOP■ will not work while the resume message appears. Please wait until the message disappears

- To repeat the current track in the program, follow the steps 1 and 2 in [Repeat Playback] and select [TRACK]. ➞ p.3

- To repeat the entire program, follow the steps 1 and 2 in [Repeat Play adk] and select [AL]. p.31

- Ejedring the disc or the unit goes into standby mode will erase the program.

- You cannot use the Number buttons to select another track during programmed playback. Use SKIP/▶/▶ to select other tracks in the program

- You cannot combine random playback with programmed playback.

• You cannot alter a programmed order during playback

- You can start programmedplayback only while in [PROGRAM] menu

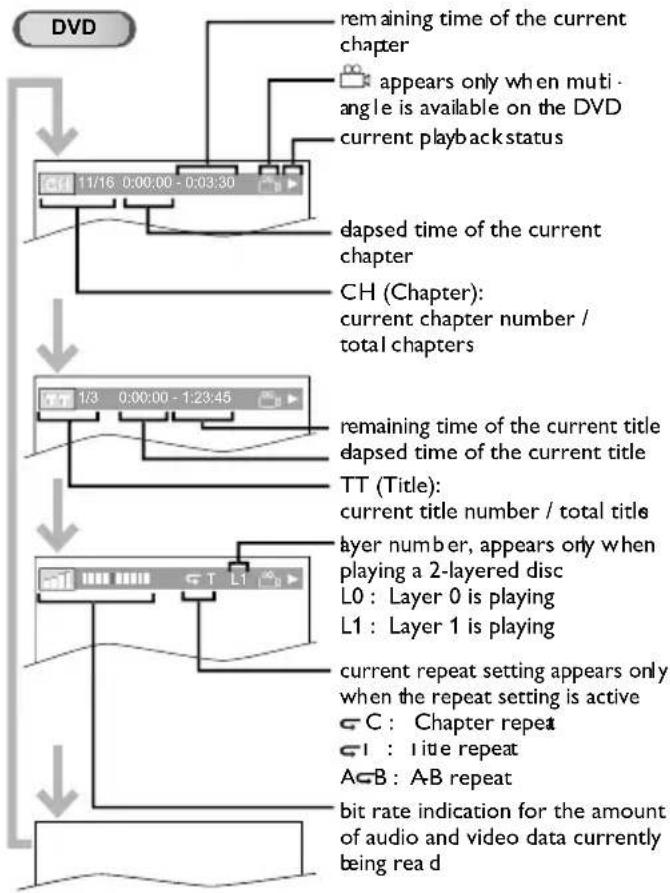

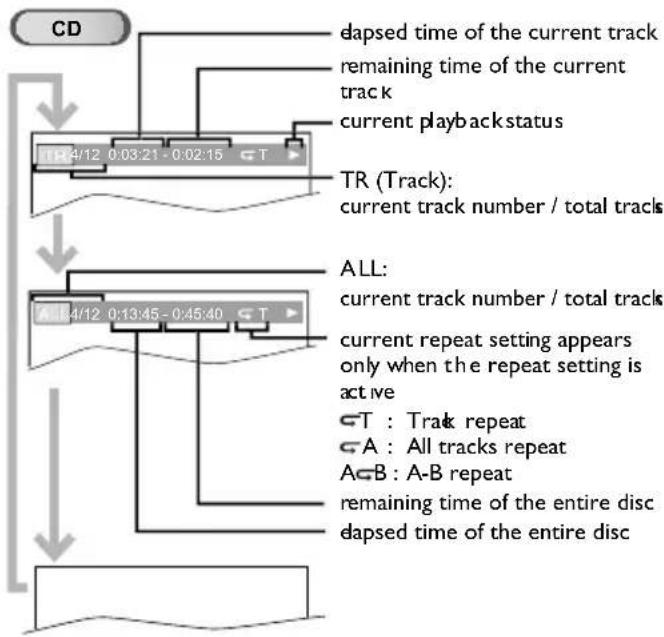

On-screen Display

You can check the information about the current disc by pressing INFO on the remote control

Note

- When you are playing back an audio CD in program or random mode, [T] PROGRAM' (σ | RANDOM 1) will be displayed instead o 1 2

Special Settings

Subtitle Language

DVD

This unit allows you to select a subtitle language (if available) during DVD playback

1 During playback, press MODE repeatedly until [ ] appears
2 Use ▲/▼ repeatedly until your desired language appears.

sub titles can be varied on the displayed number current subtitles language

3 Each time you press ▲/▼, the subtitle language changes as follows

OFF no su	h til e
ENG	English audio
SPA	Spanish audio

4 Press BACK to exit.

Note

• To cancel the subtille select [OFF] at step 2
• If your language is not shown after pressing
▲/▼ several times, the disc may not have that language. However, some discs allow you to change sub title language settings in the disc menu. ( ⊕ eration varies depending on the disc, so refer to the manual along with the disc)
- When [NOT AVAILABLE] appears on the TV screen, t means no sub title is recorded on the scene
- If you choose a language that has 3-letter-language code, the code will be displayed every time you change the decimal language setting. If you choose any other languages [---] will be displayed instead. p.27
- Ejecting the disc will cancel your subtitle setting.

Audio Language

DVD

This unit allows you to select an audio language (if multiple languages are available) during DVD playback

1 During playback, pressAUDIO repeatedly until the desired language appears

2 Each time you press AUDIO, the audio language changes as follows

ENG	English audio
SPA	Sp anish audio
FRE	French audio

Note

• Some discs will only allow you to change the audio setting from the disc menu. Refer to the manual accompanying the discs for detail.
• If your language is not shown after pressing AUU several times, the dic may not have that language. However, somediscs allow you to change multip l audio languages setting in the disc menu. (Operation varies depending on the disc so refer to the manual along with the disc)
• When [NOT AVAILABLE] appears on the TV screen, it means audio language is not available.

Camera Angles

DVD

Some DVD may contain scenes which have been shot simultaneously from various angles. You can change the camera angle if [ ] appears on the screen. If [ANGLE ICON] is set to [OFF] in [OTHERS] menu, [ ] will not appear. p.27

1 During playback, press MODE repeatedly until i [ ] appears.

2 Use ▲/▼ repeatedly until your desire d camera angle appears.

3 Press BACK to exit.

Black Level Setting

DVD

Adjust the black level to make the dark areas of the TV picture brighter.

1 During playback, press MODE repeatedly until [☐] appears.
2 Press ▲/▼ to a djust the ebl ack level.

ON	Makes the dak areas brighter.
OFF	Shows the original picture as recorded.

3 Press BACK to exit.

Note

• The setting will be kept even if the unit goes into standby mode

Stereo Sound Mode

CD

This unit allows you to select a sound mode during CD playback.

1 During playlac k, press AUDIO repeatedly until be desired sound mode appears.
2 Each time you pressAUDIO, the sound mode changes as follows

STEREO	Stereo sound with left and right channels
L-ch	Left channel sound only
R-ch	Right channel sound only

Note

- Virtual surround cannot be changed when the sound mode is set to either [L-dh] or [R-ch].

Virtual Surround

Yu can enjoy virtual surround on your 2 channel stereo system

1 During p layback press MODE repeatedly until [ ] appears
2 Press ▲/▼ to select the sound level

1	Natural effect
2 Emphasized effect	.
D FF	No effects (original sound)

3 Press 3ACK to exit.

Note

• The setting will be ket even if the unit is turned off
- For audio CD, virtual surround will not be effective if the sound mode is set to something other than STEREO [Stereo Sound Mod] p.33
- Turn down the level or select [OFF] if the sound is distorted

Marker Setup

This feature allows you to assign a specific point on a disc to be called back later.

To set a marker

1 During p layback press MODE repeatedly until [GH] / [TP] appears
2 Use ▲▼ repeatedlyunt ilmarker search menu appears.
3 Use ◀/▶ to select an available marker within 60 seconds
4 When the playback reaches the point at which you want to set a marker, press ENTER.
- Marker is now set.

5 Press BACK to exit

To return to the marker later

1 Repeat steps 1-2 in [To set a marker]. Use ◀/▶ to select the desired marker.

2 Press ENTER at the desired marker to restart playback from the specific point which you set

Note

• Marker search menu will disappear in about 60 seconds when there is no input
  • You can mark up to 10 points
• To clear a marker, select the marker to be cleared, and then press CLEAR.
• Ejecting the disc or turning off the power will erase all markers
• Selecting[AG] at step 3 in the section [To set a marker] will also erase all markers.

CONNECTING DEVICES

No supplied cables are used with these connections:

- Please purchase the necessary cables at your local store.

Before you connect:

Be sure other device is connected properly before plugging in the AC power cord.

External Device Connection

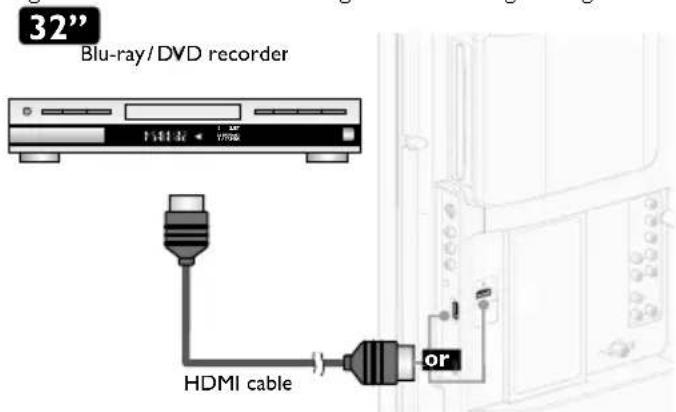

HDMI Connection

HDMI connection offers the highest picture quality.

HDMI(High-Definition Multimedia Interface) transports high definition digital video and multi-channel digital au do through a single cable.

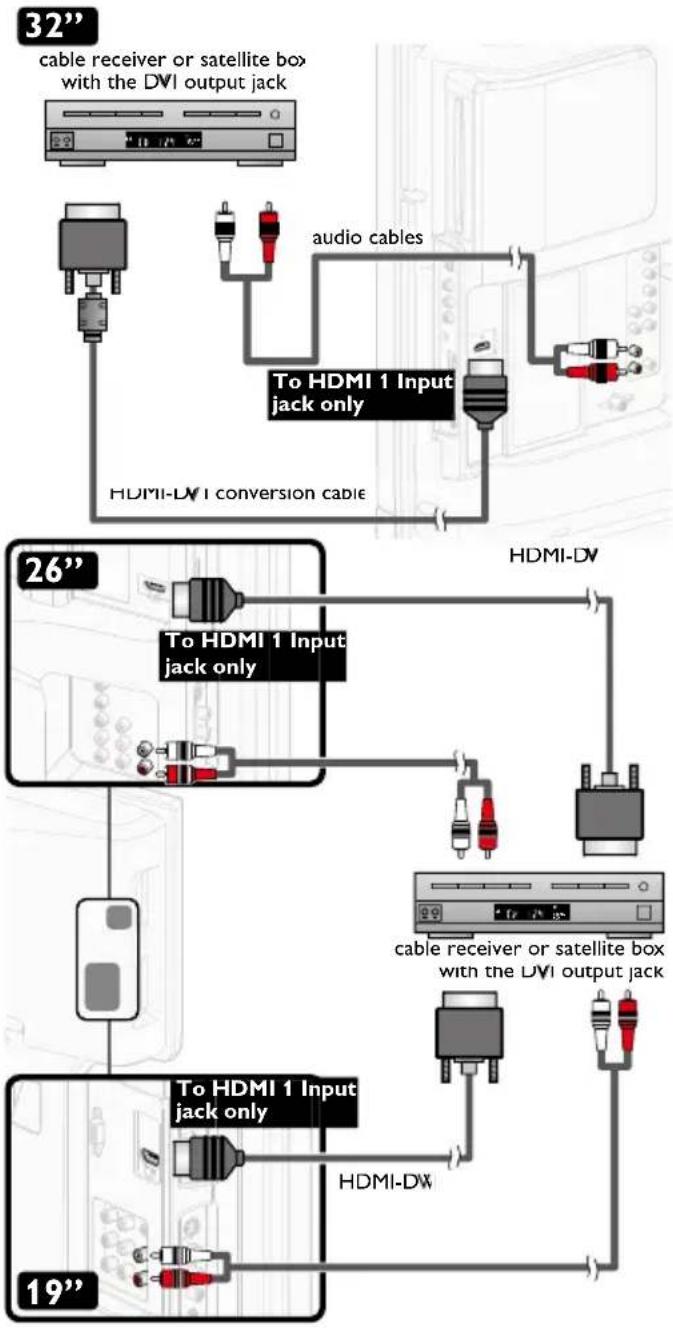

HDMI-DVI Connection

Use an HDMI-DVI conversion cable to connect the unit to external video devices equipped with DVI output jack. (Use HDMI 1 Input jack only and Audio L/R below HDMI 1 Input jack on rear of TV).

Note

- Use an HDMI cable with the HDMI logo (a certified HDMI cable). High Speed HDMI cable is recommended for the better compatibility.

For HDMI connection (use HDMI 1 or 2 Input jack)

• The unit accepts 480i, 480p, 720p, 1080i and 1080p 24/60 Hz of video signals, and 32kHz, 44.1kHz and 48kHz of audio signals
  • This unit accepts 5.1 channel audio signal (Dolby Digital) and 2 channel audio signal (LPCM).
  • This unit accepts only signals in compliance with EIA861

For HDMI-DVI connection

• The unit accepts 480i, 480p, 720p, 1080i and 1080p video signals
- HDMI-DVI connect on requires separate audio connections as well and the audio signals are converted from digital to analog
• DVI does not display 480i image which is not in compliance with EIA/CEA-861/861B

Component Video Connection

Component Video connection offers better picture quality for video devices connected to the unit.

If you connect to the unit's Component Video Input jacks connect Analog Audio cables to the Analog Audio L/R Input jacks for the Component Video connector jacks

Note

- The unit accepts 480i / 480p / 720p and 1080i of video signals if this connection.

S-Video Connection

S-Video connection offers good picture quality for video devices connected to the unit.

If you connect to the unit's S-Video Input jack, connect audio cables to the Audio L/R jacks right below the Composite Video connector.

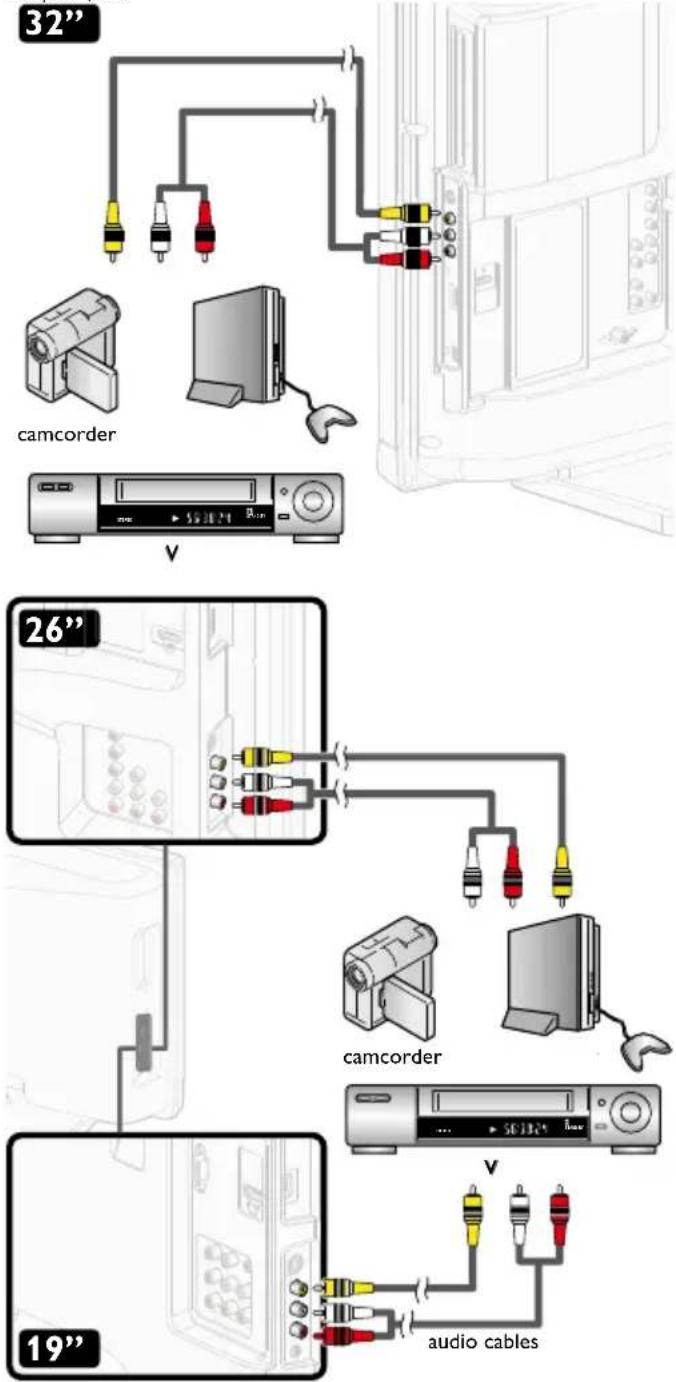

Composite Video Connection

Composite Video connection offers standard picture quality for video devices connected to the unit. If you connect to the unit's Composite Video Input jack, connect audio cables to the Audio L/R Input jacks right below the Composite Video connector jacks.

When the Audio is monaural, then only connect to the Audio L Input jack.

Note
- If you connect to the S-Video Input jack and the Composite Video Input jack at the same time, the S-Video connection will have priority.

Digital Audio Output Connection

(for digital broadcasting and DVD functions only)

If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1ch digital broadcasting sound

Use a digital audio coaxial cable to connect the unit to external digital audio devices

Analog Audio Output Connection

(for both analog and digital broadcasting)

If you connect this unit to an external analog audio device, you can enjoy stereo (2-channel) audio.

Use audio cables to connect the unit to external analog audio devices

PC Connection

If you connect this unit to your PC, you can use this unit as a PC monitor.

For LD320EM2 and LD260EM2, the unit can be connected to your PC that has a DVI terminal. Use an HDMI-DVI conversion cable for this connection and it requires stereo mini plug conversion on cable as well.

For LD190EM2, the unit is equipped with a PC input jack. Use an VGA cable for this connection and it requires stereo mini plug audio cable as well.

The following video signals can be displayed:

Format	Resolution			Refresh rate
VGA	640	x	480	60Hz
SVGA	800	x	600
XGA	1,024	x	768
WXGA	1,280	x	768
	1,360	x	768

Other formats or non-standard signals will not be displayed correctly.

Note

• Please purchase the VGA cable or HDMI-DVI conversion cable that has a finite core.
  • The following operations may reduce noise.
• Attach a ferrite core to the AC power cord of your PC.
• Unplug the ACpower cord and use the built-in battery of you I PC

Cable Management

Keep the cables through this holder to avoid tangling them

Technical line drawing of a mechanical or electrical component with wires and connectors (no text or symbols)

Troubleshooting Guide
If the unit does not perform properly when operated as instructed in this manual, check the following chart and all connections once before calling for service.

Symptom Remedy
No power	Make sure the AC power cord is plugged inMake sure that the AC outlet supplies the proper voltage, plug another electrical appliance into the AC outlet to ensure that AC outlet operates normallyIf a power failure occurs, urplug the ACpower cord for 1 minute to allow the unit to reset itself
Control button's do not work.	Press only one button at a time. Do NOTpress more than one button at the same timeEnsure that no buttons on the remote are depressed and move freely.
Power is ON but no screen image	Check whether the connection of the antenna cable receiver or satellite box is connected correctlyCheck whether all the cables to the unit are connected to the correct output jack of your device like Blu-ray /DVD recorder.Make sure that the subjected input mode is connected to the working input jackCheck if your computer is NOT in sleep mode when the input mode of this unit is in PC mode Tap any key on the keyboard to wake up your computer.
No picture or sound	Check if the power is on.Check if the correct input mode is selectedCheck whether all the cables to the unit are connected to the correct output jack of your device like Blu-ray/DVD recorder.View other TV channels. The problem might be limited to the broadcasting station or weak signal strength.Unplug the AC power cord and wait for about 1 minute, then plug the AC power cord and turn on the unit again.Check whether the connection of the antenna cable receiver or satellite box is connected correctlyMake sure that the subjected input mode is connected to the working input jackCheck if your computer is NOT in sleep mode when the input mode of this unit is in PC mode Tap any key on the keyboard to wake up your computer.Make sure that the sound is not muted. Press MUTE so that the volume bar and current volume level will appear on the TVscreen.Make sure that the volume is NOT set to [C] or [Mute] If so, use VOL △ ▽ to adjust the desired volume.
No color	View other TV channels. The problem might be limited to the broadcasting station or weak signal strength.Adjust [Color] in the main menu.
Adjusted [Picture] or [Sound] settings are not effective every time the unit is turned on	You must set [Home] in [Location]. ➔ p.24Otherwise, the settings you adjusted will not be memorized after the unit goes into standby mode.
Sound okay, picture poor	Electrical interference from nearby appliances may affect picture qualityAdjust [Contrast] and [Brightness] n t re man menuView other TV channels. The problem might be limited to the broadcasting station or weak signal strength.For the best picture quality, watch "High Definition" wide screen programsIf the HD content is not available, watch "Standard Definition" programs instead.
Picture dry, sound poor	View other TV channels. The problem might be limited to the broadcasting station or weak signal strength.Check if the audio cable is connected in correctly.
You see a distorted picture or hear an unusual sound.	You may be getting interference from electrical appliances, automobiles, motorcycles or fluorescent lights.I try moving the unit to another location to see if this is the cause of the problem
Ghosts, lines or streaks in picture	Electrical interference from nearby appliances may affect picture quality.View other TV channels. The problem might be limited to the broadcasting station or weak signal strength.
You see "noise" or "trash" on the screen	When the capabilities of the unit exceed the capabilities of the digital broadcasting, the signal will be increased to match the capabilities of the display of the unit. This may cause noise or trash
Different color marks on the TV screen	View other TV channels. The problem might be limited to the broadcasting station, missing data or pixelation.
You switch to a different input and the volume changes	This unit will memorize the volume level from the last time you adjusted itIf the volume of the sound from another device is higher or lower, then the loudness will change
You switch to a different input and the screen size changes.	This unit will memorize the viewing mode from the last time you used the particular input modes.
The display image does not cover the entire screen	For LD190EM2 make sure that [Horizontal Position] and [Vertical Position] in [PC Settings] are set correctly if you are using this unit as a PC monitor.If you are watching TV or using the Composite Video, Component Video or HDMI with 480i Input press SCREEN MODE peatedly to switch various screen modes.
Captions are displayed as a white box. No caption is displayed in the Closed Caption-supported program.	Interference from buildings or weather conditions may cause captioning to be incomplete.Broadcasting station may shorten the program to insert advert sementThe closed caption decoder cannot read the information of the shortened program
No caption is displayed when playing back a disc or a cassette tape containing capt ions	Ihedi sc or cassette tape maybe illegally copied, or he caption signal might not have been read during copying
Black box is displayed on the TV screen.	The text mode is selected for caption. Select [CC-1], [CC-2], [CC-3], [CC-4] or [Off].
Completely distorted picture or black/white picture with DVD	Make sure the di sc is compatible with the unit
Picture freezes momentarily during playback	Check the disc for finger prints/scratches and clean with a soft cloth wiping from center to edge.
Disc cannot be played.	Clean the disc.Ensure the disc is correctly inserted.Check if the disc is defective by trying another disc.Cancel the parental lock or change the control level.Insert a correct disc that plays on this unitHandle a disc with special care so that it does not have fingerprints, scratches, or dusts on its surface
Buttonsdo not wor kor the unit stops responding	To completely reset the unit, unplug the AC power cord from the power outlet for 5-10 seconds
The unit does not respond to some operating commandsd using playback	Operations may not bep ermitted by the disc. Refer to the instructions of the disc
Angle does not switch.	The angle cannot be switched for DVD which do not contain multiple angles. In some cases multiple angles are only recorded for specific scenes
Playbackd oes not start when the title is selected.	Check the [PARENTAL] setting.
The password for rating level has been forgotten	Enter the default password (4737), then your forgotten password will be cleared

Note

- The LCD panel is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a fixed point of blue, green or red.

This is not to be considered a defect in the LCD screen

- Some functions are not available in specific modes, but this is not a malfunction. Read the description in this manual for more details on correct operations

• Some functions are prohibited on some discs.

FAQ

Question Answer
My remote control does not work What should I do:	Check the antenna or cable connection to the main unitCheck the batteries of the remote control.Check if there is an obstacle between the infrared sensor window and the remote control.Test the signal output use [R Signal Check] p.41If okay, then possible infrared sensor troubleAim the remote control directly at the infrared sensor window on the front of the unit.Reduce the distance to the unitRe-insert the batteries with their polarities (+/- signs) as indicatedWhen there is an infrared-equipped device such as PC near this unit, it may interrupt the remote control signal of this unitMove the infrared-equipped device away from this unit, change the angle of the infrared sensor o 1 turn off the infrared communication function.
How come the Initial setup appears every time I turn on this unit?	Connect the RF coaxial cable to the unit directly and run the initial setup.Make sure to complete the channel scan before the unit goes into standby mode.
Why can I not watch some RF signalTV programs.	Make sure [Autoprogram] has been completed. p.19Autoprogram must be completed when you set up the unit for the first time or move it to a location where previously unavailable channels are broadcast.The selected channel may not be broadcastingWhen [Autoprogram] is interrupted and not completed, some channels will not be received. Make sure to complete the Autoprogram. p.19The selected channel cannot be viewed by the [Child Lock] setting. p.21The unit requires some kind of antenna input. An indoor antenna (VHF/UHF), an external antenna (VHF/UHF) or an RF coaxial cable from your wall cable/satellite box needs to be plugged into the unit.
How come there is no image from the connected external devices?	Check if the correct input mode is selected by pressing INPUT SELECT or using CH ▲/▼.[Switching Each Input Mode] p.14Check the antenna or cable connection to the unitWhen using the Component Video Connection check that the Green (Y), Blue (Pb/Cb) and Red (Pr / Cr) connectors are connected to their corresponding colored jacks on the unit.
When I enter a channel number, it d angles automatically.	Many digital channels have alternate channel numbers. The unit changes the numbers automatically to the ones signifying the broadcasting station channel number. These basic numbers used for previous analog broadcasts. (e.g., input ch#30 auto changes to ch#6.1)
My disc cannot be played back. Is there any way I can play my disc?	Clean the discEnsure the disc is correctly inserted.Check if the disc is defective by trying another disc.Cancel the parental lock or change the control levelInsert a correct disc bat plays back on this unit.Handle a disc with special care so that it does not have fingerprints, scratches or dusts on its surface.
Why are captions not displayed entirely? Or, captions are delayed behind the dialog.	Captions that are delayed a few seconds behind the actual dialo g are common for live broadcasts. Most captioning production companies can display a dialog to maximum of 220 words per minute. If a dialog exceeds that rate, selective editing is used dto insure that the captions remain up-to date with the current TV screen da bg.
How can I set the clock?	There is no clock function on this unit
I cannot change the [Child Lock] setting because my PIN code no longer works.	If a Power failure occurs for long er than 10 seconds the child lock setting is retained, but the PIN code is set to the default code "0000". [Child Lock] p.21

INFORMATION

Glossary

ATSC

Acronym that stands for Advanced Television Systems Committee and the name of the digital broadcasting standards.

Aspect Ratio

The width of a TV screen relative to its height. Conventional TVs are 4:3 (in other words, the TV screen is almost square); widescreen models are 16:9 (the TV screen is almost twice as wide as its height).

CEC (Consumer Electronics Control)

This allows you to operate the linked functions between our brand devices with CEC feature and this unit. We do not guarantee 100% interoperability with other brands of CEC compliant devices

Component Video

This is a video signal format that conveys each of 3 principal colors of light (red, blue and green) through different signal lines. This allows the viewers to experience picture colors as original as it is. There are several signal formats, including Y/Pb/Pr and Y/Cb/Cr.

Dolby Digital

The system developed by Dolby Laboratories to compress digital sound. It offers stereo sound (2ch) or multi-channel audio

HDMI (High-Definition Multimedia Interface)

Interface that supports all uncompressed, digital audio / video formats including set-top box, Blu-ray / DVD recorder or digital television, over a single cable.

HDTV (High Definition TV)

Ultimate digital format that produces high resolution and high picture quality.

NTSC

Acronym that stands for National Television Systems Committee and the name of analog broadcasting standards Off the air NTSC signals are no longer being sent by major broadcasting stations in the USA.

PIN code

A stored 4-digit number that allows access to parental control features

Region Code

Regions associate discs and players with particular areas of the world. This unit will only play back discs that have compatible region codes. You can find the region code of your unit by looking on the rear panel. Some discs are compatible with more than one region (or all regions).

SAP (Secondary Audio Program)

Second-audio channel delivered separately from main-audio channel. This audio channel is used as an alternate in bilingual broadcasting.

SDTV (Standard Definition TV)

Standard digital format that is similar to the NTSC picture quality

S-Video

Offers higher quality images by delivering each signal, color (c) and luminance (y) independently of each other through a single cable

Maintenance

Cabinet Cleaning

• Wipe the front panel and other exterior surfaces of the unit with a soft cloth
• Never use a solvent or alcohol. Do not spray insecticide liquid near the unit. Such chemicals may cause damage and discoloration to the exposed surfaces.

Panel Cleaning

Wipe the panel of the unit with a soft cloth. Before cleaning the panel, disconnect the ACpower cord.

Disc Handling

Handle the discs so that fi ingerprints and dust do not adhere to the surfaces of the discs.

• Always store the disc in its protective case when it is not used.
• To clean-off use a soft cloth.
• Do not use ah ard doth since this will mar the disc.
• Wipe the disc in a straight line form center to edge
• Never wipe with a circular motion
• Do not used detergent or abrasive deaming agents

Servicing

Should your unit become inoperative, do not try to correct the problem yourself. There are no user serviceable parts inside. Call our toll free customer support line found on the cover of this manual to locate an authorized service center.

If the Laser Optical Pickup Unit is Dirty

If the unit still does not perform properly when it is operated, while referring to the relevant sections and to [Tou beshooting Guide] in this manual, the laser optical pickup unit may be dirty. Consult your dealer or an Authorized Service Center for inspection and cleaning of the laser optical pickup unit.

IR Signal Check

If the remote control is not working properly, you can use a digital camera (including a cellular phone with built-in camera) to see if it is sending out an infrared signal.

With a digital camera

(including built-in cell phone cameras):

Point the Digital Camera towards the remote control infrared diode at the front of the remote control. Press any button on the remote control and look through the camera display. If the infrared pulsating light appears through the camera, the remote control is sending out an IR signal.

General Specifications

TV

TV format ATSC/NTSC-MTV standard

Closed Caption system

§15.122/FCC (digital CC) §15.119/FCC (analog CC)

Channel coverage (ATSC / NTSC)

Terrestrial DTV (ATSC)

VHF 2\~13

UHF 14\~51 each channel has e.g.) 2.1\~2.9, 3.1\~3.9, etc.

Terrestrial Analog (NTSC)

VHF 2\~13

UHF 14\~69

CATV 2\~13, A\~W,

W+1\~W+94 (analog W+1\~W+84), A-5\~A-1, 5A

Tuning system Channel frequency synthesized tuning system

Channel access Direct access keyboard, Programmable scan, and up / down

DVD

Discs (playback compatibility)

DVD-video, DVD-RW/-R, audio CD, CD-RW/-R

Frequency response

DVD (linear sound) 20 Hz to 20 kHz (sample rate: 48 kHz) 20 Hz to 44 kHz (sample rate: 96 kHz)

CD 20 Hz to 20 kHz

Signal-to-noise ratio (S/N ratio)

CD 90 dB (JEITA)

Total distortion factor

DVD 1 KHz 0.007% (JEITA)

CD 1 KHz 0.007% (JEITA)

Other Specifications

Terminals

Antenna Input VHF/UHF/CATV 75 Ω unbalanced (F-type)

Audio Input RCA jack (L/R) × 6 500mV rms

Composite Video Input

RCA jack × 1 1V p-p (75 Ω)

S-Video Input

Mini DIN 4 pin jack x 1 Y 1V p-p (75Ω)

C 286 mV p-p (75Ω)

Component Video Input

RCA jack × 3 Y 1V p-p (75 Ω)

Pb/Cb 700 mV p-p (75Ω)

Pr/Cr 700 mV p-p (75Ω)

HDMI Input HDMI 19 pin x 2

Digital Audio Output (coaxial)

RCA jack × 1 500mV p-p (75 Ω)

Analog Audio Output

RCA jack (L/R) × 2 500 mV rms

PC Input D-Sub 15 pin × 1(RGB)

Mini jack ø3.5mm x 1(audio)

Headphone Audio Output

1/8 inches × 1(3.5mm)

Remote control

Digital encoded infrared light system

Operating temperature

41 °F (5 °C) to 104 °F (40 °C)

Power requirements

120V\~AC+/-10%,60Hz+/-0.5%

32"

Power consumption (maximum)

150W

LCD 32 inches (31.5 inches measured diagonally)

Audio Output 10W, 8Ω × 2

[LD320EM2]

Dimensions

Width 30.0 inches (760.0 mm) 30.0 inches (760.0 mm)

Height 20.5 inches (519.3 mm) 22.2 inches (563.0 mm)

Depth 4.5 inches (114.0 mm) 9.4 inches (238.0 mm)

Weight 19.19 lbs. (8.70kg) 20.29 lbs. (9.20kg)

26"

Power consumption (maximum)

135W

LCD 26 inches

Audio Output 10W, 8Ω × 2

[LD260EM2]

Dimensions

Width 25.9 inches (656.0 mm) 25.9 inches (656.0 mm)

Height 17.7 inches (448.0 mm) 19.2 inches (487.0 mm)

Depth 5.4 inches (135.0 mm) 9.4 inches (238.0 mm)

Weight 15.46 lbs. (7.01 kg) 16.56 lbs. (7.51 kg)

19"

Power consumption (maximum)

57W

LCD 19 inches (18.5 inches measured diagonally)

Audio Output 1W, 16Ω × 2

[LD190EM2]

Dimensions

Width 18.8 inches (477.5 mm) 18.8 inches (477.5 mm)

Height 13.1 inches (330.4 mm) 14.5 inches (365.8 mm)

Depth 5.0 inches (125.0 mm) 8.3 inches (210.0 mm)

Weight 9.26 lbs. (4.20 kg) 9.93 lbs. (4.50 kg)

• Designs and specifications are subject to change without notice and without our legal obligation.
• If there is a discrepancy between languages, the default language will be English.

LIMITED WARRANTY NINETY (90) DAY LABOR / ONE (1) YEAR PARTS

WARRANTY COVERAGE:

Thiswarrantyobligationislimitedtothetermsassetforth below.

WHO IS COVERED:

Thisproductwarrantyisissuedtotheoriginalpurchaserorthe personreceivingtheproductasagiftagainstdefectsinmaterials andworkmanshipasbasedonthedateoforiginalpurchase ("WarrantyPeriod")fromanAuthorizedDealer. Theoriginal salesreceiptshowingtheproductnameandthepurchasedate fromanauthorizedretailerisconsideredsuchproof.

WHAT IS COVERED:

Thiswarrantycoversnewproductsifadefectinmaterialor workmanshipoccursandavalidclaimisreceivedwithinthe WarrantyPeriod.Atitsoption,thecompanywilleither(1) repairtheproductatnocharge,usingneworrefurbished replacementparts,or(2)exchangetheproductwithaproduct thatisneworwhichhasbeenmanufacturedfromnew,orserviceableusedpartsandisatleastfunctionallyequivalentormost comparabletotheoriginalproductincurrentinventory,or(3) refundtheoriginalpurchasepriceoftheproduct. Replacementproductsorpartsprovidedunderthiswarrantyare coveredagainstdefectsinmaterialsandworkmanshipfromthe dateofthereplacementorrepairforninety(90)daysorforthe remainingportionoftheoriginalproduct'swarranty,whichever provideslongercoverageforyou.Whenaproductorpartis exchanged,anyreplacementitembecomesyourpropertyandthe replaceditembecomescompanyproperty.Whenarefundis given,yourproductbecomescompanyproperty.

Note: Any product sold and identified as refurbished or renewed carries a ninety (90) day limited warranty.

Replacement product can only be sent if all warranty requirements are met. Failure to follow all requirements can result in delay.

WHAT IS NOT COVERED - EXCLUSIONS AND LIMITATIONS:

ThisLimitedWarrantyappliesonlytonewcompanymanufac- tured products that can be identified by the trademark, trade name, or logo affixed to it. This Limited Warranty does not apply toanyhardwareproductoranysoftware,evenifpackagedor soldwiththeproduct,asmanufacturers,suppliers,orpublishers mayprovideaseparatewarrantyfortheirownproductspack- agedwiththebundledproduct.

The company is not liable for any damage to loss of any programs, data, or other information stored on any media contained within the product, or other additional product part not covered by this warranty. Recovery or installation of programs, data or other information is not covered under this Limited Warranty.

Thiswarrantydoesnotapply(a)todamagecausedbyaccident, abuse,misuse,neglect,misapplication,ornon-suppliedproduct, (b)todamagecausedbyserviceperformedbyanyoneotherthan companyapprovedAuthorizedServiceLocation,(c)toaproduct or a part that has been modified without written company permission, or (d) if any serial number has been removed or defaced, or (e) product, accessories or consumable sold "ASIS" without warranty of any kind by including refurbished products sold "AS IS" by someretailers.

This Limited Warranty does not cover:

•Shippingchargestoreturndefectiveproduct.

• Laborcharges for installation or setup of the product, adjustment of customer control on the product, and installation or repair of antenna /signals or systems outside of the product.
- Productrepairand/orpartreplacementbecauseofimproper installationormaintenance,connectionstoimpropervoltage supply,powerlinesurge,lightningdamage,retainedimagesor screen markings resulting from viewing fixed stationary contentforextendedperiods,productcosmeticappearanceitems duetonormalwearandtear,unauthorizedrepairorother causenotwithinthecontrolofthecompany.
• Damageorclaimsforproductsnotbeingavailableforuse,or forlostdataorlostsoftware.
•Damagefrommishandledshipmentsortransitaccidentswhen returningproduct.

- A product that requires modification or adaptation to enable ittooperateinanycountryotherthanthecountryforwhich itwasdesigned,manufactured,approvedand/orauthorized,or repair of products damaged by these modifications.

• A product used for commercial or institutional purposes (including but not limited to rental purposes).
- Product lost in shipment and no signature verification receipt can be provided.
•FailuretooperateperOwner'sManual.

TO OBTAIN ASSISTANCE...

ContacttheCustomerCareCenterat: 1-866-309-8819

REPAIRORREPLACEMENTASPROVIDEDUNDERTHIS WARRANTYISTHEEXCLUSIVEREMEDYFORTHECONSUMER, WITHTHEISSUINGCOMPANYNOTLIABLEFOR ANYINCIDENTALORCONSEQUENTIALDAMAGESFOR BREACHOFANYEXPRESSORIMPLIEDWARRANTYON THISPRODUCT.EXCEPTTOTHEEXTENTPROHIBITEDBY APPLICABLELAW, ANYIMPLIEDWARRANTYOFMERCHANTABILITYORFITNESSFORAPARTICULARPURPOSE ONTHISPRODUCTISLIMITEDINDURATIONTOTHE DURATIONOFTHISWARRANTY.

Somestatesdonotallowtheexclusionsorlimitationofincidentalorconsequentialdamages,orallowlimitationsonhowlonganimpliedwarrantylasts,sotheabovelimitationsorexclusionsmaynotapplytoyou.

This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.

FUNAI CORPORATION, Inc. 19900 Van Ness Avenue, Torrance, CA 90501
