703i - Loudspeaker OWI - Free user manual and instructions

Product Type	Desktop Speaker
Brand	OWI
Model	703i
Dimensions (approx.)	10 x 10 x 10 cm (3.9 x 3.9 x 3.9 inches)
Weight	0.5 kg (1.1 lbs)
Power Source	USB 5V DC (cable included)
Output Power	3W RMS
Frequency Response	100 Hz - 20 kHz
Connectivity	3.5mm AUX input
Controls	On/Off volume knob with LED indicator
Driver Unit	Full-range 40mm driver
Impedance	4 Ohms
Signal-to-Noise Ratio	≥ 80 dB
Compatibility	Smartphones, tablets, PCs, MP3 players
Housing Material	ABS plastic
Installation	Plug and play, no drivers needed
Care Instructions	Wipe with dry cloth; avoid moisture and extreme temperatures
Safety Precautions	Do not open device; keep away from water; unplug when not in use
Spare Parts Availability	Contact OWI support for replacement cables or drivers
Warranty	1 year limited

Frequently Asked Questions - 703i OWI

How do I power on the OWI 703i speaker?

Rotate the volume knob clockwise until you hear a click and the LED lights up. The LED indicates the speaker is on.

What devices can I connect to the speaker?

Use the 3.5mm AUX cable (included) to connect any device with a headphone jack, such as smartphones, tablets, laptops, or MP3 players.

Why is there no sound coming from the speaker?

Ensure the speaker is powered on (LED lit), the volume is turned up, and the connected device is playing audio. Also check the AUX cable is fully inserted into both devices.

Can I use the speaker while charging?

Yes, the speaker can be used while connected to USB power. It does not have a built-in battery, so it must remain plugged in to the USB port.

How do I clean the speaker?

Use a soft, dry cloth to wipe the exterior. Do not use any liquids or abrasive cleaners, as they may damage the speaker.

Is the speaker compatible with Bluetooth?

No, the OWI 703i is a wired speaker only. It does not support Bluetooth connectivity.

What is the maximum volume level?

The volume is controlled by the knob. Turn it clockwise to increase volume. Avoid setting the volume too high, as it may cause distortion.

Can I use a different USB power adapter?

Yes, any standard USB power adapter (5V, 500mA or higher) should work. Avoid using fast-charging adapters as they may cause noise.

What should I do if the AUX cable is loose?

Ensure the cable is fully inserted. If the connection is still loose, try a different AUX cable. Contact OWI support if the issue persists.

Where can I find the user manual?

The user manual can be downloaded for free from the official OWI website or from the product page on notice-facile.com.

USER MANUAL 703i OWI

Surface Mount Speaker

Black portable electronic device with handle and front panel (no visible text or symbols)

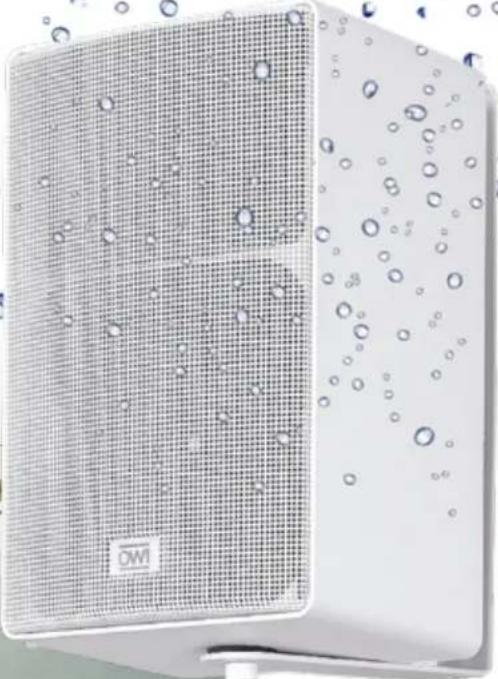

Close-up of a white electronic device with water droplets and a small logo (no readable text or symbols)

COMMERCIAL/RESIDENTIAL

• Professional Commercial or Residential Speaker
- Selectable Switch - 70 V and 8 Ω Combination
- 70 V Transformer Taps – 2.5, 5, 10, 15 W
• Maximum Power at 8 Ω – 100 W
• Weatherized Aluminum Casing, Grill and Bracket
- Ceiling or Wall Mount Possibilities with the Included "U" Mount Bracket
- Ideal for Outdoor Malls, Hotels, Spas, Restaurants, Patios, Amusement Parks
- Dimensions (H x W x D): 7" x 4.5" x 4"
- Black or White
- 5 Year Warranty

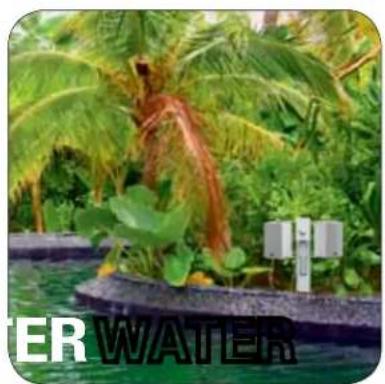

Exterior view of a tropical garden with palm trees, water channels, and a wall-mounted device (no signage)

Envirōtainment™

ALL WEATHER PROTECTION SPEAKER

"WEATHERIZED"

Model: 703i Surface Mount Speaker

Black rectangular electronic device with handle and ventilation slots (no visible text or symbols)

Exterior view of a modern office building (no signage)

• Professional Commercial or Residential Speaker
- Selectable Switch – 70 V and 8 Ω Combination
- 70 V Transformer Taps – 2.5, 5, 10, 15 W
• Weatherized Aluminum Casing, Grill and Bracket
- Ceiling or Wall Mount Possibilities with the Included "U" Mount Bracket
- Ideal for Outdoor Malls, Hotels, Spas, Restaurants, Patios, Amusement Parks
- Black or White
• 5 Year Warranty

GENERAL SPECS 703i

Description: 4", 3-Way Speaker

Enclosure: Aluminum Diecast

Outdoor Rated (All Weather): Yes

Selectable Switch: 70 V and 8 Ω Combination

70 V Transformer Taps: 2.5, 5, 10, 15 Watts

Sensitivity (1W / 1M): 88 dB

Power Handling at 8 Ω: 100 W Max., 50 W Nom.

Frequency Response: 90 Hz - 20 kHz

Crossover: 9 kHz

Dispersion: 140°

Woofer Diameter: 4"

Woofer Material: Paper Coated / Rubber Surround

Tweeter(s): 2 Each

Tweeter Size: 0.6" (15 mm) Piezo /

0.5" (13 mm) Dome

Tweeter Material: PEI

Grill Material: Aluminum

Dimensions (H x W x D): 7" x 4.5" x 4"

Weight: 4.7 Lbs.

"U" Mount Bracket: Included

Color(s): Black, White

Warranty: 5 Years

OPTIONS AVAILABLE

Stake:

SS36 - 36"In-Ground Stainless Steel Stake

Attenuators:

OWI1070M - Mono, 70 V, 10 W Max.

OWI3570M - Mono, 70 V, 35 W Max.

OWI7570M - Mono, 70 V, 75 W Max.

OWI2570S - Stereo, 70 V, 25 W Max.

Volume Controls:

25WPVC - 25 W, Waterproof, Impedance Matching

72WPVC - 72 W, Waterproof, Impedance Matching

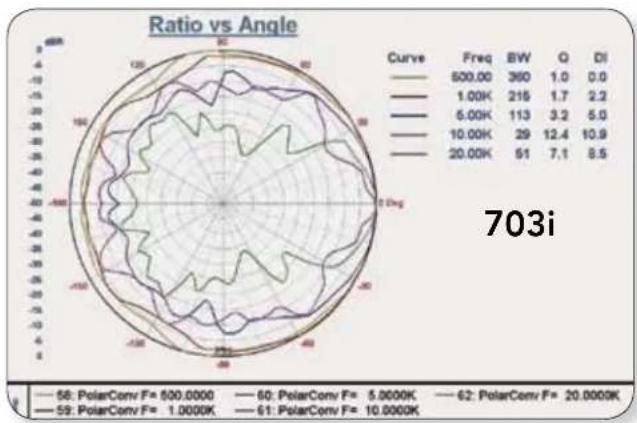

POLAR CHARTS

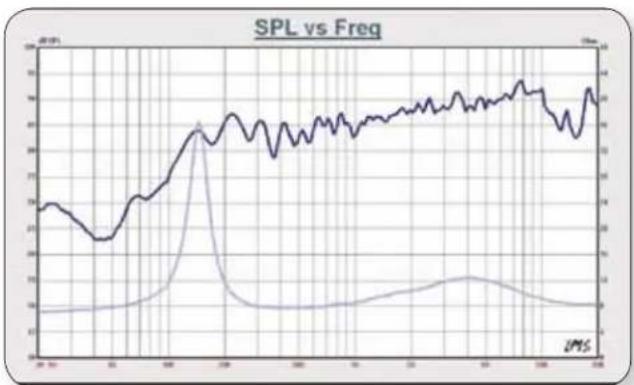

FREQUENCY RESPONSE CHART

OWI Incorporated Established 1978

OWI, Inc.

17141 Kingsview Ave.

Carson, CA 90746 USA

ph. 310.515.1900

toll free 800.638.1694

fax [phone]

email [e-mail]

web www.owi-inc.com
