Brand	Morel
Model	MXR300.4
Product Category	Hi-Fi System (Crossover)
Type	Passive crossover for 3-way systems
Crossover Frequencies	Woofer: 500Hz @ 12dB/Oct; Midrange: 2200Hz @ 12dB/Oct; Tweeter: 2200Hz @ 8dB/Oct
Tweeter Level Control	+/- 2 dB
Compatible Drivers	Hybrid MW4MKII, MW5MKII, MW6MKII, Integra 42/52/62, MT300 Tweeter, CDM700 Midrange
Wiring Options	N/A (fixed wiring)
Dimensions (Approx.)	Not specified in manual; typical crossover size ~ 150 x 100 x 40 mm
Weight (Approx.)	Not specified; estimated ~ 0.5 kg
Power Handling	Compatible with speakers up to 140W RMS (woofer) and 130W RMS (tweeter/midrange)
Impedance	Designed for 4 ohm woofers, 6 ohm tweeter, 8 ohm midrange
Material	High-quality components (details not specified)
Installation	Mounting holes for secure placement; use included screws
Warranty	Contact Morel dealer or support
Country of Origin	Israel (Morel main office)
Certification	Genuine product verification via sticker

Frequently Asked Questions - MXR300.4 Morel

What is the MXR300.4 crossover used for?

The MXR300.4 is a passive crossover designed for 3-way car audio systems, splitting the audio signal for woofer, midrange, and tweeter.

What are the crossover frequencies of the MXR300.4?

Woofer low-pass at 500Hz (12dB/Oct), midrange band-pass at 2200Hz (12dB/Oct), and tweeter high-pass at 2200Hz (8dB/Oct).

Can I use the MXR300.4 with 2-way systems?

No, it is specifically designed for 3-way systems. For 2-way, use dedicated crossovers like MXR240.4.

How do I adjust the tweeter level?

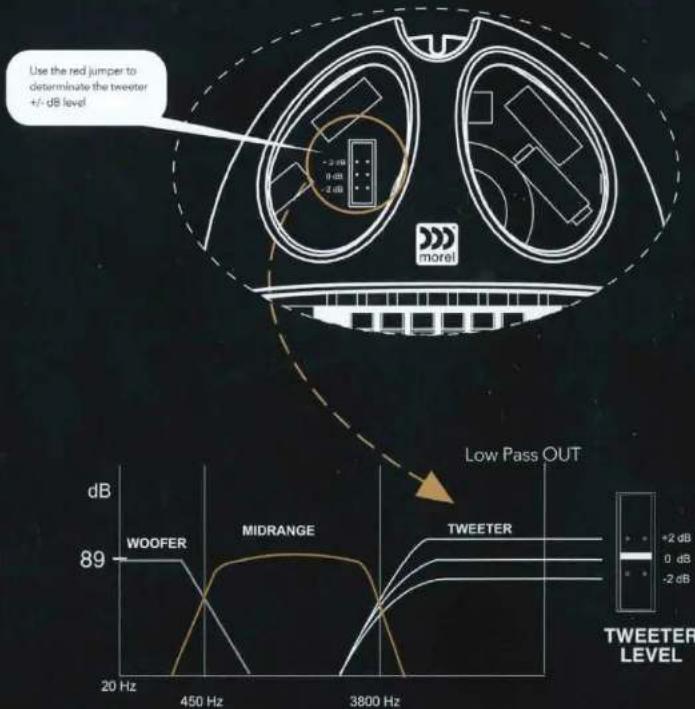

The MXR300.4 has a +/- 2dB tweeter level control to fine-tune the high-frequency output.

What speakers are compatible with MXR300.4?

It works with Hybrid woofer/integra (4/5.25/6.5 inch), MT300 tweeter, and CDM700 midrange from Morel.

Is the MXR300.4 easy to install?

Yes, it includes mounting holes and screw clips for secure placement. Refer to the installation guide for wiring diagrams.

What impedance does the MXR300.4 support?

It is designed for 4 ohm woofers, 6 ohm tweeter, and 8 ohm midrange.

How can I verify if my MXR300.4 is genuine?

Use the verification slip from the package over the sticker on the product. The word 'Genuine' should appear.

Where can I find the full specifications?

Detailed specs are in the user manual at www.morelhifi.com.

What is the warranty for MXR300.4?

Contact your Morel dealer or support via [e-mail] for warranty details.

USER MANUAL MXR300.4 Morel

Hybrid Installation Guide

Hybrid

42,52,53,62,63

Hybrid Integra

42,52,62

Components

MW4MKII, MW5MKII, MW6MKII, MT300, CDM700, MXR240.4, MXR250int, MXR300.4

Dear Customer,

Thank you for choosing Morel for your car audio speaker solution.

Morel prides itself on engineering and producing the best high-fidelity speaker systems.

We hope you enjoy your Hybrid speakers for years to come.

If you have any questions, please contact your Morel dealer or Morel support at

www.morelhifi.com

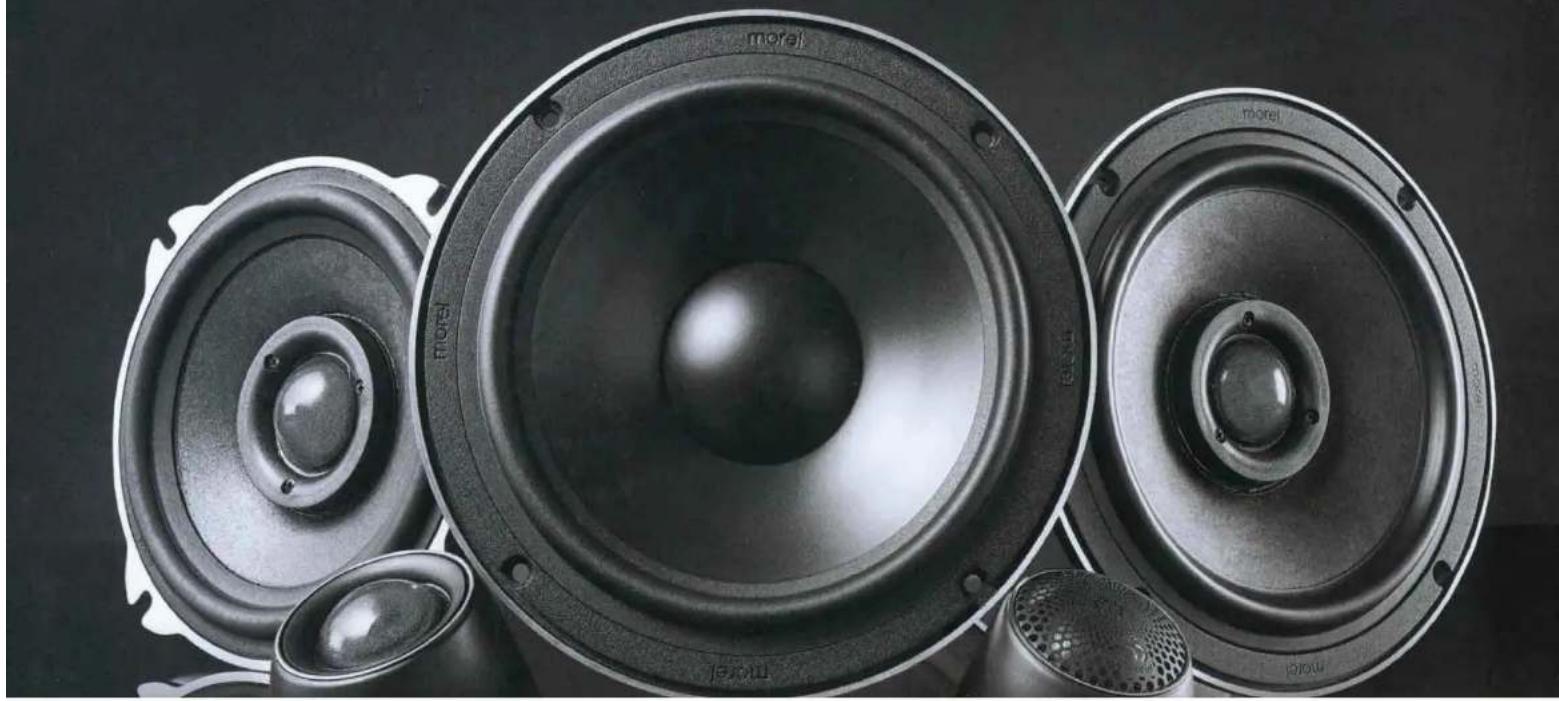

Close-up of three black speaker speakers with visible sound waves and filter components (no text or symbols)

Hybrid Components

Hybrid 4", 5.25", 6.5" Woofer

X2

X2

X8

X8

(4")
X2

(5.25")
X2

(6.5")
X2

Hybrid 4", 5.25", 6.5" Integra

X2

X2

X8

X8

(4")
X2

(5.25")
X2

(6.5")
X2

MT300 Tweeter

X2

X2

X2

X4

X2

X2

SURFACE
OPTIONS

CDM700 Midrange

X2

X2

X6

X8

MXR240.4/250int/300.4

X2

X6

X6

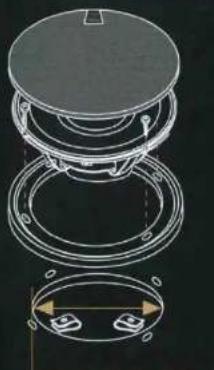

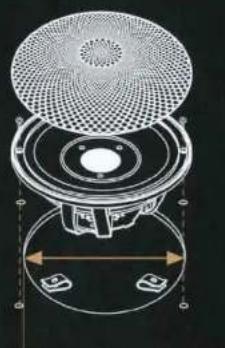

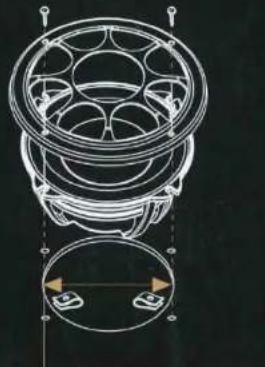

Hybrid Woofer/Integra, Tweeter, Crossover mounting

Unit 4", 5.25", 6.5"

Technical line drawing of a speaker or speaker assembly with no visible text or symbols

4":ø95mm(3.74")

Technical line drawing of a mechanical component with circular and rectangular features (no text or symbols)

5.25":ø120mm(4.72")

Cross-sectional diagram of a mechanical device with internal components and labeled parts (no text or symbols)

6.5":ø141mm(5.55")

MT300 Tweeter

Flush Mount

1

Surface Mount

1

3

4

3

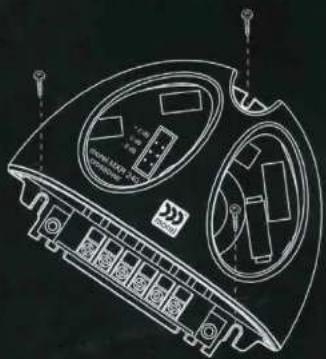

Crossover mounting

Technical line drawing of a mechanical device with labeled components (no readable text or symbols)

CDM700 Midrange

Use the screw clips in any combination, with or without the plastic frame. These clips can be used either way up or down depending on installation requirements.

3.5":ø75.5mm(2.97")

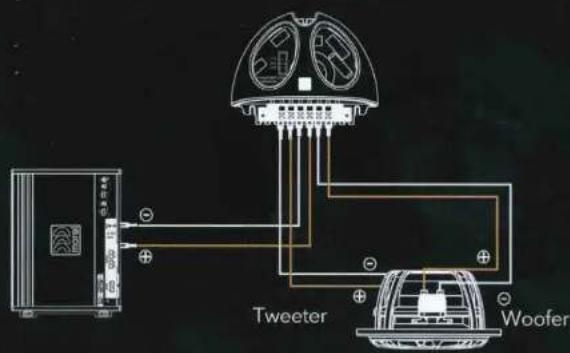

2-WAY System

2-WAY System Wiring

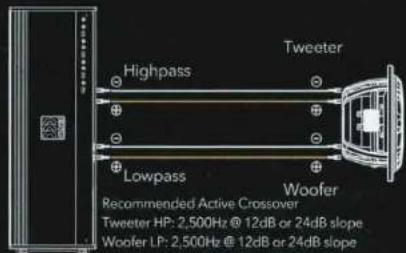

ACTIVE SET UP

Recommended Active Crossovers
2-Way Component Systems
Tweeter HP: 2,500Hz @ 12dB or 24dB slope
Woofer LP: 2.500Hz @ 12dB or 24dB slope

PASSIVE SET UP

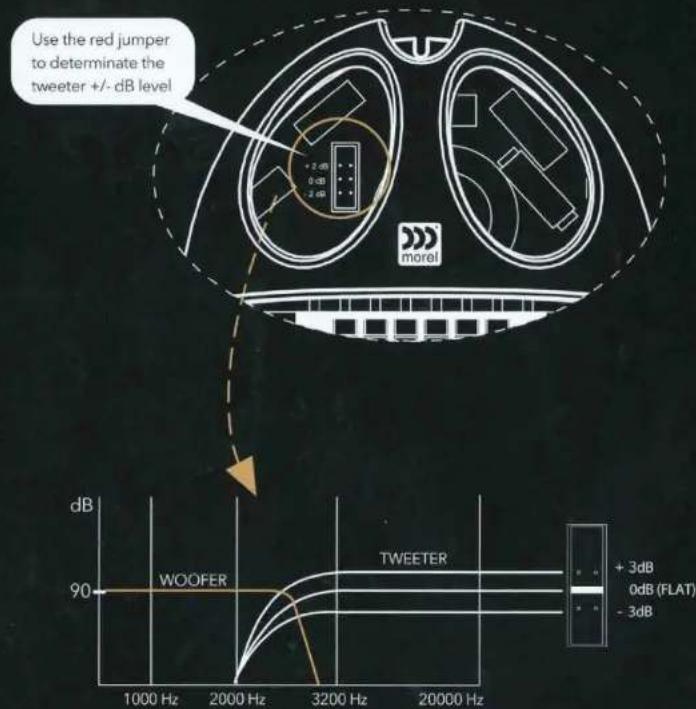

2-WAY System Alignment

3-WAY System

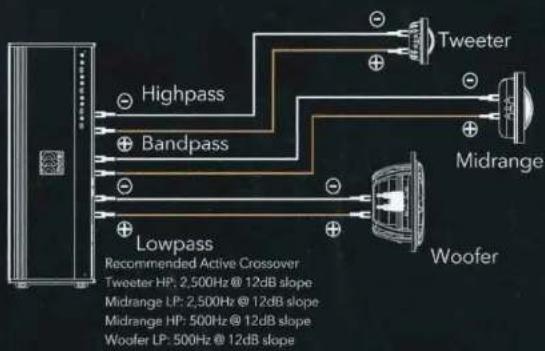

3-WAY System Wiring

ACTIVE SET UP (Outputs must be filtered)

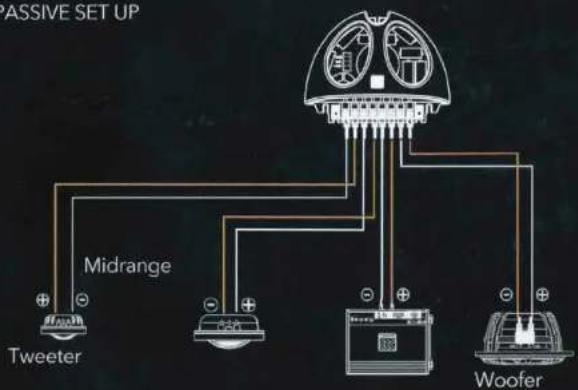

PASSIVE SET UP

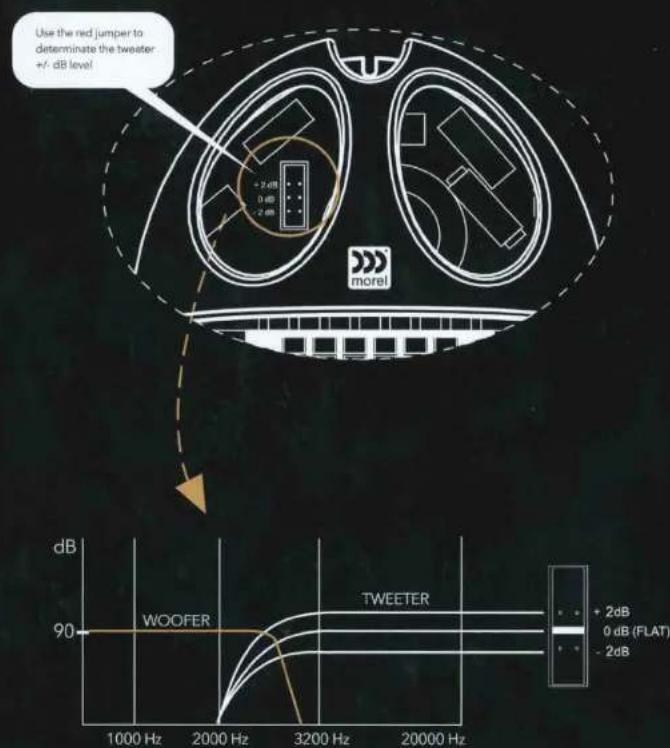

3-WAY System Alignment

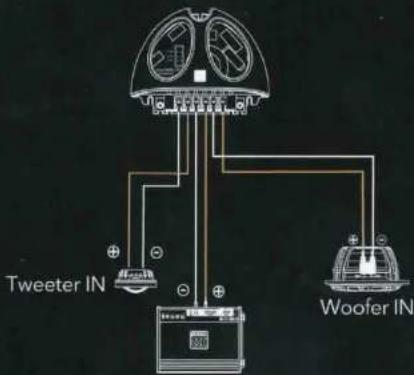

Integra System

Hybrid Integra System Wiring
ACTIVE SET UP

PASSIVE SET UP

Hybrid Integra System Alignment

Specifications

DRIVER UNIT	HYBRID MW4MKII	HYBRID MW5MKII	HYBRID MW6MKII	HYBRID INTEGRA 42	HYBRID INTEGRA 52	HYBRID INTEGRA 62
Nominal Impedance (Ohms)	4	4	4	4	4	4
Power Handling Wims	100	120	140	60	90	100
Max. Trans.Pwr Handling Wims	300	500	600	250	250	300
Sensitivity (2.8V/1M)	89 dB	90dB	91 dB	89dB	90dB	91dB
Frequency Response Hz	50-4200	45-3000	35-3000	80-5000	70-3800	65-3300
Resonant Freq. Fs Hz	82	56	45	92	82	75
Voice Coil Diameter mm (inch)	54 (2.1)	54 (2.1)	54 (2.1)	54 (2.10)	54 (2.1)	54 (2.1)
Voice Coil Height mm (inch)	10.50 (0.41)	10.50 (0.41)	11 (0.47)			12
Voice Coil Type/ Former	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
Voice Coil Wire	HexatechTM aluminum	HexatechTM aluminum	HexatechTM aluminum	HexatechTM aluminum	HexatechTM aluminum	HexatechTM aluminum
DC Resistance (Ohms)	3.2	3	3	3	3.3	3.3
Voice Coil Induct. @1 kHz (MHz)	0.21	0.21	0.22	0.17	0.26	0.31
Magnet System	Hybrid rear vented	Hybrid rear vented	Hybrid rear vented	Neodymium	Neodymium	Neodymium
HE-Magnetic Gap Height mm (inch)	4 (0.16)	4 (0.16)	4 (0.16)	4 (0.16)	5 (0.20)	5 (0.20)
B-Flux Density (T.M.)	0.83	0.83	0.83	0.9	0.9	0.85
BL Product/BXL	4.16	4.2	4.2	3.97	5.16	4.65
Max. Linear Ex./Xmax mm (inch)	7±3.5 (0.28±0.14)	7±3.5 (0.28 ± 0.14)	7±3.5 (0.28±0.14)	4±2 (0.16±0.08)	5.50±2.75 (0.22±0.11)	7±3.5 (0.28±0.14)
Suspension Compliance CMS - mm/N	0.57	0.78	1.1	0.66	0.6	0.42
Electrical Q Factor QES	0.63	0.59	0.56	0.45	0.39	0.67
QTS	0.46	0.45	0.44	0.36	0.32	0.54
CMS	1.74	1.8	2.08	1.72	1.85	2.86
Mech.Resistance RMS - Ohm/meter	1.98	1.96	1.5	1.44	1.7	1.52
Moving Mass MMS - gr/ ounce	6.8	9.9	11	4.4	6.11	8.12
Equiv. Can Air Load VAS - L (cu.ft)	3.17 (0.11)	8.87 (0.31)	21 (0.74)	1.40 (0.04)	2.72 (0.37)	3.80 (0.13)
Effective Platon Area SD sq. cm (sq. inch)	84 (9.92)	90 (13.95)	119 (18.45)	39 (6.04)	57 (8.83)	80 (37.8)
Cone Type	One-piece formed	One-piece formed	One-piece formed	Formed Paper	Formed Paper	Formed Paper
Cone Material	DPC	DPC	DPC	Composite cellular fiber	Composite cellular fiber	Composite cell. fiber
Unit Diameter mm (inch)	104 (4)	135 (5.25)	165 (6.50)	104 (4.0)	135 (5.25)	165 (6.5)
Mounting Depth mm (inch)	50 (21)	60 (2.35)	61 (2.40)	50 (2.1)	60 (2.36)	61 (2.40)
Mounting Cutout mm (inch)	95 (3.74)	120 (4.72)	141 (5.55)	95 (3.74)	120 (4.72)	141 (5.55)
Net Weight Kg (lb)	0.53 (1.1716)	0.60 (1.32)	0.60 (1.32)	0.50 (1.10)	0.60 (1.32)	0.75 (1.65)

TWEETER / MIDRANGE	MT300	CDM700
Nominal Impedance (Ohm)	6	8
Power Handling (WRms)	130	100
Max Transient Power Handling W (10ms)	350	300
Sensitivity (2.8W/1M) dB	93	90
Frequency Response Hz	1600-25000	600-8000
FS Hz	1200	480
Voice Coil Diameter mm (inch)	28 (1.125)	54 (2.125)
Voice Coil Former	Aluminum	Aluminum
Voice Coil Wire	HexatechTM Aluminium	HexatechTM Aluminium
DC Resistance Ohm	5.2	3.5
Magnet System	Double Magnet Neodymium	Neodymium Pear Vented
Dome Type	AcuflexTM Hand Coated Soft Dome	Coated Soft Dome
Dome Material	Silk	Silk
Unit Diameter mm (inch)	45.00 (1.8)	88.00 (3.50)
Mounting Depth mm (inch)	20.00 (0.60)	21.00 (0.83)
Mounting Cutout mm (inch)	50.00 (2.00)	75.50 (2.97)
Net Weight Kg/(b)	0.067 (0.134)	0.25 (0.55)

CROSSOVER	MXR240.4	MXR250in	MXR300.4
Crossover Plant	W: 2200Hz / 18dB	2200Hz / 12dB/Oct	W: 500Hz / 12dB
	T: 2200Hz / 12dB		M: 18dB/ 2200Hz / 12dB
			T: 2200Hz / 8dB
Crossover Controls	Tweeter+/- 3dB	Tweeter+/- 2dB	Tweeter+/- 2dB
Wiring Options	N/A	N/A	N/A

* Morel operates a policy of continuous product design improvement.
consequently specifications are subject to alteration without prior notice.

Morel, Ness Ziona, 70400 Israel.

Tel:[phone]

Fax: [phone]

E-mail: [e-mail]

Morel America, Chandler, AZ, USA

Toll free number:1-877-667-3511

Fax:[phone]

E-mail: [e-mail]

www.morelhifi.com

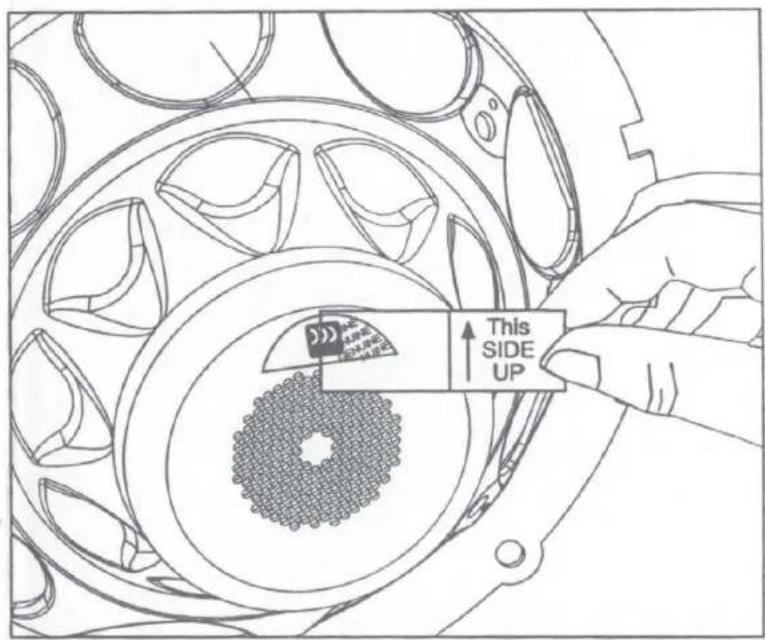

Verifying your Genuine Morel Product In light of counterfeit products that have appeared in some markets, Morel enables you to verify the authenticity of your purchase.

1. Remove the verification slip from the nylon bag that contains your Installation Guide.
2. Place it over the verification sticker found on the bottom of each Genuine Morel product.
3. The word "Genuine" should become visible.
4. If not, we recommend that you return the product to your point of purchase.
