Product Type	GPS Navigation Device
Model	Mio Moov M401
Display	Color touchscreen (approx. 4.3 inches)
Dimensions	Approx. 128 x 82 x 20 mm
Weight	Approx. 200 g
Power Source	Internal lithium-ion polymer battery (non-replaceable), in-car charger (12V), optional home charger
Battery Life	Up to 3 hours of operation
GPS Antenna	Internal, requires unobstructed view of sky
Navigation Features	Address entry, Points of Interest (POI), multi-stop trips, favorites, recent locations, NavPix geotagged photos, Mio Connect (local search), TMC traffic (select models)
Map Functions	3D and 2D map views, turn-by-turn instructions, route overview, traffic overview, auto-rerouting (Back-On-Track)
Memory	Internal flash (approx. 2 GB), expandable via microSD (unspecified)
Connectivity	USB 2.0 (mini-USB), FM TMC traffic receiver (optional accessory)
Audio	Built-in speaker, voice guidance, volume control
Languages	Multiple languages supported (English, French, German, etc.)

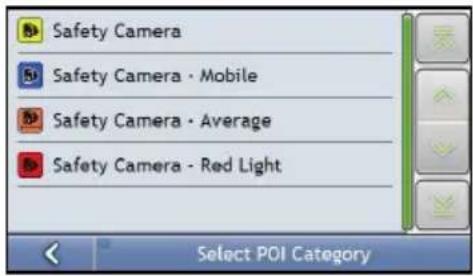

Safety Features	Safety camera alerts (with subscription), speed warnings, driver alerts
Mounting	Windshield suction mount or dashboard disk (alternative provided)
Maintenance	Clean with soft, lint-free cloth; avoid moisture and extreme temperatures
Repairability	Non-user-serviceable; battery not replaceable; do not disassemble
Regulatory Compliance	FCC Part 15, Industry Canada ICES-003

Frequently Asked Questions - Moov M401 MIO

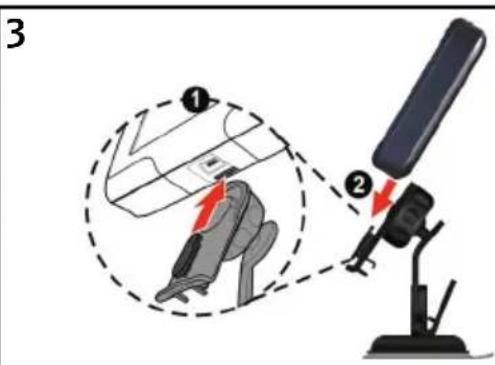

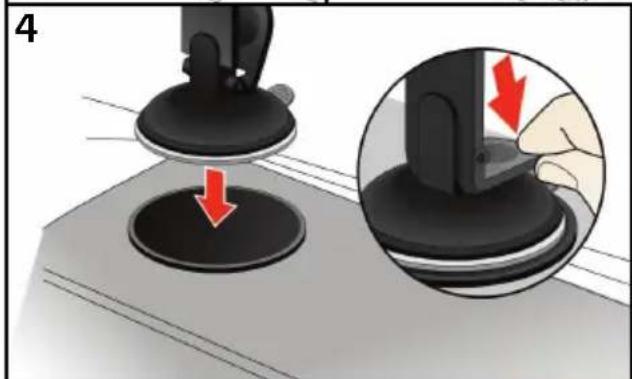

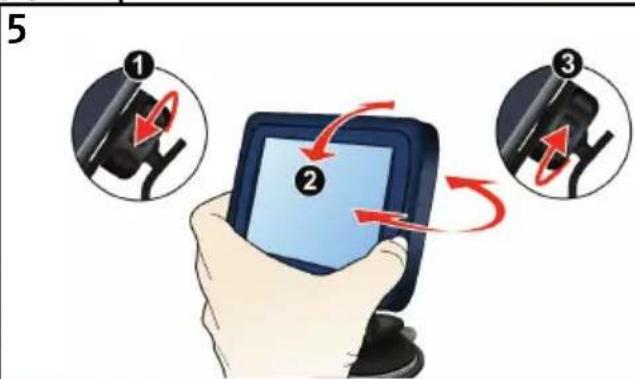

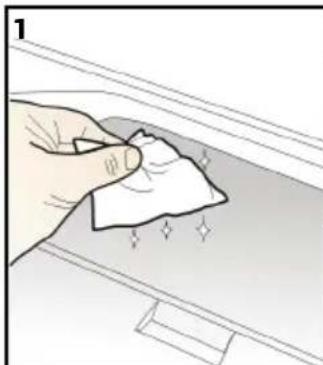

How do I install my Mio Moov M401 in a vehicle?

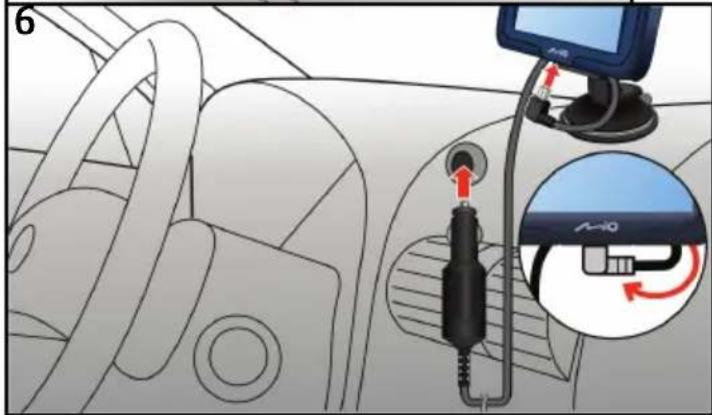

Follow these steps: 1) Clean the windshield area. 2) Attach the suction mount to the windshield. 3) Connect the cradle to the mount. 4) Slide the Mio into the cradle until it clicks. 5) Plug the car charger into the vehicle's power socket and connect to the Mio. Ensure the device does not obstruct the driver's view or interfere with airbags.

How do I charge the battery?

You can charge the Mio using the included in-car charger (connect to vehicle power socket) or an optional home charger (connect to mains). The battery status is shown on the Power screen. Charging stops if temperature is below 0°C (32°F) or above 40°C (104°F). A full charge provides up to 3 hours of use.

How do I navigate to an address?

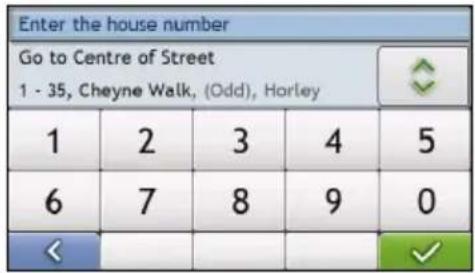

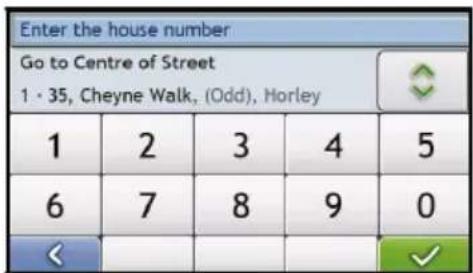

From the Main Menu, tap Address. Select the country (if multiple maps installed), then enter the city/area, street name, and house number using the on-screen keyboard. Tap the destination to preview, then tap Go to calculate the route. The 3D Map screen displays turn-by-turn directions.

How do I avoid a specific area on my route?

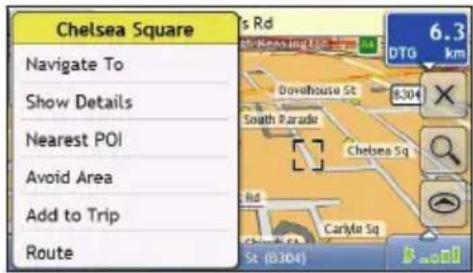

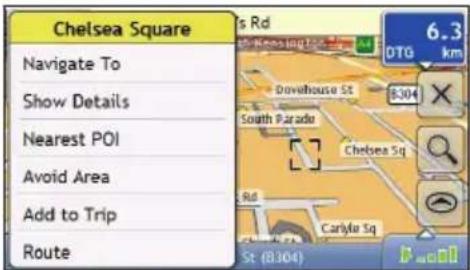

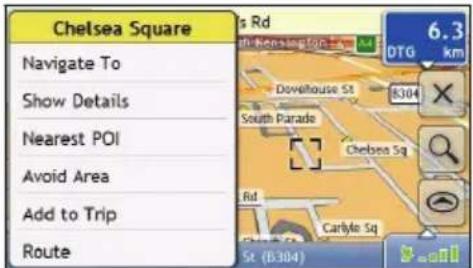

On the 3D or 2D Map screen, tap the map to open the Map Menu. Select Avoid Area. Tap and drag on the map to define the area you want to avoid. The shaded area will be avoided during route calculation. To delete an avoid area, tap it and select Un-Avoid Area.

What is NavPix and how do I use it?

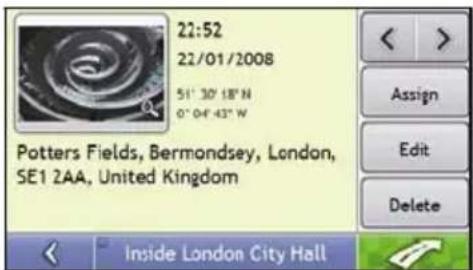

NavPix are photos with embedded GPS coordinates that allow you to navigate to the location where the photo was taken. To use, go to the NavPix album, select a photo, and tap Go to navigate. You can also save NavPix as favorites or POIs. NavPix can be downloaded from the internet via MioMore Desktop.

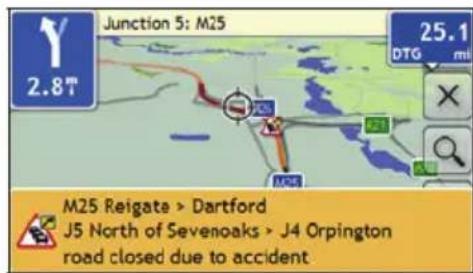

How do I receive traffic information?

Traffic information requires an optional TMC accessory (sold separately) and connection to the in-car charger. The TMC icon on the map screens indicates status: green (active), orange (limited), or grey (inactive). Traffic events appear on the map and a list. You can choose to detour around events automatically or manually.

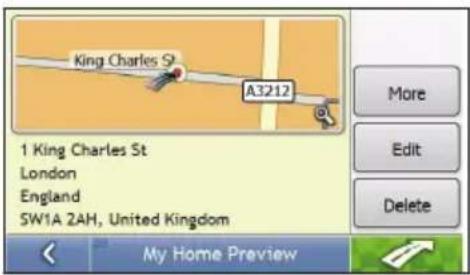

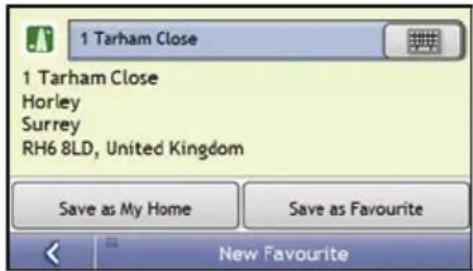

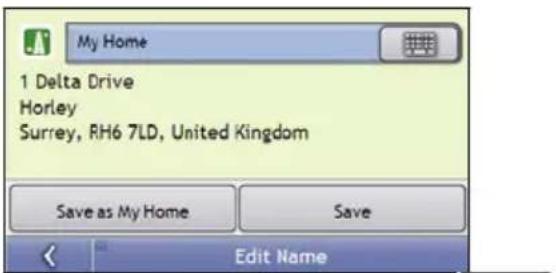

How do I save a destination as a favorite or My Home?

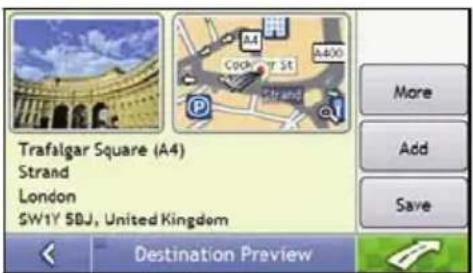

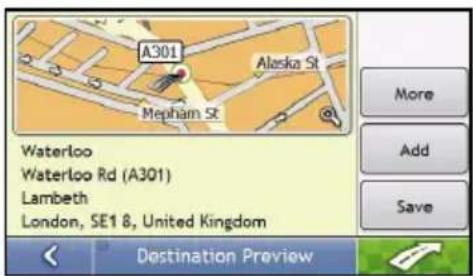

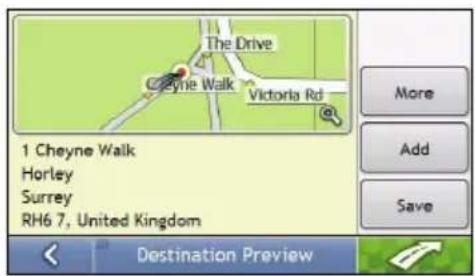

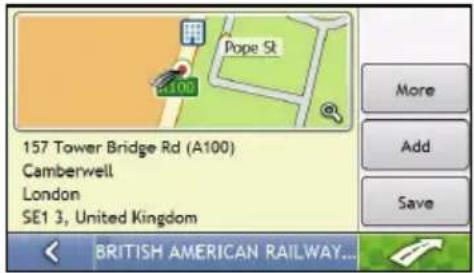

After searching for an address and reaching the Preview screen, tap Save. Choose Save as Favourite or Save as My Home. You can rename the favorite using the keyboard. My Home is a special favorite that appears on the Main Menu for quick access. Up to 200 favorites can be stored.

How do I perform a hardware reset?

If the device becomes unresponsive, slide the power switch to the RESET position (located between ON and OFF). This turns off the battery. Then slide the switch back to ON to restart. This is also recommended for long-term storage to conserve battery.

How do I clean the screen?

Power off the device before cleaning. Use a soft, lint-free cloth to wipe the screen and exterior. Do not use paper towels or abrasive cleaners. Avoid exposing the device to excessive moisture or direct sunlight for prolonged periods.

How do I update maps or install new ones?

Connect the Mio to your computer via USB. Use the MioMore Desktop software (install from DVD) to manage maps: install new maps from DVD or download, remove old maps, select which map to use. You can also backup your device and update safety camera subscriptions through MioMore Desktop.

USER MANUAL Moov M401 MIO

Moov M300/M400-Series User Manual

Important safety information

PLEASE READ CAREFULLY BEFORE INSTALLING PRODUCT IN VEHICLE

	This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
	WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
	CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
	CAUTION used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage.

WARNING

Removing original equipment, adding accessories or modifying your vehicle could affect the vehicle's safety or make it illegal to operate in some jurisdictions.

Follow all product instructions and all instructions in your vehicle owner's manual regarding accessories or modifications.

Consult your country's and/or state's laws regarding operation of a vehicle with any accessories or modifications.

It is your sole responsibility to place, secure and use your Mio in a manner that will not cause accidents, personal injury or property damage. Always observe safe driving practices.

Do not mount your Mio in a way that may interfere with the safe operation of the vehicle, the deployment of air bags or other safety equipment.

Do not operate your Mio while driving.

Before you use your Mio for the first time, familiarize yourself with your device and its operation.

On main roads, the distance to an exit calculated by the Mio may be further than the distance shown on road signs. Road signs show the distance to the start of an exit while the Mio shows the distance to the next intersection, i.e., the end of the exit ramp or road. To prepare to exit a road, always follow distance information on road signs.

The use of information regarding safety or speed camera locations may be subject to local laws in the country of use. You are responsible for checking that you can legally use the information in your country or in the country where the information will be used.

CAUTION

Do not handle the Mio while it is hot. Let the product cool, out of direct sunlight.

CAUTION

Do not expose the Mio to direct sunlight in an unattended vehicle for prolonged periods. Overheating may damage the unit.

Note: To discourage theft, do not leave the Mio, mounting bracket or any cables in plain view in an unattended vehicle.

Home Charger-specific safety information

WARNING

To charge your Mio from the mains power, use the home charger supplied by Mio as an accessory (may be sold separately). Using other home chargers with your Mio could result in serious injury or property damage.

Never use the charger if the plug or cord is damaged.

Do not expose the charger to moisture or water. Do not use the charger in a high moisture environment. Exposure to water may cause electrical sparks or fires.

Never touch the charger when your hands or feet are wet.

Allow adequate ventilation around the charger when using it to operate your Mio or charge the Mio internal battery. Do not cover the charger with paper or other objects that will reduce ventilation. Do not use the charger while it is inside a carrying case or other container.

Ensure that the charger is connected to a power source with the correct fitting and voltage requirements. The voltage requirements can be found on the home charger casing and/or packaging.

Do not attempt to service the charger as this could result in personal injury. Replace the charger if it is damaged or exposed to excess moisture.

Internal battery-specific safety information

WARNING

The Mio contains a non-replaceable internal lithium-ion polymer battery. The battery may burst or explode if mishandled, releasing hazardous chemicals. To reduce the risk of fire or burns, do not disassemble, crush or puncture the battery.

Recycle or dispose of the battery safely and properly according to local laws and regulations. Do not dispose of the battery in fire or water.

CAUTION

Only use the correct home charger (sold separately) or in-car charger supplied by Mio to charge the Mio internal battery. Only use the Mio internal battery with the Mio unit.

The Mio battery will stop charging when the ambient temperature is less than 0^ C ( 32^ F) or more than 40^ C ( 104^ F).

Failure to adhere to these warnings and cautions may lead to death, serious injury or property damage. Mio disclaims all liability for installation or use of the Mio that causes or contributes to death, injury or property damage or that violates any law.

Warning Notice to Drivers in the United States

State law may prohibit drivers in states such as Arizona, California and Minnesota from mounting objects on their windshields while driving. Please make sure you research and follow your most current State laws. An alternative mounting option is provided in the box with your product, also, stores offer additional mounting alternatives. Mio does not take any responsibility for any fines, penalties, or damages that may be incurred as a result of disregarding this notice.

Caring for your Mio

Taking good care of your Mio will ensure trouble-free operation and reduce the risk of damage to your Mio.

• Keep your Mio away from excessive moisture and extreme temperatures.
  ■ Avoid exposing your Mio to direct sunlight or strong ultraviolet light for extended periods of time.
  ■ Do not place anything on top of your Mio or drop objects on your Mio.
  ■ Do not drop your Mio or subject it to severe shock.
• Do not subject your Mio to sudden and severe temperature changes. This could cause moisture condensation inside the unit, which could damage your Mio. In the event of moisture condensation, allow the Mio to dry out completely before use.
  The screen surface can easily be scratched. Avoid touching it with sharp objects. Non-adhesive generic screen protectors designed specifically for use on portable devices with LCD panels may be used to help protect the screen from minor scratches.
• Never clean your Mio with it powered on. Use a soft, lint-free cloth to wipe the screen and the exterior of your Mio.
  ■ Do not use paper towels to clean the screen.
• Never attempt to disassemble, repair or make any modifications to your Mio. Disassembly, modification or any attempt at repair could cause damage to your Mio and even bodily injury or property damage and will void any warranty.
• Do not store or carry flammable liquids, gases or explosive materials in the same compartment as your Mio, its parts or accessories.

Contents

Important safety information....2

Home Charger-specific safety information 3

Internal battery-specific safety information 3

Warning Notice to Drivers in the United States 3

Caring for your Mio 4

Welcome....9

Important information for using the manual....9

How do I install my Mio? 10

Moov M300-Series Installation....10

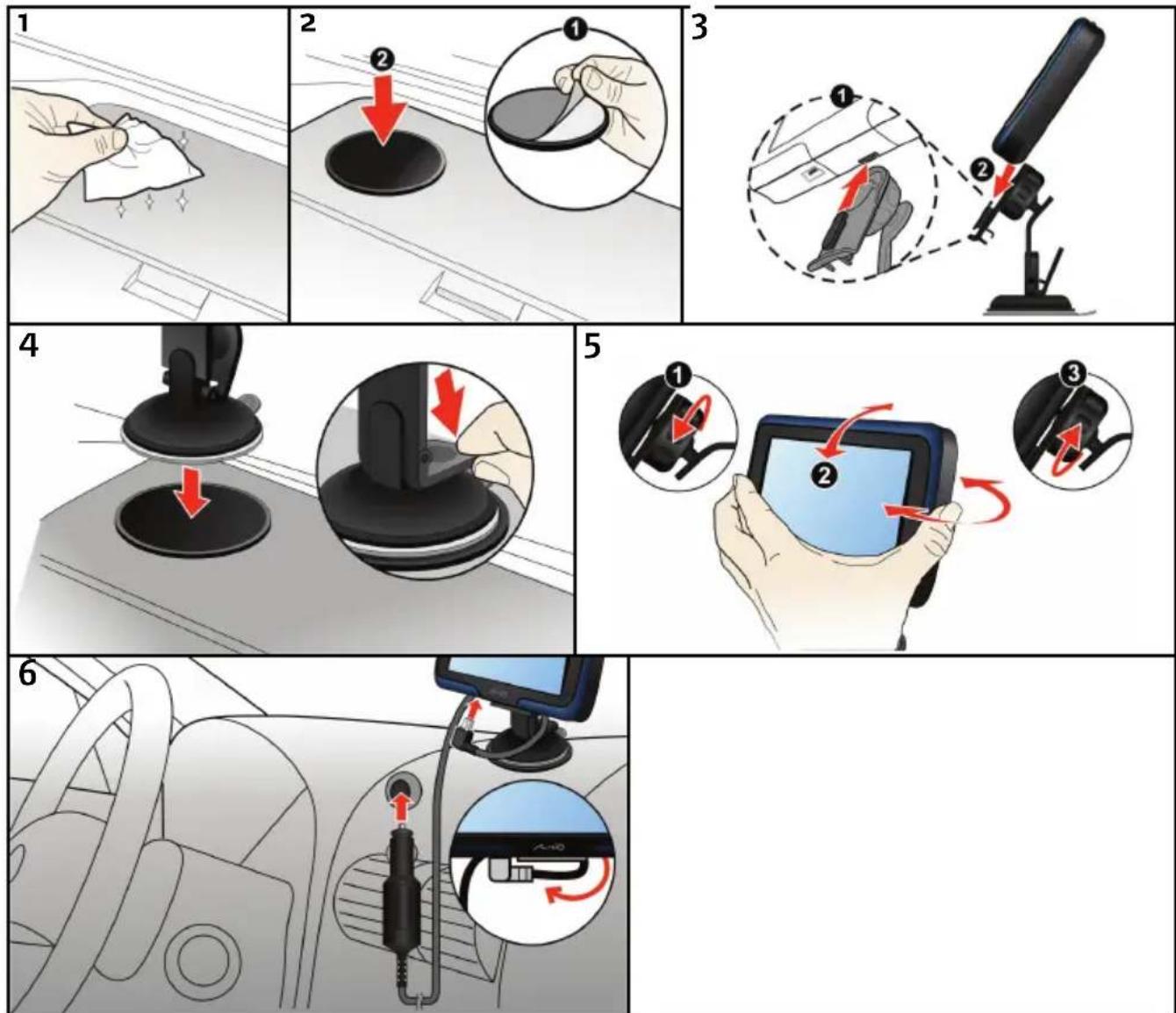

Moov M400-Series Installation 11

Receiving TMC information 11

Getting to know your Mio 12

Moov M300-Series....12

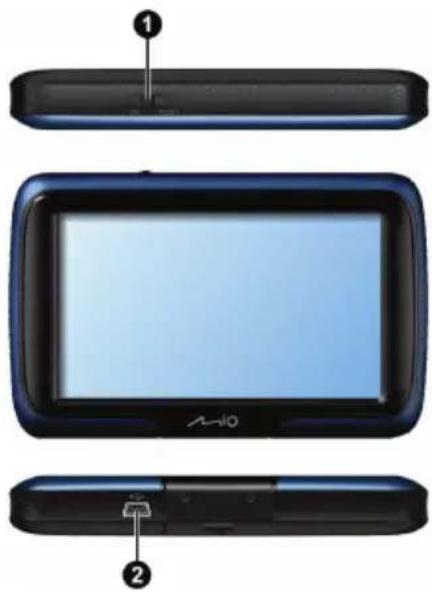

Moov M400-Series....13

Turning on and off 14

Shutdown and hardware reset 14

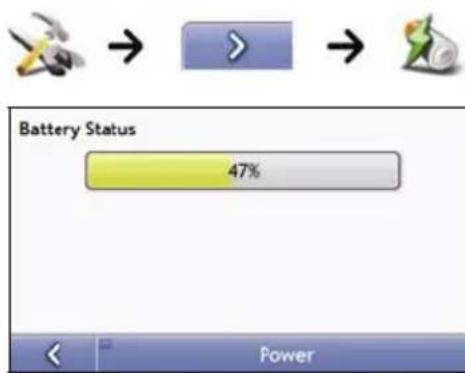

How do I monitor the battery status?....14

How do I charge the battery?....14

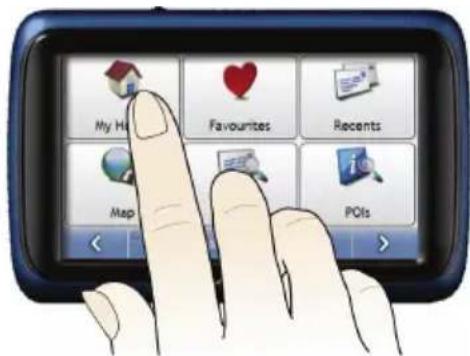

Navigating on the screen 15

How do I adjust the volume? 15

How do I get started? 16

How do I turn my Mio on for the first time? 16

What are the main screens I will use? 18

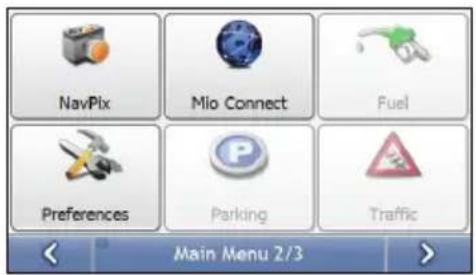

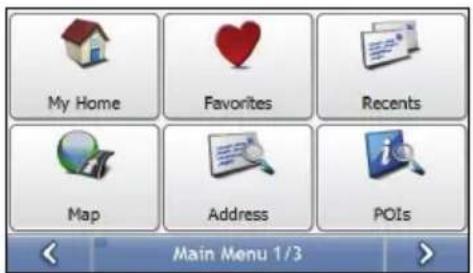

Main Menu screen....18

Map screens....18

How do I navigate with GPS? 20

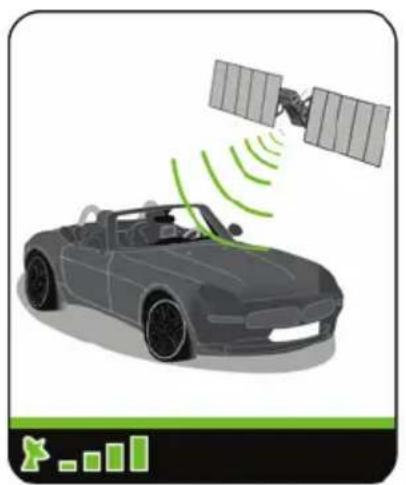

How does my Mio receive GPS signals? 20

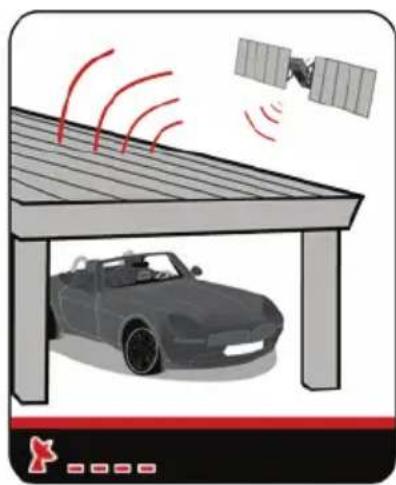

How do I view my GPS status? 20

How do I go from A to B? 21

What if I miss a turn? 21

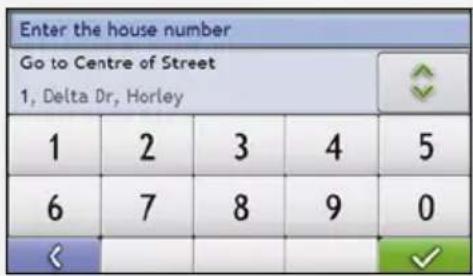

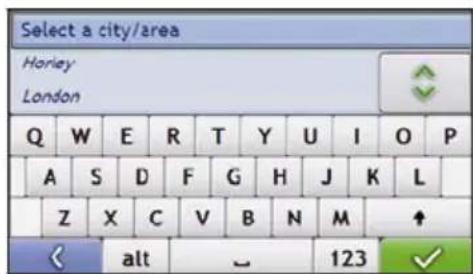

How do I search for an address? 22

Case Study: How do I search for an address? 22

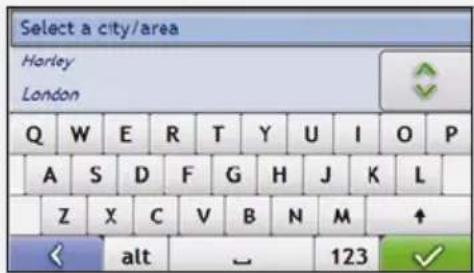

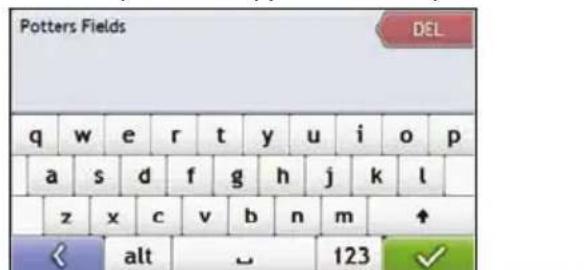

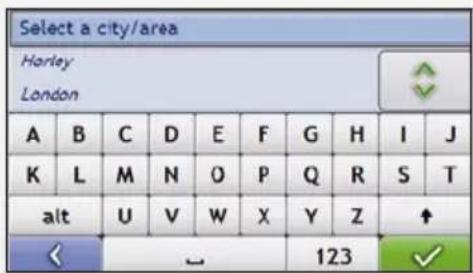

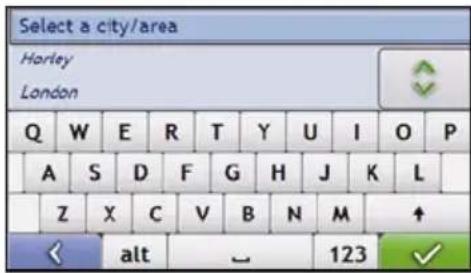

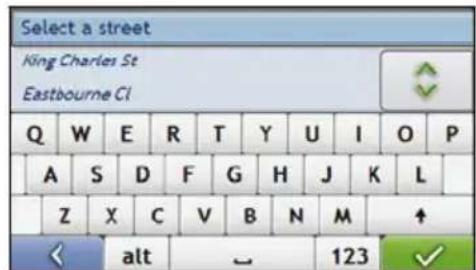

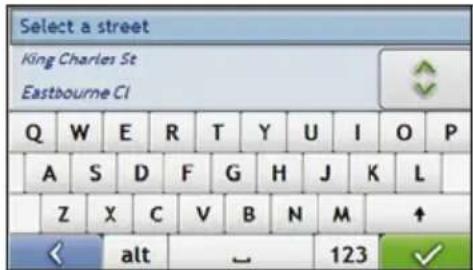

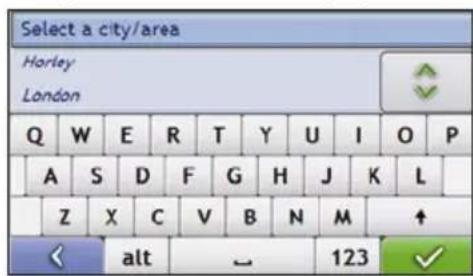

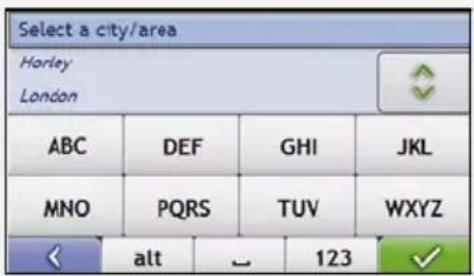

Using the Keyboard screen....24

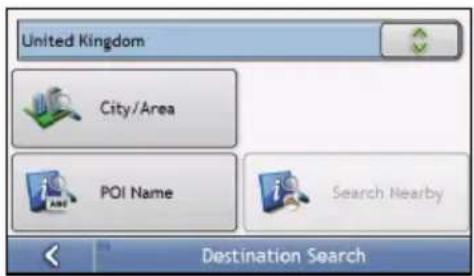

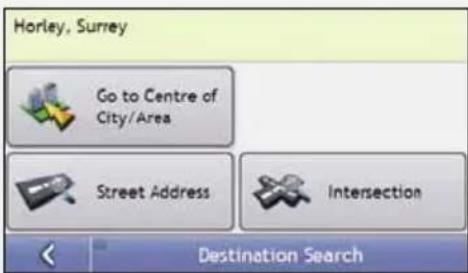

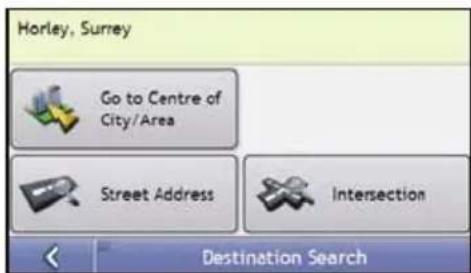

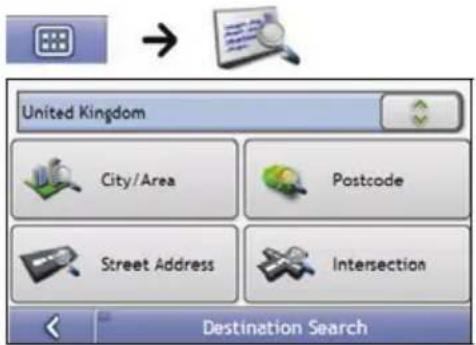

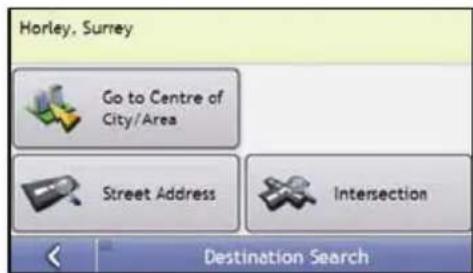

Using the Destination Search screen....24

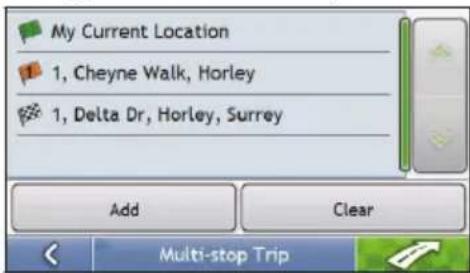

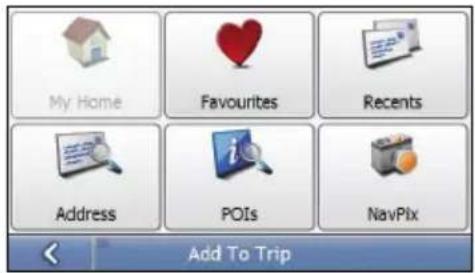

How do I create a trip with multiple stops? 26

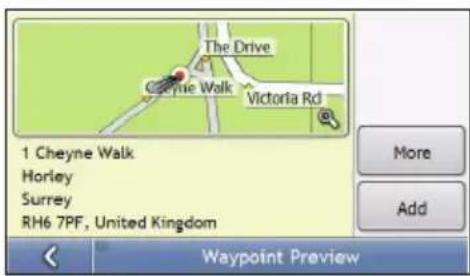

Case Study: How do I navigate to multiple addresses? 26

How do I skip a waypoint during a multi-stop trip? 29

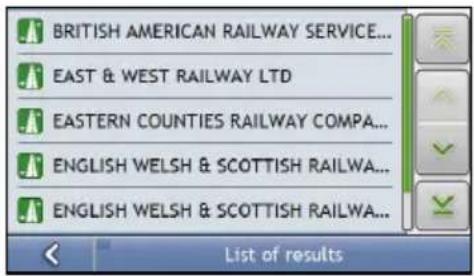

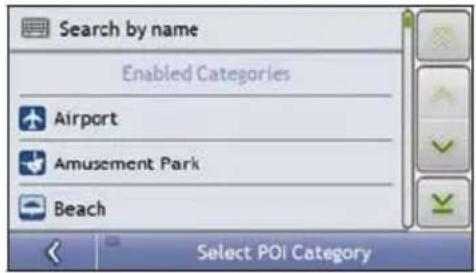

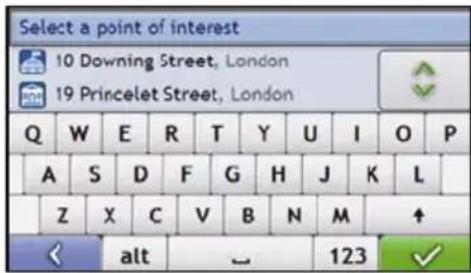

How do I search for a Point of Interest (POI)? 30

Case Study: How do I search for a Point of Interest? 30

How do I save Favourites and My Home?......33

Can I save a NavPix ^TM to a Favourite?......33

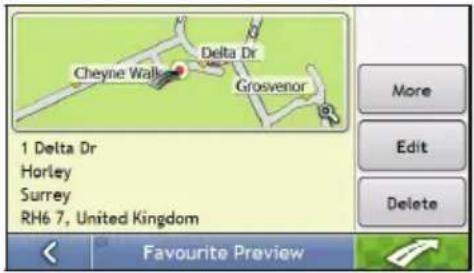

How do I save a Favourite or My Home? 33

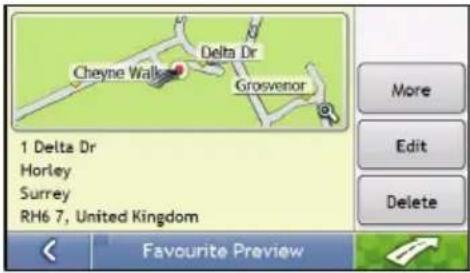

How do I navigate to a Favourite? 34

How do I navigate to My Home? 34

Option 1 - Via the Main Menu ....34

Option 2 - Via the Favourite Destinations screen....34

How do I edit the name of a Favourite? 35

How do I delete a Favourite? 36

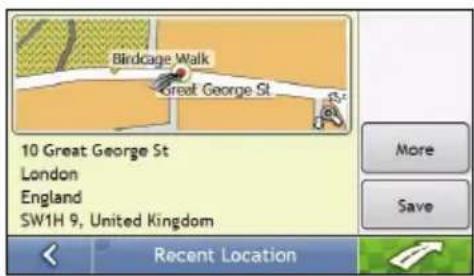

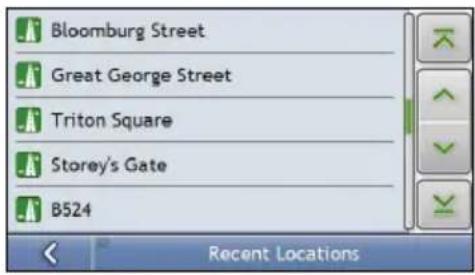

How do I navigate to a recent location? 37

How do I view my route? 38

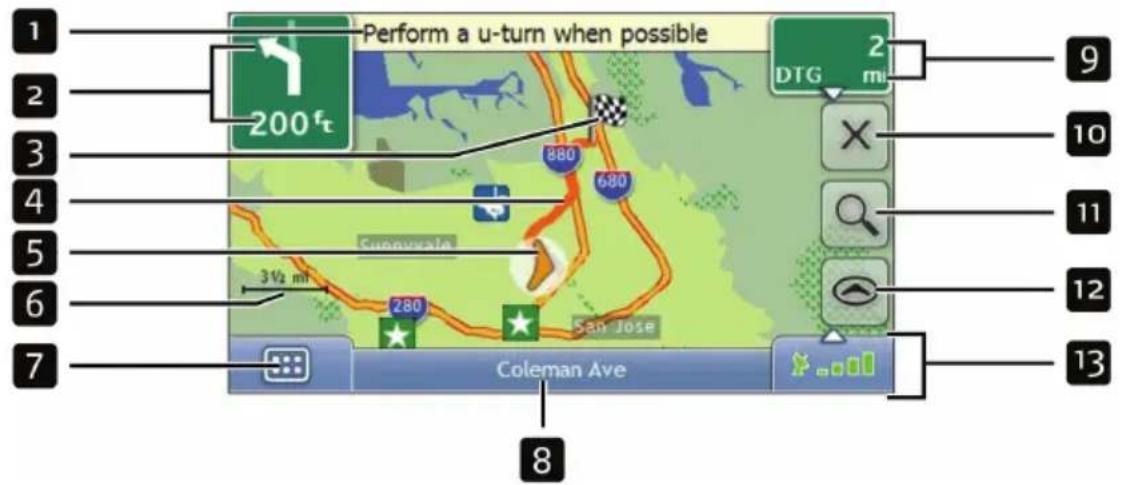

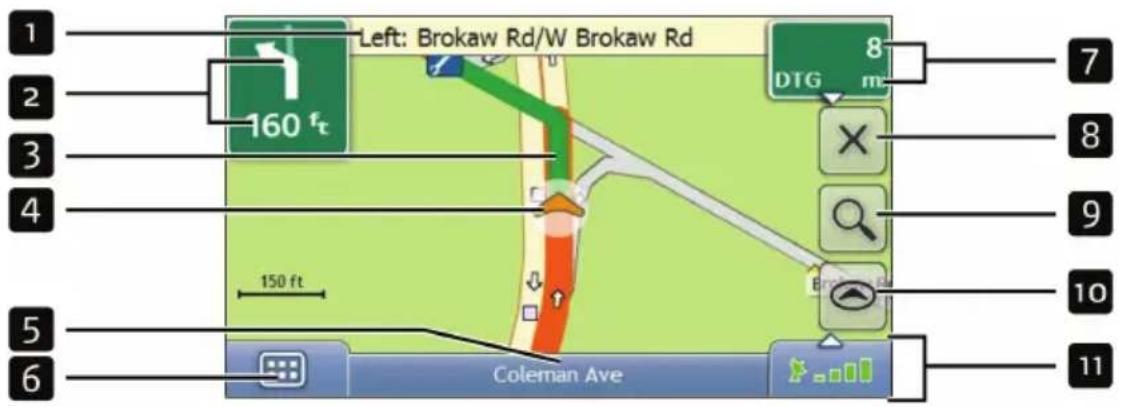

3D Map screen....38

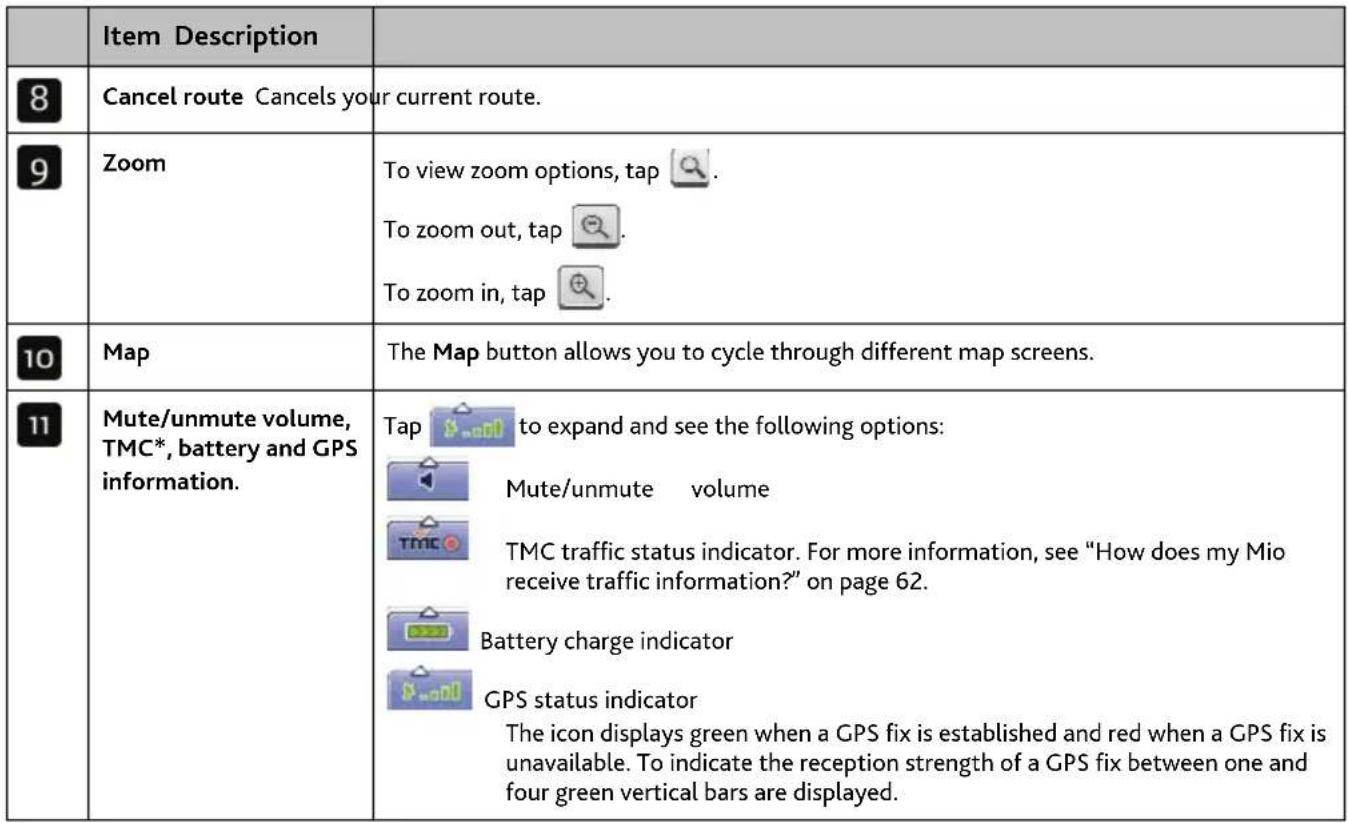

2D Map screen.... 40

Traffic Overview screen (select models only) 42

Route Overview screen.... 44

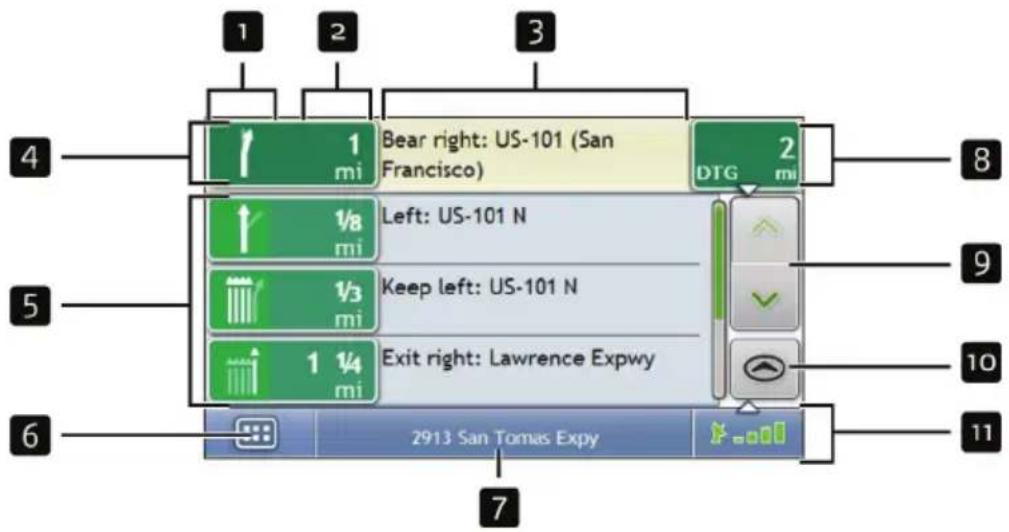

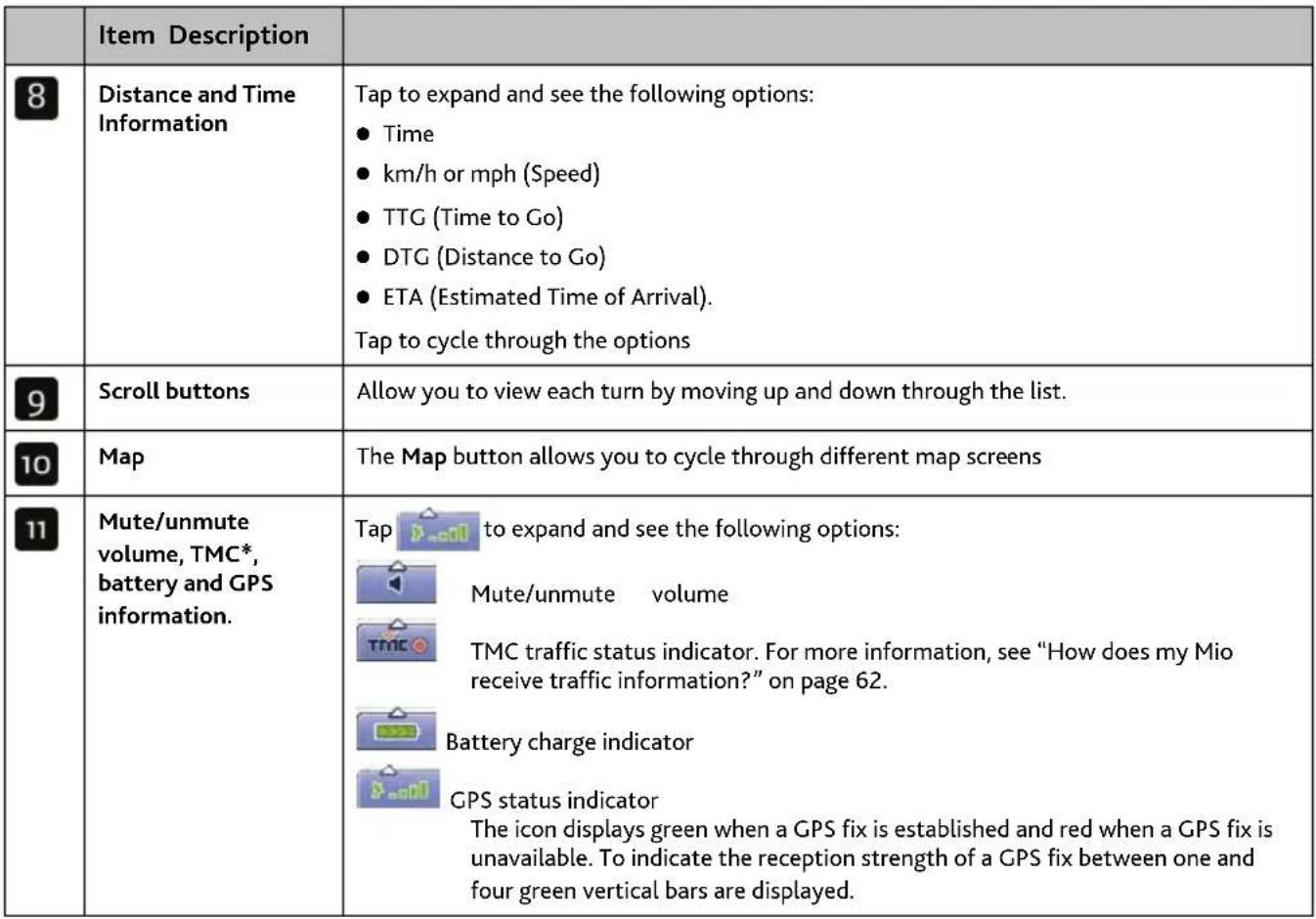

Turn-by-Turn screen....46

How do I use the Map Menu? 48

Displaying the Map Menu 48

Map Menu options.... 48

How do I avoid an area? 49

How do I add an Avoid Area?......49

How do I delete an Avoid Area? 49

How do I delete all Avoid Areas? 49

How do I preview a route? 50

How do I view my route statistics? 51

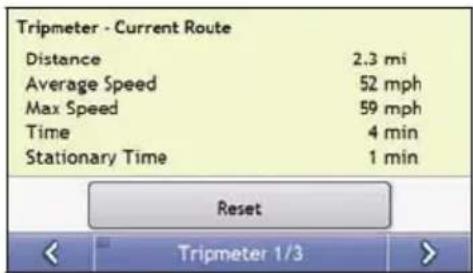

How do I view statistics on my current route? 51

How do I view statistics of my trips to date? 52

How do I view my trip logs? 53

How do I use NavPix ^TM ? 54

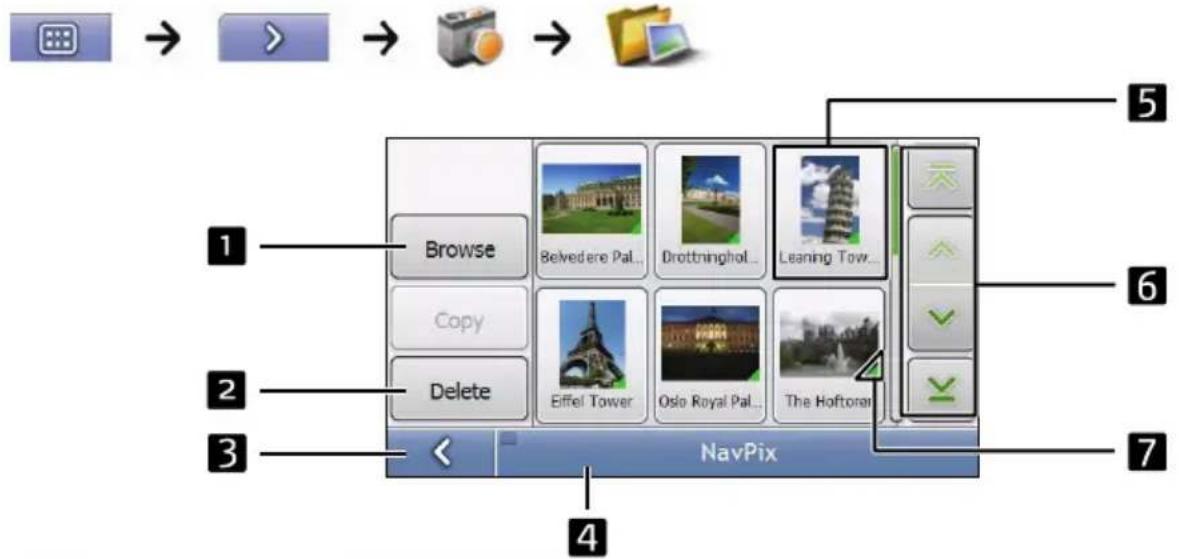

How do I manage my NavPix™? 54

Album management....54

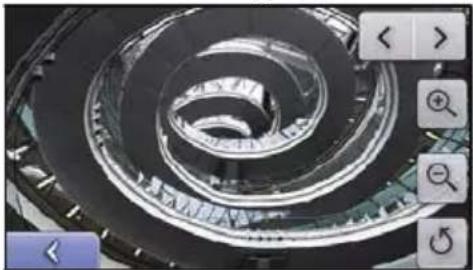

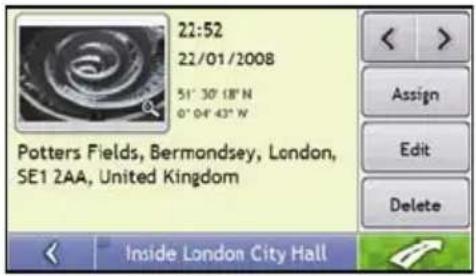

NavPix ^TM management....55

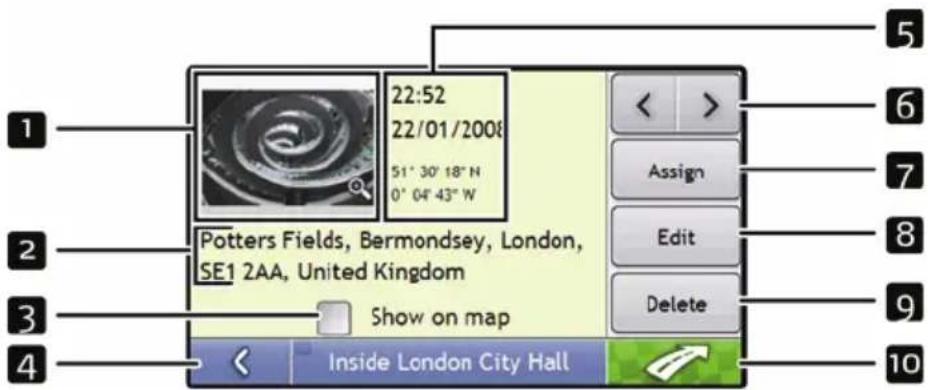

How do I view a NavPix ^TM in full-screen? 56

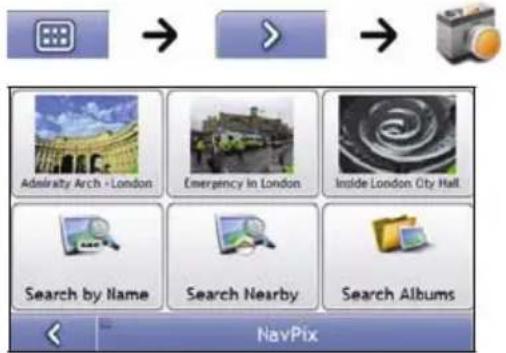

How do I navigate to a NavPix™? 58

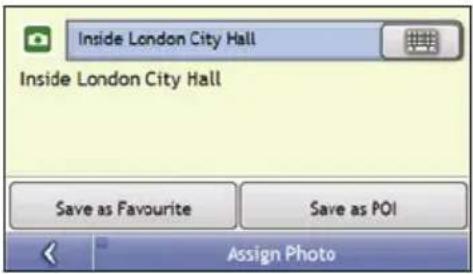

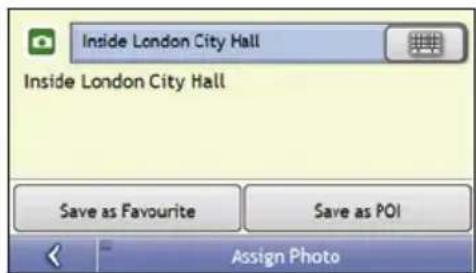

How do I save a NavPix ^TM to a favourite? 59

How do I save a NavPix ^TM to a POI?......60

What is Mio Connect (Local Search)?......61

How do I search for a POI using Mio Connect? 61

How do I receive current traffic information? (Select models only) 62

How does my Mio receive traffic information?......62

Traffic status....62

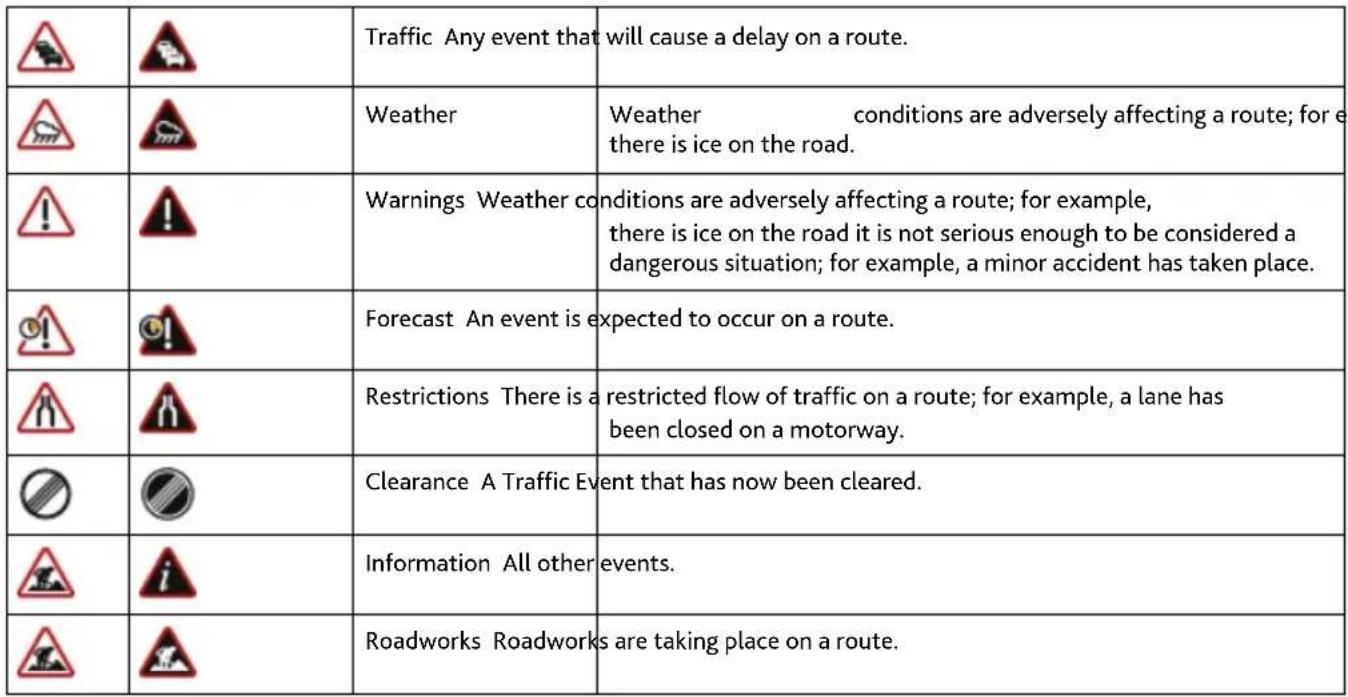

How will I know when a Traffic Event occurs? 63

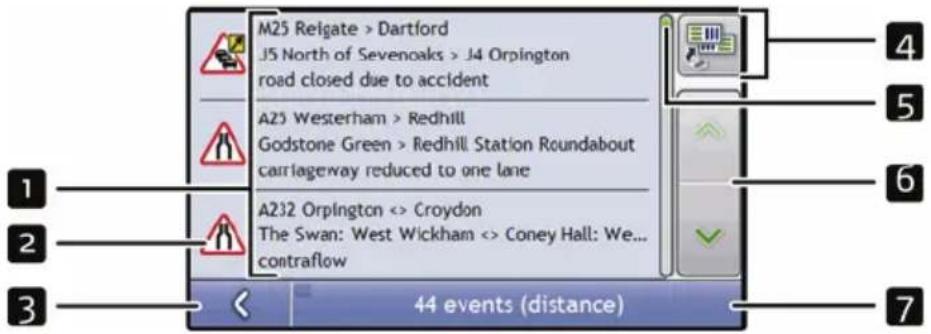

How do I view a list of all events on my route? 64

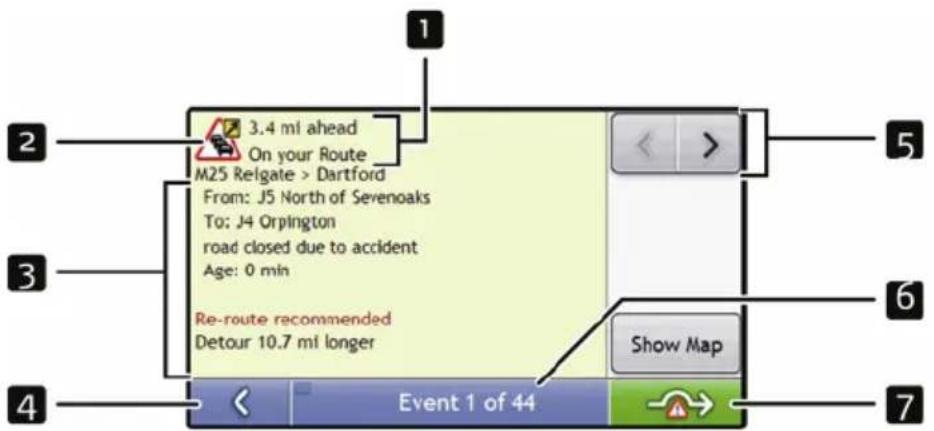

How do I view traffic details?......65

How do I know if a detour is recommended?......66

How do I avoid an event on my route?......66

How do I cancel a detour around an event on my route? 66

How do I automatically avoid all traffic and clearance events on my route? 66

Traffic Messages....67

Detour Not Available messages....67

Detour recommended messages....67

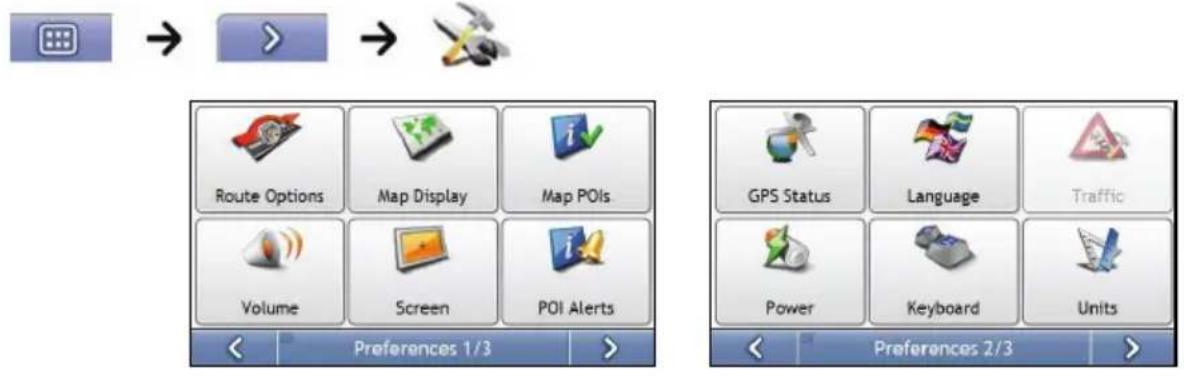

What can I customise? 68

Route Options....69

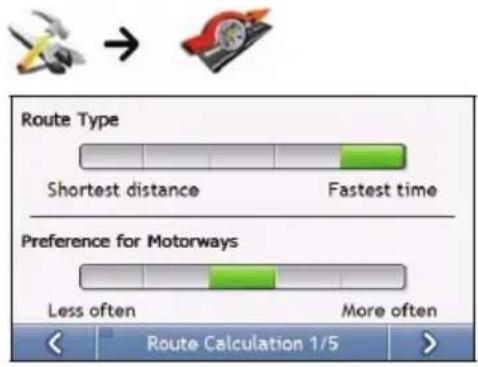

Route Calculation 1/5....69

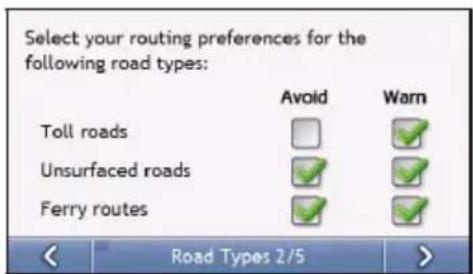

Road Types 2/5....70

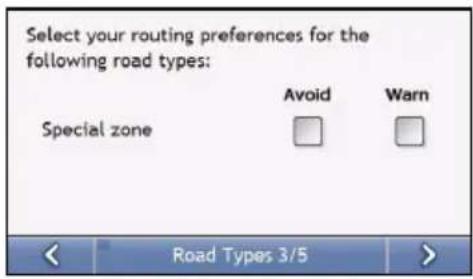

Road Types 3/5....71

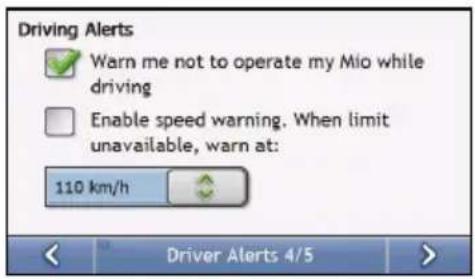

Driver Alerts 4/5 72

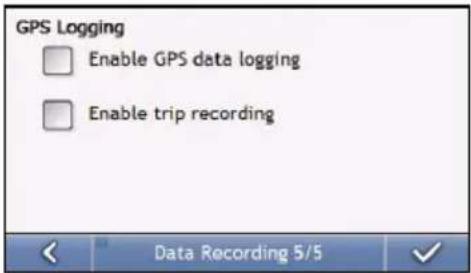

Data Recording 5/5....73

Map Display....74

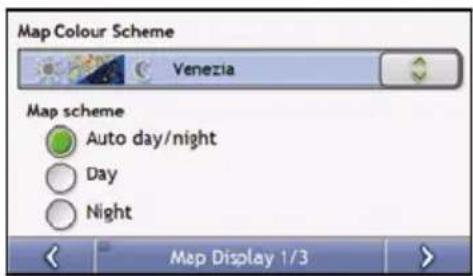

Map Display 1/3....74

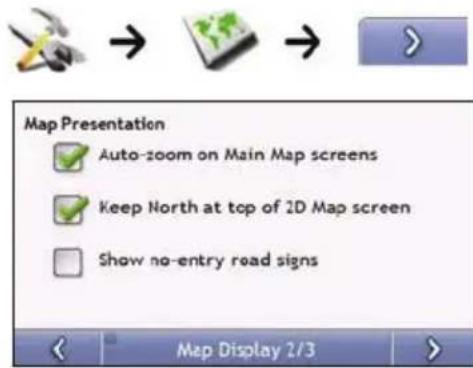

Map Display 2/3....75

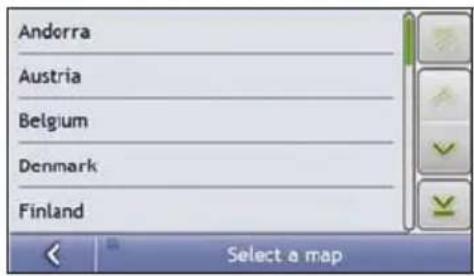

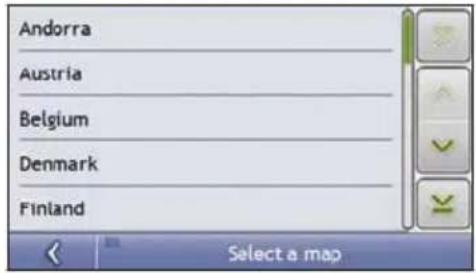

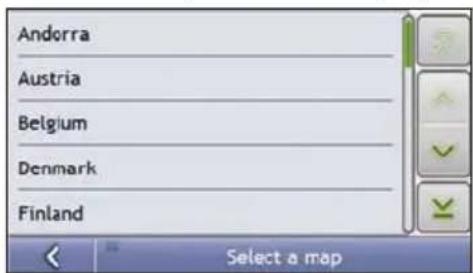

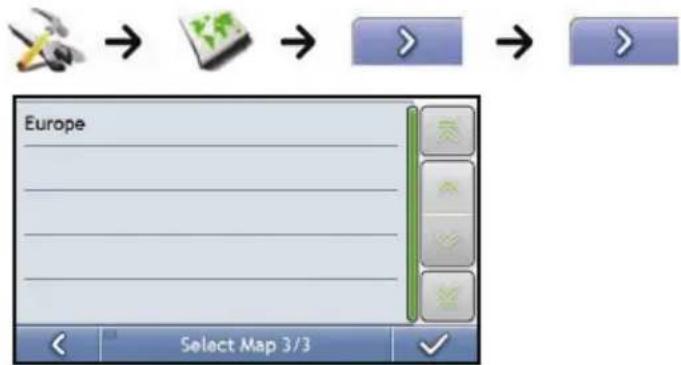

Select Map 3/3....76

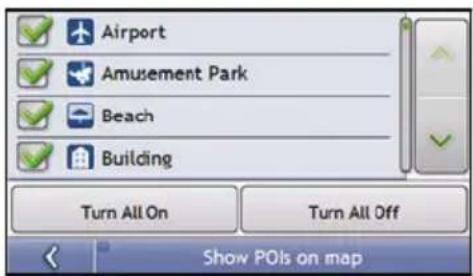

Map POIs 77

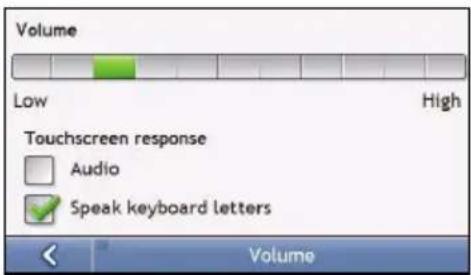

Volume 78

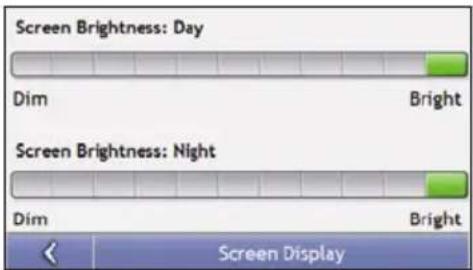

Screen 79

POI Alerts 80

GPS....81

GPS Status....81

Resetting your GPS fix 81

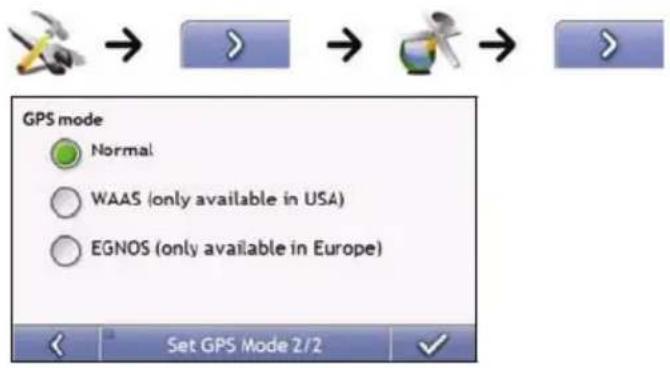

Setting your GPS mode....82

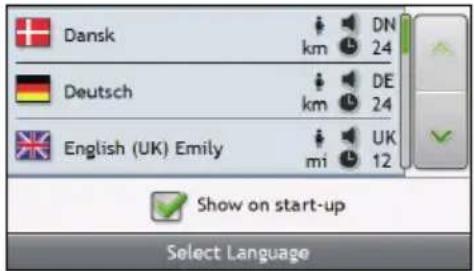

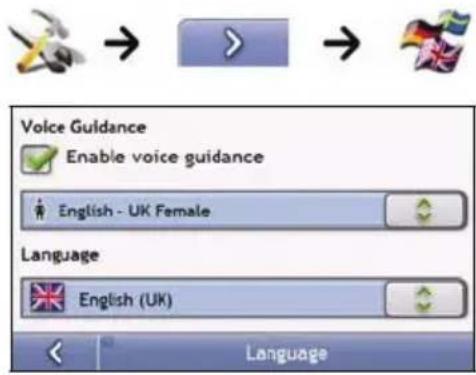

Language 83

Traffic 84

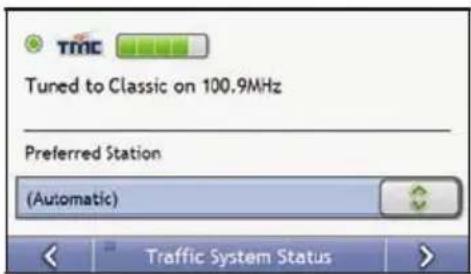

Traffic System Status 84

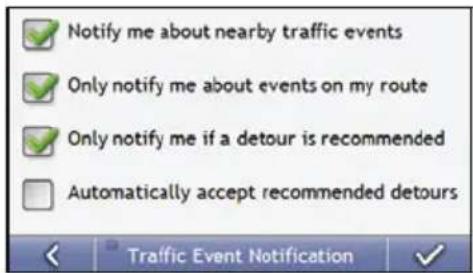

Traffic Event Notification 85

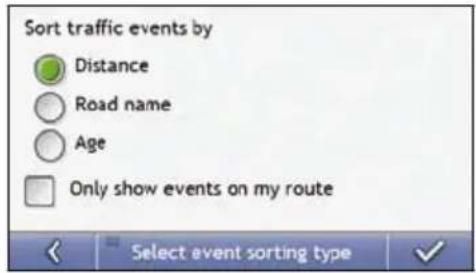

Select event sorting type....86

Power 87

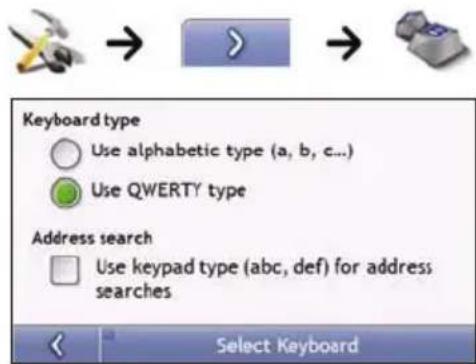

Keyboard 88

How does predictive text (abc, def...) work? 88

Units 89

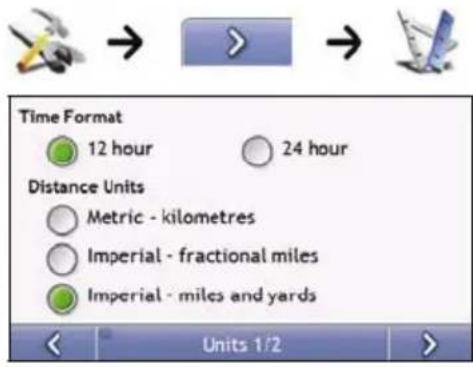

Units 1/2 89

Units 2/2....90

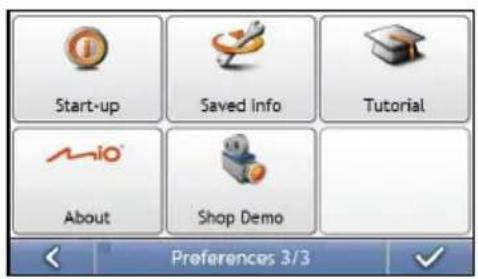

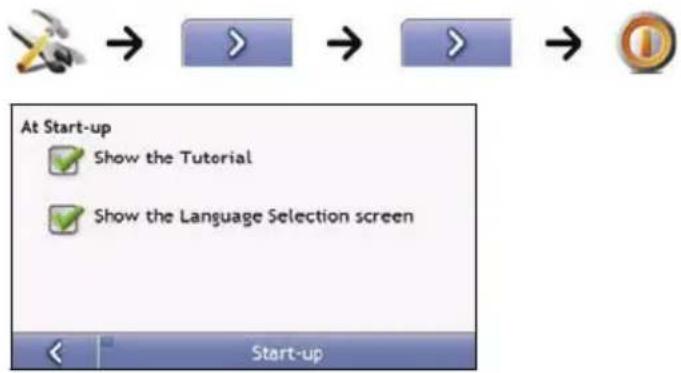

Start-up 91

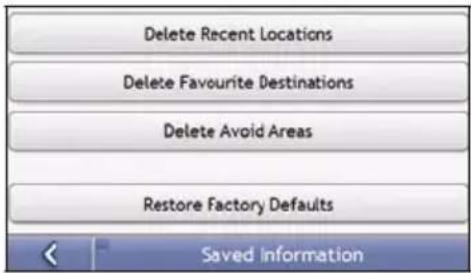

Saved Info 92

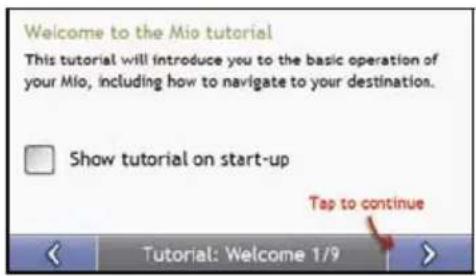

Tutorial 93

About 94

Shop Demo 94

What is MioMore Desktop?......95

Can I use MioMore Desktop with my computer?......95

How do I install a map for the first time? 95

How do I install MioMore Desktop onto my computer?......96

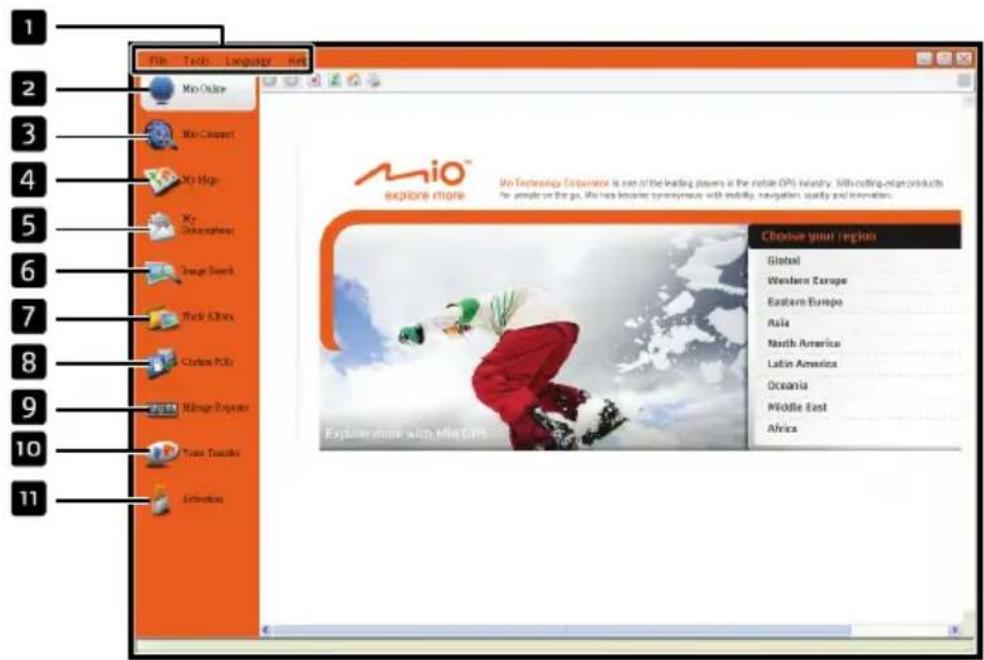

MioMore Desktop features 97

How do I keep MioMore Desktop up-to-date? 98

How do I update MioMore Desktop? 98

MioMore Desktop Preferences....98

Mio Online 98

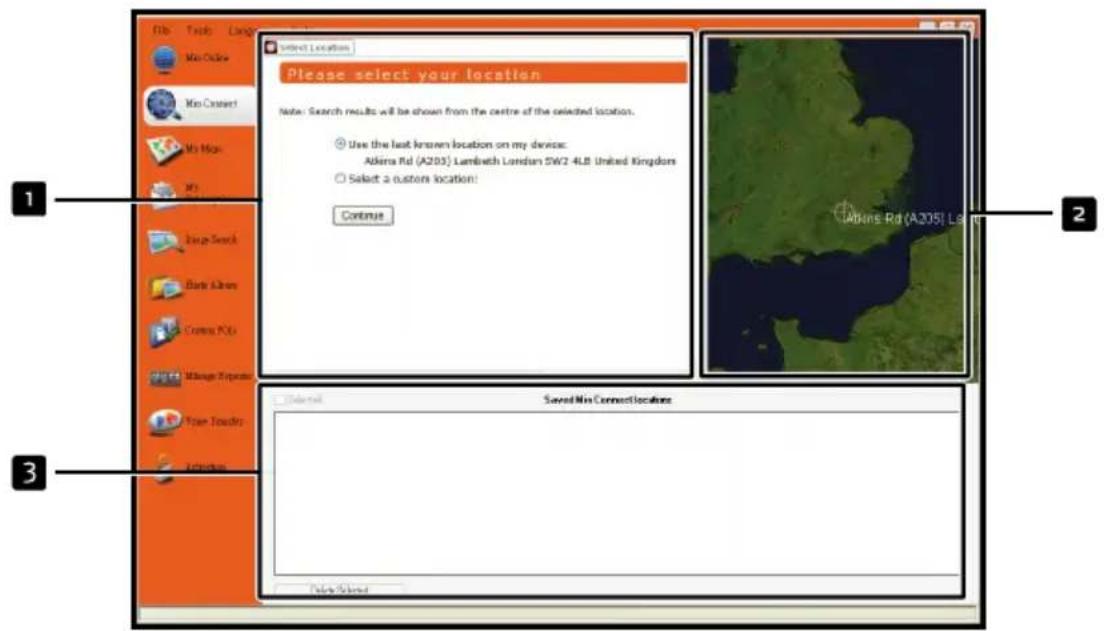

Mio Connect....99

How do I search for a POI using Mio Connect? 99

How do I install POIs from my computer to my Mio? 100

How do I delete a POI from my Mio?....100

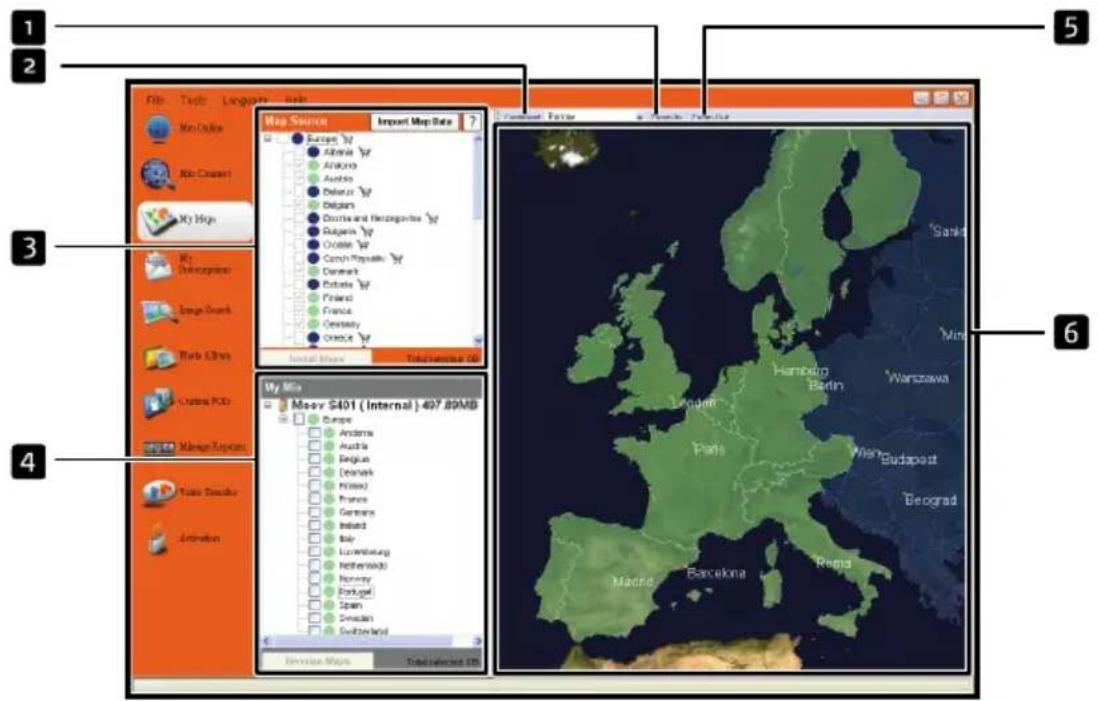

My Maps....101

How do I install maps onto my Mio? 101

How do I install maps from DVD? 102

How do I remove maps from my Mio? 103

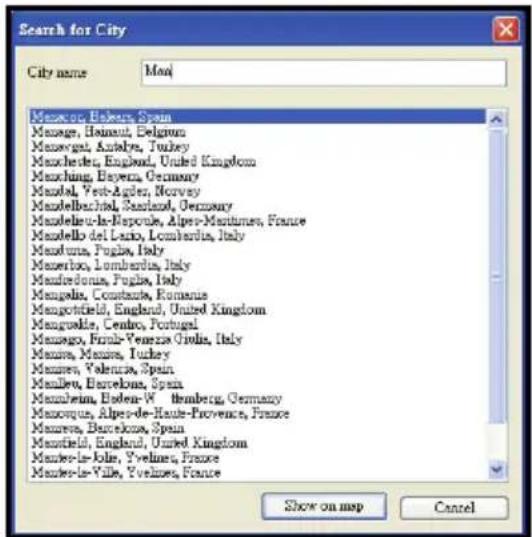

How do I know which map contains a particular city or town? 104

How do I download maps to my computer? 104

What is a Major Road Network map? 105

My Subscriptions....106

Alerts....106

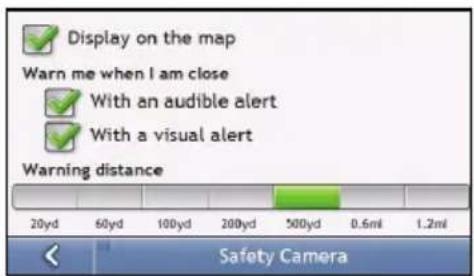

How do I install Safety Camera information? 106

How do I know which Safety Camera information is available?......106

Purchase a Subscription....106

Activate your Subscription....107

How do I update Safety Camera information on my Mio? 107

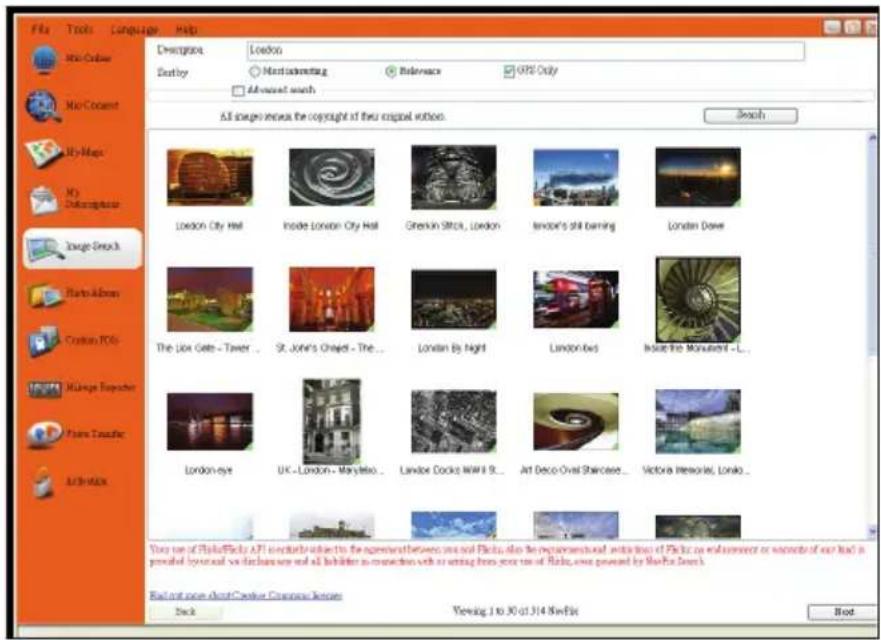

Image Search....108

How do I download NavPix ^TM from the internet?......108

How do I import NavPix ^TM to Photo Album?......108

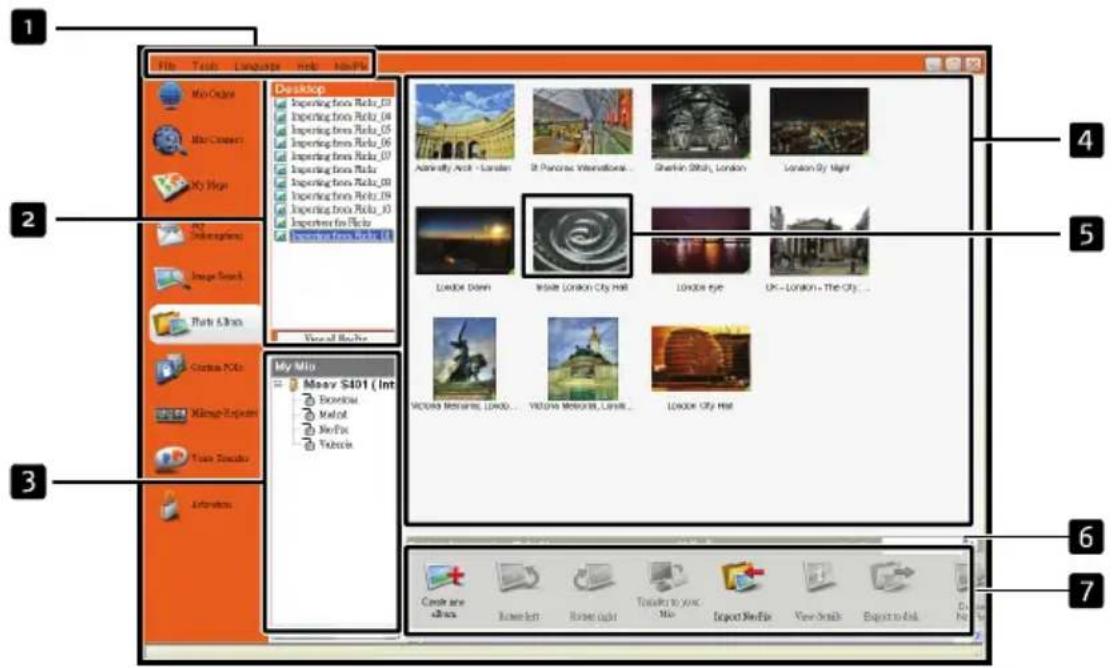

Photo Album....109

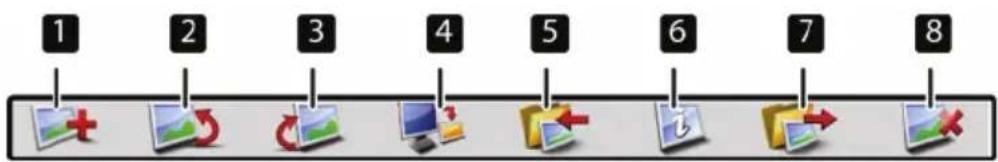

Toolbar....109

How do I copy NavPix™ or albums from my Mio to Photo Album? 110

How do I transfer pictures from Photo Album to my Mio? 110

How can I view and edit pictures or albums on my computer? 111

Photo Album Preferences.... 112

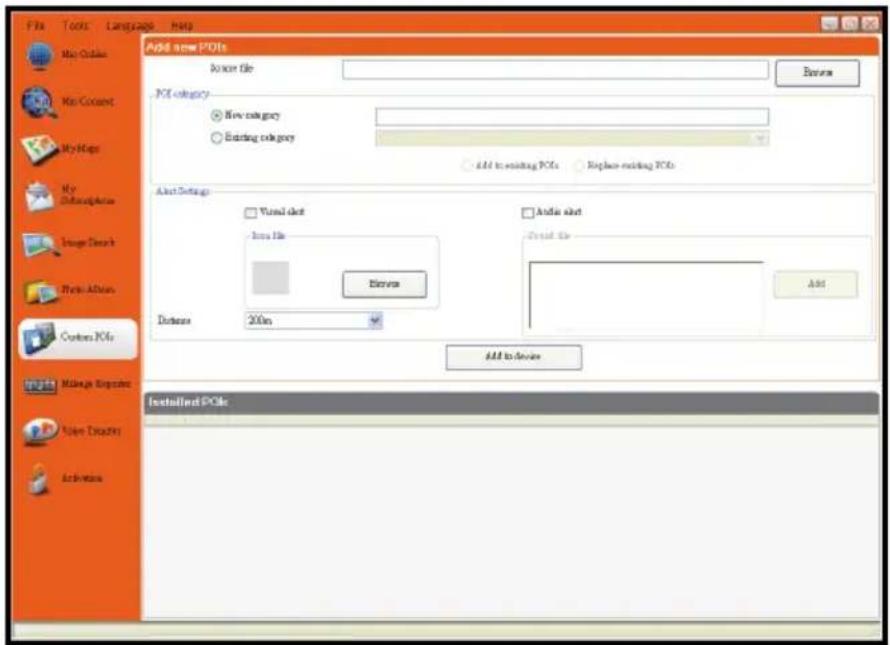

Custom POIs....113

How do I install custom Points of Interest? 113

How do I delete a Custom POI File from my Mio? 114

Mileage Reporter 115

How do I input my trip data? 115

How do I export a mileage report? 116

How do I delete travel logs from my Mio? 116

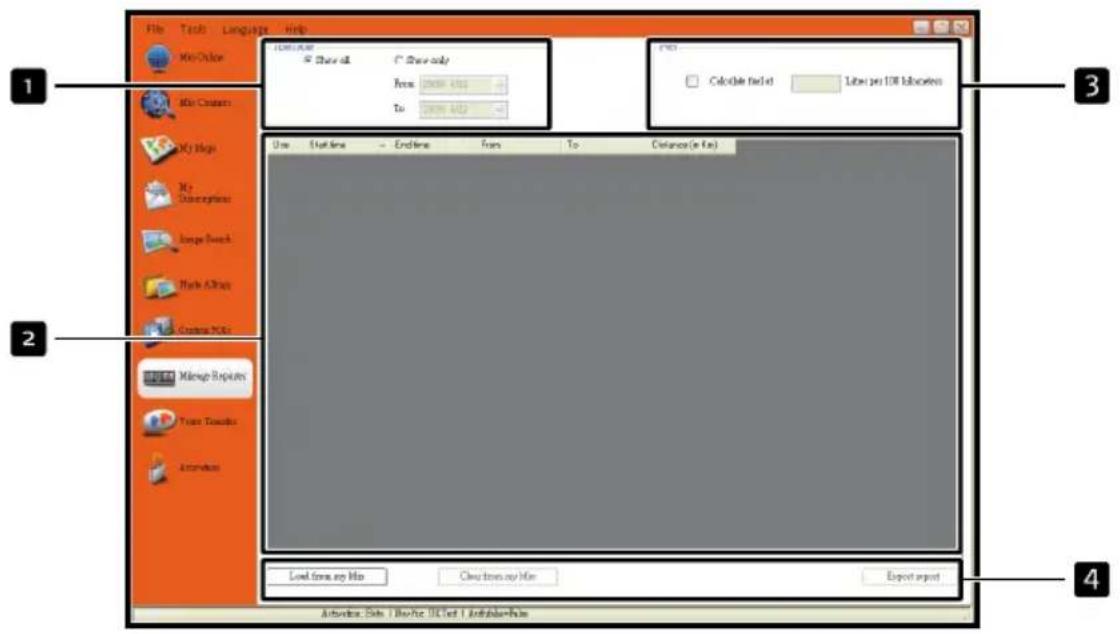

Mileage Reporter preferences.... 116

Voice Transfer 117

How do I install a voice file? 117

How do I remove a voice file?....117

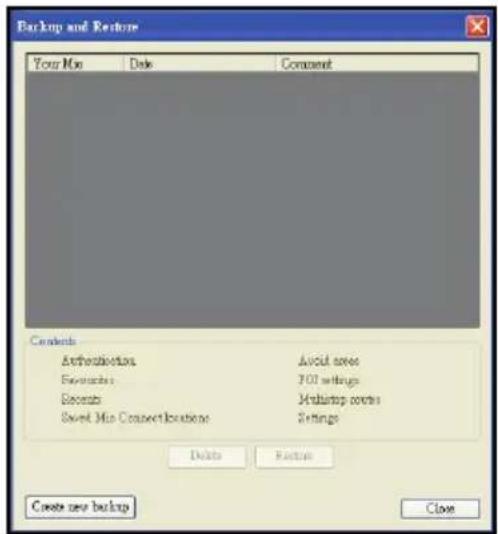

How do I backup my Mio? 118

How do I Backup my Mio?......118

How do I Restore a Backup to my Mio?......118

How do I Delete a Backup? 118

Reference 119

Troubleshooting....119

Point of Interest categories....120

Branded Points of Interest.... 121

Point of Interest categories by Mio....121

Point of Interest categories by subscription 121

Traffic and other TMC Events....121

Safety Camera POIs 123

Disclaimer 123

Compliance....123

Federal Communications Commission radio frequency interference statement 123

Copyright 124

For more information....125

Welcome

Thank you for purchasing this Mio. This manual has been prepared to guide you through the operation of your Mio from first set-up through to continuous use. Please read this manual carefully before using your Mio for the first time. Keep this manual in a safe place and use as your first point of reference.

Important information for using the manual

It is important to understand the terms and typographical conventions used in this manual.

Formatting

The following formatting in the text identifies special information:

Convention Type of Information
Bold	Mio components or items displayed on screen, including buttons, headings, field names and options.
Italics Indicates the name of a screen.

Terms

The following terms are used throughout this manual to describe user actions.

Term Description

Tap Press and release an item displayed on the touch screen.

Tap and hold Tap and hold an item displayed on the touch screen for 2-3 seconds.

Select Tap an item in a list or tap a command from a menu.

How do I install my Mio?

CAUTION:

• Select an appropriate location for mounting the Mio in a vehicle. Never place the Mio where the driver's field of vision is blocked.
• If the car's windscreen is tinted with a reflective coating, it may be athermic and impact the GPS reception. In this instance, please mount your Mio where there is a "clear area."
• To protect your Mio against sudden surges in current, connect the car charger only after the car engine has been started.

Moov M300-Series Installation

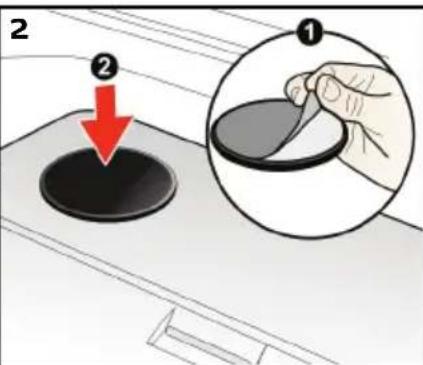

Illustration of a hand cleaning a window with a cloth and sparkles (no text or symbols)

Diagram showing a hand operating a black mechanical component with a red arrow indicating force or direction, alongside a magnified inset showing the same component (no text or symbols present)

Moov M400-Series Installation

Receiving TMC information

Note: Not available on all models.

You can receive current traffic information on your Mio via an optional traffic accessory. To receive traffic information, you must connect your Mio to the in-car charger.

TMC information is monitored by the navigation software. Once the information is received, you can view it on your device and traffic icons will appear in the map view. Certain roads with reported traffic will be highlighted and you can choose to avoid those roads and an alternate route will be automatically calculated. For more information, see “How does my Mio receive traffic information?” on page 62.

Getting to know your Mio

Moov M300-Series

Close-up of a dark rectangular electronic device with a labeled point (1) and no visible text or symbols on its body.

Front view of a black rectangular device displaying a blue screen with 'Anio' branding (no additional text or symbols visible)

n p Power Switch

Cradle Socket

O Socket for in-car charger, USB cable (not supplied), home charger (may be sold separately) and TMC accessory kit (may be sold separately)

q Speaker

Moov M400-Series

① ③ power Switch

Cradle Socket

② ④ pocket for in-car charger, USB cable (not supplied), home charger (may be sold separately) and TMC accessory kit (may be sold separately)

Speaker

Turning on and off

For normal operation, turn off your Mio by sliding the power switch to the OFF position. Your Mio enters a suspended state. To use it again, slide the power switch to the ON position. Your Mio will be back to where you left off.

Moov M300-Series

Moov M400-Series

Shutdown and hardware reset

Occasionally, you may need to perform a hardware reset when your Mio stops responding; or appears to be "frozen" or "locked-up."

You can perform a hardware reset by shutting down your Mio and then turning it back on. To shut down your Mio, slide the power switch to the RESET position. To turn on your Mio after shutting it down, slide the power switch to the ON position.

NOTE: Switching to the Reset position turns the battery off. It is recommended you move the switch to this position if you are planning to store your Mio for any length of time.

How do I monitor the battery status?

Your Mio has an internal battery that when fully charged, should provide power for up to 3 hours.

You can monitor battery power status on the Power screen.

Note: The battery may not be fully charged when you use your Mio for the first time.

To access the Power screen, tap

How do I charge the battery?

The Battery Status bar displays External Power while the battery is charging; when the battery is fully charged, the Battery Status bar will display at 100%.

To charge your Mio in a vehicle, plug the in-vehicle charger to the bottom of your Mio and the other end into the vehicle power socket, as shown in the "How do I install my Mio?" section.
To charge your Mio using your computer, see later section for details.
To charge your Mio using a mains power socket, plug the mains power charger cable to the bottom of your Mio and the mains power charger pack into the mains power socket.

Note: The mains power charger is not included with all models and may be purchased separately.

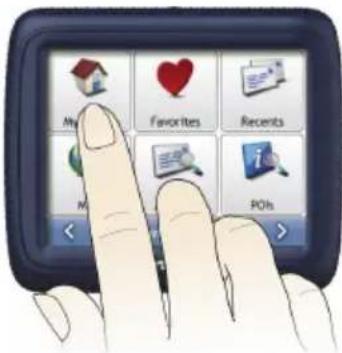

Navigating on the screen

To operate your Mio, touch the screen with your fingertip. You can perform the following actions:

Moov M300-Series

Moov M400-Series

Tap

Touch the screen once with your fingertip to open items or select onscreen buttons or options.

- Drag

Hold your fingertip on the screen and drag up/down/left/right or across the screen. (This is not supported by all applications.)

- Tap and hold

Tap and hold your fingertip until an action is complete, or a result or menu is shown. (This is not supported by all applications.)

How do I adjust the volume?

The volume on your Mio can be adjusted by the volume control on the Volume preference screen.

To mute the volume from the map screens, tap

and then tap

For more information on how to adjust the volume on your Mio, see "Volume" on page 78.

How do I get started?

Note: The first time you use your Mio, it may take several minutes to establish a GPS connection. For more information about GPS, refer to the GPS Frequently Asked Questions guide on the enclosed DVD.

How do I turn my Mio on for the first time?

To get started for the first time, complete the following steps:

1. Read the Important Safety Information on page 2.

2. Position your Mio

Follow the instructions on page 10.

Note: Ensure that your Mio does not obstruct the driver's view, or interfere with the operation of the vehicle airbags and safety devices.

1. Turn your Mio on

Your Mio will turn on and display the Language screen.

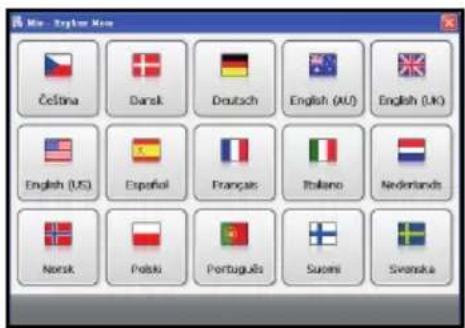

1. Select your preferred language

From the Select Language screen, tap your preferred language.

• To prevent the Select Language screen from displaying on each start-up, clear the Show on start-up check box.
  ■ You can change your preferred language while using your Mio, see "Language" on page 83.

• Read the warning message

a) The Safety Agreement screen will display after you have selected your preferred language. Read the Safety Agreement message.
b) To confirm that you have read and understood the message, tap Accept. The Tutorial will display.

1. View the Tutorial

When you have accepted the Safety Agreement, the first Tutorial screen will display.

• To prevent the Tutorial from displaying again on start-up, clear the "Show tutorial on start-up" check box.
• To move forward through the Tutorial screens, tap >.
  To view the previous screen, tap <.
  ■ To view the Tutorial again while using your Mio, see "Tutorial" on page 93.

Note: If you have maps installed from multiple continents, you may be prompted to select the maps you require. To use maps from a different continent at a later time, you can select a different map via the Select Map screen in the Select Map 3/3 preferences; refer to page 76.

When you have finished the Tutorial, the 3D Map screen will display. If you have a GPS fix, your current location will be displayed on the map.

What are the main screens I will use?

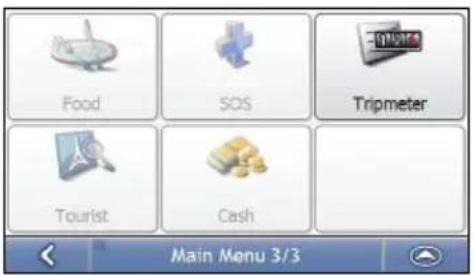

Main Menu screen

The Main Menu screen is your starting point for searching for a destination. The Main Menu screens also allow you to enter an address for your destination and customise preferences.

The Main Menu can be accessed from the map screens by tapping or by tapping the status bar at the bottom of any screen.

Note: The Main Menu screens may differ from those displayed above, depending on your Mio model.

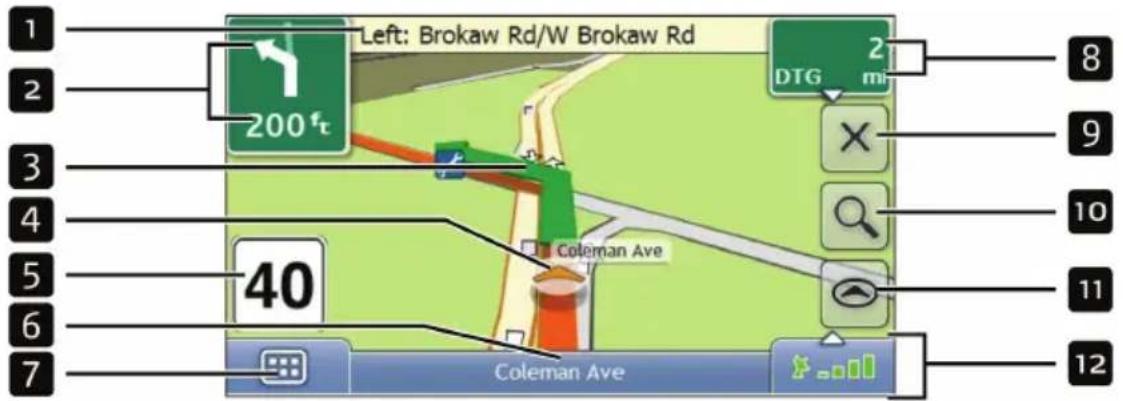

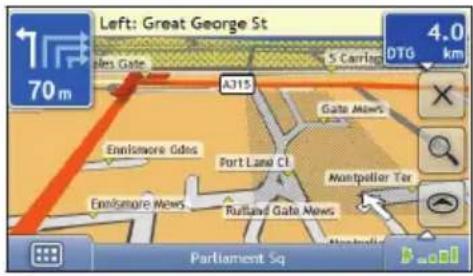

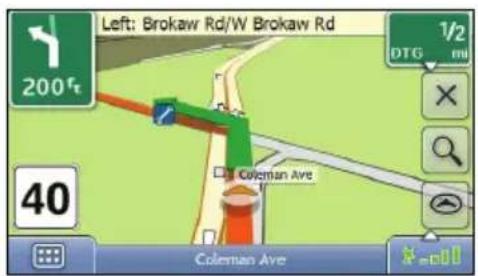

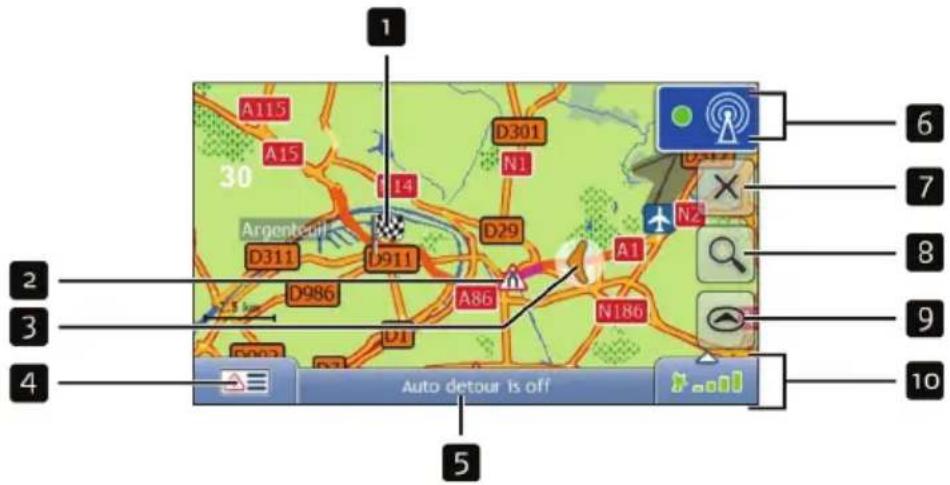

Map screens

There are five map screens used to view the route to your destination:

■ 3D Map
■ 2D Map
■ Traffic Overview (Not available on all models)
■ Route Overview
■ Turn-by-Turn™

The Map screens can be accessed from the Main Menu screen by tapping

You can cycle through the different map screens by tapping 📞 on any map screen (the name of the map screen will display briefly as your cycle through).

For more information on the map screens, see "How do I view my route?" on page 38.
- For information on using the Map menu from the 3D Map and 2D Map screens, see "How do I use the Map Menu?" on page 48.

How do I navigate with GPS?

The Global Positioning System (GPS) is available at any time, free of charge, and is accurate to within 5m (15ft). GPS navigation is made possible by a network of satellites that orbit the Earth at around 20,200km (12,552mi). Each satellite transmits a range of signals which are utilised by GPS receivers, such as your Mio, to determine an exact location. Although a GPS receiver can detect signals from up to 12 satellites at any time, only four signals are required to provide a position or “GPS fix” (latitude and longitude), for vehicle navigation systems.

How does my Mio receive GPS signals?

Your Mio receives GPS signals via the internal GPS antenna. To guarantee the optimum GPS signal strength, ensure your Mio is outdoors, or in a vehicle outdoors, and has an unobstructed view of the sky. GPS reception is not usually affected by weather, however, very heavy rain or snow may have a negative effect on your reception.

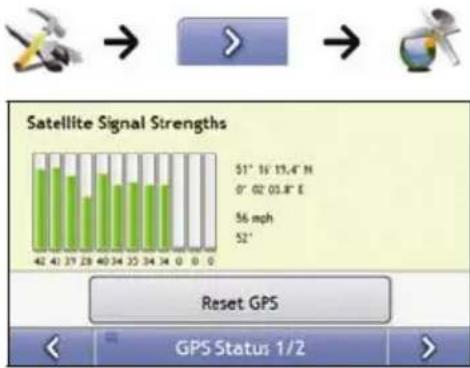

How do I view my GPS status?

You can view your GPS status at any time from the map screens or the Viewfinder screen. ▶ _■■ displays green when a GPS fix is established and red when a GPS fix is unavailable. To indicate the reception strength of a GPS fix, ▶ _■■ displays between one and four green vertical bars.

Illustration of a car with signal waves projecting onto a satellite (no text or symbols)

Illustration of a car parked under a covered parking garage with signal waves and a satellite in the background (no text or symbols)

■ To view your GPS status in more detail, see "GPS Status" on page 81.
■ To set your GPS mode, see "Setting your GPS mode" on page 82.
- For more information about GPS, refer to the GPS Navigation - Frequently Asked Questions guide on the MioMore Desktop DVD.

How do I go from A to B?

Your Mio is equipped with maps that provide street-level detail for door-to-door navigation, including Points of Interest (POIs) such as accommodation, parking areas, petrol stations, railway stations and airports.

When you ... Then ...
know the address of your destination	use the address-entry wizard to enter the address “How do I search for an address?” on page 22.
want to make multiple stops	use the Multi-stop Trip Planner screen to enter multiple waypoints “How do I create a trip with multiple stops?” on page 26.
need to find a named site, feature, landmark or public venue	search for a Point of Interest "How do I search for a Point of Interest (POI)?" on page 30.
search for live POI information	search for a POI using Mio Connect “How do I search for a POI using Mio Connect?” on page 61.
want to navigate to a NavpixTM location	use the Go To NavPix screen to navigate to a preinstalled NavpixTM “How do I navigate to a NavpixTM?” on page 58.

WARNING: For your safety, enter destination information before you start a journey. Do not enter a destination while driving.

What if I miss a turn?

Back-On-Track™ Automatic Rerouting

You will be redirected if you make a wrong turn. A message informing you that your route is being re-calculated will display at the top of the screen.

To cancel a route re-calculation tap ☒. A warning will display, asking you to confirm the cancellation. If confirmed, both the re-calculation and your current route will be cancelled.

How do I search for an address?

Enter a destination using the Destination Search, Keyboard and Preview screens, which used together form an address-entry wizard.

This section provides a case study to help guide you through setting your destination.

Note: In some countries, you can search for your destination by postcode or zip code. If you are in the United Kingdom, and you know the postcode of your destination, you can search for it from the Destination Search screen by tapping Postcode, then entering a postcode of up to eight characters.

Quick Steps

1. Open the Destination Search screen
2. Select the country
3. Search for the city/area
4. Search for the street

5. Search for the house number

6. Tap

Case Study: How do I search for an address?

This case study will show you how to enter an address and how to navigate to it.

The address used in this example is

1 Cheyne Walk Street Horley Surrey AB1 2CD, United Kingdom.

Note: The above address is fictitious and used as an example only.

Tip: Before you enter your destination address, ensure that you have set your route preferences. For more information, see "Route Options" on page 69.

1. Open the Destination Search screen

The Destination Search screen will display.

Note: If this is the first time you are setting your destination and you have maps from more than one country installed, then the Select a map screen will display instead of the Destination Search screen. Go directly to step 2b. The next time you perform this procedure, the Destination Search screen will open as expected.

2. Select the country

Note: If you only have the maps of one country installed and selected, that country is selected for your destination by default and cannot be changed. Go to step 3.

a) From the Destination Search screen, tap The Select a map screen will display.

b) Select United Kingdom from the list. The Destination Search screen will display.

3. Search for the City/Area

a) From the Destination Search screen, tap City/Area. The Keyboard screen will display.

b) Use the Keyboard screen to search for Horley as the city or area of your destination, then tap the search result. The Destination Search screen will display.

4. Search for the street name and house number

a) From the Destination Search screen, tap Street Address. The Keyboard screen will display.

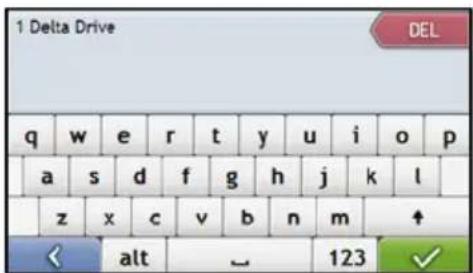

Using the Keyboard screen

The Keyboard screen will display when you are required to enter text, such as when searching for a street name. Search results will be listed in matching order, with the closest matches appearing at the top of the list. A maximum of 99 results will display.

The Keyboard screen can display with various layouts depending on the information you need to enter, including alphabet, number, alternate characters and combinations of these.

You can also choose the type of keyboard you prefer from alphabetic, QWERTY and keypad. For more information, see "Keyboard" on page 88.

As you select each character, the first two results will display. Tap 📄, then scroll to see more search results.

● To select a character or a search result, tap the character or search result.
• To delete a character, tap
● To display more characters, tap 123, alt or abc, if available.

Using the Destination Search screen

The Destination Search screen is used to select your destination by area, street, postal or ZIP code, Points of Interest, intersection, city, area, state or country.

As you specify each part of the address, it will display at the top of the screen.

The available options will change to reflect the parts of the address still to be completed.

b) Use the Keyboard screen to enter Cheyne Walk as the street name of your destination, then tap the search result.

Note: There may be multiple matches for a particular street name. Long streets that run through several neighbouring areas, and common street names will produce search results ordered by their city or area name.

c) Use the Keyboard screen to enter 1 as the house number of your destination, then tap the search result. The Preview screen will display.

Note: If house numbers are available, but not the one that you require, you may have to choose the same street in a neighbouring area. Tap ◀ and select another search result. If house numbers are not available for your selected section of the street the Preview screen will display.

d) Complete the following:

If you want to ... Then ...
navigate to your selected destination	tap Your route is calculated; the 3D Map screen will display.
view the position on the map screen	tap the map to display the position on the 2D Map screen.
view more information about your destination	tap More.The Destination Details screen will display.
add the destination to a multi-stop trip tap	tap Add.The Multi-stop Trip Planner screen will display. The address is listed as a waypoint on the multi-stop trip. See “How do I create a trip with multiple stops?” on page 26.
save the destination as My Home tap Save.	The New Favourite screen will display.tap Save as My Home.
save the destination as a favourite tap Save.	The New Favourite screen will display.tap Save as Favourite.

How do I create a trip with multiple stops?

You can use the Multi-stop Trip Planner screen to set multiple stops or waypoints for your trip. Your route will be calculated to go via each of these points in the specified order.

Waypoints can be added via the Multi-stop Trip Planner screen or by selecting Location, then Add to Trip from the pop-up Map menu on the 2D Map or 3D Map screen. You can save up to 198 multi-stop trips, each with up to 14 waypoints.

Note: Waypoints added, updated or deleted after a multi-stop trip has commenced will not affect the current route.

Quick Steps

1. Start your Multi-stop trip
2. Select the country
3. Search for the city/area
4. Search for the street and house number
5. Add additional waypoints
6. Tap

Case Study: How do I navigate to multiple addresses?

This case study will show you how to set a multi-stop trip by entering multiple waypoints.

The address used in this example is:

1 Cheyne Walk Street

Horley

Surrey

AB1 2CD,

United Kingdom.

Note: The above address is fictitious and used as an example only.

Tip: Before you enter your destination address, ensure that you have set your route preferences. For more information, see "Route Options" on page 69.

1. Open your Multi-stop Trip screen

The Multi-stop Trip Planner screen will display.

a) Tap Add.

The Add to Trip Menu will display.

b) Tap Address.

The Destination Search screen will open.

Note: You can also add waypoints using favourites, recent destinations, POI locations and Navpix™.

2. Select the country

Note: If you only have the maps of one country installed and selected, that country is selected for your destination by default and cannot be changed. Go to step 3.

a) From the Destination Search screen, tap The Select a map screen will display.

b) Select United Kingdom from the list. The Destination Search screen will display.

3. Search for the City/Area

a) From the Destination Search screen, tap City/Area. The Keyboard screen will display.

b) Use the Keyboard screen to search for Horley as the city or area of your destination, then tap the search result. The Destination Search screen will display.

1. Search for the street name and house number

a) From the Destination Search screen, tap Street Address. The Keyboard screen will display.

b) Use the Keyboard screen to enter Mio Street as the street name of your destination, then tap the search result.

Note: There may be multiple matches for a particular street name. Long streets that run through several neighbouring areas, and common street names will produce search results ordered by their city or area name.

c) Use the Keyboard screen to enter 1 as the house number of your destination. The Preview screen will display.

Note: If house numbers are available, but not that you require, you may have to choose the same street in a neighbouring area. If house numbers are not available for your selected section of the street the Destination Preview screen will display.

d) Tap Add. The waypoint is automatically saved and the Multi-stop-Trip screen will display.

e) Complete the following:

If you want to ... Then ...
add another waypointNote: Waypoints added after a multi-stop trip has commenced will not be included in the current route.	tap Add.The Add To Trip Menu will display.return to step 1a.
navigate to your selected destination	tap The Preview screen will display.tap The 3D Map screen will display the calculated route.
change the order of your waypoints tap a destination point to move.	point to move.The Preview screen will display.tap Up or Down.The Multi-stop Trip Planner screen will redisplay.
delete all waypoints tap Clear.
delete one waypoint tap a destination point to delete.	The Preview screen will display.tap Delete.The Multi-stop Trip Planner screen will redisplay.

How do I skip a waypoint during a multi-stop trip?

To skip a waypoint during a multi-stop trip, complete the following:

1. Tap the map.

The Map Menu will display.

1. Tap Route, then Skip Waypoint.

The next waypoint will be skipped and the route recalculated to the following waypoint.

How do I search for a Point of Interest (POI)?

A POI is a named site, feature, landmark or public venue which can be displayed as an icon on the map. POIs are grouped by type, such as petrol stations, parking, beaches and museums.

Select a POI using the Destination Search, Keyboard and Preview screens, which used together to form a POI-entry wizard.

Tip: You can also quickly search for certain POIs based upon your current location via the Main Menu screen.

This section provides a case study to help guide you through finding or setting your POI as a destination.

Quick Steps

1. Open the Destination Search screen

2. Select a country

3. Search for the City/Area

4. Search for a POI

5. Tap

Case Study: How do I search for a Point of Interest?

This case study will show you how to enter an address and navigate to it.

The address used in this example is:

Waterloo Railway Station Road (A301), Waterloo London SE1 8UD United Kingdom.

Note: The above address is fictitious and used as an example only.

1. Open the Destination Search screen

The Destination Search screen will display.

Note: If this is the first time you are setting your destination and you have maps from more than one country installed, then the Select a map screen will display instead of the Destination Search screen. Go directly to step 2b. The next time you perform this procedure, the Destination Search screen will open as expected.

2. Select the country

Note: If you only have the maps of one country installed and selected, that country is selected for your destination by default and cannot be changed. Go to step 3.

a) From the Destination Search screen, tap The Select a map screen will display.

b) Select United Kingdom from the list. The Destination Search screen will display.

3. Search for the city/area

a) From the Destination Search screen, tap City/Area. The Keyboard screen will display.

b) Use the Keyboard screen to search for London as the city or area of your destination, then tap the search result. The Select POI Category screen will display.

Tip: The list of categories is divided into Enabled Categories which are set to display an icon on the map screens, and Other POI Categories which will not display an icon.

4. Search for a POI

a) Either tap Search by name to search in all POI categories, or select a category from the list. The Keyboard screen will display.

b) Use the Keyboard screen to search for Waterloo Railway Station as your destination, then tap the search result. The Preview screen will display.

c) Complete the following:

If you want to ... Then ...
navigate to your selected destination	tap Your route is calculated and displayed on the 3D Map screen.
view your position on the map screen	tap the map to display the position on the 2D Map screen.
view more information about your destination	tap More.The Destination Details screen will display.
add the destination to a multi stop trip	tap Add.The Multi-stop Trip Planner screen will display. The address is listed as a waypoint on the multi-stop trip. See “How do I create a trip with multiple stops?” on page 26.
save the destination as My Home tap Save	The New Favourite screen will display.tap Save as My Home.
save the destination as a favourite tap Save	The New Favourite screen will display.tap Save as Favourite.

How do I save Favourites and My Home?

You can save up to 200 destinations as favourites, one of which can be saved as My Home.

You can save a favourite from the Preview screen after searching for an address, or from the Map Menu on the 3D or 2D Map screens. For more information, see "How do I use the Map Menu?" on page 48.

Can I save a NavPix ^TM to a Favourite?

You can save a NavPix ^TM to any of your existing favourites. For more information, see “How do I save a NavPix ^TM to a favourite?” on page 59.

How do I save a Favourite or My Home?

1. Search for an address until the Preview screen is displayed.

2. Tap Save.

The New Favourite screen will display.

1. To change the name of the favourite, tap The Keyboard screen will display.

1. After you have entered a name for the favourite, tap The New Favourite screen will display.

1. Complete the following:

If you want to ... Then ...
save as a Favourite tap	Save as Favourite.The favourite is saved. The Favourite Preview screen will display. See “How do I navigate to a Favourite?” on page 34.
save as My Home tap	Save as My Home.The favourite is saved as My Home. The My Home Preview screen will display. See “How do I navigate to My Home?” on page 34.

How do I navigate to a Favourite?

1. Tap the Favourite destination you want to travel to.

The Favourite Preview screen will display.

1. Tap

Your Mio will calculate the route from your current location. The 3D Map screen will display.

How do I navigate to My Home?

If you have not set an address as My Home, the first time you try to navigate to My Home you will be prompted to search for an address using the address-entry wizard.

Option 1 - Via the Main Menu

Your Mio will calculate the route from your current location. The 3D Map screen will display.

Option 2 - Via the Favourite Destinations screen

1. From the Favourite Destinations screen, select My Home. The My Home Preview screen will display.

1. Tap

Your Mio will calculate the route from your current location. The 3D Map screen will display.

How do I edit the name of a Favourite?

1. From the Favourite Destinations screen, select a favourite to edit.

The Favourite Preview screen will display.

1. Tap Edit.

The Edit Name screen will display.

1. To edit the name of the favourite, tap

1. After you have edited the favourite name, tap

The Edit Name screen will display as shown in point 2.

1. Complete the following:

If you want to ... Then ...

rename the Favourite tap Save.The favourite is saved. The Favourite Preview screen will display.

save as My Home tap Save as My Home.The favourite is saved as My Home. The My Home Preview screen will display.

How do I delete a Favourite?

1. From the Favourite Destinations screen, select a favourite to delete. The Favourite Preview screen will display.

1. Tap Delete. When the Caution dialog-box opens, tap Yes to confirm. The favourite is deleted. The Favourite Destinations screen will display.

How do I navigate to a recent location?

To make navigating to an address easier, your Mio will automatically save all your start locations and destinations in a list of recent locations.

1. Tap a recent location.

The Recent Location screen will display.

2. Complete the following:

If you want to ... Then ...
calculate the route and open the 3D Map screen	Tap The 3D Map screen will display.
view the full address details of the recent location	tap More.The Recent Destination Details screen will display.
save the recent location as My Home	tap Save.The New Favourite screen will display.tap Save as My Home.
save the recent location as a favourite tap Save.	The New Favourite screen will display.tap Save as Favourite.

How do I view my route?

When a route has been calculated, the 3D Map screen will display. You will be directed to your destination by spoken and visual instructions.

The Map button cycles through the 3D Map, 2D Map, Traffic Overview (if available on your model), Route View and Turn-by-Turn™ screens.

3D Map screen

The 3D Map screen displays your current position and follows your direction of travel.

■ Tap and drag the screen, to move across the map.
Tap the map to view the Map Menu (see "How do I use the Map Menu?" on page 48).

Note: Depending on the country you are travelling in, the colour of the direction and distance buttons may differ from the above example.

	Item Description
1	Next instruction The direction and name of the street to turn in to.
2	Direction and distance of next turn	The direction and distance to your next turn.Note: To repeat the spoken prompt of your next turn, tap the turn arrow.
3	Route Your current route is highlighted.
4	Current position	Your current position is marked with [IMAGE].
5	Speed indicator	Displays when you exceed your set speed limit. For more information, see “Driver Alerts 4/5” on page 72.
6	Status bar Displays one of the following:The name of the street you are located onSpeed warningsActive POIs.Tap to display the Main Menu screen.Note: The Status Bar is replaced by current Traffic events, when Traffic is enabled. For more information, see “Traffic” on page 84.
7	Main Menu	The Main Menu button allows you to enter an address for your destination and customise preferences.
8	Distance and Time Information	Tap to expand and see the following options:Timekm/h or mph (Speed)TTG (Time to Go)DTG (Distance to Go)ETA (Estimated Time of Arrival).Tap to cycle through the options
9	Cancel route Cancels your current route.
10	Zoom	To view zoom options, tapTo zoom out, tapTo zoom in, tap
11	Map	The Map button allows you to cycle through different map screens.
12	Mute/unmute volume, TMC*, battery and GPS information.	Tap to expand and see the following options:Mute/unmute volumeTMC traffic status indicator. For more information, see “How does my Mio receive traffic information?” on page 62.Battery charge indicatorGPS status indicatorThe icon displays green when a GPS fix is established and red when a GPS fix is unavailable. To indicate the reception strength of a GPS fix between one and four green vertical bars are displayed.

* TMC feature is not available on all models.

2D Map screen

The 2D Map screen shows your current position (if a GPS fix is active) and surrounding street names. If a route has been calculated, the route and turns are highlighted. The 2D Map screen follows your direction of travel unless the Map Display preference is set to North (see “Map Display” page 74).

■ Tap and drag the screen, to move across the map.
Tap the map, to view the Map Menu (see "How do I use the Map Menu?" on page 48).

Note: Depending on the country you are travelling in, the colour of the direction and distance buttons may differ from the above example.

	Item Description
1	Next instruction The direction and name of the street to turn in to.
2	Direction and distance of next turn	The direction and distance to your next turn.Note: To repeat the spoken prompt of your next turn, tap the turn arrow.
3	Route Your current route is highlighted.
4	Current position	Your current position is marked with [IMAGE].
5	Status bar Displays one of the following:The name of the street you are located onSpeed warningsActive POIs.Tap to display the Main Menu screen.Note: The Status Bar is replaced by current Traffic events, when Traffic is enabled. For more information, see “Traffic” on page 84.
6	Main Menu	The Main Menu button allows you to enter an address for your destination and customise preferences.
7	Distance and Time Information	Tap to expand and see the following options:Timekm/h or mph (Speed)TTG (Time to Go)DTG (Distance to Go)ETA (Estimated Time of Arrival).Tap to cycle through the options

* TMC feature is not available on all models.

Traffic Overview screen (select models only)

Note: Traffic information is only available on selected model and in selected countries.

The Traffic Overview screen displays a general overview of the traffic situation on your route, including all events in the immediate vicinity.

■ Tap and drag the screen, to move across the map.
Tap the map, to view the Map Menu (see "How do I use the Map Menu?" on page 48)

	Item Description
1		Your final destination
2	Event icon Displays icon to indicate type of event
3	Current position	Your current position is marked with [IMAGE].
4		Tap to display the Event List screen
5	Status bar Displays one of the following:The name of the street you are located onSpeed warningsActive POIs.Tap to display the Main Menu screen.Note:The Status Bar is replaced by current Traffic events, when Traffic is enabled. For more information, see “Traffic” on page 84.
6		Tap to display the Traffic System Status screen.
7	Cancel route Cancels your current route.
8	Zoom	To view zoom options, tap To zoom out, tap To zoom in, tap
9	Map	The Map button allows you to cycle through different map screens.

Item Description

Mute/unmute

volume, TMC*,

battery and GPS

information.

Tap

to expand and see the following options:

Mute/unmute volume

TMC traffic status indicator. For more information, see "How does my Mio receive traffic information?" on page 62.

Battery charge indicator

GPS status indicator

The icon displays green when a GPS fix is established and red when a GPS fix is unavailable. To indicate the reception strength of a GPS fix between one and four green vertical bars are displayed.

* TMC feature is not available on all models.

Route Overview screen

The Route Overview screen gives you a bird's eye view of your trip.

Note: A route must first have been calculated for this screen to be available.

■ Tap and drag the screen, to move across the map.
Tap the map to view the Map Menu (see "How do I use the Map Menu?" on page 48).

Note: Depending on the country you are travelling in, the colour of the direction and distance buttons may differ from the above example.

	Item Description
1	Next instruction The direction and name of the street to turn in to.Note: To repeat the spoken prompt of your next turn, tap the turn arrow.
2	Direction and distance of next turn	The direction and distance to your next turn.Note: To repeat the spoken prompt of your next turn, tap the turn arrow.
3		Your final destination
4	Route Your current route is highlighted.
5	Current position	Your current position is marked with ; if visible.
6	Scale bar Displays map scale.
7	Main Menu	The Main Menu button allows you to enter an address for your destination and customise preferences.
8	Status bar Displays one of the following:The name of the street you are located onSpeed warningsActive POIs.Tap to display the Main Menu screen.Note: The Status Bar is replaced by current Traffic events, when Traffic is enabled. For more information, see “Traffic” on page 84.
9	Distance and Time Information	Tap to expand and see the following options:Timekm/h or mph (Speed)TTG (Time to Go)DTG (Distance to Go)ETA (Estimated Time of Arrival).Tap to cycle through the options.
10	Cancel route Cancels your current route.
11	Zoom	To view zoom options, tapTo zoom out, tapTo zoom in, tap
12	Map	The Map button allows you to cycle through different map screens.
13	Mute/unmute volume, TMC*, battery and GPS information.	Tap to expand and see the following options:Mute/unmute volumeTMC traffic status indicator. For more information, see “How does my Mio receive traffic information?” on page 62.Battery charge indicatorGPS status indicatorThe icon displays green when a GPS fix is established and red when a GPS fix is unavailable. To indicate the reception strength of a GPS fix between one and four green vertical bars are displayed.

* TMC feature is not available on all models.

Turn-by-Turn screen

The Turn-by-Turn screen displays the next four turns of your route, the turn direction, the street name and the distance to the turn. You can view all the turns in the list, using the up and down arrows. A route must first have been calculated for this screen to be available.

Note: A route must first have been calculated for this screen to be available.

Note: Depending on the country you are travelling in, the colour of the direction and distance buttons may differ from the above example.

	Item Description
1	Direction of turn The direction of the turn. Your next turn is highlighted.Note: To Repeat the spoken prompt of your next turn, tap the turn arrow.
2	Distance to turn	The distance to your next turn. Your next turn is highlighted.
3	Instruction	The direction and name of the street to turn in to. Your next turn is highlighted.
4	Next turn Your next turn is at the top of the list.
5	Upcoming turns The direction and distance of upcoming turns.
6	Main Menu	The Main Menu button allows you to enter an address for your destination and customise preferences.
7	Status bar Displays one of the following:The name of the street you are located onSpeed warningsActive POIs.Tap to display the Main Menu screen.Note: The Status Bar is replaced by current Traffic events, when Traffic is enabled. For more information, see “Traffic” on page 84.

* TMC feature is not available on all models.

How do I use the Map Menu?

The Map Menu allows you to access navigational functions from the 3D Map and 2D Map screens.

Displaying the Map Menu

1. Tap 🔍 to display the 3D Map or 2D Map screen.

2. Tap and drag to move around the map to your selected location.

3. Tap the map. The Map Menu will display.

Map Menu options

The following options are available via the Map Menu:

Menu Option Description
Navigate To	Calculates a route from your current location, if your Mio has a GPS fix.
Show Details	Displays thePreview screen from where you can:View details of the locationAdd the location to your multi-stop tripSaves the location as a favouriteNavigate to the location
Nearest POI	Displays the Select POI Category screen. Select the Category, then Search for a POI to navigate to. For further information, see “How do I search for a Point of Interest (POI)?” on page 30.
Avoid Area	Allows you to add an Avoid Area by tapping and dragging the map. For further information, see “How do I add an Avoid Area?” on page 49.
Un-Avoid Area	Deletes the selected Avoid Area. For further information, see “How do I delete an Avoid Area?” on page 49.
Add to Trip Adds	the location to your multi-stop trip.
Route Displays the	Route sub-menu from where you can:Set as Start. Sets the location as your departure point.Demonstrate. Starts the route demonstration, demonstrating navigation from your current position or departure point.Stop Demonstration. Stops the route demonstration.Skip Waypoint. Skips the next stop on your multi-stop trip.Show Summary. Displays a summary of your route, including your departure and destination addresses, total distance and total estimated time to your destination.Detour. Detours your route to avoid the next 1, 2, 5, 10 or 20 kilometres.

How do I avoid an area?

Your Mio can calculate a route that avoids a specified area on the map. Avoid Areas are displayed as shaded areas.

CAUTION:

• If no alternative route around an Avoid Area exists, the route calculation will fail.
• If your destination is in an Avoid Area, your Mio will navigate you into that Avoid Area.

How do I add an Avoid Area?

1. Tap the 3D Map or 2D Map screen to display the Map Menu.
2. Select Avoid Area.
3. Tap and drag to set the Avoid Area to the correct size and position. The Avoid Area is added.

How do I delete an Avoid Area?

1. Find the Avoid Area that you want to delete.
2. Tap the Avoid Area to display the Map Menu.
3. Select Un-Avoid Area. The Avoid Area is deleted.

How do I delete all Avoid Areas?

The Saved Information screen will display.

1. Tap Delete Avoid Areas.
2. When the Caution dialog-box opens, tap Yes to confirm. All Avoid Areas are permanently deleted.

How do I preview a route?

Route demonstration allows you to:

■ Preview a route.

■ Plan and view a route without a GPS fix, such as when you are inside a building.

The following steps will show you how to preview one route.

1. Select a departure point

If you have a GPS fix, you do not need to select a departure point unless you want the demonstrated route to start elsewhere.

a) Tap the 3D Map or 2D Map screen at your desired departure point. The Map Menu will display.

b) Tap Route. The Route submenu will display.

c) Tap Set As Start. The Map Menu will close, and the selected point is set as your departure point.

2. Select a destination point

Set a destination either by using the address entry wizard or by using the Map Menu:

a) Locate your destination.
b) Tap your destination to display the Map Menu.

c) Tap Navigate To. The Map Menu will close and the map screen will display the calculated route.

3. Demonstrate the route

Once the route has been determined, you can demonstrate the route by completing the following:

a) Tap the map screen to display the Map Menu.

b) Tap Route. The Route submenu will display.

c) Tap Demonstrate. The Map screen will display the calculated route in Route Demonstration mode.

How do I view my route statistics?

Note: This feature is not available on all models.

The Mio provides information on your:

■ distance travelled
■ average speed
■ maximum speed
■ time taken for trip
■ stationary time.

Trip information is presented in two different ways. These are:

■ information for the current trip
■ information for all trips to date, or since the tripmeter was last reset.

How do I view statistics on my current route?

The Tripmeter - Current Route screen is used to view statistical information for your current trip.

The Tripmeter - Current Route screen will display.

Complete the following:

If you want to ... Then ...
view statistics for your trips to date	tap ➤ to display the Tripmeter - Global screen.
reset the tripmeter tap Reset.	tap Yes to reset.The Tripmeter - Current Route screen will display

How do I view statistics of my trips to date?

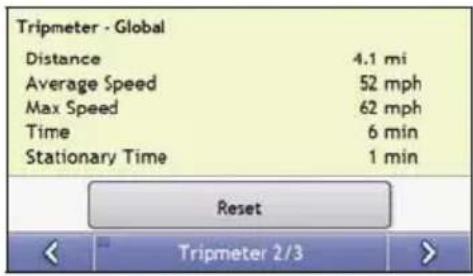

The Tripmeter - Global screen is used to view statistical information for all of your trips to date, or since the trip meter was last reset.

The Tripmeter - Global screen will display.

Complete the following:

If you want to ... Then ...
view your trip logs	tap ➤ to display the Trip Recorder screen.
view statistics for your current route	tap ➔ to display the Tripmeter - Current Route screen.
reset the tripmeter tap Reset.	A Warning dialog box will display.tap Yes to reset.The Tripmeter - Global screen will display.

How do I view my trip logs?

Note: Trip Recorder is only available on some models.

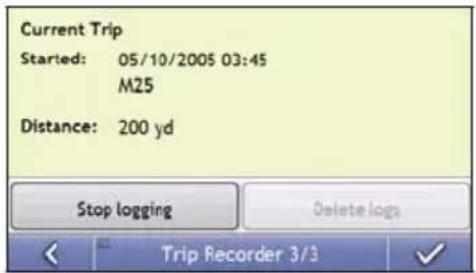

The Trip Recorder screen is used to record trip logs of your current trip. The Trip Recorder only records trip logs if you have chosen to record the logs.

The Trip Recorder screen will display.

Complete the following:

If you want to ... Then ...
view statistics for your current route	tap twice to display the Tripmeter - Current Route screen.
stop recording your trip logs	tap Stop Logging.
delete your trip logs tap Stop Logging.	tap Delete Logs to remove the logs.

How do I use NavPix™?

Note: NavPix ^TM functionality is only available on some models.

Pictures with a GPS fix are called NavPix ^TM and can be used to navigate to the photographed location.

How do I manage my NavPix™?

Album management

The albums contain all your NavPix ^TM and display them as thumbnails. You can store your NavPix ^TM in customizable albums on the Mio internal memory.

	Element Description
1	Browse Displays the Select an Album screen, from where you can select another album.
2	Delete Deletes selected NavPixTM from the displayed album.
3
4	Album title The title of the album.
5	NavPixTM thumbnail

How do I delete NavPix ^TM from an Album?

NavPix ^TM can be deleted from an Album on your Mio internal memory.

Note: When a NavPix ^TM has been saved as a Favourite destination, you will not delete the Favourite if you subsequently remove the NavPix ^TM .

1. From the Album screen, tap Browse.
   The Select an Album screen will display.
2. Select the Album you want to view.

3. Tap and hold, then drag across the screen to select the NavPix ^TM you want to delete. As each NavPix ^TM is selected, a green border will appear around it.
   ■ To cancel a selection, tap and drag across the NavPix™ again.

4. When you have finished the selection, tap Delete.

5. A warning screen will display, asking you to confirm or cancel the procedure. If confirmed, the NavPix™ will be deleted.

Tip: You can also delete a single NavPix ^TM via the Photo Details screen.

NavPix™ management

The NavPix™ Details screen displays information about your NavPix™. Tap a NavPix™ to display the Photo Details screen.

	Element Description
1	Thumbnail A thumbnail of	the NavPix^TM .Tap to display the NavPix^TM in full-screen.
2	NavPix Title The title of the	NavPix^TM ; tap Edit to add a title or edit the existing title.
3	Show on Map When selected	, displays an icon on the map at the location the NavPix^TM was taken.Note: Show on map is available only if this is a NavPix^TM with embedded GPS coordinates.
4		Tap to return to your album.
5	Time / Date and Location Coordinates	Displays the time and date the NavPix^TM was taken. Displays the GPS coordinates if available.
6		Tap the scroll buttons to scroll through your album.
7	Assign Allows you to save a	NavPix^TM to an existing favourite or as a POI, if GPS coordinates are associated with the NavPix^TM .
8	Edit Allows you to edit the name of the NavPixTM using the Keyboard screen.
9	Delete Deletes a	NavPixTM from the album on your Mio.
10		Your route will be calculated and displayed on the 3D Map screen.Note: This button is only available if this is a NavPixTM with embedded GPS coordinates.

How do I view a NavPix ^TM in full-screen?

1. From the NavPix ^TM Details screen, tap the thumbnail of the NavPix ^TM . The NavPix ^TM will appear in full-screen.

Close-up of a spiral mechanical component with no visible text or symbols

Note: The icons disappear after a few seconds; tap the screen to have them reappear.

1. Complete the following:

If you want to ... Then ...
zoom into the NavPixTM	Tap
zoom out of the NavPixTM	Tap
rotate the NavPixTM	Tap NavPix TM will rotate 90 degrees anticlockwise each time is tapped; the NavPixTM is saved at the new angle.
view parts of the NavPixTM not displayed on-screen	tap and hold the NavPixTM, then drag across the screen.
return to the NavPixTM Details screen	Tap [6288]
scroll through your NavPixTM	Tap >

How do I add or edit a NavPix ^TM description?

A description can be added to your NavPix ^TM or an existing description can be edited. The description can be a maximum of 34 characters.

1. From the NavPix ™ Details screen, tap Edit.

The Keyboard screen will display.

1. Tap each character as required.

The description will appear at the top of the screen

1. When the description is completed, tap

The NavPix ^TM Details screen will display, with a new description under the thumbnail.

Note: A description can be added to your NavPix™ or an existing description can be edited only if you have saved the NavPix™ as a POI or as a favourite. For more information see "How do I save a NavPix™ to a favourite?" on page 55 or "How do I save a NavPix™ to a POI?" on page 60.

How do I navigate to a NavPix™?

Your Mio contains preinstalled NavPix ^TM that you can navigate to. If you have not yet navigated to a NavPix ^TM , three of the preinstalled NavPix ^TM will display on the Go To NavPix ^TM screen. Otherwise, three of your recently used NavPix ^TM are displayed.

Note: To navigate to a NavPix ^TM location, either a GPS fix must have been available when the NavPix ^TM was taken, or GPS coordinates have been added using MioMore Desktop.

How do I navigate to a recent NavPix™?

1. Tap the NavPix ^TM you want to navigate to.

The Preview screen will display.

1. Tap

Your Mio will calculate the route from your current location. The 3D Map screen will display.

How do I navigate to a NavPix™ I have downloaded, or was preinstalled?

1. Tap a NavPix™.

The NavPix™ Details screen will display.

1. Tap

Your Mio will calculate the route from your current location. The 3D Map screen will display.

How do I save a NavPix ^TM to a favourite?

Note: When a NavPix ^™ is saved to an existing favourite, only the image, and not the GPS coordinates, are associated with the favourite.

1. From the Album screen, select and tap a NavPix™. The NavPix™ Details screen will display.

1. From the NavPix™ Details screen, tap Assign. The Save Photo screen will display.

1. Complete the following:

If you want to ... Then ...
edit the name of the favourite	tapThe Keyboard screen will display.Enter a name for your Favourite, then tap
save the NavPixTM as a Favourite (when GPS coordinates are associated with a picture)	tap Save as Favourite and select A new favourite from the list.The NavPixTM is saved as a new Favourite and the Photo Details screen will display.Note: You cannot save a NavPixTM as a favourite if GPS coordinates are not available.
save a picture to an address	tap Save as Favourite and select a favourite from the list.The NavPixTM is saved to a favourite and the Photo Details screen will display.

How do I save a NavPix ^TM to a POI?

Note: Only a NavPix™ with embedded GPS coordinates can be saved as a POI.

1. From the Album screen, select and tap a NavPix™. The NavPix™ Details screen will display.

1. From the NavPix™ Details screen, tap Assign. The Save Photo screen will display.

1. Tap Save as POI. The Select POI Categories screen will display.

2. Complete the following:

If you want to ... Then ...
edit the name of the POI	tapThe Keyboard screen will display.Enter a name for your POI, then tap
save the NavPixTM as a POI (when GPS coordinates are associated with a picture)	tap Save as POI and select POI Category from the list, then tapNote: You cannot save a NavPixTM as a favourite if GPS coordinates are not available.
create a new custom POI category and save a NavPixT as a POI	tap New category to create a custom POI category.The Keyboard screen will display.Enter a name for your POI category, then tapThe Select POI Categories screen will display the new POI category.select the POI Category from the list, then tap

What is Mio Connect (Local Search)?

Note: Mio Connect is not available on all models.

Using Mio Connect you can search for and navigate to POIs you have downloaded using MioMore Desktop.

How do I search for a POI using Mio Connect?

1. Tap MioMore Locations.

The List of Results screen will display.

2. Select a POI.

The Preview screen will display.

3. Complete the following:

If you want to ... Then...
calculate the route and open the 3D Map screen	TapYour route is calculated; the 3D Map screen will display.
view the position on the 2D Map screen	tap the map to display the position on the 2D Map screen.
view more information about your POI tap	More.The Details screen will display.
add the POI to a multi stop trip tap Add.	The Multi-stop Trip Planner screen will display. The address is listed as a waypoint on the multi-stop trip. See “How do I create a trip with multiple stops?” on page 26.
save the POI as My Home tap Save.	The New Favourite screen will display.tap Save as My Home.
save the POI as a favourite tap Save.	The New Favourite screen will display.tap Save as Favourite.

How do I receive current traffic information? (Select models only)

Note: Traffic information is only available on selected model and in selected countries.

Your Mio can receive current traffic information for all main roads and motorways, enabling you to avoid potential delays on your route. Event messages and traffic icons will display as they occur. If an event message obscures your current location, the map will adjust to display both the message and your location.

How does my Mio receive traffic information?

You can receive current traffic information on your Mio via an optional traffic accessory. The TMC service is subscription-free.

Note: To receive traffic information, you must connect your Mio to the in-car charger.

The Traffic Message Channel (TMC) broadcasts real-time traffic and weather information via the FM Radio Data System (RDS). FM radio stations transmit TMC data on a cycle of several minutes, with hundreds of events able to be broadcast to TMC receivers, such as the Mio Traffic module.

Traffic status

Your current traffic status is indicated by the colour of the TMC icon.

To view your current traffic status from the map screens, tap

and then tap

The following table describes the three traffic status icons:

Traffic Status	Description
	The TMC status is grey if traffic is currently inactive due to one of the following conditions:Your Mio or Traffic module is connecting to the TMC service.Your Mio or Traffic module cannot receive TMC data. This may be due to poor radio coverage in the local vicinity.You are in a country that is not supported by the Mio Traffic module.Tap to display the Traffic Overview screen.
	The TMC status is orange if one of the following conditions apply:You have navigated into a country that is not supported by Mio Traffic, but there are still traffic events listed on the Event List screen.You have separated your Mio from the Mio Traffic module, or the Mio Traffic module is not receiving power but there are still traffic events listed on the Event List screen.Tap to display the Traffic Overview screen.
	The TMC status is green if your Mio or Traffic module is active and receiving traffic events. Tap to display the Traffic Overview screen.

Your traffic status is displayed in more detail on the Traffic System Status screen.

How will I know when a Traffic Event occurs?

Incoming events are handled according to your Traffic preferences. For more information, see “Traffic” on page 84.

When travelling through an area in which you can receive traffic status, your Mio will decode these events and display them on-screen. An icon will display at the event location on the map screens, and an audible warning is given if an event is on your route. Where the extent of an event is a specific distance, the road will be highlighted and arrows will indicate the direction affected.

A message will display at the bottom of the screen with the road name, the section of road affected and the type of event that has occurred. The message remains on screen for 8 seconds and is added to the Event List.

How do I view a list of all events on my route?

Your Mio creates a list of events as they are received, which is displayed on the Event List screen. This screen can only be viewed if the TMC icon is green or orange.

From the Traffic Overview screen, tap

	Item Description
1	Event description Displays details of the Event, including:Name of road and direction in which Event is taking place.Location of where Event begins and ends.> indicates an Event from a location, to a location.<> indicates an Event between locations.Type of Event.
2	Event icon	Displays icon to indicate type of event. See page 122 to view list of icons.
3		Tap to return to the previous screen.
4		Tap to display the Select event sorting type screen, where you can sort events by distance, road name or age.
5	Position indicator	Displays your position in the Event List screen
6	Scroll buttons	Allow you to view all events by moving up and down through the list.
7	Event number Displays	the number of events in current list.

How do I view traffic details?

There are several ways to view details of an event received by your Mio.

Choose one of the following:

Location Option
From any of the screens used to view your route	Tap the Event message when it appears on screen.The Event Details screen will display.
From the Traffic Overview screen	Tap .The Event List screen will display.Select and tap the event you want to view.The Event Details screen will display.
From the Map Menu	Tap and hold the traffic icon, which displays at the location of the event.The Map View menu will display.Tap Show Details.The Event Details screen will display.

	Item Description
1	Event description Displays details of the Event, including:Name of road and direction in which Event is taking place.Location of where Event begins and ends.> indicates an Event from a location, to a location.<> indicates an Event between locations.Type of Event.
2	Event icon	Displays icon to indicate type of event. See page 128 to view list of icons.
3	Detour information	Displays details of detour recommendation, if any. For more information, see “How do I know if a detour is recommended?” on page 66.
4		Tap to return to the previous screen.
5		Tap > to view next Event in list.Tap to view previous Event in list.
6	Event number	Displays the number of the event currently displayed and the total number of events in the list.
7		Tap to initiate a new route to avoid the event.Only available if a detour or re-route is available.Note: Un-avoid area is represented by [IMAGE] and is displayed when a re-route has been calculated.

How do I know if a detour is recommended?

When a Traffic or Clearance event occurs on your route, a detour will always be recommended. The detour event message will display in the status bar on map screens.

Note: Detours are only recommended for Traffic or Clearance Events on a calculated route.

How do I avoid an event on my route?

From the Traffic Overview screen, tap

1. From the Event List screen, tap the event. The Event Details screen will display.

2. If a detour has been calculated to avoid an event on your route, is available; tap to accept the new route and avoid the event. The 3D Map screen will display.

How do I cancel a detour around an event on my route?

If you have chosen to avoid an event and a new route has been calculated, you can cancel the detour around the event and return to your original route.

1. From the Event List screen, tap the Event you want to un-avoid. The Event Details screen will display.

2. Re-route information displays at the bottom of the screen.

If a re-route has been calculated, is available; tap to accept the new route. The 3D Map screen will display.

How do I automatically avoid all traffic and clearance events on my route?

To automatically avoid all traffic and clearance events see Traffic preferences on page 84.

Traffic Messages

The Event Details screen displays detour status information.

Detour Not Available messages

If a detour is not available, one of the following messages will display:

Message Description
This Event is not locatableThis clearance is not locatable	A specific location for the Event cannot be identified.
This Event does not affect your routeThis clearance does not affect your route	The Event is not on the current leg of your journey, or is behind your current position.
You are avoiding this EventYou have accepted this clearance	The Event is not on the current leg of your journey.
You are too distant to re-routeYou are too distant to accept this clearance	The Event is currently too distant to affect your journey.
Detour not foundClearance route not found	A detour / re-route could not be calculated.

Detour recommended messages

If a detour is recommended, one of the following messages will display:

Message Description
Finding detour...Recalculating route...	Your Mio is calculating a new route. During calculation, the % complete will display.Note: Exiting this screen before the new route is calculated will cancel the operation.
Detour distance...Clearance change	A detour has been calculated.The difference between the distance of your current route and the proposed route is displayed.

What can I customise?

There are various customisation options available to enhance your navigation experience.

Note: The Preferences screens may differ from those displayed above, depending on your Mio model.

■ To move forward through the Preferences screens, tap
■ To revisit the previous screen, tap

Route Options

You can enhance your navigation experience by modifying aspects of your route and route calculation.

Route Calculation 1/5

Complete the following:

If you want to ... Then ...
change the route type	move theRoute Typeslider towards Fastest timeto give high priority to the fastest time when calculating a route.move theRoute Typeslider towardsShortest distanceto give high priority to the shortest distance when calculating a route.Note:Selecting Shortest distance over Faster time can cause much longer journey time.
change the preference for motorways	move thePreference for Motorwaysslider towardsLess oftento use roads other than motorways where possible when calculating a route.Note:This option may not completely remove Motorways from a route.move thePreference for Motorways slider towardsMore oftento use motorways where possible when calculating a route.

Your preferences are automatically saved.

Road Types 2/5

Complete the following:

If you want to ... Then...
avoid toll roads receive a warning if your route includes toll roads	select the Toll roads check box in the Avoid column. select the Toll roads check box in the Warn column. The warning will display at the start of every trip containing a toll road.
avoid unsurfaced roads receive a warning if your route includes unsurfaced roads	select the Unsurfaced roads check box in the Avoid column. select the Unsurfaced roads check box in the Warn column. The warning will display at the start of every trip containing unsurfaced roads.
avoid ferry routes receive a warning if your route includes ferry routes	select the Ferry routes check box in the Avoid column. Note: Avoiding ferry routes may prevent you from navigating between certain countries, even when a bridge or tunnel exists. select the Ferry routes check box in the Warn column. The warning will display at the start of every trip containing ferry routes.

Your preferences are automatically saved.

Road Types 3/5

Complete the following:

If you want to ... Then...
avoid special zone receive a warning if your route includes a special zone	select the Special zone check box in the Avoid column. select the Special zone in the Warn column. The warning will display at the start of every trip containing special zone.

Your preferences are automatically saved.

Driver Alerts 4/5

Complete the following:

If you want to ... Then...
enable a visual warning if the Main Menu screen is accessed in a moving vehicle	select the Warn me not to operate my Mio while driving check box.
enable a warning chime when travelling at or above a designated speed	select the Enable speed warning...... check box.
select your preferred speed	select your preferred speed from the Speed box.

Your preferences are automatically saved.

Data Recording 5/5

Complete the following:

If you want to ... Then...
record a GPS log of your trips	select the Enable GPS data logging check box.
record mileage that can be imported into MioMore Desktop to create expense reports	select the Enable trip recording check box.Note: This option is not available on all models.

Map Display

You can change the look and behaviour of the Map screens by customizing the Map Display preferences.

Map Display 1/3

Complete the following:

If you want to ... Then...
change the map colour scheme	select your preferred scheme from theMap Colour Schemebox.
set the screen contrast to automatically adjust	select theAutoday/nightoption.
improve screen contrast in light or dark conditions	select either theDayor theNightoption to manually adjust the contrast.

Your preferences are automatically saved.

Map Display 2/3

Complete the following:

If you want to ... Then...
enable automatic zooming during navigation	select the Auto-zoom on main map screens check box. If selected, the 3D Map screen will automatically zoom in or out, depending on your speed, to allow optimal viewing of your route.
display North at the top of the 2D Map screen	select the Keep North at top of 2D Map screen check box.Note: If not selected, the direction you are travelling in will display at the top of the 2D Map screen.
display “no entry” icons on “no entry” roads on the 2D Map and 3D Map screens	select the Show no-entry road signs check box.

Your preferences are automatically saved.

Select Map 3/3

Complete the following:

If you want to ... Then...
use maps from a different continent	select a different continent from the maps you are currently using. When selected, the maps for the new continent will load and the 3D Map screen will display.

Your preferences are automatically saved.

Map POIs

Points of Interest (POIs) are grouped into categories. You may choose to either display (or hide) icons of all POI categories on the map screens, or only display the icons from selected categories.

For example, you may only be interested in entertainment venues and want to disable other categories such as schools.

Complete the following:

If you want to ... Then...
display all POI icons (ie, icons from all categories)	Tap Turn All On.
display no POI icons Tap Turn All Off.
select a specific POI category icon for display on the map screens	select the required POI category checkbox;repeat until all required categories are selected.

Your preferences are automatically saved.

Volume

Complete the following:

If you want to ... Then...
increase or decrease the volume	move the Volume slider towards High to increase the volume.move the Volume slider towards Low to decrease the volume.
hear a tone when you tap the touch screen	select the Audio check box.
hear keyboard characters spoken to you	select the Speak keyboard letters check box.

Your preferences are automatically saved.

Screen

Complete the following:

If you want to ... Then...
change the screen brightness	move theScreen Brightnessslider towardsBrightto increase screen brightness.move theScreen Brightnessslider towards Dimto decrease screen brightness.Warning:Your Mio can heat up when theBrightnessscale is set above 70% - i.e., when more than seven rectangles are coloured - therefore, use lower brightness whenever acceptable.

Your preferences are automatically saved.

POI Alerts

Note: The Safety Cameras are only available in selected countries.

The POI Alert preferences allow you to set a warning chime and/or visual warning to Point of Interest categories that you have installed via MioMore Desktop (Custom POIs). You may also be able to set warnings to certain POI categories that were preinstalled on your Mio or available by subscription, such as Safety Cameras.

If you have a route set, the warnings will occur when you are a certain distance (set by the Warning Distance preference) from the POI on your route.

If you do not have a route set, the warnings will occur when you are in the vicinity of the POI.

1. Tap a custom POI category.

The activation preferences for the selected category will display.

2. Complete the following:

If you want to ... Then...
display locations in this category on the map	select the Display on the map check box.
enable a warning chime when locations in this category are in close proximity	select the With an audible alert check box.
enable a visual warning when locations in this category are in close proximity	select the With a visual alert check box.
select the distance at which the warnings will activate	move the Warning distance slider to select the distance at which the warnings will activate.

Your preferences are automatically saved.

GPS

GPS Status

Signals are transmitted by Global Positioning System (GPS) satellites orbiting the Earth. The GPS Status screen provides a visual representation of the information being received.

Latitude and longitude are displayed, along with ground speed and the heading in degrees. The strength of each satellite is displayed on a bar chart.

The satellites available from your current position are shown as grey, red and green coloured bars:

Bar colour Description
Grey	No signal.
Red	A valid signal, but not being used to fix your position.
Green A valid signal being used to fix your position.

Resetting your GPS fix

Occasionally, the GPS fix may need to be reset. This may occur if the receiver has been transported a long distance since last being used; for example, to a different country, and is still trying to establish the previous position.

Complete the following:

If you want to ... Then...

reset the GPS tap Reset GPS.

Setting your GPS mode

Complete the following:

If you want to ... Then...
use GPS select the Normal option.
use WAAS select the	WAAS (only available in USA) option.
use EGNOS	select the EGNOS (only available in Europe) option.

Note:

WAAS - Wide Area Augmentation System is a navigation system developed for civil aviation by the Federal Aviation Administration (FAA), a division of the United States Department of Transportation (DOT).

EGNOS - European Geostationary Navigation Overlay Service is a satellite based augmentation system (SBAS) under development by the European Space Agency, the European Commission and EUROCONTROL.

Tip: You should only change the default setting if you are experiencing poor GPS performance.

Your preferences are automatically saved.

Language

Complete the following:

If you want to ... Then...
enable voice guidance	select the Enable voice guidance check box.
change the on-screen language	select your preferred language from the Language box and tap Yes.Your language preference is saved and the map screen is displayed.
change the voice scheme	select your preferred voice scheme from the Voice Guidance box.Note: Only voice schemes that are compatible with the chosen language are displayed.

Your preferences are automatically saved.

Traffic

Note: Traffic information is only available on selected model and in selected countries.

You can view your current traffic system status and change options by customizing the traffic preferences.

Traffic System Status

OR

From the Traffic Overview screen:

The Tuner section displays the name and frequency of the radio station currently being used to receive traffic event information. A bar shows the strength of the traffic signal being received; the more green bars, the stronger the signal.

Complete the following:

If you want to ... Then...
change your preferred radio station	select your preferred radio station from the Preferred Station dropdown.

Your preferences are automatically saved.

Traffic Event Notification

OR

From the Traffic Overview screen:

Complete the following:

If you want to ... Then ...
turn on/ off traffic event notification	select the Notify me about nearby traffic events check box to receive traffic event notification.clear the Notify me about nearby traffic events check box to turn off traffic event notification.Note: Event icons will still display on the 3D and 2D Map screens.
be notified about events that affect your current route	select the Only notify me about events on my route check box.
be notified only when a detour is recommended	select the Only notify me if a detour is recommended check box
automatically accept recommended detours and have a new route calculated	select the Automatically accept recommended detours check box.

Your preferences are automatically saved.

Select event sorting type

From the Traffic Overview screen:

Complete the following:

If you want to ... Then ...
sort events by distance select the Distance	check box.
sort events by road name select the Road name	check box.
sort events by age select the Age check box
only see events that occur on your route	select the Only show events on my route check box.

Your preferences are automatically saved.

Power

The Battery Status bar shows the percentage of power left in the Mio battery; the words External Power will display when the battery is charging from an external power source. To charge the battery, see "How do I charge the battery?" on page 14.

Keyboard

Complete the following:

If you want to ... Then...
use an alphabetic keyboard for entering information	select the Use alphabetic type (a, b, c...) option.
use a QWERTY keyboard for entering information	select the Use QWERTY type option.
use a keypad-type keyboard (predictive text) when searching for an address	select the Use keypad type (abc, def...) for address searches check box.

Your preferences are automatically saved.

How does predictive text (abc, def...) work?

Predictive text allows addresses to be searched by a single key-press for each letter, as opposed to the multiple key- presses. As you enter a letter of an address, your Mio will compare all possible combinations against the maps you have installed and determine which address you intended to type.

For example:

To enter London, tap JKL MNO MNO DEF MNO MNO.

Your Mio will compare all possible combinations and display London as a search result. You can add further letters to narrow the search.

Units

You can change the units used by your Mio by customizing the measurements preferences.

Units 1/2

Complete the following:

If you want to ... Then...
change the time format	select either the 12 hour or 24 hour option.
change the distance units	select your preferred distance unit type from the Distance Units options.

Your preferences are automatically saved.

Units 2/2

Complete the following:

If you want to ... Then ...
change the latitude,longitude position format	select either the Decimal degrees or the Degrees, minutes and seconds option.

Your preferences are automatically saved.

Start-up

Complete the following:

If you want to ... Then...
show the Tutorial when you turn on your Mio	select the Show the Tutorial checkbox.
show the Language Selection screen when you turn on your Mio	select the Show the Language Selection screen checkbox.

Your preferences are automatically saved.

Saved Info

Complete the following:

If you want to ... Then...
delete recent locations tap Delete	Recent Locations.
delete favourites tap Delete Favourite	Destinations.
delete avoid areas tap Delete Avoid Areas.
restore factory default settings	tap Restore Factory Defaults.Note: The Restore Factory Defaults option does not delete recent locations or saved favourite destinations.
clear all settings; for example,for use in a rental car	complete all of the above.

When the warning dialog box displays, tap Yes.

Tutorial

The Tutorial displays when you turn your Mio on, unless you have cleared the Show tutorial on start-up check box.

You can view the Tutorial at any other time:

• To prevent the Tutorial from displaying again on startup, clear the Show tutorial on start-up check box to clear it.
  ■ To move forward through the Tutorial screens, tap
  ■ To revisit the previous screen, tap

About

This preference contains copyright and trademark information.

Shop Demo

Complete the following:

If you want to ... Then...
enable a shop demonstration of MioMap to be played	tap Shop Demo on the preference screen. After a short delay, a route will be demostrated.

What is MioMore Desktop?

MioMore Desktop is a suite of tools you can use to access greater functionality and product information via your computer.

MioMore Desktop allows you to:

■ obtain software updates
■ search online for local POIs
■ manage maps
■ manage custom POIs
■ manage safety camera subscriptions
■ report trip mileage
■ browse the Mio website for special offers.

■ transfer pictures from your Mio using Photo Album

Can I use MioMore Desktop with my computer?

Ensure your computer has the following minimum system requirements before installing MioMore Desktop:

■ IBM compatible PC,
■ Microsoft® Windows XP SP2 or Vista x32,
■ Internet Explorer 6 or higher,
■ DVD drive,
■ USB port,
■ Internet connection for activation.

Note: For Windows 2000 and XP users, Microsoft .NET 2.0 will be installed on your computer as part of the installation of MioMore Desktop. For Windows Vista users, Microsoft .NET 3.5 will be installed.

How do I install a map for the first time?

The most common task performed using MioMore Desktop is the installation of a new map to your Mio internal memory. Complete the following procedures:

Step	Action
1	Install MioMore Desktop on your computer (see “How do I install MioMore Desktop onto my computer?” on page 96).
2	Check for software updates for MioMore Desktop on your Mio (see “How do I keep MioMore Desktop up-to-date?” on page 98).
3	Install one or more maps on your Mio (see “How do I install maps onto my Mio?” on page 101).

How do I install MioMore Desktop onto my computer?

CAUTION: Before you begin, ensure that your computer meets the minimum system requirements for MioMore Desktop, especially:

- Ensure that Internet Explorer 6 or higher is installed on your computer before you install MioMore Desktop, even if it is not your default browser.

- Windows XP users, ensure that Windows XP Service Pack 2 or higher has been applied before you install MioMore Desktop.

1. Close all programs on your computer.

2. Insert the MioMore Desktop Application Installer DVD into your computer DVD drive. The MioMore Desktop installer will start.

If your computer does not automatically launch the DVD, start the installation manually: Start → Run.

Type D:\Install.exe where "D" is the letter assigned to your DVD drive, then click OK.

1. Select your preferred language for MioMore Desktop.

2. Click Install Software → Install MioMore Desktop 2008.

3. Follow the screen prompts to install MioMore Desktop:

■ Review and accept the Licence Agreement for MioMore Desktop when prompted.
■ Select a destination folder for MioMore Desktop when prompted.
■ When the installation has finished, click Finish. MioMore Desktop will open.

1. If prompted to connect your Mio to your computer, complete the following:

- Plug the large end of the USB cable directly into a USB port on your computer (not a USB hub) and plug the small end into the USB Socket on the ✦ bottom of your Mio.

Tip: Where possible, plug the USB cable into a USB port at the back of your computer.

■ Push the Power switch to the ON position, to turn on your Mio. The following screen will display on your Mio.

Three computer monitors on a dark background, one blank and two connected to a stylized icon (no text or symbols)

1. If prompted to update your Mio software, follow the on-screen prompts.

You are now ready to use MioMore Desktop to install maps to your Mio.

MioMore Desktop features

Note: Depending on your Mio model certain MioMore Desktop features may not be available.

Start → All Programs → Mio → MioMore Desktop

	Element Description
1	Menu bar	Menus that provide access to basic MioMore Desktop functionality.
2	Mio online Displays the Mio website.
3	Mio Connect	Application used to search and install local POIs for a route.Note: Mio Connect is not available on all models.
4	My Maps Application used to install and manage maps.
5	My Subscriptions	Information on your current subscriptions, including safety camera subscription.
6	Image Search Search and download NavPixTM from a website.Note: This feature is powered by Flickr.
7	Photo Album Application used to transfer NavPixTM from your Mio to your computer. The software enables you to:Manage albumsCopyDeleteMove NavPixTM or albums between the NavPixTM library on your Mio and the NavPixTM library on your computer.
8	Custom POIs	Application that allows you to import custom POIs.
9	Mileage Reporter	Uses data recorder on your Mio allowing you generate expense reports on the mileage/estimated fuel usage of your trip.
10	Voice Transfers	Application that allows you to install or remove voice files from your Mio.
11	Activation	Application used to activate a product key when you purchase a subscription or maps.

How do I keep MioMore Desktop up-to-date?

We recommend that you regularly use MioMore Desktop to check the Mio server for MioMore Desktop software updates.

How do I update MioMore Desktop?

Start → All Programs → Mio → MioMore Desktop → Tools → Options → General

Select Auto check for updates checkbox.

When you select this option, every time you access MioMore Desktop, the latest service packs and bug fixes if available are downloaded from the Mio server and applied to your Mio.

Note: Updating software is different from upgrading software. To upgrade MioMore Desktop, you must first purchase a new version of MioMore Desktop from a retailer, then install it on your Mio.

MioMore Desktop Preferences

Tools → Options → General

Complete the following:

If you want to ... Then ...
upgrade from a previous version of MioMore Desktop	Follow the instructions in the Installation Guide or Upgrade Guide that came with your MioMore Desktop upgrade.
change the MioMore Desktop measurement to metric units	Select the Use metric units check box.
change the MioMore Desktop measurement to decimals	Select the Use Decimal degrees check box.

Mio Online

Note: Make sure that your computer is connected to the Internet.

Clicking the Mio Online button on the left side displays the company's official website in the embedded browser window. You can also check the Mio e-shop for accessories or additional maps.

Mio Connect

Note: Mio Connect is not available on all models.

Mio Connect is a MioMore Desktop application that allows you to search and install local POI information from your computer to your Mio.

Tip: Before you begin, ensure your Mio is correctly plugged into your computer: Plug the large end of the USB cable directly into a USB port on your computer (not a USB hub); plug the small end into the USB Socket on the side of your Mio.

Start → All Programs → Mio → MioMore Desktop → Mio Connect

	Element Description
1	Search location Displays search fields
2	Globe Displays selected place name results.
3	Saved Mio Connect locations

How do I search for a POI using Mio Connect?

1. Select the last known location on your Mio or a custom location and click Continue.
2. For a custom location, perform step 3 to 6 to set up your preferred location.
3. From the country drop down box, select a Country.
4. From the Region/State drop down box select a Region/State if required.
5. In the Place name box, enter the first few letters of a city and then select your preference.
6. Click Continue.

The Available Services page will display.

1. Select your preferred search service.

The selected services page will display.

Note: Depending on the country you are navigating, the available search services may vary.

Note: For some countries you are required to accept the terms of use.

1. Enter your search keyword and then click Search.

A list of search results will display.

How do I install POIs from my computer to my Mio?

1. Perform step 1 to 6 of "How do I search for a POI using Mio Connect?" on page 99.
2. Click next to the POI you want to import to your Mio.

Note: You can install a maximum of 200 POIs on your Mio via Mio Connect.

How do I delete a POI from my Mio?

1. From Saved Mio Connect locations select the checkbox of the POI you want to delete.
2. Click Delete Selected.

The POI is deleted from your Mio.

1. Repeat step 1 and 2 to delete more POIs to your Mio.

Note: To delete all the POIs installed on your Mio, select the Select All check box and then click Delete Selected.

My Maps

The My Map application allows you to install new maps, remove maps from your device and purchase new maps.

Note: You can purchase new maps directly from the Mio e-shop. Simply click Mio Online or click Purchase a map from the Mio online store link at the bottom. Make sure that your computer is connected to the Internet.

Start → All Programs → Mio → MioMore Desktop → My Maps

	Element Description
1	Zoom In Click to zoom in.
2	Continent A drop down list of continents that have maps available for your Mio.
3	Map Source A list of maps on the DVD or available for purchase via the Mio store website.
4	My Mio A list of maps installed on your Mio.
5	Zoom Out Click to zoom out.
6	Globe A map of the world or a continent selected indicating the maps:on the current DVD,installed on your Mio oravailable from Mio.

How do I install maps onto my Mio?

Your Mio comes with one or more pre-activated maps.

You can install maps from the enclosed DVDs to your Mio internal memory; however you may need to purchase a Map Product Key to activate the maps.

If you are not sure which map contains the town or city that you want to install, you can use the Find City window to identify the correct map. For more information, see "How do I know which map contains a particular city or town?" on page 104.

How do I install maps from DVD?

1. Open MioMore Desktop, if it is not already open: Start → All Programs → Mio → MioMore Desktop

2. Click My Maps. The My Maps application will display.

3. Insert a Map DVD into your computer DVD drive.

■ The maps that are already installed on your Mio are green.
■ The maps that are unlocked and ready to be installed to your Mio are yellow.
■ The maps that require activation before being installed to your Mio are red.
■ The maps that are available for purchase from Mio are blue.

Note: If your computer opens Windows Explorer when the DVD is inserted, close the Windows Explorer window.

Geographic map highlighting a pink region within a green landmass (no text or labels visible)

1. Complete the following:

If the map to be installed is ... Then ...
yellow go to step 7.
red	the map needs to be activated via the Internet before it can be installed; continue to step 5.

1. If you connect to the Internet via a dial-up connection, connect to the Internet now.

2. Follow the prompts to activate your Map Product Key, including:

■ Enter the Map Product Key when prompted.

• Your computer will connect to the Internet and activate your Map Product Key.
  ■ When activation has completed, the map will change colour to amber; continue to step 7.

Geographic map highlighting a specific region in yellow against a green background, with no visible text or labels.

1. Click the map you want to install to your Mio.

The map will change colour to yellow to indicate it has been selected.

■ To deselect a map, click the map again.

Note: You may need to install multiple maps to cover the required geographical area.

1. Complete the following:

If you want to ... Then ...
select an yellow map go back to step 7.
select a red map	the map needs to be activated via the Internet before it can be installed; go back to step 5.
install the selected maps to your Mio continue to step 9.

1. Select the destination media for the selected maps, then click Transfer Now. The selected maps will be installed and change colour to green.

Abstract green-toned map outline with irregular white outlines, no visible text or symbols

1. To use your Mio, disconnect the USB cable.

WARNING: Do not disconnect the USB cable from the Mio USB Socket until the installed map or maps have changed colour to green.

How do I remove maps from my Mio?

1. Click My Maps.

The My Maps application will display.

1. From the My Mio panel, select the check box next to the map you want to remove.

2. Click Remove Maps to remove the selected maps.

3. Confirm that you want to remove the selected map when prompted. The map is removed from your Mio.

How do I know which map contains a particular city or town?

Use the Find City window to find the map that contains a particular city or town.

1. Click My Maps.

The My Maps application will display.

1. On the Globe panel, Right click and select Find City. The Search for City window will open.

1. Type the name of the city or town in the City Name field. The list of available cities will reduce to match your search.

2. Select the name of the city or town, then click Show on Map. The globe will rotate to centre on the selected city or town.

How do I download maps to my computer?

1. Make sure that your computer is connected to the Internet.

2. Click Tools → Options → My Maps and click Change to assign a folder on your computer for the map data.

3. Click My Maps.

The My Maps application will display.

1. From the Map Source panel, click Import Map Data.

The Map Selection window will open.

1. Select the map you want to download and click OK. The map will be downloaded to the folder that you have assigned.

Note: To disable the free map offer messages, click Tools → Options → My Maps and click Suppress Free Map Offer messages check box.

What is a Major Road Network map?

Note: Navigation between particular countries is not available on all models.

Continuous continental navigation

Major Road Network maps allow you to seamlessly navigate between installed maps without installing maps of all regions along your route. Each Major Road Network map covers a large area, such as Western Europe, and contains main roads that connect cities and towns. You can select a road or Point of Interest on the Major Road Network map as your departure point or destination.

All Major Road Network maps:

■ contain roads and ferry connections of high national and international importance.
■ use less memory than would be necessary to install all equivalent detailed maps.
■ exclude smaller roads and have a reduced level of geographical detail.

How do I install or reinstall a Major Road Network map?

Major Road Network maps can be installed or reinstalled to your Mio the same way detailed maps are installed. For more information, see "How do I install maps from DVD?" on page 102.

My Subscriptions

Note: Safety camera information is only available for selected countries.

Your Mio contains pre-loaded safety camera information. To subscribe to current Mio safety camera information, use the enclosed DVD to install MioMore Desktop software on your computer.

For the latest safety camera coverage, to subscribe to safety camera information and to see our latest offers, visit www.mio.com.

Each country has a coloured circle indicating the status of your subscription.

Alerts

Safety Camera alerts can be set to enable a warning sound or visual warning when on your route (see "POI Alerts" on page 80).

How do I install Safety Camera information?

Complete the following steps to install safety camera information on your Mio.

1. Purchase a subscription.
2. Activate your subscription.

How do I know which Safety Camera information is available?

Start → All Programs → Mio → MioMore Desktop → My Subscriptions

1. From the Available Subscription section, select the country for which you want to purchase the subscription.

2. Left click and select Activate my subscription.
   The Activation window will display.
   Note: Subscriptions are available only for those countries for which you have purchased maps.

3. Enter a product key and follow the prompts to activate your subscription.

Purchase a Subscription

1. To purchase a subscription to safety camera information, on the Subscriptions menu, select the country for which you want to purchase the safety camera and then select Purchase an activation key from the Mio store.
   The Mio Store website will open.
2. Follow the prompts to purchase your subscription.

A product key will be sent to you via email when you have subscribed. You will need to use this product key to activate your subscription.

Activate your Subscription

Start → All Programs → Mio → MioMore Desktop

1. From Available Subscriptions section, select the country for which you want to activate the safety camera.

2. Right click and select Activate my subscription. The Activation window will display.

1. Enter the subscription product key in the Product Key field.

2. Click Continue. Follow the prompts to update your subscription.

Your software will update automatically.

How do I update Safety Camera information on my Mio?

Start → All Programs → Mio → MioMore Desktop → My Subscriptions

My Mio section will display a list of subscriptions already installed on your device.

Icon Description
red	Expired subscriptions.right click to purchase a new subscription.
Yellow	Available subscriptions.right click to update and purchase new subscription.
green	Active subscriptions.Note: No updates are available for these subscriptions.

Image Search

Image Search is a MioMore Desktop application powered by Flickr™ allowing you to download photos and import them to Photo Album. You can then upload the photo to Flickr website, transfer photos to your Mio, export pictures to Google Earth or search for other NavPix™ near the longitude and latitude of your NavPix™.

Start → All Programs → Mio → MioMore Desktop → Image Search

How do I download NavPix™ from the internet?

1. In the Description field enter a search description for the image you are looking for.
2. Select one of the Sort by options.
3. Click Search.

Thumbnails of the NavPix ^TM will display in the NavPix ^TM display area.

Note: You can narrow your search by selecting the Advance Search check box and then selecting a city from the drop down list or by entering longitude and latitude details.

How do I import NavPix™ to Photo Album?

1. From the NavPix ^TM display area select a picture or group of pictures you want to upload to your Photo Album.
2. Right click and select Import to Photo Album.

A new album is created in the Desktop album section of Photo Album.

For more information, see "Photo Album" on page 109.

Photo Album

Note: Depending on your Mio model certain Photo Album features may not be available.

Photo Album is a MioMore Desktop application which allows you to copy, delete or move pictures or albums between the NavPix™ library on your Mio and the NavPix™ library on your computer.

Start → All Programs → Mio → MioMore Desktop → Photo Album

	Element Description
1	NavPixTM menu Gives access to Photo Album functionality.
2	Desktop albums Displays a list of all albums stored in the NavPixTM library on your computer.Click an album to display its contents in the Album display area.Click the View all pictures button to display all pictures stored in theNavPixTM library on your computer.
3	My Mio albums Displays a list of albums stored on the Mio internal memory if one is inserted.Click an album to display its contents in the Album display area.
4	Album display area Displays thumbnails of pictures in the selected album.
5	Selected picture When a thumbnail is selected it displays with a blue border.
6	Search Type to search for a NavPixTM by name.
7	Toolbar When a picture is selected, the icons which can be used will be active.

Toolbar

The following options are available on the toolbar.

	Element Description
1	Create new album Click to create a new album in the NavPixTM library you are viewing.
2	Rotate left Rotates the selected NavPixTM 90° to the left.
3	Rotate right Rotates the selected NavPixTM 90° to the right.
4	Transfer to your Mio or Transfer to your computerIf you are viewing NavPixTM in the NavPixTM library on your computer, this will display as Transfer to your Mio. Click to transfer the selected NavPixTM to your Mio.If you are viewing NavPixTM in the Mio library this will display as Transfer to your computer.Click to transfer the selected NavPixTM to the NavPixTM library on your computer.
5	Import NavPixTMImports NavPixTM from your computer to the NavPixTM library on your computer.
6	View details Click to view the selected NavPixTM and edit NavPixTM details, including: NavPixTM name, latitude, longitude, description.
7	Export to disk Click to save NavPixTM to your computer or a network drive.
8	Delete NavPixTMClick to delete the selected NavPixTM.

How do I copy NavPix ^TM or albums from my Mio to Photo Album?

Your Mio comes with a few pre-installed NavPix ^TM that can be can be saved on your computer, printed, emailed to friends or shared with other NavPix ^TM users around the world.

1. From the My Mio section, select the album containing your required NavPix™.
   Thumbnails of the NavPix ^TM in the selected album will display in the Album display area.
2. Either click and drag the required NavPix™ to an album in the Desktop albums section, or click the Transfer to your computer icon on the toolbar.
   Note: If an album is not selected in the Desktop albums section, you will be prompted to either select one, or create a new album.
3. Repeat steps 1 and 2 to copy NavPix ^TM from another album.

How do I transfer pictures from Photo Album to my Mio?

You can transfer pictures from your computer to your Mio. You can import any JPEG (.jpg) into Photo Album, add or edit GPS information, and then copy the picture to your Mio.

1. From the Toolbar section, select Import NavPix.
   The Open dialog box will display.
2. Navigate to select a NavPix ^TM from an album on your computer and click Open.
   Thumbnails of the NavPix ^TM will display in the Album display area.
3. Either click and drag the required NavPix ^TM to an album in the My Mio section, or click the Transfer to your Mio icon on the toolbar.

Note: If you have transferred a NavPix ^™ with GPS coordinates you can then navigate to where the picture was taken.

How can I view and edit pictures or albums on my computer?

If you want to ... Then ...
rotate a picture to left select the picture from the Album display area.click Rotate left on the toolbar.
rotate a picture to right select the picture from the Album display area.click Rotate Right on the toolbar.
view the picture details select the picture from the Album display area.right click and select View Details or click View Details on the toolbar.
edit GPS information select the picture from the Album display area.click on the picture or click View Details on the toolbar.Following information will display:● Name● Latitude and Longitude● DescriptionEdit the details you want to modify. Click OK to save the changes.
delete a picture select the picture from the Album display area.right click and select Delete or click Deletes on the toolbar.

What else can I do with pictures and albums on my computer?

From the NavPix™ library on your computer, you can:

■ add a picture to another album
■ remove pictures from an album
■ view and edit details of a selected picture
■ upload pictures to Flickr™
■ export to disk
■ export pictures to Google Earth™
■ search for pictures
■ view all pictures in the library

If you want to ... Then ...
add a picture to another album	in the Desktop albums section, select the album containing the NavPixTM you want to include in another albumselect the NavPixTM then drag it to the other album.Note: The selected NavPixTM is included in the new album, but is not moved, i.e., one instance of the NavPixTM in the library may be included in multiple albums.
remove a picture from an album	in the Desktop albums section, select the album containing the NavPixTM you want to removeselect the NavPixTM, right click and select Remove from album.Note: Click the Delete icon on the toolbar if you want to delete the NavPixTM from all albums.
view and edit picture details	select the picture then click the View Details icon on the toolbar. edit the fields as required.
upload picture to the Flickr website	in the Desktop albums section, select the album containing the NavPixTM you want to upload to the Flickr website. select the NavPixTM, right click and then select Upload to Flickr. Note: You need a Flickr account to upload NavPixTM. To create a Flickr account visit www.flickr.com
save a picture to your computer	select the picture from the Album display area. right click and select Export to disk or click Export to disk on the toolbar. Navigate to an album on your computer where you want to save the NavPixTM.
export to Google EarthTM (only NavPixTM with GPS coordinates can be exported to Google Earth)	in the Desktop albums section, select the album containing the picture you want to export to Google Earth. select the NavPixTM, right click and then select Export to Google Earth. Navigate to a folder on your computer to save the file and then open in Google earth. Note: You need to install the Google Earth software on your computer to be able to view the file you have created. You can download Google Earth from earth.google.com
search for other NavPixTM	You can search for other NavPixTM near the longitude and latitude of your NavPixTM using Flickr.
view all pictures in the library	click the View all pictures button at the bottom of the Desktop album section.

Photo Album Preferences

Tools → Options → Photo Album

Complete the following:

If you want to ... Then ...
change your NavPixTM location on your computer	click Change. The Save As dialog box will open.select a location for your NavPixTM library.click Save. The warning message will display and you will be prompted to confirm your action.Your NavPixTM library is moved to the new location.
receive a warning message before deleting an image from your device	select Warn me when permanently deleting an image from my device checkbox.
receive a warning message before deleting an image from your NavPixTM library	select Warn me when permanently deleting an image from my library checkbox.
create a new folder every time you import new photos	select Import photos to a new album checkbox.
view NavPixTM when on a route	select Show NavPix on map checkbox.

Custom POIs

Note: Depending on your Mio model Custom POIs features may not be available.

The Custom POI application allows you to create or import your own POI files. These are called custom POIs. Unlike preinstalled POIs, custom POIs can be removed from your Mio and can have audio as well as visual alerts associated to them.

How do I install custom Points of Interest?

Start → All Programs → Mio → MioMore Desktop → Custom POIs

Note: Various POI files are available for download free or by subscription from third-party websites. Ensure that downloaded files are in .csv (Comma Separated Values) format.

CAUTION: Mio is not responsible for the content or accuracy of the information or the reliability or availability of the third-party websites. The use of information regarding safety camera locations may be subject to local laws in the country of use. You are responsible for checking that you can use the information in your country or in the country where the information will be used.

1. In the Add new POIs section, click Browse to select a source file. The open dialog box will open.
2. Select the file from your local or network drive, then click Open.
3. From the POI Category section:

If you want to ... Then ...
use an existing custom POI category	select the Existing Category option, then select a type from the drop down list.
create a new custom POI category	select the New Category option, then type a name for the POI category.

4. Complete the following:

If you want to ... Then ...
select an icon to display on the map screens for POIs of the category	ClickBrowseto select the icon file from your local or network drive. When you have located the icon file, select it and clickOpen.The icon file must be a bitmap (.bmp) graphic with a minimum size of 6x6 pixels and a maximum size of 32x32 pixels.Note: If you do not select a custom icon, a default icon will display.
enable a visual warning when a POI of this category is in close proximity	select theVisual alertcheck box.
enable a warning sound when a POI of this category is in close proximity	select theAudio alertcheck box.
select the distance from a POI of this category at which the visual warning should display or the warning chime should sound	select the distance from theDistancebox.Note: To change the units used to measure distance for this POI category, from the tools menu click on options and from the general option select Use metric units check box.
select a custom sound alert file to play when a POI of this category is in close proximity	Either select a sound file from the list, orClickAddto select a sound file (.WAV format) from your local or network drive. When you have located the file, select it and clickOpen.Note: If you do not select a custom sound file, a default sound alert will play.

5. Click on Add to device button to add the POI to your Mio.

Note: Each POI file corresponds to a POI category; for example, Hotels .csv will be listed in your Mio as the Hotels category.

How do I delete a Custom POI File from my Mio?

1. On the Installed POIs section click Delete next to the file name. The file is removed from the list, but is not yet deleted.
2. Accept the warning message. The selected file is deleted.

Mileage Reporter

Note: Mileage Reporter is not available for all models

Mileage Reporter is a MioMore Desktop feature that allows you to create expense reports (.csv format) based on the mileage and estimated fuel usage recorded by your Mio.

Start → All Programs → Mio → MioMore Desktop → Mileage Reporter

	Element Description
1	Timeframe specifies the time for which the mileage report will be created.Select Show All to include all recorded mileage.
2	Report panel displays your trip logs.
3	Fuel Select to include the amount of fuel (estimate) used for the mileage recorded.If selected, specify the number of miles travelled per gallon, or kilometres travelled per litre.
4	Report data buttons click to input report data from your Mio or export to a report (.csv).

To set the trip recording preference on your Mio, see "Data Recording 5/5" on page 73.

How do I input my trip data?

1. Select Show All in the Timeframe section.
2. Select the Calculate fuel check box and enter the fuel consumption.
3. Click Load from Device on the Report data button section. The Transfer Log progress bar will display.

All your trip logs can now be viewed in the Report panel section.

How do I export a mileage report?

1. Select a trip log from the report panel section.
2. Click Export report on the Report data button section. The open dialogue box will open.
3. Select the file from your local or network drive, enter a name for your mileage report and then click Save.

Note: Mileage report is saved in .csv format.

You can view your mileage report by clicking on the file.

How do I delete travel logs from my Mio?

1. Select a trip log from the report panel section.
2. Click Delete from device on the Report data button section.
3. Click Yes to delete all travel logs.

Mileage Reporter preferences

Tools → Options → Mileage Reporter

Complete the following:

If you want to ... Then ...
receive a warning when mileage logs are deleted from your device	Select the Warn me when deleting all log files from my Mio checkbox.
calculate fuel economy preference by Distance per volume	select the Distance per volume option.
calculate fuel economy preference by Volume per distance	select the Volume per distance option.

Voice Transfer

The Voice Transfer application is part of MioMore Desktop and allows you to install or remove voice files.

Voice files take up space on your Mio's internal memory. If you do not use a voice file, you can remove it to free up space. You can later reinstall it to your Mio if required.

Start → All Programs → Mio → MioMore Desktop → Voice Transfer

How do I install a voice file?

In the Available voice files section, select the voice file you would like to install, then click Install selected voices.

How do I remove a voice file?

In the Available voice files section, select the voice file you would like to remove, then click Remove selected voices.

How do I backup my Mio?

You can save backups of the following information, and later restore them to your Mio:

■ Favourites and My Home
■ Preferences, including Point of Interest and NavPix™ preferences
■ Recent locations.
■ Multi-stop trips

How do I Backup my Mio?

1. Tools → Backup & Restore The Backup & Restore window will open.
2. Click Create new backup. The Create new backup window will display.
3. Select the data you would like to backup, then enter a description for the backup in the Description field.
4. Click OK. The New Backup window will close and your backup will be saved to your computer. The backup will be listed on the Backup & Restore window.

How do I Restore a Backup to my Mio?

1. Tools → Backup & Restore The Backup & Restore window will open.
2. Select the backup from the list, then click Restore, then click OK. The backup will be restored to your Mio.

How do I Delete a Backup?

1. Tools → Backup & Restore The Backup & Restore window will open.
2. Select from the list the backup to delete.
3. Click Delete, then click OK. The backup is deleted.

Reference

Troubleshooting

Note: If you encounter a problem you cannot solve, contact an authorised service center for assistance.

Problems Solutions
Power does not turn on when using battery power.	The remaining battery power may be too low to run your Mio. Charge the battery.
Screen responds slowly.	Make sure that your Mio is not running out of battery power. If the problem still persists, reset your Mio.
Screen freezes. Reset your Mio. (See “Shutdown and hardware reset” for information.)
Screen is hard to read.	Make sure that the backlight of the display is set to a high-enough brightness.
Cannot establish a connection with a computer.	Make sure that your Mio and your computer are both turned on before trying to establish a connection.Make sure that the cable is securely plugged into the USB port on your computer and on the Mio. Connect the USB cable directly to your computer—do not run the cable through a USB hub.Reset your Mio before connecting the cable. Always disconnect your Mio before you restart your computer.

Point of Interest categories

Icon Description Icon Description
	Airline Access Airport
	Amusement Park ATM	[B6Y3]
	Beach Camping Ground
	Car Dealer Car Repair Facility
[WABZ]	Casino		Cemetery
	Cinema College/University
	Concert Hall Convention Centre
	Courthouse		Cultural Centre
	Dentist Doctor
	Embassy Exhibition Centre
	Ferry Terminal Frontier Crossing
	General POI Golf course
	Government Office		Hospital/Polyclinic
[DTG]	Hotel or Motel Ice Skating Rink	[5KSH]
[XAB4]	Important Tourist Attraction		Leisure Centre
[YSG5]	Library		Mountain Pass
	Mountain Peak		Museum
	Music Centre	[2YSZ]	Nightlife
	Open Parking Area		Opera
	Park and Recreation Area		Parking Garage
	Petrol Station	[WYYYX]	Pharmacy
[SAXC]	Place of Worship		Police Station
	Post Office		Public Transport Stop
	Railway Station		Rent-a Car Facility
	Rent-a Car Parking		Rest Area
	Restaurant		Restaurant Area
	Scenic / Panoramic View		Shop
	Shopping Centre Sports Centre
	Stadium Swimming Pool
	Tennis Court Theatre
	Toll Gate Tourist Information Office
	Veterinarian Water Sport
	Winery Yacht Basin
	Zoo

Branded Points of Interest

Branded Points of Interest are available on some maps. These include well-known restaurants, accommodation providers, tourist attractions, petrol stations, etc. The icon will usually display the company logo.

Point of Interest categories by Mio

Icon Description
	Favourite destination
	Multiple route trip
	My home
	NavPixTM

Point of Interest categories by subscription

Icon Description
	Safety Cameras
	Safety Camera - Average
	Safety Camera - Mobile
	Safety Camera - Red Light

Traffic and other TMC Events

Note: Traffic information is only available on selected model and in selected countries.

Each TMC Event is sorted in to one of nine categories. When an Event is received, one of the following icons will display:

Event	Avoided Event	Message Type	Event Description
		Danger There is a dangerous situation on the route; for example, people are on the road.

If a Traffic or Clearance event has a recommended detour, the following icons will display:

Event	Avoided Event	Message Type	Event Description
		Traffic Detour A Traffic Event, for which a detour is recommended.
		Clearance Re-route A	Clearance Event, for which a re-route is recommended.

Note: Avoided Event icons will only display on the 2D Map and 3D Map, at the Event location.

Safety Camera POIs

Mio products are designed to be used as an aid to safer driving. You can receive messages to alert you to locations of safety cameras, which will enable you to monitor your speed through these areas. Mio does not warrant that all types and locations of safety camera data are available, as cameras may be removed, relocated or new cameras installed. Mio does not condone speeding or any other failure to comply with your local traffic laws. It is your responsibility to drive within the posted speed limit at all times and to drive in a careful manner. Mio accepts NO liability whatsoever for you receiving any speeding fines or points on your license through using this device. Mio does not guarantee the accuracy of the data contained within this database either expressed or implied. In the event you receive a fine or any other penalty for speeding or contravention of any traffic law, or are involved in an accident, Mio is not responsible for any damages of any type. In some countries the data information regarding safety or speed cameras may conflict with local law and/or regulations. It is your responsibility to make sure that your use of the data is in compliance with local laws and/or regulations. Usage is at your own risk.

Disclaimer

Due to continued product development this information may change without notice. Mio does not warrant that this document is error-free. The screenshots and other presentations shown in this manual may differ from the actual screens and presentations generated by the actual product.

All such differences are minor and the actual product will deliver the described functionality as presented in this User Manual in all material respects.

Compliance

Note: Moov M300-Series is assigned a model number of N254 and Moov M400-Series is assigned a model name of N255.

FC

Federal Communications Commission radio frequency interference statement

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
■ Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment.

Canada 310

This Class B digital apparatus complies with Canada ICES-003. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

The abbreviation, IC, before the registration number signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment.

To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device

The software is based in part on the work of the Independent JPEG Group.

The software application uses modified versions of the Minimal XML Library, Flickr Library and Python Library. The libraries and their use are covered by the GNU Lesser General Public License (www.gnu.org/licenses/lgpl.html).

The modified source code is available from the following URLs:

■ Minimal XML Library: http://download.mio.com/opensource/gnu/mxml.zip
■ Flickr Library: http://download.mio.com/opensource/gnu/FlickrNet.zip
■ Python Library: http://download.mio.com/opensource/gnu/python25.zip

Copyright

© 2009 MiTAC International Corporation. Mio is either a registered trademark or trademark of MiTAC International Corporation and is used under licence by Mio Technology Limited. All rights reserved.

The software contains proprietary information of MiTAC International Corporation; it is provided under a licence agreement containing restrictions on use and disclosure and is also protected by copyright law. Reverse engineering of the software is prohibited.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Mio.

Back-On-Track, Drive-Away, MioMore Desktop, Mio Connect, NavPix™, MioMap and Turn-by-Turn are either registered trademarks or trademarks of MiTAC International Corporation and are used under licence by Mio Technology Limited. All rights reserved.

Microsoft, Windows, Windows Vista and Internet Explorer are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. All rights reserved.

Location Identifiers © 2005 International Air Transport Association.

POI Data © 2007 InfoUSA.

RDS-TMC Traffic Information Services France © ViaMichelin 2008

All other trademarks and registrations are the property of their respective owners.

Published in New Zealand.

For more information

Online support

For 24/7 help and support with Mio products, join Mio club at: www.mio.com

Mio Club

You can register your Mio with the Mio Club - a section of our website dedicated exclusively to owners of Mio navigation products: www.mio.com

As a registered Mio Club member, you'll have access to the safety camera database, software updates, a regular newsletter, tips, FAQs and much more!
