Product Type	Cable Stripper
Brand	Televes
Model	2162
Compatible Cable Types	Coaxial cables (RG6, RG59, etc.)
Stripping Diameter Range	5-10 mm
Material	Hardened steel blades, plastic body
Dimensions (approx.)	150 x 80 x 20 mm
Weight (approx.)	100 g
Power Source	None (manual tool)
Main Functions	Strip outer insulation, braid, and dielectric layers
Adjustable Depth	Yes, via rotating knob
Safety Features	Blade guard, ergonomic handle
Maintenance	Clean after use; replace blades when dull
Spare Parts Available	Replacement blades available
Repairability	Replaceable blades; tool is repairable
Country of Origin	Spain
Warranty	2 years
Included Accessories	None (tool only)
Usage Instructions	See user manual for detailed stripping procedure
Product Color	Red/Black

Frequently Asked Questions - 2162 TELEVES

What cable types can the Televes 2162 strip?

The Televes 2162 is designed for coaxial cables such as RG6 and RG59. It can strip the outer insulation, braid, and dielectric layers.

How do I adjust the stripping depth?

Turn the rotating knob on the side of the tool to set the desired depth. Test on a scrap piece of cable first.

Are replacement blades available?

Yes, Televes offers replacement blades. Contact your dealer or visit the official website to order.

Is the Televes 2162 suitable for CATV installation?

Absolutely. It is a professional-grade stripper commonly used for CATV, satellite, and broadband installations.

How do I clean the stripper?

Wipe the blades and body with a dry cloth after use. Avoid using water or solvents that may damage the plastic.

What is the maximum cable diameter it can handle?

It can strip cables with an outer diameter up to approximately 10 mm.

Does the tool require any power?

No, it is fully manual. No batteries or electricity needed.

What safety precautions should I take?

Always keep the blade guard closed when not in use. Handle blades carefully to avoid cuts.

Can I use this stripper for twisted pair cables?

No, it is specifically designed for coaxial cables. For twisted pair, use a different tool.

Where can I download the user manual?

The manual is available for free on notice-facile.com in PDF format.

USER MANUAL 2162 TELEVES

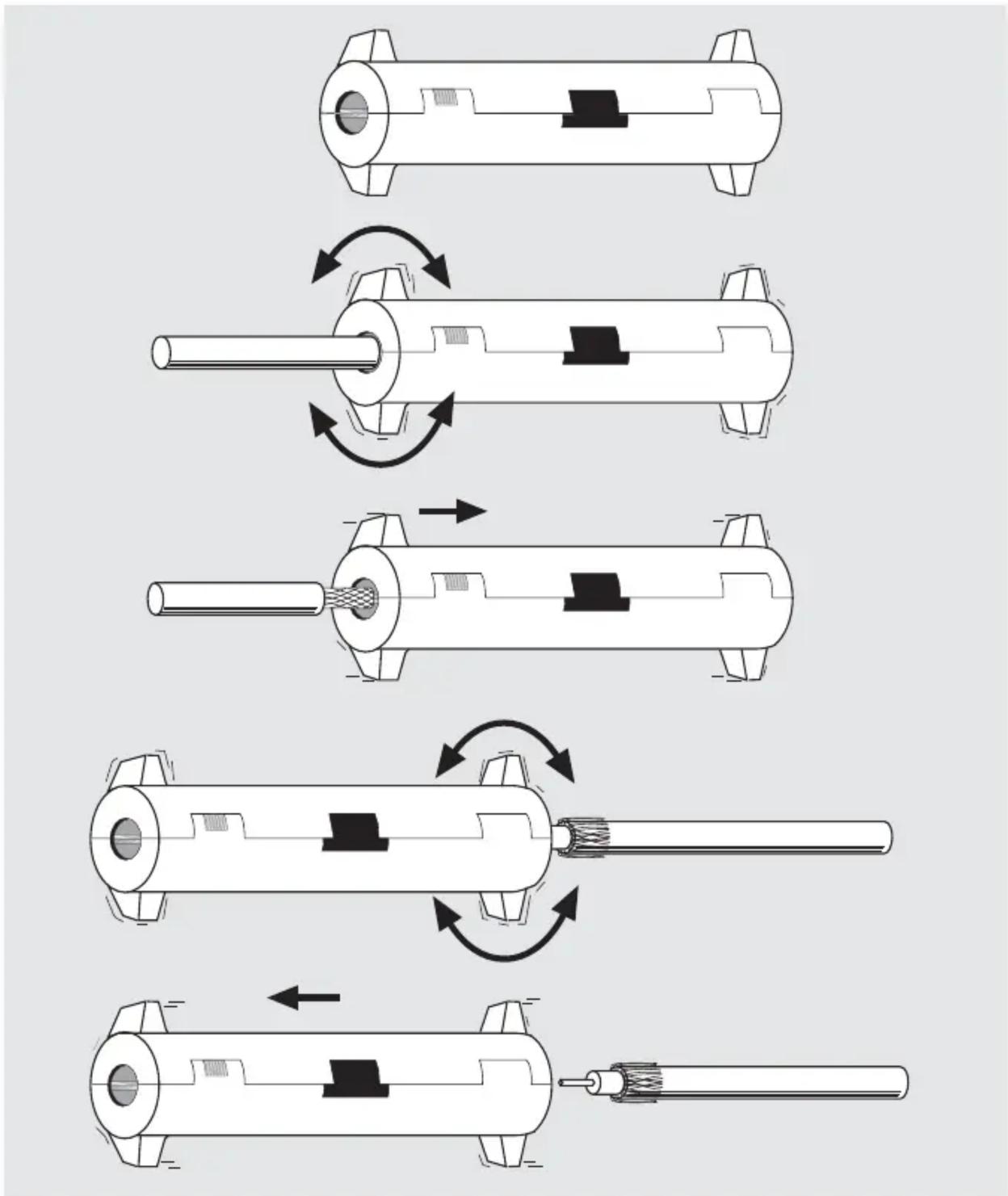

Peladora cable coaxial / Descarnador cabos coaxiais / Eplucheuse cable coaxiale / Coaxial cable stripper / Abisolierwerkzeug / Spela cavo

Ref. 2162 (AIW1N)

    subgraph Initial Components
        A1["Component 1: Internal Core"]
        A2["Component 2: Internal Stages"]
        A3["Component 3: Internal Stages"]
        A4["Component 4: Internal Stages"]
    end

    subgraph Final Assembly
        B1["Component 1: Internal Stages"]
        B2["Component 2: Internal Stages"]
        B3["Component 3: Internal Stages"]
        B4["Component 4: Internal Stages"]
    end

    Note: The diagram illustrates the sequential assembly of a mechanical component, with arrows indicating the process direction.
