Product Type	Quad 2-Input AND Gate IC
Package Type	DIP-14 (Dual Inline Package, 14 pins)
Supply Voltage	4.75 V to 5.25 V
Typical Propagation Delay	9 ns
Operating Temperature Range	0 °C to 70 °C
Dimensions	19.5 mm x 6.5 mm x 4.5 mm (approx.)
Weight	1.2 g (typical)
Logic Family	LS (Low Power Schottky)
Operating Current	4.4 mA (per gate, typical)
Output Current	8 mA (sink), 400 µA (source)
Input Voltage Range	0 V to 5.5 V
ESD Protection	2 kV (Human Body Model)
Pin Count	14
Mounting Type	Through Hole
RoHS Compliant	Yes
Application	Digital logic circuits, signal gating, control systems
Typical Power Dissipation	22 mW (per gate)

Frequently Asked Questions - SN74LS08N Steren

What is the function of the SN74LS08N?

The SN74LS08N is a quad 2-input AND gate integrated circuit. It contains four independent AND gates, each with two inputs and one output.

What is the supply voltage range for the SN74LS08N?

The recommended supply voltage is 5 V ± 0.25 V (4.75 V to 5.25 V).

What package does the SN74LS08N come in?

It is available in a DIP-14 (Dual Inline Package) with 14 pins.

What is the propagation delay of the SN74LS08N?

Typical propagation delay is 9 ns under standard operating conditions.

Can the SN74LS08N be used with 3.3V logic?

The SN74LS08N is designed for 5V operation. While inputs may tolerate lower voltages, performance is not guaranteed below 4.75 V.

How do I identify the pin 1 on the SN74LS08N?

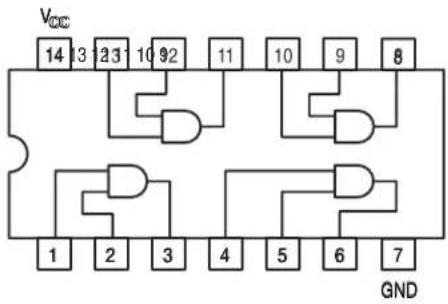

Pin 1 is indicated by a notch or dot on the package. Refer to the datasheet for the pin diagram.

What is the operating temperature range of the SN74LS08N?

The operating temperature range is 0 °C to 70 °C.

What are the output current capabilities of the SN74LS08N?

Output can sink 8 mA and source 400 µA.

Is the SN74LS08N RoHS compliant?

Yes, the SN74LS08N is RoHS compliant and lead-free.

What are common applications for the SN74LS08N?

Common applications include digital logic circuits, signal gating, and control systems.

USER MANUAL SN74LS08N Steren

Quad 2-Input AND Gate

GUARANTEED OPERATING RANGES

Symbol	Parameter Min Typ Max Unit
V_CC	Supply Voltage 4.75 5.0 5.25 V
T_A	Operating Ambient Temperature Range	0	25	70	°C
I_OH	Output Current – High			-0.4	mA
I_OL	Output Current – Low			8.0	mA

ON Semiconductor

Formerly a Division of Motorola

http://onsemi.com

LOW

POWER

SCHOTTKY

PLASTIC

N SUFFIX

CASE 646

SOIC

D SUFFIX

CASE 751A

ORDERING INFORMATION

Device	Package	Shipping
SN74LS08N	14 Pin DIP	2000 Units/Box
SN74LS08D	14 Pin	2500/Tape & Reel

SN74LS08

DC CHARACTERISTICS OVER OPERATING TEMPERATURE RANGE (unless otherwise specified)

Symbol Parameter		Limits			Unit Test Conditions
		Min Typ	Max
V_IH	Input HIGH Voltage 2.0 V					Guaranteed Input HIGH Voltage for All Inputs
V_IL	Input LOW Voltage			0.8	V	Guaranteed Input LOW Voltage for All Inputs
V_IK	Input Clamp Diode Voltage -0.65 -1.5	V V				CC = MIN, I_IN = -18 mA
V_OH	Output HIGH Voltage	2.7 3.5	V V			CC = MIN, I_OH = MAX, V_IN = V_IH or V_IL per Truth Table
V_OL	Output LOW Voltage		0.25 0.4	V		OL = 4.0 mA
			0.35 0.5	V		OL = 8.0 mA
I_IH	Input HIGH Current			20	A	V_CC =MAX, V_IN =2.7 V
				0.1	mA V	CC = MAX, V_IN =7.0 V
I_IL	Input LOW Current			-0.4	mA V	CC = MAX, V_IN =0.4 V
I_OS	Short Circuit Current (Note 1)	-20		-100	mA	V_CC =MAX
I_CC	Power Supply CurrentTotal, Output HIGHTotal, Output LOW			4.8	mA V	CC = MAX
				8.8

Note 1: Not more than one output should be shorted at a time, nor for more than 1 second.

AC CHARACTERISTICS ( T_A = 25^ )

Symbol Parameter		Limits			Unit Test Conditions
		Min Typ	Max
t_PLH	Turn-Off Delay, Input to Output 8.0	15	ns
t_PHL	Turn-On Delay, Input to Output		10	20	ns

SN74LS08

PACKAGE DIMENSIONS

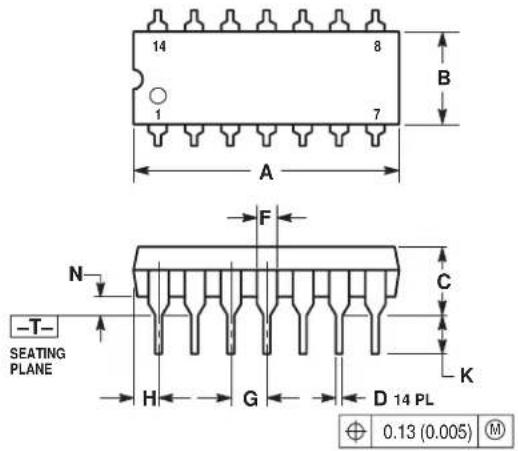

N SUFFIX
PLASTIC PACKAGE
CASE 646-06
ISSUE M

NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH
3. DIMENSION L TO CENTER OF LEADS WHEN FORMED PARALLEL.
4. DIMENSION B DOES NOT INCLUDE MOLD FLASH. 5. ROUNDED CORNERS OPTIONAL.

DIM			MILLIMETERSINCHES
	MIN MAX	MIN MAX
A 0	715 0.770	18.16 18.80
B 0	240 0.260	6.10 6.60
C 0	145 0.183	3.69 4.69
D 0	015 0.021	0.38 0.53
F 0	040 0.070	1.02 1.78
G 0	100 BSC	2.54 BSC
H 0	052 0.093	1.32 2.41
J 0	008 0.015	0.20 0.38
K 0	115 0.135	2.92 3.43
L	0.290 0	310 7.37	7.87
M	—	10°	10°
N 0	015 0.039	0.38 1.01

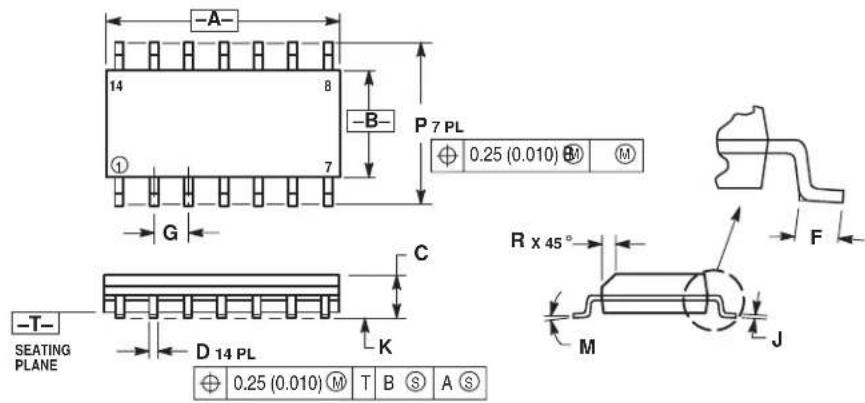

D SUFFIX
PLASTIC SOIC PACKAGE
CASE 751A-03
ISSUE F

NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.
2. CONTROLLING DIMENSION: MILLIMETER. 3. DIMENSIONS A AND B DO NOT INCLUDE MOLD PROTRUSION.
4. MAXIMUM MOLD PROTRUSION 0.15 (0.006) PER SIDE.
5. DIMENSION D DOES NOT INCLUDE DAMBAR PROTRUSION, ALLOWABLE DAMBAR PROTRUSION SHALL BE 0.127 (0.005) TOTAL IN EXCESS OF THE D DIMENSION AT MAXIMUM MATERIAL CONDITION.

DIM	MIN MAX	MIN MAX	INCHESMILL METERS
A	8.55 8	75 0.337	0.344
B	3.80 4	00 0.150	0.157
C	1.35 1	75 0.054	0.068
D	0.35 0	49 0.014	0.019
F	0.40 1	25 0.016	0.049
G	1.27 BSC 0.00	0 BSC
J	0.19 0	25 0.008	0.009
K	0.10 0	25 0.004	0.009
M	0^	7^	0^	7^
P	5.80 6	20 0.228	0.244
R	0.25 0	50 0.010	0.019
