| Brand | Lectrosonics |
| Model | SRc5P |
| Product Type | Dual-Channel Portable UHF Receiver |
| Frequency Range | 470–614 MHz (Block 20-24) |
| Number of Channels | 2 |
| Antenna Type | External dual SMA connectors |
| Audio Outputs | 3.5 mm headphone/line out, XLR (via adapter) |
| Power Supply | 2x AA batteries or external 4–9 V DC |
| Battery Life | Approximately 6 hours with alkaline cells |
| Dimensions (HxWxD) | 1.7 x 3.6 x 0.9 in (43 x 91 x 23 mm) |
| Weight | 6.4 oz (181 g) with batteries |

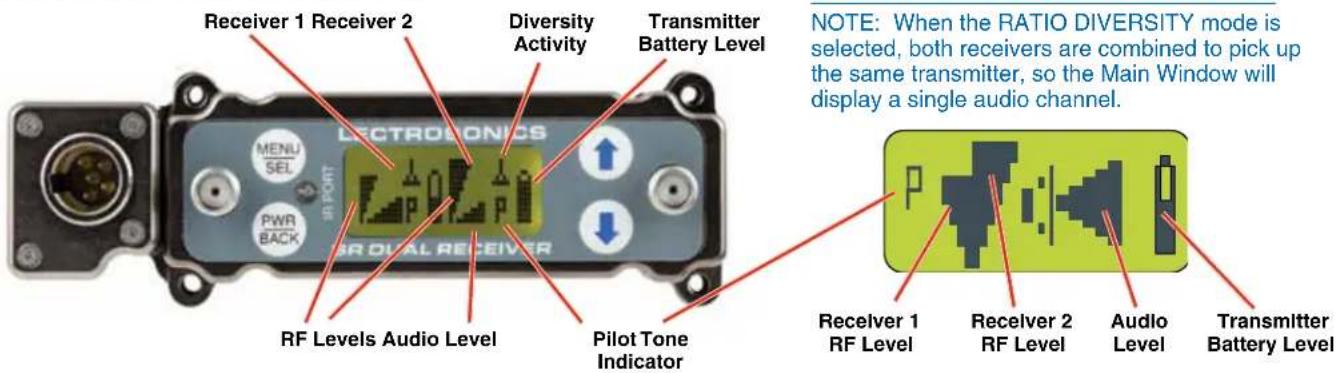

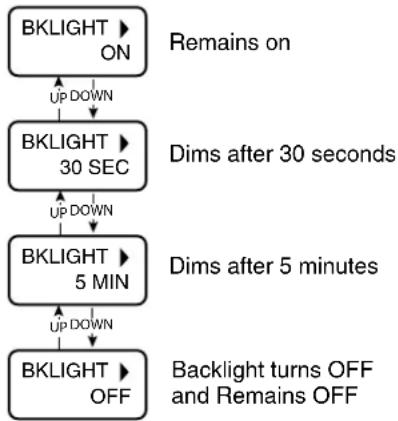

| Display | Backlit LCD with battery, frequency, and audio level indicators |
| Audio Output Level | Line level up to +8 dBu, headphone adjustable |
| Squelch Control | Adjustable per channel |
| Frequency Diversity | True diversity receiving |
| Compatible Transmitters | Lectrosonics SM, LM, HM series |
| Mounting Options | Belt clip, shoe mount, or camera rig |
| Front Panel Controls | Power, volume, frequency select, menu navigation |
| Maintenance | Clean with dry cloth; avoid moisture |
| Repairability | Serviceable by qualified technician; no user-serviceable parts inside |
| Included Accessories | Belt clip, SMA antennas, AA batteries (set) |
| Regulatory Compliance | FCC, CE, RoHS |
Frequently Asked Questions - SRc5P Lectrosonics
What is the frequency range of the Lectrosonics SRc5P?
The SRc5P operates in the UHF band from 470 to 614 MHz, covering blocks 20-24.
How do I power the SRc5P?

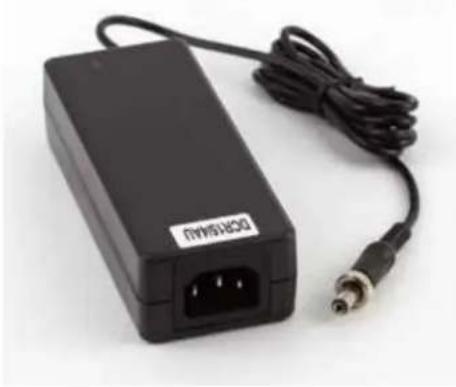

You can power it with two AA alkaline batteries or via an external 4-9 V DC source using the Hirose connector.

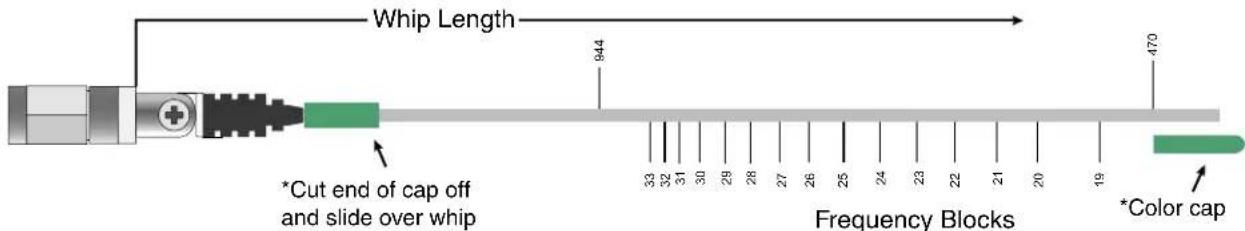

What type of antennas does the SRc5P use?
It uses removable SMA antennas (included). For best range, use Lectrosonics ALP series antennas.
Can I use the SRc5P with non-Lectrosonics transmitters?
The SRc5P is compatible only with Lectrosonics digital hybrid transmitters that match its frequency block.
What is the battery life of the SRc5P?
With fresh alkaline AA batteries, you can expect approximately 6 hours of operation.
How do I adjust squelch on the SRc5P?
Enter the menu, navigate to Squelch, and adjust per channel using the encoder. Default setting is low.
Does the SRc5P have a headphone output?
Yes, it has a 3.5 mm TRS headphone/line output with adjustable volume via the front knob.
Can I mount the SRc5P on a camera?

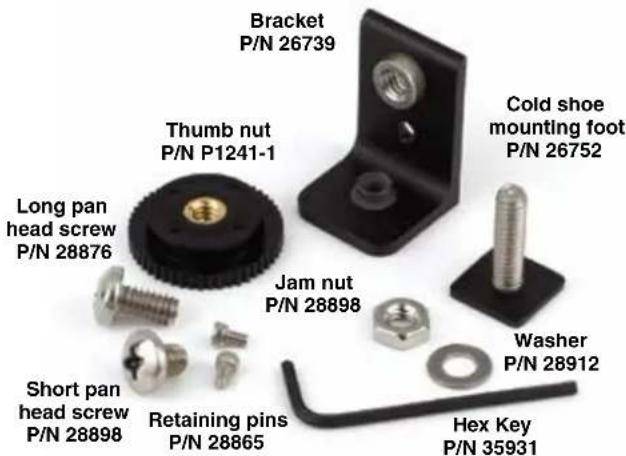

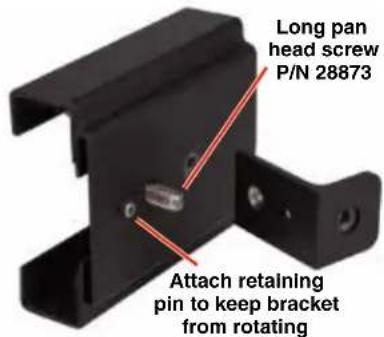

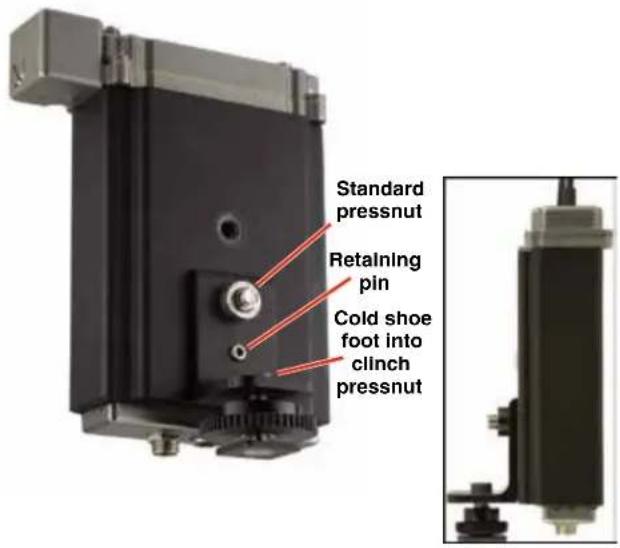

Yes, it comes with a belt clip and a shoe mount adapter for camera rigs.
How do I clean the SRc5P?
Use a soft dry cloth to wipe the exterior. Avoid liquids and abrasives.
Where can I find replacement parts or service?
Contact Lectrosonics support or an authorized service center. The unit has no user-serviceable internal parts.
