Product Type	Smart TV
Brand	Bauhn
Model	ATV55UHDS-0519
Screen Size (Diagonal)	54.6" (138.78 cm)
Resolution	3840 x 2160 (Ultra HD)
Aspect Ratio	16:9
Refresh Rate	60 Hz
Colour Depth	10-bit (1.07 billion colours)
HDMI Version	2.0 (HDCP 2.2)
Power Consumption	145 W
Power Supply	100-240 V~, 50/60 Hz
Dimensions (with stand)	1240 x 195 x 770 mm
Dimensions (without stand)	1240 x 85 x 725 mm
Net Weight	13.1 kg
Smart TV	Yes (Netflix, YouTube, Screencast, App Portals)
HDR Support	Yes
PVR Recording (USB)	Yes
VESA Wall Mount	M6 x 10 mm (screws not included)
Inputs	3x HDMI, 1x USB, LAN, Antenna, AV In, AV Out, Optical Audio Out, Headphone
Multimedia Playback (USB)	Video: MPEG-2, MPEG-4, H.264, H.265, VP9, TS; Music: MP3, AAC; Photo: JPEG, PNG, BMP
USB Output	DC 5 V, 500 mA
Remote Control Range	Up to 5 m, ±30°
Cleaning Instructions	Unplug before cleaning; use only a dry cloth
Safety	Use safety straps; keep away from heat, liquids, children and pets
Warranty	1 Year

Frequently Asked Questions - ATV55UHDS-0519 Bauhn

How do I connect the TV to Wi-Fi?

Press the MENU button, go to Network, set Connection Type to Wi-Fi, select your network, enter the password using the on-screen keyboard, and select Connect.

Can I record TV shows with this TV?

Yes, you can record live TV to a USB storage device. Insert a USB drive, go to PVR Recording in the menu to format and set up. Press REC on the remote to start recording. Note: Recording works only in DTV mode.

Why is there no sound from the TV?

Check that the volume is not muted, the audio settings on external devices are correct, and the correct input source is selected. Also ensure headphones are not plugged in and adjust Menu > Sound > S/PDIF to PCM if using external audio.

How do I wall-mount the TV?

Unplug the TV and contact a professional. Use a VESA mount (not included) with four M6 x 10 mm screws (or longer as needed). The screws provided are only for the stand.

How to use the Screencast feature?

Select the Screencast app from the Smart TV home screen. On your Android device, enable Wireless Display (Wi-Fi Direct) and select the TV's DeviceID from the list. iOS is not supported.

What should I do if the remote control stops working?

Check the batteries are correctly inserted and not exhausted. Ensure there are no obstacles between the remote and the TV sensor, and stay within 5 m at an angle up to 30°. Try resetting by unplugging the TV and plugging it back in.

How do I update the TV software?

Go to Menu > Support > Internet Update Check to update via internet, or USB Upgrade using a USB drive with the firmware file from the Bauhn website.

Can I play media files from a USB drive?

Yes. Insert a USB drive, press SOURCE and select Media. Then choose the file category (Photo, Music, Video). Supported formats: video (MPEG-2, H.264, etc.), music (MP3, AAC), photos (JPEG, PNG, BMP).

How to set up parental controls?

Press MENU, go to Lock. Enter the default password 0000. You can enable Lock System, change password, block channels, or set Parental Lock for program ratings.

What is the warranty period and how to claim?

The TV comes with a 1 Year Warranty from the date of purchase. If you experience issues, contact After Sales Support at 1300 886 649 before returning to the store. Keep all accessories for warranty claims.

USER MANUAL ATV55UHDS-0519 Bauhn

EFFORTLESS TECHNOLOGY

55"Ultra HD Smart TV with HDR

MODEL: ATV55UHDS-0519

Instruction Manual

Modern black-and-white TV displaying a vibrant, colorful abstract cloud-like pattern against a dark background (no text or symbols visible)

Welcome

Congratulations on your purchase!

This manual tells you all you need to know about using your new Bauhn® product.

Please take special note of any important safety and usage information presented with the 🔒 symbol.

All products brought to you by BAUHN ^® are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 1 Year Warranty.

We hope you will enjoy using your purchase for many years to come.

Contents

Welcome 2

Unpack and Prepare 4

What's in the box 4

Important Tips 5

Attaching the stand 6

Wall-mounting the TV 7

Connect to power 8

Connect your antenna 8

Controls and Connections 9

Get to know your TV 9

Buttons on the TV 9

Ports on the TV 10

Remote Control 12

Setup 12

Using the Remote Control 13

Standard Remote 14

Easy Remote 16

On-Screen Set Up 17

Networking 18

TV Setting Menus 20

Channel 22

Picture 24

Sound 26

Network 28

System 30

Lock 32

Time 33

PVR Recording 34

Support 35

QMenu 36

High Dynamic Range (HDR) 38

Smart TV 39

Smart TV Applications 39

Screencast 40

App Portals 40

TV Guide 41

Recording 42

! Important Tips 42

Recording Live TV 43

Scheduled recording 43

Playback 43

Pause Live TV (Time-shift) 44

USB Mode 45

Set up 45

Troubleshooting 48

Specifications 51

Compliance and Support 52

Warranty Information 53

Repair and Refurbished

Goods or Parts Notice 54

Unpack and Prepare

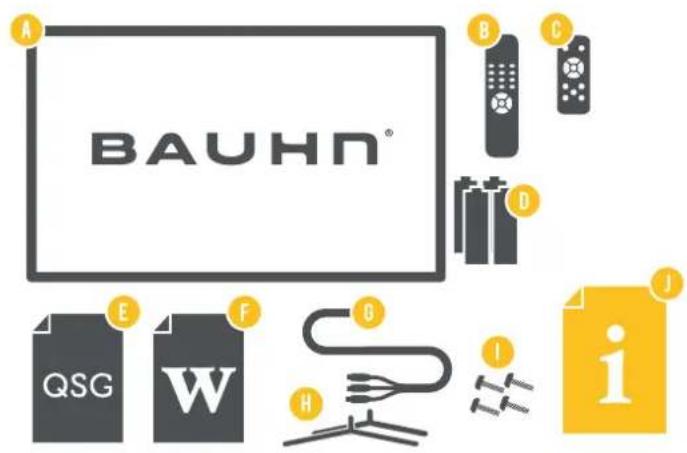

What's in the box

Before installing your new TV, check you have everything needed.

In the box you will find:

A. Ultra HD Smart TV
B. Remote Control
C. Easy Remote Control
D. AAA Batteries
E. Quick Start Guide
F. Warranty Card
G. Mini AV Cable
H. Stands

I. Screws (for the stands)

J. User Manual

You will need:

• Phillips-head screwdriver (for stand installation)
- Someone to help you lift and install your TV

• Broadband internet (to access Smart TV apps)
• Antenna cable (to watch live TV)

Important Tips

• Place the TV on a level surface.
• Place the TV away from any source that may generate heat or vibrations.
• Make sure there is enough space around vents for airflow.
• The remote control works up to 5 metres away from the TV.
• Unplug the TV before cleaning it.
• Clean using a dry cloth only - do not use water or chemicals.
• Use only the power supply provided.
• It is highly recommended to use safety straps for securing the TV in place.
• Keep liquid, children and pets away from the TV at all times.

Attaching the stand

CAUTION!

Do not apply excessive force as you might damage the screw holes.

!

• This TV is heavy! We recommend asking someone to help you lift it.
• Unplug the TV from the power outlet before installing or removing the stand.
• DO NOT place the TV standing upright without its stand attached; it could damage the remote sensor at the bottom of the TV.
• Only touch the frame, not the screen.
• It is highly recommended to use safety straps for securing the TV.

Unless you are wall-mounting the TV, you will need to attach its stand/legs.

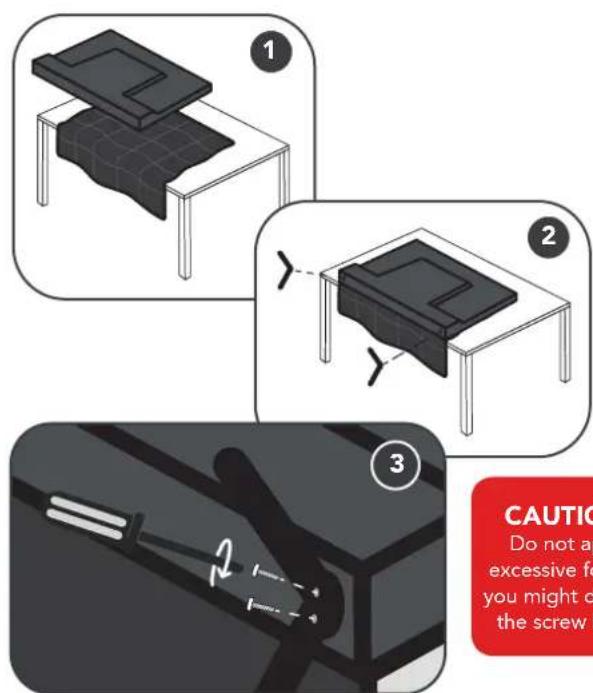

1. Lay the TV face-down on a soft, flat surface (like the sofa, or a towel on a table).
2. See the 'L' and 'R' markings on the stand? Match them to the installation points on the underside of the TV.
3. Attach the stand to the TV at the installation points using the screws provided. (Grab a screwdriver for this bit).

Wall-mounting the TV

• Unplug the TV from the power outlet before wall-mounting.
• Contact a professional for assistance with wall-mounting the TV.

Illustration of a soldering iron on a dark surface with dots and a number 2, no text or symbols present.

Required

• VESA Mounting Bracket
- 4 x M6*10mm screws (or longer as required)

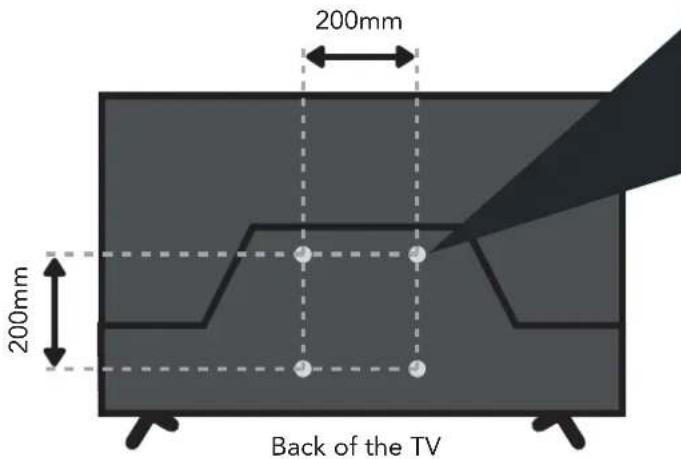

The TV comes with holes on the back panel for use with wall-mounting brackets (bracket not included).

Use four standard M6*10mm screws (or longer, depending on the mounting bracket) to wall-mount this TV (screws are not included).

The screws in the package are for securing the TV stand only. If you are wall-mounting the TV, consult a qualified installer for advice on bracket support and wall support.

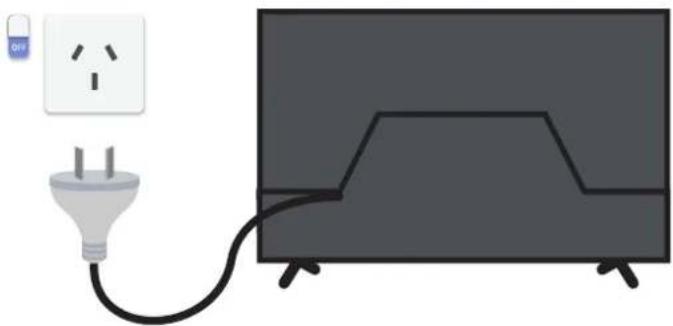

Connect to power

Illustration of a power plug connected to a flat-screen TV (no text or symbols)

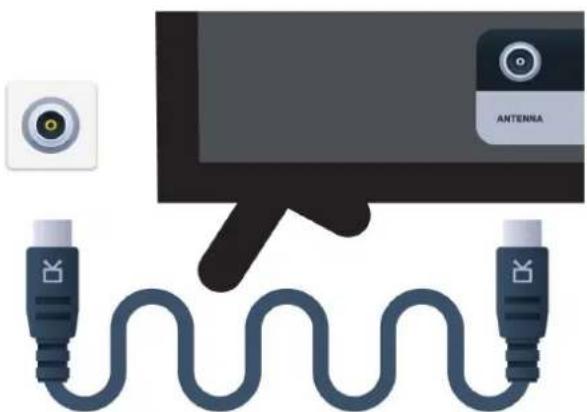

Connect your antenna

Free-to-air TV in HD (High Definition)

Example

HD Channels

ABC HD

SBS ONE HD

7HD

9HD

10 HD

PRIME7 HD

WIN HD

High Definition (HD) channels provide the best viewing quality and are available with a digital antenna connection.

TV channels in Ultra HD resolution are not currently available in Australia. Therefore when you watch HD broadcast signals on an Ultra HD TV, the picture can appear 'soft' and lacks the detail you see when watching the same content on an HD TV.

Make sure the TV is switched off at the power outlet until you have finished connecting your cables.

Illustration of a cable with two USB connectors and a monitor displaying an antenna (no text or symbols on the devices)

Antenna cable not included.

Controls and Connections

Get to know your TV

Buttons on the TV

1. CH Select the next channel or move up.

2. VOL + : Increase the volume level or move left.

3. VOL - : Decrease the volume level or move right.

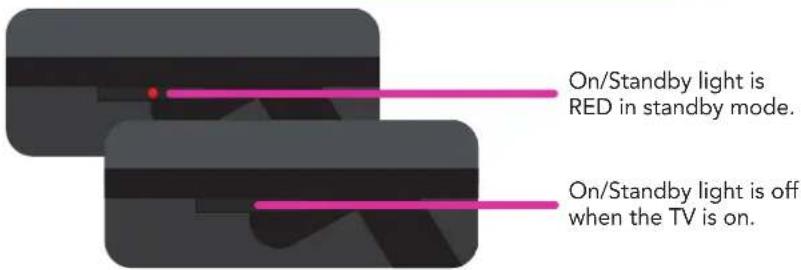

4. ⓍN/SMART HOME): When the TV is on standby, press to turn on the TV. When the TV is on, press once to access the smart home screen. When the TV is on, press and hold for 5 seconds to turn off the TV.

5. CH Select the previous channel or move down.

See next page for more info on the connections.

CONTROLS AND CONNECTIONS | 9

Ports on the TV

Illustration of a monitor with an orange arrow pointing to the screen (no text or symbols)

1	Digital Audio Out (Optical)		SOUND		Connect an external digital audio device. Use an Optical cable (not included) to connect the unit with an amplifier, soundbar or other audio decoding device for digital audio signal output.
2	Headphone Jack		SOUND		Connect to your headphones, amplifier, soundbar or audio device, using an AUX cable (not included).
3	USB		STORAGE		Plug in a USB stick to PVR record and pause live TV. Play media files stored on your USB storage device (supported file codecs and extensions may vary). Update the TV software via USB.
4	AV IN		SOUND	PICTURE	You can use this to connect your DVD player. Supports Standard Definition (SD) picture quality and audio connections. (Mini AV adapter included.) You will also need an AV cable (not included).

Illustration of a monitor with an orange arrow pointing right, no text or symbols present

5	LAN			INTERNET	Connect to your broadband modem using an Ethernet cable (not included).
6	HDMI Use a HDMI cable for best picture and sound quality.	[ZHD8]		SOUND PICTURE COMPUTER	All-digital connection between the TV and any HDMI device.Supports Ultra HD. Requires a high-speed HDMI cable (not included).
7	AV Out	[beid]		SOUND PICTURE	Sends a Standard Definition (SD) picture quality and audio output from TV and AV sources to another display device.(AV Cable not included.)
8	Antenna			FREE-TO-AIR TV	Connect your antenna for live TV. (Antenna cable not included.)

Remote Control

Setup

Insert two AAA size batteries according to the polarity markings (+ / -) inside the compartment. Make sure the batteries are correctly aligned and properly pushed into place.

!

Precautions When Using Batteries

• Do not use old and new batteries together.
• Do not use different types of batteries (e.g. Manganese and Alkaline batteries) together.
• Remove the batteries from the remote if you do not intend to use it for a long time.
• When discarding used batteries, follow any guidelines for recycling and disposal of batteries that apply in your local area.
• Keep batteries away from children and pets.
• Never throw batteries into a fire or expose them to extreme heat.

Using the Remote Control

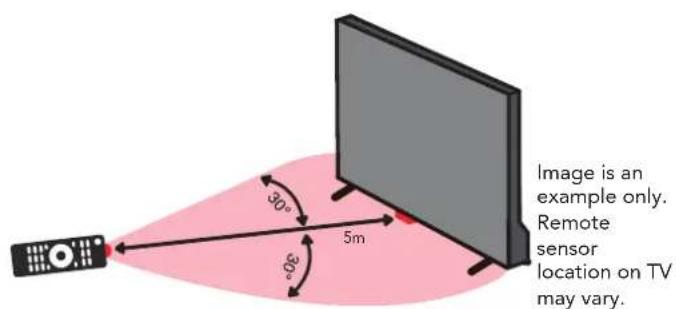

To use the remote, point it towards the remote sensor at the front of the TV. The remote will not operate if its path is blocked.

The remote has a range of up to about 5 metres from the TV at an angle of up to 30 degrees to either side of the sensor, as illustrated below.

Remote Hints and Tips

- Do not drop, step on or otherwise impact the remote control. This may damage the parts or lead to malfunction.

- Do not place objects between the remote control and the remote sensor.

- Do not use this remote control while simultaneously operating a remote control for other devices.

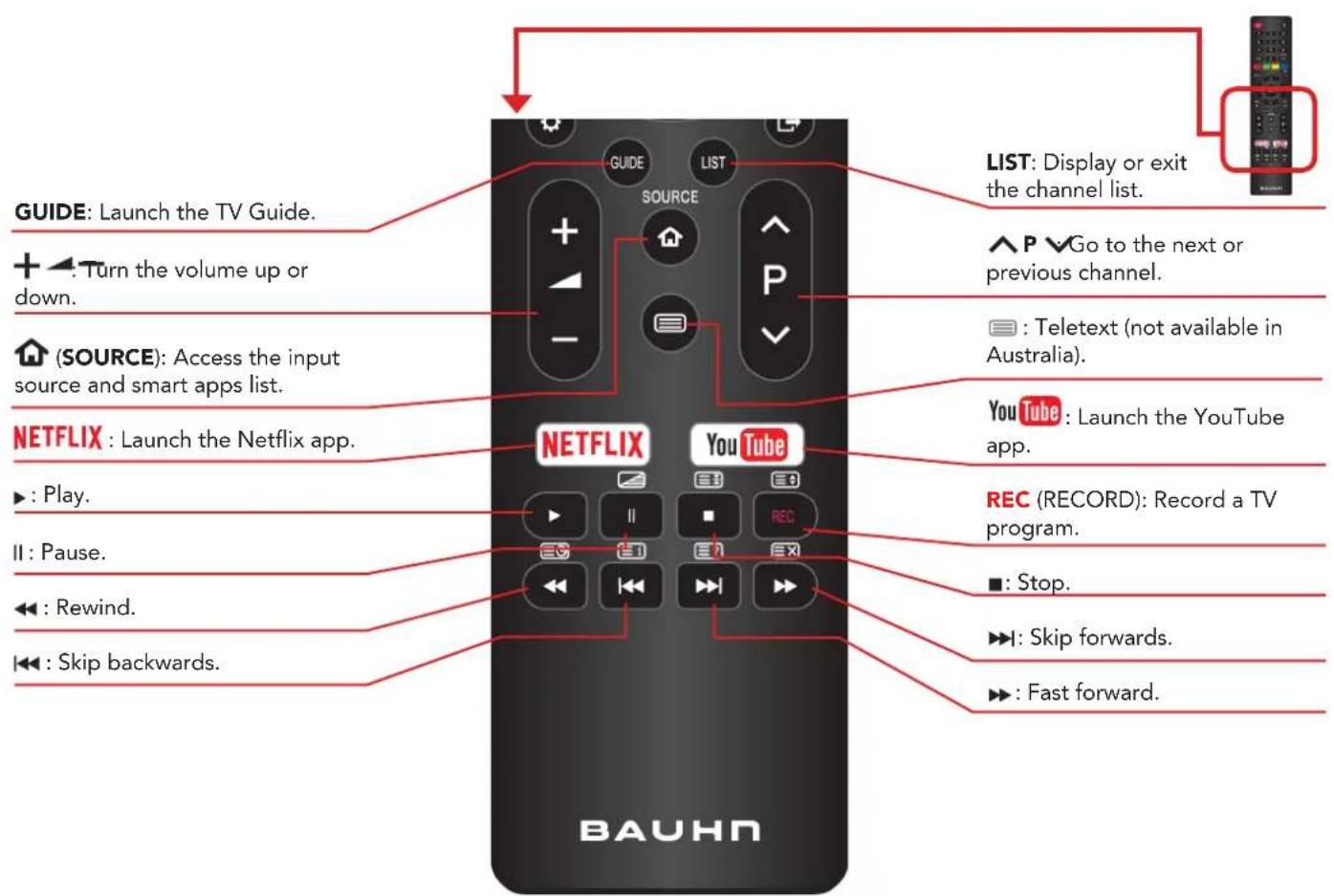

Standard Remote

ON: Switch the TV to On or Standby.

NUMBER BUTTONS: Key in a TV channel number.

INFO: Display program information.

QMENU: Enter the Quick Menu.

▲ / ▼ /◀: Press the UP/DOWN/LEFT/RIGHT buttons to navigate.

(MENU): Enter the main settings menu.

(MUTE): Mute or restore sound.

AUDIO Select an audio language (if available).

GREEN/YELLOW/BLUE

BUTTONS: Functions are according to the on-screen display.

→: Return to the previous screen or channel.

OK: Confirm your selection.

→: Exit/Quit the current user interface.

Easy Remote

On-Screen Set Up

Make sure equipment is properly connected (as shown on page 8) before connecting the TV to power.

First Time Setup menu

When you turn the TV on for the first time, the First Time Setup menu will appear.

Follow the prompts using the ▲ ▼/ ◀▶buttons to select your preferences. You will be guided through:

1. Language

2. Data Collection and Firmware Update

3. Country

4.Timezone

1. TV Mode

2. Connect to the Internet

3. Channel Tuning

4. Sign into Netflix

If you make an error, you can update your preferences in the settings menu later.

6. Connect to the Internet

If you are using a wired network, connect an ethernet cable to the TV and select 'Wired Mode'. The TV will automatically connect to the Internet.

If you are using a wireless connection, select 'Wi-Fi Mode'. The TV will scan for nearby wireless networks. Make sure that the TV is within the range of your wireless modem/router, and you have your Wi-Fi password handy.

Or, you can connect to the internet later by going to the User Menu settings.

Networking

You can set up your TV so that it can access the Internet through your home network using a wired or wireless connection.

Connecting to a Wireless Network

• Press the ⓍMENU button on the remote to select Network.
• Change the Connection Type setting to Wi-Fi. The TV will automatically search nearby Wi-Fi access points. When done, it will display a list of available networks.
• In the list of networks, press the ▲ button to select your home network, then press the OK button.
• When the Wi-Fi password entry screen appears, press the OK button to bring up the on-screen keyboard. Use the ▲/▼/◄buttons on the remote control to select a character and press OK to enter it.
• Input the correct password and press OK to close the on-screen keyboard. Select 'Connect' and press the OK button to connect to the network. If convection is successful, a tick will appear next to your Wi-Fi networks's name.

Advanced settings:

If you wish to add a hidden Wi-Fi network, go to Advanced Settings and select Add. Next, enter the network name, select the encryption type, enter the network password and click Connect.

If you want to assign your own network settings, go to Advanced Settings and change IP Settings to Manual. Enter your personal network settings, select 'Connect' and press OK.

Connecting to a Wired Network

• Connect an ethernet cable to the LAN port on the back of the TV.
• Press the ⚙MENU button on your remote to select Network.
• Change the Connection Type setting to 'Wired'. The TV will automatically pick up the network setting from the modem and connect to the network. If connection is successful, you will see 'Connected' on-screen.
• If you want to assign your own network settings, select the IPv4 or IP6 protocol and set it to 'Manual'.
• Enter your personal network settings, select 'Connect' and press OK. If connection is successful, you will see 'Connected' on-screen.
• Press the EXIT button to close the menu.

NETWORKING | 19

TV Setting Menus

Menu Navigation Buttons

Press the MENU button to display the TV settings menu. See the guide below for all the other buttons you'll need to use to adjust and change your settings.

Function Remote Button

Display the main menu
Enter a sub menu	▶ OR OK
Select an option / / /	▲ ▼ ◀ ▶
Adjust a value / / /	▲ ▼ ◀ ▶
Return to the previous menu
Exit a menu

Menus Index

Channel

22

• Auto Tuning
• DTV Manual Tuning
  • ATV Manual Tuning
• Dynamic Rescan
• Channel Edit
  • Signal Information


24

• Picture Mode
• User Mode Settings:
• Contrast, Brightness, Colour, Sharpness, Tint, Backlight, Noise Reduction, Colour Temperature, Aspect Ratio

Sound 26

• Sound Mode
• User Mode Settings: Surround Sound, Dialogue Enhancer, AVC (Auto Volume Control), Seven-Stage Equalization, Balance, S/PDIF (Digital Audio Output), AD Switch, AD Volume, Audio Delay, Sound Reset

Network 28

• Connection type
• Wired connection

• IPv4

• IPv6

• Wireless connection
• Advance Settings

System 30

• Language
• Subtitle
• Subtitle hearing impaired

• Audio language

• Subtitle language
  • HbbTV

• Country
• HDMI CEC
• HDMI EDID
• Environment
• PVR file system
• Restore factory default

Lock 32

• Lock System
• Set Password
• Block Channel
• Parental Lock

Time 33

• Auto Sync
• Clock
• Sleep Timer
• Auto Sleep
• Time Zone
• No Signal Power Off

REC PVR Recording 34

• Select disk
• Format start
• Speed check
• Record list

- Time shift size

Support 35

• USB upgrade
• Internet update check
• Software version
• Installation guide
  • View end-user license agreement
• App settings

QMenu36

Channel

Option Description

Auto Tuning	Automatically tunes all available free-to-air TV channels. Adjust settings (default settings are set for Australia), select 'Search' and press OK.
DTV Manual Tuning	Manually select the broadcast channel frequency and tune digital TV channels.
ATV Manual Tuning	Manually select and tune analog TV channels. (Analog TV is no longer supported in Australia.)
Dynamic Rescan	Automatically update the channels list based on the broadcast stream.
Channel Edit	See the next page for more information.
Signal Information	Display current signal information (DTV mode only).

Channel List

Use the ▲ buttons to highlight a channel.

Option Description

Move	Move the channel location on the list. Press YELLOW to select the channel then use the ▲ buttons to select a position and press OK to confirm it.
Skip	Press BLUE to skip the highlighted channel.
Delete	Press RED to delete the highlighted channel.
Fav	Press GREEN to add a channel to the favourites list.


Picture Mode

Soccer : Settings are optimised for viewing sports-based content and in brightly-lit environments.

Standard : Default picture settings.

Movie : Settings are optimised for viewing movies.

Home : Settings are optimised for viewing content in a home environment.

User : Adjust settings to best suit your viewing environment and content.

User Mode settings

Option Description
Contrast	Adjust the contrast of the bright and dark areas of the picture. The closer to 100, the higher the contrast.
Brightness	Adjust the overall screen brightness. The closer to 100, the brighter the picture.
Colour	Adjust the saturation. The closer to 100, the deeper the colour.
Sharpness	Adjust the sharpness of the picture. The closer to 100, the sharper and clearer the image.
Tint	Adjust the colour balance between red and green. (Only available with NTSC video standard. Australia uses PAL video standard.)
Backlight	Adjust the screen brightness by adjusting the backlight. The closer to 100, the brighter the screen.

Picture Setting /
Picture Mode	Home
Colour Temperature	Nature
Aspect Ratio	16 : 9
Noise Reduction	Middle
Advance Settings	...

Cartoon illustration of a smiling rectangular character with arms and legs, pointing at the face (no text or symbols)

To adjust the brightness, change the Picture Mode to User and modify the Brightness setting.

Noise Reduction

Reduces screen noise/static.

Colour Temp

Adjust the on-screen colour temperature.

Nature

User

Warm

Cool

User: Adjust red, green and blue colours to get a custom colour temperature.

Aspect Ratio

This item is used to adjust the video size. Sizes may differ between input sources.

Auto

4:3

16:9

Zoom1

Zoom2

PTP

PTP (Pixel to Pixel): Displays the picture in the same resolution as received by the TV.

Advanced Settings

Option Description
MPEG NR	Reduces MPEG (video) noise to improve picture quality.
Dynamic Contrast	Adjusts the difference between the bright and dark sides of the screen according to the brightness of the image.
Film Mode	Detects a film signal and automatically adjusts the picture for optimum viewing quality.
PC Mode	Adjusts setting to allow TV to be used as a monitor.
Overscan	Adjusts the picture if it's cropped.
Picture Reset	Resets all picture settings back to factory defaults.

Colorful swanffish fish against black background (no text or symbols)

Colorful sqbat swimming fish against black background (no text or symbols)

Close-up of a colorful swan or brotch fish with blue and yellow fins against a black background (no text or symbols)

Colorful swan swimming fish against black background (no text or symbols)

Images are for reference only.

TV SETTING MENUS | 25

Sound

Option Description

Sound Mode

Movie

usic Ne

s Game

UserSpo

ts Standa

d

-

Below options are available when sound is set to User.

Option Description

Surround

Sound

Adjust surround sound effect from your TV speakers.

Off

Low Mi

dle High

Dialogue

Enhancer

Improves the clarity of voice.

Off

Low Mi

dle High

AVC

Adjust the increase or decrease of audio when you change channels, video sources or content.

Off

Low Mi

dle High

Seven-Stage

Equalization

Adjust selected frequencies.

120Hz

300Hz

500Hz

1kHz

3kHz

6kHz

12kHz

Balance	Adjust the audio output between the left and right speakers.
S/PDIF Mode	Set the digital sound output setting. Options: PCM, Auto.
AD Switch	Audio Description (AD) provides an additional audio track for visually challenged persons (DTV only, subject to programme).
AD Volume	Adjusts the volume for the Audio Description (AD) when it's switched on.
Audio Delay	S/PDIF Delay: Synchronize the sound from an external home theatre system with the TV picture.Speaker delay: Synchronize the sound from the TV speakers with the TV picture.
Sound Reset	Reset all audio settings back to factory defaults.

TV SETTING MENUS | 27

Network

You can set up your TV so that it can access the Internet through your home network using a wired or wireless connection.

Wired Network Settings

Option Description

Connection type	Switch between Wired and Wireless connections.
IPv4	Switch between Auto and Manual for advanced network setup.
IPv6	Connect with IPv6 standard. Available options: Auto, Manual, Disabled (default).
Connect	Connect to your home network.

Wireless Network Settings

Option Description

Connection type	Switch between Wired and Wireless connections.
Wireless Networks	Select a wireless network to connect to.
Password	Enter the password of the selected wireless network. Press the OK button to make the on-screen keyboard appear.
Visible	Tick this box to see the password in plain text.
Connect	Connect to the wireless network.
Advanced settings	Enter advanced wireless settings.
WOW	Turn WOW ON/OFF.
IP Settings	Auto: tv will automatically connect to the network once you've connected to the wireless network.Manual: manually assign following network settings: IP address, Subnet Mask, Gateway, DNS

TV SETTING MENUS | 29

System

Option Description

Language Select your preferred On screen display language.

Subtitle Turn subtitles On/Off (available for digital channels, depending on the programme).

Subtitle Hearing Impaired Turn On or Off.

Audio Languages Select your preferred audio language. (Available for digital channels, depending on the programme.)

Subtitle Languages Select your preferred subtitle language. (Available for digital channels, depending on the programme.)

HBBTV Switch the HbbTV function On or Off. (Not supported.)

Country Display the current country setting.

HDMI CEC See the next page for information.

HDMI EDID Switch EDID Version. Select Enhanced when the source signal is transferred by HDMI2.0 specification. Select Standard when the source signal is transferred by HDMI1.4 specification.

Environment Set the TV to Home mode (recommended) or Store mode. Home mode is for general home viewing. Store mode is for in-store demo purposes.

PVR File System See page 34 for more information.

Restore Factory Default Restore the system settings to the factory default. When the restore is complete, the TV will enter standby mode.

HDMI CEC Setup

This feature allows for your TV and your connected HDMI device to be controlled by one remote control. It also means you can turn them both on or off simultaneously.

Press the SOURCE button on the unit or remote control to select the HDMI input source.

Option Description

HDMI CEC	Turn HDMI CEC On/Off.
Auto Standby	When this is set to On, turning off the TV will turn off the connected device as well.
Auto Power On	When this is set to On, turning on the TV will also turn on the connected device.

ARC (Audio Return Channel)

If this function is enabled, sound from the TV can be sent to an HDMI-ARC supported external audio device.

Cartoon illustration of a smiling rectangular character with arms and legs, pointing at it (no text or symbols)

Not all HDMI cables are the same! Be sure to use a high-speed HDMI cable.

TV SETTING MENUS | 31

Lock

Enter the factory password '0000' using the number buttons on the remote and select 'OK' on-screen. If you changed your password but forgot it, you can still use the master password.

Factory Password: 0000

Master Password: 1255

Option Description

Lock System	Turn system lock on/off.
Set Password	Enter the old password, then enter your new password twice. Select 'OK' on-screen to confirm.
Block Channel	Blocks selected channels. Select the channel and press YELLOW to block or unblock the selected channel.
Parental Lock	This item is used to block access to specific program ratings. See options below.

32 | TV SETTING MENUS

Time

Option Description

Auto Sync	On: Automatically syncs TV clock according to the DTV broadcasting time.Off: Manually adjust the clock.
Clock	Displays the DTV signal time or set the time manually.
Sleep Timer	Select the desired Auto Sleep (Standby) duration.Options: OFF 10 min 20 min 30 min 60 min 90 min 120min 180min 240min
Auto Sleep	Sets the time when the TV will enter Standby mode due to inactivity.Options: OFF 4 hrs 5 hrs 6 hrs
Time Zone	Adjust your timezone.
No Signal Power Off	When set to “On”, if there’s no input signal nor press-button operation, the TV will enter standby status automatically about 5 minutes later.

PVR Recording

To make changes to PVR (Personal Video Recording), ensure your USB drive is inserted into the TV. Check the troublehsooting section if you're having problems setting up your USB device.

Option Description

Select Disk	Select a disk used for PVR.
Format Start	Format the connected USB disk.
Speed Check	Checks the speed of the storage device.
Record List	Show the list of recorded programs.
Time Shift Size	Select the memory size for the Time Shift function. Options: 512MB, 1 GB, 2GB, 4GB.

Support

Option Description

USB Upgrade	Update the software using the USB memory device.
Internet Update Check	Update the software using the internet.
Software Version	Display current software version information.
Installation Guide	Access the first time installation setup guide.
View End-User License Agreement	Read and accept/decline the EULA.
App Settings	Display information about Netflix.

QMenu

The QMenu gives you access to selected menu settings without the hassles of navigating through the full menu. Press your remote to access this.

Option Description

Picture Mode	Select the picture best suited to the content you are viewing.Standard Movie User Home Soccer
Sound Mode	Select the sound mode best suited to the content you are viewing.Movie Music News Game UserSports Standard
Sleep Timer	Set the sleep timer. The TV will turn off after the specified time has elapsed.OFF 10 min 20 min 30 min 60 min 90 min 120min 180min 240min
Football Mode	Optimise picture and sound to give the most emersive experience possible. Options: On / Off.
Aspect ratio	Adjust the video size. The available video size may be different for different input source.Auto 4:3 16:9 Zoom1 Zoom2 PTP
Audio Only	Turns off the TV screen and listen only to the audio. Press theEXITbutton to get the picture on screen again.
Subtitle Languages	Select your preferred subtitle language (available for DTV if multiple subtitle languages are broadcasted).
TV Radio	Press to interchange Radio and DTV programs when there is a radio program (in DTV mode).
More	Access the full menu settings.

High Dynamic Range (HDR) HDR

About the HDR feature

High Dynamic Range (HDR) is a picture feature on your TV that attempts to mimic the way visuals are perceived in real life by the human eye.

By using this feature, the TV can reproduce greater dynamic range of luminosity by capturing and then combining several different exposures.

HDR promises better picture quality thanks to brighter, more realistic highlights, more realistic colour and other improvements.

It delivers the look that the filmmakers intended to achieve, showing the hidden areas of dark shadows and sunlight with full clarity, colour and detail.

HDR on your TV

HDR is supported in HDMI and USB input sources and by Netflix app.

When the TV is displaying HDR media, the information banner (press the INFO button on the remote) will display 'HDR'.

NOTE: When watching HDR content, make sure the Menu > System > HDMI-EDID setting is set to Enhanced. This requires an HDR playback-capable external media player and HDR optimised media content. Use a High-Speed HDMI cable when connecting to an external media player.

Smart TV

Before you start using apps, your TV must be connected to the internet.

The speed of your internet connection determines the quality of your audio/video experience when you watch streaming content.

Accessing internet content may count towards your download limit and may incur fees from third parties such as your internet service provider (ISP).

Function Remote Button

Display the Home/App screen

Select different Apps /

Open your desired App

Smart TV Applications

• Netflix
• Screencast
• YouTube
• NetRange app portal
• Twitter
• Foxxum app portal
• Facebook
• Zeasn app portal

You cannot download any extra apps on this TV.

NETFLIX

Netflix is a streaming service that offers unlimited viewing of a wide variety of award-winning TV shows, movies and documentaries.

A paid subscription is required.

This TV can play Netflix content in 4K Ultra HD HDR resolution, however the playback resolution may be lower depending on your subscription level and your network speed.

Streaming Netflix content will count towards the data usage of your broadband plan.

Screencast App Portals

The Screencast feature enables you to echo the display from a compatible Android device like a smartphone or tablet on the TV screen by connecting your mobile device directly to the TV wirelessly. In order to use this feature, your device must support Wi-Fi Display technology.

Apple iOS operating system is not supported.

To start using the Screencast feature, select the Screencast icon and press OK to load the app.

Turn on Wi-Fi and Wireless Display (a.k.a. Wi-Fi Display, Wi-Fi Direct, Cast Screen) function on your smart phone or tablet (Please refer to your device's user manual for information on how to turn on wireless display).

Your mobile device will display a list of available devices. Choose the DeviceID name shown on the bottom right corner of the TV and click on it to connect.

Your mobile device will connect to the TV and will display the device screen on the TV.

Use your device to disconnect.

NetRange, Foxxum and Zeasn app portals gives you access to number of other content and service providers.

Some apps may require a paid subscription.

Streaming content will count towards the data usage of your broadband plan.

TV Guide

(Free to air TV)

TV Guide Functions

Function Remote Button

Select a Channel, Time or Programme / / ▲/ ▼ ◀ ▶

Display programs by Time or Channel GREEN

Schedule selected programme for recording RED

View Scheduled Recordings and reminders YELLOW

Schedule a reminder for selected programme BLUE

Exit TV Guide menu

To access the TV guide, press the Guide button on the remote.

To activate the TV Channels use the ▲/▼buttons to select a channel in the left column, then press OK to confirm.

Recording

Important Tips:

• Back-up your personal data before plugging in your USB to the TV. We do not assume liability for any loss of data due to misuse or malfunction.
• You cannot change channels while in recording mode.
• If the signal is interrupted while in recording mode, the recording will stop until the signal is established.
• Do not turn the TV off while it is in time-shift mode.
• The file recorded can only be used on this TV. Do not copy it to any other device.
• When connecting or disconnecting the USB storage device, ensure the TV is not in USB mode, otherwise the USB device or the files stored on it may be damaged.

Before you can record with this TV (including time-shift recording), you must insert your USB storage device into the USB port.

Recording Live TV

Start Recording

Press REC once - start recording.

Press REC again - minimise the information bar at the bottom of the screen.

Stop Recording

Press STOP once - display the dialogue box.

Select YES to stop recording.

Select NO to continue recording.

Scheduled recording

See TV Guide Functions on page 41 to schedule recordings and manage schedules.

Abstract graphic with a red dot and black horizontal bar on gray background (no text or symbols)

When a program is being recorded in the background (while the TV is in standby mode), the Standby/ON light will flash red.

Recording, scheduled recording and pause live TV functions only work in DTV mode (free-to-air).

Playback

Press the MENU button then navigate to System then PVR File System then Record List to display the list of recorded programs.

Use the ▲ buttons to select a recorded file.

Press the OK button to start playback in Full Screen Mode.

Press RED to delete the selected file.

Pause Live TV (Time-shift)

Temporarily pause the live TV signal, then resume playback at your convenience.

Before you can record with this TV (including time-shift recording), you must insert your USB storage device into the USB port.

Start Time-shift

Press the I button on the remote to enter time-shift mode.

Press the ▶ or OK buttons to resume playing the program.

Stop Time-shift

Press the ■STOP button to exit time-shift.

The USB storage device won't retain recorded data after you exit the time-shift function.

Recording, scheduled recording and pause live TV functions only work in DTV mode (free-to-air).

USB Mode

Set up

Insert your USB into a USB port on the TV.

Press the SOURCE button to select 'Media' mode.

You can only play Photos in the Photo category, Music in the Music category and so on. Make sure you select the correct category for the file you wish to play.

Function Remote Button

Choose a Source or File / / /

Start playing your media

Return to previous screen

Exit media mode

Playback Functions

Playback of different media types have different controls.


Function Remote Button

Navigate to a folder or file / / /

Display your photo

Hide or display the on-screen toolbar

Change advanced settings

Return to file list

Music

Function Remote Button

Navigate to a folder or file / / /

Play your track

Fast forward or rewing the track

Skip or restart the current track

Change sound mode and balance settings

Return to file list

Video

Function Remote Button

Navigate to a folder or file / / /

Play your video

Pause the video

Resume playback

Stop playback

Fast forward or rewing the track

Skip or restart the current track

Change advanced settings

Return to file list

Cartoon illustration of a smiling rectangular character with arms and legs, holding a pointer (no text or symbols)

Only supported file types will be displayed. See the specifications table for supported file types.

Troubleshooting

If you experience problems with your TV, check below for advice. If you don't find a solution here, contact After Sales Support on 1300 886 649.

Problem Solution
No power	Check the power outlet is turned on.If using a multi-outlet, check if it is working properly. To check whether a power strip is working properly, plug the TV's power plug directly to a wall outlet and observe its operation.Try to power on using the button on your TV set.
Picture issues	Ensure that all equipment is connected properly. If you are using an external device, turn it off, then turn it on again. If it says there is no signal on the screen, choose the correct source input.Adjust the antenna position.Move the TV away from electronic equipment or devices that could cause interference.Auto-tune free-to-air TV channels again.Try another channel.If the image keeps flickering when trying to connect the HDMI cable, make sure the cable is: a high-speed HDMI cable; correctly connected to the port; and not faulty (bent or broken).You can also try going to Adjust Menu > System > HDMI EDID setting.
Network connection issues	Turn off the modem and the router (if used). Wait for 2 minutes and then turn them back on.If you are connecting using Wi-Fi, make sure you enter the Wi-Fi password correctly.If you are using a static IP, enter the IP address and other network addresses directly.If you are using an ethernet cable, use one rated CAT 5 or higher. Make sure it is plugged in at both ends.If the problem persists, contact your Internet Service Provider or modem manufacturer.

Problem Solution

Sound issues	Ensure that the equipment is connected properly.Ensure that the input setting for the TV is correct.Ensure audio settings on the external device are set correctly.Ensure the volume is not muted. If it is, press the MUTE button to restore the sound.If earphones are connected, unplug them.Adjust the volume to a suitable level by pressing the VOL+ / VOL- button.Adjust the Menu > System > HDMI EDID setting.If you are using an external audio device, check that the Menu > Sound > S/PDIF setting is 'PCM'.If you are using an external audio device via an HDMI cable, make sure the audio device supports HDMI-ARC.If the TV sound is not synchronised with the picture, go to Menu > Sound > Audio Delay and adjust the sync.
No operations can be performed with the remote control unit	Check the batteries are correctly installed.The batteries may be exhausted: replace them.Make sure to point the remote control at the remote control sensor and try it again.Make sure to use the remote control at a distance of no more than 5m from the sensor.Remove any obstacles between the remote control and remote control sensor.
Button operation is not effective (unit and/or remote control)	Disconnect the power plug and then reconnect it. (The unit may not be operating properly due to lightning, static electricity or other factors.)

Problems relating to your USB media storage device

Problem Solution
My TV does not recognise my USB device or my external hard disk	First, refer to the instructions describing how to use USB devices with this TV.If the problem still occurs, your USB device may not be compatible.This TV has been tested with the majority of Flash memory-based devices and hard disks (media players with HDD) on the market; however, it may not be compatible with certain devices, in particular external self-powered hard disks.Some USB storage devices may not be compatible with this TV.Only use a USB storage device formatted in a FAT32 file system provided with the Windows operating system. If it is formatted by a different utility program that is not supported by Windows, it may not be recognised.
'Disk not ready' error	When you are in time-shift recording mode, without removing the USB recording device, you may experience some difficulty with a scheduled recording. You will need to remove the USB device as it is required to reset after each recording to protect the device from damage. If you see the message 'DISK NOT READY' displayed, remove the device, reconnect and proceed with your recording.
My media is loading slowly	For large file sizes and large capacity storage devices, the loading speed may be slower. The recognition speed of a USB storage device may vary depending on the device.
There is an 'unsupported file' message	If an "Unsupported File" message is displayed, it means the file extension, video codec, image resolution or frame rate is unsupported.

Specifications

Active screen size (diagonal)	54.6" (138.78cm)
Resolution 3840 x 2160
Colour depth 10-bit (1.07B)
Refresh rate 60Hz
HDMI version 2.0
HDCP version 2.2
Aspect ratio 16:9
Multimedia playback formats (USB mode)	Video	MPEG-2, MPEG-4, H.264, H.265, VP9, TS
	Music MP3, AAC
	Photo	JPEG, PNG, BMP
USB output DC 5V 500mA
Power source 100-240V~, 50/60Hz

Power consumption 145W
Dimensions (W x D x H)		With stand: 1240 x 195 x 770 mm
		Without stand: 1240 x 85 x 725 mm
Weight	Net 13.1kg
	Gross 17.7kg

Compliance and Responsible Disposal

Packaging

The packaging of your product has been selected from environmentally friendly materials and can usually be recycled. Please ensure these are disposed of correctly. Plastic wrapping can be a suffocation hazard for babies and young children, please ensure all packaging materials are out of reach and are safely disposed of. Please recycle these materials rather than throwing them away.

Product

At the end of its working life, do not throw this product out with your household rubbish.

An environmentally friendly method of disposal will ensure that valuable raw materials can be recycled. Electrical and electronic items contain materials and substances which, if handled or disposed of incorrectly, could potentially be hazardous to the environment and human health.

National Television and Computer Recycling Scheme

The careful disposal of e-waste is important because many televisions and computers contain materials which are hazardous to people and the environment. There are no fees for householders or small businesses disposing of e-waste at a scheme collection service.

Individuals can contact their local council for information on local e-waste management services, find scheme services listed on Planet Ark's website at www.recyclingnearyou.com.au, or call Planet Ark on 1300 733 712.

Compliance

This product complies with the Australian Safety Standard AS/NZS 60065 to ensure the safety of the product.

BAUHD®

EFFORTLESS TECHNOLOGY

Warranty Information

The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour. The benefits conferred by this warranty are in addition to all rights and remedies in respect of the product that the consumer has under the Competition and Consumer Act 2010 and similar state and territory laws.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and to compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

BAUHN®

EFFORTLESS TECHNOLOGY

Repair and Refurbished Goods or Parts Notice

Unfortunately, sometimes faulty products are manufactured, which need to be returned to the supplier for repair.

Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost. We recommend you save this data elsewhere prior to sending the product for repair.

You should also be aware that rather than repairing goods, we may replace them with refurbished goods of the same type or use refurbished parts in the repair process.

Please be assured though, refurbished parts or replacements are only used where they meet ALDI's stringent quality specifications.

If at any time you feel your repair is being handled unsatisfactorily, you may escalate your complaint. Please telephone us on 1300 886 649 or write to us at:

Tempo (Aust) Pty Ltd ABN 70 106 100 252

PO Box 6056, Frenchs Forest, NSW 2086, Australia

Telephone: [phone] (Aust) - Fax: [phone]

Tempo Help Desk: 1300 886 649 (Aust)

(Operating Hours: Mon-Fri 8:30am-6pm; Sat 9am-6pm EST)

Email: [e-mail]

Notes

Purple icon showing a person reading a document with an exclamation mark symbol (no text or numbers present)

Please read the manual

It will help you get the best out of your product.

Still have questions? Call After Sales Support 1300 886 649

Or visit www.tempo.org

Online support

Visit www.bauhn.com.au for software updates to keep your TV up-to-date, as well as the latest Instruction Manual for information on the updated features.

Warranty returns

Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product.

Product does not work?

If you encounter problems with this product, or if it fails to perform to your expectations, please contact our After Sales Support Centre on 1300 886 649 before returning it to the store for a refund.
