USER MANUAL A.C.T. Commercial NordicTrack
Model No. NTEVEL13016.1
Serial No. ____
Write the serial number in the space above for reference.

CUSTOMER SERVICE
UNITED KINGDOM
Call: 0330 123 1045
From Ireland: 053 92 36102
Website: www.iconsupport.eu
E-mail: csuk@iconeurope.com
Write:
ICON Health & Fitness, Ltd.
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: australiacc@iconfitness.com
Write:
ICON Health & Fitness
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA
CAUTION
Read all precautions and instructions in this manual before using this equipment. Keep this manual for future reference.
USER'S MANUAL


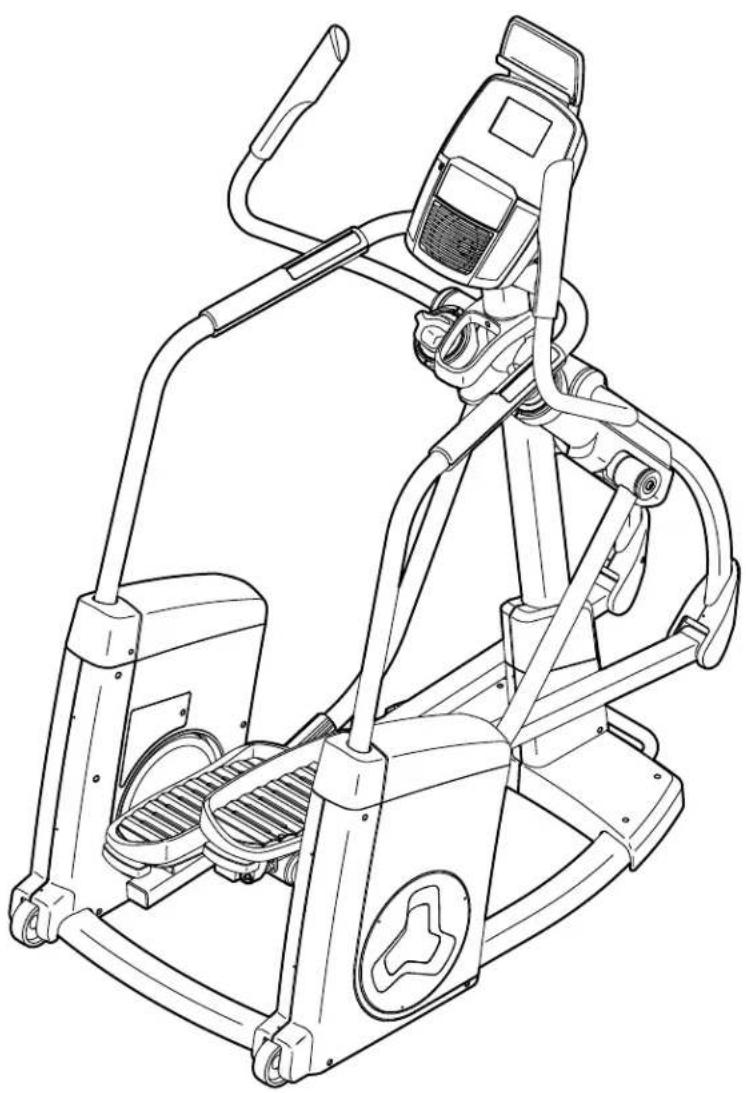

Line drawing of a stationary exercise machine with adjustable arms and wheels (no text or symbols)TABLE OF CONTENTS
WARNING DECAL PLACEMENT....2
IMPORTANT PRECAUTIONS....3
BEFORE YOU BEGIN....4
PART IDENTIFICATION CHART....5
ASSEMBLY....6
HOW TO USE THE ELLIPTICAL 12
MAINTENANCE AND TROUBLESHOOTING....20
EXERCISE GUIDELINES 22
PART LIST....23

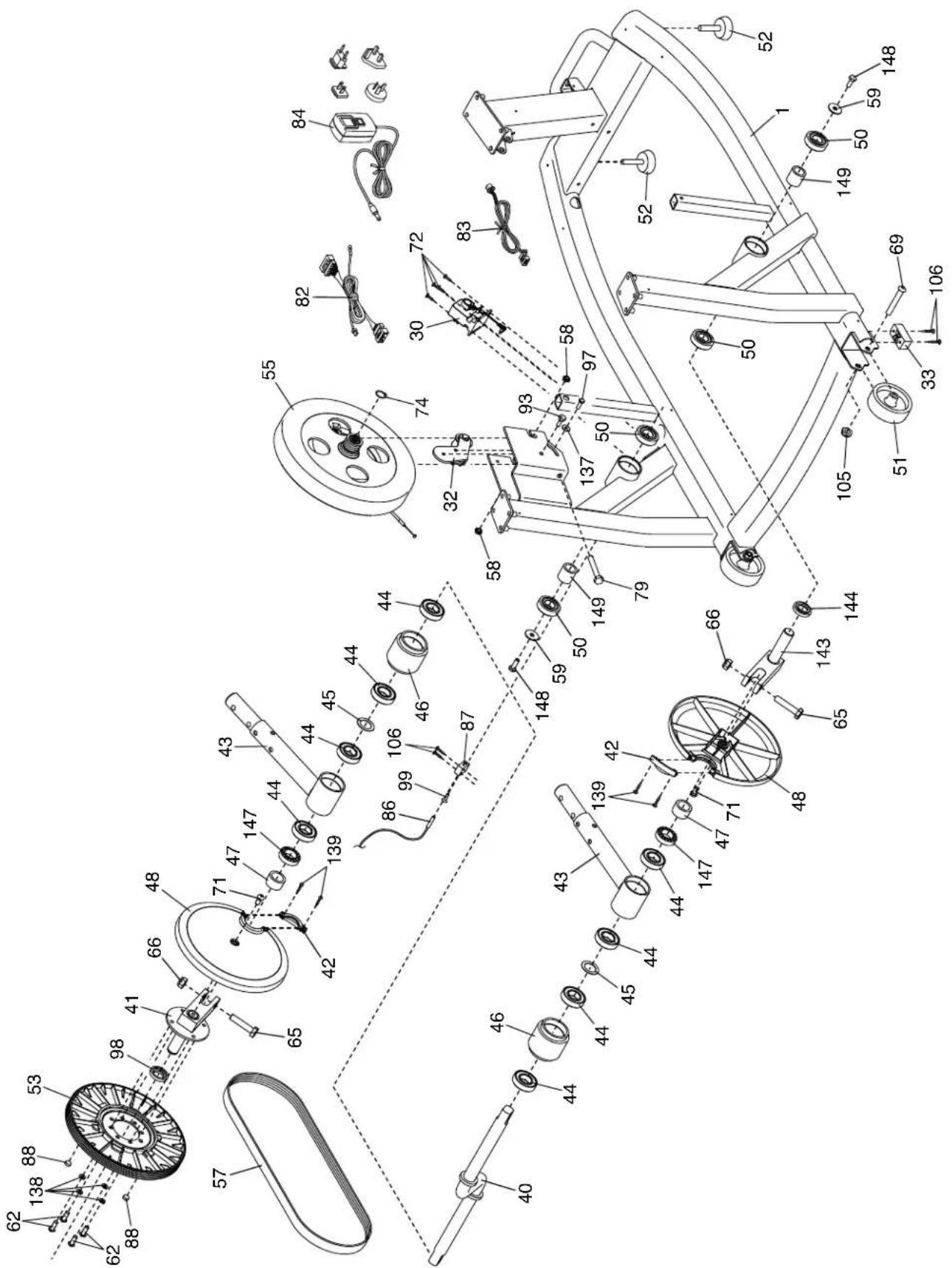

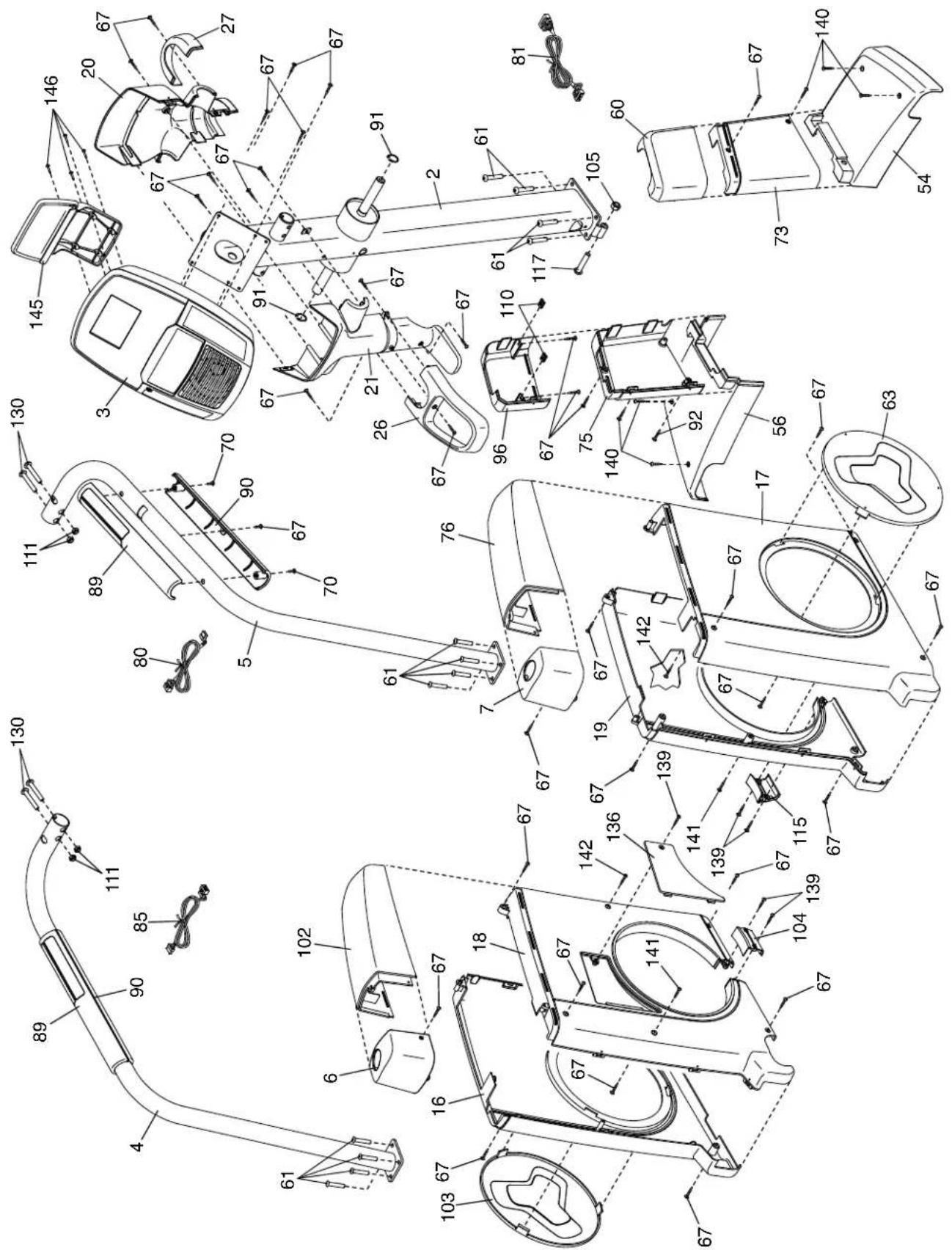

EXPLODED DRAWING....25
ORDERING REPLACEMENT PARTS Back Cover
RECYCLING INFORMATION .... Back Cover
WARNING DECAL PLACEMENT

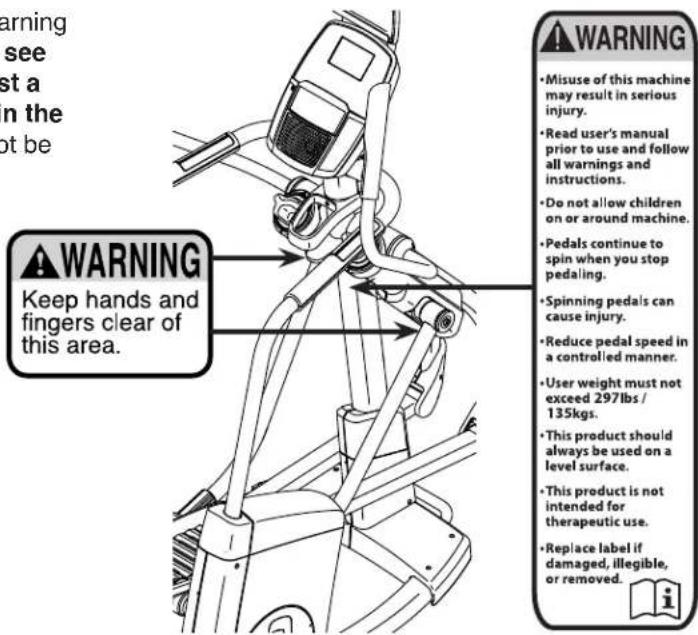

This drawing shows the location(s) of the warning decal(s). If a decal is missing or illegible, see the front cover of this manual and request a free replacement decal. Apply the decal in the location shown. Note: The decal(s) may not be shown at actual size.

NORDICTRACK and IFIT are registered trademarks of ICON Health & Fitness, Inc. App Store is a trademark of Apple Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google Inc. The BLUETOOTH® word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and instructions in this manual and all warnings on your elliptical before using your elliptical. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
- It is the responsibility of the owner to ensure that all users of the elliptical are adequately informed of all precautions.
- Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems.
- The elliptical is not intended for use by persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, unless they are given supervision or instruction about use of the elliptical by someone responsible for their safety.
- Use the elliptical only as described in this manual.
- The elliptical is intended for home use only. Do not use the elliptical in a commercial, rental, or institutional setting.
- Keep the elliptical indoors, away from moisture and dust. Do not put the elliptical in a garage or covered patio, or near water.
- Place the elliptical on a level surface, with at least 3 ft. (0.9 m) of clearance in the front and rear of the elliptical and 2 ft. (0.6 m) on each side. To protect the floor or carpet from damage, place a mat under the elliptical.
-
Inspect and properly tighten all parts each time the elliptical is used. Replace any worn parts immediately.
-
Keep children under age 13 and pets away from the elliptical at all times.
- The elliptical should not be used by persons weighing more than 297 lbs. (135 kg).
- Wear appropriate clothes while exercising; do not wear loose clothes that could become caught on the elliptical. Always wear athletic shoes for foot protection while exercising.
- Hold the handlebars or the handrails when mounting, dismounting, or using the elliptical.
- The heart rate monitor is not a medical device. Various factors may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determining heart rate trends in general.
- The elliptical does not have a freewheel; the pedals will continue to move until the fly-wheel stops. Reduce your pedaling speed in a controlled way.
- Keep your back straight while using the elliptical; do not arch your back.
- Over exercising may result in serious injury or death. If you feel faint, if you become short of breath, or if you experience pain while exercising, stop immediately and cool down.
BEFORE YOU BEGIN
Thank you for selecting the revolutionary NORDICTRACK® ACT COMMERCIAL elliptical. The ACT COMMERCIAL elliptical provides an impressive selection of features designed to make your workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before you use the elliptical. If you have questions after
reading this manual, please see the front cover of this manual. To help us assist you, note the product model number and serial number before contacting us. The model number and the location of the serial number decal are shown on the front cover of this manual.

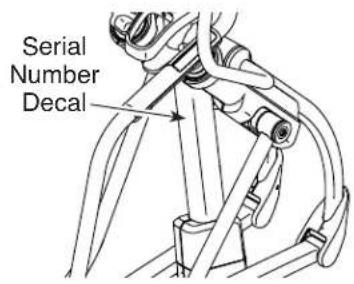

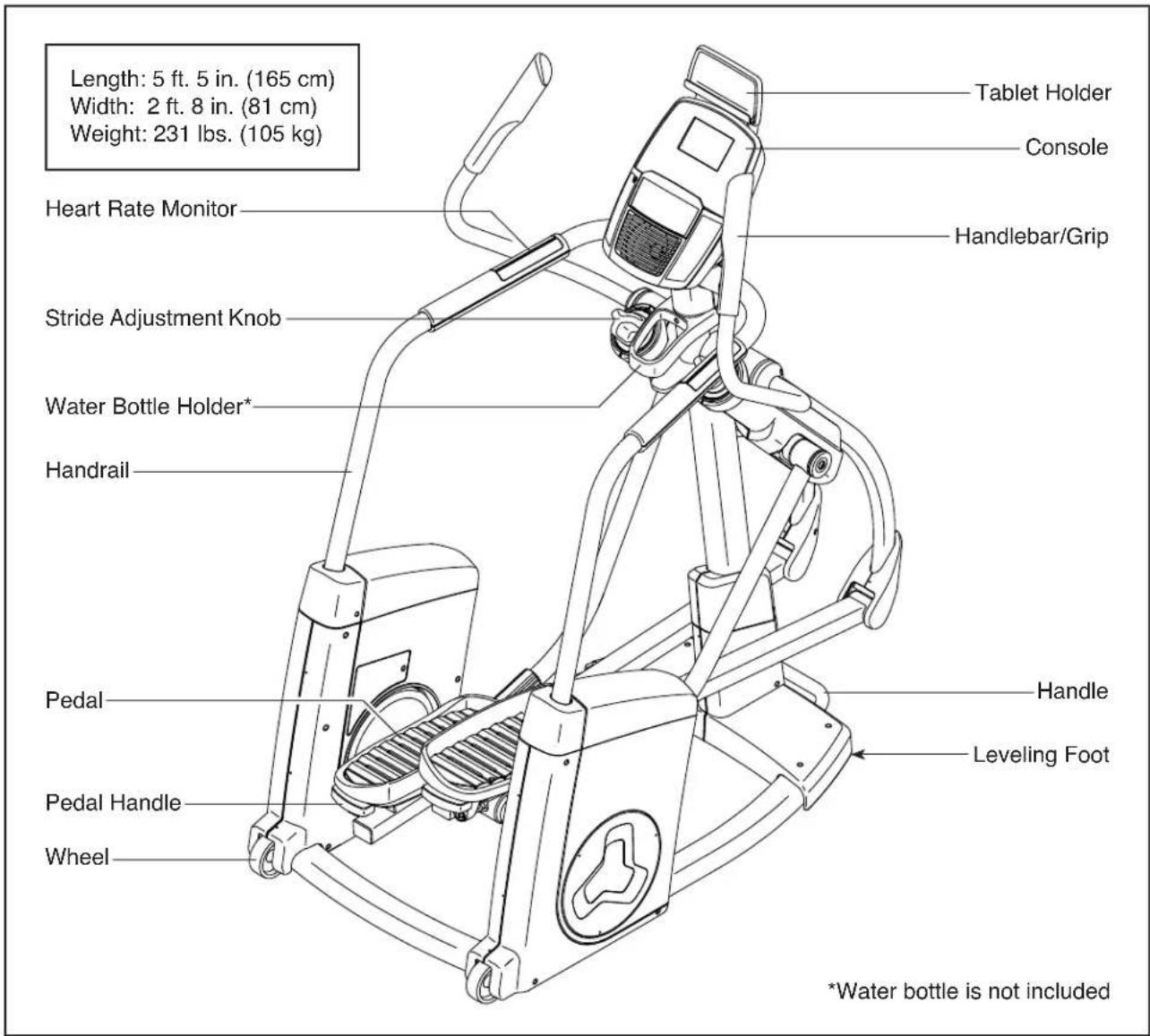

Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.

PART IDENTIFICATION CHART

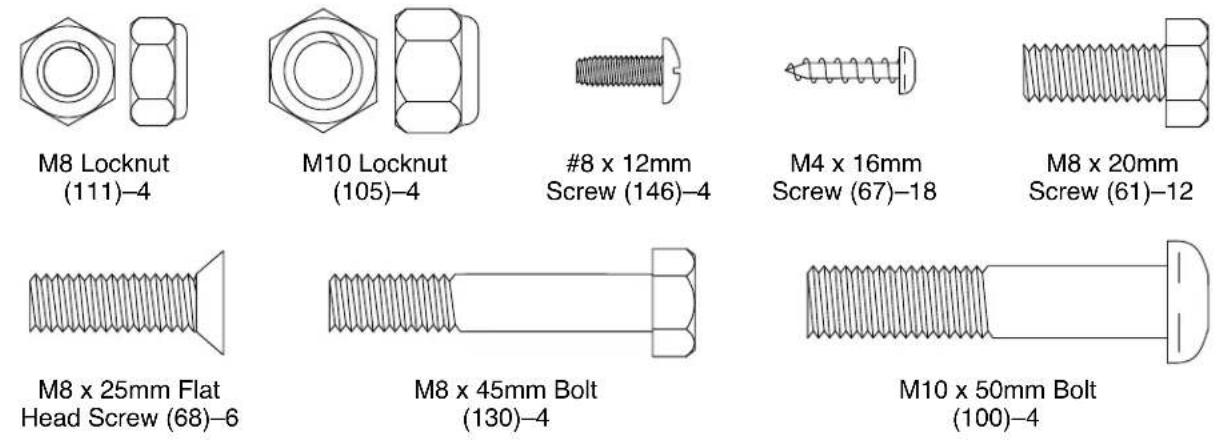

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it has been preassembled. Extra parts may be included.

ASSEMBLY
• Assembly requires two persons.
- Place all parts in a cleared area and remove the packing materials. Do not dispose of the packing materials until you finish all assembly steps.
- Left parts are marked "L" or "Left" and right parts are marked "R" or "Right."
• To identify small parts, see page 5.
- In addition to the included tool(s), assembly requires the following tools:
one Phillips screwdriver
one rubber mallet
one adjustable wrench

Assembly may be easier if you have a set of wrenches. To avoid damaging parts, do not use power tools.
- Go to www.iconsupport.eu on your computer and register your product.
• activates your warranty
• saves you time if you ever need to contact Customer Service
- allows us to notify you of upgrades and offers
Note: If you do not have internet access, call Customer Service (see the front cover of this manual) and register your product.


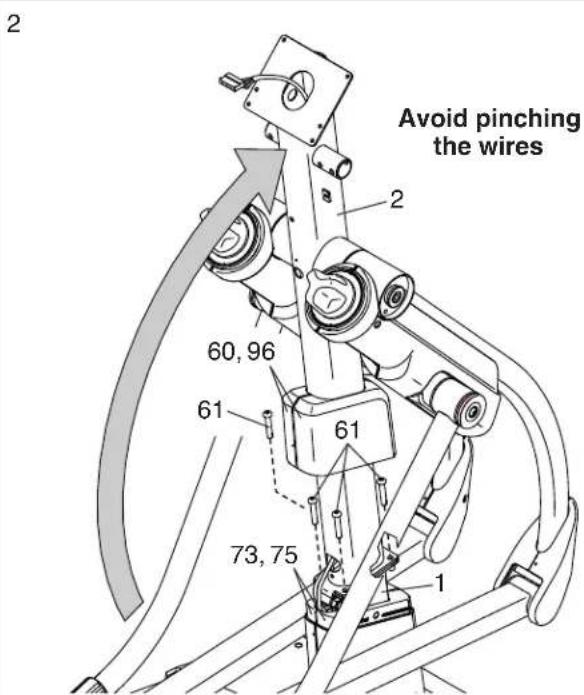

Slide the Right and Left Upright Covers (60, 96) upward as shown.
Secure the Upright (2) to the Frame (1) with four M8 x 20mm Screws (61); do not tighten the Screws yet.

- Have a second person lift the Right Pedal (9) and the Right Pedal Arm (15).
Using a plastic bag to keep your fingers clean, apply some of the included grease to the right Link Arm Bracket (43) in the location shown.

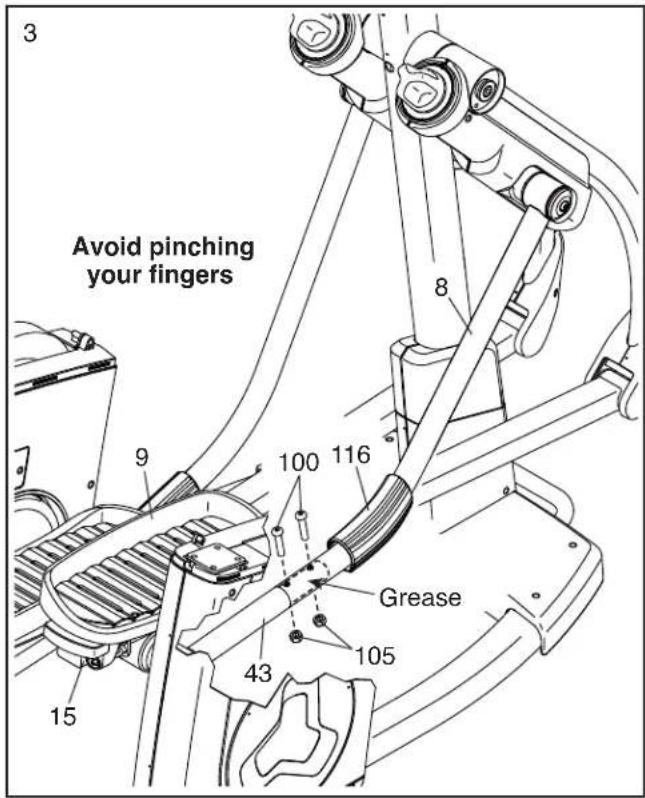

Tip: Avoid pinching your fingers. Slide the right Link Arm (8) onto the right Link Arm Bracket (43). Attach the right Link Arm with two M10 x 50mm Bolts (100) and two M10 Locknuts (105).
Then, slide the right Link Arm Cover (116) over the M10 x 50mm Bolts (100) and the M10 Locknuts (105).
Repeat this step on the left side of the elliptical.

- Remove the two screws (A) and the shipping bracket (B) from the right side of the Frame (1). Discard the screws and the shipping bracket.

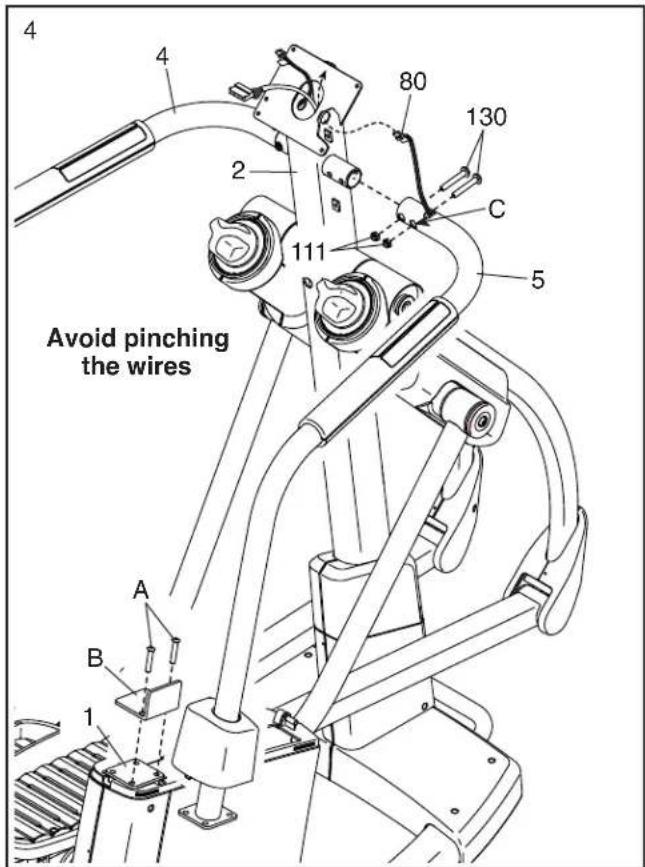

Tip: Avoid pinching the wires. Slide the upper end of the Right Handrail (5) onto the right side of the Upright (2).
Attach the Right Handrail (5) with two M8 x 45mm Bolts (130) and two M8 Locknuts (111); make sure that the Locknuts are inside the hexagonal holes (C), but do not tighten the Bolts yet.
Then, insert the end of the Right Pulse Wire (80) into the hole in the right side of the Upright (2) and route it out of the top of the Upright.
Repeat this step on the left side of the elliptical.

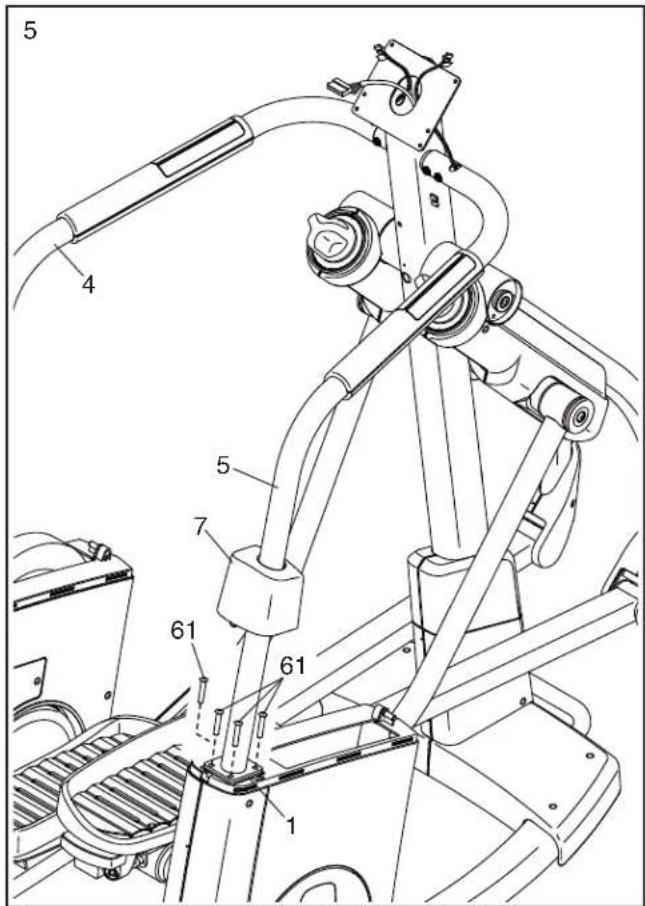

- Attach the lower end of the Right Handrail (5) to the Frame (1) with four M8 x 20mm Screws (61); do not tighten the Screws yet.
Attach the lower end of the Left Handrail (4) in the same way.
See step 2. Tighten the four M8 x 20mm Screws (61). Then, slide the Right and Left Upright Covers (60, 96) downward and press them onto the Right and Left Frame Post Covers (73, 75); avoid pinching the wires.
See step 4. Tighten the four M8 x 45mm Bolts (130).
Then, tighten the eight M8 x 20mm Screws (61).
Do not press the Right Handrail Cover (7) and the Left Handrail Cover (not shown) into place yet.

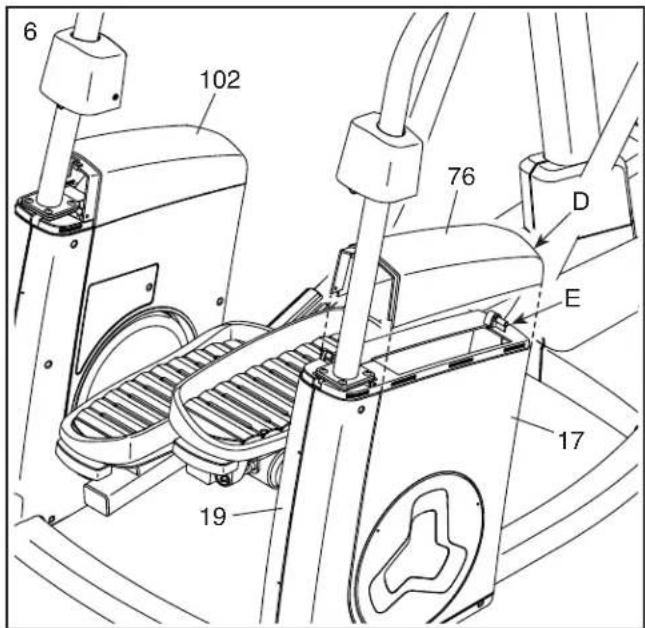

- Align the tab (D) on the Right Shield Cover (76) with the indicated hole (E) in the Right Outer and Inner Shields (17, 19).
Press the Right Shield Cover (76) onto the Right Outer and Inner Shields (17, 19).
Attach the Left Shield Cover (102) in the same way.

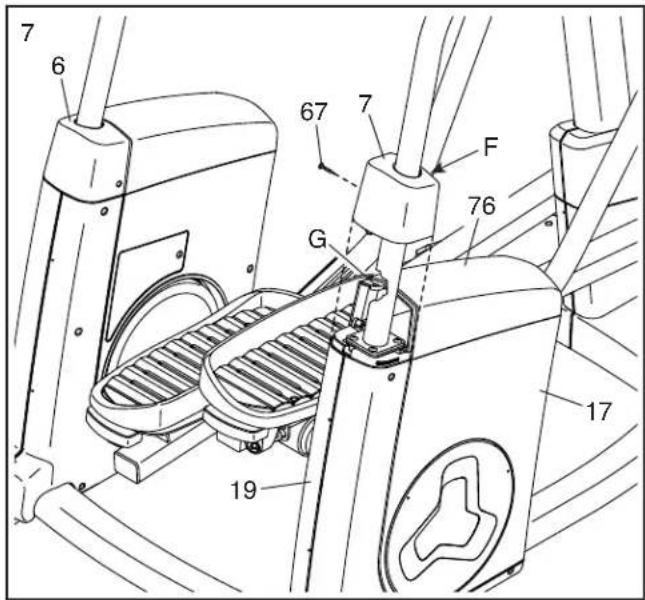

- Align the plastic post (F) inside the Right Handrail Cover (7) with the indicated hole (G) in the Right Shield Cover (76).
Press the Right Handrail Cover (7) onto the Right Shield Cover (76) and the Right Outer and Inner Shields (17, 19).
Attach the Right Handrail Cover (7) with an M4 x 16mm Screw (67). Attach the Left Handrail Cover (6) in the same way.
-

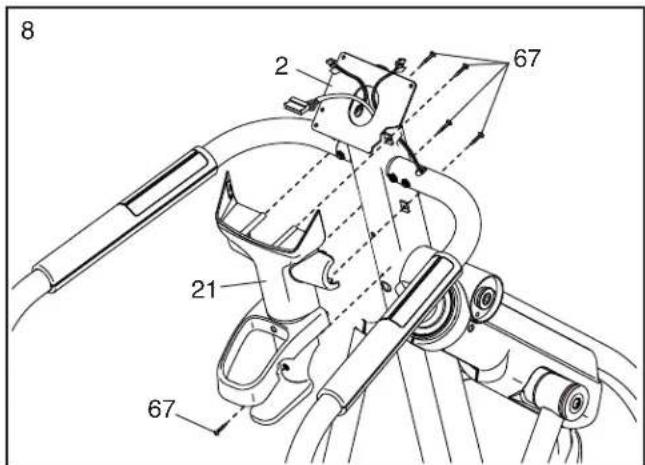

Attach the Rear Upright Cover (21) to the Upright (2) with five M4 x 16mm Screws (67); do not tighten the Screws yet.
-

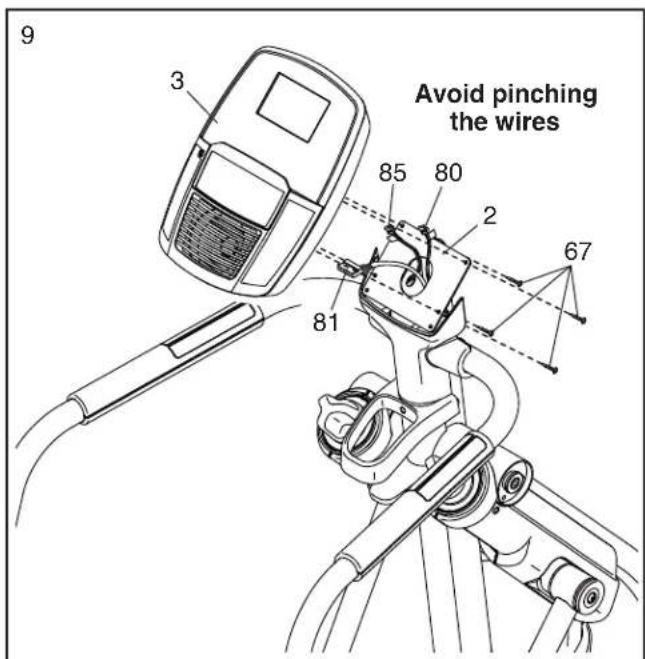

While a second person hold the Console (3) near the Upright (2), plug the Wires (80, 81, 85) into the matching receptacles on the back of the Console.
The connectors on the Wires (80, 81, 85) should slide in easily and snap into place. If not, turn the connector and try again. If you do not connect the connectors properly, the console may become damaged.
Insert the excess wire into the Upright (2). Tip: Avoid pinching the wires. Attach the Console (3) with four M4 x 16mm Screws (67); start all the Screws, and then tighten them.



- Hold the Rear Upright Cover (21) against the Console (3).
See step 8. Tighten the five M4 x 16mm Screws (67).

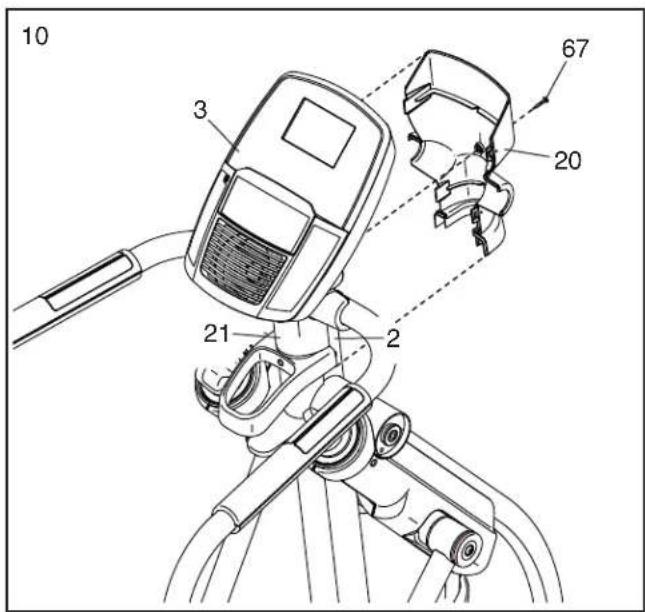

Next, press the tabs on the Front Upright Cover (20) into the Rear Upright Cover (21). Then, attach the Front Upright Cover to the Upright (2) with an M4 x 16mm Screw (67).

- Identify the Right Handlebar (11).

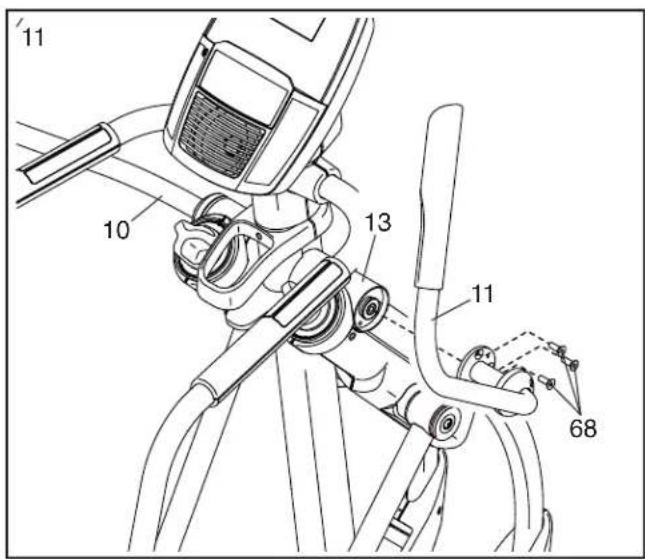

Attach the Right Handlebar (11) to the Right Handlebar Arm (13) with three M8 x 25mm Flat Head Screws (68); start all the Flat Head Screws, and then tighten them.
Attach the Left Handlebar (10) in the same way.

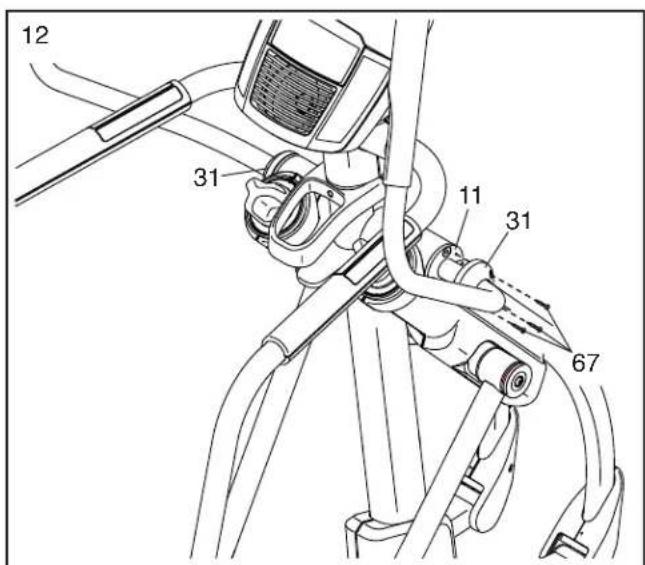

- Attach the right Handlebar Cover (31) to the Right Handlebar (11) with three M4 x 16mm Screws (67); start all the Screws, and then tighten them.
Attach the left Handlebar Cover (31) in the same way.

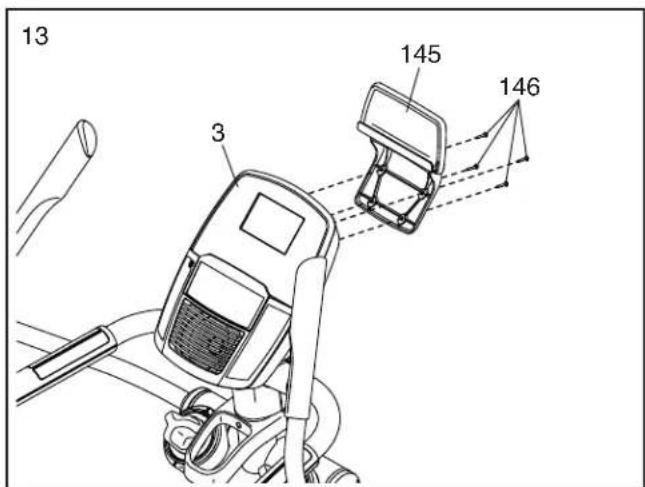

- Attach the Tablet Holder (145) to the Console (3) with four #8 x 12mm Screws (146); start all the Screws, and then tighten them.

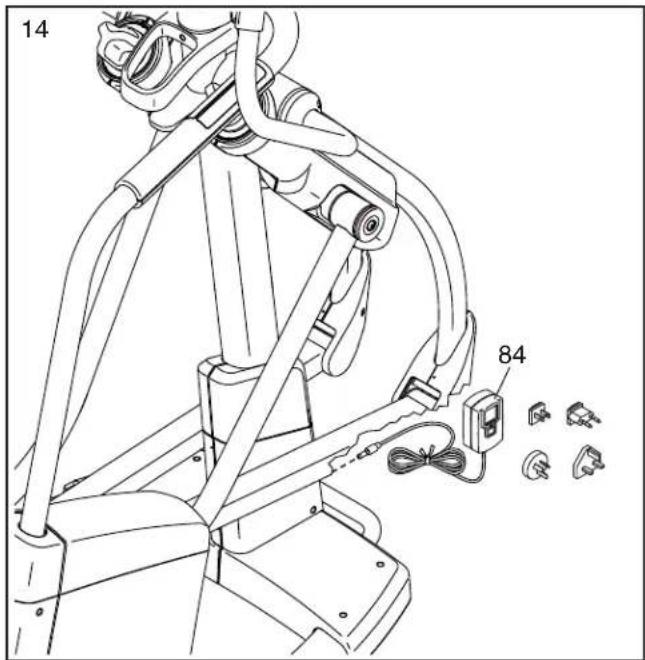

- Plug the Power Adapter (84) into the receptacle on the frame of the elliptical.
Note: To plug the Power Adapter (84) into an outlet, see HOW TO PLUG IN THE POWER ADAPTER on page 12.

- Make sure that all parts are properly tightened before you use the elliptical. Extra parts may be included. Place a mat beneath the elliptical to protect the floor.
HOW TO USE THE ELLIPTICAL
HOW TO PLUG IN THE POWER ADAPTER
IMPORTANT: If the elliptical has been exposed to cold temperatures, allow it to warm to room temperature before you plug in the power adapter. If you do not do this, you may damage the console displays or other electronic components.

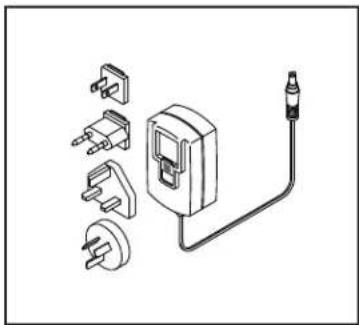

Plug the power adapter into the receptacle on the frame of the elliptical. Insert the appropriate plug adapter into the power adapter if necessary. Then, plug the power adapter into an appropriate outlet that is properly installed in accordance with all local codes and ordinances.


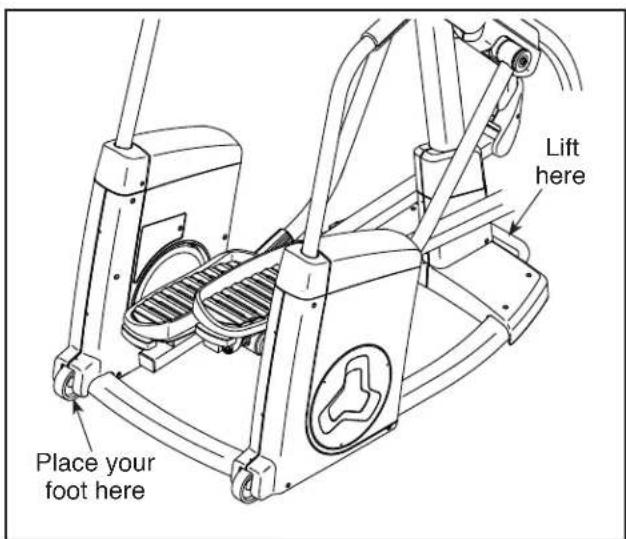

Due to the size and weight of the elliptical, moving it requires two persons. Have a second person place one foot against one of the wheels. Grip the handle and lift the frame until the elliptical will roll on the wheels. Carefully move the elliptical to the desired location, and then lower it to the floor.

HOW TO LEVEL THE ELLIPTICAL

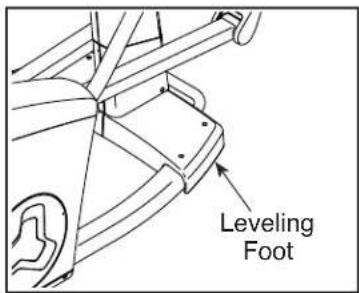

If the elliptical rocks slightly on your floor during use, turn one or both of the leveling feet beneath the front of the frame until the rocking motion is eliminated.

HOW TO ADJUST THE STRIDE OF THE ELLIPTICAL

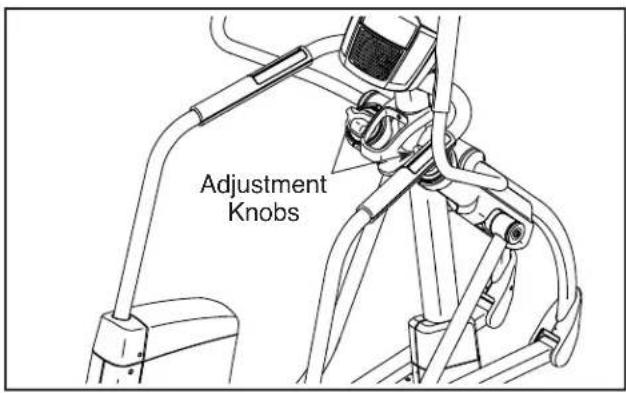

To adjust the stride of the elliptical, turn the adjustment knobs clockwise or counterclockwise. Make sure that both adjustment knobs are at the same setting.

HOW TO ADJUST THE POSITIONS OF THE PEDALS

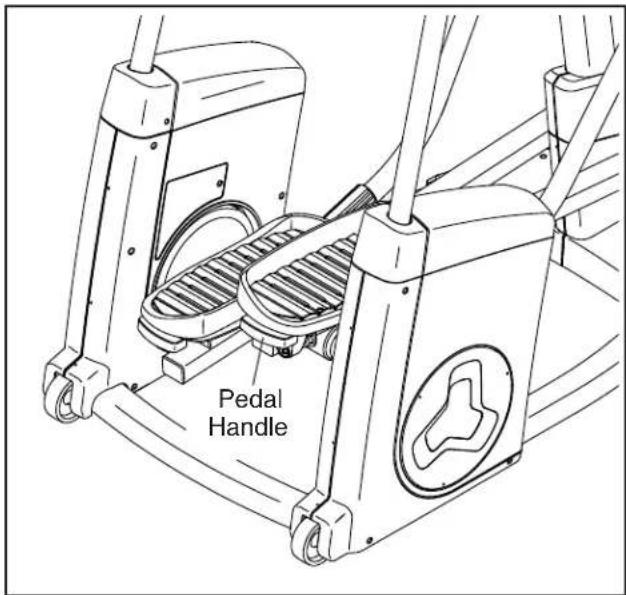

Each pedal can be adjusted to several positions. To adjust each pedal, simply pull the pedal handle outward, move the pedal to the desired position, and then release the pedal handle into an adjustment hole beneath the pedal. Make sure to adjust both pedals to the same position.

HOW TO USE THE TABLET HOLDER
IMPORTANT: The tablet holder was designed for use with most full-size tablets. Do not place any other electronic device or object into the tablet holder.

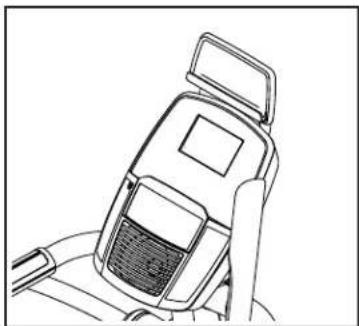

To insert a tablet into the tablet holder, set the bottom edge of the tablet in the tray. Make sure that the tablet is firmly secured in the tablet holder. Reverse these actions to remove the tablet from the tablet holder.


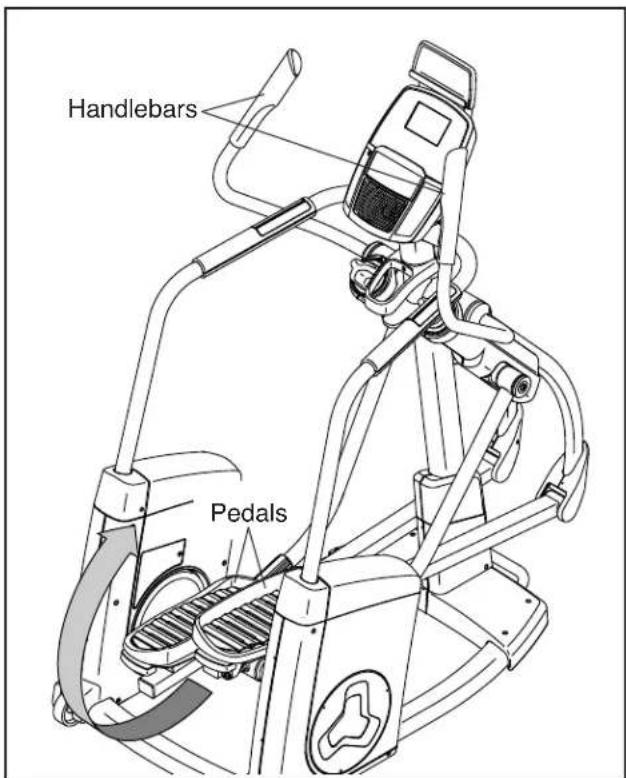

To mount the elliptical, hold the handlebars and step onto the pedal that is in the lower position. Then, step onto the other pedal. Push the pedals until they begin to move with a continuous motion. Note: The pedals can turn in either direction. It is recommended that you turn the pedals in the direction shown by the arrow; however, for variety, you can turn the pedals in the opposite direction.

To dismount the elliptical, wait until the pedals come to a complete stop. Note: The elliptical does not have a free wheel; the pedals will continue to move until the flywheel stops. When the pedals are stationary, step off the higher pedal first. Then, step off the lower pedal.

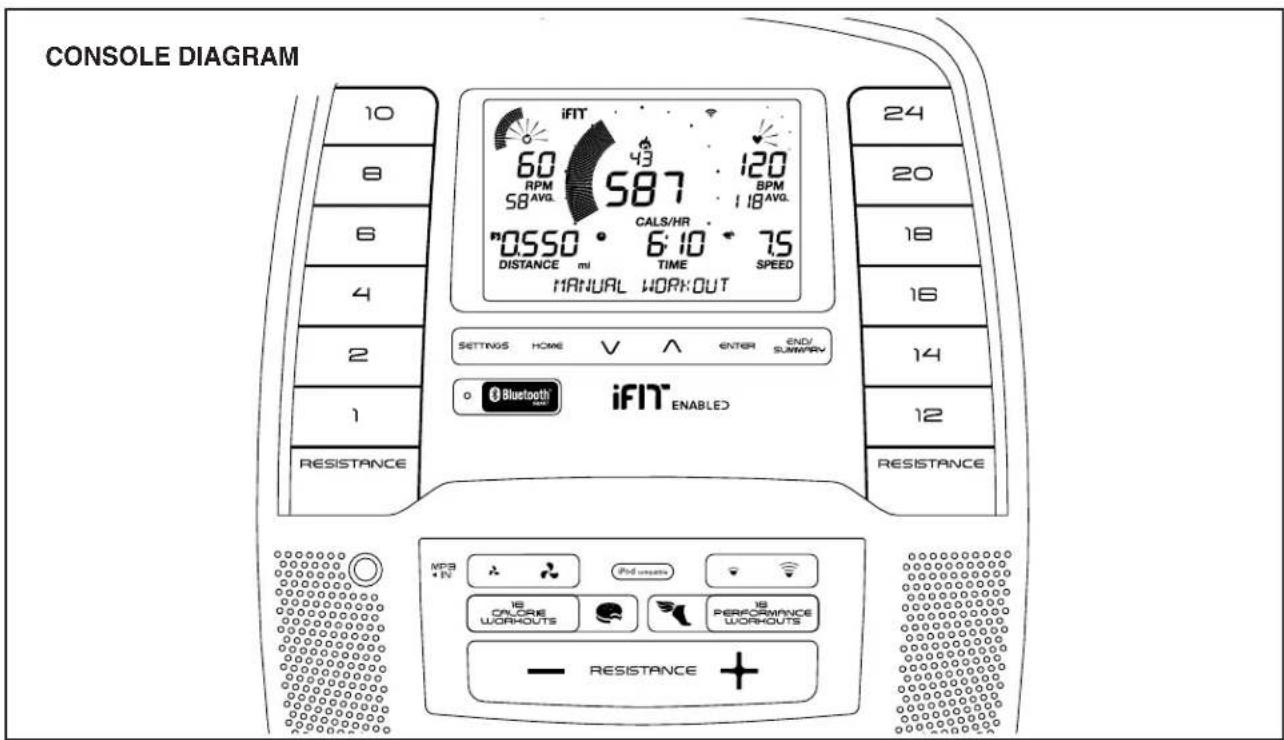

FEATURES OF THE CONSOLE
The advanced console offers an array of features designed to make your workouts more effective and enjoyable.
When you use the manual mode of the console, you can change the resistance of the pedals with the touch of a button.
While you exercise, the console will display continuous exercise feedback. You can also measure your heart rate using the handgrip heart rate monitor or a compatible heart rate monitor. See page 19 for information about purchasing an optional chest heart rate monitor.
You can also connect your tablet to the console and use the iFit® Bluetooth Tablet app to record and track your workout information.
The console also offers a selection of onboard workouts. Each workout automatically changes the
resistance of the pedals as it guides you through an effective workout.
You can even connect your personal audio player to the console sound system and listen to your favorite music or audio books while you exercise.
To use the manual mode, see page 15. To use an onboard workout, see page 17. To connect your tablet to the console, see page 18. To connect your heart rate monitor to the console, see page 18. To use the sound system, see page 19. To change console settings, see page 19.
Note: If there is a sheet of plastic on the display, remove the plastic.
Note: The console can display speed and distance in either miles or kilometers. To find which unit of measurement is selected, see step 3 on page 19. For simplicity, all instructions in this section refer to miles.
HOW TO USE THE MANUAL MODE
1. Begin pedaling or press any button on the console to turn on the console.
When you turn on the console, the display will turn on. The console will then be ready for use.
2. Select the manual mode.
Press the Home button or press either the Calorie Workouts button or the Performance Workouts button repeatedly to select the manual mode.
3. Change the resistance of the pedals as desired.
As you pedal, change the resistance of the pedals by pressing the Resistance increase and decrease buttons.
Note: After you press a button, it will take a moment for the pedals to reach the selected resistance level.
4. Follow your progress with the displays.

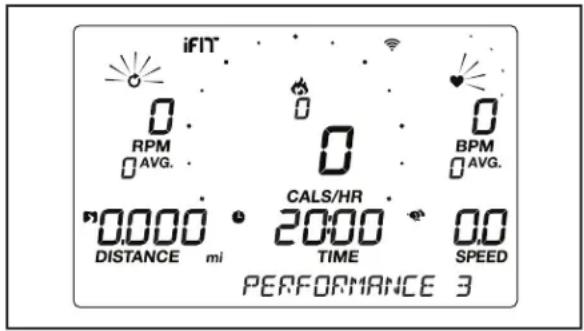

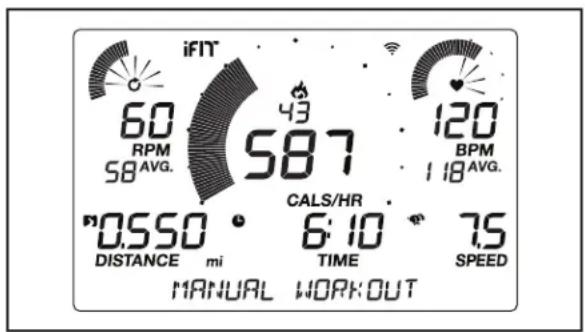

The display can show the following workout information:

Calories (flame icon)—This display will show the approximate number of calories you have burned.
Calories per Hour (Cals/Hr)—This display will show the approximate number of calories you are burning per hour.
Distance—This display will show the distance that you have pedaled in miles (mi) or kilometers (km).
Pulse (BPM)—This display will show your heart rate in beats per minute (bpm) when you use the handgrip heart rate monitor or the optional chest heart rate monitor (see step 5).
Pulse Average (BPM AVG)—This display will show your average heart rate in beats per minute (bpm) when you use the handgrip heart rate monitor or the optional chest heart rate monitor (see step 5).
Resistance—This display will show the resistance level of the pedals for a few seconds each time the resistance level changes.
RPM—This display will show your pedaling speed in revolutions per minute (rpm).
RPM Average (RPM AVG)—This display will show your average pedaling speed in revolutions per minute (rpm).
Speed—This display will show your pedaling speed in miles per hour or kilometers per hour.
Time—When the manual mode is selected, this display will show the elapsed time. When an onboard workout is selected, this display will show the time remaining in the workout.
Watts—This display will show your approximate power output in watts.
Average Watts (AVG.)—This display will show your approximate average power output in watts for the workout.
Scan Mode and Priority Mode—The calories and watts displays will appear in an alternating cycle (scan mode).

To select either the calories or the watts display for continuous display (priority mode), press the increase or decrease button next to the Enter button repeatedly until the desired display appears. To return to the scan mode, press the increase button repeatedly until the word SCAN appears.
Press the Home button to exit the workout and return to the main menu. If necessary, press the Home button again.
Press the End/Summary button to end the work-out and view a workout summary. The workout summary will appear in the displays for several seconds.
Change the volume level of the console by pressing the volume increase and decrease buttons.

5. Measure your heart rate if desired.
You can measure your heart rate using either the handgrip heart rate monitor or an optional chest heart rate monitor (see page 19 for information about the optional chest heart rate monitor). Note: The console is compatible with BLUETOOTH® Smart heart rate monitors.
Note: If you use both heart rate monitors at the same time, the chest heart rate monitor will have priority.

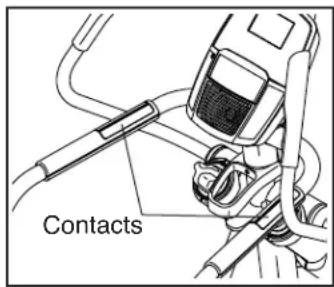

If there are sheets of plastic on the metal contacts on the handgrip heart rate monitor, remove the plastic. To measure your heart rate,

hold the handgrip heart rate monitor with your palms resting against the contacts. Avoid moving your hands or gripping the contacts tightly.
When your pulse is detected, your heart rate will appear in the display. For the most accurate heart rate reading, hold the contacts for at least 15 seconds.
6. Turn on the fan if desired.
The fan has several speed settings, including an auto mode. While the auto mode is selected, the speed of the fan will automatically increase or decrease as your exercise intensity increases or decreases. Press the fan increase and decrease buttons repeatedly to select a fan speed or to turn off the fan.

Note: If the pedals do not move for about 30 seconds, the fan will turn off automatically.
7. When you are finished exercising, the console will turn off automatically.
If the pedals do not move for several seconds, a tone will sound, the console will pause, and the time will flash in the display. To resume your work-out, simply resume pedaling.
If the pedals do not move for several minutes and the buttons are not pressed, the console will turn off and the display will be reset.
HOW TO USE AN ONBOARD WORKOUT
1. Begin pedaling or press any button on the console to turn on the console.
When you turn on the console, the display will turn on. The console will then be ready for use.
2. Select an onboard workout.
To select an onboard workout, press the Calorie Workouts button or the Performance Workouts button repeatedly until the desired workout appears in the display.
When you select an onboard workout, the display will show the name of the workout and the duration of the workout or the number of calories to be burned.

The the maximum speed and the maximum resistance level for the workout will also appear in the display.
3. Begin pedaling to start the workout.
Each workout is divided into one-minute segments. One resistance level and one target speed is programmed for each segment. Note: The same resistance level and/or target speed may be programmed for consecutive segments.
At the end of each segment of the workout, a series of tones will sound. If a different resistance level and/or target speed is programmed for the
next segment, the resistance level and/or target speed will appear in the display for a few seconds to alert you. The resistance of the pedals will then change.
As you exercise, keep your pedaling speed near the target speed for the current segment.
IMPORTANT: The target speed is intended only to provide motivation. Your actual pedaling speed may be slower than the target speed. Make sure to pedal at a speed that is comfortable for you.
If the resistance level for the current segment is too high or too low, you can manually override the setting by pressing the Resistance buttons. IMPORTANT: When the current segment of the workout ends, the pedals will automatically adjust to the resistance level programmed for the next segment.
The workout will continue in this way until the last segment ends. To pause the workout at any time, stop pedaling. The time will flash in the display. To resume the workout, simply resume pedaling.
To end the workout, press the End/Summary button. A summary of the workout will appear in the displays for several seconds.
4. Follow your progress with the displays.
See step 4 on page 15.
5. Measure your heart rate if desired.
See step 5 on page 16.
6. Turn on the fan if desired.
See step 6 on page 16.
7. When you are finished exercising, the console will turn off automatically.
See step 7 on page 16.
HOW TO CONNECT YOUR TABLET TO THE CONSOLE
The console supports BLUETOOTH connections to tablets via the iFit Bluetooth Tablet app and to compatible heart rate monitors. Note: Other BLUETOOTH connections are not supported.
1. Download and install the iFit Bluetooth Tablet app on your tablet.
On your iOS ^ or Android ^TM tablet, open the App Store ^SM or the Google Play ^TM store, search for the free iFit Bluetooth Tablet app, and then install the app on your tablet. Make sure that the BLUETOOTH option is enabled on your tablet.
Then, open the iFit Bluetooth Tablet app and follow the instructions to set up an iFit account and customize settings.
2. Connect your heart rate monitor to the console if desired.
If you are connecting both your heart rate monitor and your tablet to the console, you must connect your heart rate monitor before you connect your tablet. See HOW TO CONNECT YOUR HEART RATE MONITOR TO THE CONSOLE at the right.
3. Connect your tablet to the console.
Press the Bluetooth Smart button on the console; the console pairing number will appear in the display. Then, follow the instructions in the iFit Bluetooth Tablet app to connect your tablet to the console.
When a connection is established, the LED on the console will turn solid blue.
4. Record and track your workout information.
Follow the instructions in the iFit Bluetooth Tablet app to record and track your workout information.
5. Disconnect your tablet from the console if desired.
To disconnect your tablet from the console, first select the disconnect option in the iFit Bluetooth Tablet app. Then, press and hold the Bluetooth Smart button on the console until the LED on the console turns solid green.
Note: All BLUETOOTH connections between the console and other devices (including any tablets, heart rate monitors, and so forth) will be disconnected.
HOW TO CONNECT YOUR HEART RATE MONITOR TO THE CONSOLE
The console is compatible with all BLUETOOTH Smart heart rate monitors.
To connect your BLUETOOTH Smart heart rate monitor to the console, press the Bluetooth Smart button on the console; the console pairing number will appear in the display. When a connection is established, the LED on the console will flash red twice.
Note: If there is more than one compatible heart rate monitor near the console, the console will connect to the heart rate monitor with the strongest signal.
To disconnect your heart rate monitor from the console, press and hold the Bluetooth Smart button on the console until the LED on the console turns solid green.
Note: All BLUETOOTH connections between the console and other devices (including any tablets, heart rate monitors, and so forth) will be disconnected.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console sound system while you exercise, plug a 3.5 mm male to 3.5 mm male audio cable (not included) into the jack on the console and into a jack on your personal audio player; make sure that the audio cable is fully plugged in. Note: To purchase an audio cable, see your local electronics store.
Next, press the play button on your personal audio player. Adjust the volume level using the volume increase and decrease buttons on the console or the volume control on your personal audio player.

THE OPTIONAL CHEST HEART RATE MONITOR

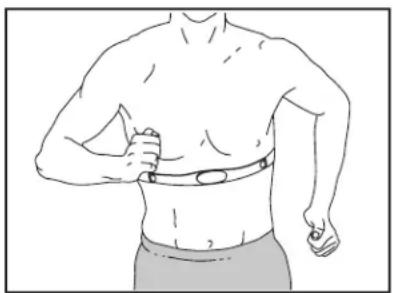

Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the best results is to maintain the proper heart rate during your
Note: The console is compatible with all BLUETOOTH Smart heart rate monitors.
HOW TO CHANGE CONSOLE SETTINGS
1. Select the settings mode.
To select the settings mode, press the Settings button. The settings information will appear in the display.
2. Navigate the settings mode.
While the settings mode is selected, the display will show several optional screens. Press the increase and decrease buttons near the Enter button repeatedly to select the desired optional screen.
The lower section of the display will show instructions for the selected screen. Make sure to follow the instructions shown in the lower part of the display.
3. Change settings as desired.
Units—The currently selected unit of measurement will appear in the display. To change the unit of measurement, press the Enter button repeatedly. To view distance in miles, select ENGLISH. To view distance in kilometers, select METRIC.
Contrast Level—The currently selected contrast level will appear in the display. Press the Resistance increase and decrease buttons to adjust the contrast level.
Usage Information—The display will show the total number of hours that the elliptical has been used and the total distance (in miles or kilometers) that has been pedaled on the elliptical.
4. Exit the settings mode.
Press the Settings button to exit the settings mode.
MAINTENANCE AND TROUBLESHOOTING
MAINTENANCE
Regular maintenance is important for optimal performance and to reduce wear. Inspect and properly tighten all parts each time the elliptical is used. Replace any worn parts immediately.
To clean the elliptical, use a damp cloth and a small amount of mild soap. IMPORTANT: To avoid damage to the console, keep liquids away from the console and keep the console out of direct sunlight.
CONSOLE TROUBLESHOOTING
If lines appear in the console display, see HOW TO CHANGE CONSOLE SETTINGS on page 19 and adjust the contrast level of the display.
If the console does not display your heart rate when you hold the handgrip heart rate monitor, or if the displayed heart rate appears to be too high or too low, see step 5 on page 16.
If a replacement power adapter is needed, call the telephone number on the cover of this manual. IMPORTANT: To avoid damaging the console, use only a manufacturer-supplied regulated power adapter.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks slightly on your floor during use, see HOW TO LEVEL THE ELLIPTICAL on page 12.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the reed switch should be adjusted. Before you adjust the reed switch, unplug the power adapter.

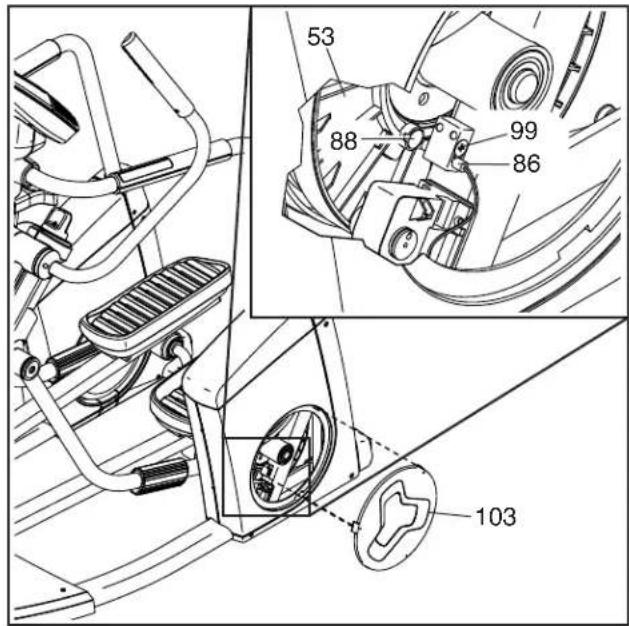

Using a standard screwdriver, carefully pry off the Left Shield Disc (103).

Next, locate the Reed Switch (86). Move the pedals until one of the Magnets (88) on the Pulley (53) is aligned with the Reed Switch. Then, loosen the M5 x 16mm Flat Head Screw (99), slide the Reed Switch slightly toward or away from the Magnet, and retighten the Flat Head Screw.
Plug in the power adapter and move the pedals forward and backward slightly so that the Magnet (88) passes the Reed Switch (86) repeatedly. Repeat these actions until the console displays correct feedback.
When the Reed Switch (86) is correctly adjusted, unplug the power adapter. Then, reattach the Left Shield Disc (103) and plug in the power adapter.
HOW TO ADJUST THE DRIVE BELT
If the pedals slip while you are pedaling, even while the resistance is adjusted to the highest level, the drive belt may need to be adjusted. Before you adjust the drive belt, unplug the power adapter.

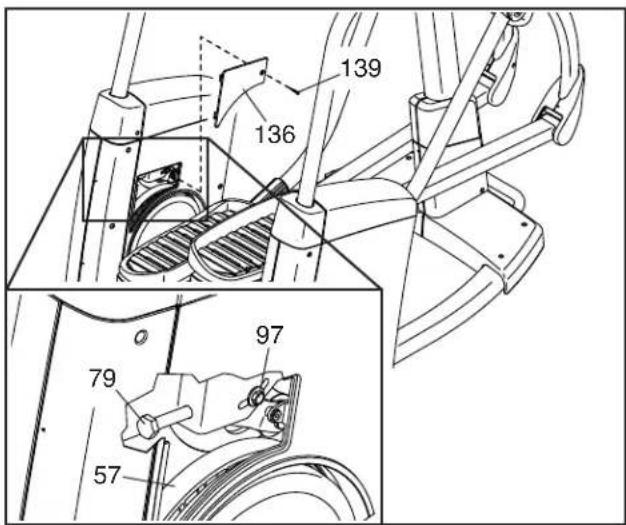

Next, remove the indicated M4 x 12mm Screw (139) and the Access Cover (136).

Loosen the Pivot Screw (97), tighten the Belt Adjustment Screw (79) until the Drive Belt (57) is tight, and then retighten the Pivot Screw.
When the Drive Belt (57) is tight, reattach the Access Cover (136). Then, plug in the power adapter.
EXERCISE GUIDELINES
WARNING: Before beginning this or any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems.
The heart rate monitor is not a medical device. Various factors may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determining heart rate trends in general.
These guidelines will help you to plan your exercise program. For detailed exercise information, obtain a reputable book or consult your physician. Remember, proper nutrition and adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your heart rate as a guide to find the proper intensity level. The chart below shows recommended heart rates for fat burning and aerobic exercise.
| 165 | 155 | 145 | 140 | 130 | 125 | 115 | |
| 145 | 138 | 130 | 125 | 118 | 110 | 103 | |
| 125 | 120 | 115 | 110 | 105 | 95 | 90 | |
| 20 | 30 | 40 | 50 | 60 | 70 | 80 |
To find the proper intensity level, find your age at the bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your age define your “training zone.” The lowest number is the heart rate for fat burning, the middle number is the heart rate for maximum fat burning, and the highest number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses carbohydrate calories for energy. Only after the first few minutes of exercise does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest number in your training zone. For maximum fat burning, exercise with your heart rate near the middle number in your training zone.
Aerobic Exercise—If your goal is to strengthen your cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching and light exercise. A warm-up increases your body temperature, heart rate, and circulation in preparation for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise; never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each week, if desired. Remember, the key to success is to make exercise a regular and enjoyable part of your everyday life.

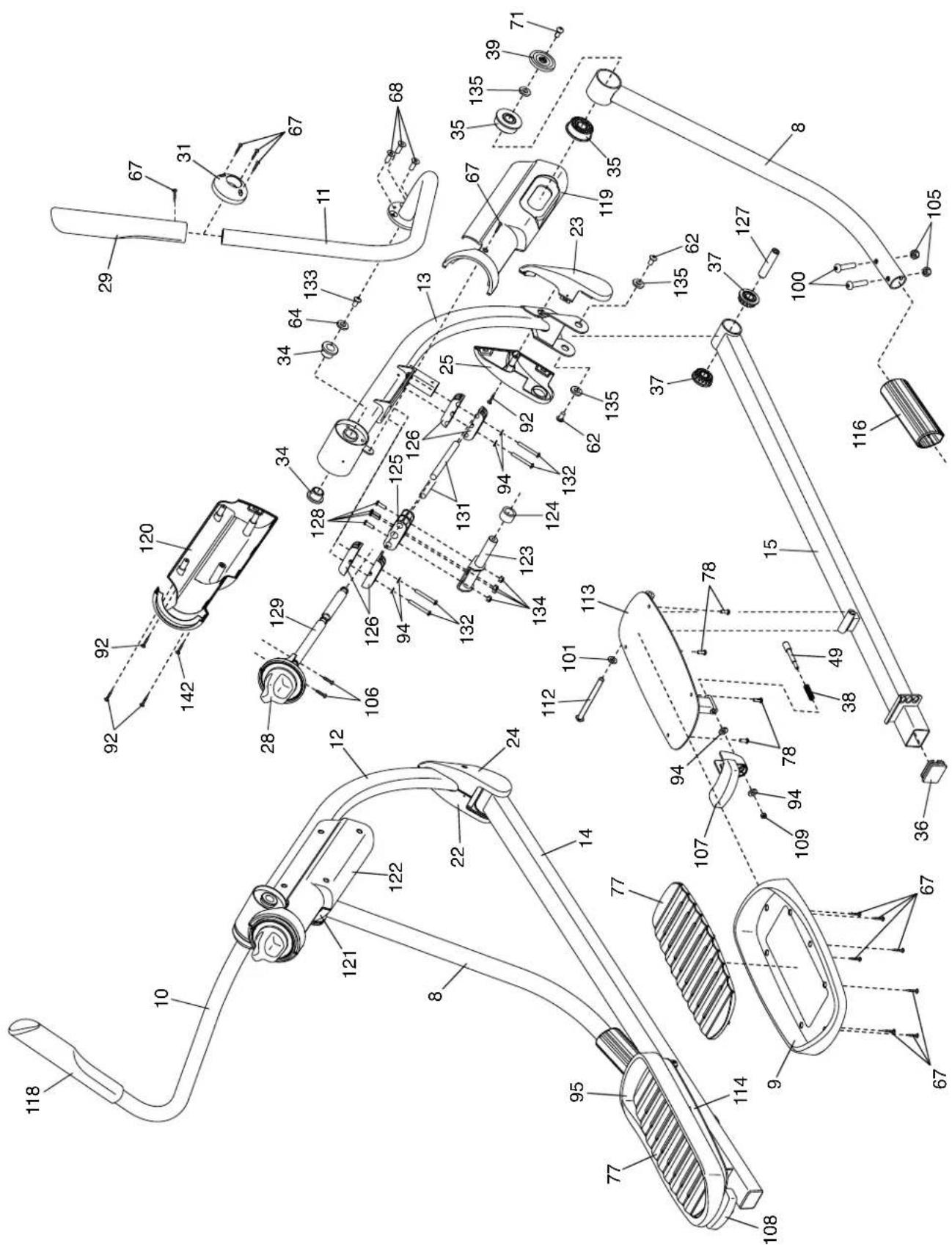

PART LIST
Key No. Qty. Description
1 1 Frame
2 1 Upright
3 1 Console
4 1 Left Handrail
5 1 Right Handrail
6 1 Left Handrail Cover
7 1 Right Handrail Cover
8 2 Link Arm
9 1 Right Pedal
10 1 Left Handlebar
11 1 Right Handlebar
12 1 Left Handlebar Arm
13 1 Right Handlebar Arm
14 1 Left Pedal Arm
15 1 Right Pedal Arm
16 1 Left Outer Shield
17 1 Right Outer Shield
18 1 Left Inner Shield
19 1 Right Inner Shield
20 1 Front Upright Cover
21 1 Rear Upright Cover
22 1 Left Outer Arm Cover
23 1 Right Outer Arm Cover
24 1 Left Inner Arm Cover
25 1 Right Inner Arm Cover
26 1 Water Bottle Holder
27 1 Holder Cap
28 2 Adjustment Knob/Set Screw
29 1 Right Grip
30 1 Resistance Motor
31 2 Handlebar Cover
32 1 Idler
33 2 Frame Foot
34 4 Handlebar Arm Bushing
35 4 Link Arm Bushing
36 2 Pedal Arm Cap
37 4 Pedal Arm Bushing
38 2 Spring
39 2 Link Arm Cap
40 1 Crank
41 1 Left Crank Bracket
42 2 Crank Cover Insert
43 2 Link Arm Bracket
44 8 Crank Bearing
45 2 Thrust Washer
46 2 Pedal Arm Roller
47 2 Large Crank Spacer
48 2 Crank Cover
49 2 Adjustment Pin
50 4 Frame Bearing
Key No. Qty. Description
51 2 Wheel
52 2 Leveling Foot
53 1 Pulley
54 1 Right Frame Cover
55 1 Eddy Mechanism
56 1 Left Frame Cover
57 1 Drive Belt
58 2 M8 Jam Nut
59 2 M8 x 28mm Washer
60 1 Right Upright Cover
61 12 M8 x 20mm Screw
62 8 M8 x 16mm Screw
63 1 Right Shield Disc
64 2 M10 Washer
65 2 M12 x 55mm Hex Bolt
66 2 M12 Locknut
67 60 M4 x 16mm Screw
68 6 M8 x 25mm Flat Head Screw
69 2 M10 x 65mm Screw
70 4 M4 x 12mm Round Head Screw
71 4 M8 x 14mm Shoulder Screw
72 4 Resistance Motor Screw
73 1 Right Frame Post Cover
74 1 Small Snap Ring
75 1 Left Frame Post Cover
76 1 Right Shield Cover
77 2 Pedal Insert
78 8 M6 x 12mm Screw
79 1 Belt Adjustment Screw
80 1 Right Pulse Wire
81 1 Upper Wire
82 1 Lower Wire
83 1 Power Receptacle/Wire
84 1 Power Adapter
85 1 Left Pulse Wire
86 1 Reed Switch/Wire
87 1 Clamp
88 2 Magnet
89 2 Upper Pulse Grip
90 2 Lower Pulse Grip
91 2 Large Snap Ring
92 9 M4 x 38mm Screw
93 1 Idler Screw
94 12 M6 Washer
95 1 Left Pedal
96 1 Left Upright Cover
97 1 Pivot Screw
98 1 Left Crank Bracket Spacer
99 1 M5 x 16mm Flat Head Screw
100 4 M10 x 50mm Bolt
Key No. Qty. Description
| 101 2 M10 Split Washer | 127 2 Pedal Arm Axle |
| 102 1 Left Shield Cover | 128 8 M6 x 36mm Bolt |
| 103 1 Left Shield Disc | 129 2 Adjustment Assembly |
| 104 1 Left Shield Insert | 130 4 M8 x 45mm Bolt |
| 105 7 M10 Locknut | 131 4 Guide Rod |
| 106 10 M4 x 19mm Screw | 132 8 M6 x 45mm Screw |
| 107 1 Right Pedal Handle | 133 2 M10 x 20mm Screw |
| 108 1 Left Pedal Handle | 134 8 M6 Locknut |
| 109 2 M6 Acorn Nut | 135 6 M8 Washer |
| 110 2 Cover Clip | 136 1 Access Cover |
| 111 4 M8 Locknut | 137 1 M6 Large Washer |
| 112 2 M10 x 123mm Screw | 138 4 M8 Split Washer |
| 113 1 Right Pedal Plate | 139 9 M4 x 12mm Screw |
| 114 1 Left Pedal Plate | 140 6 M4 x 30mm Screw |
| 115 1 Right Shield Insert | 141 2 M4 x 25mm Screw |
| 116 2 Link Arm Cover | 142 4 M4 x 48mm Screw |
| 117 1 M10 x 46mm Bolt | 143 1 Right Crank Bracket |
| 118 1 Left Grip | 144 1 Right Crank Bracket Spacer |
| 119 1 Right Outer Adjustment Cover | 145 1 Tablet Holder |
| 120 1 Right Inner Adjustment Cover | 146 4 #8 x 12mm Screw |
| 121 1 Left Outer Adjustment Cover | 147 2 Small Crank Spacer |
| 122 1 Left Inner Adjustment Cover | 148 2 M8 x 16mm Hex Screw |
| 123 2 Link Arm Bracket | 149 2 Frame Spacer |
| 124 2 Link Arm Spacer | * - Assembly Tool |
| 125 2 Sliding Block | * - User's Manual |
| 126 4 End Block Assembly | * - Grease Packet |
Key No. Qty. Description
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of this manual. *These parts are not illustrated.



ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us:
- the model number and serial number of the product (see the front cover of this manual)
- the name of the product (see the front cover of this manual)
- the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING near the end of this manual)
RECYCLING INFORMATION
This electronic product must not be disposed of in municipal waste. To preserve the environment, this product must be recycled after its useful life as required by law.
Please use recycling facilities that are authorized to collect this type of waste in your area. In doing so, you will help to conserve natural resources and improve European standards of environmental protection. If you require more information about safe and correct disposal methods, please contact your local city office or the establishment where you purchased this product.
