WCM702PW - Waffle Maker GORENJE - Free user manual and instructions

Product Type	Waffle Maker
Brand	Gorenje
Model	WCM702PW
Color	White
Voltage	220-240 V
Frequency	50-60 Hz
Current Rating	≥ 10 A
Removable Cooking Plates	Yes
Non-Stick Coating	Yes
Number of Plates	2 (upper and lower)
Indicator Lights	Power and Ready
Locking Lid	Yes
Handle	Yes, with locking mechanism
Cord Storage	Yes, wrap around base
Cleaning Method	Wipe with damp cloth
Storage Orientation	Horizontal or vertical
Safety Features	Auto shut-off? Not specified, but hot surface warning
Material	Plastic housing, metal cooking plates
Weight	Approx. 2 kg
Dimensions (approx.)	25 x 20 x 10 cm

Frequently Asked Questions - WCM702PW GORENJE

How do I use the waffle maker for the first time?

Before first use, turn on the appliance without food and let it heat for at least 10 minutes to burn off any residues. Air the room if smoke appears. This is normal.

Can I wash the cooking plates in the dishwasher?

No, the plates are removable but should be cleaned with a damp cloth only. Do not immerse in water or use abrasive cleaners.

How do I know when the waffle maker is ready?

The power light turns on when plugged in. The ready light turns off when the appliance reaches the correct temperature, indicating it is ready to use.

Can children use this waffle maker?

Children aged 8 and above can use it under supervision. The appliance gets very hot — risk of burns. Keep out of reach of children under 8.

What should I do if the power cord is damaged?

The cord must be replaced by Gorenje, an authorized service center, or a similarly qualified person to avoid hazards.

How do I remove the cooking plates for cleaning?

Unplug the appliance, let it cool completely, open the lid, push the fixing clip, and remove the plate.

What type of utensils should I use?

Use wooden or plastic forks or spatulas to avoid scratching the non-stick coating. Do not use metal or sharp objects.

How do I store the waffle maker?

Wind the cord around the storage facility and store in a horizontal or vertical position in a dry place out of reach of children.

What does the warranty cover?

The warranty covers manufacturing defects. For service, contact your local Gorenje customer care center or dealer.

Is the waffle maker suitable for making other foods?

Yes, it can also be used as a cupcake maker (as mentioned in the manual). Follow the same guidelines for batter consistency and cooking time.

USER MANUAL WCM702PW GORENJE

Waffle and cupcake maker

SPLOŠNI OPIS (SI. 1)

1. ROČAJ
2. INDIKATOR DELOVANJA
3. INDIKATOR SEGREVANJA
4. ZGORNJA GRELNA PLOŠČA
5. SPODNJA GRELNA PLOŠČA
6. OHIŠJE
7. ZAPIRALO

VARNOSTNA OPOZORILA

Važno opozorilo!

Aparat se med delovanjem segreva - Nevarnost opeklin! Pred shranjevanjem počakajte, da se aparat popolnoma ohladi!

Line drawing of a waffle or salt bath with multiple circular cavities and an open lid (no text or symbols)

ČIŠČENJE

Line drawing of a waffle grill with multiple panes and one side panel, showing internal structure (no text or symbols)

ČIŠĆENJE

• Prije čišćenja prekinite dovod električne energije u uređaj i ostavite da se uređaj ohladi.
• Otvorite uređaj i ploče očistite vlažnom krpom.
• Vanjštinu uređaja očistite vlažnom krpom. Nemojte koristiti agresivna sredstva niti tvrđe materijale, jer ćete oštetiti vanjski dio kućišta uređaja.

ČUVANJE

Line drawing of a waffle-shaped appliance with multiple circular cavities (no text or symbols)

ČIŠĆENJE

• Pre čišćenja prekinite dovod električne energije u aparat i ostavite aparat da se ohladi.
• Otvorite aparat i ploče očistite vlažnom krpom.
• Spoljašnjost aparata očistite vlažnom krpom. Nemojte koristiti agresivna sredstva niti tvrđe materijale, jer ćete oštetiti spoljni deo kućišta aparata.

ČUVANJE

Omotajte priključni kabl oko dela za slaganje kabla, te postavite aparat u horizontalan ili vertikalan položaj, te ga odložite na suvo mesto, gde ćete ga držati izvan domašaja dece.

OKOLINA

Line drawing of a waffle-shaped appliance with multiple circular cavities (no text or symbols)

ЧИСТЕЊЕ

Appliance is hot when turned on – beware of skin burn! Allow the appliance to cool down completely before storing it away.

• Read carefully the instructions before first use.
• Never connect this appliance to an external timer switch or remote control system in order to avoid a hazardous situation.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Use the appliance only for the usage it is made for. Do not remake any of its components.
• The appliance is intended for household use only.
• Make sure the power cord does not touch any hot parts of the appliance.
• Clean well before first use.
• Before the cooking plates are mounted check if the are totally dry.
• Keep out of reach of children. Do not leave unattended while turned on.
• Always unplug:
• Before storing or taking off the cooking plates,
• Before cleaning,
• After use.
• Always use certified lengthening cords.
• For indoor use only.
• To disconnect the plug pull the plug not the cord.
• Turn on after the cooking plates have been fixed.

- Cool to room temperature before storing.

- Do not touch the cooking plates with metal or other sharp objects.

- If the mains cord is damaged, you must have it replaced by Gorenje, a service centre authorised by Gorenje or similarly qualified persons in order to avoid a hazard.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

FIRST USE

• Make sure the appliance was not damaged in transport.
• Put the appliance on a firm, dry hard base out of reach of children. High temperatures when plugged on!!!
• Make sure:
• The electrical voltage and frequency is suitable. Check the rating plate for reference.
  • The current is at least 10A.
  • The plug is suitable to the socket.
• The plug is grounded. The manufacturer does not take any responsibility for misuse.
• Before first use turt on the appliance and let it heat up without food for at least 10 minutes. Air the room if any unwanted smell. The appliance may produce some smoke when you use it for the first time. This is normal.

HOW TO USE YOUR APPLIANCE

• Close the appliance and put the plug in the wall socket. The power light and the heating light go on
• The appliance is ready for use when the ready light goes off.
• Open the appliance and put the food on lower plate.
• Close the lid and lock it.
• Open the appliance after 3-6 minutes to check whether the food is golden brown.
• Remove the food with wooden or plastic fork in order not to damage the coated plates.

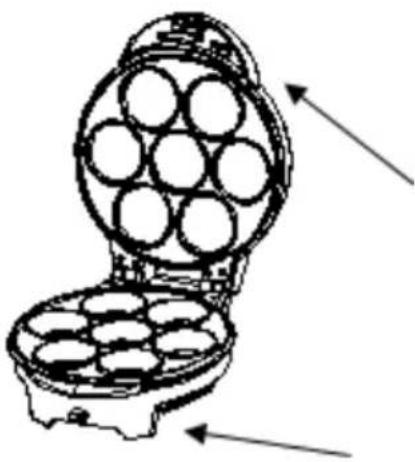

REMOVING THE COOKING PLATES

• Unplug the appliance.
• Wait for it to cool down to room temperature.
• Open the appliances.
• Push the fixing clip and remove the plate.

Line drawing of a waffle grill with multiple circular cavities (no text or symbols)

CLEANING

Before cleaning cool the appliance to room temperature.

Open the appliance and the plates clean with a damp cloth.

The outside of the appliance clean with a damp cloth. Do not use any aggressive cleaning materials.

STORAGE

Wind the mains cord round the storage facility and store the appliance in vertical or horizontal position. Store the appliance in a dry place out of reach of children.

ENVIRONMENT

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

GUARANTEE & SERVICE

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

WE WISH YOU MANY JOY WITH USING THE GORENJE APPLIANCE!

We reserve the right to any modifications!

Line drawing of a waffle oven with multiple circular cavities (no text or symbols)

CZYSZCZENIE

Line drawing of a waffle grill with multiple panes and decorative base (no text or symbols)

CURĂȚARE

Line drawing of a waffle grill with multiple panes and a tray (no text or symbols)

ČIŠTĚNÍ

Line drawing of a waffle or saltander with multiple circular cavities and an open lid, showing internal structure and directional arrows (no text or symbols)

ČISTENIE

Line drawing of a waffle-shaped appliance with multiple circular cavities (no text or symbols)

ЧИЩЕННЯ

Line drawing of a waffle grill with multiple panes and decorative base (no text or symbols)

TISZTÍTÁS

Line drawing of a waffle-shaped appliance with multiple circular cavities (no text or symbols)

ПОЧИСТВАНЕ

Line drawing of a waffle grill with multiple panes and decorative base (no text or symbols)

ОЧИСТКА

Line drawing of a waffle-shaped appliance with multiple circular cavities (no text or symbols)

Line drawing of a waffle-shaped appliance with multiple circular cavities (no text or symbols)

NETTOYAGE
