CG1451 - Coffee grinder Salton - Free user manual and instructions

Product Type	Coffee Grinder
Brand	Salton
Model	CG1451
Dimensions (approx.)	10 x 10 x 20 cm (3.9 x 3.9 x 7.9 inches)
Weight	0.5 kg (1.1 lbs)
Power Supply	AC 120V / 60Hz (US) or AC 220-240V / 50Hz (EU)
Power Consumption	150 W
Bean Capacity	Approx. 100 g (3.5 oz)
Grinding Mechanism	Stainless steel blades
Operation	Pulse action via push button
Bowl Material	Stainless steel or plastic (depending on version)
Removable Bowl	Yes
Safety Features	Lid safety lock; motor stops when lid is removed
Cleaning	Wipe with damp cloth; do not immerse in water
Spare Parts Available	Replacement bowl, lid, blade assembly
Repairability	Spare parts available; user-replaceable blade assembly

Frequently Asked Questions - CG1451 Salton

How do I use the Salton CG1451 coffee grinder?

Fill the bowl with coffee beans up to the max line, place the lid securely, and press the button in short pulses for desired grind consistency. Release the button to stop.

Can I grind other ingredients besides coffee beans?

The Salton CG1451 is designed primarily for coffee beans. Grinding spices or nuts may affect flavor and is not recommended.

How do I clean the coffee grinder?

Unplug the grinder. Wipe the bowl, lid, and blades with a damp cloth. Do not immerse the base or any part in water. Dry thoroughly before reuse.

What is the maximum capacity of the bowl?

The bowl holds up to approximately 100 grams (3.5 ounces) of whole coffee beans. Do not overfill.

Why does the grinder stop when I remove the lid?

The Salton CG1451 has a safety lock feature that automatically stops the motor when the lid is removed. This prevents accidental operation.

Can I use the grinder continuously for a long time?

The grinder is designed for short bursts. Do not run continuously for more than 30 seconds; let it cool down between uses.

What should I do if the blades become dull or damaged?

Replacement blade assemblies are available. Contact Salton customer service or check online retailers for spare parts.

How do I adjust the grind size?

The grind size is controlled by the duration of the pulses. Short pulses produce coarser grind; longer pulses produce finer grind.

Is the grinder suitable for espresso?

For espresso, a very fine grind is needed. This grinder can achieve fine grind, but consistency may vary. Adjust pulse time accordingly.

Where can I download the user manual?

The user manual for the Salton CG1451 is available for free in PDF format on notice-facile.com. Go to the product page and click download.

USER MANUAL CG1451 Salton

Abstract gray circular shape with a stylized 'S' in the center, no text or symbols present.

salton®

coffee, spice & herb grinder

Exterior view of a modern salton graser with control knobs and a clear lid (no text or symbols on the device itself)

Instruction Booklet

Model CG1451

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions carefully before use.
2. Never leave the appliance unattended while plugged into the wall outlet.
3. To protect against electrical hazards, do not immerse cord, plug or appliance in water or any other liquid or place in the dishwasher.
4. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
5. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
6. Unplug from outlet when not in use, when removing or putting on parts and before cleaning.
7. DO NOT operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the manufacturer for examination, repair or electrical or mechanical adjustment. All servicing, other than cleaning, should be performed by an authorized service representative. See Warranty section.
8. The use of accessories or attachments not recommended by Salton may cause hazards.
9. DO NOT use outdoors.
10. DO NOT let cord hang over edge of table or counter, or touch hot surfaces.
11. Do not use appliance for other than intended use.
12. Do not place on or near a hot gas or electric burner or in a heated oven.
13. Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to 'OFF', then remove plug from the wall outlet.
14. To avoid overheating the motor, do not use the Grinder continuously for more than 1 minute.

15. To avoid injury to persons and damage, always unplug the appliance and wait for the motor to stop completely, immediately after use and before assembling/disassembling or cleaning.

16. Never put your hands, wooden spoons or other foreign substances into the Grinding Bowl when the Grinding Bowl is assembled or the appliance is connected to the wall outlet.

17. Before using, ensure there are no foreign objects in the Grinder.

SAVE THESE INSTRUCTIONS

HOUSEHOLD USE ONLY

POLARIZED PLUG

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.

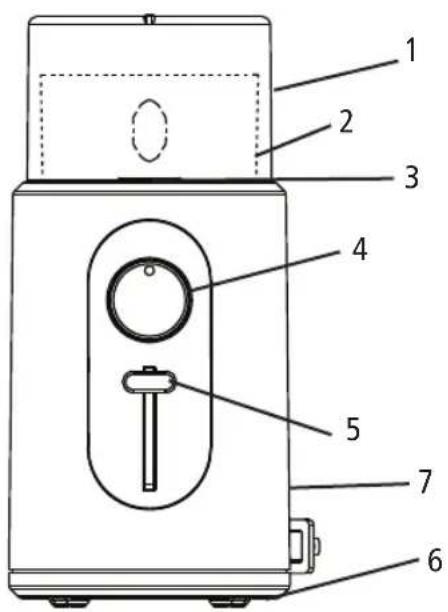

DESCRIPTION OF PARTS

1. Cover
2. Grinding Bowl
3. Start Button
4. Grind Selector Knob
5. Timer
6. Winding Wheel (cord storage)
7. Base

BEFORE FIRST USE

1. Remove all packaging.
2. Turn the Cover counterclockwise and remove.
3. Turn the Grinding Bowl counterclockwise and remove.
4. Wash both pieces in warm soapy water. Rinse and dry.

IMPORTANT: Be careful when wiping out the Grinding Chamber Bowl, the blade is very sharp.

1. Follow the instructions in the Care and Cleaning section to reassemble the appliance.

HOW TO USE

1. Turn the Cover counterclockwise and remove.
2. Ensure that the Grinding Bowl is empty and clean then pour whole coffee beans into the Grinding Bowl and fill to the desired level. (NOTE: The cup measurements are marked on the inside of the Grinding Bowl. The minimum is the 2 cup level, maximum is the 12 cup level. NEVER fill above the MAX level). Do not exceed 90g or 3.1 oz of coffee beans.
3. Place the Grinding Bowl and the Cover on the appliance. See the assembly instructions in the Care and Cleaning section. NOTE: The Coffee Grinder will not operate if the Cover and Grinding Bowl are not in the locked position.
4. Turn the Grind Selector Knob to the desired setting, coarse to fine.
5. Choose the desired number of cups on the timer.
6. Plug the Grinder into the wall outlet and press the Start button. Release the Button when the grinding has begun and the Grinder will stop automatically when the grinding is complete.

NOTE: To stop the grinding cycle at any time, push the Start Button. If the Start Button is pressed again, the Grinder will start from the beginning of the timed cycle.

IMPORTANT: Do not remove the Cover until the blades have stopped moving.

1. Remove the plug from the wall outlet.
2. Remove the Cover by turning counterclockwise.

3. Turn the Grinding Bowl counterclockwise and remove. You will hear a click when the Grinding Bowl is unlocked.

4. Use the coffee grounds immediately or place in an airtight container for storage.

5. Follow the instructions in the Care and Cleaning section.

GRIND SELECTOR CONTROL

The Grind Selector Control has 5 settings from coarse to fine. The setting that you choose will influence the strength of coffee.

• Coarse: coarse grained for percolators
• First mark: medium grained for French press coffee makers
  • Second mark: fine grained for filter coffee makers
• Third mark: extra fine grained for espresso, latte macchiato and cappuccino
• Fine: super fine grained for Turkish coffee

IMPORTANT: Please note that the grinder will pause when grinding in the Coarse and First Mark settings.

Coffee Beans

Experimenting with the Grinder will enable you to get exactly the grind you prefer for your coffee. A fine grind exposes more surface to the water and therefore a more rapid rate of extraction of flavour. A coarser grind, which exposes little surface, is appropriate for the longer brewing cycle of percolators. Check your coffee maker instructions for the type of grind that is best.

For the freshest, most robust cup of coffee, grind only enough coffee for the pot you are making. If you are making a large pot, you may need to grind in two batches. Coffee beans will keep up to 2 months in the freezer (in an airtight container) and can be ground while still frozen. Fresh beans will yield the best flavour and aroma.

Tips for making espresso:

a) The coffee must be finely ground but not too fine. The correct grind should look gritty like salt or sand.
b) If the grind is too fine, the water will not flow through the coffee when brewing.
c) If the grind is too coarse, the water will flow through too fast.

1. Use the coffee grounds immediately or place in an airtight container for storage.
2. Follow the instructions in the Care and Cleaning section.

GRIND SELECTOR CONTROL

The Grind Selector Control has 5 settings from coarse to fine. The setting that you choose will influence the strength of coffee.

• Coarse: coarse grained for percolators
• First mark: medium grained for French press coffee makers
  • Second mark: fine grained for filter coffee makers
• Third mark: extra fine grained for espresso, latte macchiato and cappuccino
• Fine: super fine grained for Turkish coffee

Coffee Beans

Experimenting with the Grinder will enable you to get exactly the grind you prefer for your coffee. A fine grind exposes more surface to the water and therefore a more rapid rate of extraction of flavour. A coarser grind, which exposes little surface, is appropriate for the longer brewing cycle of percolators. Check your coffee maker instructions for the type of grind that is best.

For the freshest, most robust cup of coffee, grind only enough coffee for the pot you are making. If you are making a large pot, you may need to grind in two batches. Coffee beans will keep up to 2 months in the freezer (in an airtight container) and can be ground while still frozen. Fresh beans will yield the best flavour and aroma.

Tips for making espresso:

a) The coffee must be finely ground but not too fine. The correct grind should look gritty like salt or sand.

b) If the grind is too fine, the water will not flow through the coffee when brewing.

c) If the grind is too coarse, the water will flow through too fast.

Herbs and Spices

Herbs and spices take on a fresh, more flavourful taste when freshly ground. Dried herbs can be combined and ground for a few seconds giving them move flavour. Peppercorns, when freshly ground, taste totally different from canned pre-ground pepper. Spices such as allspice, cardamom, celery seed, mustard seed & coriander seed grind very well.

Not Recommended

The Grinder will grind most dry or brittle substances. It WILL NOT grind anything which is moist, gummy or extremely hard (chocolate, nuts, whole nutmeg, candied ginger, etc.). It will not make pastes of any kind from seeds such as sunflower or sesame.

Grinding cinnamon, cloves and nutmeg is not advised as the oils and hardness can cause the plastic lid to pitt, discolor or crack. Grains such as corn, wheat, rice barley and rye may also cause damage to the Lid. Chopping, mincing or pureeing of soft foods is not recommended.

HELPFUL HINTS

1. Do not operate this appliance for longer than 1 minute at a time as this could cause overheating. Allow to cool for at least a few minutes after each use. Allow the appliance to cool down for 10 – 15 minutes after 1 minute of continuous use.
2. Do not force when the blade stalls as there could be a foreign substance wedged in the blade. Turn the appliance off, UNPLUG from the wall outlet and follow the instructions in the Before First Use section.
3. For best flavour, store coffee beans in an airtight container.
4. Grind coffee beans immediately before brewing.
5. The strength of the coffee depends on the grind fineness and the amount of coffee grounds. The finer the coffee grinds and the more ground coffee that is used, the stronger the taste.
6. Coffee flavour and strength is a personal preference. Vary the type of coffee beans, the amount of coffee and the fineness of the grind to find the flavour you prefer.

CARE AND CLEANING

Assembly

WARNING: To avoid injury to persons and damage, always unplug the appliance and wait for the motor to stop completely, immediately after operation and before assembling/disassembling or cleaning the appliance. UNPLUG FROM THE WALL OUTLET.

Before each use, ensure the Grinding Bowl is empty and all parts are clean.

1. Assemble the Grinding Bowl by lining up the 3 tabs on the Grinding Bowl with the 3 slots in the top of the Base and turn the Grinding Bowl clockwise. You will hear a click when the Grinding Bowl is seated correctly in the Base.
2. Place the Cover onto the Grinding Bowl by aligning the 3 tabs on the Cover with the 3 slots in the Base. Turn the Cover clockwise.
   NOTE: The Coffee Grinder will not operate without the Cover and Grinding Bowl in the locked position.

Power Cord

To retract the power cord, turn the wheel underneath the Base clockwise. To unwind the cord, gently pull the plug/power cord straight out from the Base.

Cleaning

1. Remove the Cover by turning it counterclockwise and lifting up.
2. Remove the Grinding Bowl by turning it counterclockwise and lifting up.
3. Wash the Cover and Grinding Bowl in warm soapy water. Rinse and dry. The Cover and Grinding Bowl can also be washed in the dishwasher.
   IMPORTANT: Be careful when wiping out the Grinding Bowl, the blade is very sharp.
4. Wipe the outside of the appliance with a cloth dampened in warm soapy water. Ensure that water or any other liquids do not to spill or drip on the Base. NEVER poke with anything into the Base. If necessary use a small brush to clean the top of the Base. If water enters the Base, have the unit checked by an authorized service center. (See warranty)
   NOTE: Do not use abrasives.

A short supply cord is provided to reduce the hazards of becoming entangled in or tripping over a long cord. Extension cords may be used if care is exercised in their use. If an extension cord is used, the marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance. If the appliance is of the grounded type, the extension cord should be a grounded 3-wire cord. The extension cord should be arranged so that it will not drape over the counter top or table top, where it can be pulled on by children or tripped over.

LIMITED WARRANTY

**The original sales receipt is the only acceptable proof of purchase**

Salton Canada warrants that this appliance shall be free from defects in material and workmanship for a period of two (2) years from the date of original purchase. Salton Canada, at its sole discretion during this warranty period, will repair or replace a defective product or issue a refund. Any refund to the purchaser will be at a pro-rated value based on the remaining period of the warranty. All liability is limited to the amount of the purchase price. This warranty covers normal domestic usage and does not cover damage which occurs in shipment or failure which results from alteration, accident, misuse, abuse, glass breakage, neglect, improper maintenance, use contrary to the operating instructions or commercial use. This warranty is not available to retailers or other commercial purchasers or owners.

This warranty does not include the cost of shipping, which is to be borne by the customer.

TO OBTAIN PROMPT WARRANTY SERVICE:

Contact one of our many Service Centers found on our website www.salton.com/customer-care

or

Securely package and return the appliance to us. Please enclose:

• Original proof of purchase
- The completed form below with a \$12.50 Return Shipping & Handling fee – either a cheque, money order or credit card (A personal cheque will delay return shipping by 2-3 weeks)

For added protection, we suggest that you use an insured delivery service with tracking information when returning your product. Salton Canada will not be held responsible for in-transit damage or for packages that are not received.

This warranty does not include the cost of shipping, which is to be borne by the customer.

Name

Address

City

Prov/State

Postal/Zip

Code

Daytime

Phone

No.

Email

Product defect:

Type of payment

Cheque/Money Order □

Visa □

MasterCard □

Name on card

Expiry Date CSV No

Card No.

To contact our Customer Service Department:

SALTON CANADA Telephone: [phone] (Ext. 226)

81A Brunswick,

E-mail: [e-mail]

Dollard-des-Ormeaux, Quebec H9B 2J5

Fax: [phone]

Canada

www.salton.com
